Infiniti Jx35 (2013 year). Instruction - part 1

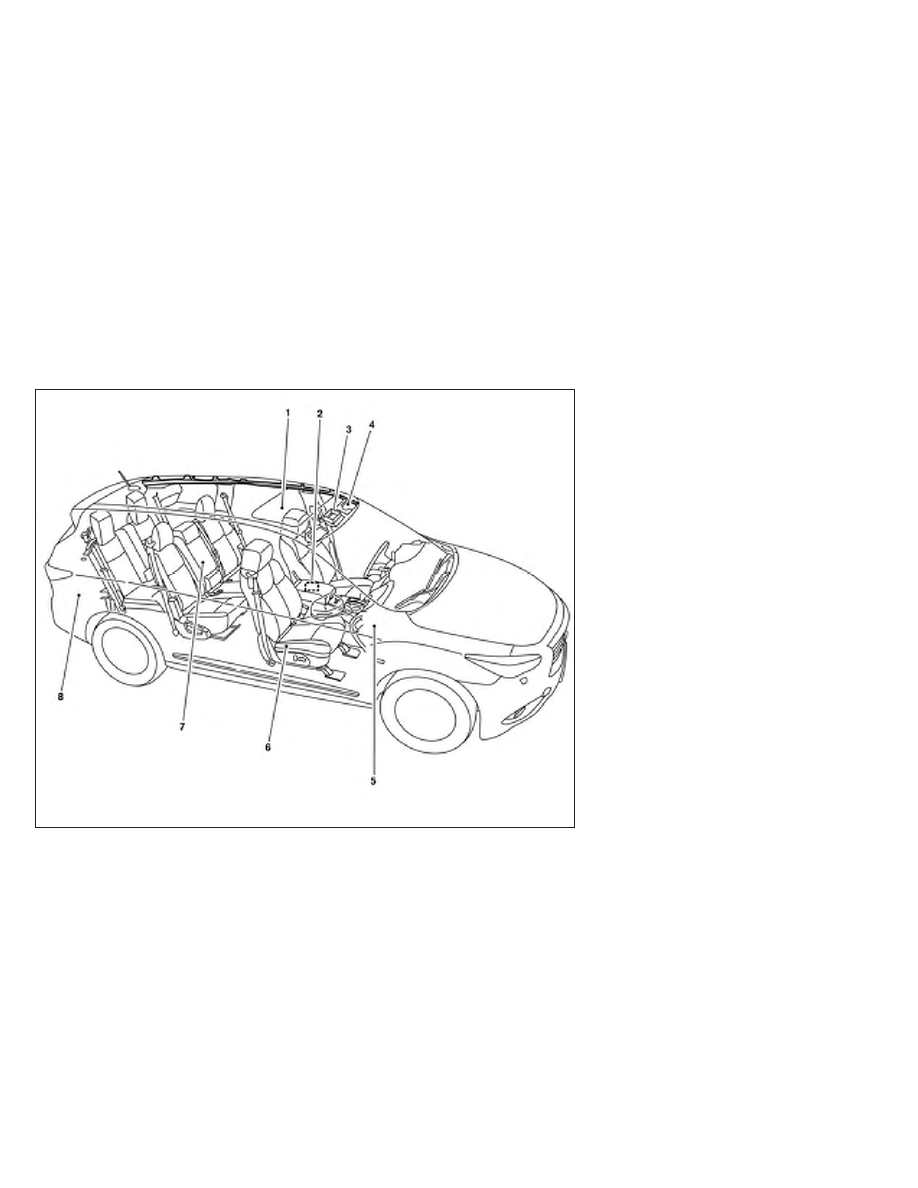

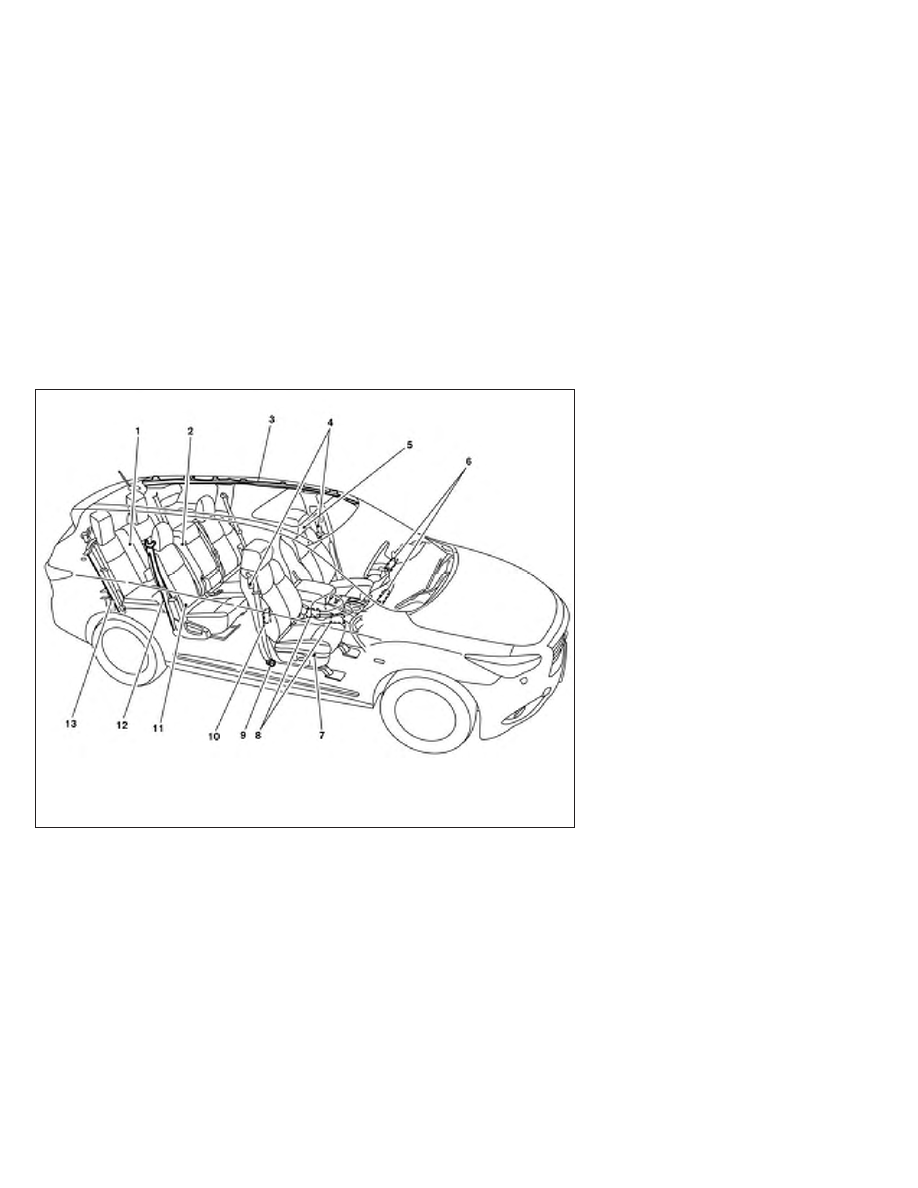

1.

Folding 3rd row bench (P. 1-19)

2.

Folding 2nd row bench (P. 1-18)

3.

Roof-mounted curtain side-impact and
rollover supplemental air bag (P. 1-49)

4.

Seat belts (P. 1-20)

5.

Head Restraints (P.1-8)

6.

Supplemental front-impact air bags
(P.1-49)

7.

Seats (1st row) (P. 1-2)

8.

Occupant classification sensor
(weight sensor) (P.1-57)

9.

Seat belt with pretensioners (P. 1-63)

10. Front seat-mounted side-impact

supplemental air bag (P. 1-49)

11. LATCH (Lower Anchors and Tethers for

CHildren) (P. 1-31)

12. 2nd row seat top tether strap anchor

(located on bottom of seatback)
(P. 1-44)

13. 3rd row bench seat top tether strap

anchor (located on bottom of seatback)
(P. 1-45)

See the page number indicated in paren-
theses for operating details.

LII2032

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

0-2

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

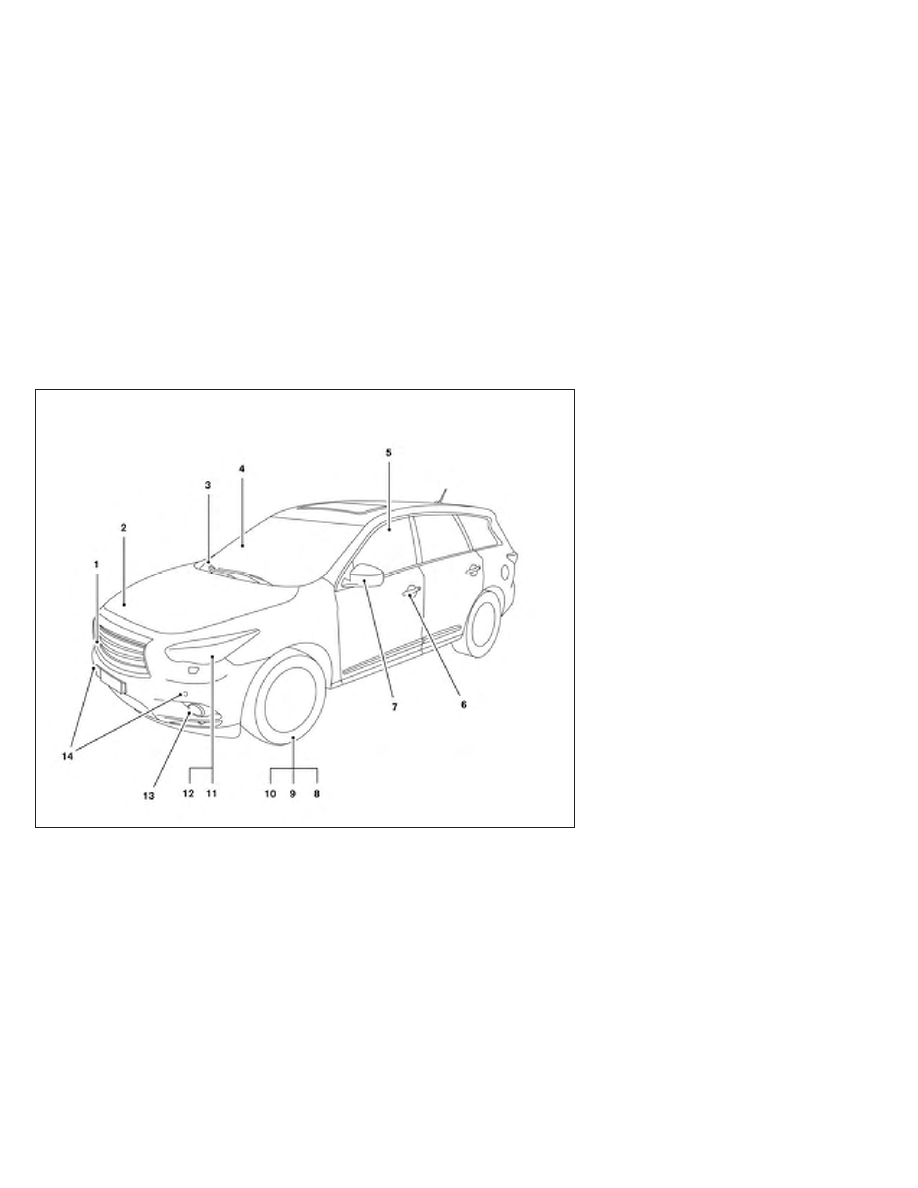

1.

Front camera (if so equipped) (P. 4-36)

2.

Engine hood (P. 3-20)

3.

Windshield wiper and washer switch,
wiper blades (P. 2-26, 8-18)

4.

Windshield-washer fluid (P. 8-18)

5.

Power windows (P. 2-50)

6.

Door locks, INFINITI Intelligent Key,
Remote Engine Start (if so equipped),
keys (P. 3-4, 3-7, 3-18,3-2)

7.

Mirrors, side camera (if so equipped)
(P. 3-29, 4-36)

8.

Tire pressure (P. 9-11)

9.

Flat tire (P. 6-3)

10. Tire chains (P. 8-38)
11. Replacing bulbs (P. 8-26)
12. Headlight and turn signal switch

(P. 2-30)

13. Fog light switch (P. 2-35)
14. Corner sensors (if so equipped)

(P. 4-40)

See the page number indicated in paren-
theses for operating details.

LII2043

EXTERIOR FRONT

Illustrated table of contents

0-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

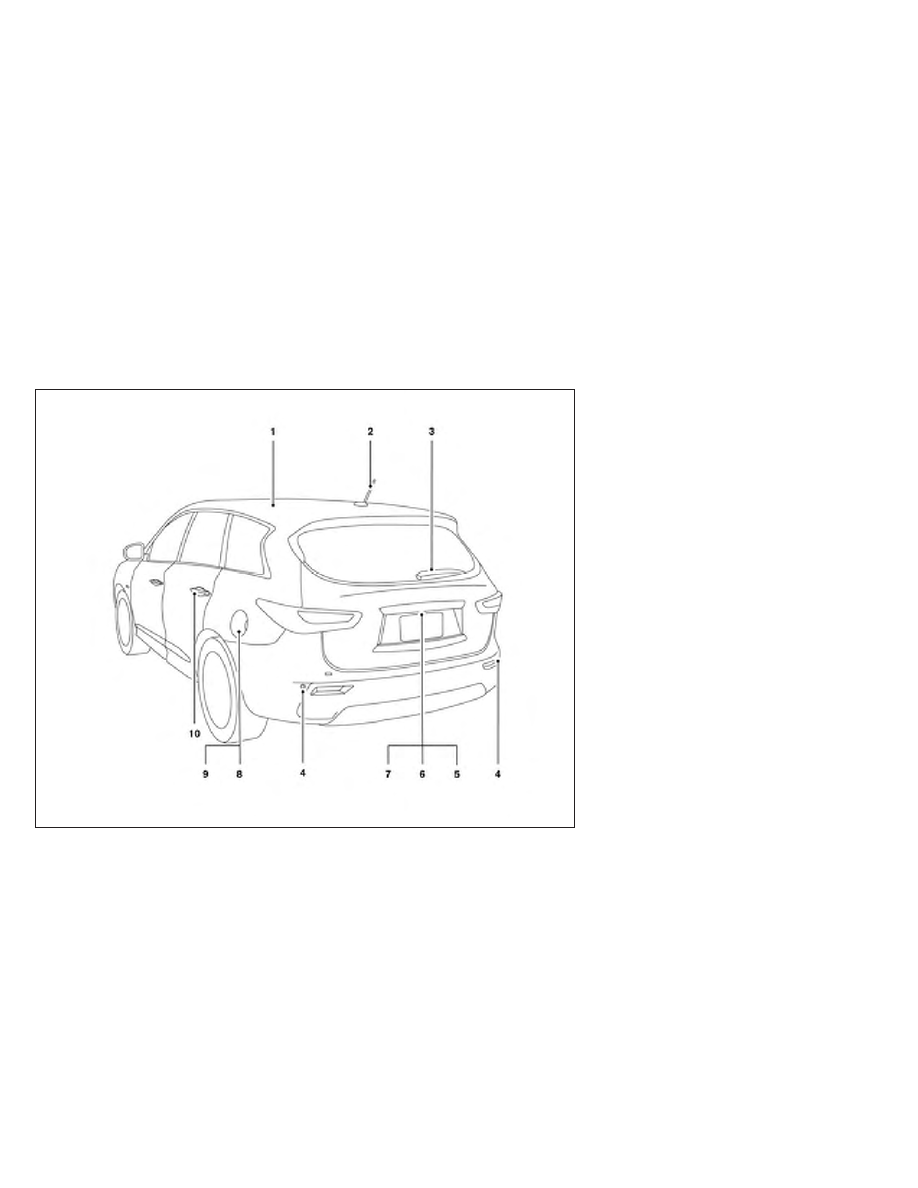

1.

Moonroof, Panoramic sunshade
(if so equipped) (P. 2-52, 2-54)

2.

Antenna (P.4-102)

3.

Rear window wiper and washer switch
(P. 2-29)

4.

Corner sensors (if so equipped)
(P. 4-40)

5.

Liftgate release (P. 3-23)

6.

Rear camera: Rearview monitor, AVM
rear camera (P.4-30, 4-36 )

7.

Replacing bulbs (P. 8-26)

8.

Fuel-filler cap, fuel recommendation
(P. 3-25, P. 9-3)

9.

Fuel-filler door (P. 3-24)

10. Child safety rear door lock (P. 3-7)

See the page number indicated in paren-
theses for operating details.

LII2044

EXTERIOR REAR

0-4

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.

Moonroof, Panoramic sunshade
(if so equipped) (P. 2-52, 2-54)

2.

Storage (P. 2-43)

3.

Map lights (P. 2-56)

4.

Sun visors (P. 3-28)

5.

Glove box, Console box (P. 2-46)

6.

Seats (P. 1-2, 1-5, 1-7)

7.

Cup holders (P. 2-45)

8.

Luggage hooks (P. 2-48)

See the page number indicated in paren-
theses for operating details.

LII2033

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

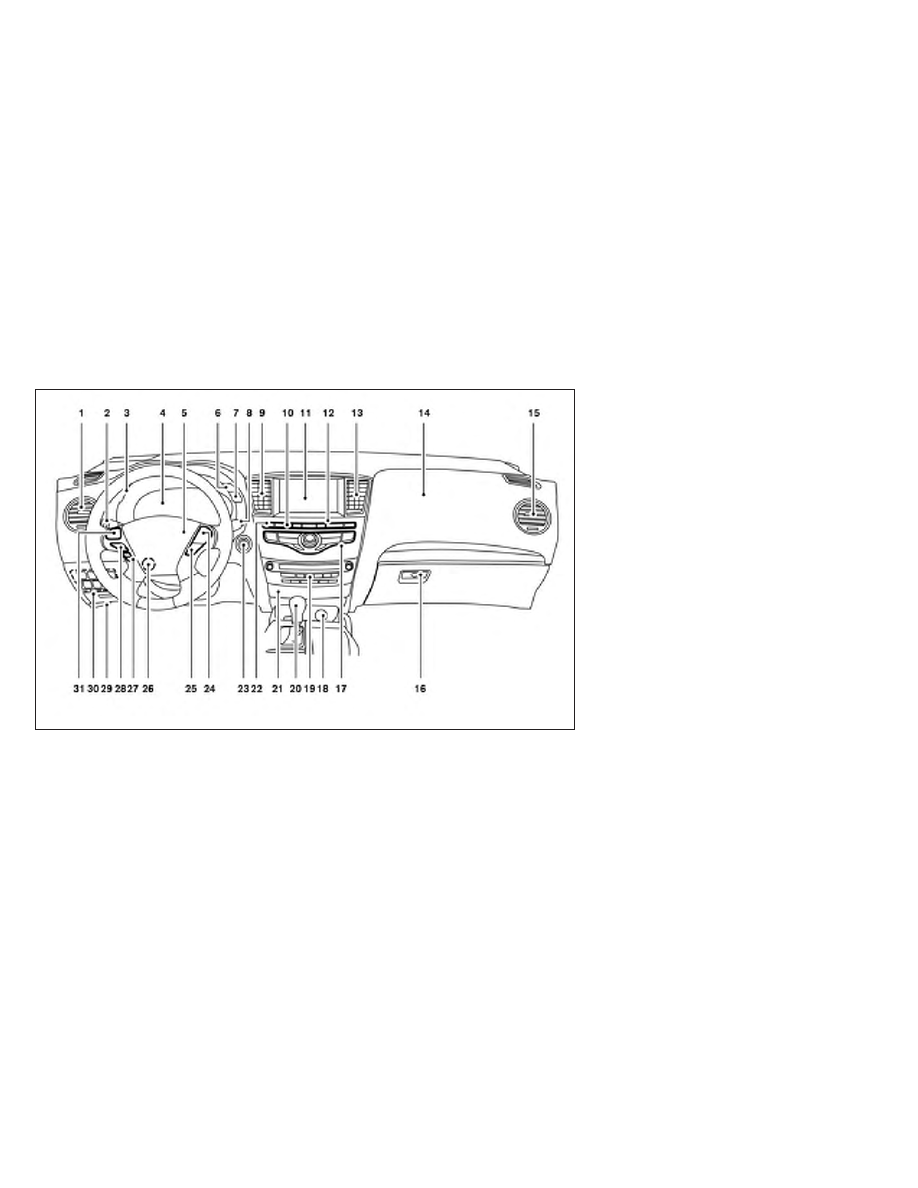

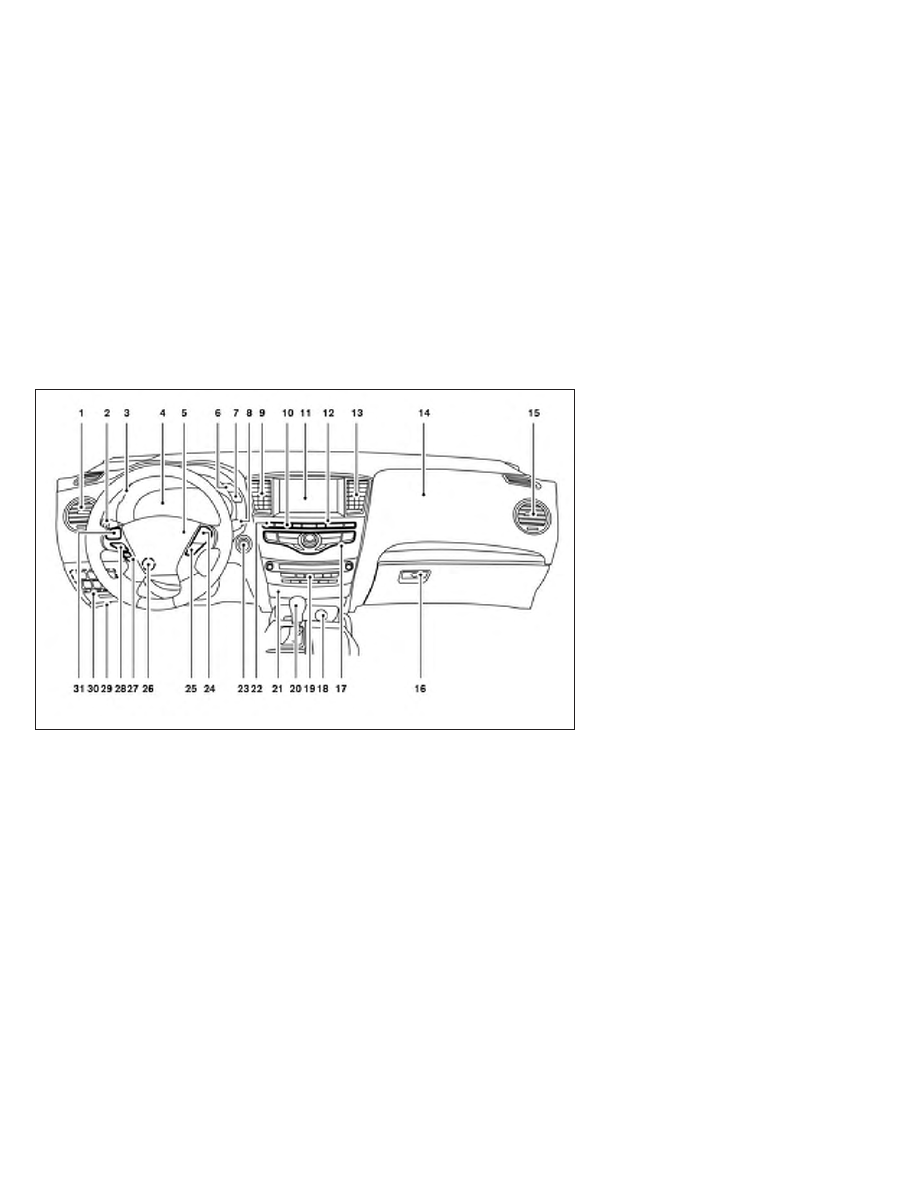

1.

Vent (P. 4-53)

2.

Headlight/fog light/turn signal switch
(P. 2-30)

3.

Instrument brightness control (P. 2-34)

4.

Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-7, 2-14)

5.

Driver supplemental air bag/Horn
(P.1-49, P. 2-35)

6.

Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-30)

7.

Twin trip odometer reset switch (P. 2-5)

8.

Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-26, P. 2-29)

9.

Vent (P. 4-53)

10.

Rear window and outside mirror
defroster switch (P. 2-30)

11.

Center display (P. 4-14,
4-4)/Navigation system*
(if so equipped)

12.

Automatic heater and air conditioning
controls (P. 4-54)

13.

Vent (P. 4-53)

14.

Front passenger supplemental air bag
(P. 1-49)

15.

Vent (P. 4-53)

16.

Glove box (P. 2-46)

17.

Center multi-function control buttons
(P. 4-14, 4-4)

18.

Power outlet (P.2-41)

19.

Audio system controls (P. 4-61)

20.

Shift selector (P.5-15)

21.

Front passenger air bag status light
(P. 1-59)

22.

Hazard light switch (P. 6-2)

LIC2290

INSTRUMENT PANEL

0-6

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

23.

Ignition switch (P. 5-10)

24.

Cruise control main/set switches (if so
equipped) and Intelligent cruise control
main/set switches (if so equipped)
(P. 5-47, P.5-49)

25.

Distance Control Assist (DCA) system
switch (if so equipped) (P. 5-68)

26.

Tilt steering wheel control (P. 3-26)

27.

Bluetooth® Hands-Free Phone System
(P. 4-115, 4-129)

28.

Steering wheel switch for audio control
(P.4-101)

29.

Hood release (P. 3-20)

30.

Vehicle dynamic control (VDC) OFF
switch (P. 2-41)
Heated steering wheel switch
(if so equipped) (P.2-39)
Headlight aiming control (P. 2-33)
Warning System switch
(if so equipped) (P. 2-40)
Power inverter switch (if so equipped)
(P. 2-41)
Liftgate release switch (P.3-20)
Power liftgate main switch (P. 3-23)

31.

Control panel and Vehicle Information
Display switches (P.4-17, 2-14)

*: Refer to the separate Navigation System Own-
er’s Instruction (if so equipped).

See the page number indicated in paren-
theses for operating details.

Illustrated table of contents

0-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

VQ35DE engine

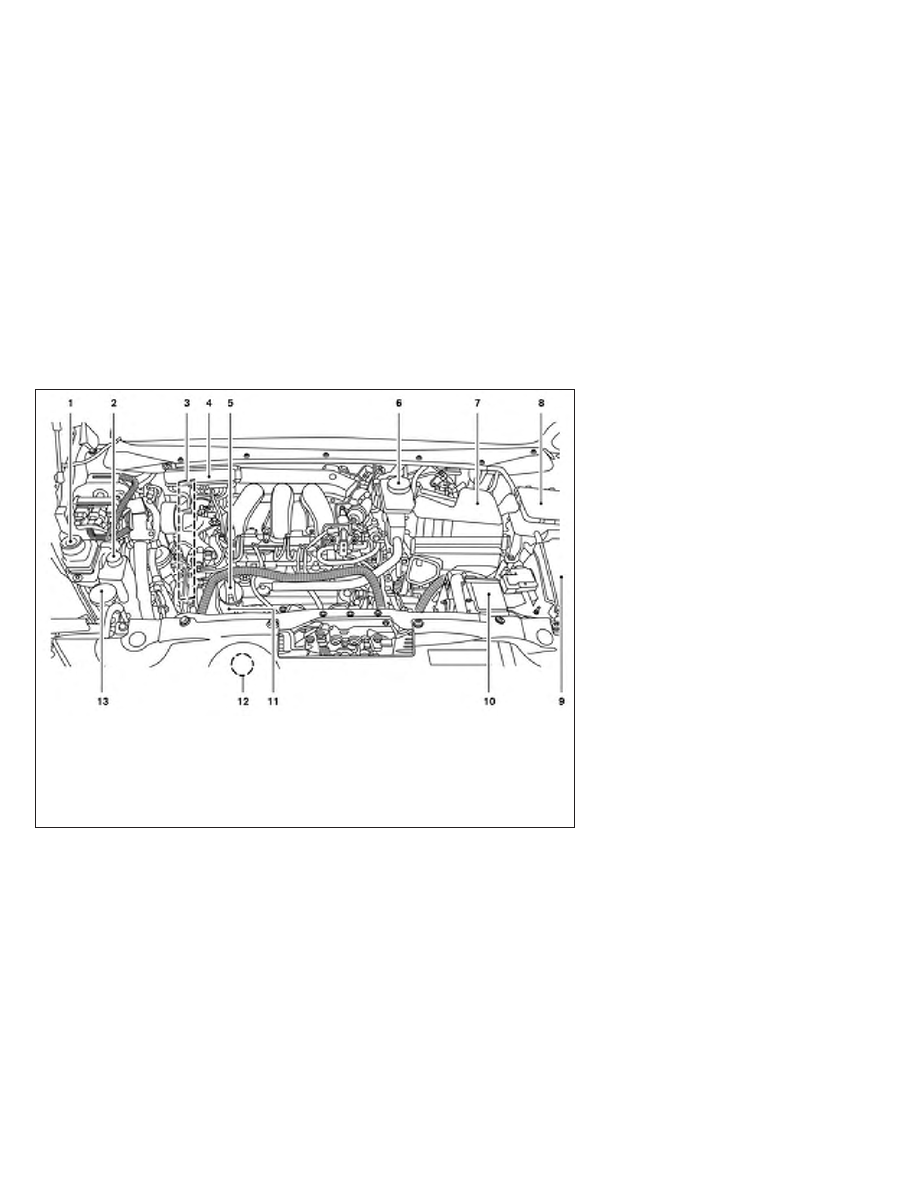

1.

Power steering fluid reservoir (P. 8-12)

2.

Engine coolant reservoir (P. 8-7)

3.

Drive belt location (P. 8-16)

4.

Fuse box (P. 8-21 )

5.

Engine oil filler cap (P. 8-9)

6.

Brake fluid reservoir (P. 8-12)

7.

Air cleaner (P. 8-18)

8.

Fuse box (P. 8-21)

9.

Fuse box/Fusible links (P. 8-21)

10. Battery (P. 8-14)
11. Engine oil dipstick (P. 8-9)
12. Radiator cap (P. 8-7)
13. Windshield-washer fluid reservoir

(P. 8-13)

See the page number indicated in paren-
theses for operating details.

LDI2148

ENGINE COMPARTMENT CHECK
LOCATIONS

0-8

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

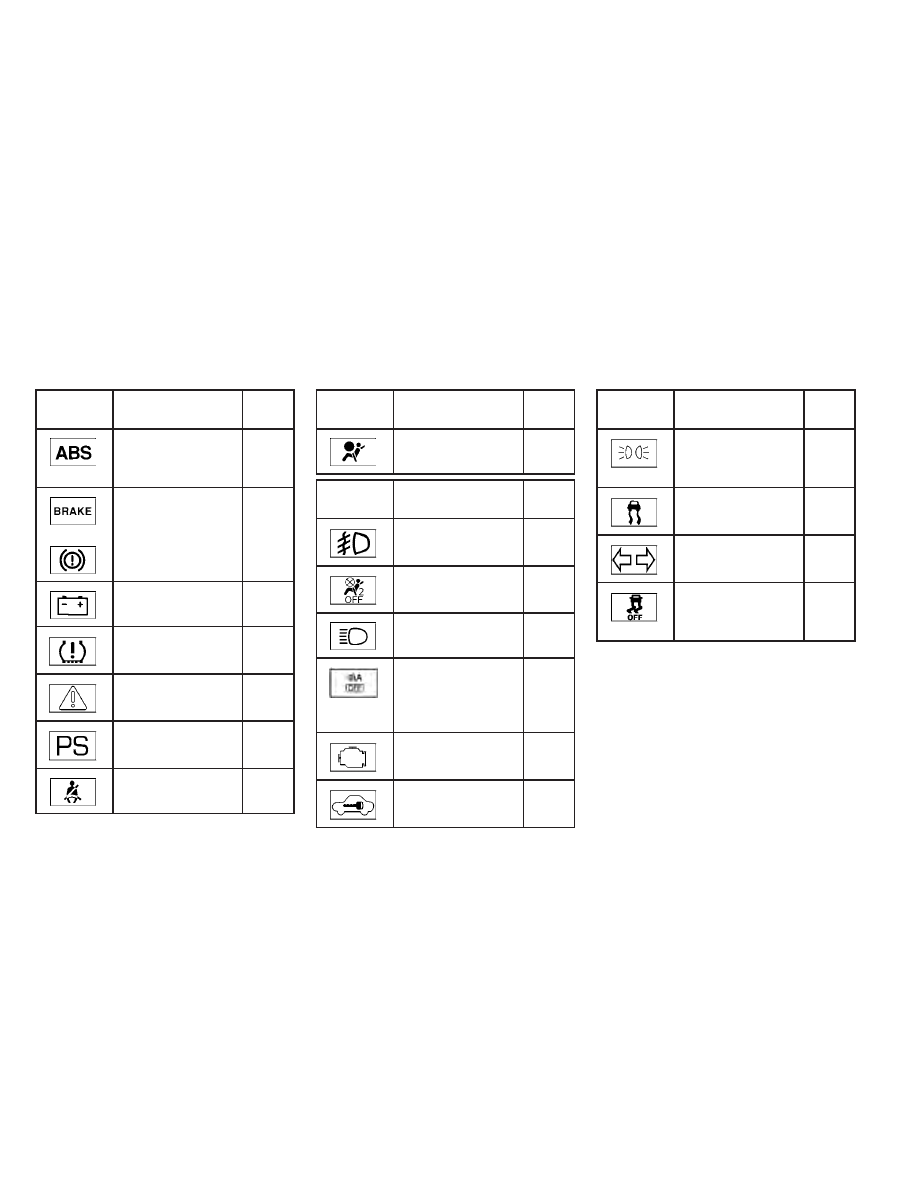

Warning

light

Name

Page

Anti-lock Braking
System (ABS) warn-
ing light

2-7

or

Brake warning light

2-8

Charge warning
light

2-8

Low tire pressure
warning light

2-8

Master warning light

2-10

Power steering
warning light

2-10

Seat belt warning
light and chime

2-11

Warning

light

Name

Page

Supplemental air
bag warning light

2-11

Indicator

light

Name

Page

Fog light indicator
light

2-11

Front passenger air
bag status light

2-11

High beam indicator
light (blue)

2-11

Intelligent Brake
Assist (IBA) off indi-
cator light (if so
equipped)

2-12

Malfunction indica-
tor light (MIL)

2-12

Security indicator
light

2-13

Indicator

light

Name

Page

Side light and head-
light indicator light
(green)

2-13

Slip indicator light

2-13

Turn signal/hazard
indicator lights

2-13

Vehicle Dynamic
Control (VDC) off
indicator light

2-13

WARNING/INDICATOR LIGHTS

Illustrated table of contents

0-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

0-10

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1 Safety—Seats, seat belts and
supplemental restraint system

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Front power seat adjustment. . . . . . . . . . . . . . . . . . . . . 1-3
2nd row bench seat adjustment . . . . . . . . . . . . . . . . . . 1-5
3rd row bench seat adjustment . . . . . . . . . . . . . . . . . . 1-7
Head restraints (1st row only) . . . . . . . . . . . . . . . . . . . . 1-8
Head restraints (2nd row) . . . . . . . . . . . . . . . . . . . . . . 1-10
Adjustable headrest . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Head restraints (3rd row) . . . . . . . . . . . . . . . . . . . . . . . 1-16
Flexible seating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20

Precautions on seat belt usage. . . . . . . . . . . . . . . . . . 1-20
Pregnant women . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Injured persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Pre-crash seat belts with comfort function
(front seats) (if so equipped) . . . . . . . . . . . . . . . . . . . . 1-23
Three-point type seat belt with retractor . . . . . . . . . . 1-23
Seat belt extenders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27
Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 1-27

Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28

Infants. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
Small children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29
Larger children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29

Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29

Precautions on child restraints . . . . . . . . . . . . . . . . . . 1-29
LATCH (Lower Anchors and Tethers for
CHildren) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31
Rear-facing child restraint installation using
LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
Rear-facing child restraint installation using
the seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-36
Forward-facing child restraint installation
using LATCH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-39
Forward-facing child restraint installation
using the seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-41
Installing top tether strap
(2nd row bench seat) . . . . . . . . . . . . . . . . . . . . . . . . . . 1-44
Installing top tether strap
(3rd row bench seat). . . . . . . . . . . . . . . . . . . . . . . . . . . 1-45
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-45

Supplemental restraint system . . . . . . . . . . . . . . . . . . . . . 1-49

Precautions on supplemental restraint
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-49
Supplemental air bag warning labels . . . . . . . . . . . . . 1-64
Supplemental air bag warning light . . . . . . . . . . . . . . 1-64

-------------------------------------------------------------------------------------------------------------------------------------------------------------

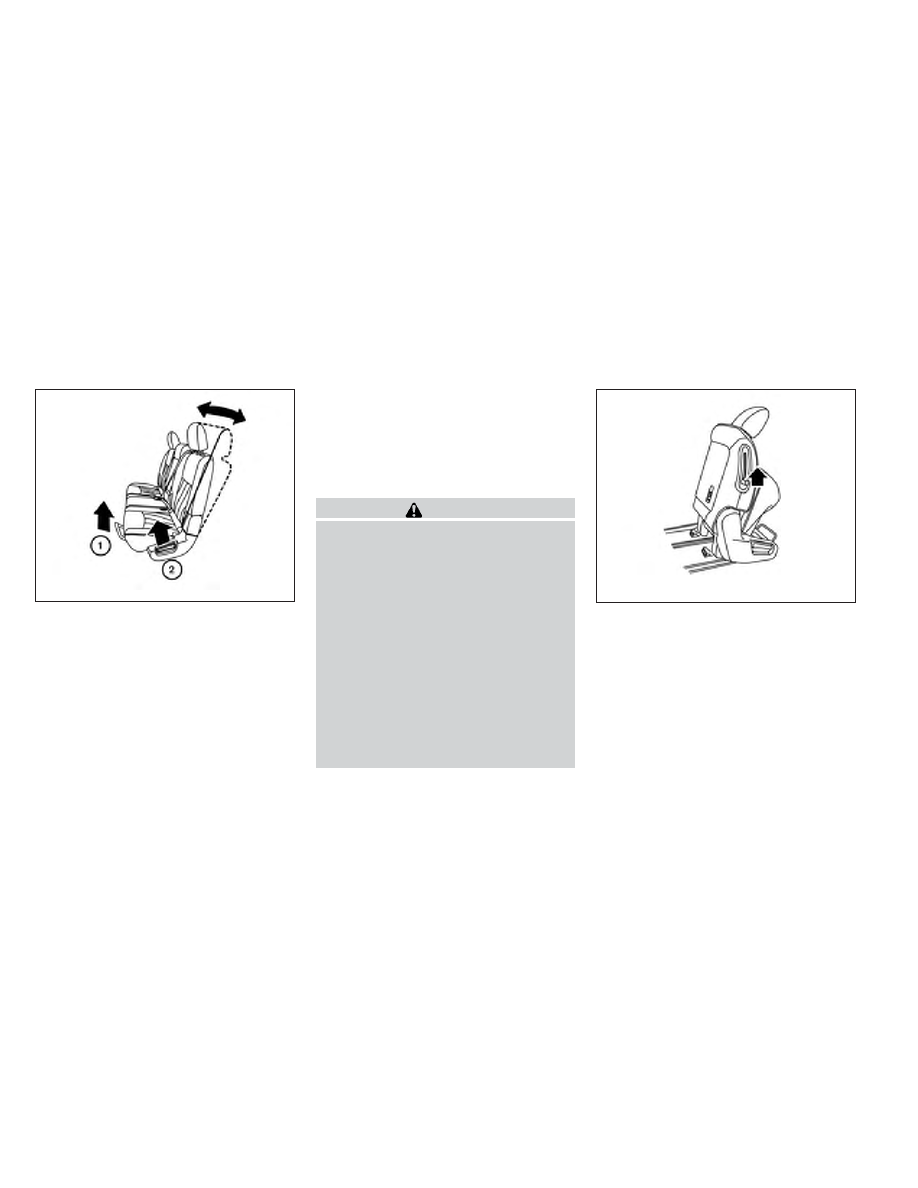

WARNING

● Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.

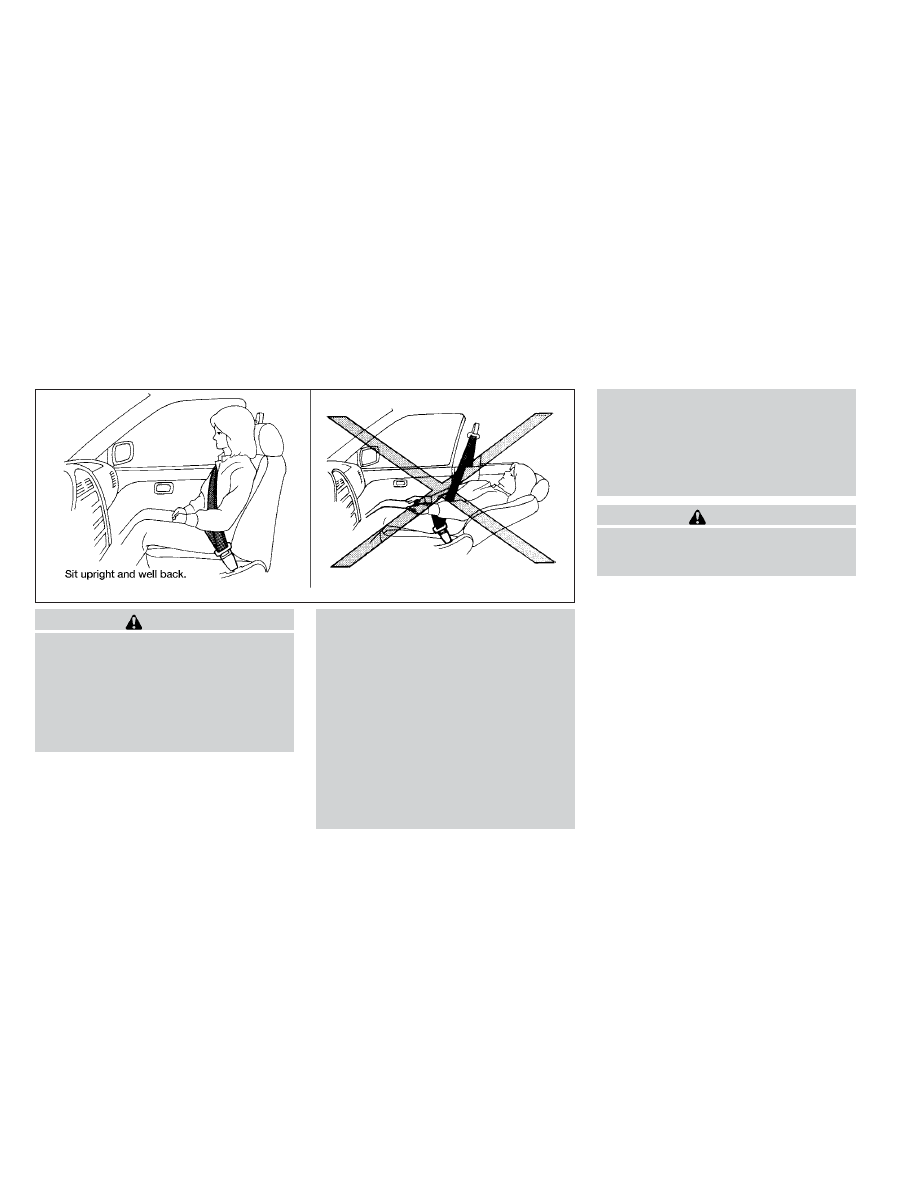

● For the most effective protection when

the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.

● After adjustment, gently rock in the seat

to make sure it is securely locked.

● Do not leave children unattended inside

the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.

● The seatback should not be reclined

any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

ARS1152

SEATS

1-2

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT POWER SEAT ADJUSTMENT

Operating tips

● The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.

● Do not operate the power seat switch for a

long period of time when the engine is off.
This will discharge the battery.

See “Automatic drive positioner” in “Pre-driving
checks and adjustments” for automatic drive po-
sitioner operation.

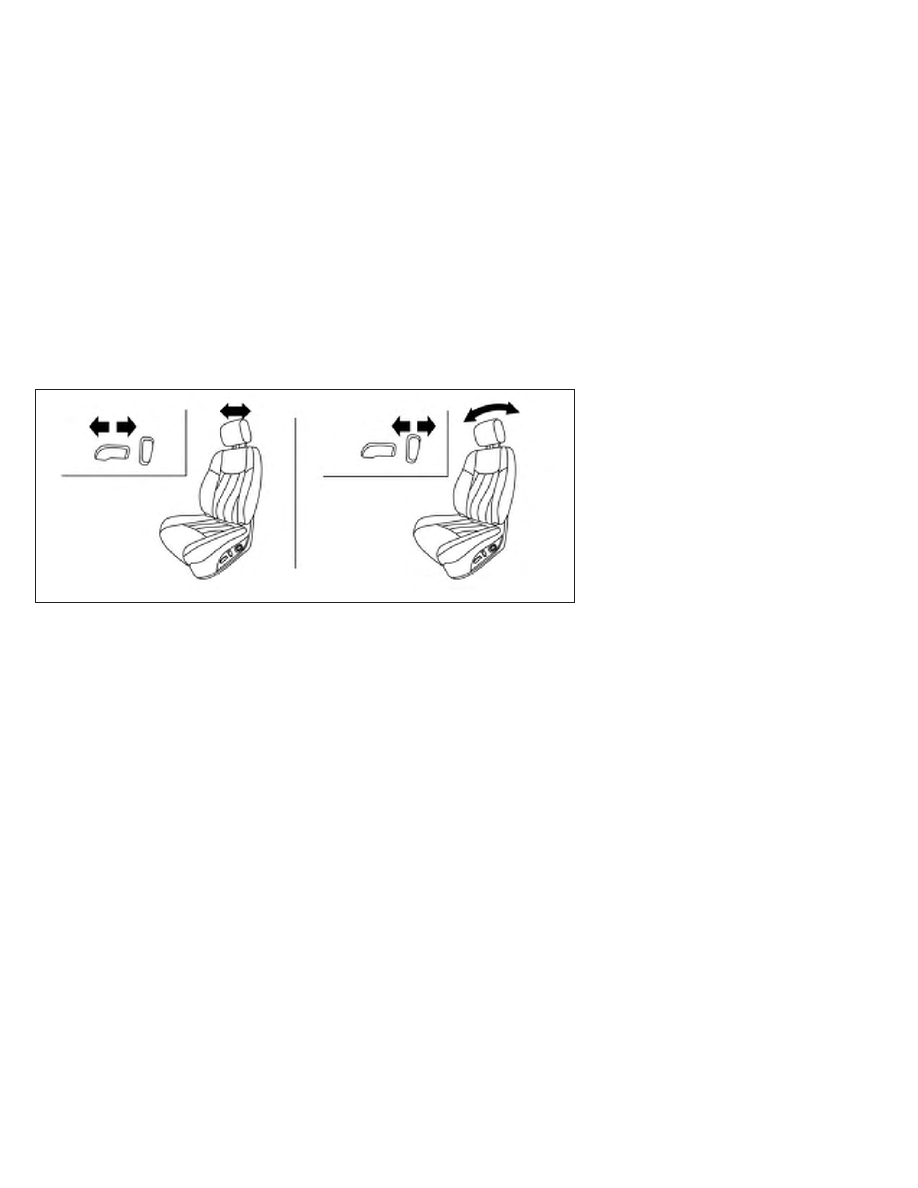

Forward and backward

Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.

Reclining

Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.

The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park).

LRS2130

Safety—Seats, seat belts and supplemental restraint system

1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

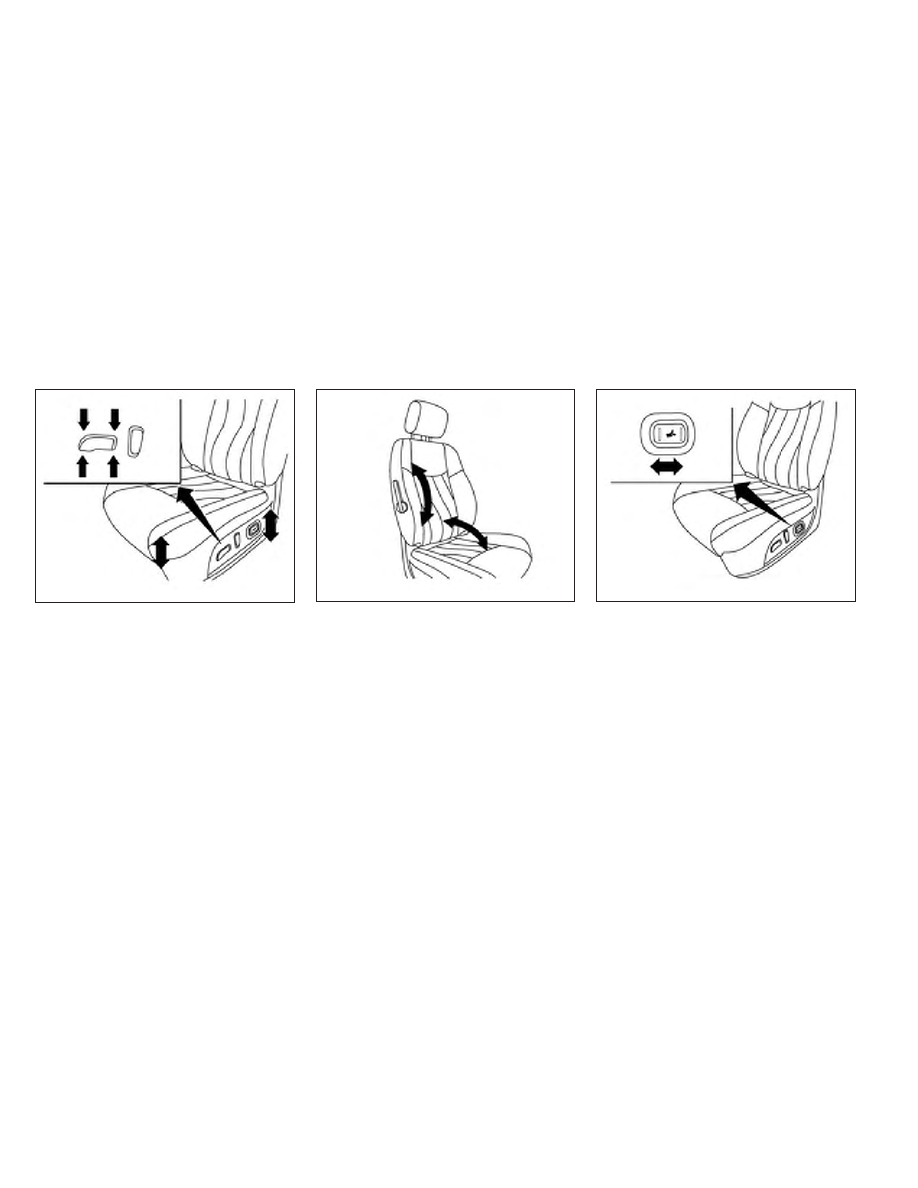

Seat lifter

Push the switch up or push down to adjust the
angle and height of the seat cushion.

Lumbar support (driver’s seat)

The lumbar support feature provides lower back
support to the driver. Move the lever up or down
(instruction) or move the switch forward or backward
(power) to adjust the seat lumbar area.

LRS2131

Instruction (if so equipped)

LRS2132

Power (if so equipped)

LRS2133

1-4

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2ND ROW BENCH SEAT
ADJUSTMENT

Forward and backward

Pull the center of the bar

1

up and hold it while

you slide the seat forward or backward to the
desired position. Release the bar to lock the seat
in position.

Reclining

To recline the seatback, pull up on the lever

2

and lean back. To bring the seatback forward, pull
the lever

2

up and lean your body forward.

Release the lever to lock the seatback in position.

The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit
(see “Precautions on seat belt usage” later in this
section). Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park).

WARNING

● After adjustment, gently rock in the seat

to make sure it is securely locked.

● Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.

● For the most effective protection when

the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat and adjust the seat belt properly.
See “Precautions on seat belt usage”
later in this section.

One touch walk-in function

The 3rd row can be accessed from outside the
vehicle by using the seatback release lever lo-
cated on the 2nd row seatback. If a child safety
seat is installed on the passenger’s side of the
2nd row seat, the 3rd row can be accessed
without removing the child safety seat.

Multi-mode

To enter the 3rd row from outside the vehicle, lift
up on the seatback lever located on the upper
outboard side of the seatback on the 2nd row
bench seat. This will release the back of the seat
and fold up the seat cushion. This will also re-

Outboard seats

LRS2143

LRS2142

Safety—Seats, seat belts and supplemental restraint system

1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

lease the seat tracks so you will be able to slide
the seat forward or backward.

Slide the entire seat forward for access to the
rear seat.

To return the seat to a locked position, push the
upper seatback rearward until the seatback and
tracks are locked. Push the seat cushion down.

CAUTION

● When returning the seat to its original

position, confirm that the seat and seat-
back are locked properly.

● Be careful not to pinch your hand or

foot or bump your head when operating
the walk-in seat.

● Do not drive with the 2nd row seat

tipped up.

● Be careful not to allow the 2nd row seat

to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path is
clear of all objects before moving the
seat.

Child seat access mode

WARNING

Do not leave a child in the child safety seat
when operating the Child seat access
mode.

The passenger’s side of the 2nd row seat can be
slid forward for easy entry or exit from the 3rd row
bench seat without a child safety seat being
removed.

To enter the 3rd row from outside the vehicle, lift
up on the seatback lever located on the upper
outboard side of the seatback on the 2nd row
bench seat. This will release the seatback, tilt the
seat, and then release the tracks so you will be
able to slide the seat forward or backward.

Slide the entire seat forward for access to the
rear seat.

To return the seat to a locked position, push the
upper seatback rearward until the seatback and
track are locked.

CAUTION

● When returning the seat to its original

position, confirm that the seat and seat-
back are locked properly.

● Be careful not to pinch your hand or

foot or bump your head when operating
the walk-in seat.

● Do not drive with the 2nd row seat

tipped up.

● Be careful not to allow the 2nd row seat

to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path is
clear of all objects before moving the
seat.

Exiting the 3rd row

To exit the 3rd row from either seating position, lift
the upper seatback release lever to the upper-
most position. This will release the back of the
seat, fold the seat cushion up and release the
tracks.

Slide the entire seat forward.

To return the seat to a locked position, push the
upper seatback rearward until the seatback and
track are locked.

1-6

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

● When returning the seat to its original

position, confirm that the seat and seat-
back are locked properly.

● Be careful not to pinch your hand or

foot or bump your head when operating
the walk-in seat.

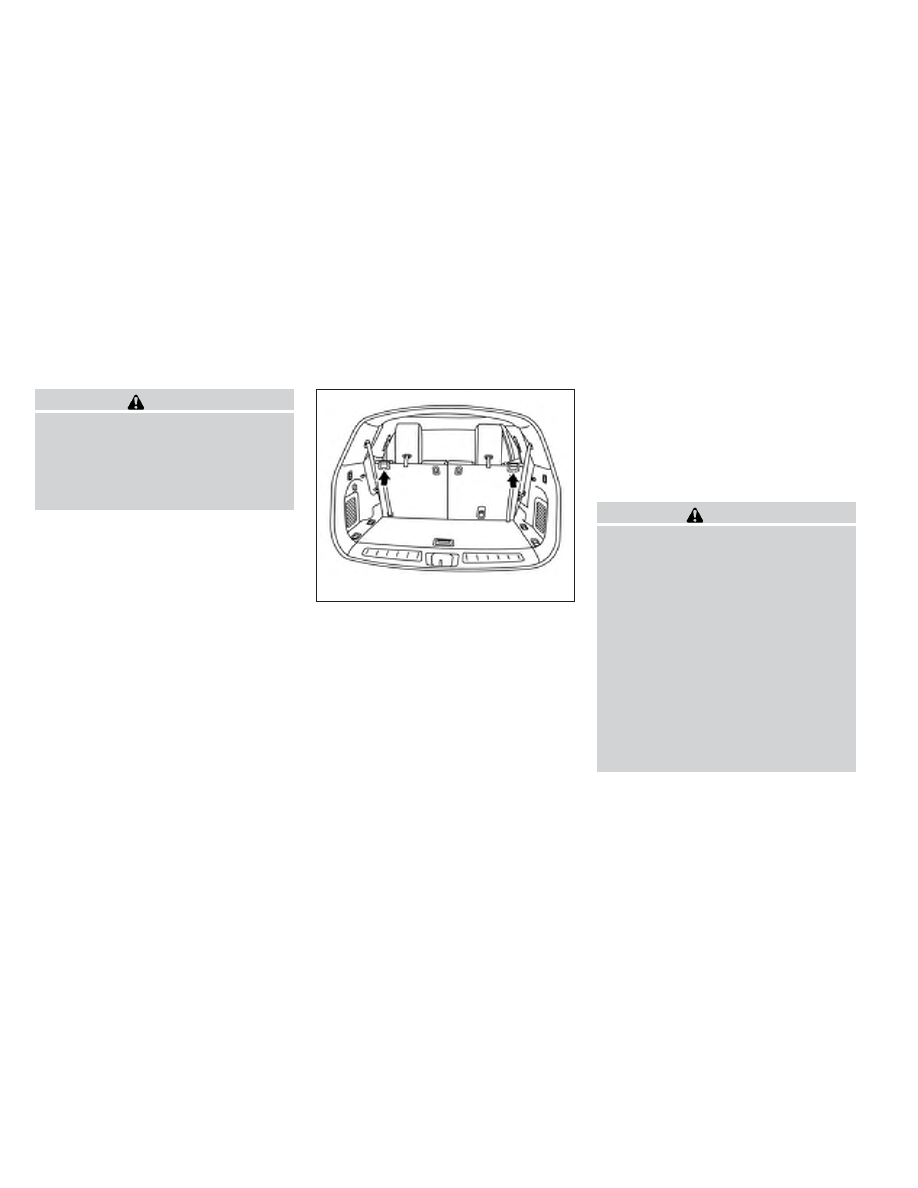

3RD ROW BENCH SEAT
ADJUSTMENT

Reclining

To recline the seatback, pull up on the latch
located on the outside corner of each seatback.
Lean back until the desired angle is obtained.

To bring the seatback forward again, pull up on
the latch and pull the seatback upright until the
desired angle is obtained.

The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit.
See “Precautions on seat belt usage” later in this
section. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in P (Park).

WARNING

● After adjustment, gently rock in the seat

to make sure it is securely locked.

● Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.

● For the most effective protection when

the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat and adjust the seat belt properly.
See “Precautions on seat belt usage”
later in this section.

Outboard seats

LRS2147

Safety—Seats, seat belts and supplemental restraint system

1-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..       1      2     ..
