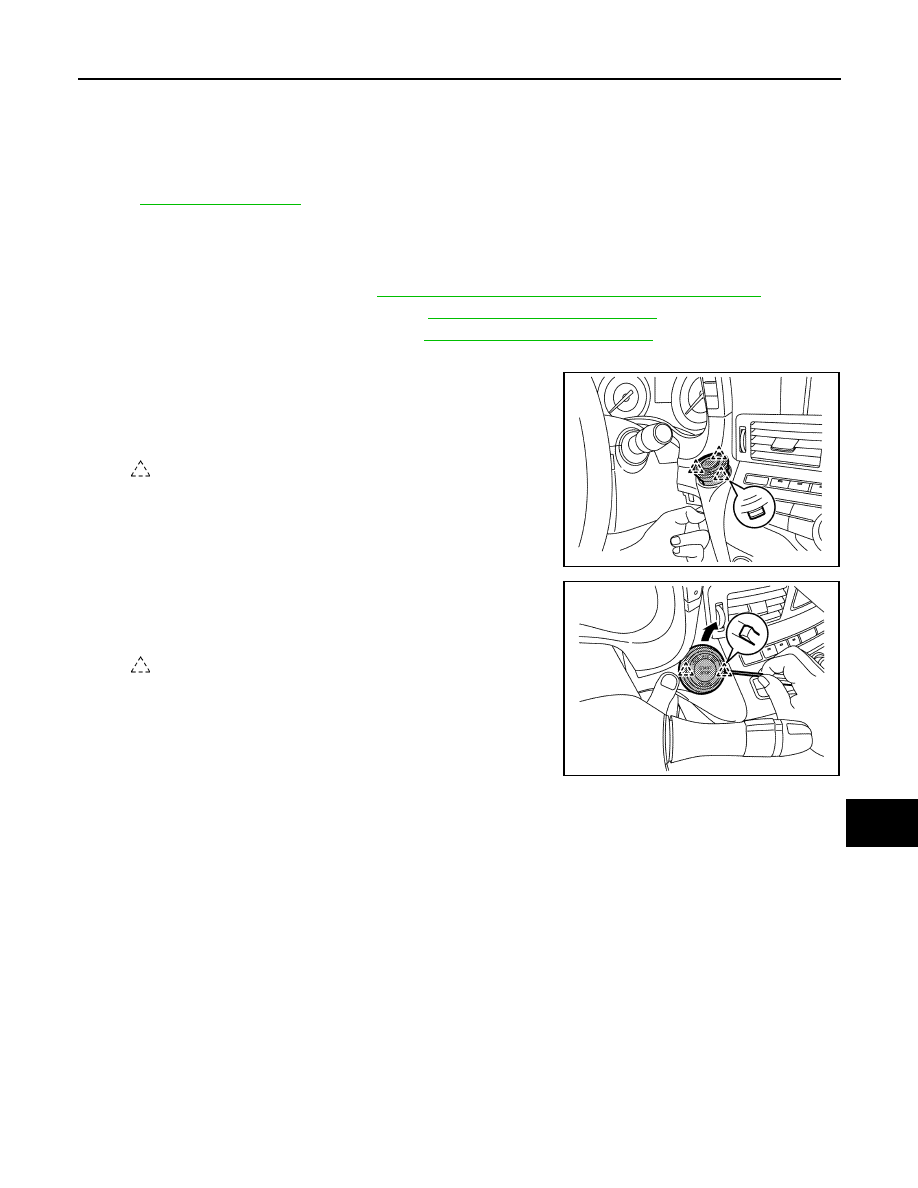

PCS B26F2 IGNITION RELAY PCS-67 < DTC/CIRCUIT DIAGNOSIS > [POWER DISTRIBUTION SYSTEM] C D E F G H I J K L B A O P N B26F2 IGNITION RELAY DTC Logic INFOID:0000000006887750 DTC DETECTION LOGIC DTC CONFIRMATION PROCEDURE 1. PERFORM DTC CONFIRMATION PROCEDURE 1. Turn ignition switch ON under the following conditions, and wait for 2 seconds or more. - Selector lever is in the P or N position - Do not depress brake pedal 2. Check “Self-diagnosis result” with CONSULT. Is DTC detected? YES >> Go to NO >> INSPECTION END Diagnosis Procedure INFOID:0000000006887751 1. CHECK IPDM E/R SELF-DIAGNOSTIC RESULT 1. Turn ignition switch ON. 2. Erase the DTC of IPDM E/R. 3. Turn ignition switch OFF. 4. Turn ignition switch ON and check the DTC again. Is DTC detected? YES >> Repair or replace the malfunctioning part. Refer to NO >> GO TO 2. 2. CHECK IGNITION RELAY (IPDM E/R) CONTROL SIGNAL 1. Turn ignition switch OFF. 2. Check voltage between IPDM E/R harness connector and ground. Is the inspection result normal? YES >> Replace IPDM E/R. NO >> GO TO 3. 3. CHECK IGNITION RELAY (IPDM E/R) CONTROL SIGNAL CIRCUIT - 1 1. Disconnect BCM and IPDM E/R connectors. 2. Check continuity between IPDM E/R harness connector and ground. Is the inspection result normal? YES >> GO TO 4. DTC No. Trouble diagnosis name DTC detecting condition Possible cause B26F2 IGN RELAY ON BCM transmits the ignition relay control signal • Harness or connectors (ignition relay circuit is short) • BCM (+) (–) Condition Voltage (V) (Approx.) IPDM E/R Connector Terminal E5 18 Ground Ignition switch OFF or ACC 12 IPDM E/R Ground Continuity Connector Terminal E5 18 Not existed 2012 M |
