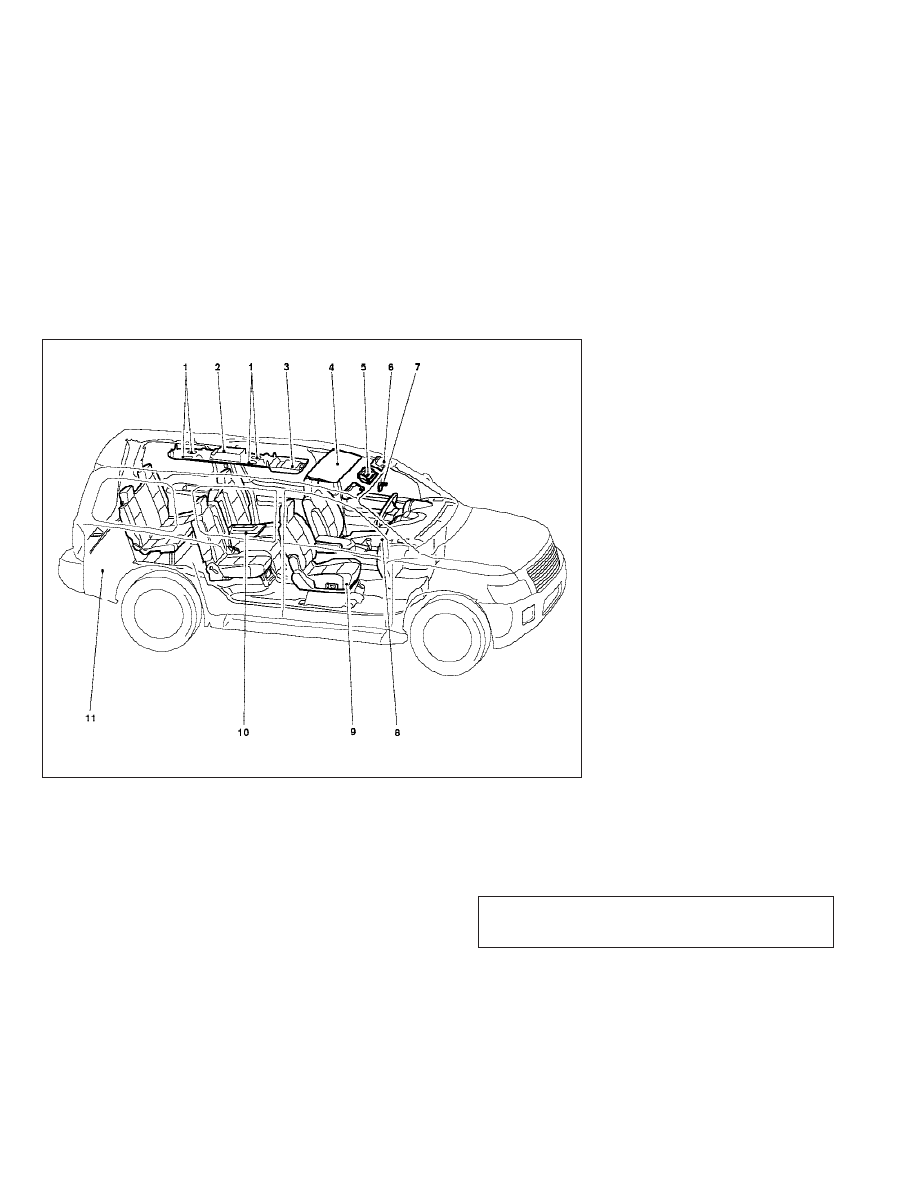

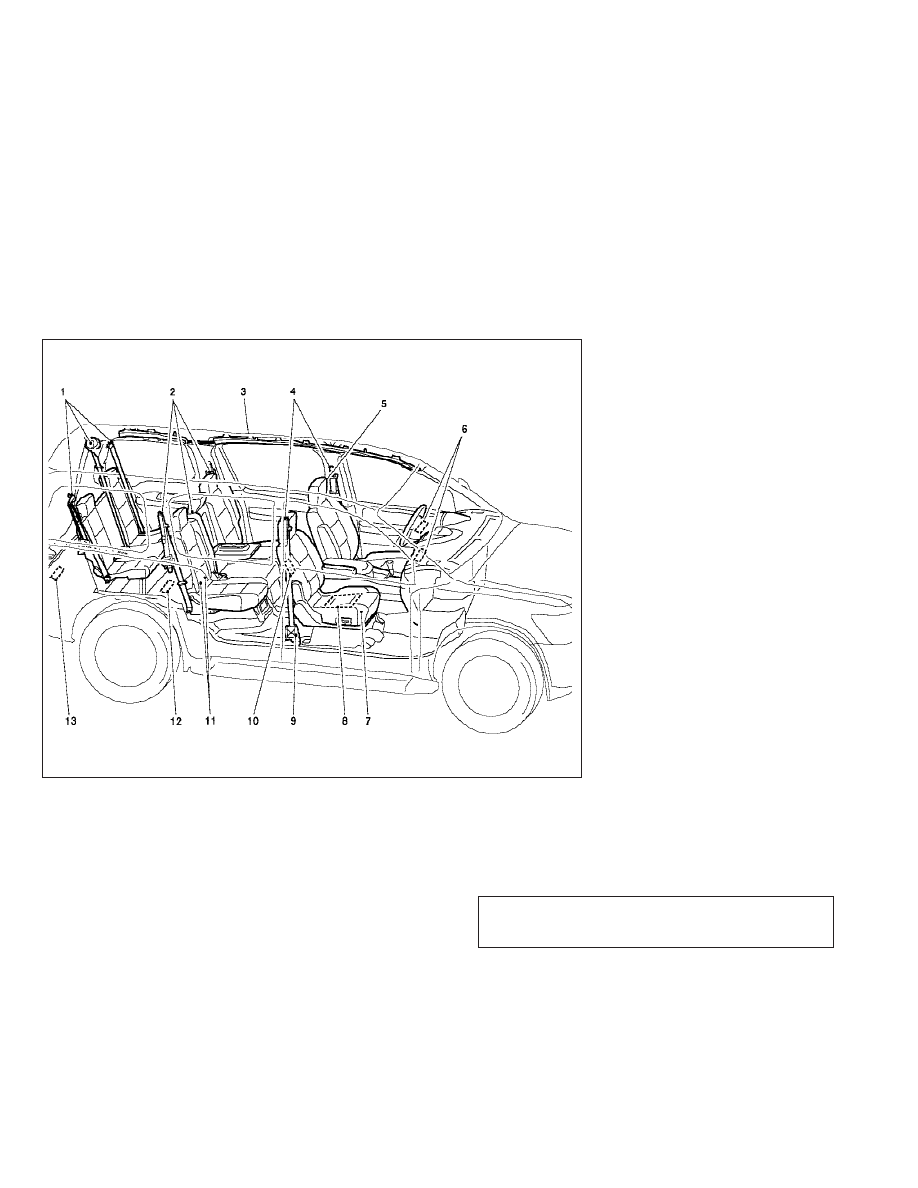

Infiniti Qx (2009 year). Instruction

3rd row bench seat belts (P. 1-15)

2nd row seat belts (P. 1-15)

Roof-mounted curtain side-impact and
rollover supplemental air bag (P. 1-48)

Front seat belts (P. 1-15)

Front-seat Active Head Restraints
(P. 1-8)

Supplemental front-impact air bags
(P.1-48)

Seats (P. 1-2)

Occupant classification sensor
(pressure sensor) (P.1-56)

Seat belt with pretensioner (P. 1-61)

10. Front seat-mounted side-impact

supplemental air bag (P. 1-48)

11. LATCH (Lower Anchors and Tethers for

CHildren) (P. 1-28)

12. 2nd row seat top tether strap anchor

(P. 1-30)

13. 3rd row seat top tether strap anchor

(P. 1-30)

See the page number indicated in paren-

theses for operating details.

WII0154

AIR BAGS, SEAT BELTS AND CHILD

RESTRAINTS

0-2

Illustrated table of contents

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/29/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

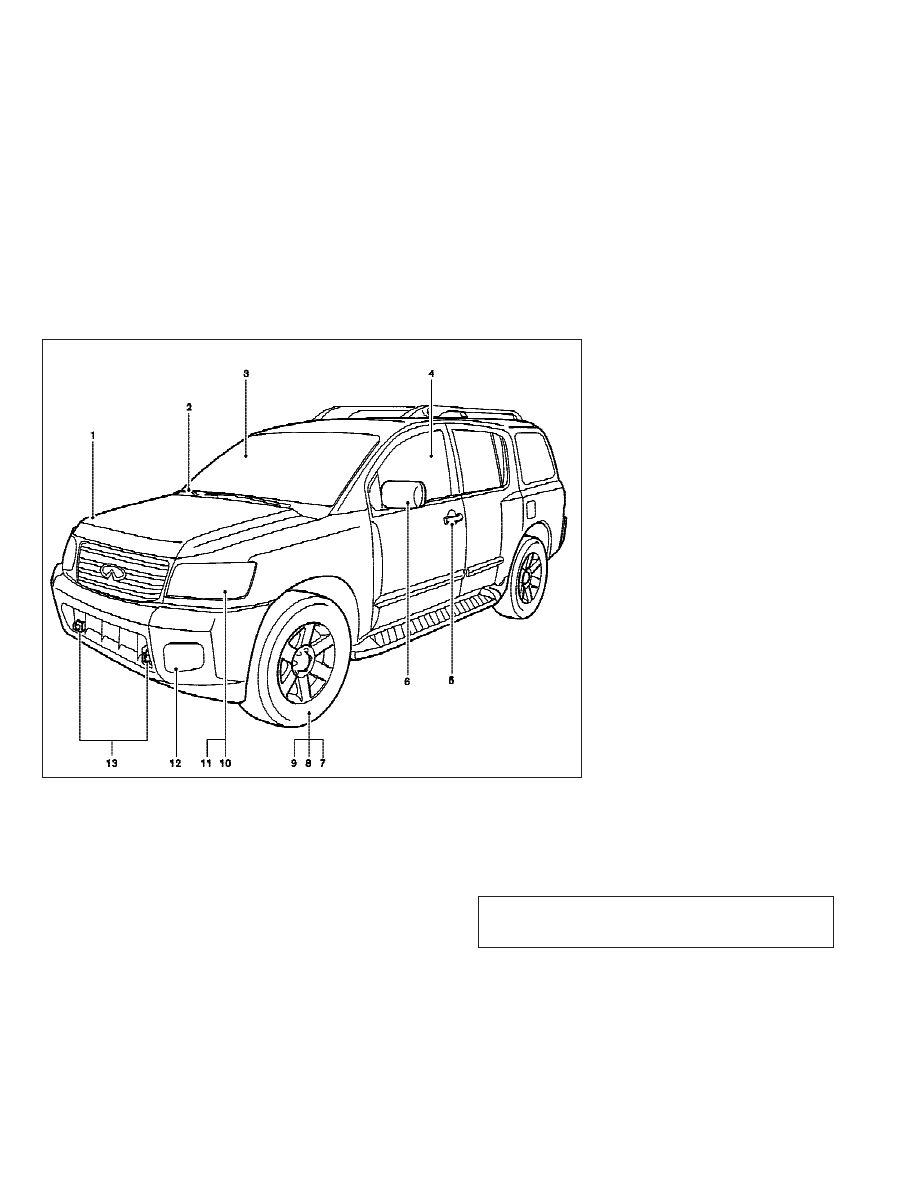

Engine hood (P. 3-16)

Windshield wiper and washer switch
(P. 2-23)

Windshield (P. 8-19)

Power windows (P. 2-48)

Door locks, keyfob, keys
(P. 3-3, 3-6, 3-2)

Mirrors (P. 3-24)

Tire pressure (P. 9-11)

Flat tire (P. 6-2)

Tire chains (P. 8-39)

10. Replacing bulbs (P. 8-29)

11. Headlight switch (P. 2-25)

12. Fog light switch and turn signal switch

(P. 2-30, P. 2-25)

13. Tow hooks (P. 6-13)

See the page number indicated in paren-

theses for operating details.

WII0121

EXTERIOR FRONT

Illustrated table of contents

0-3

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/29/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

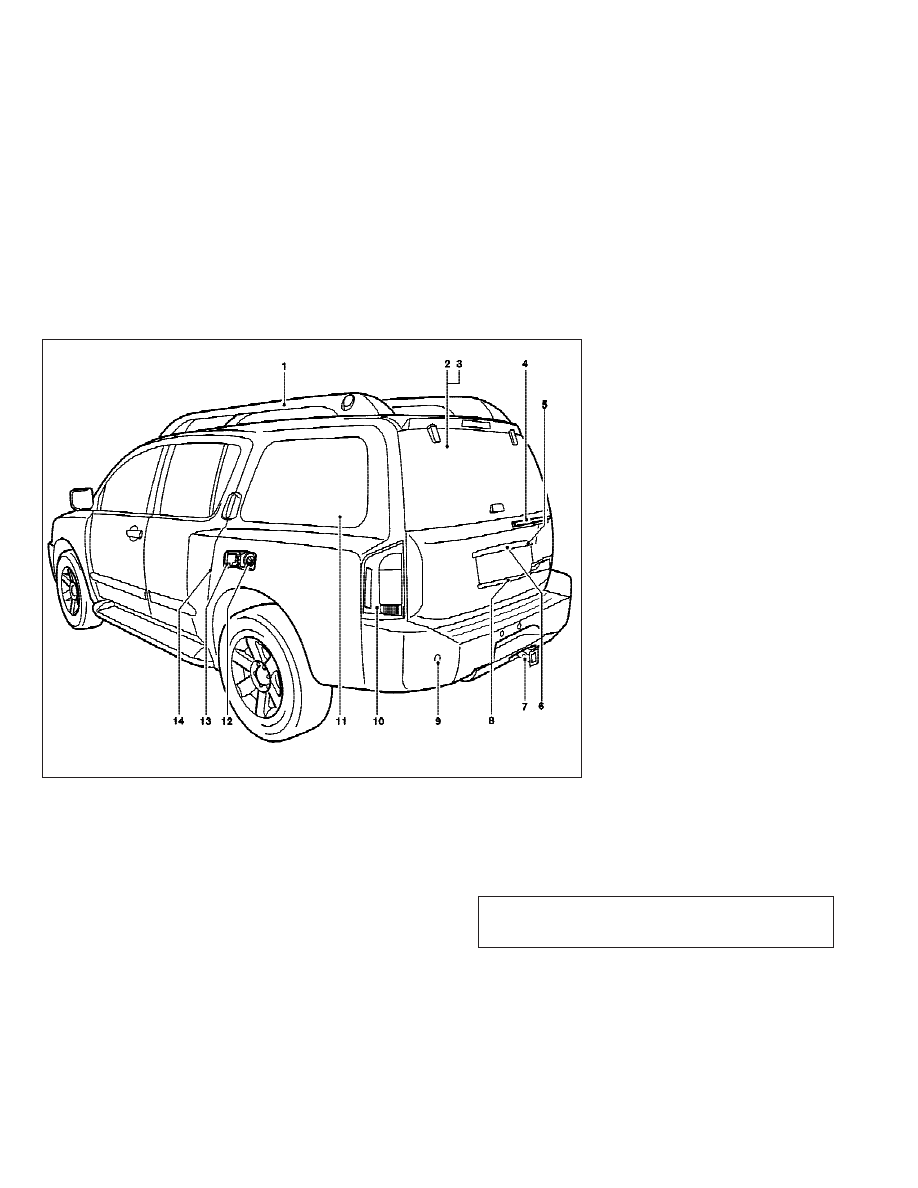

Roof rack (P. 2-47)

Rear window defroster (P. 2-25)

Glass hatch (P. 3-20)

Rear window washer (P.2-24)

Glass hatch release (P. 3-20)

Rearview monitor (P.4-18)

Towing/Trailer hitch (P.9-16)

Lift gate release (P. 3-16)

Rear sonar system (P.2-33)

10. Replacing bulbs (P. 8-29)

11. Power vent windows (P.2-51)

12. Fuel-filler cap, fuel recommendation

(P. 3-21, P. 9-3)

13. Fuel-filler door (P. 3-21)

14. Child safety rear door locks (P. 3-6)

See the page number indicated in paren-

theses for operating details.

WII0122

EXTERIOR REAR

0-4

Illustrated table of contents

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/29/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rear ventilators (P. 4-21)

Storage (P. 2-37)

DVD entertainment system
(if so equipped) (P. 4-53)

Moonroof (P. 2-51)

Map lights (P. 2-55)

Sun visors (P. 3-23)

HomeLink

T (P. 2-55)

Glove box (P. 2-37)

Seats (P. 1-2)

10. Cup holders (P. 2-41)

11. Luggage storage (P. 2-44)

See the page number indicated in paren-

theses for operating details.

LII0041

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/29/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

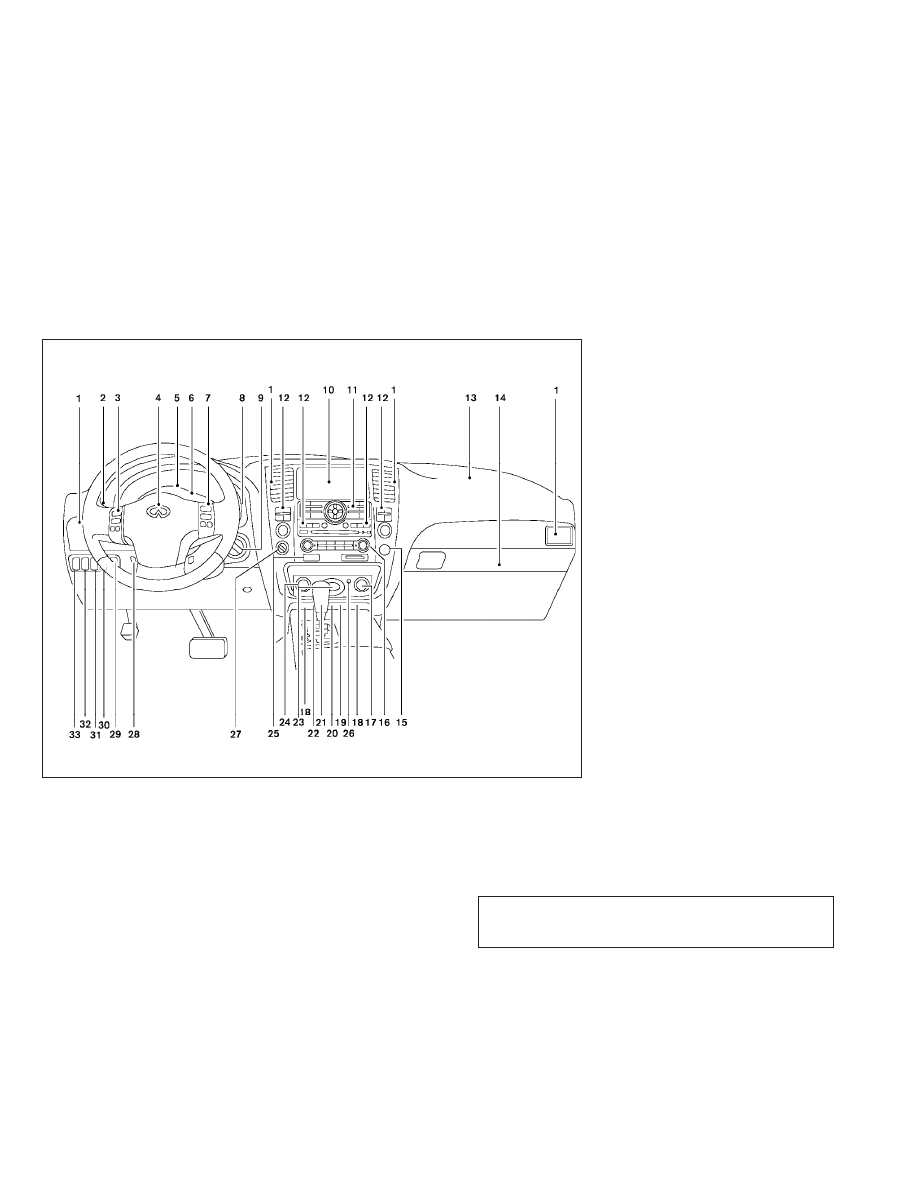

Vents (P. 4-21)

Headlight/fog light/turn signal switch
(P. 2-25)

Steering wheel switch for audio control
and Bluetooth

T Hands-Free Phone

System (if so equipped) (P. 4-50, 4-69)

Driver supplemental air bag/horn
(P. 1-48, P. 2-31)

Meters, gauges and warning/indicator
lights (P. 2-3, 2-10)

Instrument brightness control (P. 2-29)

Cruise control main/set switches and
Intelligent cruise control main/set
switches (if so equipped)
(P. 5-17, P.5-19)

Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-23, P. 2-24)

Ignition switch (P. 5-9)

10. Navigation system* (P. 4-2)

11. Navigation system* controls (P. 4-2)

12. Audio system controls (P. 4-25)

13. Front passenger supplemental air bag

(P. 1-48)

14. Glove box (P. 2-38)

15. Hazard lights (P. 2-30)

16. Climate controls (P. 4-22)

WIC1379

INSTRUMENT PANEL

0-6

Illustrated table of contents

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/29/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

17. Power outlet (P. 2-35)

18. Heated seat switch (P. 2-31)

19. Tow mode switch (P. 2-34)

20. Vehicle dynamic control (VDC) off

switch (P. 2-32)

21. Shift selector lever (P. 5-12)

22. Heated steering wheel (P.2-32)

23. Clock (P. 2-35)

24. Power outlet (P. 2-35)

25. Front passenger air bag status light

(P. 1-57)

26. Auxiliary jack (P. 4-38

27. 4WD shift switch (if so equipped)

(P. 5-41)

28. Tilt steering wheel control (P. 3-22)

29.. Rear or front and rear sonar system off

switch (P. 2-33)

30. Pedal position adjustment switch

(P. 3-23)

31. Headlight aiming control (P. 2-28)

32. Power vent windows (P. 2-51)

33. Lift gate open/close switch (P. 3-16)

*: Refer to the separate Navigation System Own-

er’s Instruction.
See the page number indicated in paren-
theses for operating details.

Illustrated table of contents

0-7

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/29/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Battery (P. 8-13)

Fuse/fusible link box (P. 8-22)

Transmission dipstick (P. 8-11)

Engine oil filler cap (P. 8-8)

Brake fluid reservoir (P. 8-12)

Windshield washer fluid reservoir
(P. 8-12)

Air cleaner (P. 8-17)

Drive belt location (P.8-15)

Radiator cap (P. 8-7)

10. Power steering fluid reservoir (P. 8-11)

11. Engine oil dipstick (P. 8-8)

12. Engine coolant reservoir (P. 8-7)

See the page number indicated in paren-

theses for operating details.

WDI0630

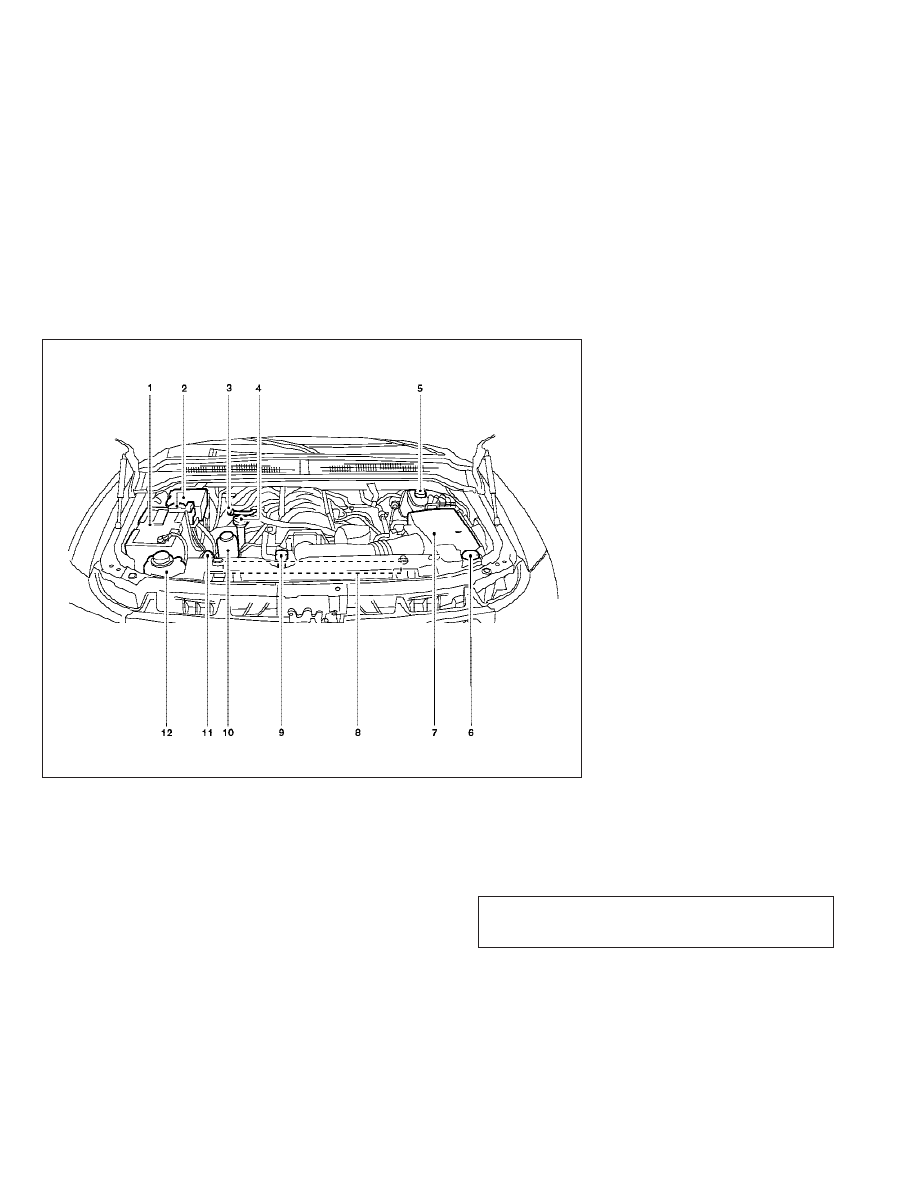

ENGINE COMPARTMENT CHECK

LOCATIONS

0-8

Illustrated table of contents

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/29/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

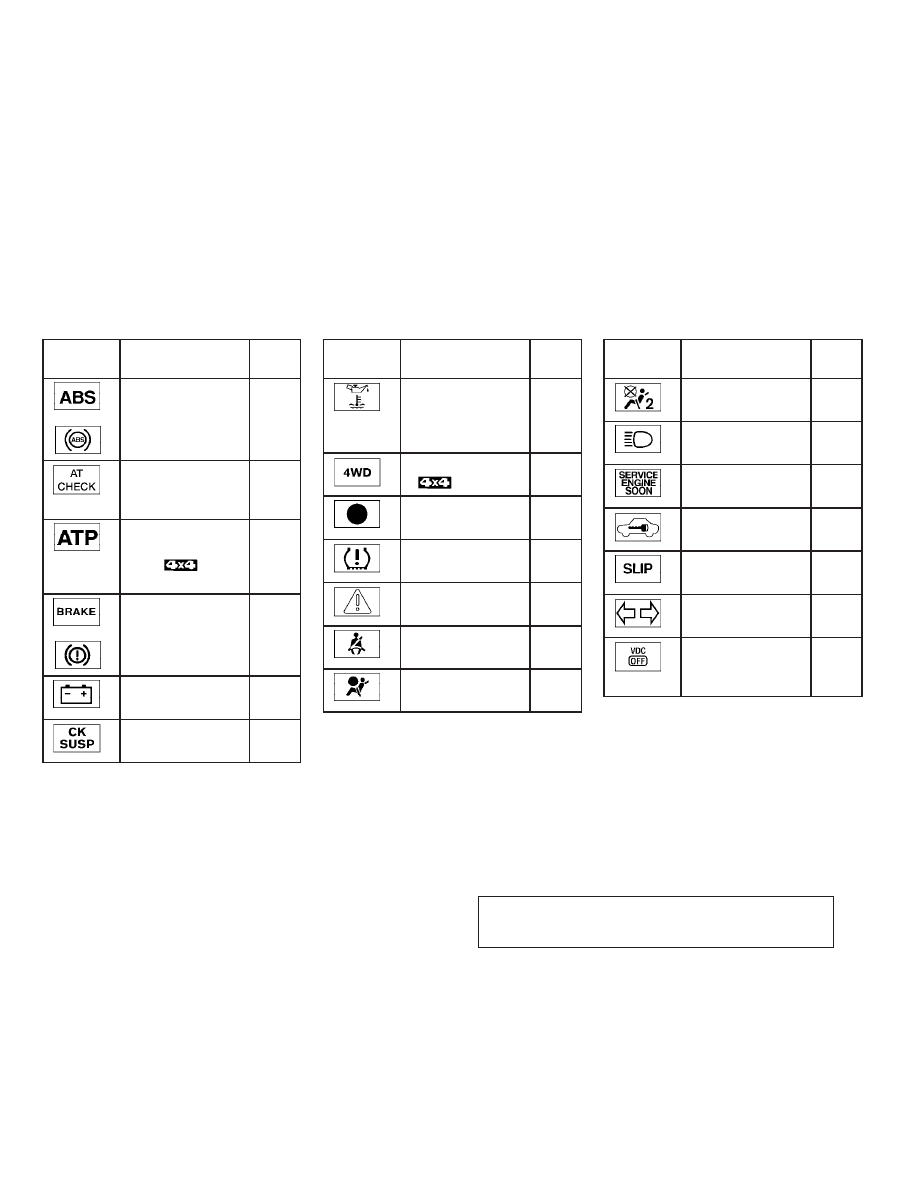

Warning

light

Name

Page

Anti-lock Braking
System (ABS) warn-
ing light

2-11

Automatic transmis-
sion check warning
light

2-11

Automatic transmis-
sion park warning
light (
model)

2-11

Brake warning light

2-11

Charge warning
light

2-12

Check suspension
warning light

2-12

Warning

light

Name

Page

Engine oil pressure
low/engine coolant
temperature high
warning light

2-12

4WD warning light
(

model)

2-13

Low fuel warning
light

2-13

Low tire pressure
warning light

2-13

Master warning light

2-14

Seat belt warning
light and chime

2-15

Supplemental air
bag warning light

2-15

Indicator

light

Name

Page

Front passenger air
bag status light

2-15

High beam indicator
light (Blue)

2-15

Malfunction indica-
tor lamp (MIL)

2-16

Security indicator
light

2-16

Slip indicator light

2-16

Turn signal/hazard
indicator lights

2-17

Vehicle Dynamic
Control (VDC) off
indicator light

2-17

WARNING/INDICATOR LIGHTS

Illustrated table of contents

0-9

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/29/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

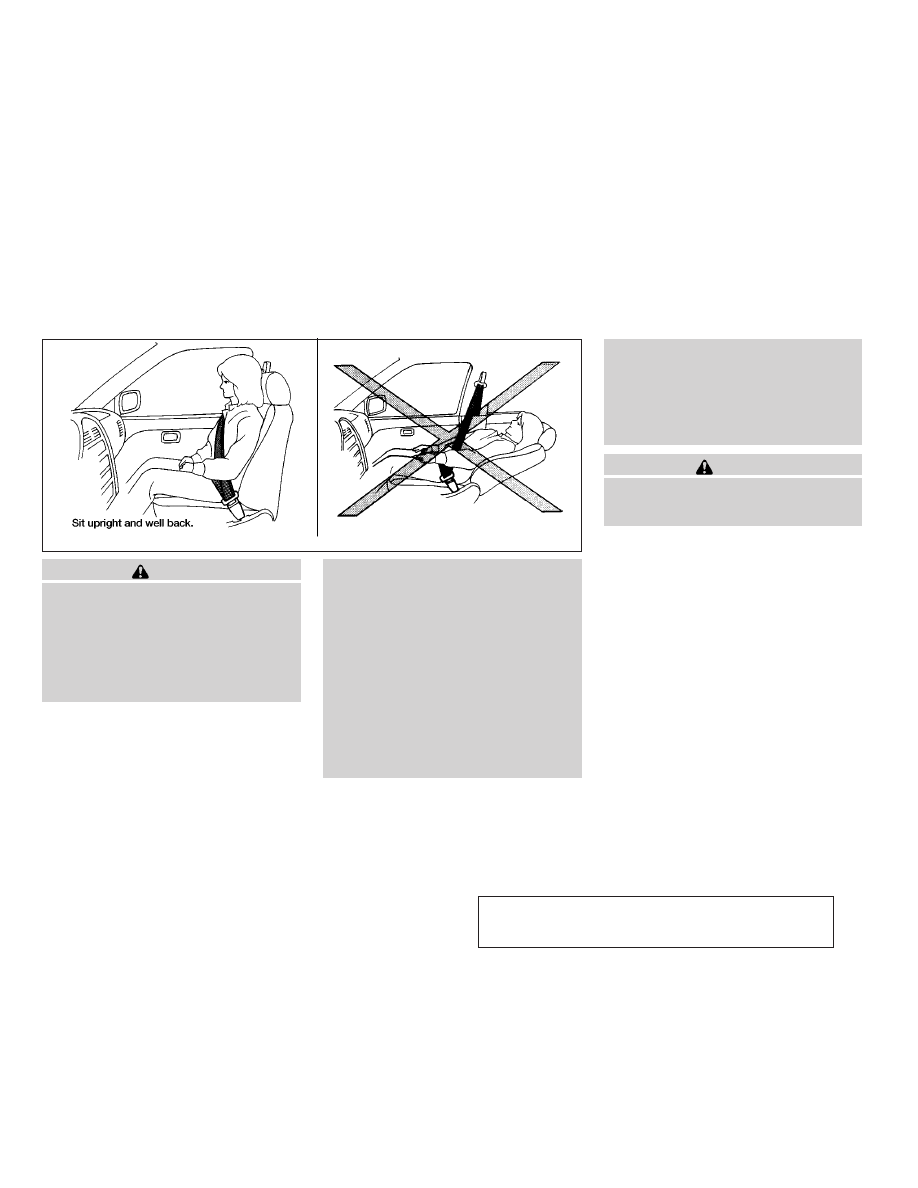

WARNING

● Do not ride in a moving vehicle when

the seatback is reclined. This can be

dangerous. The shoulder belt will not

be against your body. In an accident,

you could be thrown into it and receive

neck or other serious injuries. You

could also slide under the lap belt and

receive serious internal injuries.

● For the most effective protection when

the vehicle is in motion, the seat should

be upright. Always sit well back in the

seat with both feet on the floor and

adjust the seat properly. See “Precau-

tions on Seat Belt Usage” later in this

section.

● After adjustment, gently rock in the seat

to make sure it is securely locked.

● Do not leave children unattended inside

the vehicle. They could unknowingly ac-

tivate switches or controls. Unattended

children could become involved in seri-

ous accidents.

● The seatback should not be reclined

anymore than needed for comfort. Seat

belts are most effective when the pas-

senger sits well back and straight up in

the seat. If the seatback is reclined, the

risk of sliding under the lap belt and

being injured is increased.

CAUTION

When adjusting the seat positions, be

sure not to contact any moving parts to

avoid possible injuries and/or damage.

ARS1152

SEATS

1-2

Safety—Seats, seat belts and supplemental restraint system

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/28/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT POWER SEAT

ADJUSTMENT
Operating tips

● The power seat motor has an auto-reset

overload protection circuit. If the motor

stops during operation, wait 30 seconds,

then reactivate the switch.

● Do not operate the power seat switch for a

long period of time when the engine is off.

This will discharge the battery.

See “Automatic drive positioner” in the “Pre-

driving checks and adjustments” section for au-

tomatic drive positioner operation.

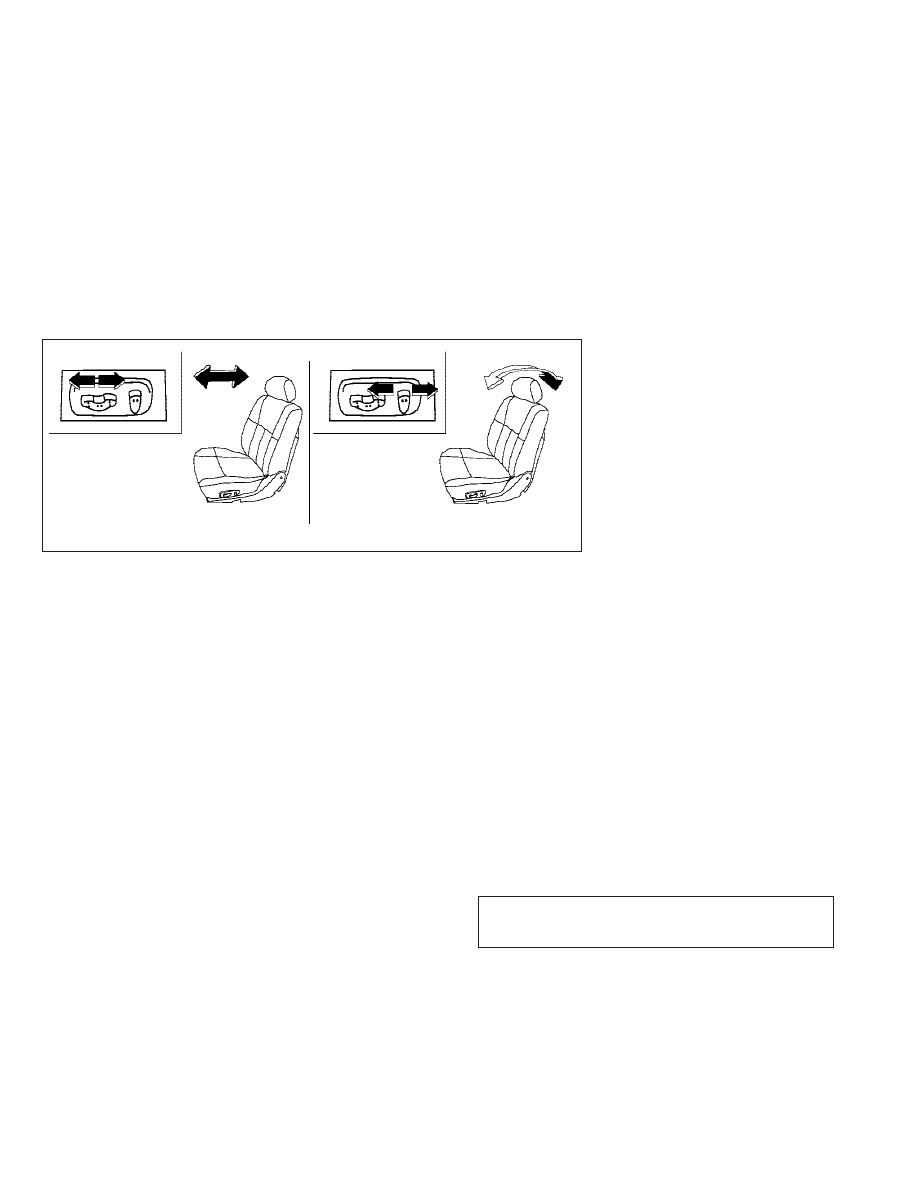

Forward and backward

Moving the switch forward or backward will slide

the seat forward or backward to the desired

position.

Reclining

Move the recline switch backward until the de-

sired angle is obtained. To bring the seatback

forward again, move the switch forward and

move your body forward. The seatback will move

forward.
The reclining feature allows adjustment of the

seatback for occupants of different sizes for

added comfort and to help obtain proper seat

belt fit (see “Precautions on seat belt usage” later

in this section). Also, the seatback can be re-

clined to allow occupants to rest when the ve-

hicle is stopped and the transmission is in P

(Park).

WRS0163

Safety—Seats, seat belts and supplemental restraint system

1-3

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/28/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

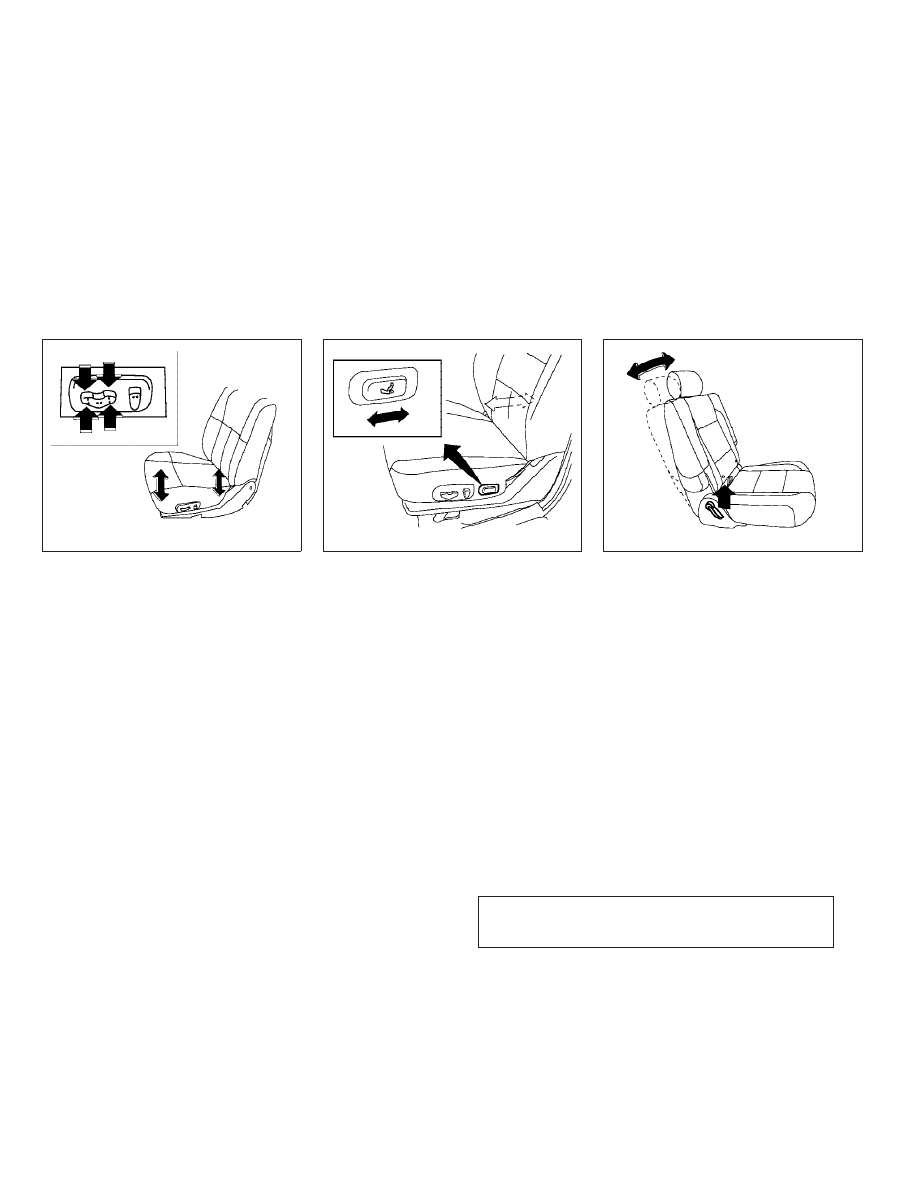

Seat lifter

Push the front or rear end of the switch up or

down to adjust the angle and height of the seat

cushion.

Lumbar support (driver’s seat)

The lumbar support feature provides lower back

support to the driver. Move the switch forward or

backward to adjust the seatback lumbar area.

2ND ROW CAPTAIN’S CHAIR

ADJUSTMENT
Reclining

To recline the seatback, pull up on the lever and

lean back.
The recline feature allows adjustment of the seat-

back for occupants of different sizes for added

comfort and to help obtain proper seat belt fit

(see “Precautions on seat belt usage” later in this

section). Also, the seatback can be reclined to

allow occupants to rest when the vehicle is

stopped and the transmission is in P (Park).

WRS0164

LRS0238

WRS0369

1-4

Safety—Seats, seat belts and supplemental restraint system

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/28/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

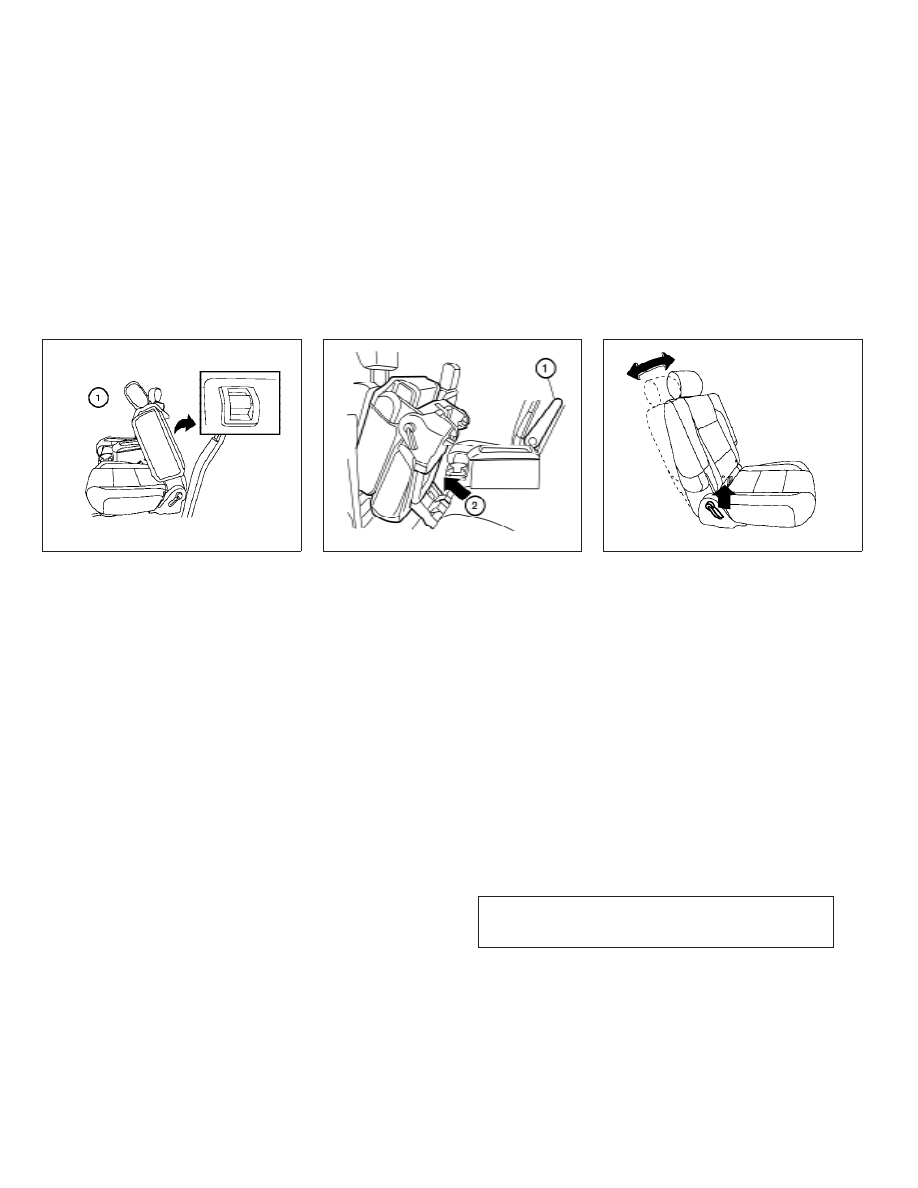

Tip up for easy entry to the 3rd row

The 2nd row captain’s chairs can be tipped for-

ward for easy entry or exit from the 3rd row bench

seat. To enter the 3rd row

, raise the armrest so

it is parallel to the seatback and in the stowed

position, then lift up on the latch located on the

upper corner of the seatback on the 2nd row

captain’s chair and fold the seatback forward at

an angle over the seat base. This will release the

back of the seat so it may be tipped forward.

Then

lift up on the lower corner of the seat

base and tip the 2nd row captain’s chair forward.

To exit the 3rd row bench seat, lift up on the same

latch and fold the seatback forward onto the seat

base. Then lift up on the seat base and tip it

forward.

2ND ROW BENCH SEAT

ADJUSTMENT (if so equipped)
Reclining

To recline the seatback, pull up on the lever and

lean back.
The recline feature allows adjustment of the seat-

back for occupants of different sizes for added

comfort and to help obtain proper seat belt fit

(see “Precautions on seat belt usage” later in this

section). Also, the seatback can be reclined to

allow occupants to rest when the vehicle is

stopped and the transmission is in P (Park).

WRS0415

LRS0372

Outboard seats

WRS0369

Safety—Seats, seat belts and supplemental restraint system

1-5

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Instruction—USA_English (nna)
02/28/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

● After adjustment, gently rock in the seat

to make sure it is securely locked.

● Do not ride in a moving vehicle when

the seatback is reclined. This can be

dangerous. The shoulder belt will not

be against your body. In an accident,

you could be thrown into it and receive

neck or other serious injuries. You

could also slide under the lap belt and

receive serious internal injuries.

● For the most effective protection when

the vehicle is in motion, the seat should

be upright. Always sit well back in the

seat and adjust the seat belt properly.

See “Precautions on seat belt usage”

later in this section.

Tip up for easy entry to the 3rd row

The outboard seating positions on the 2nd row

bench seat can be tipped forward for easy entry

or exit from the 3rd row bench seat. To enter the

3rd row

, lift up on the latch located on the

upper corner of the seatback on the 2nd row

bench seat and fold the seatback forward at an

angle over the seat base. This will release the

back of the seat so it may be tipped forward.

Then

lift up on the lower corner of the seat

base and tip the outboard seating position of the

2nd row bench seat forward. To exit the 3rd row

bench seat, lift up on the same latch and fold the

seatback forward onto the seat base. Then lift up

on the seat base and tip it forward.

WRS0414

LRS0331

1-6

Safety—Seats, seat belts and supplemental restraint system

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Manual—USA_English (nna)
02/28/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HEAD RESTRAINT ADJUSTMENT

To raise the head restraint, pull it up. To lower,

push and hold the lock knob and push the head

restraint down.
The head restraints on the 2nd and 3rd row seats

are removable. The front seat head restraints are

not removable.

WARNING

Head restraints should be adjusted prop-

erly as they may provide significant pro-

tection against injury in an accident. Do

not remove them. Check the adjustment

after someone else uses the seat.

Adjust the head restraint so the center is level

with the center of your ears.

LRS0286

WRS0134

Safety—Seats, seat belts and supplemental restraint system

1-7

REVIEW COPY—

2009 Infiniti QX56 (iwz)

Owners Manual—USA_English (nna)
02/28/08—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Qx (2009 year). Instruction - part 1
