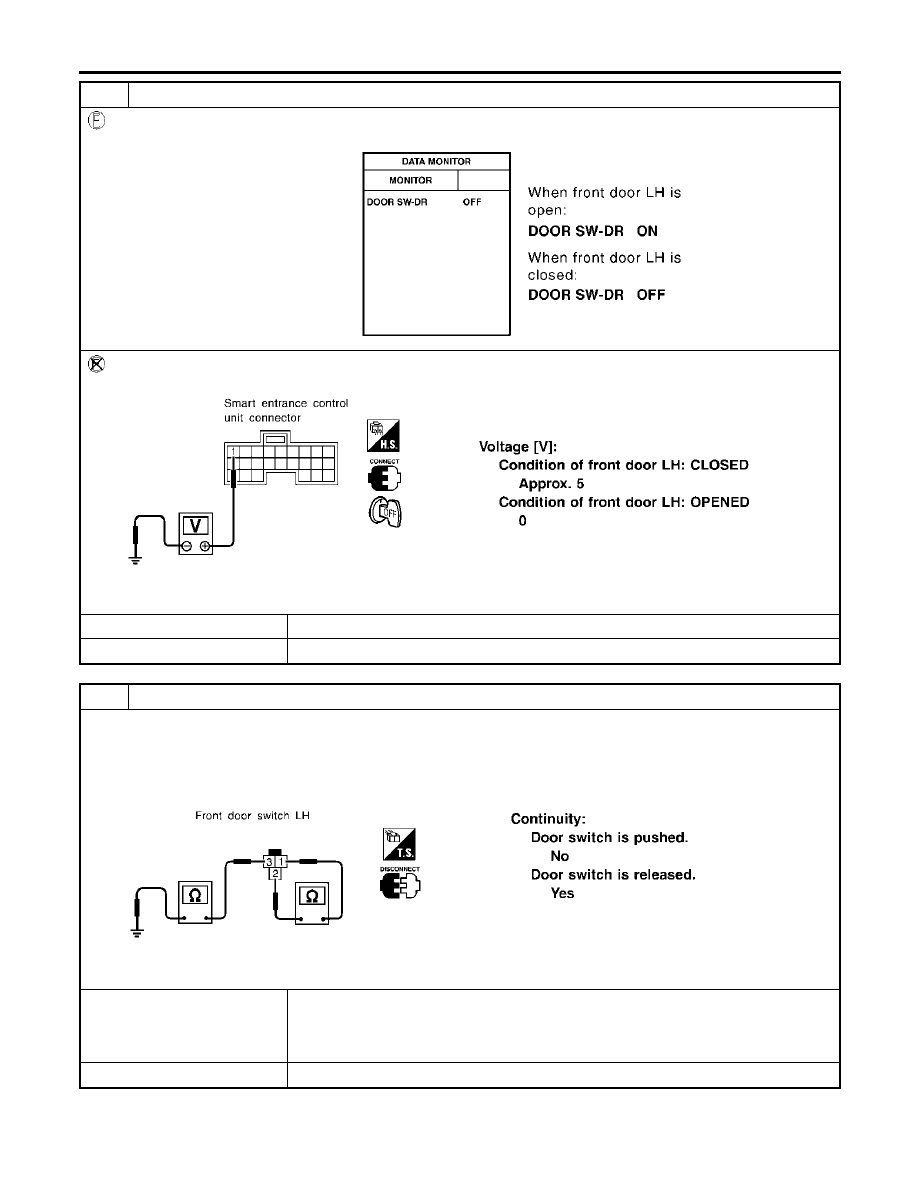

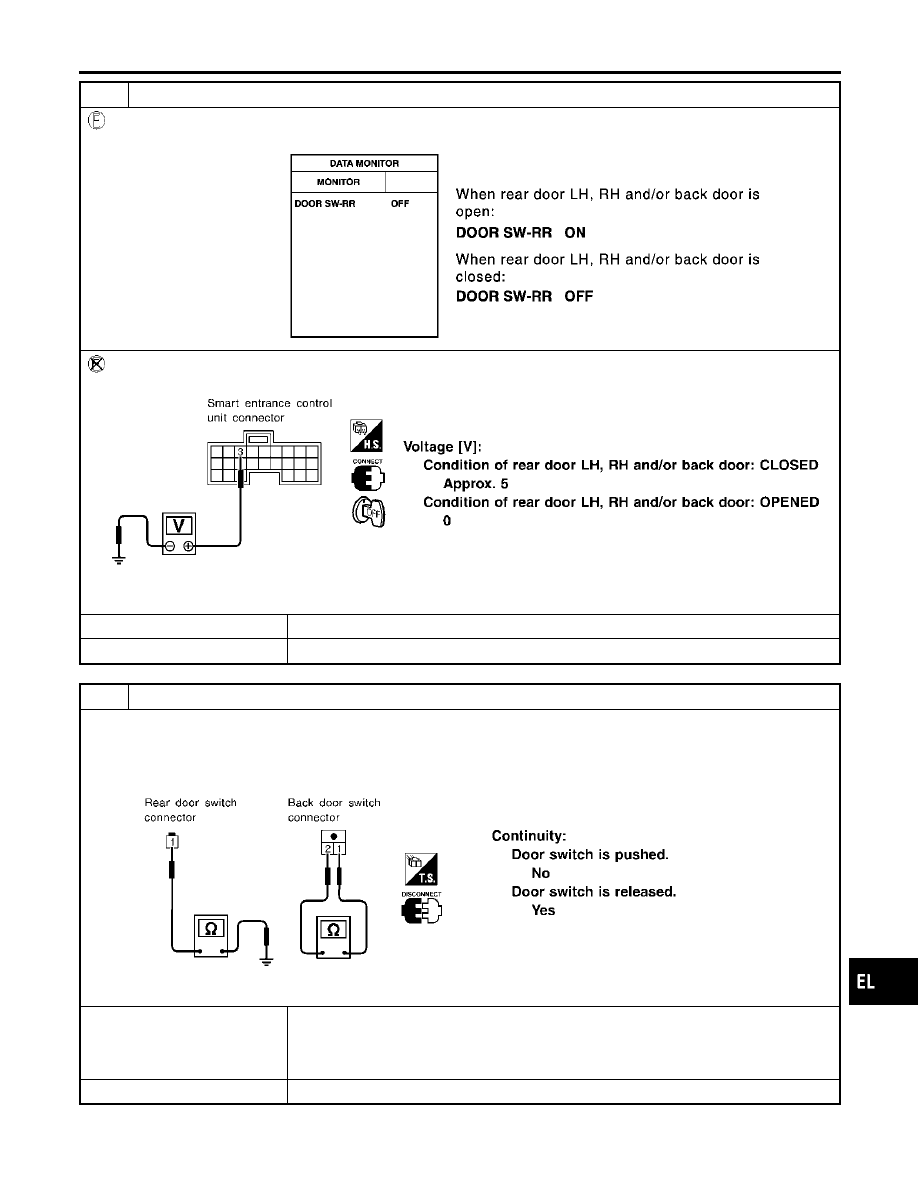

6 CHECK REAR AND BACK DOOR SWITCHES INPUT SIGNAL With CONSULT-II Check door switches (“DOOR SW-RR”) in “DATA MONITOR” mode with CONSULT-II. SEL154YB Without CONSULT-II Check voltage between smart entrance control unit harness connector M121 terminal 3 (R/L) and ground. SEL155YB OK or NG OK 䊳 GO TO 8. NG 䊳 GO TO 7. 7 CHECK REAR AND BACK DOOR SWITCHES 1. Disconnect door switch harness connector. 쐌 Continuity between rear door switches connector B18 and B71 terminal 1 and ground 쐌 Continuity between back door switch connector D208 terminals 1 and 2 SEL279Y OK or NG OK 䊳 Check the following. 쐌 Rear LH, RH and/or back door switch ground circuit or door switch ground condition 쐌 Harness for open or short between smart entrance control unit and rear LH, RH and/or NG 䊳 Replace rear LH, RH and/or back door switch. GI MA EM LC EC FE AT TF PD AX SU BR ST RS BT HA SC IDX INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS Trouble Diagnoses for Interior Lamp Timer (Cont’d) EL-117 |
