System Description

NBEL0474

The headlamp aiming operation is controlled by the headlamp aiming switch.
Power is supplied at all times

to tail lamp relay terminals 1 and 3

through 10A fuse (No. 61, located in fuse and fusible link box), and

to smart entrance control unit terminal 49

through 7.5A fuse [No. 24, located in the fuse block (J/B)].

When lighting switch is in 1ST or 2ND position, ground is supplied

to tail lamp relay terminal 2 from smart entrance control unit terminals 19 and 57

through smart entrance control unit terminals 20 and 58 and

through lighting switch terminals 11 and 5, and

through body grounds E13 and E41

and then tail lamp relay is energized.
When tail lamp relay is energized, power is supplied

from tail lamp relay terminal 5

to terminal 1 of each headlamp aiming motor.

Ground is supplied

to terminal 3 of each headlamp aiming motor

through body grounds E13 and E41,

to terminal 2 of each headlamp aiming motor

through headlamp aiming switch and body grounds E13 and E41.

With power and ground supplied, headlamp aiming motors operate according to the aiming switch position.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HEADLAMP — HEADLAMP AIMING CONTROL —

System Description

EL-69

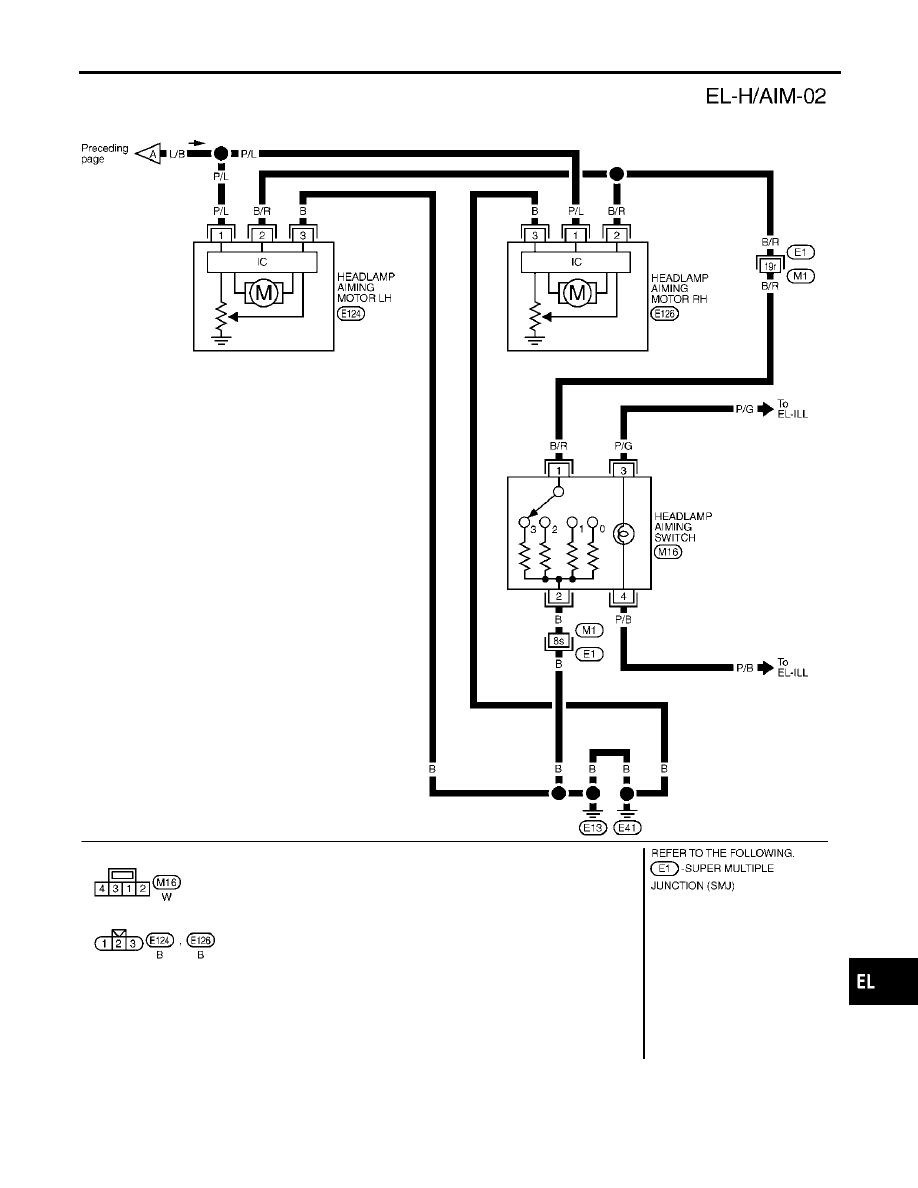

Wiring Diagram — H/AIM —

NBEL0475

MEL290Q

HEADLAMP — HEADLAMP AIMING CONTROL —

Wiring Diagram — H/AIM —

EL-70

MEL291Q

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HEADLAMP — HEADLAMP AIMING CONTROL —

Wiring Diagram — H/AIM — (Cont’d)

EL-71

System Description

NBEL0272

The parking, license and tail lamp operation is controlled by the lighting switch which is built into the combi-
nation switch and smart entrance control unit. The battery saver system is controlled by the smart entrance
control unit.
Power is supplied at all times

to tail lamp relay terminals 1 and 3

through 10A fuse (No. 61, located in the fuse and fusible link box), and

to smart entrance control unit terminal 49

through 7.5A fuse [No. 24, located in the fuse block (J/B)].

When ignition switch is in ON or START position, power is supplied

to smart entrance control unit terminal 27

through 7.5A fuse [No. 11, located in the fuse block (J/B)].

When the ignition switch is in the ACC or ON position, power is supplied

to smart entrance control unit terminal 26

through 10A fuse [No. 10, located in the fuse block (J/B)].

Ground is supplied

to smart entrance control unit terminals 43 and 64

through body grounds M77 and M111.

LIGHTING OPERATION BY LIGHTING SWITCH

NBEL0272S01

When lighting switch is in 1ST (or 2ND) position, ground is supplied

to tail lamp relay terminal 2 from smart entrance control unit terminals 19 and 57

through smart entrance control unit terminals 20 and 58, and

through lighting switch and body grounds E13 and E41.

Tail lamp relay is then energized and the parking, license and tail lamps illuminate.

LIGHTING OPERATION BY AUTO LIGHT CONTROL SYSTEM

NBEL0272S02

When lighting switch is in AUTO position, ground is supplied

to tail lamp relay terminal 2 from smart entrance control unit terminals 19 and 57

through smart entrance control unit terminals 43 and 64, and

to body grounds M77 and M111.

Tail lamp relay is then energized and the parking, license and tail lamps illuminate.

EXTERIOR LAMP BATTERY SAVER CONTROL

NBEL0272S03

Except for Auto Light Control Operation

NBEL0272S0301

Parking, license and tail lamps will remain on for a short while after the ignition switch is turned from ON (or
ACC) to OFF.
Continuity between terminals 19 and 20, and between terminals 57 and 58 of smart entrance control unit will
be disturbed after 5 minutes, then the parking, license and tail lamps will be turned off.
When the lighting switch is turned from OFF to 2ND after parking, license and tail lamps are turned to off by
the exterior lamp battery saver control, ground is supplied

to smart entrance control unit terminals 20 and 58 from lighting switch terminal 11, and then,

to tail lamp relay terminal 2 from smart entrance control unit terminals 19 and 57,

Then parking, license and tail lamps illuminate again.

Auto light control operation

NBEL0272S0302

While the parking, license and tail lamps are turned ON by “AUTO” operation, the exterior lamp battery saver
is activated for 5 minutes when the ignition switch is turned from ON (or ACC) to OFF, and either LH or RH
front door switch is opened.
The smart entrance control unit controls exterior lamp battery saver activation as follows:

When the door switch signal changes from ON to OFF while the exterior lamp battery saver is activated,
the operation is discontinued, restarts and lasts for 45 seconds, then the parking, license and tail lamps
will be turned off.

When the door switch signal changes from OFF to ON while the exterior lamp battery saver is activated,
the operation is discontinued, restarts and lasts for 45 seconds, then the parking, license and tail lamps
will be turned off.

PARKING, LICENSE AND TAIL LAMPS

System Description

EL-72

When the one of four door switch signals changes from OFF to ON while the exterior lamp battery saver
is activated, the operation is discontinued, restarts and lasts for 5 minutes seconds, then the parking,
license and tail lamps will be turned off.

When all the door switch ON signals are input while the exterior lamp battery saver is activated, the
operation is discontinued, restarts and lasts for 45 seconds, then the parking, license and tail lamps will
be turned off.
Exterior lamp battery saver control time can be changed using “WORK SUPPORT” mode in “HEAD-
LAMP”.

When the lighting switch is turned from OFF to 2ND after parking, license and tail lamps are turned to off by
the exterior lamp battery saver control, ground is supplied

to smart entrance control unit terminals 20 and 58 from lighting switch terminal 11, and then,

to tail lamp relays terminal 2 from smart entrance control unit terminals 19 and 57,

Then parking, license and tail lamps illuminate again.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

PARKING, LICENSE AND TAIL LAMPS

System Description (Cont’d)

EL-73

Schematic

NBEL0273

MEL680P

PARKING, LICENSE AND TAIL LAMPS

Schematic

EL-74

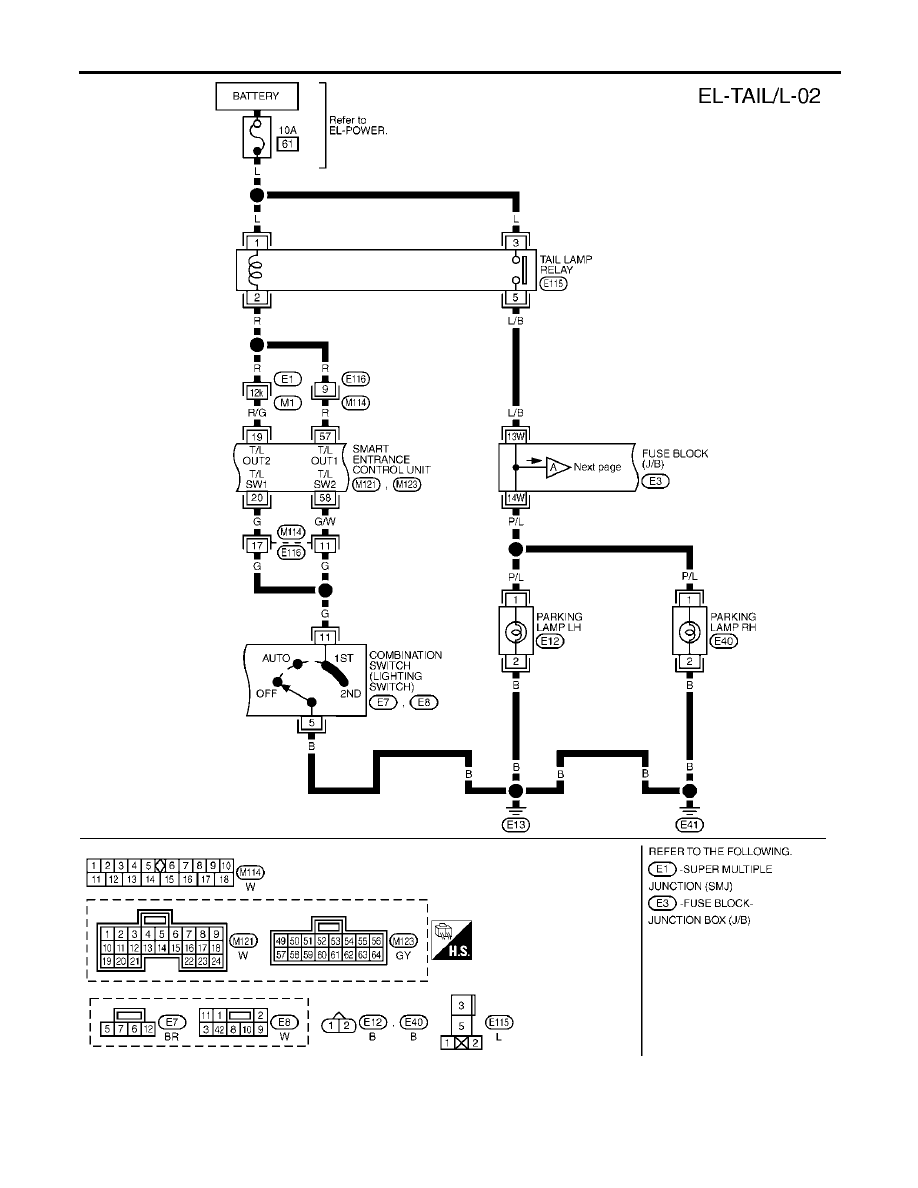

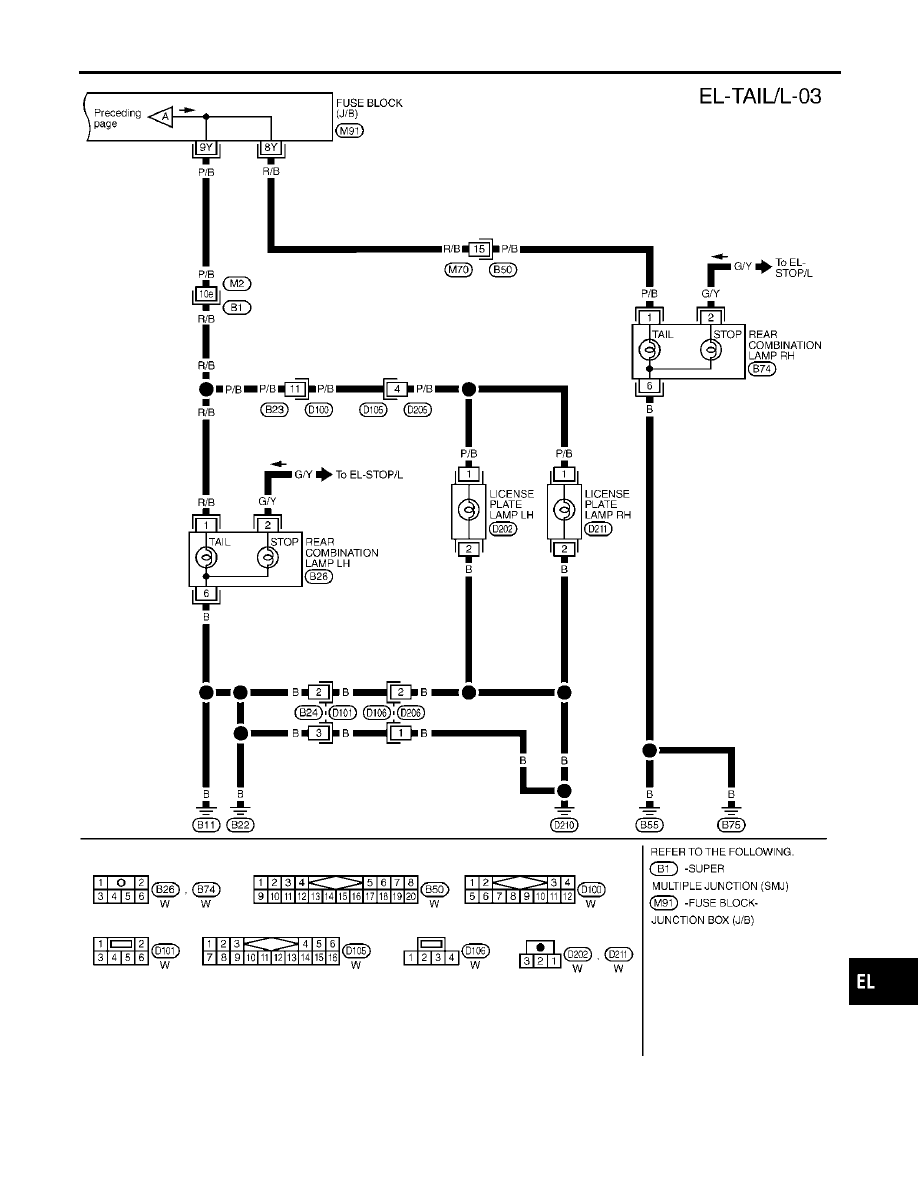

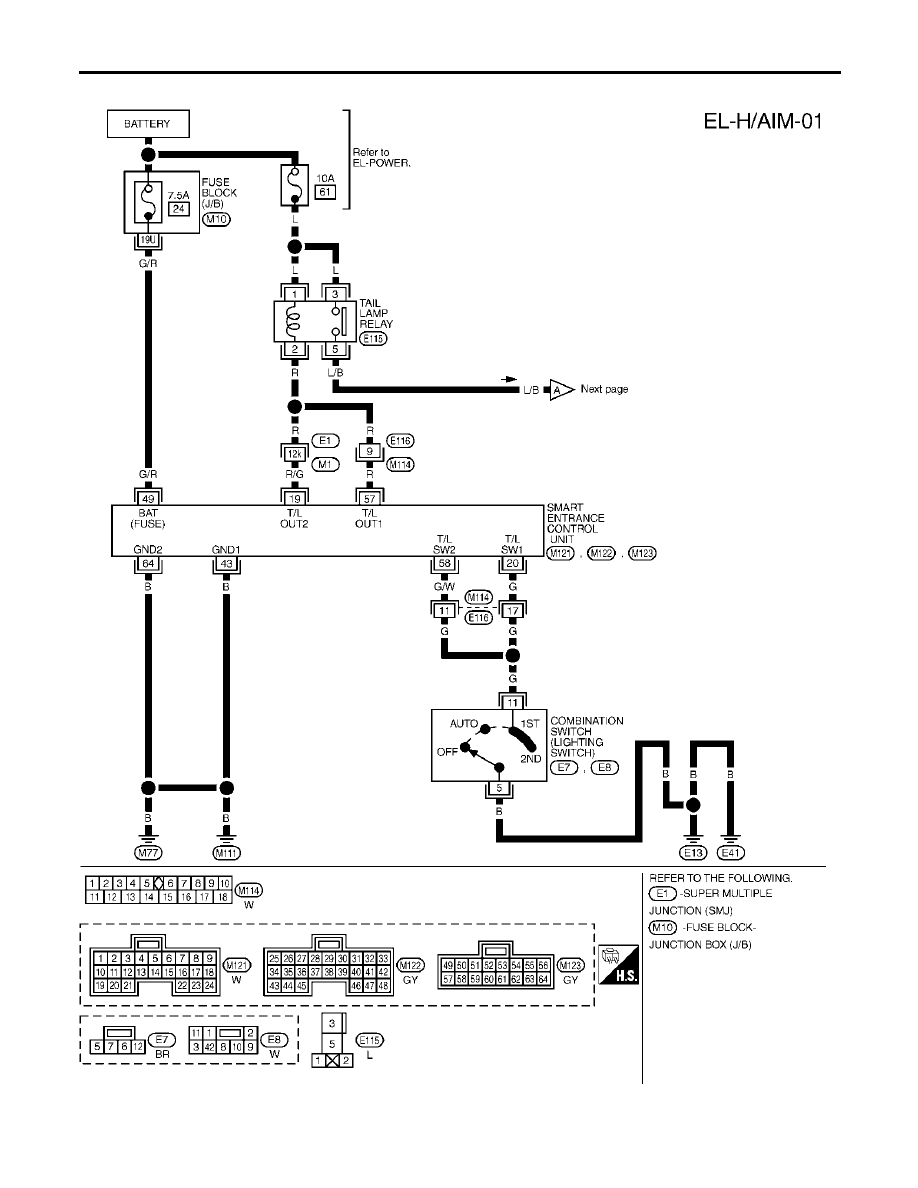

Wiring Diagram — TAIL/L —

NBEL0274

MEL292Q

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

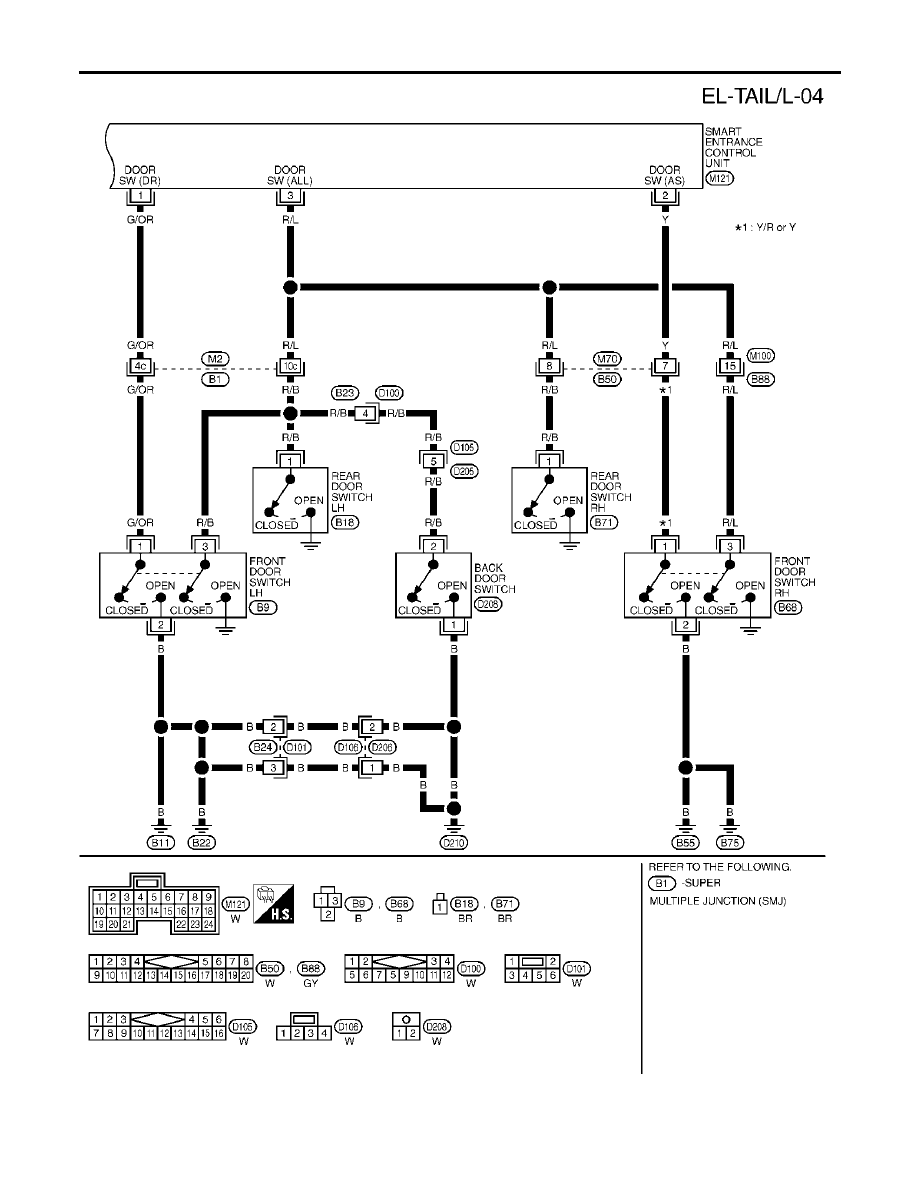

PARKING, LICENSE AND TAIL LAMPS

Wiring Diagram — TAIL/L —

EL-75

MEL597P

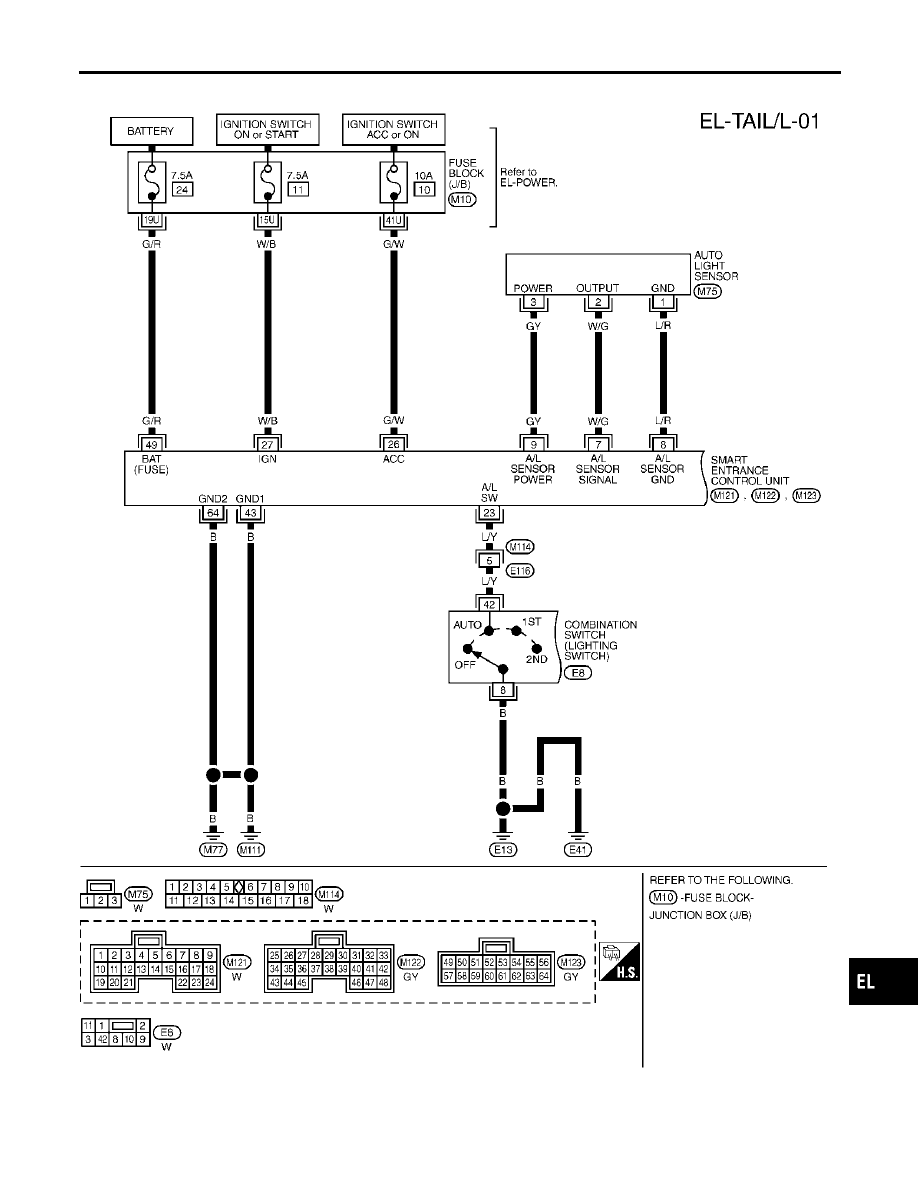

PARKING, LICENSE AND TAIL LAMPS

Wiring Diagram — TAIL/L — (Cont’d)

EL-76

MEL293Q

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

PARKING, LICENSE AND TAIL LAMPS

Wiring Diagram — TAIL/L — (Cont’d)

EL-77

MEL394R

PARKING, LICENSE AND TAIL LAMPS

Wiring Diagram — TAIL/L — (Cont’d)

EL-78

SEL670Y

CONSULT-II Inspection Procedure

NBEL0275

“HEADLAMP”

NBEL0275S01

1.

Turn ignition switch “OFF”.

2.

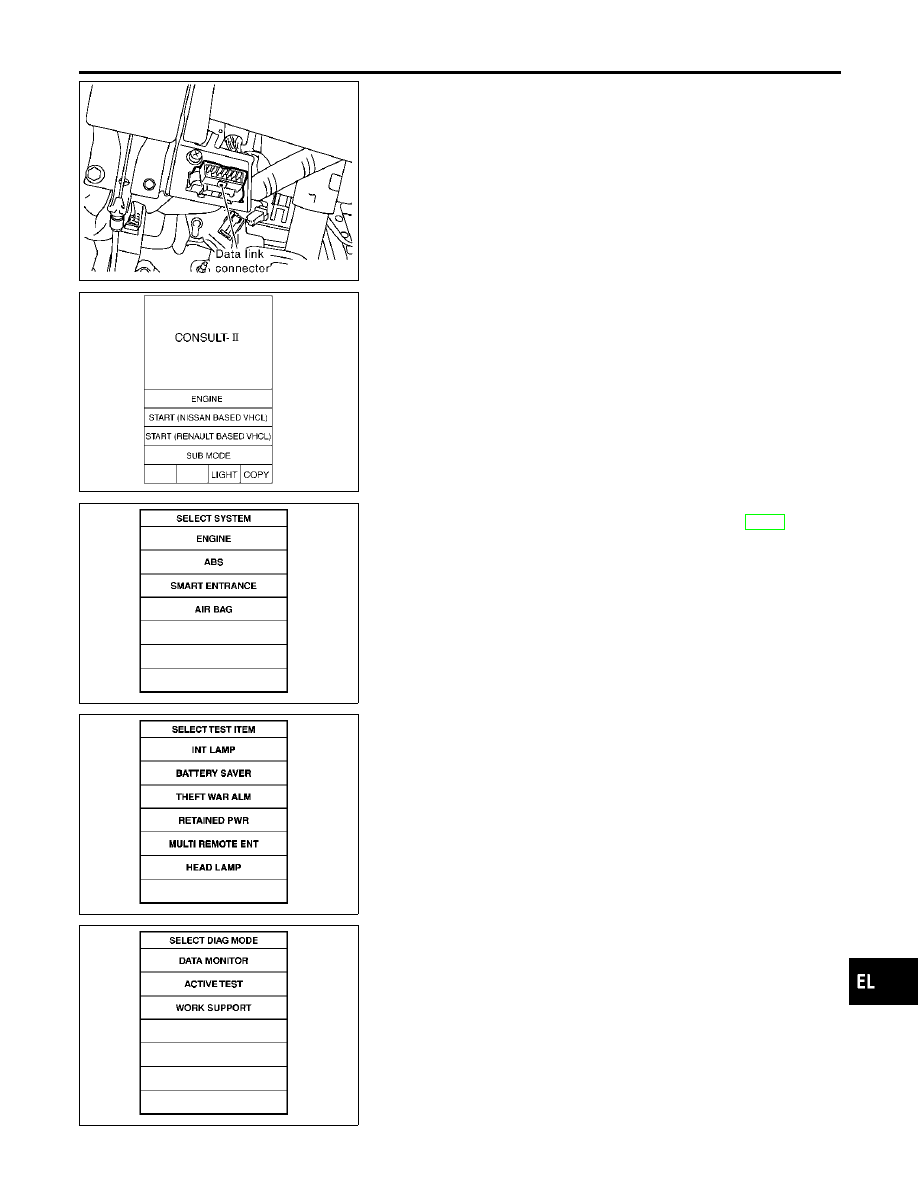

Connect “CONSULT-II” and “CONSULT-II CONVERTER” to
the data link connector.

SKIA3098E

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

SEL398Y

5.

Touch “SMART ENTRANCE”.
If “SMART ENTRANCE” is not indicated, go to GI-42, “CON-
SULT-II Data Link Connector (DLC) Circuit”.

SEL751Y

6.

Touch “HEADLAMP”.

SEL400Y

7.

Select diagnosis mode.
“DATA MONITOR”, “ACTIVE TEST” and “WORK SUPPORT”
are available.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

PARKING, LICENSE AND TAIL LAMPS

CONSULT-II Inspection Procedure

EL-79

CONSULT-II Application Items

NBEL0454

“HEADLAMP”

NBEL0454S01

Data Monitor

NBEL0454S0101

Monitored Item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

AUTO LIGT SW

Displays status of the lighting switch as judged from the lighting switch signal.
(AUTO position: ON/Other than AUTO position: OFF)

AUTO LIGT SENS

Displays “Illumination outside of the vehicle (close to 5V when light/close to 0V when dark)” as
judged from the optical sensor signal.

LIGHT SW 1ST

Displays status of the lighting switch as judged from the lighting switch signal.
(1ST or 2ND position: ON/Other than 1ST and 2ND position: OFF)

LIGHT SW 2ND

Displays status of the lighting switch as judged from the lighting switch signal.
(2ND position: ON/Other than 2ND position: OFF)

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of door switch RH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch.

Active Test

NBEL0454S0102

Test Item

Description

TAIL LAMP

Tail lamp relay can be operated by on-off operation of the tail lamp.

HEAD LAMP

Headlamp relay can be operated by on-off operation of the headlamp.

AUTO LIGHT

Night time dimming signal can be operated by on-off operation.

Work Support

NBEL0454S0103

Work Item

Description

AUTO LIGHT SET

Auto light sensitivity can be changed in this mode. Sensitivity can be adjusted in four modes.

NORMAL/MODE 2 (Sensitive)/MODE 3 (Desensitized)/MODE 4 (Insensitive)

BATTERY SAVER SET

Exterior lamp battery saver control mode can be changed in this mode. Selects exterior lamp
battery saver control mode between two modes.

MODE 1 (ON)/MODE 2 (OFF)

ILL DELAY SET

Auto light delay off timer period can be changed in this mode. Selects auto light delay off timer
period among eight modes.

MODE 1 (45 sec.)/MODE 2 (OFF)/MODE 3 (30 sec.)/MODE 4 (60 sec.)/ MODE 5 (90 sec.)/
MODE 6 (120 sec.)/MODE 7 (150 sec.)/MODE 8 (180 sec.)

Trouble Diagnoses

NBEL0277

Symptom

Possible cause

Repair order

No lamps operate (including head-
lamps).

1. 7.5A fuse
2. Lighting switch
3. Smart entrance control unit

1. Check 7.5A fuse [No. 24, lacated in fuse block

(J/B)]. Verify battery positive voltage is present at
terminal 49 of smart entrance control unit.

2. Check lighting switch.
3. Check smart entrance control unit. (EL-492)

PARKING, LICENSE AND TAIL LAMPS

CONSULT-II Application Items

EL-80

Symptom

Possible cause

Repair order

No parking, license and tail lamps
operate, but headlamps do oper-
ate.

1. 10A fuse
2. Tail lamp relay
3. Tail lamp relay circuit
4. Lighting switch
5. Lighting switch circuit
6. Smart entrance control unit

1. Check 10A fuse (No. 61, located in fusible and fuse

block). Verify battery positive voltage is present at
terminals 1 and 3 of tail lamp relay.

2. Check tail lamp relay.
3. Check the following.
a. Harness between smart entrance control unit termi-

nals 19 and 57 and tail lamp relay terminal 2

b. Harness between tail lamp relay terminal 5 and fuse

block

4. Check lighting switch.
5. Check the following.
a. Harness between lighting switch terminal 11 and

smart entrance control unit terminals 20 and 58

b. Harness between lighting switch terminal 5 and

ground

6. Check smart entrance control unit. (EL-492)

Exterior lamp battery saver control
does not operate properly.

1. Driver, passenger or rear door

switch circuit

2. Smart entrance control unit

1. Check the following.
a. Harness between smart entrance control unit and

driver, passenger or rear door switch for open or
short circuit

b. Driver passenger or rear door switch ground circuit
c. Driver, passenger or rear door switch
2. Check smart entrance control unit. (EL-492)

Auto light malfunctioning

Refer to trouble diagnosis in “HEADLAMP”. (EL-45)

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

PARKING, LICENSE AND TAIL LAMPS

Trouble Diagnoses (Cont’d)

EL-81

Wiring Diagram — STOP/L —

NBEL0278

MEL295Q

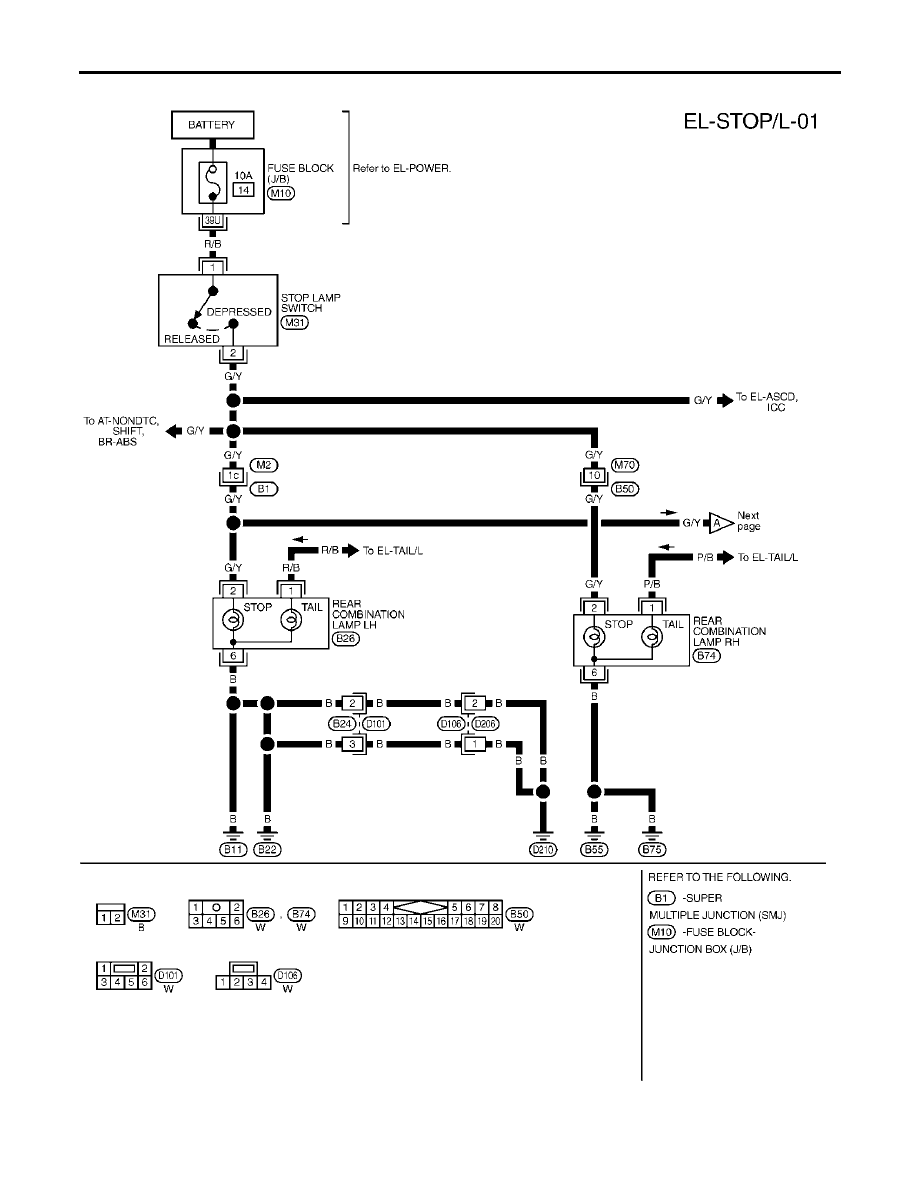

STOP LAMP

Wiring Diagram — STOP/L —

EL-82

MEL262M

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

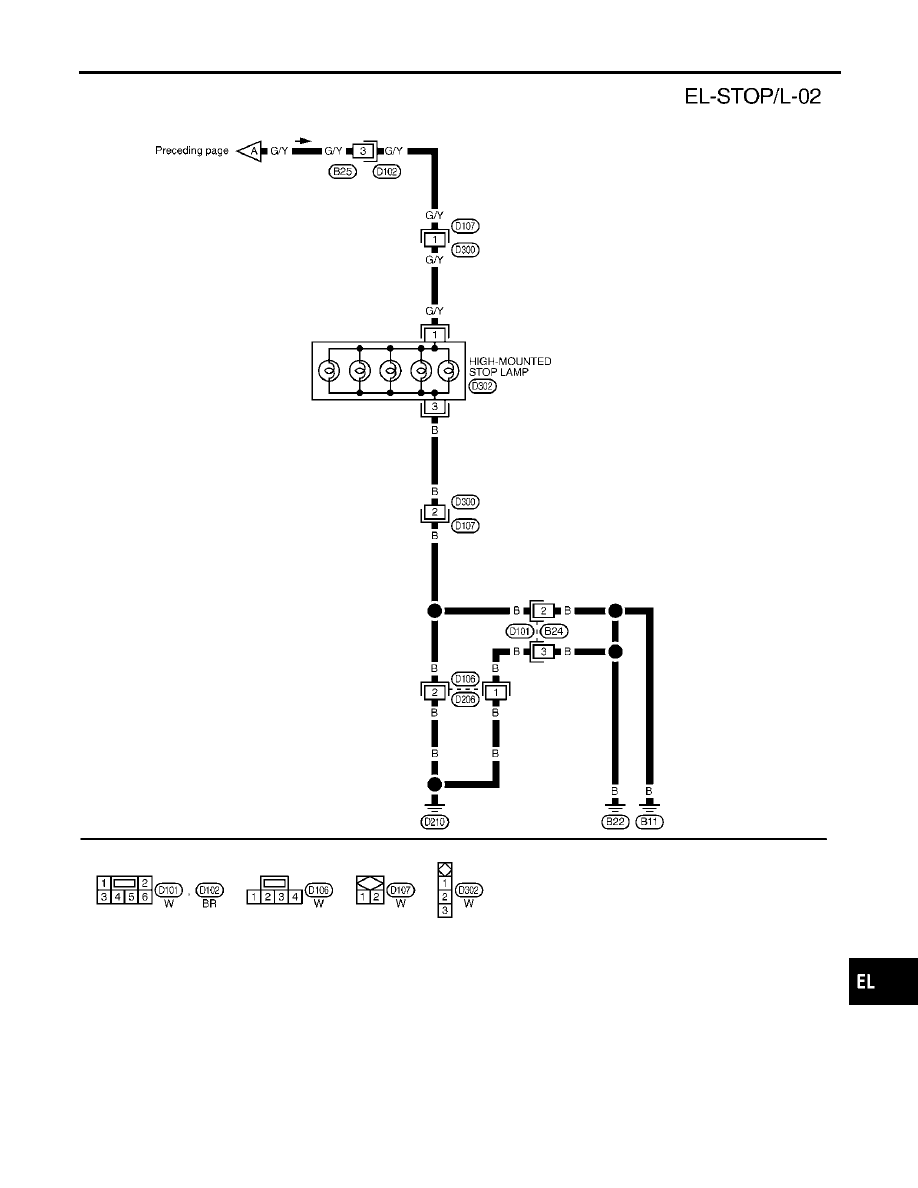

STOP LAMP

Wiring Diagram — STOP/L — (Cont’d)

EL-83

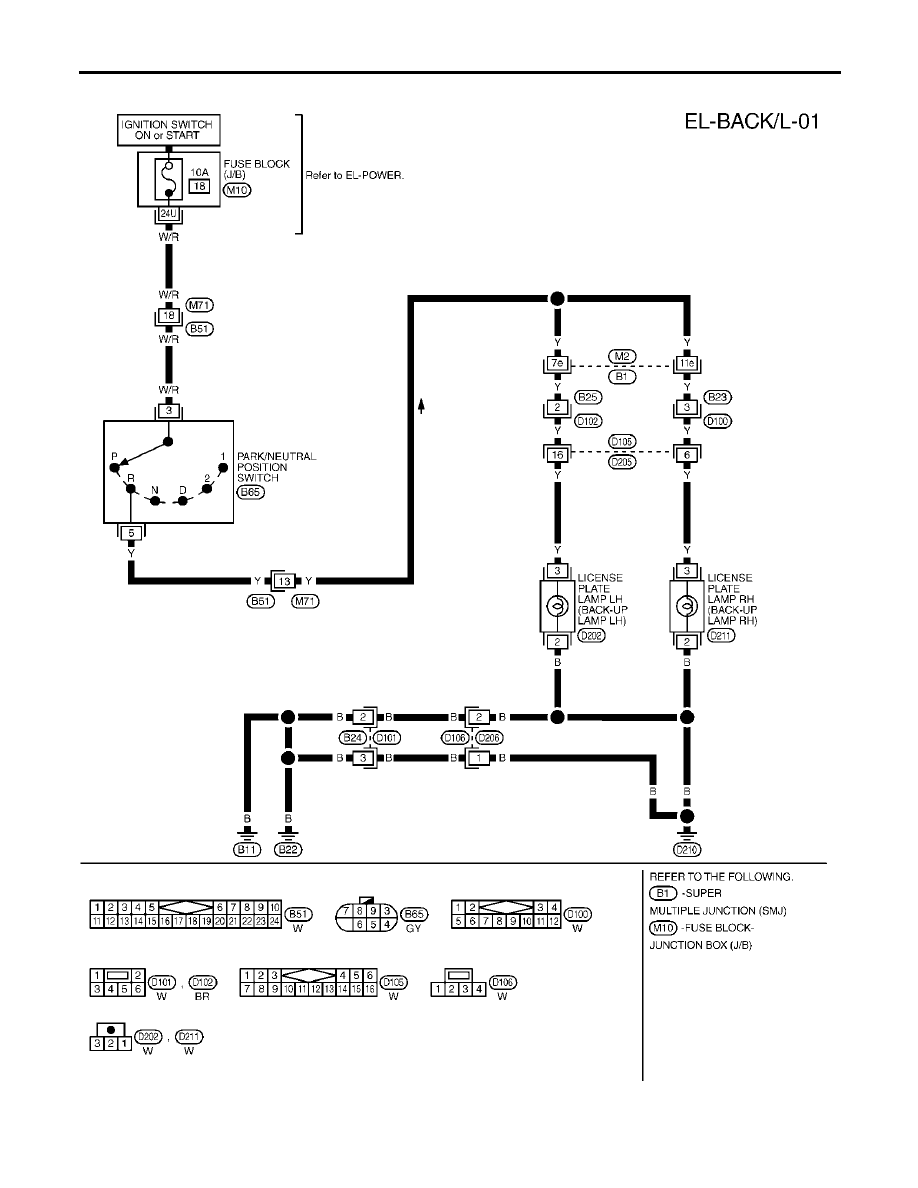

Wiring Diagram — BACK/L —

NBEL0279

MEL778L

BACK-UP LAMP

Wiring Diagram — BACK/L —

EL-84















Content      ..     3      4      5      6     ..
