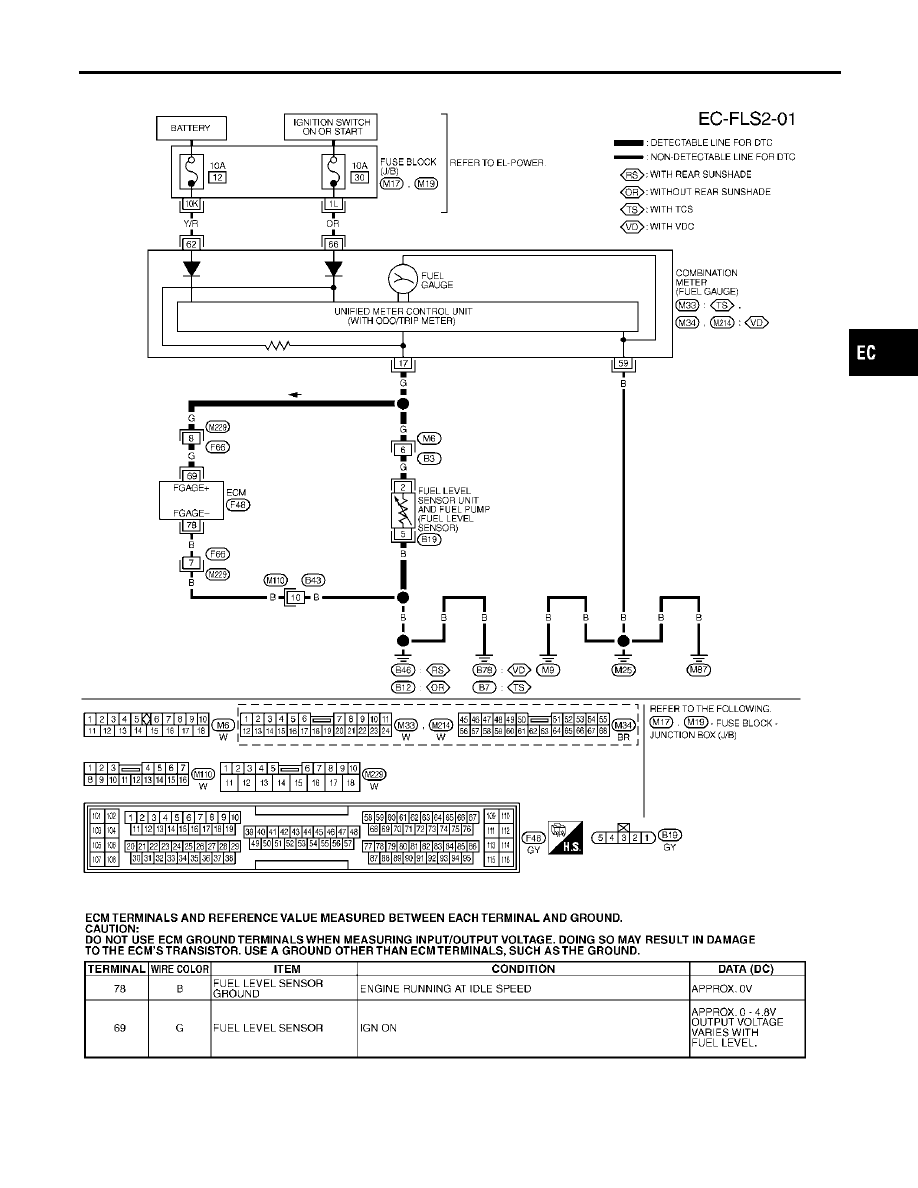

12) Check “FUEL LEVEL SE” output voltage and confirm whether the voltage changes more than 0.03V during step 7 to 11. SEC910C WITH GST NHEC0998S02 NOTE: (7-7/8 US gal, 6-5/8 Imp gal) in advance. Prepare a fuel container and a spare hose. 2) Release fuel pressure from fuel line, refer to “Fuel Pressure 3) Remove the fuel feed hose on the fuel level sensor unit. 4) Connect a spare fuel hose where the fuel feed hose was 5) Turn ignition switch “OFF”. 6) Set voltmeters probe between ECM terminal 69 (fuel level 7) Turn ignition switch “ON”. 8) Check voltage between ECM terminal 69 and ground and note 9) Drain fuel by 30 (7-7/8 US gal, 6-5/8 Imp gal) from the fuel tank using proper equipment. 10) Fill fuel into the fuel tank for 30 (7-7/8 US gal, 6-5/8 Imp gal). 11) Confirm that the voltage between ECM terminal 69 and ground changes more than 0.03V during step 8 - 10. GI MA EM LC FE AT AX SU BR ST RS BT HA SC EL IDX DTC P0461 FUEL LEVEL SENSOR Overall Function Check (Cont’d) EC-417 |
