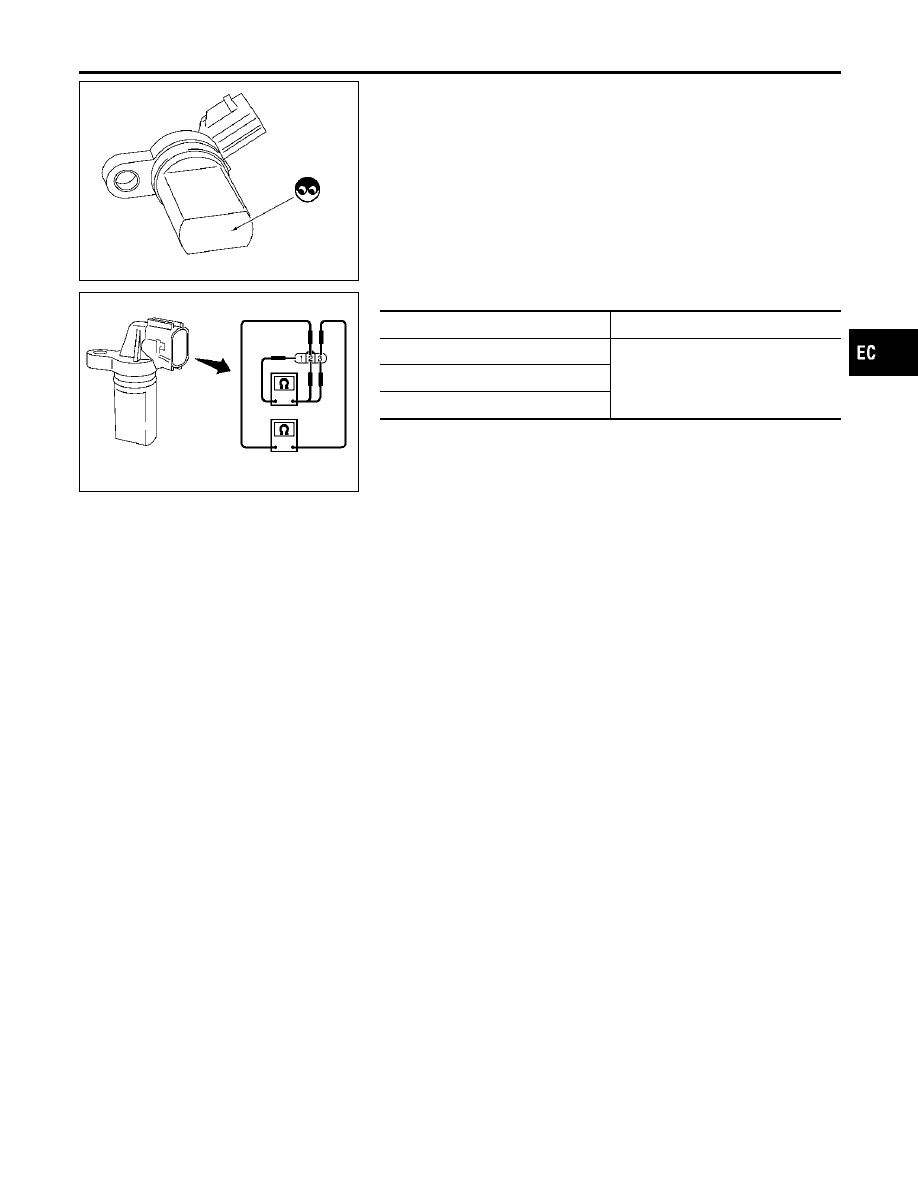

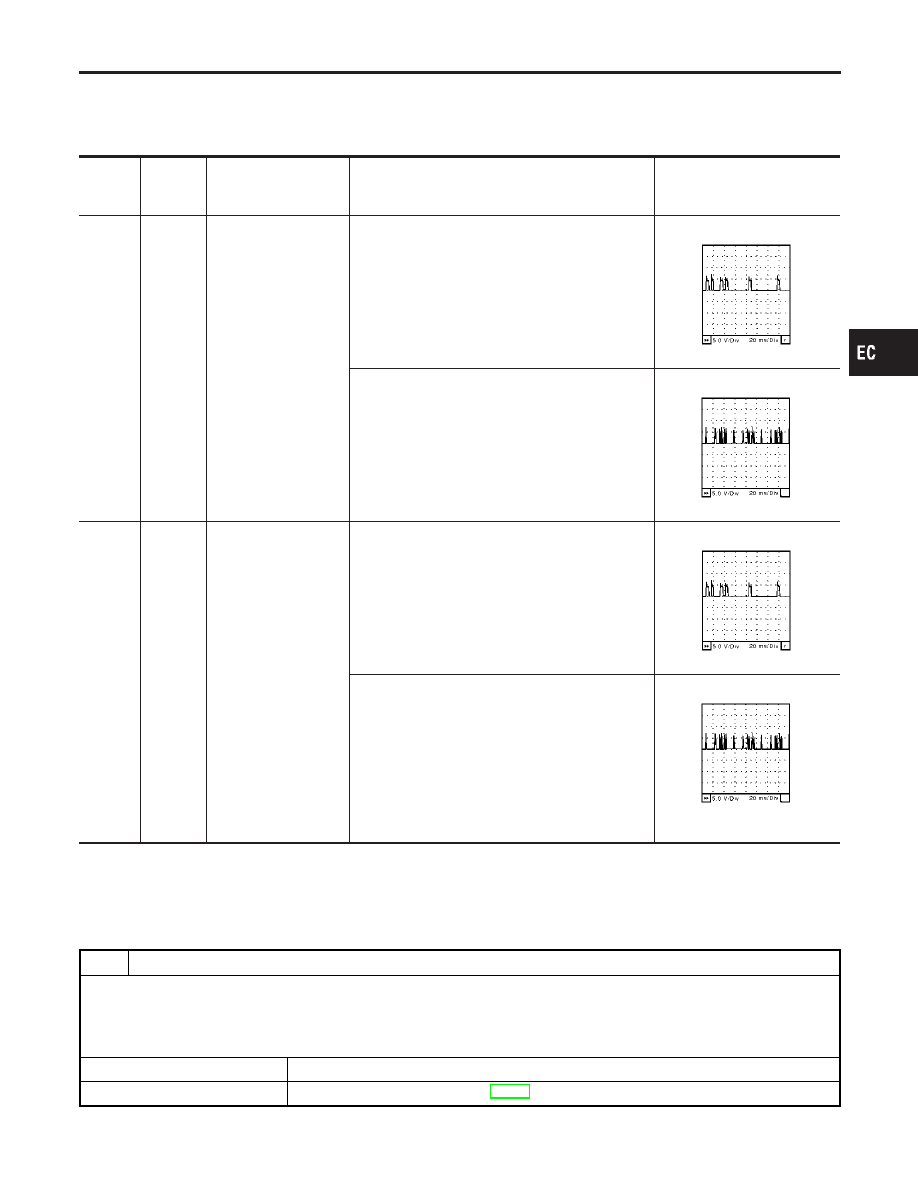

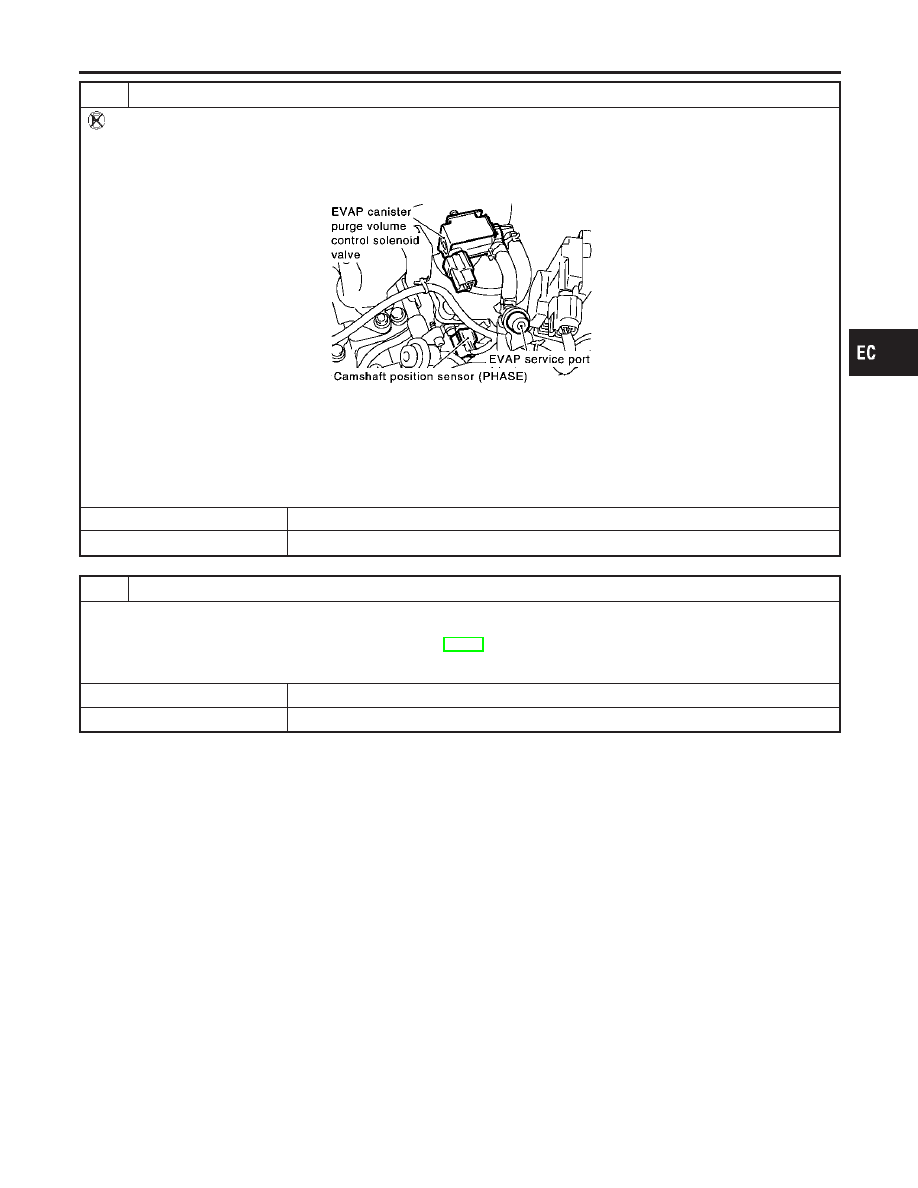

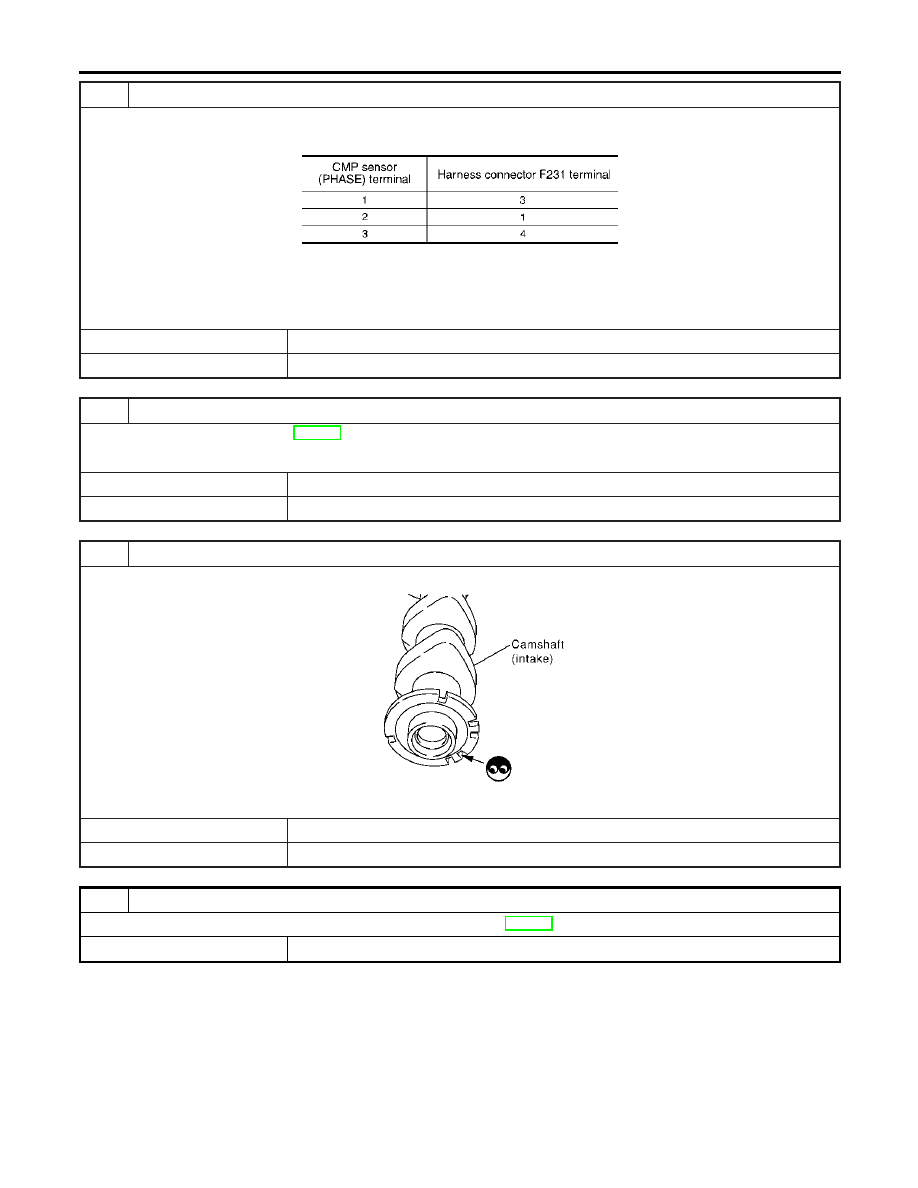

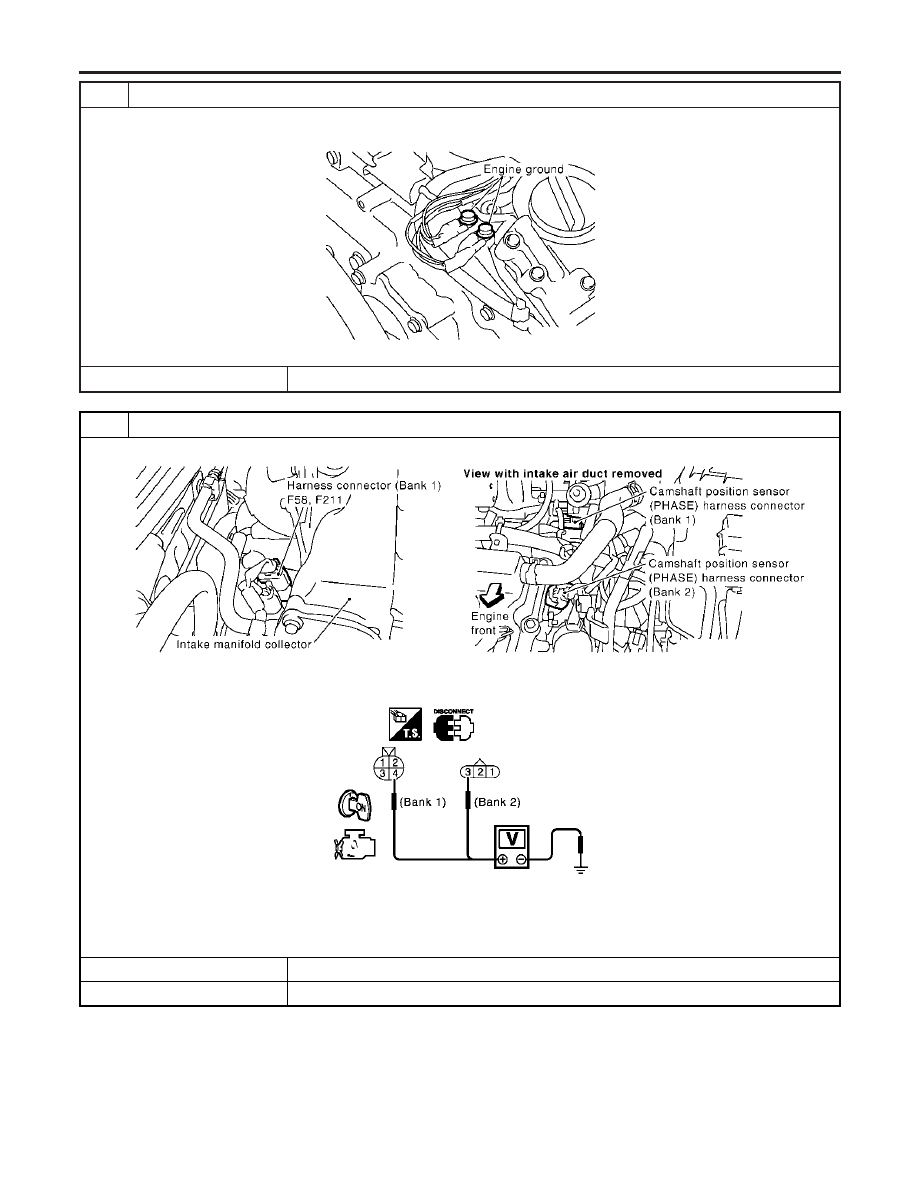

Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- TERMI- NAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 65 Y Camshaft position sen- [Engine is running] 쐌 Warm-up condition 쐌 Idle speed NOTE: 1.0 - 4.0V ★ SEC033D [Engine is running] 쐌 Warm-up condition 쐌 Engine speed is 2,000 rpm. 1.0 - 4.0V ★ SEC034D 85 R Camshaft position sen- [Engine is running] 쐌 Warm-up condition 쐌 Idle speed NOTE: 1.0 - 4.0V ★ SEC033D [Engine is running] 쐌 Warm-up condition 쐌 Engine speed is 2,000 rpm. 1.0 - 4.0V ★ SEC034D ★ : Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) Diagnostic Procedure NHEC0950 1 CHECK STARTING SYSTEM Turn ignition switch to “START” position. Does the engine turn over? Yes or No Yes 䊳 GO TO 2. No 䊳 Check starting system. (Refer to SC-10, “STARTING SYSTEM”.) GI MA EM LC FE AT AX SU BR ST RS BT HA SC EL IDX DTC P0340, P0345 CMP SENSOR (PHASE) Wiring Diagram (Cont’d) EC-321 |
