Hyundai Veloster (2019 year). Manual

Checking the tire inflation pres-

CAUTION

sure

1. After driving approximately

4~6

Do not attempt to drive your

miles

(7~10 km or about

vehicle if the tire pressure is

10 minutes), stop at a safe loca-

below 30 psi

(210 kPa). This

tion.

could result in an accident due

to sudden tire failure.

9. Switch off the compressor.

10. Detach the hoses from the

OLMF064106

sealant bottle connector and

from the tire valve.

Distributing the sealant

Return the Tire Mobility Kit to its stor-

11. Immediately drive approximately

age location in the vehicle.

4~6 miles (7~10 km or about 10

minutes) to evenly distribute the

sealant in the tire.

WARNING

Do not exceed a speed of 50 mph

OAEPH067041

Do not leave your vehicle run-

(80 km/h). If possible, do not fall

2. Connect the filling hose (3) direct-

below a speed of 12 mph (20 km/h).

ning in a poorly ventilated area

ly into the compressor.

for extended periods of time.

While driving, if you experience any

Carbon monoxide poisoning

unusual vibration, ride disturbance or

and suffocation can occur.

noise, reduce your speed and drive

with caution until you can safely pull

off of the side of the road.

Call for road side service or towing.

When you use the Tire Mobility Kit,

the tire pressure sensors and wheel

may be damaged by sealant, have it

inspected at an authorized dealer.

6-25

What to do in an emergency

5. Adjust the tire inflation pressure to

CAUTION

the recommended tire inflation.

With the ignition switched on, pro-

When you use the Tire Mobility Kit

ceed as follows.

including sealant not approved by

- To increase the inflation pres-

HYUNDAI, the tire pressure sen-

sure:

sors may be damaged by sealant.

Switch on the compressor. To

The sealant on the tire pressure

check the current inflation pres-

sensor and wheel should be

sure setting, briefly switch off the

removed when you replace the

compressor.

tire with a new one and inspect

- To reduce the inflation pres-

the tire pressure sensors at an

OJS068012

sure:

authorized dealer.

3. Connect the other end of the filling

Press the button (9) on the com-

hose (3) directly into the tire valve.

pressor.

4. Plug the compressor power cord

Information

(4) into the vehicle power outlet.

When reinstalling the repaired or

Information

replaced tire and wheel on the vehicle,

The pressure gauge may show higher

tighten the wheel lug nut to 79~94

than actual reading when the com-

lbf·ft (11~13 kgf·m).

pressor is running. To get an accurate

tire pressure, the compressor needs to

be turned off.

6-26

TOWING

Towing Service

On FWD vehicles, it is acceptable to

CAUTION

tow the vehicle with the rear wheels

on the ground (without dollies) and

•

Do not tow the vehicle with the

the front wheels off the ground. If any

of the loaded wheels or suspension

front wheels on the ground as

this may cause damage to the

components are damaged or the

vehicle is being towed with the front

vehicle.

wheels on the ground, use a towing

dolly under the front wheels.

When being towed by a commercial

tow truck and wheel dollies are not

used, the front of the vehicle should

always be lifted, not the rear.

OJS068015

If your vehicle is an AWD vehicle, it

must be towed with a wheel lift and

•

Do not tow with sling-type

dollies or flatbed equipment with all

equipment. Use a wheel lift or

the wheels off the ground.

flatbed equipment.

OJS068008L

[A] : Dollies

CAUTION

If emergency towing is necessary,

An AWD vehicle should never

we recommend having it done by an

be towed with the wheels on the

authorized HYUNDAI dealer or a

ground. This can cause serious

commercial tow-truck service.

damage to the transmission or

Proper lifting and towing procedures

OJS068014

the AWD system.

are necessary to prevent damage to

the vehicle. The use of wheel dollies

or flatbed is recommended.

6-27

What to do in an emergency

Removable Towing Hook

2. Remove the hole cover pressing

WARNING

the lower part of the cover on the

■ Front

front or rear bumper.

If your vehicle is equipped with

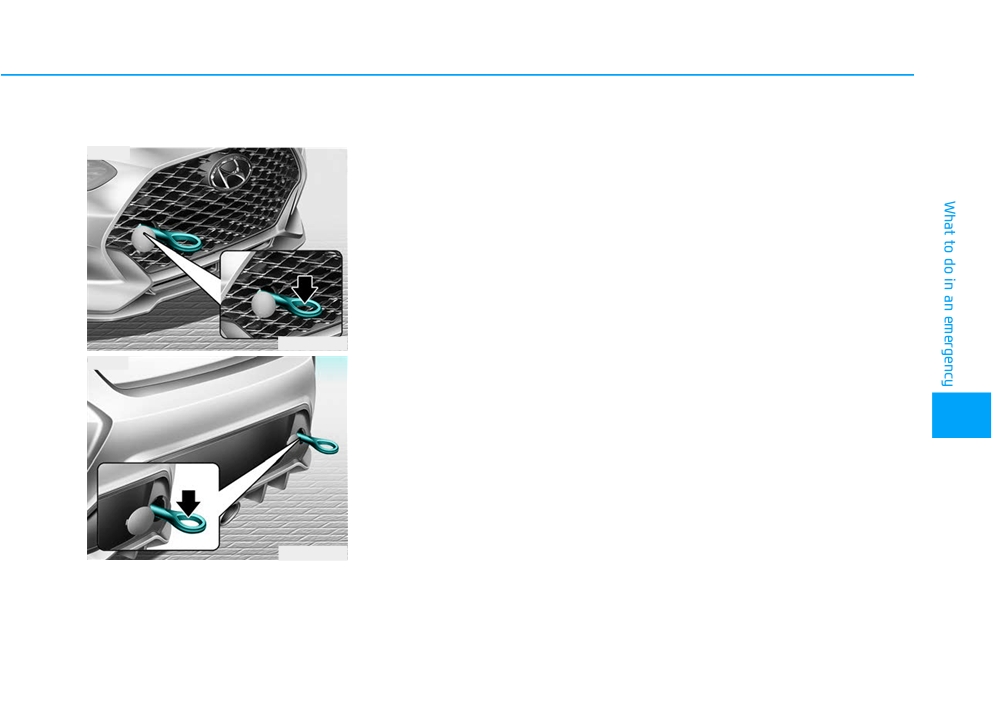

3. Install the towing hook by turning it

a rollover sensor, place the igni-

clockwise into the hole until it is

tion switch in the LOCK/OFF or

fully secured.

ACC position when the vehicle

is being towed. The side impact

4. Remove the towing hook and

and curtain air bag may deploy

install the cover after use.

if the sensor detects the situa-

tion as a rollover.

When towing your vehicle in an

OJS068016N

emergency without wheel dollies:

■ Rear

1. Place the ignition switch in the

ACC position.

2. Place the shift lever in N (Neutral).

3. Release the parking brake.

CAUTION

Failure to place the shift lever in

N (Neutral) when being towed

with the front wheels on the

OJS068017N

ground can cause internal dam-

age to the transmission.

1. Open the liftgate, and remove the

towing hook from the tool case.

6-28

Emergency Towing

If a towing service is not available in

Always follow these emergency tow-

an emergency, your vehicle may be

ing precautions:

■ Front

temporarily towed using a cable or

•

Place the ignition switch in the

chain secured to the emergency tow-

ACC position so the steering

ing hook at the front (or rear) of the

wheel is not locked. (if equipped)

vehicle.

•

Place the shift lever in N (Neutral).

Use extreme caution when towing

•

Release the parking brake.

the vehicle with a cable or chain. A

driver must be in the vehicle to steer

•

Depress the brake pedal with more

it and operate the brakes.

force than normal since you will

have reduced braking perform-

Towing in this manner may be done

ance.

only on hard-surfaced roads for a

short distance and at low speeds.

•

More steering effort will be

OJS068018N

Also, the wheels, axles, power train,

required because the power steer-

■ Rear

steering and brakes must all be in

ing system will be disabled.

good condition.

•

Use a vehicle heavier than your

own to tow your vehicle.

•

The drivers of both vehicles should

communicate with each other fre-

quently.

•

Before emergency towing, check

that the hook is not broken or dam-

aged.

•

Fasten the towing cable or chain

OJS068019N

securely to the hook.

If towing is necessary, we recom-

•

Do not jerk the hook. Apply steady

mend you have it done by an author-

and even force.

ized HYUNDAI dealer or a commer-

cial tow truck service.

6-29

What to do in an emergency

Tie-down Hook

CAUTION

WARNING

To avoid damage to your vehicle

and vehicle components when

Do not use the tie-down hook(s)

towing:

for towing purposes. If the tie-

•

Always pull straight ahead

down hook(s) are used for tow-

when using the towing hooks.

ing, the tie-down hook(s) or

Do not pull from the side or at

bumper will be damaged and

a vertical angle.

this could lead to serious injury.

•

Do not use the towing hooks to

OJS068020

pull a vehicle out of mud, sand

or other conditions from which

•

Use a towing cable or chain less

the vehicle cannot be driven

than 16 feet (5 m) long. Attach a

out under its own power.

white or red cloth (about 12 inch

(30 cm) wide) in the middle of the

•

Limit the vehicle speed to

cable or chain for easy visibility.

10 mph (15 km/h) and drive

less than 1 mile (1.5 km) when

•

Drive carefully so the towing cable

towing to avoid serious dam-

or chain remains tight during tow-

age to the automatic transmis-

ing.

sion/dual clutch transmission.

•

Before towing, check the automat-

ic transmission/dual clutch trans-

mission for fluid leaks under your

vehicle. If the automatic transmis-

sion/dual clutch transmission fluid

is leaking, flatbed equipment or a

towing dolly must be used.

6-30
