Hyundai Veloster (2019 year). Manual - part 14
• Exercise extreme caution when
•
Avoid high speeds when cor-
driving on a slippery surface. Be
nering or turning.
especially careful when braking,
accelerating or shifting gears. On a
•
Do not make quick steering
slippery surface, an abrupt change
wheel movements, such as
in vehicle speed can cause the
sharp lane changes or fast,
drive wheels to lose traction and
sharp turns.
may cause loss of vehicle control
•
The risk of rollover is greatly
resulting in an accident.
increased if you lose control
of your vehicle at highway
speeds.
WARNING
•
Loss of control often occurs if
Do not use aggressive engine
two or more wheels drop off
braking (shifting from a higher
the roadway and the driver
5
gear to a lower gear) on slip-
over steers to reenter the
pery roads. This could cause
roadway.
the tires to slip and may result
•
In the event your vehicle
in an accident.
leaves the roadway, do not
steer sharply. Instead, slow
down before pulling back into
WARNING
the travel lanes.
•
HYUNDAI recommends you
To reduce the risk of SERIOUS
follow all posted speed limits.
INJURY or DEATH:
• ALWAYS wear your seatbelt.
In a collision, an unbelted
occupant is significantly more
likely to be seriously injured
or killed than a properly belt-
ed occupant.
5-21
Driving your vehicle
AUTOMATIC TRANSMISSION
WARNING
Shift lever
To reduce the risk of serious
injury or death:
•
ALWAYS check the surround-
ing areas near your vehicle for
people, especially children,
before shifting a vehicle into
D (Drive) or R (Reverse).
•
Before leaving the driver's
seat, always make sure the
Manual shift mode
shift lever is in the P (Park)
position, then set the parking
brake, and place the ignition
switch in the LOCK/OFF posi-
tion. Unexpected and sudden
vehicle movement can occur
if these precautions are not
followed.
•
When using Manual Shift
Mode, use caution when shift-
Press the shift button, then move shift lever.
ing from a higher gear to a
Depress the brake pedal, press ths shift button, and then move shift lever.
lower gear on slippery roads.
Move shift lever.
This could cause the tires to
OJS058006
slip and may result in an acci-
dent.
Automatic Transmission Operation
The automatic transmission has six forward speeds and one reverse speed.
The individual speeds are selected automatically in the D (Drive) position.
5-22
Transmission ranges
R (Reverse)
WARNING
The indicator in the instrument clus-
Use this position to drive the vehicle
ter displays the shift lever position
backward.
•
Shifting into P (Park) while the
when the ignition switch is in the ON
vehicle is in motion may
position.
NOTICE
cause you to lose control of
the vehicle.
Always come to a complete stop
P (Park)
•
After the vehicle has stopped,
before shifting into or out of R
Always come to a complete stop
always make sure the shift
(Reverse); you may damage the
before shifting into P (Park).
lever is in P (Park), apply the
transmission if you shift into R
parking brake, and turn the
(Reverse) while the vehicle is in
To shift from P
(Park), you must
engine off.
motion.
depress firmly on the brake pedal
and make sure your foot is off the
•
When parking on an incline,
accelerator pedal.
place the shift lever in P (Park)
N (Neutral)
5
and apply the parking brake to
If you have done all of the above and
The wheels and transmission are not
prevent the vehicle from
still cannot shift the lever out of P
engaged.
rolling downhill.
(Park), see "Shift-Lock Release" in
Use N (Neutral) if you need to restart
this section.
a stalled engine.
The shift lever must be in P (Park)
Shift into P
(Park) if you need to
before turning the engine off.
leave your vehicle for any reason.
Always depress the brake pedal
when you are shifting from N
(Neutral) to another gear.
5-23
Driving your vehicle

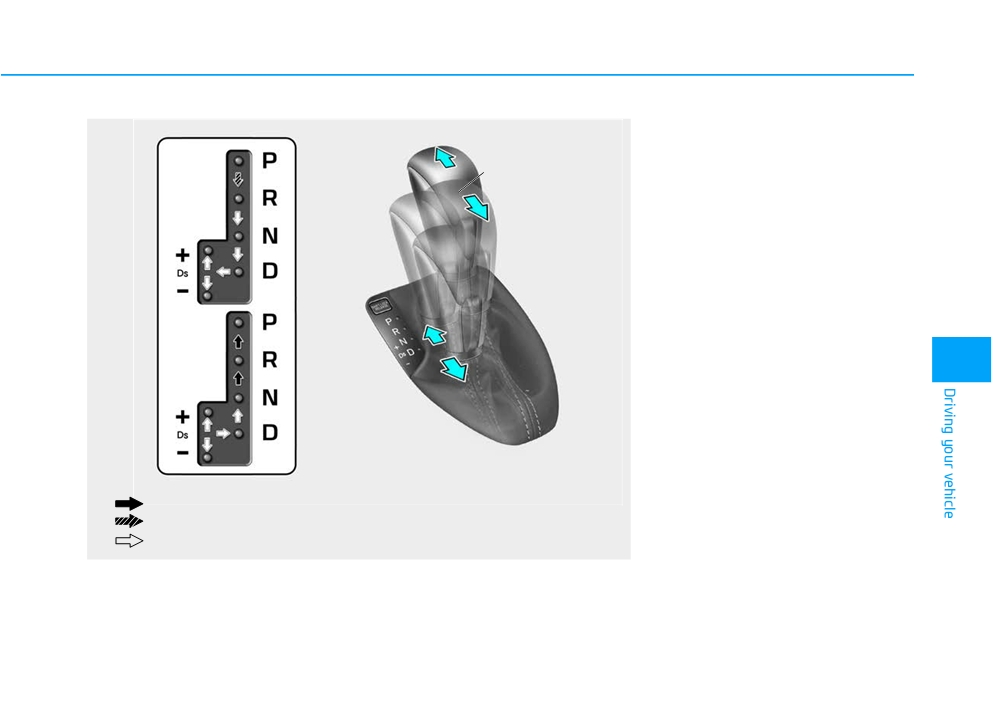

In manual shift mode, moving the
WARNING
shift lever backwards and forwards
will allow you to select the desired
Do not shift into gear unless
range of gears for the current driving
your foot is firmly on the brake
conditions.
pedal. Shifting into gear when
+ (UP)
+ (Up) : Push the lever forward once
the engine is running at high
to shift up one gear.
speed can cause the vehicle to
move very rapidly. You could
- (Down) : Pull the lever backwards
lose control of the vehicle and
once to shift down one
- (DOWN)
hit people or objects.
gear.
OJS058008
D (Drive)
i
Information
Manual shift mode
This is the normal driving position.
• Only the six forward gears can be
Whether the vehicle is stationary or
The transmission will automatically
selected in Manual Shift mode. To
in motion, manual shift mode is
shift through a six-gear sequence,
reverse or park the vehicle, move
selected by pushing the shift lever
providing the best fuel economy and
the shift lever to the R (Reverse) or
from the D (Drive) position into the
power.
P (Park) position as required.
manual gate. To return to D (Drive)
For extra power when passing anoth-
• Downshifts are made automatically
range operation, push the shift lever
er vehicle or driving uphill depress
when the vehicle slows down. When
back into the main gate.
the accelerator pedal further until
the vehicle stops, 1st gear is automat-
you feel the transmission downshift
ically selected.
to a lower gear.
• When the engine rpm approaches
the red zone the transmission will
upshift automatically.
5-24
•
If the driver presses the lever to
Shift-lock system
Paddle shifter (if equipped)
+ (Up) or - (Down) position, the
For your safety, the automatic trans-
transmission may not make the
mission has a shift-lock system
requested gear change if the next
which prevents shifting the transmis-
gear is outside of the allowable
sion from P (Park) into R (Reverse)
engine rpm range. The driver must
unless the brake pedal is depressed.
execute upshifts in accordance with
To shift the transmission from P
road conditions, taking care to keep
(Park) into R (Reverse):
the engine rpms below the red zone.
1. Depress and hold the brake pedal.
•
When accelerating from a stop on a
slippery road, push the shift lever
2. Start the engine or place the igni-
forward into the + (Up) position.
tion switch in the ON position.
This allows the transmission to shift
3. Move the shift lever.
OJS058009
into the 2nd gear which is better for
smooth driving on a slippery road.
The paddle shifter is functional when
5
Push the shift lever to the - (Down)
the shift lever is in the D (Drive) posi-
side to shift back to the 1st gear.
tion or the manual shift mode.
•
When driving in Manual Shift
Mode, slow down before shifting to
a lower gear. Otherwise, the lower
gear may not be engaged if the
engine rpms are outside of the
allowable range.
5-25
Driving your vehicle
With the shift lever in the D posi-
Shift-lock release
If you need to use the shift-lock
tion
release, have your vehicle inspected
by an authorized HYUNDAI dealer
The paddle shifter will operate when
as soon as possible.
the vehicle speed is more than 6
mph (10 km/h).

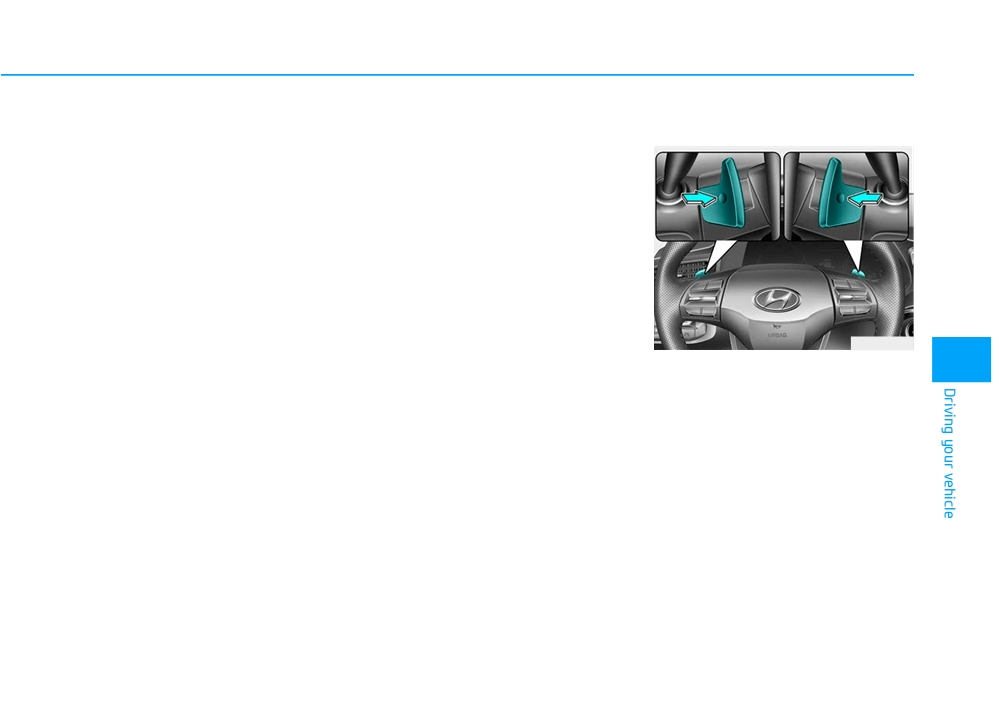

Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
system changes from automatic
mode to manual mode.
When the vehicle speed is lower
than 6 mph (10 km/h), if you depress
the accelerator pedal for more than 5
seconds or if you move the shift lever
OJS058007
from D (Drive) to manual shift mode
If the shift lever cannot be moved
and move it from manual shift mode
from the P (Park) position into R
to D
(Drive) again, the system
(Reverse) position with the brake
changes from manual mode to auto-
pedal depressed, continue depress-
matic mode.
ing the brake, and then do the follow-
ing:
With the shift lever in the manual
1. Place the ignition switch in the
shift mode
LOCK/OFF position.
Pull the [+] or [-] paddle shifter once
2. Apply the parking brake.
to shift up or down one gear.

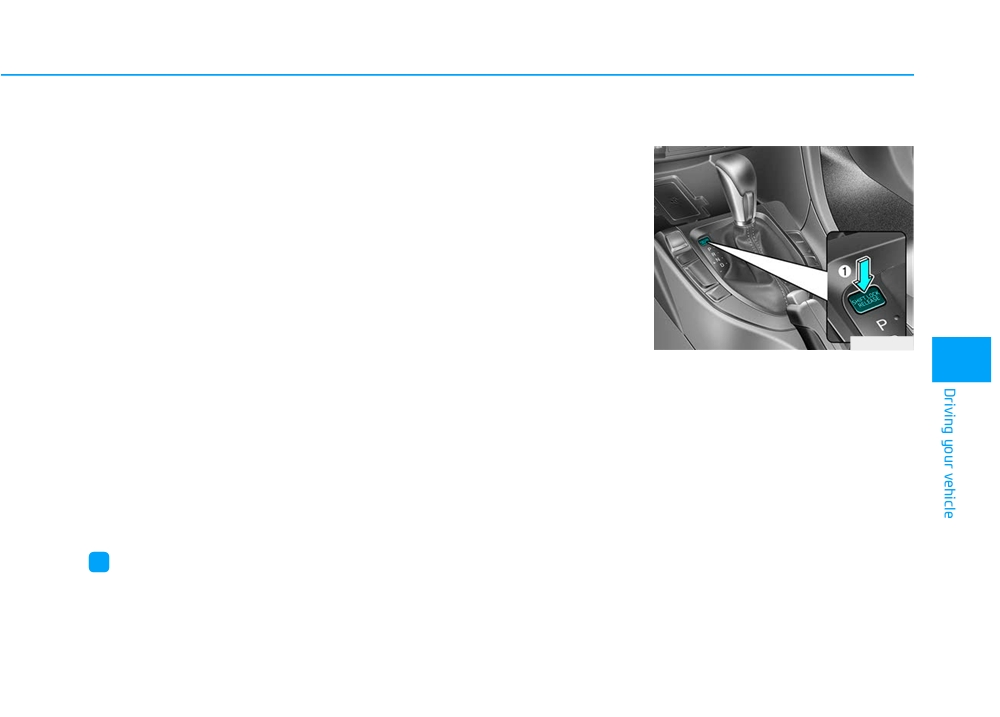

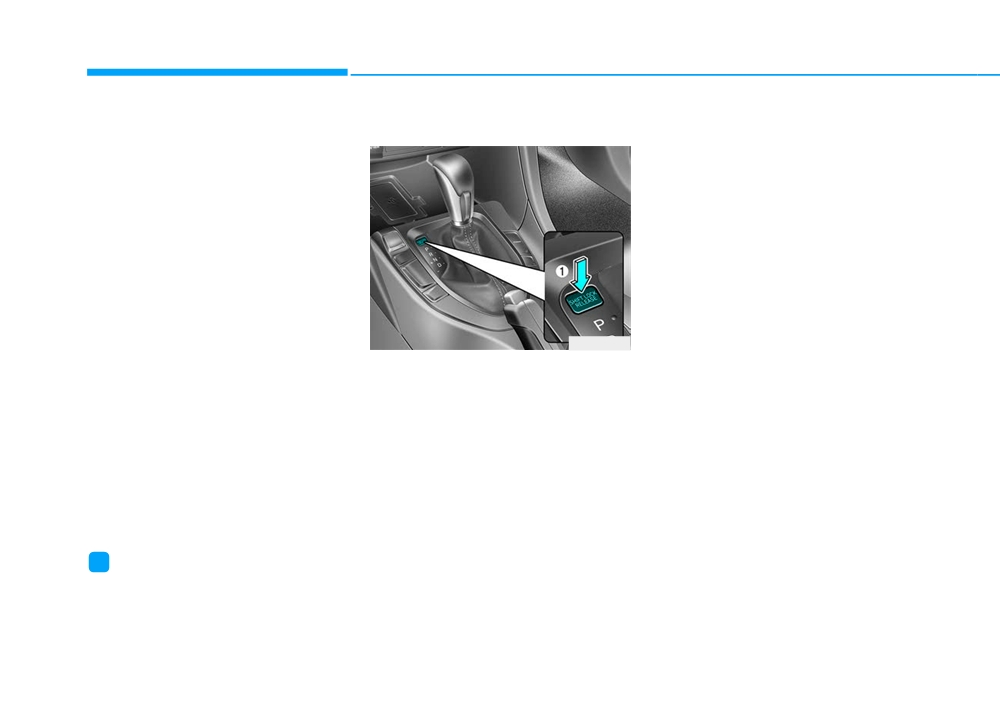

3. Push the shift-lock release button
(1) .
i
Information
4. Move the shift lever while pushing
If the [+] and [-] paddle shifters are
the shift-lock release button.
pulled at the same time, gear change
5. Stop pushing the shift-lock release
may not occur.
button.
5-26
Parking
Good Driving Practices
•
Depressing both accelerator and
brake pedals at the same time can
Always come to a complete stop and
•
Never move the shift lever from P
trigger logic for engine power
continue to depress the brake pedal.
(Park) or N (Neutral) to any other
reduction to assure vehicle decel-
Move the shift lever into the P (Park)
position with the accelerator pedal
eration. Vehicle acceleration will
position, apply the parking brake,
depressed.
resume after the brake pedal is
and place the ignition switch in the
•
Never move the shift lever into P
released.
LOCK/OFF position. Take the Key
(Park) when the vehicle is in
with you when exiting the vehicle.
•
Always apply the parking brake
motion.
when leaving the vehicle. Do not
Be sure the vehicle is completely
depend on placing the transmis-
WARNING
stopped before you attempt to shift
sion in P (Park) to keep the vehicle
into R (Reverse) or D (Drive).
from moving.
• When you stay in the vehicle
•
Do not move the shift lever to N
•
Exercise extreme caution when
with the engine running, be
(Neutral) when driving. If the shift
driving on a slippery surface. Be
careful not to depress the
5
lever is moved to N (Neutral) while
especially careful when braking,
accelerator pedal for a long
driving the vehicle loses the ability
accelerating or shifting gears. On a
period of time. The engine or
to provide engine braking. Doing
slippery surface, an abrupt change
exhaust system may overheat
so may increase the risk of an acci-
in vehicle speed can cause the
and start a fire.
dent.
drive wheels to lose traction and
• The exhaust gas and the
•
Do not drive with your foot resting
may cause loss of vehicle control
exhaust system are very hot.
on the brake pedal. Even light, but
resulting in an accident.
Keep away from the exhaust
consistent pedal pressure can
•
Optimum vehicle performance and
system components.
result in the brakes overheating,
economy is obtained by smoothly
• Do not stop or park over flam-
brake wear and possibly even
depressing and releasing the
mable materials, such as dry
brake failure.
accelerator.
grass, paper or leaves. They
may ignite and cause a fire.
5-27
Driving your vehicle
WARNING
•
In the event your vehicle
leaves the roadway, do not
To reduce the risk of SERIOUS
steer sharply. Instead, slow
INJURY or DEATH:
down before pulling back into
the travel lanes.
•
ALWAYS wear your seatbelt.
In a collision, an unbelted
•
HYUNDAI recommends you
occupant is significantly more
follow all posted speed limits.
likely to be seriously injured
or killed than a properly belt-
ed occupant.
•
Avoid high speeds when cor-
nering or turning.
•
Do not make quick steering
wheel movements, such as
sharp lane changes or fast,
sharp turns.
•
The risk of rollover is greatly
increased if you lose control
of your vehicle at highway
speeds.
•
Loss of control often occurs if
two or more wheels drop off
the roadway and the driver
over steers to reenter the
roadway.
5-28
DUAL CLUTCH TRANSMISSION (IF EQUIPPED)
Dual Clutch Transmission
Operation
Shift lever
The dual clutch transmission has
seven forward speeds and one
reverse speed.
The individual speeds are selected
automatically when the shift lever is
in the D (Drive) position.
•
The dual clutch transmission can
be thought of as an automatically
shifting manual transmission. It
gives the driving feel of a manual
transmission, yet provides the
ease of a fully automatic transmis-
5
sion.
•
When D (Drive) is selected, the
transmission will automatically shift
through the gears similar to a con-
ventional automatic transmission.
Unlike a traditional automatic
transmission, the gear shifting can
Press the shift button, then move shift lever.
sometimes be felt and heard as the
Depress the brake pedal, press the shift button, and then move shift lever.
actuators engage the clutches and
the gears are selected.
Move shift lever.
OJS058006L
5-29
Driving your vehicle
•
The dual clutch transmission
•
For a smooth uphill launch,
WARNING
adopts a dry-type dual clutch,
depress the accelerator pedal
which is different from the torque
smoothly depending on the current
To reduce the risk of serious
converter of the automatic trans-
conditions.
injury or death:
mission. It shows better accelera-
•
If you release your foot from the
tion performance and increased
•
ALWAYS check the surround-
accelerator pedal at low vehicle
fuel efficiency while driving but ini-
ing areas near your vehicle for
speed, you may feel strong engine
tial launch might be little bit slower
people, especially children,
braking, which is similar to manual
than the automatic transmission.
before shifting a vehicle into
transmission.
As a result, gear shifts are some-
D (Drive) or R (Reverse).
•
When driving downhill, you may
times more noticeable than a con-
•
Before leaving the driver's
use Sports Mode or press the pad-
ventional automatic transmission
seat, always make sure the
dle shifters (if equipped) to down-
and a light vibration during launch-
shift lever is in the P (Park)
shift to a lower gear in order to con-
ing can be felt as the transmission
position, then set the parking
trol your speed without using the
speed is matched with the engine
brake, and place the ignition
brake pedal excessively.
speed. This is a normal condition of
switch in the LOCK/OFF posi-
the dual clutch transmission.
•
When you turn the engine on and
tion. Unexpected and sudden
off, you may hear clicking sounds
•
The dry-type clutch transfers
vehicle movement can occur
as the system goes through a self-
torque more directly and provides
if these precautions are not
test. This is a normal sound for the
a direct-drive feeling which may
followed.
dual clutch transmission.
feel different from a conventional
•
Do not use aggressive engine
automatic transmission with a
•
During the first
1000 miles, you
braking (shifting from a high-
torque converter. This may be
may feel that the vehicle may not
er gear to a lower gear) on
more noticeable when launching
be smooth when accelerating at
slippery roads. This could
the vehicle from a stop or when
low speed. During this break-in
cause the tires to slip and may
traveling at low, stop-and-go vehi-
period, the shift quality and per-
result in an accident.
cle speeds.
formance of your new vehicle is
continuously optimized.
•
When rapidly accelerating at a low
vehicle speed, the engine rpm may
increase highly depending on the
vehicle's driving condition.
5-30
LCD display for transmission
• The transmission temperature is
• To avoid damage to your
temperature and warning mes-
displayed in three colors
(white,
transmission, do not try to
sage
orange and red) as it increases. (if
accelerate with the shift lever
equipped with the cluster type B
in R (Reverse) or any forward
Transmission temperature
and C)
gear position with the brake
gauge
• Orange temperature gauge is dis-
engaged.
played right before the warning
• When stopped on a slope, do
message appears on the LCD dis-
not hold the vehicle with
play. (if equipped)
accelerator pedal. Engage the
service brake or the parking
brake.
CAUTION
•
Increase (high temperature) of
NOTICE
the transmission temperature
5
gauge usually appears on an
• Always come to a complete stop
before shifting into D (Drive) or
incline when the vehicle is
stopped for a long time using
R (Reverse).
OJS048123N/OOS057100L
accelerator pedal, without
• Do not put the shift lever in N
•
Select trip computer mode on the
depressing the brake pedal.
(Neutral) while driving.
LCD display and move to the trans-
•
To maintain the optimal trans-
mission temperature screen to see
mission performance, drive
WARNING
the temperature of the dual clutch
so that the white gauge is not
transmission.
exceeded. (if equipped)
Due to transmission failure, you
•
Try to drive so that the temperature
may not continue to drive and
gauge do not show high/overheat.
the position indicator (D, P) on
When the transmission is over-
the instrument cluster will bilnk.
heated, the warning message will
Contact
an
authorized
display on the LCD. Follow the dis-
HYUNDAI dealer and have the
played message.
system checked.
5-31
Driving your vehicle
DCT warning messages
•
If the vehicle is held on a hill by
applying the accelerator pedal or
by creeping with brake pedal dis-
engaged, the clutch and transmis-
sion may overheat which can result
in damage. At this time, a warning
message will appear on the LCD
display.
•
If the LCD display warning is
active, the foot brake must be
applied.
OJS048123N/OTLE055022
•
Ignoring the warnings can lead to
damage to the transmission.
Transmission high temperature
OTLE055019
•
Under certain conditions, such as
Steep grade
repeated stop-and-go launches on
This warning message is displayed
steep grades, sudden take off or
when vehicle is driven slowly on a
acceleration, or other harsh driving
grade and the vehicle detects that
conditions, the transmission clutch
the brake pedal is not applied.
temperatures will increase exces-
Driving up hills or on steep grades:
sively. Finally the clutch in trans-
• To hold the vehicle on an incline
mission could be overheated.
use the foot brake or the parking
•
When the clutch is overheated, the
brake.
safe protection mode engages and
• When in stop-and-go traffic on an
the gear position indicator on the
incline, keep some distance ahead
cluster blinks with a chime. At this
before moving the vehicle forward.
time, "Transmission temp. is high!
Then hold the vehicle on the incline
Stop safely" warning message will
with the foot brake.
appear on the LCD display and
driving may not be smooth.
5-32
•
If this occurs, pull over to a safe
When this occurs the clutch is dis-
location, stop the vehicle with the
abled until the clutch cools to nor-
engine running, apply the brakes
mal temperatures.
and shift the vehicle to P (Park)
•
The warning will display a time to
with engine on, and allow the
wait for the transmission to cool.
transmission to cool.
•
If this occurs, pull over to a safe
•
If you ignore this warning, the driv-
location, stop the vehicle with the
ing condition may become worse.
engine running, apply the brakes
You may experience abrupt shifts,
and shift the vehicle to P (Park)
frequent shifts, or jerkiness. To
with engine on for a certain time,
return to the normal driving condi-
and allow the transmission to cool.
tion, stop the vehicle and apply the
OOS057100L/OJS048321N
•
When the message "Trans cooled.
foot brake or shift into P
(Park).
Resume driving" appears you can
Then allow the transmission to cool
continue to drive your vehicle.
for a few minutes with engine on,
5
before driving off.
•
When possible, drive the vehicle
smoothly.
•
When possible, drive the vehicle
smoothly.
If any of the warning messages in
the LCD display continue to blink, for
your safety, contact an authorized
HYUNDAI dealer and have the sys-
tem checked.
OJS048322N
Transmission overheated
• If the vehicle continues to be driven
and the clutch temperatures reach
the maximum temperature limit, the
"Transmission Hot! Park with engine
on" warning will be displayed.
5-33
Driving your vehicle
Transmission ranges
R (Reverse)
WARNING
The indicator in the instrument clus-
Use this position to drive the vehicle
ter displays the shift lever position
backward.
•
Shifting into P (Park) while the
when the ignition switch is in the ON
vehicle is in motion may
position
NOTICE
cause you to lose control of
the vehicle.
Always come to a complete stop
P (Park)
•
After the vehicle has stopped,
before shifting into or out of R
Always come to a complete stop
always make sure the shift
(Reverse); you may damage the
before shifting into P (Park).
lever is in P (Park), apply the
transmission if you shift into R
To shift from P
(Park), you must
parking brake, and turn the
(Reverse) while the vehicle is in
depress firmly on the brake pedal
engine off.
motion.
and make sure your foot is off the
•
When parking on an incline,
accelerator pedal.
place the shift lever in P (Park)
N (Neutral)
If you have done all of the above and
and apply the parking brake to
The wheels and transmission are not
still cannot shift the lever out of P
prevent the vehicle from
engaged.
(Park), see "Shift-Lock Release" in
rolling downhill.
this chapter.
Use N (Neutral) if you need to restart
•
For safety, always engage the
a stalled engine, or if it is necessary
The shift lever must be in P (Park)
parking brake with the shift
to stop with the engine ON.
before turning the engine off.
lever in the P (Park) position
except for the case of emer-
Shift into P
(Park) if you need to
gency parking.
leave your vehicle for any reason.
•
Do not use the P (Park) posi-
Always depress the brake pedal
tion in place of the parking
when you are shifting from N
brake.
(Neutral) to another gear.
5-34
WARNING
WARNING
Do not shift into gear unless
• Do not shift into gear unless
your foot is firmly on the brake
your foot is firmly on the
pedal. Shifting into gear when
brake pedal. Shifting into gear
+ (UP)
the engine is running at high
when the engine is running at
speed can cause the vehicle to
high speed can cause the
move very rapidly. You could
vehicle to move very rapidly.
lose control of the vehicle and
You may lose control of the
- (DOWN)
hit people or objects.
vehicle and cause accidents.
• Do not drive with the shift
OJS058008
lever in N
(Neutral). The
D (Drive)
Manual shift mode
engine brake will not work
This is the normal driving position.
and may lead to an accident.
Whether the vehicle is stationary or
5
The transmission will automatically
in motion, manual shift mode is
shift
through
a seven-gear
selected by pushing the shift lever
NOTICE
sequence, providing the best fuel
from the D (Drive) position into the
economy and power.
manual gate. To return to D (Drive)
Always make sure the vehicle is
For extra power when passing anoth-
stationary, at a complete stop,
range operation, push the shift lever
back into the main gate.
er vehicle or driving uphill depress
before selecting D (Drive).
the accelerator pedal further until
In manual shift mode, moving the
you feel the transmission downshift
shift lever backwards and forwards
to a lower gear.
will allow you to select the desired
range of gears for the current driving
conditions.
+ (Up) : Push the lever forward once
to shift up one gear.
- (Down) : Pull the lever backwards
once to shift down one
gear.
5-35
Driving your vehicle
DS mode (Drive Sporty)
Paddle shifter (if equipped)
i
Information
•
Ds mode supports the perform-
•
Only the seven forward gears can be
ance mode for the driver. To shift
selected in Manual Shift Mode. To
into Ds mode, move the shift lever
reverse or park the vehicle, move
from D (Drive) to the center of the
the shift lever to the R (Reverse) or
manual shift mode. The transmis-
P (Park) position as required.
sion shift is automatically opti-
•
Downshifts are made automatically
mized for sporty feeling drive.
when the vehicle slows down. When
•
In Ds mode, while coasting down-
the vehicle stops, 1st gear is automat-
hill, engine braking is not support-
ically selected.
ed.
•
When the engine rpm approaches
•
In Ds mode, if you control the pad-
the red zone the transmission will
dle shifter, the gear will be
OJS058009
upshift automatically.
changed to sports mode. If the shift
The paddle shifter is functional when
•
If the driver presses the lever to
lever is moved back into to D
the shift lever is in the D (Drive) posi-
+ (Up) or - (Down) position, the
(Drive), it will be changed to D
tion or the manual shift mode.
transmission may not make the
(Drive) mode.
requested gear change if the next
gear is outside of the allowable
NOTICE
engine rpm range. The driver must
execute upshifts in accordance with
While stopping the vehicle by
road conditions, taking care to keep
applying parking brake in D gear,
the engine rpms below the red zone.
even if you release the parking
brake, the vehicle may not move.
In this case, you can drive the
vehicle by applying the brake
pedal and release, applying the
accelerator or shifting the lever (D
→ N → D).
5-36
With the shift lever in the D posi-
Shift-lock system
Shift-lock release
tion
For your safety, the dual clutch trans-
The paddle shifter will operate when
mission has a shift-lock system
the vehicle speed is more than 6
which prevents shifting the transmis-
mph (10 km/h).
sion from P (Park) into R (Reverse)
unless the brake pedal is depressed.
Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
To shift the transmission from P
system changes from automatic
(Park) into R (Reverse):
mode to manual mode.
1. Depress and hold the brake pedal.
When the vehicle speed is lower
2. Start the engine or place the igni-
than 6 mph (10 km/h), if you depress
tion switch in the ON position.
the accelerator pedal for more than 5
3. Move the shift lever.
seconds or if you move the shift lever
OJS058007
from D (Drive) to Ds (drive sporty)
5
If the shift lever cannot be moved from
mode and move it from Ds (drive
the P (Park) position into R (Reverse)
sporty) mode to D (Drive) again, the
position with the brake pedal
system changes from manual mode
depressed, continue depressing the
to automatic mode.
brake, and then do the following:
1. Place the ignition switch in the
With the shift lever in the manual
LOCK/OFF position.
shift mode
2. Apply the parking brake.
Pull the [+] or [-] paddle shifter once
3. Push the shift-lock release button
to shift up or down one gear.
(1).
4. Move the shift lever while pushing
i
Information
the shift-lock release button.
If the [+] and [-] paddle shifters are
5. Stop pushing the shift-lock release
pulled at the same time, gear shift may
button.
not occur.
5-37
