• iPod® Commands: Commands available during iPod®

operation

Command

Function

Play

Plays the currently paused song.

Pause

Pauses the current song.

Shuffle

Randomly plays the songs within the current

category.

Shuffle Off

Cancels random play to play songs in

sequential order.

Repeat

Repeats the current song.

Repeat Off

Cancels repeat play to play songs in sequen-

tial order.

•

My Music Commands: Commands available during

My Music operation

Command

Function

Play

Plays the currently paused file.

Pause

Pauses the current file.

Shuffle

Randomly plays all saved files.

Shuffle Off

Cancels random play to play files in sequen-

tial order.

Repeat

Repeats the current file.

Repeat Off

Cancels repeat play to play files in sequential

order.

Delete

Deletes the current file. You will bypass an

additional confirmation process.

4-188

(Continued)

i Information

iPod® is a registered trademark of

SiriusXM™ service requires a sub-

Apple Inc.

scription, sold separately, after

iPod® mobile digital device sold sepa-

month trial included with vehicle pur-

rately. The Bluetooth® word mark and

chase. If you decide to continue your

logos are registered trademarks

SiriusXM™ service at the end of your

owned by Bluetooth SIG, Inc. and any

trial subscription, the plan you choose

use of such marks by Hyundai is

will automatically renew and bill at

under license. A Bluetooth® enabled

then-current rates until you call us at

cell phone is required to use

1-866-635-2349 to cancel. See our

Customer Agreement for complete

Bluetooth® wireless technology. All

rights reserved.

terms at www.siriusxm.com. Other

fees and taxes apply. All fees and pro-

gramming are subject to change.

Sirius satellite service is available only

to those at least 18 and older in the 48

contiguous USA, D.C., and PR (with

coverage limitations). Our Internet

radio service is available throughout

our satellite service area and in AK

and HI. Certain channels are not

available on our Internet radio service

or on mobile devices. SiriusXM™

Traffic available in select markets. See

siriusxm.com/traffic for more infor-

Inc. Sirius, XM™ and all related

marks and logos are trademarks of

Sirius XM™ Radio Inc.

(Continued)

4-189

Multimedia System

SETUP

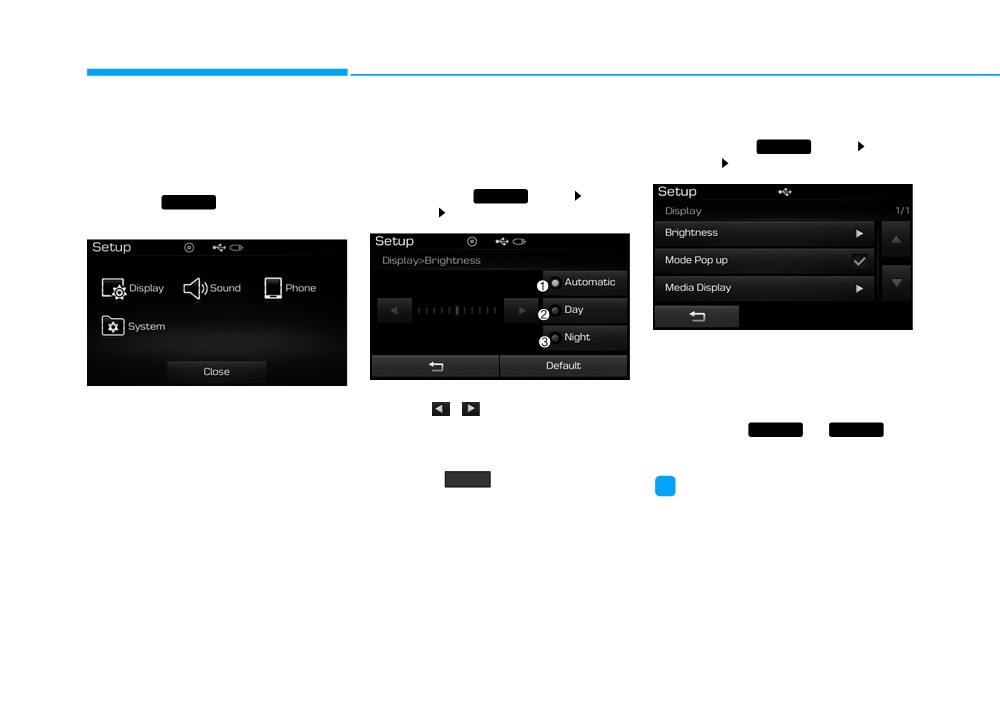

Display Settings

Mode Pop up

Press the

SETUP

key Select

[Display] Select [Mode Pop up]

Starting Mode

Adjusting the Brightness

Press the

SETUP

key Select

Press the

SETUP

key to display the

[Display] Select [Brightness]

Setup screen.

This feature is used to display the

Pop-up Mode screen when entering

radio and media modes.

Use the

buttons to adjust the

You can select and control options

When this feature is turned on,

screen brightness or set the

related to [Display], [Sound], [Phone]

pressing the

RADIO

MEDIA

key

Brightness on Automatic, Day, or

and [System].

will display the Pop-up Mode screen.

Night mode.

Press the

Default

button to reset.

Information

The media Pop-up Mode screen can

1) Automatic : Adjusts the brightness

be displayed only when two or more

automatically

media modes have been connected.

2) Day : Always maintains the bright-

ness on high

3) Night

: Always maintains the

brightness on low

4-190

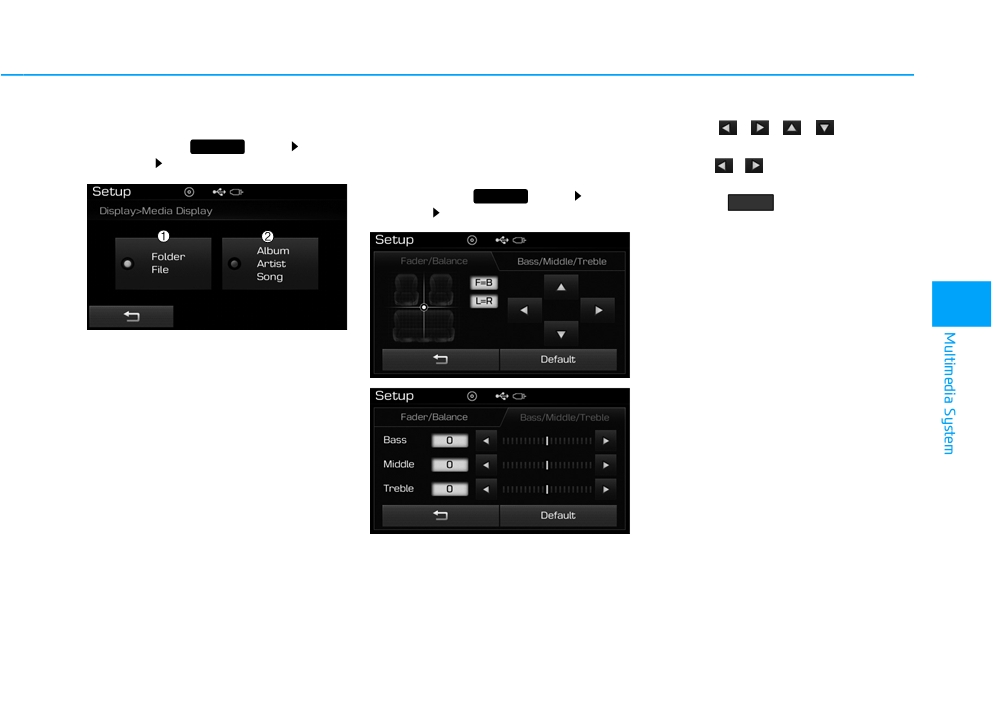

MP3 Information Display

Sound Settings

Use the

buttons to

Press the

SETUP

key Select

adjust the Fader/Balance settings.

[Display] Select [Media Display]

Use the

buttons to adjust the

Sound Settings

Bass/Middle/Treble settings.

Press the

SETUP

key Select

Press the

Default

button to reset.

[Sound] Select [Sound Setting]

This feature is used to change the

information displayed within USB

and MP3 CD modes.

1) Folder/File

: Displays file name

and folder name

2) Album/Artist/Song

Displays

album name/artist name/song

4-191

Multimedia System

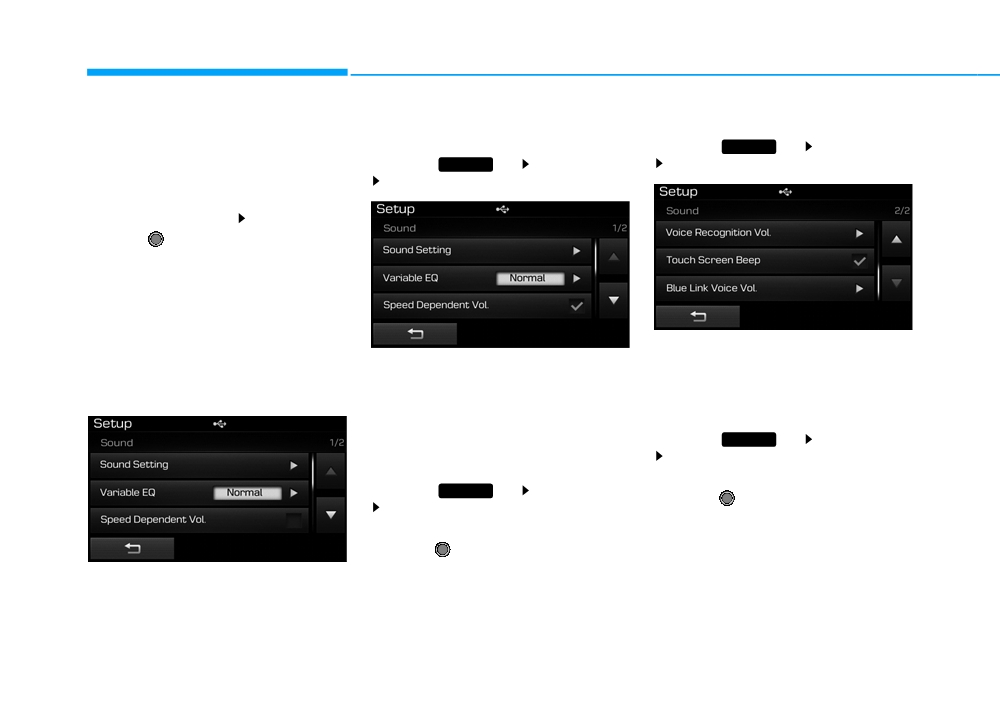

Variable EQ

SDVC (Speed Dependent

Touch Screen Beep

This is a premium sound system fea-

Volume Control)

Press the

SETUP

key Select [Sound]

ture in which the acoustical mode

Press the

SETUP

key Select [Sound]

Select [Touch Screen Beep]

can be selected according to musical

Select [Speed Dependent Vol.]

preferences.

Select [Variable EQ] Set menu

through

TUNE knob

• Innocente(Normal)

Natural

sound, sound optimized for driver.

• Forza(Dynamic) : Powerful sound

emphasizing bass, stereo sound.

• Concerto(Concert) : Sound similar

to a concert or live hall

This feature is used to turn the touch

❈ May differ depending on the

The volume level is controlled auto-

screen beep on/off.

selected audio.

matically according to the vehicle

speed. SDVC can be set by selecting

Blue Link Voice Volume

from On / Off.

Press the

SETUP

key Select [Sound]

Select [Blue Link Voice Vol.]

Voice Recognition Volume

Press the

SETUP

key Select [Sound]

Turn the TUNE knob to adjust the

Select [Voice Recognition Vol.]

Blue Link Voice Volume.

Turn the TUNE knob to adjust the

❈ Blue Link® may differ depending

Voice Recognition volume.

on the selected audio.

4-192

System Setting

Prompt Feedback

Language

Press the

SETUP

key Select

Press the

SETUP

key Select

[System] Select [Prompt Feedback]

[System] Select [Language]

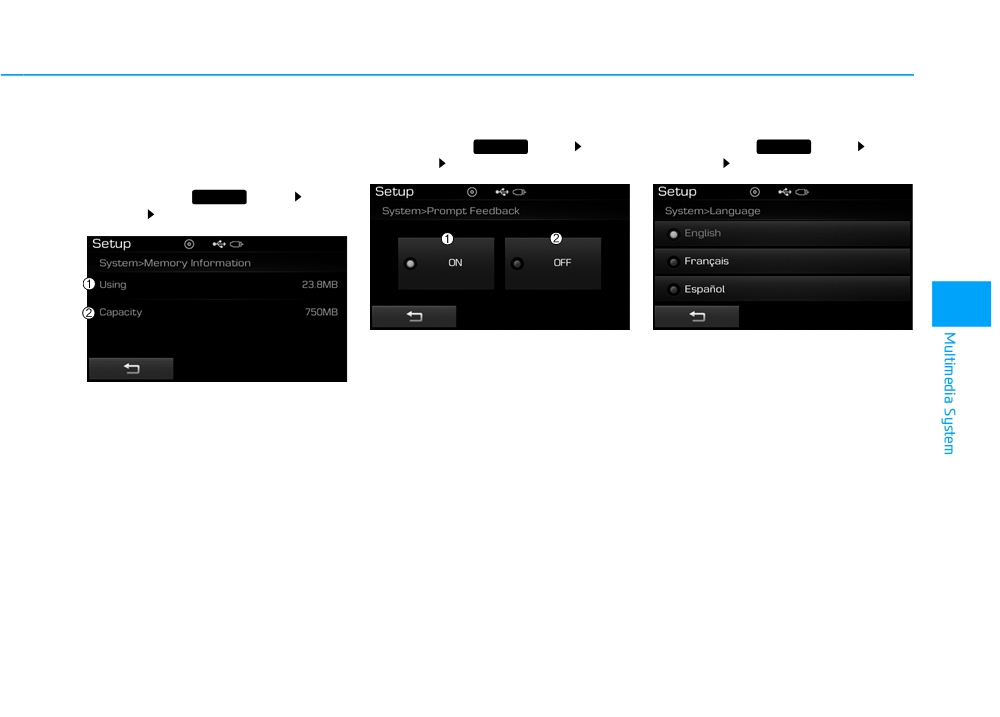

Memory Information

Press the

SETUP

key Select

[System] Select [Memory Information]

❈This feature is used to change the

This feature is used to select the

system and voice recognition lan-

desired prompt feedback option from

guage.

ON and OFF.

This feature displays information

❈if the language is changed, the

related to system memory.

system will restart and apply the

1) ON : When using voice recogni-

selected language.

1) Using : Displays capacity currently

tion, provides detailed guidance

in use

prompts

2) Capacity : Displays total capacity

2) OFF : When using voice recogni-

tion, omits some guidance

prompts

4-193

Multimedia System

REAR VIEW CAMERA

BLUE LINK® (IF EQUIPPED)

(if equipped)

Hyundai aims to offer differentiated

customer values through a

‘Connected Car Life,’ which is to pro-

•

The system has been equipped

vide consumers with fast and reliable

Hyundai Motor plans to achieve this

with a rear view camera for user

IT technology. As consumers’ lifestyles

by realizing a terminal platform flexi-

safety by allowing a wider rear

become more and more mobile in

ble to changes in IT technology,

thanks to remarkable advances in

cooperating with global IT compa-

range of vision.

smart phones, tablet PCs and overall

nies, creating an eco-system and

•

The rear view camera will automat-

wireless telecommunication, new

providing the latest contents & servic-

ically operate when the ignition key

lifestyle patterns demand seamless

es based on an open environment.

is turned ON and the shift lever is

connection between one’s office,

set to R (Reverse).

home, outdoors and automobiles.

•

The rear view camera will automat-

Automobile companies are now faced

ically stop operating when shift

with the task of shifting their paradigm

lever is set to different position.

from vehicle-centered services to cus-

tomer value-centered services, with

the ultimate goal of securing global

CAUTION

leadership in the field of vehicle IT and

The rear view camera has been

telematics.

equipped with an optical lens to

provide a wider range of vision

and may appear different from

the actual distance. For safety,

directly check the rear and

left/right sides.

4-194

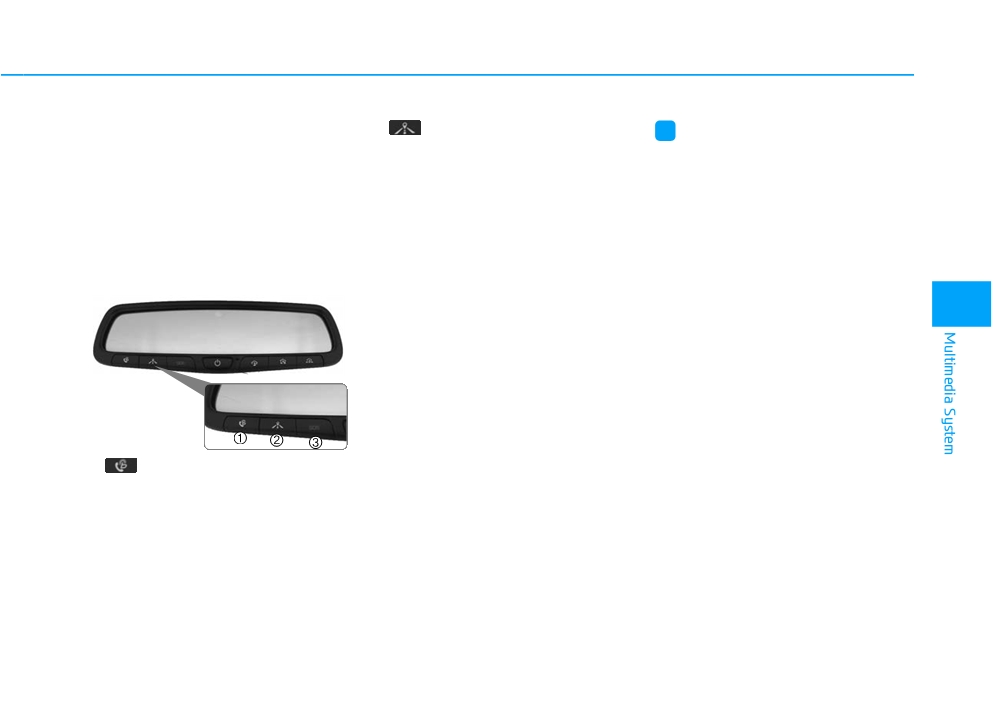

Using the Room Mirror Key

➁

(Blue Link® for POI)

Information

Selecting the room mirror key will

• Blue Link® for Voice command

The Turn by Turn (TBT) feature sup-

allow you to make service required

Starts Blue Link® voice command.

ports the store of ten (10) destinations

inquiries, POI info searches, and

in the TBT destinations directory.

Voice receiving voice guidance,

emergency rescues by connecting to

shortly press the button to convert to

the Blue Link® Center.

voice command mode. Press and

3. Route Preview

Such features can be used only after

hold the button to end voice com-

"Route Preview" VR command

subscribing to the Blue Link® service.

mand.

allows the user to preview the route

instructions

(upcoming maneuver

• TBT VR Commands

instructions) at any time during the

1. Navigate to

route guidance.

"Navigate to" voice command is used

to request the download of route

4. Destinations List

data for a new destination, saved

"Destinations List" VR command

destinations, daily routes and previ-

allows the user to preview and delete

ous destinations.

the stored destinations with their

associated voice tags in the Turn by

2. Save Destination

Turn destinations directory.

➀

(Blue Link® Center)

"Save Destination" VR command is

Makes requests for Blue Link® serv-

used to assign a voice tag to the last

5. Voice Guidance

ice related inquiries and consulta-

downloaded destination and store it

"Voice Guidance" VR command

tions.

in a destination directory.

allows the user to mute/unmute the

A call is connected to the Blue Link®

Turn by Turn

(TBT) direction

service center employee.

announcements.

Re-pressing the key will end the call.

This feature does not operate when

you are on a Bluetooth® phone call.

4-195

Multimedia System

6. Suspend Route

Eco Coach

Information

"Suspend Route" VR command

•

You cannot talk simultaneously on

allows the user to suspend and

the Bluetooth® phone and Blue

pause Turn by Turn(TBT) route guid-

Link® phone.

ance while in the guidance mode.

•

While on a Bluetooth® call, pressing

the

key or

key will dis-

7. Resume Route

play a message indicating that you

"Resume Route" VR command

are currently on a call.

allows the user to resume Turn by

•

A message will be displayed if you

Turn(TBT) route guidance.

receive a Bluetooth® Wireless

Technology call while already on a

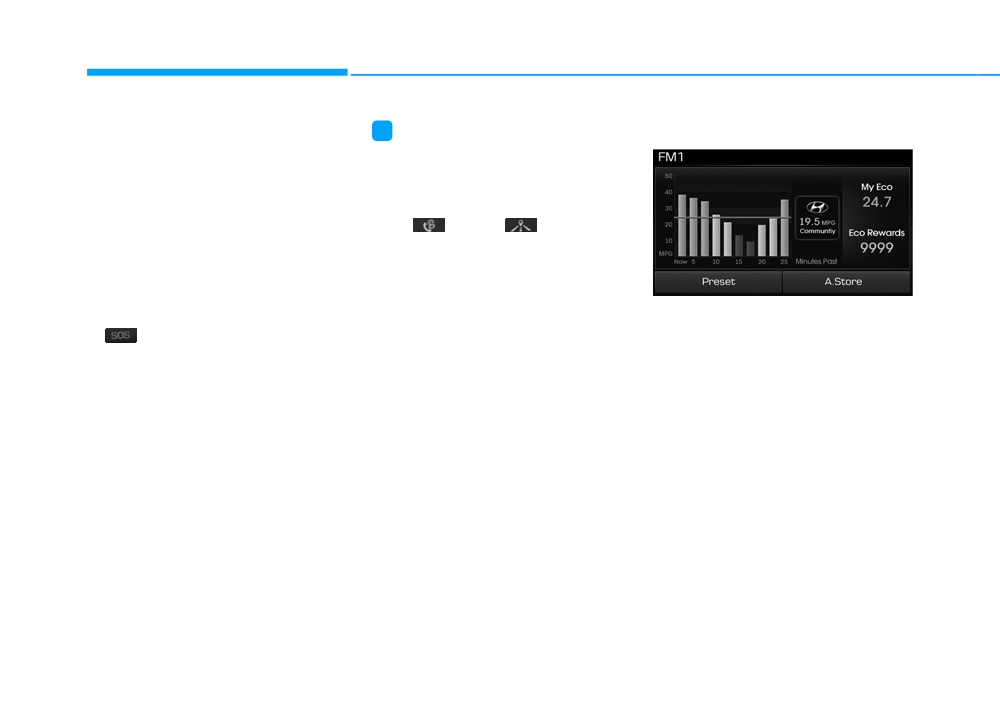

• What is Eco Coach?

Blue Link® call. At this time, press the

➂

(Blue Link® for SOS)

Every 2.5 minutes, Eco Coach com-

In the case of an emergency,

pares your fuel economy against the

requests for help to the Blue Link®

government tested average (EPA) or

center.

other similar Hyundai models (com-

munity), based on your preference.

Call is connected to the Blue Link®

Each month, or after every tank fill

emergency rescue center. Re-press-

up, Eco Coach rates your extended

ing the key will end the call.

average and gives you a reward star

If already on a Bluetooth® phone call,

if you best the average.

the call will end to connect you to the

See your My Hyundai web page for

Blue Link® Emergency Rescue

Center.

more information.

4-196

• What does the bar graph and hori-

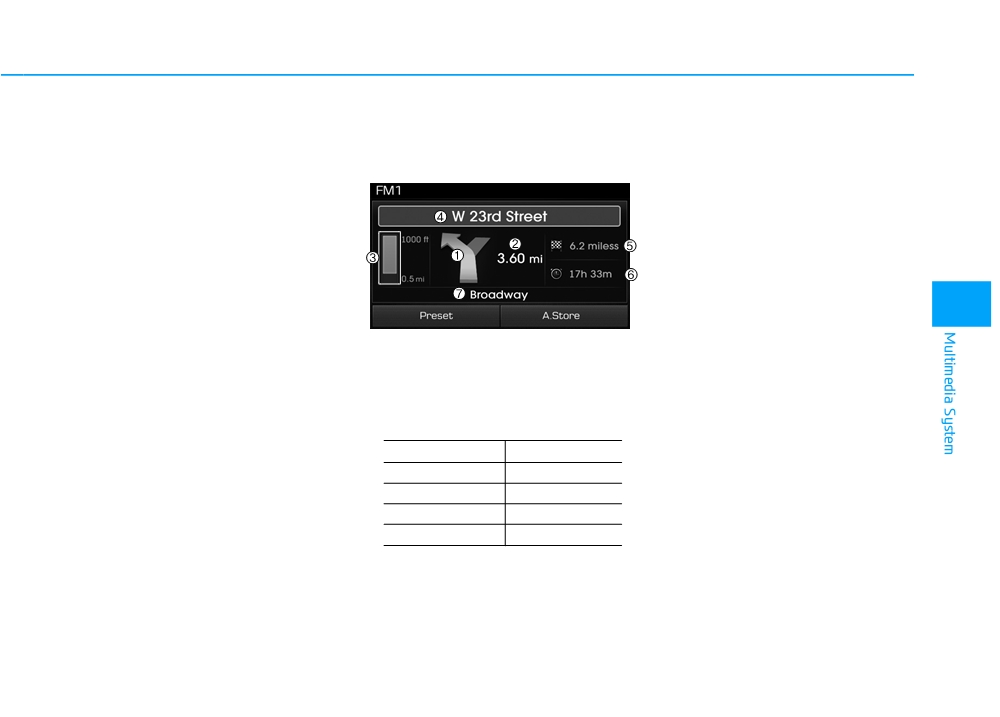

Turn by Turn

4.Next Street name

zontal line mean?

The Turn by Turn feature can be used

5.Distance to destination

The horizontal line is adjusted once

through Blue Link®.

6.Expected Time Arrival

per month or at each tank full, based

7. Current Street name

on your preference; it represents the

EPA combined average or communi-

❈ For information on specific

ty average fuel economy target.

Blue Link® operations, please refer

to a separate manual.

• What is My Eco MPG?

Your actual fuel economy average

over 2.5 minutes.

This value is also shown in bar graph

as your “now” rating.

1.Direction Indicator Image

2.Remaining distance until next point

• What are Eco Rewards?

3.The Count bar is divided into a

total of 9 levels.

If you beat the average (the EPA or

community), you will receive an Eco

Reward point.

9 Level

0.5mi

8 Level

0.4mi

See your my Hyundai web page for

7 Level

0.3mi

6 Level

0.2mi

more information.

5 Level

0.1mi

4 Level

400ft

[Eco Driving] will not operate if the

3 Level

300ft

2 Level

200ft

vehicle ignition is not turned on.

1 Level

100ft

Please operate with the ignition

turned on.

4-197

Multimedia System

DECLARATION OF CONFORMITY

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi-

dential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tel-

evision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor-

rect the interference by one ormore of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authori-

ty to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-

ing interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operatedwith minmum 20cm between the and your body. This transmitter must

not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the

FCC.

4-198

Driving your vehicle

Before driving

5-4

Forward Collision Warning (FCW) system

5-45

Before entering the vehicle

5-4

FCW operation

5-45

Before starting

5-4

Limitations of the system

5-47

Engine start/stop button

5-5

Blind Spot Detection system (BSD)

5-48

Illuminated Engine Start/Stop button

5-6

BSD (Blind Spot Detection) /

Engine Stop/Start button positions

5-7

LCA (Lane Change Assist)

5-49

Starting the hybrid system

5-9

RCTA (Rear Cross Traffic Alert)

5-52

Automatic transmission

5-12

Limitations of the system

5-55

Automatic transmission operation

5-12

Lane Departure Warning System (LDWS)

5-56

Parking

5-17

LDWS operation

5-57

Good driving practices

5-17

Warning light and message

5-58

Braking system

5-19

Limitations of the system

5-58

Power brakes

5-19

Cruise Control

5-60

Disc brakes wear indicator

5-20

Cruise Control Operation

5-60

Foot parking brake

5-20

Smart cruise control system

5-65

Electronic Parking Brake (EPB)

5-22

To adjust the sensitivity of Smart Cruise Control ..5-66

AUTO HOLD

5-28

To convert to Cruise Control Mode

5-67

Anti-lock Brake System (ABS)

5-32

Smart Cruise Control speed

5-67

Electronic Stability Control (ESC)

5-34

Smart Cruise Control vehicle-to-vehicle distance..5-72

Vehicle Stability Management (VSM)

5-38

SCC front radar sensor

5-74

Hill-Start Assist Control (HAC)

5-39

Limitations of the system

5-76

Good braking practices

5-40

Drive mode integrated control system

5-41

Hybrid vehicle

5-41

Plug-in hybrid vehicle

5-43

WARNING

Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death.

Engine exhaust contains carbon monoxide which cannot be seen or smelled.

Do not inhale engine exhaust.

If at any time you smell engine exhaust inside the vehicle, open the windows immediately. Exposure to CO can cause

unconsciousness and death by asphyxiation.

Be sure the exhaust system does not leak.

The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If

you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the

vehicle, have the exhaust system checked as soon as possible by an authorized HYUNDAI dealer.

Do not run the engine in an enclosed area.

Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Run the engine only

long enough to start the engine and to move the vehicle out of the garage.

Avoid idling the engine for prolonged periods with people inside the vehicle.

If it is necessary to idle the engine for a prolonged period with people inside the vehicle , be sure to do so only in an

open area with the air intake set at "Fresh" and fan control set to high so fresh air is drawn into the interior.

Keep the air intakes clear.

To assure proper operation of the ventilation system, keep the ventilation air intakes located in front of the windshield

clear of snow, ice, leaves, or other obstructions.

If you must drive with the trunk open:

Close all windows.

Open instrument panel air vents.

Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan control set to high.

5-3

Driving your vehicle

BEFORE DRIVING

Before entering the vehicle

• Check the gauges and indicators in

WARNING

the instrument panel and the mes-

• Be sure all windows, outside mir-

sages on the instrument display

ror(s), and outside lights are clean

CALIFORNIA PROPOSITION 65

when the ignition switch is in the

WARNING

and unobstructed.

ON position.

• Remove frost, snow, or ice.

Engine exhaust and a wide vari-

• Check that any items you are car-

ety of automobile components

• Visually check the tires for uneven

rying are stored properly or fas-

including components found in

wear and damage.

tened down securely.

the interior furnishings in a

• Check under the vehicle for any

vehicle, contain or emit harmful

sign of leaks.

WARNING

chemicals known to the State of

• Be sure there are no obstacles

California to cause cancer and

To reduce the risk of SERIOUS

behind you if you intend to back up.

birth defects and reproductive

INJURY or DEATH, take the fol-

harm. In addition, certain fluids

lowing precautions:

contained in vehicles and cer-

Before starting

•

ALWAYS wear your seat belt.

tain products of components

•

Make sure the hood, the trunk, and

All passengers must be prop-

contain or emit chemicals

the doors are securely closed and

erly belted whenever the vehi-

known to the State of California

locked.

cle is moving. For more infor-

to cause cancer and birth

mation, refer to "Seat Belts" in

•

Adjust the position of the seat and

defects or other reproductive

chapter 2.

steering wheel.

harm.

•

Always drive defensively.

•

Adjust the inside and outside

Assume other drivers or pedes-

rearview mirrors.

trians may be careless and

•

Verify all the lights work.

make mistakes.

•

Fasten your seatbelt. Check that all

•

Stay focused on the task of

passengers have fastened their

driving. Driver distraction can

seatbelts.

cause accidents.

•

Leave plenty of space between

you and the vehicle in front of

you.

5-4

ENGINE START/STOP BUT-

TON

WARNING

(Continued)

You are much more likely to have

WARNING

NEVER drink or take drugs and

a serious accident if you drink or

drive.

take drugs and drive. If you are

To reduce the risk of SERIOUS

Drinking or taking drugs and

drinking or taking drugs, don’t

INJURY or DEATH, take the fol-

driving is dangerous and may

drive. Do not ride with a driver

lowing precautions:

result in an accident and SERI-

who has been drinking or taking

drugs. Choose a designated

•

NEVER allow children or any

OUS INJURY or DEATH.

driver or call a taxi.

person who is unfamiliar with

Drunk driving is the number

the vehicle to touch the

one contributor to the highway

Engine Start/Stop button or

death toll each year. Even a

related parts. Unexpected and

small amount of alcohol will

sudden vehicle movement

affect your reflexes, percep-

can occur.

tions and judgment. Just one

•

NEVER reach through the

drink can reduce your ability to

steering wheel for the Engine

respond to changing conditions

Start/Stop button, or any other

and emergencies and your reac-

control, while the vehicle is in

tion time gets worse with each

motion. The presence of your

additional drink.

hand or arm in this area may

Driving while under the influ-

cause a loss of vehicle control

ence of drugs is as dangerous

resulting in an accident.

or more dangerous than driving

under the influence of alcohol.

(Continued)

5-5

Driving your vehicle

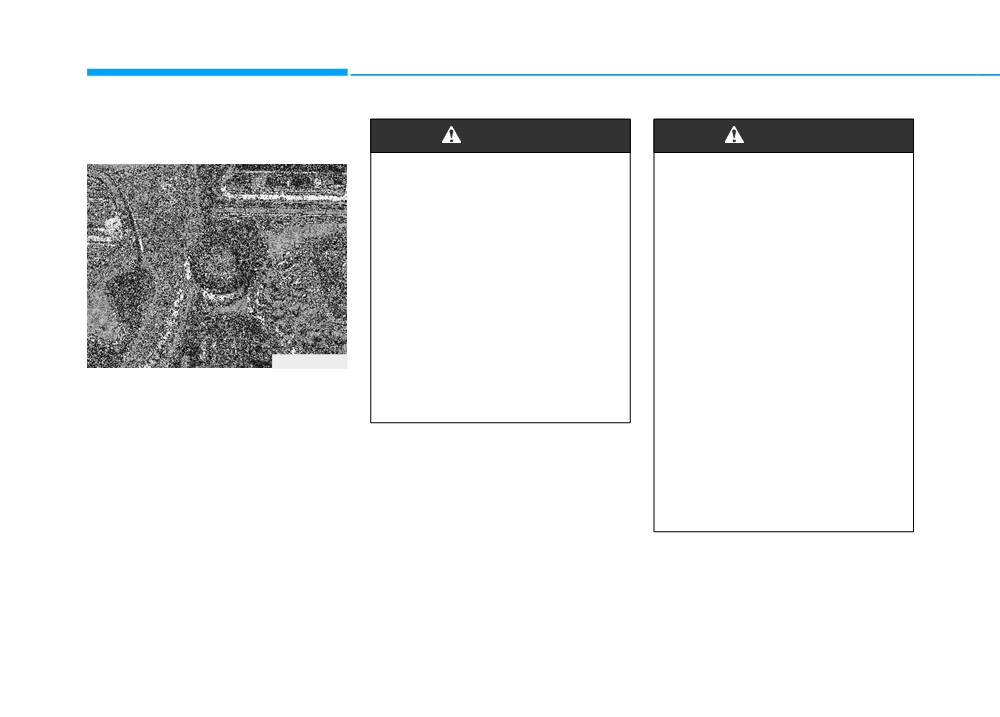

Illuminated Engine Start/Stop

WARNING

button

To turn the hybrid system off in

•

NEVER press the Engine

an emergency:

Start/Stop button while the

vehicle is in motion except in

Press and hold the Engine

Start/Stop button for more than

an emergency. This will result

in the hybrid system turning

two seconds OR rapidly press

and release the Engine Start/

off and loss of power assist

for the steering and brake

Stop button three times (within

three seconds).

systems. This may lead to

loss of directional control and

If the vehicle is still moving, you

braking function, which could

can restart the hybrid system

cause an accident.

without depressing the brake

OLFP055007K

pedal by pressing the Engine

•

Before leaving the driver’s

Start/Stop button with the shift

seat, always make sure the

Whenever the front door is opened,

lever in the N (Neutral) position.

shift lever is in the P (Park)

the Engine Start/Stop button will illu-

position, set the parking brake,

minate and will go off 30 seconds

press the Engine Start/Stop

after the door is closed.

button to the OFF position, and

take the Smart Key with you.

Unexpected vehicle movement

may occur if these precautions

are not followed.

5-6

Hyundai Sonata Plug-in Hybrid (2017 year). Manual - part 26
