Hyundai Kona (2018 year). Manual

•

Some electronic devices can

Wireless cellular phone charg-

The wireless charging process starts

cause electronic interference

ing system (if equipped)

when you put a Qi-enabled cellular

when plugged into a vehicle’s

phone on the wireless charging unit.

power outlet. These devices may

1. Remove other items, including the

cause excessive audio static

smart key, from the wireless charg-

and malfunctions in other elec-

ing unit. If not, the wireless charg-

tronic systems or devices used

ing process may be interrupted.

in your vehicle.

Place the cellular phone on the

•

Push the plug in as far as it will

center of charging pad.

go. If good contact is not made,

2. The indicator light is orange when

the plug may overheat and the

the cellular phone is charging. The

fuse may open.

indicator light turns green when

•

Plug in battery equipped electrical/

phone charging is complete.

electronic devices with reverse

OOS047064

3. You can turn ON or OFF the wire-

current protection. The current

less charging function in the User

from the battery may flow into the

There is a wireless cellular phone

Settings mode on the instrument

vehicle's electrical/electronic sys-

charger inside the front console.

cluster. For further information, refer

tem and cause system malfunc-

The system is available when all

to the “LCD Display Modes” in this

tion.

doors are closed, and when the igni-

chapter.

tion switch is in the ACC/ON position.

To charge a cellular phone

If your cellular phone is not charging:

The wireless cellular phone charging

- Slightly change the position of the

system charges only the Qi-enabled

cellular phone on the charging pad.

cellular phones (

). Read the label

on the cellular phone accessory

- Make sure the indicator light is

orange.

cover or visit your cellular phone

manufacturer’s website to check

whether your cellular phone supports

the Qi technology.

3-133

Convenient features of your vehicle

The indicator light will blink orange

•

The wireless charging process

•

If the cellular phone has a thick

for 10 seconds if there is a malfunc-

may temporarily stop, when a

cover, the wireless charging may

tion in the wireless charging system.

smart key function operates (i.e.

not be possible.

starting the engine, opening the

In this case, temporarily stop the

•

If the cellular phone is not fully

doors, closing the doors).

charging process, and re-attempt to

contacted into the wireless

wirelessly charge your cellular phone

•

For certain cellular phone, the

charging pad, the wireless charg-

again.

indicator color may not change to

ing may not be possible.

green, even when the wireless

The system warns you with a mes-

•

Some magnetic item

(credit

charging process is properly

sage on the LCD display if the cellular

cards, phone cards, passbook

completed.

phone is still on the wireless charging

and tickets) may be damaged

unit after the engine is turned OFF

•

The wireless charging process may

while wireless charging process.

and the front door is opened.

temporarily stop, when tempera-

ture abnormally increases inside

NOTICE

the wireless cellular phone charg-

ing system. The wireless charging

• The wireless cellular phone

process restarts, when tempera-

charging system may not sup-

ture falls to a certain level.

port certain cellular phones,

•

The wireless charging process

which are not verified for the Qi

may temporarily stop when there

specification (

is any metallic item, such as a

• Locate your cellular phone well

coin, between the wireless cellu-

in the middle of the wireless cel-

lar phone charging system and a

lular phone charging system.

cellular phone.

Even when your cellular phone

•

For certain cellular phones with

locates slightly to one side, the

their own protection, the wireless

charging speed may decrease

and the phone may heat when

and the wireless charging may

charging.

stop.

3-134

Clock

Clothes hanger (if equipped)

WARNING

Do not adjust the clock while

driving.You may lose your steer-

ing control and cause severe

personal injury or accidents.

Vehicles with Audio system

Select the [SETUP/CLOCK ] button on

the audio system ➟ Select [Date/Time].

OOS047065

OOS047066

• Set time: Set the time displayed on

Do not hang other objects such

the audio screen.

These hangers are not designed to

as hangers or hard objects

• Time format: Choose between 12-

hold large or heavy items.

except clothes. Also, do not put

hour and 24-hour time formats.

heavy, sharp or breakable

Vehicles with Navigation system

objects in the clothes pockets.

Select the Settings menu on the

In an accident or when the cur-

Navigation system

➟ Select

tain air bag is inflated, it may

[Date/Time].

cause vehicle damage or per-

sonal injury.

• GPS time: Displays time according

to the received GNSS time.

•

24-hour: Switches to 12 hour or 24

hour.

For more details, please refer to

the separate manual that was sup-

plied with your vehicle.

3-135

Convenient features of your vehicle

Floor mat anchor(s)

Luggage net (holder)

WARNING

(if equipped)

The following must be observed

when installing ANY floor mat

to the vehicle.

• Ensure that the floor mats are

securely attached to the vehi-

cle's floor mat anchor(s) before

driving the vehicle.

• Do not use ANY floor mat that

cannot be firmly attached to

the vehicle's floor mat anchors.

OOS047068

• Do not stack floor mats on top

OOS047067

of one another (e.g. all-weath-

To keep items from shifting in the lug-

ALWAYS use the Floor Mat Anchors

er rubber mat on top of a car-

gage compartment, you can use the

to attach the front floor mats to the

peted floor mat). Only a single

four holders located in the luggage

vehicle. The anchors on the front

floor mat should be installed

compartment, to attach the luggage

floor carpet keep the floor mats from

in each position.

net.

sliding forward.

IMPORTANT - Your vehicle was

If necessary, we recommend that you

manufactured with driver's side

contact your authorized HYUNDAI

floor mat anchors that are

dealer to obtain a luggage net.

designed to securely hold the

floor mat in place. To avoid any

interference with pedal operation,

HYUNDAI recommends that the

HYUNDAI floor mat designed for

use in your vehicle be installed.

3-136

Cargo area cover (if equipped)

CAUTION

WARNING

To prevent damage to the goods

•

Do not place objects on the

or the vehicle, care should be

cargo area cover while driv-

taken when carrying fragile or

ing. Such objects may be

bulky objects in the luggage

thrown about inside the vehi-

compartment.

cle and possibly injure vehicle

occupants during an accident

or when braking.

WARNING

•

Never allow anyone to ride in

the luggage compartment. It

To avoid eye injury, DO NOT

is designed for luggage only.

overstretch the luggage net.

OOS047069

•

Maintain balance of the vehi-

ALWAYS keep your face and

Use the cover to hide items stored in

cle and locate the weight as

body out of the luggage net’s

the cargo area.

far forward as possible.

recoil path. DO NOT use the lug-

gage net when the strap has vis-

The cargo area cover will lift when

ible signs of wear or damage.

the tailgate is opened.

Disconnect the strap

(1) from the

holder if you want to return the cover

to the original position. To remove the

cargo area cover completely, lift the

cover to a 50-degree angle and pull it

out (2).

NOTICE

Since the cargo area cover may be

damaged or deformed, do not put

luggage on it when it is being used.

3-137

Convenient features of your vehicle

EXTERIOR FEATURES

Roof rack (if equipped)

NOTICE

•

The vehicle center of gravity will

• When carrying cargo on the roof

be higher when items are

rack, take the necessary precau-

loaded onto the roof rack.

tions to make sure the cargo does

Avoid sudden starts, braking,

not damage the roof of the vehicle.

sharp turns, abrupt maneuvers

or high speeds that may result

• When carrying large objects on

in loss of vehicle control or

the roof rack, make sure they do

rollover resulting in an accident.

not exceed the overall roof length

•

Always drive slowly and turn

or width.

corners carefully when carry-

ing items on the roof rack.

WARNING

Severe wind updrafts, caused

OOS047317

by passing vehicles or natural

• The following specification is

causes, can cause sudden

If the vehicle has a roof rack, you can

the maximum weight that can

upward pressure on items

load cargo on top of your vehicle.

be loaded onto the roof rack.

loaded on the roof rack. This

Distribute the load as evenly

is especially true when carry-

NOTICE

as possible onto the roof rack

ing large, flat items such as

and secure the load firmly.

wood panels or mattresses.

If the vehicle is equipped with a

This could cause the items to

sunroof, be sure not to position

ROOF

80 kg (176 lbs.)

fall off the roof rack and cause

cargo onto the roof rack in such a

RACK

EVENLY DISTRIBUTED

damage to your vehicle or

way that it could interfere with

others around you.

sunroof operation.

Loading cargo or luggage in

excess of the specified weight

•

To prevent damage or loss of

limit on the roof rack may

cargo while driving, check fre-

damage your vehicle.

quently before or while driving

to make sure the items on the

roof rack are securely fastened.

3-138

Multimedia System

MULTIMEDIA SYSTEM

Rotate it in a clockwise direction to

Information

reinstall it.

• If you install an aftermarket HID

When using a portable audio device

headlamp, your vehicle’s audio and

connected to the power outlet, noise

NOTICE

electronic devices may malfunction.

may occur during playback. If this

• Before entering a place with low

happens, use the power source of the

• Prevent chemicals such as perfume,

height clearance or a car wash,

portable audio device.

cosmetic oil, sun cream, hand clean-

remove the antenna by rotating it

er, and air freshener from contacting

counterclockwise. If not, the

the interior parts because they may

❈ iPod® is a trademark of Apple Inc.

antenna may be damaged.

cause damage or discoloration.

• When reinstalling your antenna,

Antenna

it is important that it is fully

AUX, USB and iPod® port

tightened and adjusted to the

Roof antenna

upright position to ensure prop-

You can use an AUX port to connect

er reception.

audio devices and an USB port to plug

in an USB and an iPod® port.

NOTICE

• Do not clean the inside of the

rear window glass with a cleaner

or use a scraper to remove for-

eign deposits as this may cause

damage to the antenna elements.

• Avoid adding metallic coatings

such as Ni, Cd, and so on. These

OOS047071

can degrade the received AM

and FM broadcast signals.

The roof antenna receives transmit-

ted data.

(For example

: AM/FM,

OOS047074

DAB, GPS/GNSS)

Rotate the roof antenna in a counter-

clockwise direction to remove it.

4-2

Steering wheel audio controls

NOTICE

If the SEEK/PRESET toggle switch

(if equipped)

is moved up or down, it will function

Do not operate audio remote con-

in the following modes.

■ Type A

trol buttons simultaneously.

RADIO mode

It will function as the PRESET STA-

VOLUME (VOL + / - ) (1)

TION UP/DOWN switch.

• Move the VOLUME toggle switch

MEDIA mode

up to increase volume.

It will function as the TRACK UP/

• Move the VOLUME toggle switch

DOWN switch.

down to decrease volume.

MODE (

) (3)

SEEK/PRESET (

) (2)

Press the MODE button to select

OOS047072

If the SEEK/PRESET toggle switch

Radio, Disc, or AUX.

is moved up or down and held for 0.8

■ Type B

seconds or more, it will function in

the following modes.

MUTE (

) (4)

RADIO mode

• Press the button to mute the

sound.

It will function as the AUTO SEEK

select switch. It will SEEK until you

• Press the button again to activate

release the switch.

the sound.

Information

MEDIA mode

Detailed information for audio control

It will function as the FF/REW switch.

buttons are described in the following

OOS047073

pages in this chapter.

The steering wheel audio control

switches are installed for your conven-

ience.

4-3

Multimedia System

Bluetooth® Wireless Technology

(1) Call / Answer button

How vehicle radio works

hands-free

(2) Call end button

FM reception

(3) Microphone

(RHD vehicle : Right side)

• Audio

: For detailed information,

refer to “AUDIO” in this chapter.

• AVN : Detailed information for the

Bluetooth® Wireless Technology

hands-free is described in the man-

ual supplied separately.

OOS047075

Audio / Video / Navigation sys-

OJF045308L

tem (AVN) (if equipped)

AM and FM radio signals are broad-

Detailed information for the AVN sys-

cast from transmitter towers located

tem is described in a separately sup-

around your city. They are intercept-

plied manual.

ed by the radio antenna on your vehi-

cle. This signal is then received by

the radio and sent to your vehicle

speakers.

When a strong radio signal has

reached your vehicle, the precise

engineering of your audio system

OOS047076

ensures the best possible quality

You can use the phone wirelessly by

reproduction. However, in some

using the Bluetooth® Wireless

cases the signal coming to your vehi-

Technology.

cle may not be strong and clear.

4-4

This can be due to factors, such as

In addition, they curve around

The following conditions are normal

the distance from the radio station,

obstructions so that they can provide

and do not indicate radio trouble :

closeness of other strong radio sta-

better signal coverage.

tions or the presence of buildings,

bridges or other large obstructions in

FM radio station

the area.

AM (MW, LW) reception

JBM004

• Fading

- As your vehicle moves

OJF045310L

away from the radio station, the

signal will weaken and sound will

FM broadcasts are transmitted at

begin to fade. When this occurs,

high frequencies and do not bend to

OJF045309L

we suggest that you select another

follow the earth's surface. Because

stronger station.

AM broadcasts can be received at

of this, FM broadcasts generally

greater distances than FM broad-

begin to fade at short distances from

• Flutter/Static - Weak FM signals or

casts. This is because AM radio

the station. Also, FM signals are eas-

large obstructions between the

transmitter and your radio can dis-

waves are transmitted at low fre-

ily affected by buildings, mountains,

turb the signal causing static or

quencies. These long, low frequency

or other obstructions. These can

fluttering noises to occur. Reducing

radio waves can follow the curvature

result in certain listening conditions

the treble level may lessen this

of the earth rather than travelling

which might lead you to believe a

effect until the disturbance clears.

straight out into the atmosphere.

problem exists with your radio.

4-5

Multimedia System

Using a cellular phone or a two-

iPod®

way radio

iPod® is a registered trademark of

When a cellular phone is used inside

Apple Inc.

the vehicle, noise may be produced

from the audio system. This does not

mean that something is wrong with the

Bluetooth® Wireless

audio equipment. In such a case, use

Technology

the cellular phone at a place as far as

The Bluetooth® word mark and logos

possible from the audio equipment.

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of

NOTICE

OJF045311L

such marks by HYUNDAI is under

When using a communication

license.

•

Station Swapping - As a FM signal

system such as a cellular phone

Other trademarks and trade names

weakens, another more powerful

or a radio set inside the vehicle, a

are those of their respective owners.

signal near the same frequency

separate external antenna must be

may begin to play. This is because

fitted. When a cellular phone or a

your radio is designed to lock onto

A Bluetooth® Wireless Technology

radio set is used with an internal

the clearest signal. If this occurs,

enabled cell phone is

antenna alone, it may interfere

select another station with a

with the vehicle's electrical sys-

required to use Bluetooth® Wireless

stronger signal.

tem and adversely affect safe

Technology.

•

Multi-Path Cancellation

- Radio

operation of the vehicle.

signals being received from sever-

al directions can cause distortion

WARNING

or fluttering. This can be caused by

a direct and reflected signal from

Do not use a cellular phone

the same station, or by signals

while driving. Stop at a safe

from two stations with close fre-

location to use a cellular phone.

quencies. If this occurs, select

another station until the condition

has passed.

4-6

Multimedia System

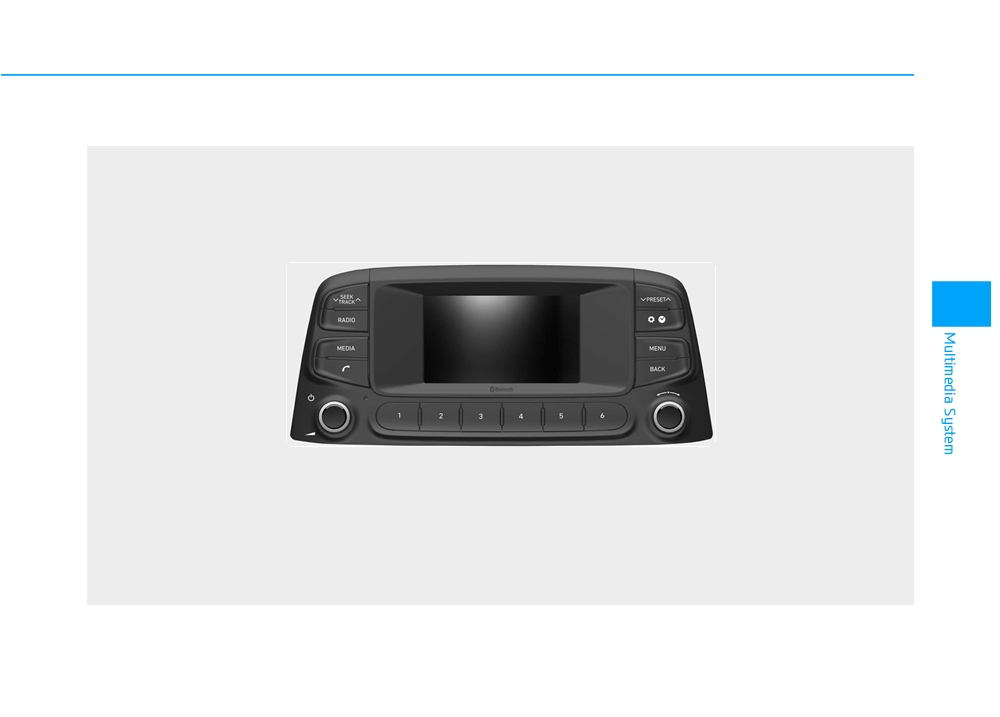

Feature of Your Audio

(1) SEEK/TRACK

(5) POWER/VOLUME knob

• Search for next station in DAB/FM*

• Turn to adjust the volume.

and AM radio mode.

Head unit

• Press to turn the device on or off.

• Change the current song in media

mode.

(6) RESET

* with DAB (if equipped)

• Shutdown and restart the system.

(2) RADIO

• Start DAB/FM* and AM radio.

* with DAB (if equipped)

(3) MEDIA

• Select USB(iPod®), Bluetooth®(BT)

Audio or AUX.

❈The actual features in the vehicle

may differ from the illustration.

• Display the media menu when two

or more media are connected or

when the [MEDIA] button is pressed

in media mode.

(4) PHONE

• Start Bluetooth® Phone mode.

4-8

(7) PRESET

• Move to the previous/next preset

page in radio mode.

(12) [1] ~ [6] (Preset)

• Save/play presets in radio mode.

(8) SETUP/CLOCK

• Select/launch the numeric menus

• Access Display, Sound, Date/Time,

displayed on the screen.

Bluetooth, System and Display Off

settings.

• Press and hold to set the date/time.

(9) MENU

• Display additional menus available

on the current screen.

(10) BACK

• Return to the previous screen.

(11) TUNE knob

• Turn to navigate through the sta-

tions/songs list.

• Press to select an item.

4-9

Multimedia System

Steering wheel remote control

(3) VOLUME

- Press in Bluetooth® Handsfree

mode to switch to the waiting

• Press to adjust the volume.

call.

•

Pressing and holding the button

(4) UP/DOWN

(more than 1.0 seconds)

• Press the button in radio mode to

search Presets.

- If not in Bluetooth® Handsfree

mode or receiving a phone call,

• Press and hold the button in radio

the most recently Dialled Call

mode to search frequencies.

number is dialled.

• Press the button in media mode to

- Press in Bluetooth® Handsfree

change the current song. (except

mode to transfer the call to your

AUX)

cell phone.

• Press and hold the button in media

- Press in cell phone mode to

❈ The actual features in the vehicle

mode to quick search through

switch to Bluetooth® Handsfree

may differ from the illustration.

songs.

(except Bluetooth®(BT)

mode.

Audio and AUX)

(1) MUTE

(6) END

(5) CALL

• Mutes the audio.

• Press in Bluetooth® Handsfree

• Mutes the microphone during a

• Pressing the button

mode to end the phone call.

call.

- If not in Bluetooth® Handsfree

• Press in the incoming call screen

mode or receiving a phone call.

to reject the call.

(2) MODE

First press: Automatically display

• Press the button to change the

the most recently Dialled Call

mode in the following order: Radio

number.

➟ Media.

Second press: Dial the phone

number entered.

- Press in the Incoming Call notifi-

cation screen to accept the

phone call.

4-10

WARNING

•

Please refrain from use if the

WARNING

screen is blank or no sound

•

Do not stare at the screen

can be heard as these signs

Driving while distracted can

while driving. Staring at the

may indicate product mal-

result in a loss of vehicle con-

screen for prolonged periods

function. Continued use in

trol that may lead to an acci-

of time could lead to traffic

such conditions could lead to

dent, severe personal injury,

accidents.

accidents

(fires,

electric

and death. The driver’s primary

shock) or product malfunc-

responsibility is in the safe and

•

Do not disassemble, assem-

tions.

legal operation of a vehicle, and

ble, or modify the audio sys-

•

Do not touch the antenna dur-

use of any handheld devices,

tem. Such acts could result in

ing thunder or lightening as

other equipment, or vehicle sys-

accidents, fire, or electric

such acts may lead to light-

tems which take the driver’s

shock.

ning induced electric shock.

eyes, attention and focus away

•

Using the phone while driving

from the safe operation of a

may lead to a lack of attention

•

Do not stop or park in park-

vehicle or which are not permis-

of traffic conditions and

ing-restricted areas to operate

sible by law should never be

increase the likelihood of

the product. Such acts could

used during operation of the

accidents. Use the phone fea-

lead to traffic accidents.

vehicle.

ture after parking the vehicle.

•

Use the system with the vehi-

•

Exercise caution not to spill

cle engine turned on.

water or introduce foreign

Prolonged use with the igni-

objects into the device. Such

tion turned on only could

acts could lead to smoke, fire,

result in battery discharge.

or product malfunction.

4-11

Hyundai Kona (2018 year). Manual - part 13
