Maintenance
Front fog light bulbs (if equipped)
4. With the head lamp and battery in nor-
1. Remove the front bumper under cover.
mal condition, aim the head lamps so
the brightest portion falls on the hori-
2. Reach your hand into the back of the
front bumper.
zontal and vertical lines.

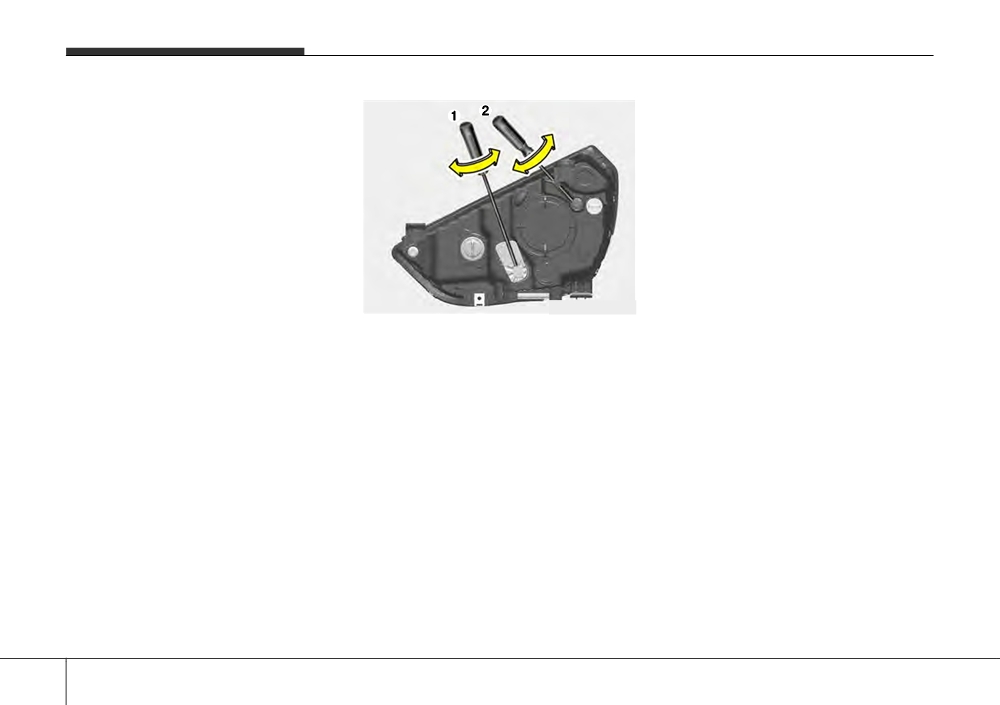

5. To aim the low/high beam left or right,
3. Disconnect the power connector from
the socket.
turn the driver (2) clockwise or coun-
terclockwise. To aim the low/high beam
4. Remove the bulb-socket from the
up or down, turn the driver (1) clock-
housing by turning the socket counter
wise or counterclockwise.
clockwise until the tabs on the socket
align with the slots on the housing.
5. Install the new bulb-socket into the
housing by aligning the tabs on the
OEL073257
socket with the slots in the housing.
Push the socket into the housing and
Headlight and front fog light aim-
turn the socket clockwise.
ing (for Europe)
6. Connect the power connector to the
Headlight aiming
socket.
1. Inflate the tyres to the specified pres-
7. Reinstall the front bumper under cover.
sure and remove any loads from the
vehicle except the driver, spare tyre,
and tools.
2. The vehicle should be placed on a flat
floor.
3. Draw vertical lines (Vertical lines pass-
ing through respective head lamp cen-
tres) and a horizontal line (Horizontal
line passing through centre of head
lamps) on the screen.
7 60
Maintenance
OEL074256

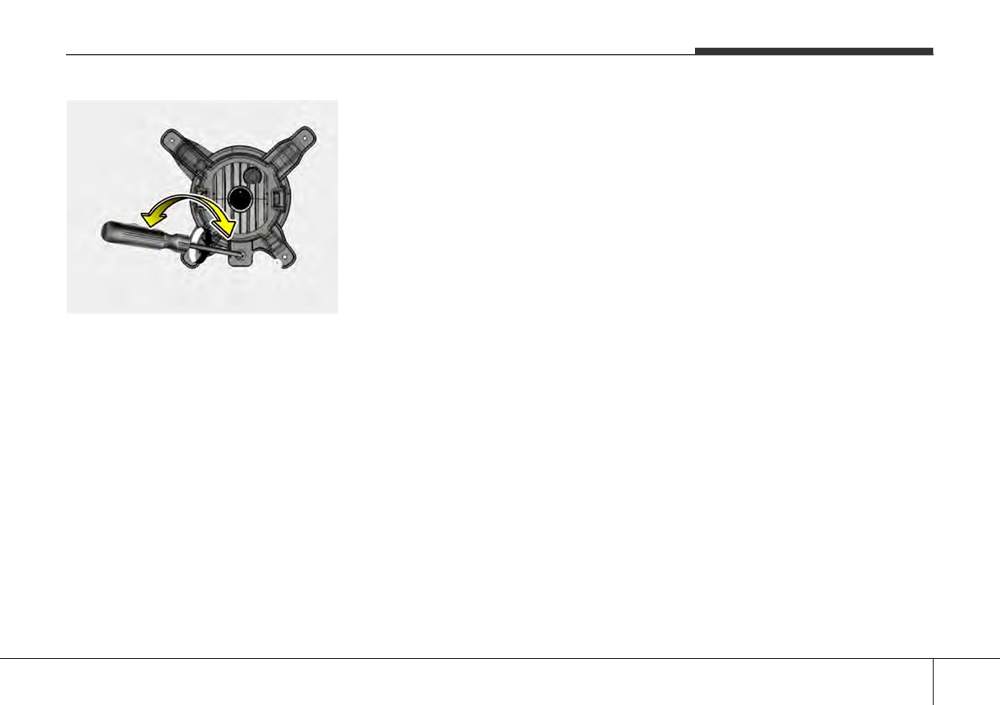

Front fog light aiming
The front fog lamp can be aimed as the
same manner of the head lamps aiming.
With the front fog lamps and battery nor-
mal condition, aim the front fog lamps. To
aim the front fog lamp up or down, turn
the driver clockwise or counterclockwise.
7 61
Maintenance
Aiming point
<Ground Height>
<Distance between lamps>
H1 : Height between the head lamp bulb centre and ground (High beam/Low beam)
H2 : Height between the fog lamp bulb centre and ground
W1 : Distance between the two head lamp bulbs centres (High beam/Low beam)
W2 : Distance between the two fog lamp bulbs centres
OLMB073084
Unit: in (mm)
H2
W2
Vehicle condition
H1
W1
Fog
Fog
Without driver
35 (897)
20 (510)
55.6 (1413)
53.1 (1350)
With driver
35 (892)
19.9 (505)
7 62
Maintenance
■ Based on 10m screen
OMD051055L

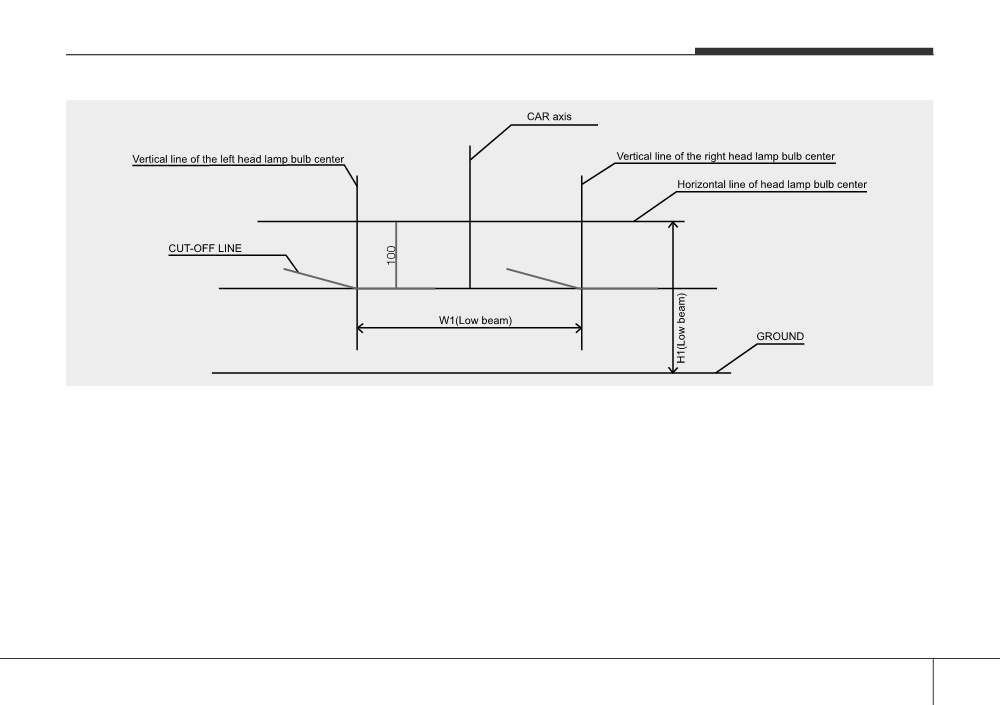

Head lamp low beam
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
7 63
Maintenance
■ Based on 10m screen
OGDE071056

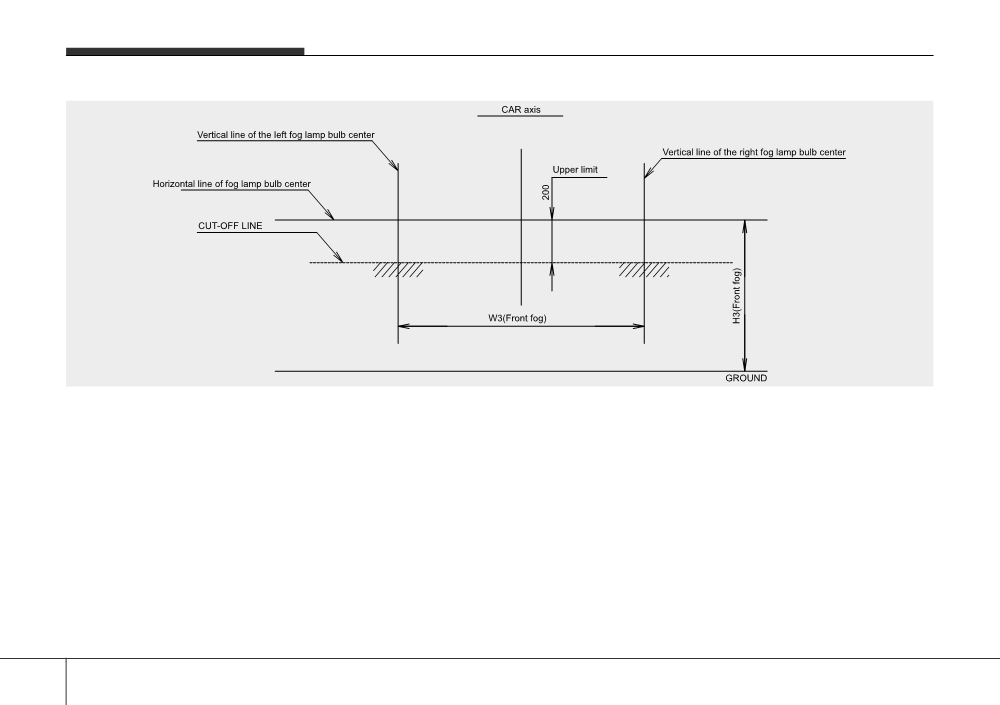

Front fog light
1. Turn the front fog lamp on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
7 64
Maintenance
OLM079031
OLM079050
OLM073033

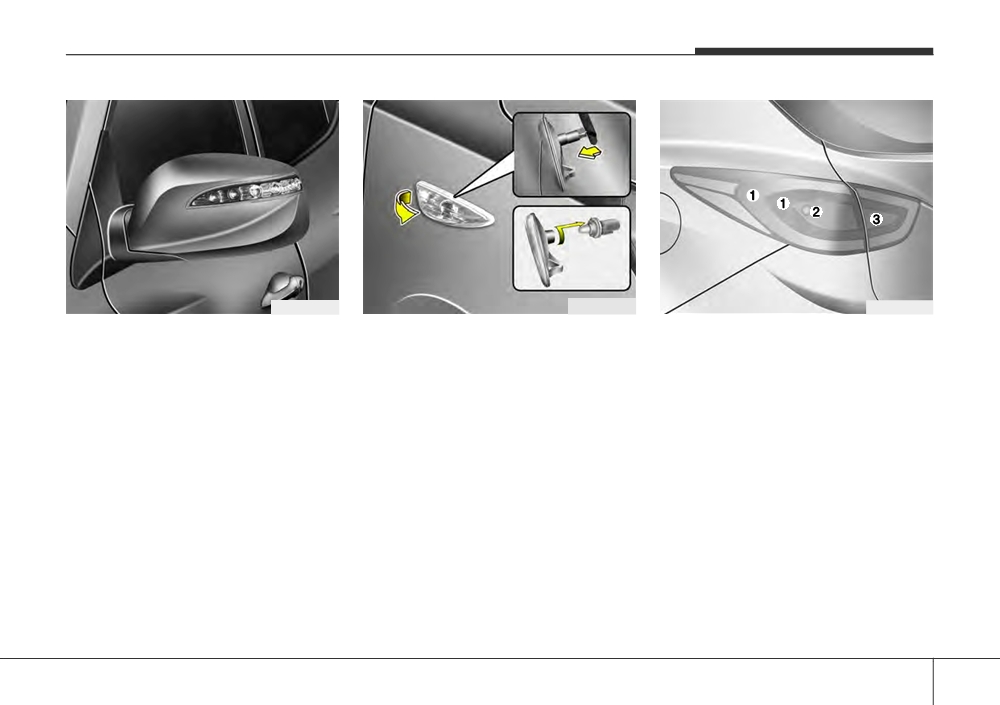

Side repeater light bulb replace-
Type B
Rear combination light bulb
ment (if equipped)
1. Remove the light assembly from the
replacement
vehicle by prying the lens and pulling
Type A
(1) Stop and tail light
the assembly out.
If the light bulb does not operate, we rec-
(2) Rear turn signal light
2. Reinstall a new light assembly to the
ommend that the system be checked by
(3) Back-up light
a HYUNDAI authorised repairer.
body of the vehicle.
7 65
Maintenance
OLM079034
OLM079047
OLM079036

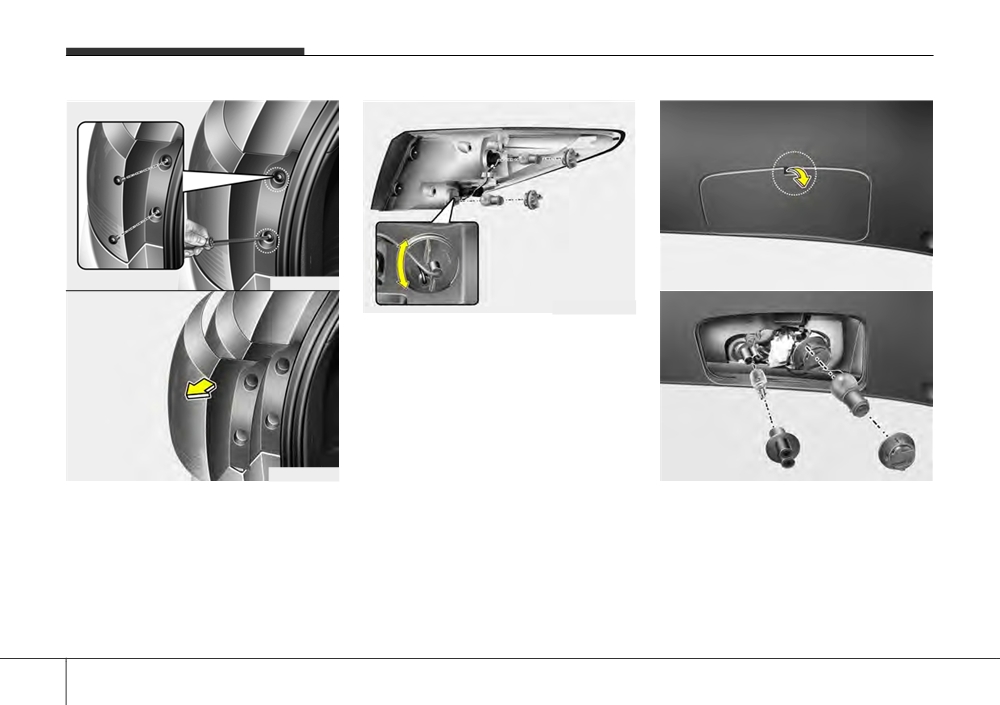

4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
OLM079035
OEL079038
6. Insert a new bulb by inserting it into
Outside light
the socket and rotating it until it locks
Inside light
1. Open the tailgate.
into place.
1. Open the tailgate.
2. Loosen the light assembly retaining
7. Install the socket in the assembly by
2. Remove the service cover using a flat-
screws with a cross-tip screwdriver.
aligning the tabs on the socket with the
blade screwdriver.
3. Remove the rear combination light
slots in the assembly. Push the socket
3. Remove the socket from the assembly
assembly from the body of the vehicle.
into the assembly and turn the socket
by turning the socket counterclockwise
clockwise.
until the tabs on the socket align with
8. Reinstall the light assembly to the
the slots on the assembly.
body of the vehicle.
7
66
Maintenance
4. Remove the bulb from the socket by
Rear Fog Light (if equipped)
pressing it in and rotating it counter-
1. Remove the socket from the assembly
clockwise until the tabs on the bulb
by turning the socket counterclockwise
align with the slots in the socket. Pull
until the tabs on the socket align with
the bulb out of the socket.
the slots on the assembly.
5. Insert a new bulb by inserting it into
2. Remove the bulb from the socket by
the socket and rotating it until it locks
pressing it in and rotating it counter-
into place.
clockwise until the tabs on the bulb
6. Install the socket in the assembly by
align with the slots in the socket. Pull
aligning the tabs on the socket with the
the bulb out of the socket.
slots in the assembly. Push the socket
3. Insert a new bulb in the socket.
into the assembly and turn the socket
4. Reinstall the light assembly to the
clockwise.
OLM079039
body of the vehicle.
7. Install the service cover by putting it
High mounted stop light bulb
into the service hole.
replacement (if equipped)
If the light does not operate, we recom-
Stop and tail light (LED type)
mend that the system be checked by a
If the light does not operate, we recom-
HYUNDAI authorised repairer.
mend that the system be checked by a
HYUNDAI authorised repairer.
7 67
Maintenance
OLM079055
License plate light bulb replace-
ment
1. Remove the lens by pressing the tabs.
2. Remove the socket from the lens.
3. Remove the bulb by pulling it straight
out.
4. Install a new bulb in the socket and
install the socket to the lens.
5. Reinstall the lens securely.
7 68
Maintenance
Map lamp
Luggage room lamp (if equipped)
Interior light bulb replacement
1. Using a flat-blade screwdriver, gently
pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight
out.
WARNING
Prior to working on the Interior
Glove box lamp (if equipped)
Lights, ensure that the “OFF” but-
Sunvisor lamp
ton is depressed to avoid burning
your fingers or receiving an electric
shock.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior
light housing notches and snap the
lens into place.
OLM079040/OXM079041/H/OEL079042/OLM07904
CAUTION
Room lamp
4/OLM079045/H
Use care not to dirty or damage
lens, lens tab, and plastic housings.
7 69
Maintenance
APPEARANCE CARE
Exterior care
Finish maintenance
Washing
CAUTION
Exterior general caution
To help protect your vehicle’s finish from
•
Do not use strong soap, chemical
It is very important to follow the label
rust and deterioration, wash it thoroughly
detergents or hot water, and do
directions when using any chemical
and frequently at least once a month with
not wash the vehicle in direct
cleaner or polish. Read all warning and
lukewarm or cold water.
sunlight or when the body of the
caution statements that appear on the
vehicle is warm.
label.
If you use your vehicle for off-road driv-
ing, you should wash it after each off-
•
Be careful when washing the side
road trip. Pay special attention to the
windows of your vehicle.
High-pressure washing
removal of any accumulation of salt, dirt,
Especially, with high-pressure
•
When using high-pressure washers,
mud, and other foreign materials. Make
water, water may leak through the
make sure to maintain sufficient dis-
sure the drain holes in the lower edges of
windows and wet the interior.
tance from the vehicle.
the doors and rocker panels are kept
•
To prevent damage to the plastic
Insufficient clearance or excessive
clear and clean.
parts and lamps, do not clean
pressure can lead to component dam-
Insects, tar, tree sap, bird droppings,
with chemical solvents or strong
age or water penetration.
industrial pollution and similar deposits
detergents.
•
Do not spray the camera, sensors or its
can damage your vehicle’s finish if not
surrounding area directly with a high
removed immediately.
pressure washer. Shock applied from
Even prompt washing with plain water
high pressure water may cause the
WARNING - Wet brakes
may not completely remove all these
device to not operate normally.
After washing the vehicle, test the
deposits.
•
Do not bring the nozzle tip close to
brakes whilst driving slowly to see
A mild soap, safe for use on painted sur-
boots (rubber or plastic covers) or con-
if they have been affected by water.
faces, may be used.
nectors as they may be damaged if
If braking performance is impaired,
After washing, rinse the vehicle thor-
dry the brakes by applying them
they come into contact with high pres-
oughly with lukewarm or cold water. Do
lightly whilst maintaining a slow
sure water.
not allow soap to dry on the finish.
forward speed.
7 70
Maintenance
Waxing
Finish damage repair
Wax the vehicle when water will no
Deep scratches or stone chips in the
longer bead on the paint.
painted surface must be repaired
Always wash and dry the vehicle before
promptly. Exposed metal will quickly rust
waxing. Use a good quality liquid or
and may develop into a major repair
paste wax, and follow the manufacturer’s
expense.
instructions. Wax all metal trim to protect
it and to maintain its luster.
✽ NOTICE
Removing oil, tar, and similar materials
If your vehicle is damaged and requires
with a spot remover will usually strip the
any metal repair or replacement, be sure
wax from the finish. Be sure to re-wax
the body shop applies anti-corrosion
these areas even if the rest of the vehicle
materials to the parts repaired or
OJB037800
does not yet need waxing.
replaced.
CAUTION
CAUTION
•
Water washing in the engine com-
• Wiping dust or dirt off the body
partment including high pressure
with a dry cloth will scratch the
water washing may cause the fail-
finish.
ure of electrical circuits located in
• Do not use steel wool, abrasive
the engine compartment.
cleaners, or strong detergents
•
Never allow water or other liquids
containing highly alkaline or
to come in contact with electri-
caustic agents on chrome-plated
cal/electronic components inside
or anodized aluminium parts. This
the vehicle as this may damage
may result in damage to the pro-
them.
tective coating and cause discol-
oration or paint deterioration.
7 71
Maintenance
Bright-metal maintenance
Underbody maintenance
•
To remove road tar and insects, use a
Corrosive materials used for ice and
WARNING
tar remover, not a scraper or other
snow removal and dust control may col-
After washing the vehicle, test the
sharp object.
lect on the underbody. If these materials
brakes whilst driving slowly to see
•
To protect the surfaces of bright-metal
are not removed, accelerated rusting can
if they have been affected by water.
parts from corrosion, apply a coating of
occur on underbody parts such as the
If braking performance is impaired,
wax or chrome preservative and rub to
fuel lines, frame, floor pan and exhaust
dry the brakes by applying them
a high luster.
system, even though they have been
lightly whilst maintaining a slow
treated with rust protection.
forward speed.
•
During winter weather or in coastal
areas, cover the bright metal parts with
Thoroughly flush the vehicle underbody
a heavier coating of wax or preserva-
and wheel openings with lukewarm or
tive. If necessary, coat the parts with
cold water once a month, after off-road
non-corrosive petroleum jelly or other
driving and at the end of each winter. Pay
protective compound.
special attention to these areas because
it is difficult to see all the mud and dirt. It
will do more harm than good to wet down
the road grime without removing it. The
lower edges of doors, rocker panels, and
frame members have drain holes that
should not be allowed to clog with dirt;
trapped water in these areas can cause
rusting.
7 72
Maintenance
Aluminium wheel maintenance
Corrosion protection
Moisture breeds corrosion
The aluminium wheels are coated with a
Protecting your vehicle from corrosion
Moisture creates the conditions in which
clear protective finish.
By using the most advanced design and
corrosion is most likely to occur. For
•
Do not use any abrasive cleaner, pol-
construction practices to combat corro-
example, corrosion is accelerated by
ishing compound, solvent, or wire
sion, we produces cars of the highest
high humidity, particularly when tempera-
brushes on aluminium wheels. They
quality. However, this is only part of the
tures are just above freezing. In such
may scratch or damage the finish.
job. To achieve the long-term corrosion
conditions, the corrosive material is kept
•
Clean the wheel when it has cooled.
resistance your vehicle can deliver, the
in contact with the car surfaces by mois-
owner's cooperation and assistance is
ture that is slow to evaporate.
•
Use only a mild soap or neutral deter-
also required.
Mud is particularly corrosive because it is
gent, and rinse thoroughly with water.
slow to dry and holds moisture in contact
Also, be sure to clean the wheels after
Common causes of corrosion
with the vehicle. Although the mud
driving on salted roads. This helps pre-
appears to be dry, it can still retain the
vent corrosion.
The most common causes of corrosion
moisture and promote corrosion.
•
Avoid washing the wheels with high-
on your car are:
High temperatures can also accelerate
speed car wash brushes.
• Road salt, dirt and moisture that is
corrosion of parts that are not properly
•
Do not use any alkaline or acid deter-
allowed to accumulate underneath the
ventilated so the moisture can be dis-
gent. It may damage and corrode the
car.
persed. For all these reasons, it is par-
aluminium wheels coated with a clear
• Removal of paint or protective coatings
ticularly important to keep your car clean
protective finish.
by stones, gravel, abrasion or minor
and free of mud or accumulations of
scrapes and dents which leave unpro-
other materials. This applies not only to
tected metal exposed to corrosion.
the visible surfaces but particularly to the
underside of the car.
High-corrosion areas
If you live in an area where your car is
To help prevent corrosion
regularly exposed to corrosive materials,
You can help prevent corrosion from get-
corrosion protection is particularly impor-
ting started by observing the following:
tant. Some of the common causes of
accelerated corrosion are road salts,
dust control chemicals, ocean air and
industrial pollution.
7 73
Maintenance
Keep your car clean
Keep your garage dry
Don't neglect the interior
The best way to prevent corrosion is to
Don't park your car in a damp, poorly
Moisture can collect under the floor mats
keep your car clean and free of corrosive
ventilated garage. This creates a favor-
and carpeting to cause corrosion. Check
materials. Attention to the underside of
able environment for corrosion. This is
under the mats periodically to be sure
the car is particularly important.
particularly true if you wash your car in
the carpeting is dry. Use particular care if
the garage or drive it into the garage
you carry fertilizers, cleaning materials or
when it is still wet or covered with snow,
chemicals in the car.
• If you live in a high-corrosion area —
where road salts are used, near the
ice or mud. Even a heated garage can
These should be carried only in proper
contribute to corrosion unless it is well
containers and any spills or leaks should
ocean, areas with industrial pollution,
ventilated so moisture is dispersed.
be cleaned up, flushed with clean water
acid rain, etc.—, you should take extra
care to prevent corrosion. In winter,
and thoroughly dried.
hose off the underside of your car at
Keep paint and trim in good condition
least once a month and be sure to
Scratches or chips in the finish should be
clean the underside thoroughly when
covered with "touch-up" paint as soon as
winter is over.
possible to reduce the possibility of cor-
• When cleaning underneath the car,
rosion. If bare metal is showing through,
give particular attention to the compo-
the attention of a qualified body and paint
nents under the fenders and other
shop is recommended.
areas that are hidden from view. Do a
thorough job; just dampening the accu-
Bird droppings : Bird droppings are high-
mulated mud rather than washing it
ly corrosive and may damage painted
away will accelerate corrosion rather
surfaces in just a few hours. Always
than prevent it. Water under high pres-
remove bird droppings as soon as possi-
sure and steam are particularly effec-
ble.
tive in removing accumulated mud and
corrosive materials.
• When cleaning lower door panels,
rocker panels and frame members, be
sure that drain holes are kept open so
that moisture can escape and not be
trapped inside to accelerate corrosion.
7 74
Maintenance
Interior care
Cleaning the upholstery and interior
Cleaning the lap/shoulder belt web-
trim
bing
Interior general precautions
Vinyl
Clean the belt webbing with any mild
Prevent chemicals such as perfume, cos-
Remove dust and loose dirt from vinyl
soap solution recommended for cleaning
metic oil, sun cream, hand cleaner, and
with a whisk broom or vacuum cleaner.
upholstery or carpet. Follow the instruc-
air freshener from contacting the interior
Clean vinyl surfaces with a vinyl cleaner.
tions provided with the soap. Do not
parts because they may cause damage
bleach or re-dye the webbing because
or discoloration. If they do contact the
this may weaken it.
interior parts, wipe them off immediately.
Fabric
See the instructions that follow for the
Remove dust and loose dirt from fabric
proper way to clean vinyl.
Cleaning the interior window glass
with a whisk broom or vacuum cleaner.
Clean with a mild soap solution recom-
If the interior glass surfaces of the vehi-
mended for upholstery or carpets.
cle become fogged (that is, covered with
CAUTION
Remove fresh spots immediately with a
an oily, greasy or waxy film), they should
Never allow water or other liquids
fabric spot cleaner. If fresh spots do not
be cleaned with glass cleaner. Follow the
to
come in contact with
receive immediate attention, the fabric
directions on the glass cleaner container.
electrical/electronic components
can be stained and its colour can be
inside the vehicle as this may dam-
affected. Also, its fire-resistant properties
age them.
CAUTION
can be reduced if the material is not
Do not scrape or scratch the inside
properly maintained.
of the rear window. This may result
in damage to the rear window
CAUTION
CAUTION
defroster grid.
When cleaning leather products
Using anything but recommended
(steering wheel, seats etc.), use
cleaners and procedures may affect
neutral detergents or low alcohol
the fabric’s appearance and fire-
content solutions. If you use high
resistant properties.
alcohol content solutions or
acid/alkaline detergents, the colour
of the leather may fade or the sur-
face may get stripped off.
7 75
Maintenance
EMISSION CONTROL SYSTEM
The emission control system of your
Caution for the Inspection and
2. Evaporative emission control
vehicle is covered by a written limited
Maintenance Test
(With Electronic
System
warranty. Please see the warranty infor-
Stability Control (ESC) system)
The Evaporative Emission Control
mation contained in the Service Passport
• To prevent the vehicle from misfir-
System is designed to prevent fuel
in your vehicle.
ing during dynamometer testing,
vapours from escaping into the atmos-
Your vehicle is equipped with an emis-
turn the Electronic Stability Control
phere.
sion control system to meet all emission
(ESC) system off by pressing the
regulations.
ESC switch.
Canister
There are three emission control sys-
• After dynamometer testing is com-
Fuel vapours generated inside the fuel
tems which are as follows.
pleted, turn the ESC system back on
tank are absorbed and stored in the
by pressing the ESC switch again.
onboard canister. When the engine is
(1) Crankcase emission control system
running, the fuel vapours absorbed in the
(2) Evaporative emission control system
1. Crankcase emission control
canister are drawn into the surge tank
(3) Exhaust emission control system
system
through the purge control solenoid valve.
The positive crankcase ventilation sys-
tem is employed to prevent air pollution
Purge Control Solenoid Valve (PCSV)
In order to assure the proper function of
the emission control systems, it is rec-
caused by blow-by gases being emitted
The purge control solenoid valve is con-
ommended that you have your car
from the crankcase. This system supplies
trolled by the Engine Control Module
inspected and maintained by a
fresh filtered air to the crankcase through
(ECM); when the engine coolant temper-
the air intake hose. Inside the crankcase,
ature is low during idling, the PCSV clos-
HYUNDAI authorised repairer in accor-
the fresh air mixes with blow-by gases,
es so that evaporated fuel is not taken
dance with the maintenance schedule.
which then pass through the PCV valve
into the engine. After the engine warms-
into the induction system.
up during ordinary driving, the PCSV
opens to introduce evaporated fuel to the
engine.
7 76
