Features of your vehicle
VOL (+ / -) (1)
RADIO mode
It will function as the PRESET STATION
• Press the up button (+) to increase vol-
ume.
select buttons.
• Press the down button (-) to decease
volume.
CDP mode
It will function as the TRACK UP/DOWN
button.
SEEK (
/
) (2)
If the SEEK button is pressed for 0.8 sec-
ond or more, it will work as follows in
CDC mode
each mode.
It will function as the TRACK UP/DOWN
button.
OLM049194
RADIO mode
It will function as the AUTO SEEK select
Detailed information for audio control
Audio remote control
button.
buttons is described in the following
(if equipped)
pages in this section.
The steering wheel audio remote control
button is installed to promote safe driv-
CDP mode
MODE (3)
ing.
It will function as the FF/REW button.
Press the button to select Radio or CD
(compact disc).
CDC mode
CAUTION
It will function as the DISC UP/DOWN
Do not operate audio remote con-
button.
MUTE (4)
trol buttons simultaneously.
• Press the MUTE button to cancel the
sound.
If the SEEK button is pressed for less
than 0.8 second, it will work as follows in
• Press the MUTE button again to acti-
each mode.
vate the sound.
4 146
Features of your vehicle
FM reception
AM reception
FM radio station
JBM001
JBM002
JBM003

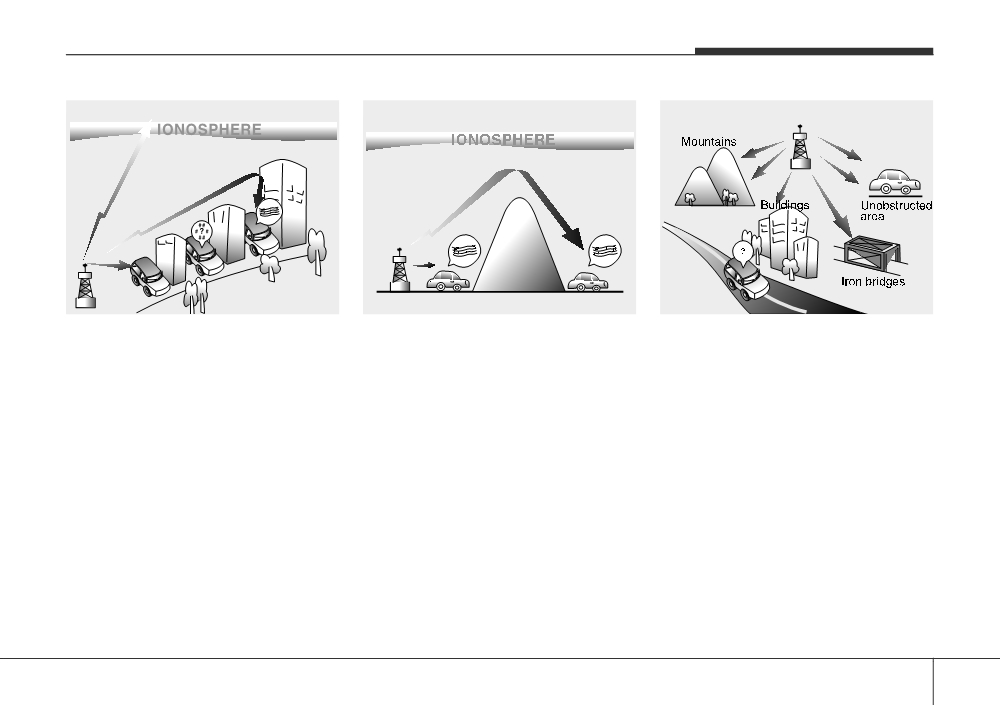

How vehicle audio works
AM broadcasts can be received at
FM broadcasts are transmitted at high
greater distances than FM broadcasts.
frequencies and do not bend to follow the
AM and FM radio signals are broadcast
This is because AM radio waves are
earth's surface. Because of this, FM
from transmitter towers located around
transmitted at low frequencies. These
broadcasts generally begin to fade at
your city. They are intercepted by the
long, low frequency radio waves can fol-
short distances from the station. Also,
radio antenna on your vehicle. This signal
low the curvature of the earth rather than
FM signals are easily affected by build-
is then received by the radio and sent to
travelling straight out into the atmos-
ings, mountains, or other obstructions.
your vehicle speakers.
phere. In addition, they curve around
These can result in certain listening con-
When a strong radio signal has reached
obstructions so that they can provide bet-
ditions which might lead you to believe a
your vehicle, the precise engineering of
ter signal coverage.
problem exists with your radio. The fol-
your audio system ensures the best pos-
lowing conditions are normal and do not
sible quality reproduction. However, in
indicate radio trouble:
some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors, such as the
distance from the radio station, close-
ness of other strong radio stations or the
presence of buildings, bridges or other
large obstructions in the area.
4 147
Features of your vehicle
Using a mobile phone or a two-way
radio
When a mobile phone is used inside the
vehicle, noise may be produced from the
audio system. This does not mean that
something is wrong with the audio equip-
ment. In such a case, use the mobile
phone at a place as far as possible from
the audio equipment.
CAUTION
JBM004
JBM005
When using a communication sys-
tem such as a mobile phone or a
•
Fading - As your vehicle moves away
•
Station Swapping - As a FM signal
radio set inside the vehicle, a sepa-
from the radio station, the signal will
weakens, another more powerful sig-
rate external antenna must be fitted.
weaken and sound will begin to fade.
nal near the same frequency may
When a mobile phone or a radio set
When this occurs, we suggest that you
begin to play. This is because your
is used with an internal antenna
select another stronger station.
radio is designed to lock onto the clear-
alone, it may interfere with the vehi-
•
Flutter/Static
- Weak FM signals or
est signal. If this occurs, select another
cle's electrical system and adversely
large obstructions between the trans-
station with a stronger signal.
affect safe operation of the vehicle.
mitter and your radio can disturb the
•
Multi-Path Cancellation - Radio signals
signal causing static or fluttering nois-
being received from several directions
es to occur. Reducing the treble level
can cause distortion or fluttering. This
may lessen this effect until the distur-
can be caused by a direct and reflect-
WARNING
bance clears.
ed signal from the same station, or by
Do not use a mobile phone whilst
signals from two stations with close
driving. Stop at a safe location to
frequencies. If this occurs, select
use a mobile phone.
another station until the condition has
passed.
4 148
Features of your vehicle
Caring for disc
✽ NOTICE - Playing an
✽ NOTICE
•
If the temperature inside the car is too
Incompatible Copy
Order of playing files (folders) :
high, open the car windows to ventilate
Protected Audio CD
1. Song playing order : to sequen-
before using the system.
Some copy protected CDs, which do not
tially.
•
It is illegal to copy and use MP3/WMA
comply with international audio CD
2. Folder playing order :
files without permission. Use CDs that
standards (Red Book), may not play on
❈ If no song file is contained in the fold-
are created only by lawful means.
your car audio. Please note that inabili-
er, that folder is not displayed.
•
Do not apply volatile agents, such as
ties to properly play a copy protected
benzene and thinner, normal cleaners
CD may indicate that the CD is defec-
and magnetic sprays made for ana-
tive, not the CD player.
logue disc onto CDs.
•
To prevent the disc surface from get-
ting damaged, hold CDs by the edges
or the centre hole only.
•
Clean the disc surface with a piece of
soft cloth before playback (wipe it from
the centre to the outside edge).
•
Do not damage the disc surface or
attach pieces of sticky tape or paper.
•
Make certain only CDs are inserted
into the CD player (Do not insert more
than one CD at a time).
•
Keep CDs in their cases after use to
protect them from scratches or dirt.
•
Depending on the type of CD-R/CD-
RW CDs, certain CDs may not operate
normally according to manufacturing
companies or making and recording
methods. In such circumstances, con-
tinued use may cause malfunctions to
your audio system.
4 149
Features of your vehicle
(Continued)
WARNING
(Continued)
•
Please refrain from use if the
•
Do not stare at the screen whilst
•
Driving whilst distracted can
screen is blank or no sound can
driving. Staring at the screen for
result in a loss of vehicle control
be heard as these signs may indi-
that may lead to an accident,
prolonged periods of time could
cate
product
malfunction.
lead to traffic accidents.
severe personal injury, and death.
Continued use in such conditions
The driver’s primary responsibili-
•
Do not disassemble, assemble, or
could lead to accidents(fires,
ty is in the safe and legal opera-
modify the audio system. Such
electric shock) or product mal-
acts could result in accidents,
tion of a vehicle, and use of any
functions.
handheld devices, other equip-
fire, or electric shock.
•
Do not touch the antenna during
ment, or vehicle systems which
•
Using the phone whilst driving
thunder or lightening as such
take the driver’s eyes, attention
may lead to a lack of attention of
acts may lead to lightning
and focus away from the safe
traffic conditions and increase
induced electric shock.
operation of a vehicle or which
the likelihood of accidents. Use
•
Do not stop or park in parking-
are not permissible by law should
the phone feature after parking
restricted areas to operate the
never be used during operation
the vehicle.
product. Such acts could lead to
of the vehicle.
•
Heed caution not to spill water or
traffic accidents.
introduce foreign objects into the
•
Use the system with the vehicle
device. Such acts could lead to
ignition turned on. Prolonged use
smoke, fire, or product malfunc-
with the ignition turned off could
tion.
result in battery discharge.
(Continued)
(Continued)
4 150
Features of your vehicle
(Continued)
(Continued)
CAUTION
•
Turn on the car ignition before
•
Do not place beverages close to
•
Operating the device whilst driv-
using this device. Do not operate
the audio system. Spilling bever-
ing could lead to accidents due to
the audio system for long periods
ages may lead to system mal-
a lack of attention to external sur-
of time with the ignition turned off
function.
roundings. First park the vehicle
as such operations may lead to
•
In case of product malfunction,
before operating the device.
battery discharge.
please contact your place of pur-
•
Adjust the volume to levels that
•
Do not subject the device to
chase or After Service centre.
allow the driver to hear sounds
severe shock or impact. Direct
•
Placing the audio system within
from outside of the vehicle.
pressure onto the front side of
an electromagnetic environment
Driving in a state where external
the monitor may cause damage to
may result in noise interference.
sounds cannot be heard may lead
the LCD or touch screen.
to accidents.
•
Prevent caustic solutions such as
•
When cleaning the device, make
perfume and cosmetic oil from
•
Pay attention to the volume set-
sure to turn off the device and
contacting
the
dashboard
ting when turning the device on.
use a dry and smooth cloth.
because they may cause damage
A sudden output of extreme vol-
Never use tough materials, chem-
or discoloration.
ume upon turning the device on
ical cloths, or solvents (alcohol,
could lead to hearing impairment.
benzene, thinners, etc.) as such
(Adjust the volume to a suitable
materials may damage the device
levels before turning off the
panel or cause colour/quality
device.)
deterioration
(Continued)
(Continued)
4 151
Features of your vehicle

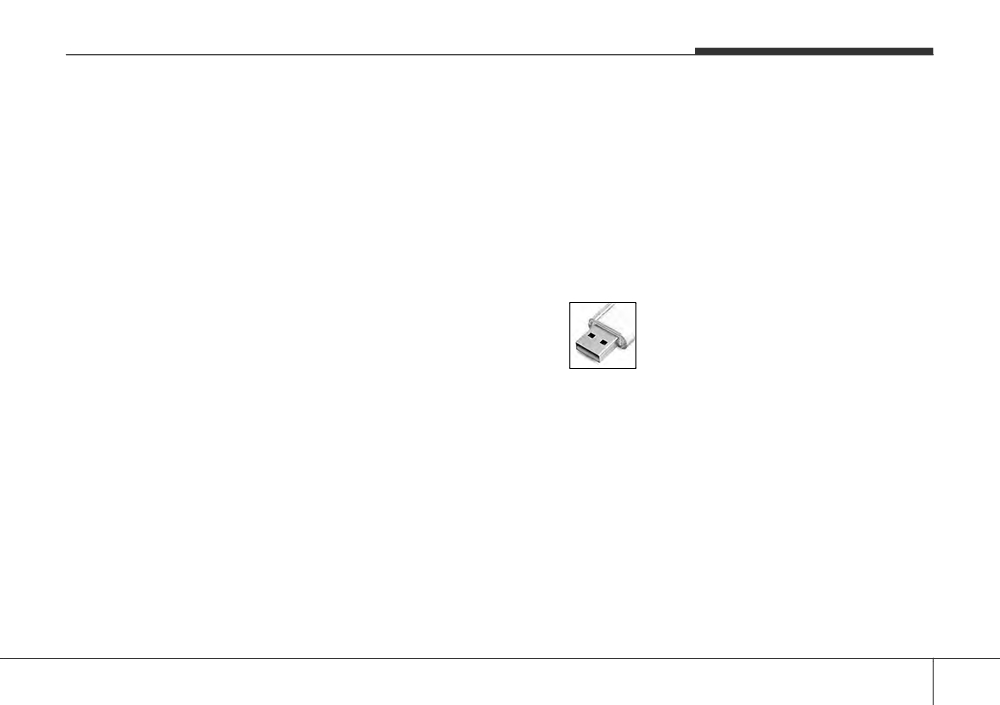

✽ NOTICE - USING THE USB
(Continued)
(Continued)
DEVICE
•
Depending on the condition of the
•
If you disconnect the external USB
external USB device, the connected
device during playback in USB mode,
•
To use an external USB device, make
external USB device can be unrecog-
the external USB device can be dam-
sure the device is not connected when
nizable.
aged or may malfunction. Therefore,
starting up the vehicle. Connect the
•
When the formatted byte/sector set-
disconnect the external USB device
device after starting up.
ting of External USB device is not
when the audio is turned off or in
•
If you start the engine when the USB
either 512BYTE or 2048BYTE, then
another mode. (e.g, Radio, CD)
device is connected, it may damage
the device will not be recognized.
•
Depending on the type and capacity of
the USB device. (USB flashdrives are
•
Use only a USB device formatted to
the external USB device or the type of
very sensitive to electric shock.)
FAT 12/16/32.
the files stored in the device, there is a
•
If the engine is started up or turned
•
USB devices without USB I/F authen-
difference in the time taken for recog-
off whilst the external USB device is
tication may not be recognizable.
nition of the device.
connected, the external USB device
•
Make sure the USB connection termi-
•
Do not use the USB device for purpos-
may not work.
nal does not come in contact with the
es other than playing music files.
•
The System may not play inauthentic
human body or other objects.
•
Playing videos through the USB is not
MP3 or WMA files.
•
If you repeatedly connect or discon-
supported.
1) It can only play MP3 files with the
nect the USB device in a short period
•
Use of USB accessories such as
compression rate between 8Kbps ~
of time, it may break the device.
rechargers or heaters using USB I/F
320Kbps.
•
You may hear a strange noise when
may lower performance or cause trou-
2) It can only play WMA music files
connecting or disconnecting a USB
ble.
with the compression rate between
device.
(Continued)
8Kbps ~ 320Kbps.
(Continued)
•
Take precautions for static electricity
when connecting or disconnecting the
external USB device.
•
An encrypted MP3 PLAYER is not
recognizable.
(Continued)
4 152
Features of your vehicle
(Continued)
(Continued)
•
If you use devices such as a USB hub
•
Some USB flash memory readers
purchased separately, the vehicle’s
(such as CF, SD, micro SD, etc.) or
audio system may not recognize the
external-HDD type devices can be
USB device. In that case, connect the
unrecognizable.
USB device directly to the multimedia
•
Music files protected by DRM (DIGI-
terminal of the vehicle.
TAL RIGHTS MANAGEMENT) are
•
If the USB device is divided by logical
not recognizable.
drives, only the music files on the
•
The data in the USB memory may be
highest-priority drive are recognized
lost whilst using this audio. Always
by car audio.
back up important data on a personal
•
Devices such as MP3 Player/ Mobile
storage device.
phone/Digital camera can be unrecog-
•
Please avoid using USB
nizable by standard USB I/F can be
memory products which
unrecognizable.
can be used as key chains
•
Charging through the USB may not
or mobile phone acces-
be supported in some mobile devices.
sories as they could cause
•
USB HDD or USB types liable to con-
damage to the USB jack. Please make
nection failures due to vehicle vibra-
certain only to use plug type connec-
tions are not supported. (i-stick type)
tor products.
•
Some non-standard USB devices
(METAL COVER TYPE USB) can be
unrecognizable.
(Continued)
4 153
Features of your vehicle
✽ NOTICE - USING THE iPod®
(Continued)
(Continued)
DEVICE
•
Some iPod® devices, such as the
•
When connecting iPod® with the
iPhone®, can be connected through
iPod® Power Cable, insert the connec-
•
Some iPod® models may not sup-
tor to the multimedia socket complete-
port communication protocol and
the Bluetooth® Wireless Technology
ly. If not inserted completely, communi-
files may not properly play.
interface. The device must have
cations between iPod® and audio may
Supported iPod® models:
audio
Bluetooth®
Wireless
be interrupted.
- iPod® Mini
Technology capability (such as for
•
When adjusting the sound effects of
- iPod® 4th (Photo) ~ 6th (Classic)
stereo headphone Bluetooth®
the iPod® and the audio system, the
generation
Wireless Technology ). The device
sound effects of both devices will over-
- iPod® Nano 1st~4th generation
can play, but it will not be con-
lap and might reduce or distort the
- iPod® Touch 1st~2nd generation
trolled by the audio system.
quality of the sound.
•
The order of search or playback of
•
To use iPod® features within the
•
Deactivate
(turn off) the equalizer
songs in the iPod® can be different
audio, use the cable provided upon
function of an iPod® when adjusting
from the order searched in the
purchasing an iPod®d device.
the audio system’s volume, and turn
•
Skipping or improper operation may
off the equalizer of the audio system
audio system.
occur depending on the characteris-
when using the equalizer of an iPod®.
•
If the iPod® disabled due to its
tics of your iPod®/iPhone® device.
•
When not using iPod® with car audio,
own malfunction, reset the iPod®.
detach the iPod® cable from iPod®.
(Reset: Refer to iPod® manual)
•
If your iPhone® is connected to both
Otherwise, iPod® may remain in
•
An iPod® may not operate nor-
the Bluetooth® Wireless Technology
accessory mode, and may not work
mally on low battery.
and USB, the sound may not be prop-
properly.
(Continued)
erly played. In your iPhone®, select
the Dock connector or Bluetooth®
Wireless Technology to change the
sound output (source).
(Continued)
4 154
Features of your vehicle

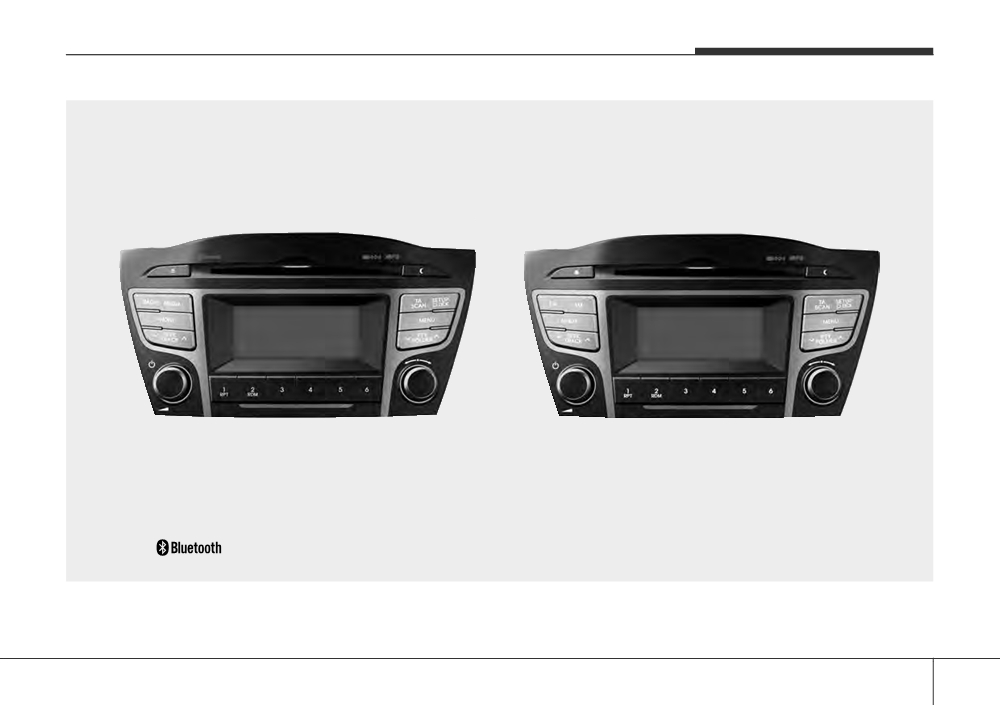

■ CD Player : AC100ELEE, AC110ELEE
❋ No
logo will be shown if the Bluetooth® Wireless Technology feature is not supported.
4 155
Features of your vehicle
SYSTEM CONTROLLERS AND
2.
RADIO
SEEK
5.
TRACK
FUNCTIONS
• Changes to FM/AM mode.
• Radio Mode : Automatically searches
❈ Display and settings may differ
• Each time the key is pressed,the mode
for broadcast frequencies.
depending on the selected audio.
is changed in order of FM1 ➟ FM2 ➟
• CD, USB, iPod®, My Music modes
Audio Head Unit
FMA ➟ AM ➟ AMA.
- Shortly press the key (under 0.8 sec-
onds): Moves to next or previous song
3.
MEDIA
(file)
• Changes to CD, USB(iPod®), AUX, My
- Press and hold the key (over 0.8 sec-
Music, BT Audio mode.
onds): Rewinds or fast-forwards the
current song.
• Each time the key is pressed, the mode
is changed in order of CD, USB(iPod®),
AUX, My Music, BT Audio.
6. PWR/VOL knob
•
Power Knob: Turns power On/Off by
4.
PHONE
(if eqipped)
pressing the knob
• Operates Phone Screen
•
Volume Knob: Sets volume by turn-
❈ When a phone is not connected, the
ing the knob left/right
connection screen is displayed.
1.
(EJECT)
• Ejects the disc.
4 156
Features of your vehicle
SETUP
8.
10.
CLOCK
• Each time the button is shortly pressed
• Shortly press the key (under 0.8 sec-
(under 0.8 seconds), sets screen Off ➟
onds) : Moves to the Display, Sound,
Screen On ➟ Screen Off
Clock, Phone, System setting modes
❈ Audio operation is maintained and
• Press and hold the key (over 0.8 sec-
only the screen will be turned Off. In
onds) : Move to the Time setting screen
the screen Off state, press any key to
turn the screen On again.
11.
MENU
TA
Displays menus for the current mode.
9.
SCAN
❈ iPod® List : Move to parent category
• Radio Mode
7.
1
~
6
(Preset)
- Shortly press the key (under 0.8sec-
PTY
12.
FOLDER
onds): TA On/Off- Press and hold the
• Radio Mode: Saves frequencies (chan-
• FM : RDS Program Type Search
key
(over
0.8seconds): Previews
nels) or receives saved frequencies
• CD MP3, USB mode : Folder Search
each broadcast for 5 seconds each.
(channels)
• Media mode
• CD, USB, iPod®, My Music mode
- Press and hold the key (over 0.8sec-
1
-
RPT
: Repeat
onds): Previews each song (file) for
2
10 seconds each.
-
RDM
: Random
• In the Radio, Media, Setup, and Menu
❈ Press and holding the key again to
pop up screen, the number menu is
continue listening to the current song
selected.
(file).
4 157
Features of your vehicle
13.
TUNE knob
• Radio mode : Changes frequency by
turning the knob left/right
• CD, USB, iPod®, My Music mode:
Searches songs (files) by turning the
knob left/right
❈ When the desired song is displayed,
press the knob to play the song.
• Moves focus in all selection menus and
selects menus
14.
FM
• Changes to FM mode.
• Each time the key is pressed, the mode
changed in order of FM1 ➟ FM2 ➟ FMA.
15.
AM
• Changes to AM mode.
• Each time the key is pressed, the mode
changed in order of AM ➟ AMA.
4 158
Features of your vehicle
SETUP
Mode Pop up
Sound Settings
- AC100ELEE, AC110ELEE
[Mode Pop up] Changes
On
. selec-
SETUP
tion mode
CLOCK
Press the
key Select [Sound]
• During On state, press the
RADIO
or
2
Display Settings
through
TUNE knob or
RDM
key
MEDIA
key to display the mode
Select menu through TUNE knob
change pop up screen.
SETUP
Press the
CLOCK
key Select [Display]
• When the pop up screen is displayed,
1
through
TUNE knob or
RPT
key
use the
TUNE knob or keys
1
~
6
to select the desired mode.
Select menu through
TUNE knob
Scroll text
[Scroll text] Set
On
/
Off
•
On
: Maintains scroll
•
Off
: Scrolls only one (1) time.
Song Info
When playing an MP3 file, select the
desired display info from ‘Folder/File’ or
‘Album/Artist/Song’.
4 159
Features of your vehicle

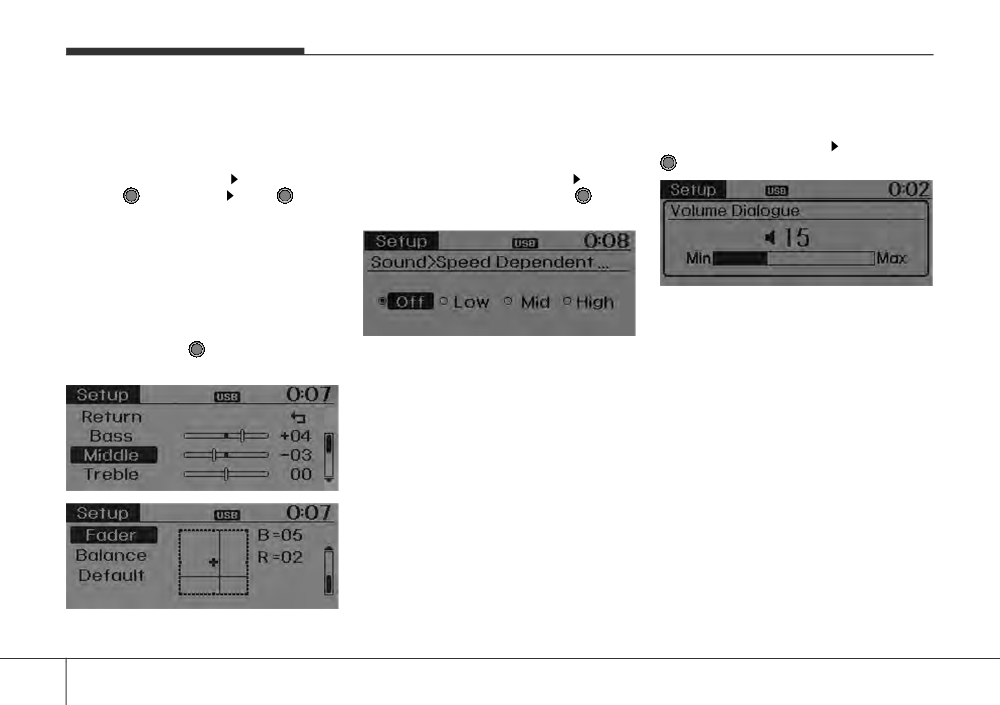

Audio Settings
Speed Dependent Volume Control
Volume Dialogue
This menu allows you to set the ‘Bass,
This feature is used to automatically con-
Adjusts voice recognition volume.
Middle, Treble’ and the Sound Fader and
trol the volume level according to the
Select [Volume Dialogue] Set volume of
Balance.
speed of the vehicle.
TUNE knob
Select
[Audio Settings] Select menu
Select [Speed Dependent Vol.] Set in 4
through
TUNE knob Turn TUNE
levels [Off/Low/Mid/High] of
TUNE
knob left/right to set
knob
• Bass, Middle, Treble
: Selects the
sound tone.
• Fader, Balance
: Moves the sound
fader and balance.
• Default : Restores default settings.
❈ Return : Whilst adjusting values, re-
pressing the
TUNE knob will
restore the parent menu.
4 160
Features of your vehicle

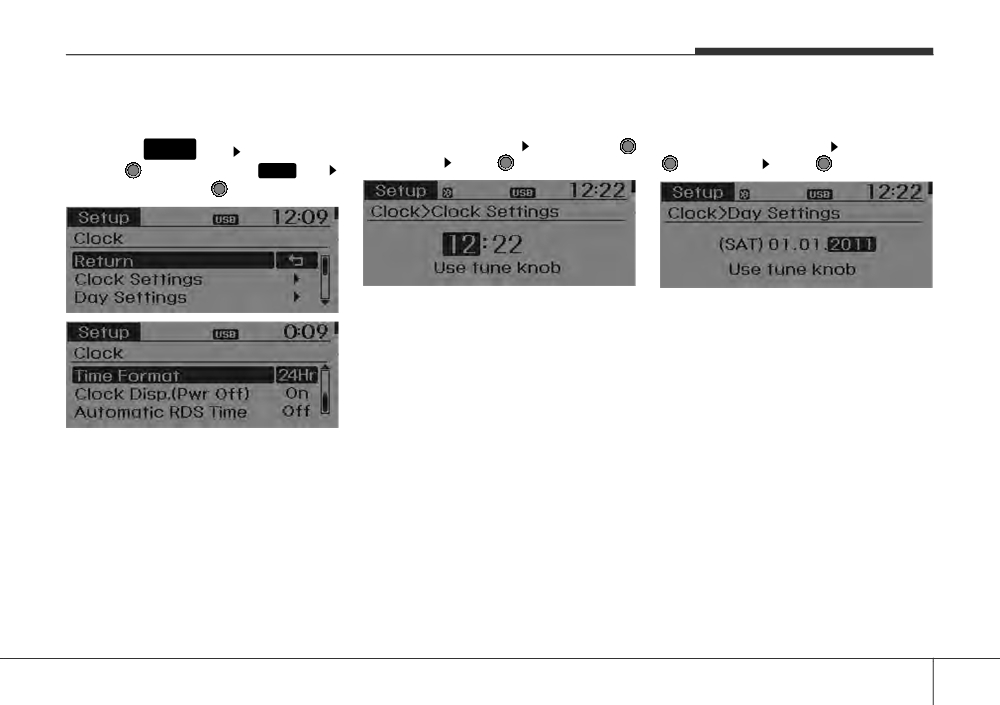

Clock Settings
Clock Settings
Day Settings
This menu is used to set the time.
This menu is used to set the date.
SETUP
Select [Clock Settings] Set through
Select
[Day Settings] Set through
Press the
CLOCK
key Select [Clock]
TUNE knob Press TUNE knob
TUNE knob Press TUNE knob
through
TUNE knob or
3
key
Select menu through TUNE knob
❈ Adjust the number currently in focus to
❈ Adjust the number currently in focus to
set the [hour] and press the tune knob
make the settings and press the tune
to set the [minute].
knob to move to the next setting. (Set
in order of Year/Month/Day)
4 161
Features of your vehicle
Time Format
Automatic RDS Time
This function is used to set the 12/24
This option is used to automatically set
hour time format of the audio system.
the time by synchronizing with RDS.
Select [Time Format] Set 12Hr / 24Hr
Select [Automatic RDS Time] Set
On
through
TUNE knob
/
Off
through
TUNE knob
•
On
: Turn on Automatic Time
Clock Display when Power is OFF
• Off
: Turn off.
Select [Clock Disp.(Pwr Off) Set
On
/
Off
through
TUNE knob
•
On
: Displays time/date on screen
•
Off
: Turn off.
4 162
