Hyundai ix35 (2016 year). Manual - part 8

Features of your vehicle

CAUTION

•

The mirrors stop moving when

they reach the maximum adjust-

ing angles, but the motor contin-

ues to operate whilst the switch is

depressed. Do not depress the

switch longer than necessary, the

motor may be damaged.

•

Do not attempt to adjust the out-

side rearview mirror by hand.

Doing so may damage the parts.

OLM049039R

OLM049042/H

Remote control

Folding the outside rearview mirror

Electric type (if equipped)

Manual type

The electric remote control mirror switch

To fold outside rearview mirror, grasp the

allows you to adjust the position of the

housing of mirror and then fold it toward

left and right outside rearview mirrors. To

the rear of the vehicle.

adjust the position of either mirror, move

the lever (1) to R (Right) or L (Left) to

select the right side mirror or the left side

mirror, then press a corresponding point

on the mirror adjustment control to posi-

tion the selected mirror up, down, left or

right.

After adjustment, put the lever into neu-

tral position to prevent the inadvertent

adjustment.

4 44

Features of your vehicle

CAUTION

In case it is an electric type outside

rearview mirror, don’t fold it by

hand. It could cause motor failure.

OLM049041R

Electric type (if equipped)

To fold the outside rearview mirror,

depress the button.

To unfold it, depress the button again.

CAUTION

The electric type outside rearview

mirror operates even though the

ignition switch is in the OFF posi-

tion. However, to prevent unneces-

sary battery discharge, do not

adjust the mirrors longer than nec-

essary whilst the engine is not run-

ning.

4 45

Features of your vehicle

INSTRUMENT CLUSTER

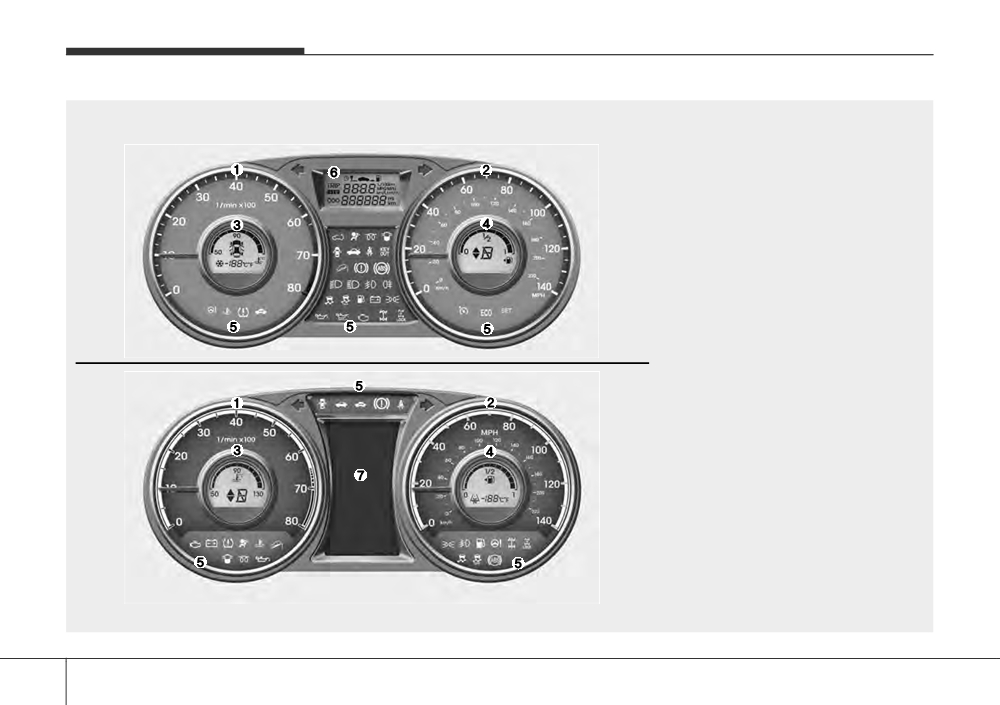

■ Type A

1. Tachometer

2. Speedometer

3. Engine temperature gauge

4. Fuel gauge

5. Warning and indicator lights (if equipped)

■ Type B

6. Odometer/Trip computer (if equipped)

7. LCD display

* The actual cluster in the vehicle may differ

from the illustration.

For more details refer to the "Gauges" in

the next pages.

OEL043308R/OEL044307R

4 46

Features of your vehicle

■ Type A

■ Type B

OLM049052R

OEL043306/OLM043401E

OEL043702/Q

Instrument panel illumination

• The brightness of the instrument panel

LCD Display Control (if equipped)

(if equipped)

illumination is displayed.

The LCD display modes can be changed

When the vehicle’s parking lights or

• If the brightness reaches to the maxi-

by using the control buttons on the crash

headlights are on, press the illumination

mum or minimum level, an alarm will

pad.

control button to adjust the instrument

sound.

(1)

: MODE button for changing

panel illumination intensity.

modes

(2)

: SELECT/RESET button

WARNING

❈ For the LCD modes, refer to “LCD

Never adjust the instrument cluster

Display” in this chapter.

whilst driving. This could result in

loss of control and lead to an acci-

dent that may cause death, serious

injury, or property damage.

4 47

Features of your vehicle

■ Type A (km/h)

■ Type B (km/h)

Gauges

Speedometer

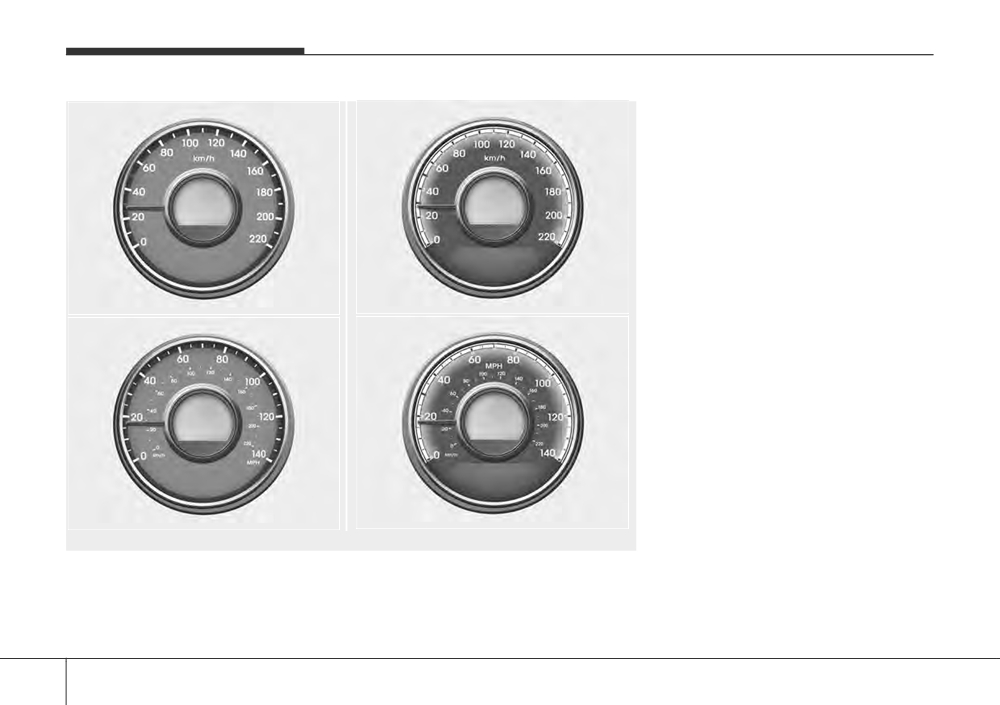

The speedometer indicates the forward

speed of the vehicle.

The speedometer is calibrated in miles

per hour and/or kilometers per hour.

■ Type A (MPH)

■ Type B (MPH)

OEL049309/OEL049310/OEL049307/OEL049308

4 48

Features of your vehicle

■ Type A

■ Type B

The tachometer pointer may move slight-

■ Type A

Petrol

Petrol

ly when the ignition switch is in ACC or

ON position with the engine OFF. This

movement is normal and will not affect

the accuracy of the tachometer once the

engine is running.

CAUTION

Do not operate the engine within

the tachometer's RED ZONE. This

OEL049311

may cause severe engine damage.

■ Type B

Diesel

Diesel

OEL049305/Q/OEL049306/Q

ODMEMM2352

Tachometer

Engine temperature gauge

The tachometer indicates the approxi-

This gauge shows the temperature of the

mate number of engine revolutions per

engine coolant when the ignition switch

minute (rpm).

is ON.

Use the tachometer to select the correct

Do not continue driving with an overheat-

shift points and to prevent lugging and/or

ed engine. If your vehicle overheats, refer

over-revving the engine.

to “If the engine overheats” in section 6.

4 49

Features of your vehicle

■ Type A

On inclines or curves, the fuel gauge

CAUTION

pointer may fluctuate or the low fuel

If the gauge pointer moves beyond

warning light may come on earlier than

the normal range area toward the

usual due to the movement of fuel in the

“

” position, it indicates over-

tank.

heating that may damage the

engine.

WARNING - Fuel gauge

Running out of fuel can expose

vehicle occupants to danger.

WARNING

OEL049312

You must stop and obtain addition-

■ Type B

al fuel as soon as possible after the

Never remove the radiator cap

warning light comes on or when the

when the engine is hot. The engine

gauge indicator comes close to the

coolant is under pressure and

could cause severe burns. Wait

O (Empty) level.

until the engine is cool before

adding coolant to the reservoir.

CAUTION

Avoid driving with a extremely low

fuel level. Running out of fuel could

ODMEMM2351

cause the engine to misfire damag-

ing the catalytic converter.

Fuel gauge

The fuel gauge indicates the approxi-

mate amount of fuel remaining in the fuel

tank. The fuel tank capacity is given in

section 8. The fuel gauge is supplement-

ed by a low fuel warning light, which will

illuminate when the fuel tank is nearly

empty.

4 50

Features of your vehicle

■ Type A

OEL043306

■ Type B

OEL049127L

OEL042127L

Outside Temperature Gauge

Icy Road Warning Light

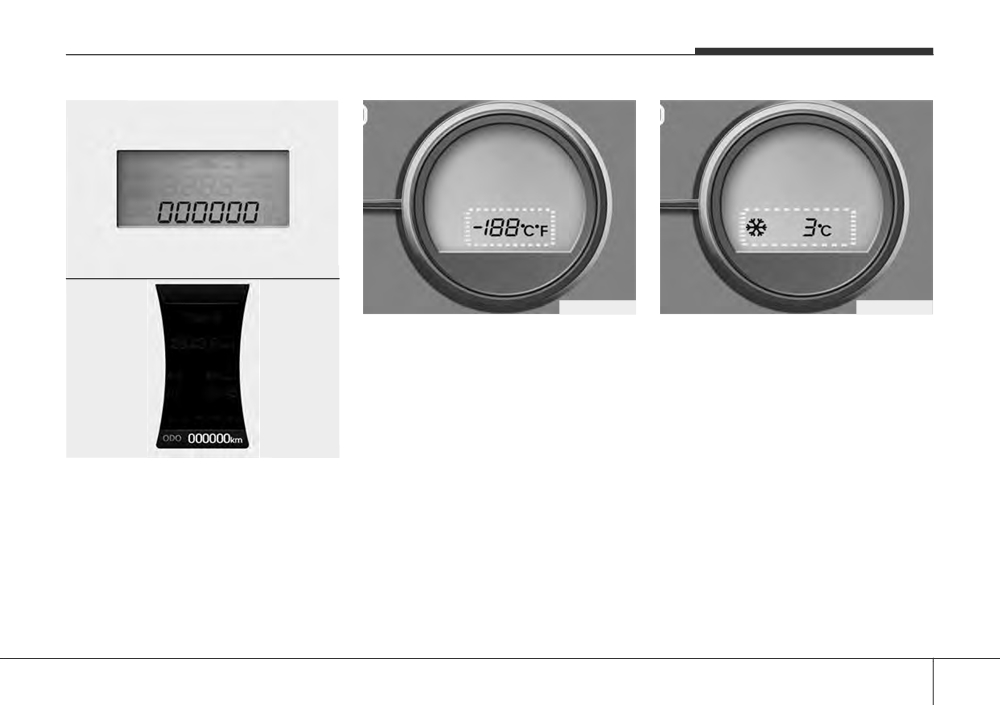

This gauge indicates the current outside

(if equipped)

air temperatures by 1°C (1°F).

This warning light is to warn the driver

- Temperature range

:

-40°C

~ 60°C

the road may be icy.

(-40°F ~ 140°F)

When the following conditions occur, the

The outside temperature on the display

warning light

(including Outside

may not change immediately like a gen-

Temperature Gauge) blinks 10 times and

OLM043060

eral thermometer to prevent the driver

then illuminates, and also warning chime

from being inattentive.

sounds 3 times.

Odometer

The temperature unit (from °C to °F or

- The temperature on the Outside

The odometer Indicates the total dis-

from °F to °C) can be changed by using

Temperature Gauge is below approxi-

tance that the vehicle has been driven

the “User Settings” mode of the LCD dis-

mately 4°C (39.2°F)

and should be used to determine when

play.

- The ignition switch or Engine Start/Stop

periodic maintenance should be per-

formed.

button is ON

- Odometer range : 0 ~ 999999 kilome-

❈ For more details, refer to

“LCD

ters or miles.

Display” in this chapter.

4 51

Features of your vehicle

✽ NOTICE

If the icy road warning light appears

whilst driving, you should drive more

attentively and safely refraining from

over-speeding, rapid acceleration, sud-

den braking or sharp turning, etc.

OVF041049

OEL043701

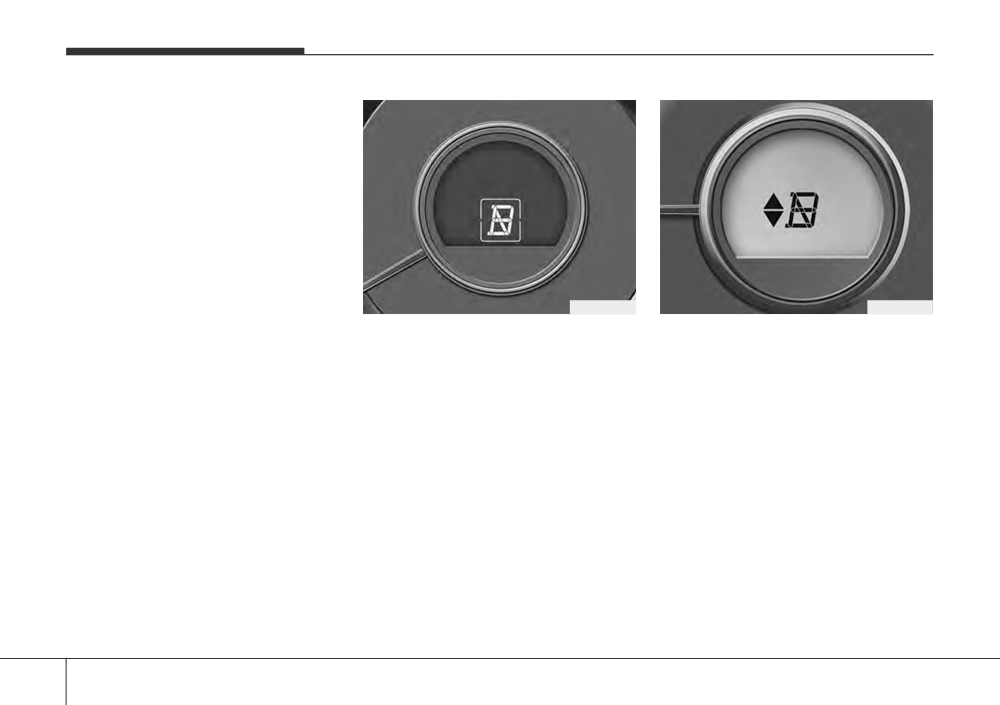

Transaxle Shift Indicator

Automatic Transaxle Shift Indicator

Automatic Transaxle Shift Indicator

(if equipped, For Europe)

(if equipped)

In the Sports Mode, this indicator informs

This indicator displays which automatic

which gear is desired whilst driving to

transaxle shift lever is selected.

save fuel.

• Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6

• Park : P

• Shifting down :

▼1, ▼2, ▼3, ▼4, ▼5

• Reverse : R

• Neutral : N

• Drive : D

• Sports Mode : 1, 2, 3, 4, 5, 6

4 52

Features of your vehicle

For example

For example

: Indicates that shifting up to the 3rd

: Indicates that shifting up to the 3rd

gear is desired (currently the shift

gear is desired (currently the shift

lever is in the 2nd or 1st gear).

lever is in the 2nd or 1st gear).

: Indicates that shifting down to the

: Indicates that shifting down to the

3rd gear is desired

(currently the

3rd gear is desired

(currently the

shift lever is in the 4th, 5th, or 6th

shift lever is in the 4th, 5th, or 6th

gear).

gear).

When the system is not working properly,

When the system is not working properly,

the indicator is not displayed.

the indicator is not displayed.

OEL043701

Manual Transaxle Shift Indicator

(if equipped)

This indicator informs which gear is

desired whilst driving to save fuel.

• Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6

• Shifting down :

▼1, ▼2, ▼3, ▼4, ▼5

4 53

Features of your vehicle

LCD DISPLAY

LCD Modes (if equipped)

Symbol

Modes

Explanation

Type B

This mode displays driving information like the tripmeter, fuel economy, and so on.

Trip Computer

For more details, refer to “Trip Computer” in this chapter.

This mode informs of service interval (mileage or days) and warning messages relat-

Information

ed to TPMS or washer fluid.

User Settings

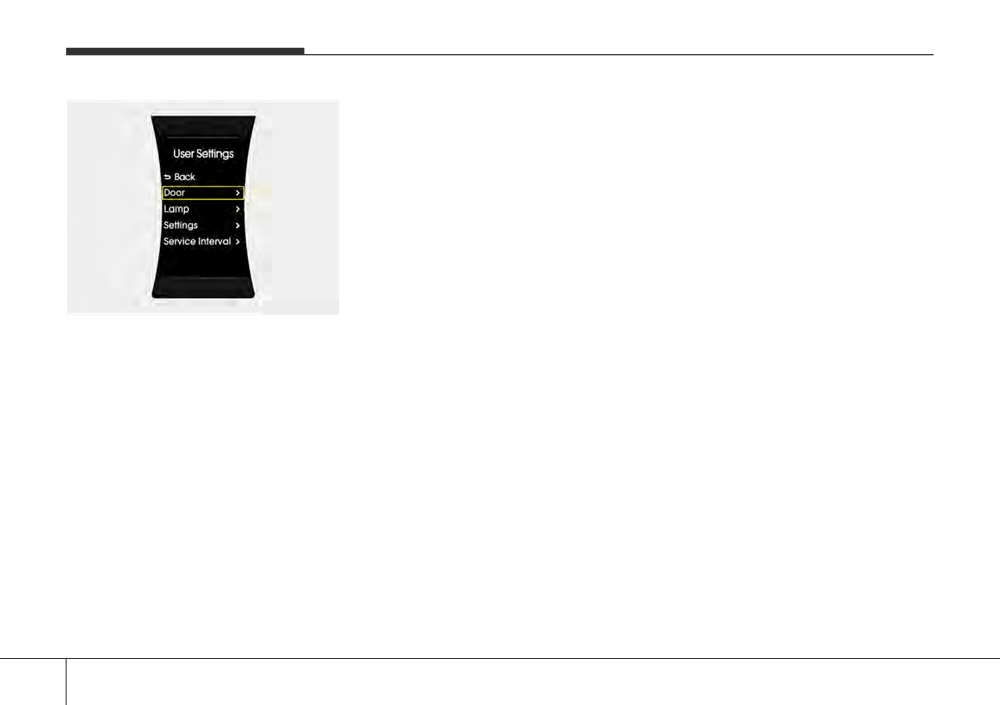

On this mode, you can change settings of the doors, lamps, and so on.

❈ For controlling the LCD modes, refer to "LCD Display Control" in this chapter.

4 54

Features of your vehicle

✽ NOTICE

If any of the following conditions occurs,

the mileage and days may be incorrect.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

OLMB043453R

OLM043405E

Information Mode

Service required

Service Interval

If you do not have your vehicle serviced

according to the already inputted service

Service in

interval,

“Service required” message is

It calculates and displays when you need

displayed for several seconds each time

a scheduled maintenance service

you set the ignition switch or Engine

(mileage or days).

Start/Stop Button to the ON position. (The

If the remaining mileage or time reaches

mileage and time changes to "---")

1,500 km (900 mi.) or 30 days, "Service

in" message is displayed for several sec-

To reset the service interval to the mileage

onds each time you set the ignition

and days you inputted before:

switch or Engine Start/Stop Button to the

ON position.

- Activate the reset mode by pressing the

[

] button for more than 5 seconds,

then press the [

] button again for more

than 1 second. (Europe)

- Press the [

] button for more than 1

second (Except Europe).

4 55

Features of your vehicle

Door

Auto Door Unlock (if equipped)

Auto Door Lock (if equipped)

•

Off:

• Off:

The auto door unlock operation will be

The auto door lock operation will be

cancelled.

deactivated.

•

Key Out or Power Off:

• Speed:

All doors will be automatically unlocked

All doors will be automatically locked

when the ignition key is removed from

when the vehicle speed exceeds

ignition switch or Engine Star/Stop

15km/h (9.3mph).

Button is set to the OFF position.

• Shift Lever:

•

Driver Door Unlock:

All doors will be automatically locked if

All doors will be automatically unlocked

the automatic transaxle shift lever is

if the driver's door is unlocked.

OEL044406E

shifted from the P (Park) position to the

•

Shift Lever:

User Settings Mode

R (Reverse), N (Neutral), or D (Drive)

All doors will be automatically unlocked

Description

position.

if the automatic transaxle shift lever is

On this mode, you can change setting of

shifted to the P (Park) position.

the doors, lamps, and so on.

4 56

Features of your vehicle

OLM043407E

OLM043413E

OLM043410E

Service Interval (Except Europe)

Warning Messages (if equipped)

Low Key Battery

On this mode, you can activate the serv-

(for smart key system)

Shift to "P" position (for smart key

ice interval function with mileage (km or

system and automatic transaxle)

• This warning message illuminates if

mi.) and period (months).

the battery of the smart key is dis-

• This warning message illuminates if

charged when the Engine Start/Stop

you try to turn off the engine without

Button changes to the OFF position.

✽ NOTICE

the shift lever in P (Park) position.

If it is not available to set service inter-

• At this time, the Engine Start/Stop

val on your vehicle, we recommend that

Button turns to the ACC position (If you

you consult a HYUNDAI authorised

press the Engine Start/Stop Button

repairer.

once more, it will turn to the ON posi-

tion).

4 58

Features of your vehicle

OLM043500N

OLM043502N

OLM043503N

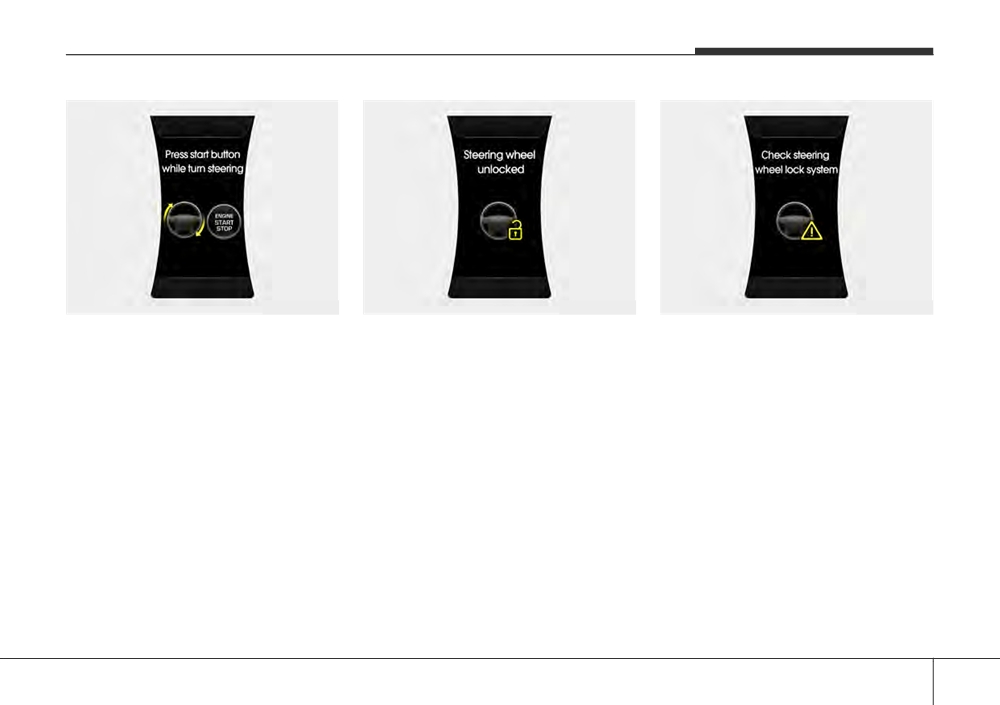

Press start button whilst turn steer-

Steering wheel unlocked

Check steering wheel lock

ing (for smart key system)

(for smart key system)

system (for smart key system)

• This warning message illuminates if

• This warning message illuminates if

• This warning message illuminates if

the steering wheel does not unlock

the steering wheel does not lock when

the steering wheel does not lock nor-

normally when the Engine Start/Stop

the Engine Start/Stop Button changes

mally when the Engine Start/Stop

Button is pressed.

to the OFF position.

Button changes to the OFF position.

• It means that you should press the

Engine Start/Stop Button whilst turning

the steering wheel right and left.

4 59

Features of your vehicle

OLM043415E

OLM043416E

OLM043408E

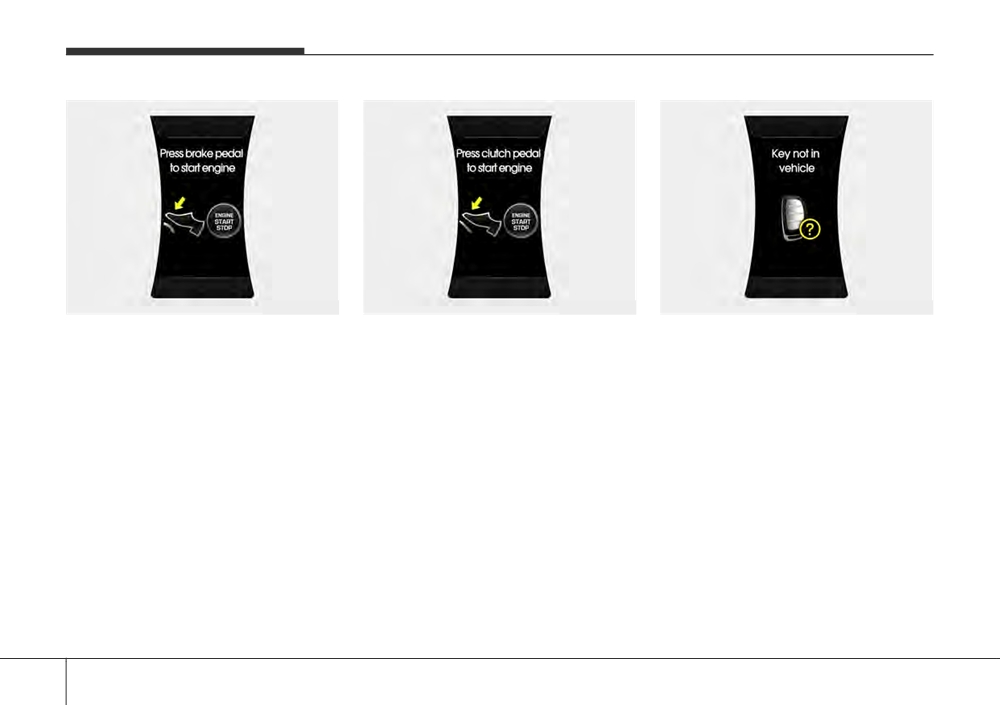

Press brake pedal to start engine

Press clutch pedal to start engine

Key not in vehicle

(for smart key system and automatic

(for smart key system and manual

(for smart key system)

transaxle)

transaxle)

• This warning message illuminates if

• This warning message illuminates if the

• This warning message illuminates if the

the smart key is not in the vehicle when

Engine Start/Stop Button changes to

Engine Start/Stop Button changes to

you press the Engine Start/Stop

the ACC position twice by pressing the

the ACC position twice by pressing the

Button.

button repeatedly without depressing

button repeatedly without depressing

• It means that you always have the

the brake pedal.

the clutch pedal.

smart key with you.

• It means that you should depress the

• It means that you should depress the

brake pedal to start the engine.

clutch pedal to start the engine.

4 60

Content   ..  6  7  8  9   ..
