What to do in an emergency

Connectors, cable and connection

Using the Tire Mobility Kit

hose are stored in the compressor

housing.

CAUTION

Strictly follow the specified sequence,

otherwise the sealant may escape

under high pressure.

WARNING

Do not use the tire sealant after

OIGH067042

the sealant has expired

(i.e.

pasted the expiration date on

2. Connect the filling hose (3) to the

the sealant container). This can

sealant bottle (2) in the direction of

OAE066014

increase the risk of tire failure.

(A) and connect the sealant bottle

Detach the speed restriction

to the compressor (5) in the direc-

label (1) from the sealant bottle

tion of (B).

(2), and place it in a highly visi-

WARNING

3. Ensure that the compressor is

ble place inside the vehicle

switched OFF.

such as on the steering wheel

• Keep out of reach of children.

to remind the driver not to drive

• Avoid contact with eyes.

too fast.

• Do not swallow.

1. Shake the sealant bottle (2).

6-36

CAUTION

Securely install the sealant fill-

ing hose to the valve. If not,

sealant may flow backward,

possibly clogging the filling

hose.

OAE067040

OAEPH067016

4. Unscrew the valve cap from the

5. Plug the compressor power cord

valve of the defective wheel and

(4) into the vehicle power outlet.

screw the filling hose (3) of the

6. With the vehicle ON (

indica-

sealant bottle onto the valve.

tor ON), switch on the compressor

and let it run for approximately

6

OAE066027

5~7 minutes to fill the sealant up

to proper pressure. (refer to the

Tire and Wheels, chapter 8). The

inflation pressure of the tire after

filling is unimportant and will be

checked/corrected later.

Be careful not to overinflate the

tire and stay away from the tire

when filling it.

6-37

What to do in an emergency

Checking the tire inflation pres-

CAUTION

sure

1. After driving approximately

4~6

Do not attempt to drive your

miles

(7~10 km or about

vehicle if the tire pressure is

10 minutes), stop at a safe loca-

below 29 psi

(200 kpa). This

tion.

could result in an accident due

to sudden tire failure.

7. Switch off the compressor.

8. Detach the hoses from the sealant

OLMF064106

bottle connector and from the tire

valve.

Distributing the sealant

Return the Tire Mobility Kit to its stor-

9. Immediately drive approximately

age location in the vehicle.

4~6 miles (7~10 km or about 10

minutes) to evenly distribute the

sealant in the tire.

WARNING

Do not exceed a speed of 50 mph

OAEPH067042

Do not the filling leave your

(80 km/h). If possible, do not fall

2. Connect the filling hose (3) direct-

below a speed of 12 mph (20 km/h).

vehicle running in a poorly ven-

ly into the compressor.

tilated area for extended peri-

While driving, if you experience any

ods of time. Carbon monoxide

unusual vibration, ride disturbance or

poisoning and suffocation can

noise, reduce your speed and drive

occur.

with caution until you can safely pull

off of the side of the road.

6-38

5. Adjust the tire inflation pressure to

CAUTION

the recommended tire inflation.

With the ignition switched on, pro-

When you use the Tire Mobility Kit

ceed as follows.

including sealant not approved by

- To increase the inflation pres-

HYUNDAI, the tire pressure sen-

sure:

sors may be damaged by sealant.

Switch on the compressor. To

The sealant on the tire pressure

check the current inflation pres-

sensor and wheel should be

sure setting, briefly switch off the

removed when you replace the

compressor.

tire with a new one and inspect

- To reduce the inflation pres-

the tire pressure sensors at an

OAE067040

sure:

authorized dealer.

3. Connect the other end of the filling

Press the button (9) on the com-

hose (3) directly into the tire valve.

pressor.

4. Plug the compressor power cord

WARNING

(4) into the vehicle power outlet.

i

Information

The tire inflation pressure must

6

The pressure gauge may show higher

be at least 32 psi (220 kPa). If it

than actual reading when the com-

is not, do not continue driving.

pressor is running. To get an accurate

Call for road side service or

tire pressure, the compressor needs to

towing.

be turned off.

i

Information

When reinstalling the repaired or

replaced tire and wheel on the vehicle,

tighten the wheel lug nut to 79~94

lbf·ft (11~13 kgf·m).

6-39

What to do in an emergency

TOWING

Towing Service

It is acceptable to tow the vehicle

CAUTION

with the rear wheels on the ground

A

(without dollies) and the front wheels

•

Do not tow the vehicle with

off the ground.

the front wheels on the

If any of the loaded wheels or sus-

ground as this may cause

pension components are damaged

damage to the vehicle.

or the vehicle is being towed with the

front wheels on the ground, use a

B

towing dolly under the front wheels.

When being towed by a commercial

tow truck and wheel dollies are not

Dolly

used, the front of the vehicle should

C

always be lifted, not the rear.

OAEE066016

•

Do not tow with sling-type

equipment. Use wheel lift or

Dolly

flatbed equipment.

OAE066018

If emergency towing is necessary,

we recommend having it done by an

authorized HYUNDAI dealer or a

commercial tow-truck service.

Proper lifting and towing procedures

are necessary to prevent damage to

OAE066019

the vehicle. The use of wheel dollies

or flatbed is recommended.

6-40

When towing your vehicle in an

Removable Towing Hook

■ Front

emergency without wheel dollies :

1. Place the Engine Start/Stop but-

ton in the ACC position.

2. Place the shift lever in N (Neutral).

3. Release the parking brake.

CAUTION

OAE066022N

Failure to place the transmis-

■ Rear

sion shift lever in N (Neutral)

may cause internal damage to

OAE066021N

the transmission.

1. Open the liftgate, and take the

towing hooks out from the tool

case.

6

OAE066028N

2. Remove the hole cover by press-

ing the lower part of the cover on

the front or rear bumper.

3. Install the towing hook by turning it

clockwise into the hole until it is

fully secured.

4. Remove the towing hook and

install the cover after use.

6-41

What to do in an emergency

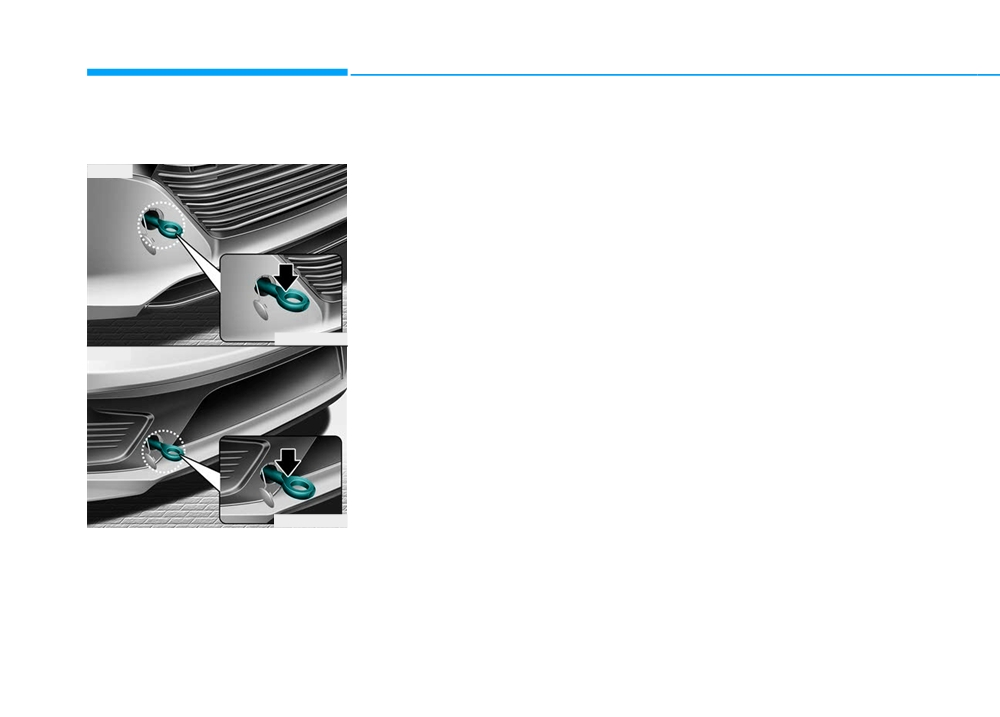

Emergency Towing

If a towing service is not available in

Always follow these emergency tow-

(if equipped)

an emergency, your vehicle may be

ing precautions:

temporarily towed using a cable or

•

Place the Engine Start/Stop button

■ Front

chain secured to the emergency tow-

in the ACC position so the steering

ing hook at the rear of the vehicle.

wheel is not locked.

Use extreme caution when towing

•

Place the shift lever in N (Neutral).

the vehicle with a cable or chain. A

•

Release the parking brake.

driver must be in the vehicle to steer

it and operate the brakes.

•

Depress the brake pedal with more

force than normal since you will

Towing should be done only on a

have reduced braking perform-

solid ground for a short distance and

ance.

at a low speed.

•

More steering effort will be required

OAE066024N

Also, the wheels, axles, power train,

■ Rear

because the power steering system

steering and brakes must all be in

will be disabled.

good condition.

•

Use a vehicle heavier than your

own to tow your vehicle.

•

The drivers of both vehicles should

communicate with each other fre-

quently.

•

Before emergency towing, check

that the hook is not broken or dam-

aged.

OAE066023N

•

Fasten the towing cable or chain

If towing is necessary, we recom-

securely to the hook.

mend you to have it done by an

authorized HYUNDAI dealer or a

•

Do not jerk the hook. Apply steady

commercial tow truck service.

and even force.

6-42

CAUTION

To avoid damage to your vehicle

and vehicle components when

towing:

•

Always pull straight ahead

when using the towing hooks.

Do not pull from the side or at

a vertical angle.

•

Do not use the towing hooks

OAE066025

to pull a vehicle out of mud,

sand or other conditions from

•

Use a towing cable or chain less

which the vehicle cannot be

than 16 feet (5 m) long. Attach a

driven out under its own

white or red cloth (about 12 inches

power.

(30 cm) wide) in the middle of the

cable or chain for easy visibility.

•

Limit the vehicle speed to 10

mph (15 km/h) and drive less

6

•

Drive carefully so the towing cable

than 1 mile (1.5 km) when tow-

or chain remains tight during tow-

ing to avoid serious damage

ing.

to the dual clutch transmis-

•

Before towing, check the dual

sion.

clutch transmission for fluid leaks

under your vehicle. If the dual

clutch transmission fluid is leaking,

flatbed equipment or a towing dolly

must be used.

6-43

What to do in an emergency

IF AN ACCIDENT OCCURS

WARNING

(Continued)

WARNING

• When the vehicle is severely

•

For your safety, do not touch

damaged, remain a safe dis-

When a submersion in water

high voltage cables, connec-

tance of 50 feet (15 meter) or

occurs:

tors and package modules.

more between your vehicle

When your vehicle is flooded in

High voltage components are

and other vehicles/flamma-

water, a high-voltage battery

orange in color.

bles.

may cause shock or may catch

•

Exposed cables or wires may

on fire. Thus, turn the hybrid

be visible inside or outside of

system OFF, take the key in

the vehicle. Never touch the

WARNING

your possession and move to a

wires or cables, because an

safe place. Never attempt phys-

electrical shock, an injury, or a

If a fire occurs :

ical contact with your flooded

death may occur.

vehicle. Immediately contact an

Upon witnessing any sparks,

•

Any gas or electrolyte leakage

authorized HYUNDAI dealer and

gases, flames, or fuel leakage of

from your vehicle is not only

advise them that a hybrid vehi-

your vehicle, immediately call

poisonous but also flammable.

cle is involved.

911 or contact an authorized

Upon witnessing one of those,

HYNDAI dealer. Also, advise

open the windows, and remain

them that a hybrid vehicle is

a safe distance from the vehi-

involved.

cle out of the road. Immediately

contact an authorized Hyundai

dealer and advise them that a

hybrid vehicle is involved.

•

If you need towing, refer to

"Towing" in the previous pages.

(Continued)

6-44

ENGINE COMPARTMENT

■ Hybrid vehicle

1. Engine oil filler cap

2. Engine oil dipstick

3. Engine coolant cap

4. Engine coolant reservoir

5. Inverter coolant reservoir

6. Brake fluid reservoir

7. Air cleaner

8. Windshield washer fluid reservoir

9. Fuse box

7

The actual engine compartment in the vehicle may differ from the illustration.

OAE076001

7-3

Maintenance

■ Plug-in hybrid vehicle

1. Engine oil filler cap

2. Engine oil dipstick

3. Engine coolant cap

4. Engine coolant reservoir

5. Inverter coolant reservoir

6. Brake fluid reservoir

7. Air cleaner

8. Windshield washer fluid reservoir

9. Fuse box

The actual engine compartment in the vehicle may differ from the illustration.

OAEPH076001

7-4

MAINTENANCE SERVICES

You should exercise the utmost care

Detailed warranty information is pro-

Certain modifications may also be in

to prevent damage to your vehicle

vided in your Owner's Handbook &

violation of regulations established by

and injury to yourself whenever per-

Warranty Information booklet.

the U.S. Department of Transportation

forming any maintenance or inspec-

and other federal or state agencies.

Repairs and adjustments required as

tion procedures.

a result of improper maintenance or

We recommend you have your vehi-

a lack of required maintenance are

NOTICE

cle maintained and repaired by an

not covered.

Improper owner maintenance dur-

authorized HYUNDAI dealer. An

authorized HYUNDAI dealer meets

ing the warranty period may affect

Owner Maintenance

warranty coverage. For details, read

HYUNDAI's high service quality

Precautions

the separate Owner's Handbook &

standards and receives technical

Warranty Information booklet pro-

support from HYUNDAI in order to

Inadequate, incomplete or insuffi-

provide you with a high level of serv-

cient servicing may result in opera-

vided with the vehicle. If you're

unsure about any service or main-

ice satisfaction.

tional problems with your vehicle that

tenance procedure, have it done

could lead to vehicle damage, an

by an authorized HYUNDAI dealer.

accident, or personal injury. This

Owner's Responsibility

chapter provides instructions only for

Maintenance service and record

the maintenance items that are easy

retention are the owner's responsibil-

to perform. Several procedures can

ity.

be done only by an authorized

You should retain documents that

HYUNDAI dealer with special tools.

7

show proper maintenance has been

Your vehicle should not be modified

performed on your vehicle in accor-

in any way. Such modifications may

dance with the scheduled mainte-

adversely affect the performance,

nance service charts shown on the

safety or durability of your vehicle

following pages. You need this infor-

and may, in addition, violate condi-

mation to establish your compliance

tions of the limited warranties cover-

with the servicing and maintenance

ing the vehicle.

requirements of your vehicle war-

ranties.

7-5

Maintenance

OWNER MAINTENANCE

The following lists are vehicle checks

WARNING

(Continued)

and inspections that should be per-

•

Block the tires

(front and

formed by the owner or an author-

Performing maintenance work

back) to prevent the vehicle

ized HYUNDAI dealer at the frequen-

on a vehicle can be dangerous.

from moving.

cies indicated to help ensure safe,

If you lack sufficient knowledge

Remove loose clothing or jew-

dependable operation of your vehi-

and experience or the proper

elry that can become entan-

cle.

tools and equipment to do the

gled in moving parts.

Any adverse conditions should be

work, have it done by an author-

•

If you must run the engine

brought to the attention of your deal-

ized HYUNDAI dealer.

during maintenance, do so

er as soon as possible.

ALWAYS follow these precau-

out doors or in an area with

These Owner Maintenance vehicle

tions for performing mainte-

plenty of ventilation.

checks are generally not covered by

nance work:

•

Keep flames, sparks, or smok-

warranties and you may be charged

• Park your vehicle on level

ing materials away from the

for labor, parts and lubricants used.

ground, move the shift lever

battery and fuel-related parts.

into the P

(Park), apply the

parking brake, and place the

Engine Start/Stop button in

the OFF position.

(Continued)

7-6

How to Disconnect the (-)

Owner Maintenance Schedule

While operating your vehicle:

Cable for Regular Maintenance

•

Note any changes in the sound of

When you stop for fuel:

(Hybrid vehicle)

the exhaust or any smell of

• Check the engine oil level.

exhaust fumes in the vehicle.

• Check the coolant level in the

•

Check for vibrations in the steering

engine coolant reservoir.

wheel. Notice if there is any

A

B

• Check the windshield washer fluid

increased steering effort or loose-

level.

ness in the steering wheel, or

• Check for low or under-inflated

change in its straight-ahead posi-

tires.

tion.

•

Notice if your vehicle constantly

WARNING

turns slightly or "pulls" to one side

when traveling on smooth, level

Be careful when checking your

road.

OAE076073N

engine coolant/inverter coolant

•

When stopping, listen and check

level when the engine is hot.

for unusual sounds, pulling to one

When the vehicle is under regular

This may result in coolant being

side, increased brake pedal travel

maintenance, make sure to separate

blown out of the opening and

or "hard-to-push" brake pedal.

the (-) cable before maintenance.

cause serious burns and other

•

If any slipping or changes in the

Separate the (-) cable following the

injuries.

operation of your transmission

below instructions.

7

occurs, check the transmission

1. Fold the rear left side seat.

fluid level.

2. Remove the service cover (A) on

•

Check the dual clutch transmission

the luggage trim.

P (Park) function.

3. Separate the (-) cable (B).

• Check the parking brake.

Reassemble in the reverse order.

•

Check for fluid leaks under your

vehicle (water dripping from the air

conditioning system during or after

use is normal).

7-7

Content   ..  24  25  26  27   ..
