Convenient features of your vehicle
Interior Lights
Front lamps
Front Door Lamp (
):
WARNING
The front or rear room lamps come on
when the front or rear doors are
Do not use the interior lights
opened. When doors are unlocked by
when driving in the dark.The inte-
the smart key, the front and rear lamps
rior lights may obscure your view
come on for approximately 30 seconds
and cause an accident.
as long as any door is not opened. The
front and rear room lamps go out grad-
ually after approximately 30 seconds
NOTICE
when the door is closed. However, if
the Engine Start/Stop button is in the
Do not use the interior lights for
ON position or all doors are locked, the
extended periods when the vehi-
OAD045405
front and rear lamps will turn off. If a
cle is turned off or the battery will
(1) Front Map Lamp
door is opened with the Engine
discharge.
Start/Stop button in the ACC position
(2) Front Door Lamp
or the OFF position, the front and rear
(3) Front Room Lamp ON
Interior lamp AUTO cut
lamps stay on for about 20 minutes.
(4) Front Room Lamp OFF
The interior lamps will automatically
Front room lamp
go off approximately 20 minutes after
the vehicle is turned off and the
Front Map Lamp :
•
:
doors are closed. If a door is opened,
Press the button to turn ON the
Press either lenses to turn the map
the lamp will go off 40 minutes after
room lamp for the front/rear seats.
lamp on or off. This light produces a
the vehicle is turned off. If the doors
spot beam for convenient use as a
are locked by the smart key and the
map lamp at night or as a personal
•
:
vehicle enters the armed stage of the
lamp for the driver and the front pas-
theft alarm system, the lamps will go
Press the button to turn OFF the
senger.
off five seconds later.
room lamp for the front/rear seats
regardless of front or rear door open
position.
3-124
Rear lamp
Luggage compartment lamp
Vanity mirror lamp (if equipped)
■ Type A
3
OAE046445
■ Type B
OAE046418N
OAD045410
The luggage compartment lamp
Push the switch to turn the light on or
comes on when the liftgate is
off.
opened.
•
: The lamp will turn on if this
button is pressed.
NOTICE
•
: The lamp will turn off if this
button is pressed.
The luggage compartment lamp
comes on as long as the liftgate is
NOTICE
open. To prevent unnecessary
OAEE046421
Always have the switch in the off
charging system drain, close the
position when the vanity mirror
Rear Room Lamp (
):
liftgate securely after using the
lamp is not in use. If the sunvisor
luggage compartment.
Press this switch to turn the room
is closed without the lamp off, it
lamp on and off.
may discharge the battery or dam-
age the sunvisor.
3-125
Convenient features of your vehicle
Welcome System (if equipped)
Headlamp and parking lamp
Interior lamp
Welcome light (if equipped)
When the headlamp (with the lamp
When the interior lamp switch is in
switch in the headlamp or AUTO
the DOOR position and all doors (and
position) is on and all doors
(and
tailgate) are closed and locked, the
trunk) are locked and closed, the
room lamp will come on for 30 sec-
parking lamp and headlamp will
onds if any of the below is performed.
come on for 15 seconds when the
• When the door unlock button is
door unlock button is pressed on the
pressed on the smart key.
smart key.
• When the button of the outside
At this time, if you press the door lock
door handle is pressed.
or unlock button on the smart key the
At this time, if you press the door lock
parking lamp and headlamp will turn
or unlock button, the room lamp will
off immediately.
turn off immediately.
OAE046409N
You can activate or deactivate the

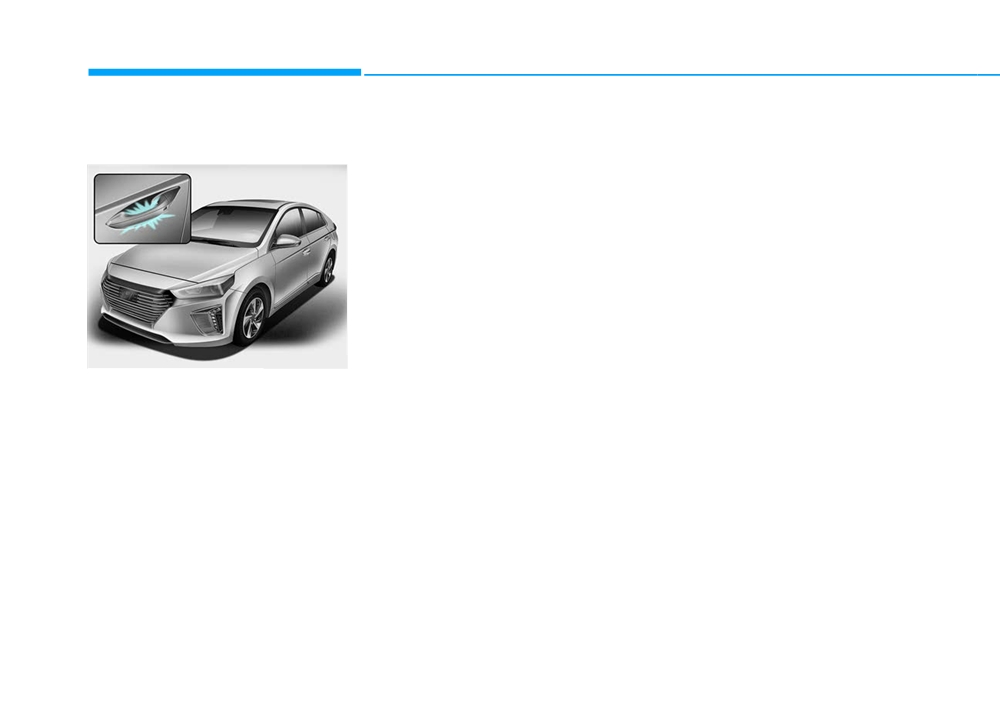

Door handle lamp (if equipped)
Welcome Light from the User
When all the doors (and liftgate) are
Settings mode on the LCD display.
closed and locked, the door handle
For more details, refer to "LCD
lamp will come on for about 15 sec-
Display" in this chapter.
onds if any of the below is performed.
• When the door unlock button is
pressed on the smart key.
• When the button of the outside
door handle is pressed with the
smart key in possession.
• When the vehicle is approached
with the smart key in possession.
3-126
WIPERS AND WASHERS
Windshield Wipers
i
Information
Operates as follows when the Engine
If there is heavy accumulation of snow
Start/Stop button is in the ON posi-
or ice on the windshield, defrost the
tion.
windshield for about 10 minutes, or
MIST : For a single wiping cycle,
until the snow and/or ice is removed
push the lever upward and
before using the windshield wipers to
release. The wipers will oper-
ensure proper operation.
3
ate continuously if the lever is
If you do not remove the snow and/or
held in this position.
ice before using the wiper and washer,
OFF : Wiper is not in operation.
it may damage the wiper and washer

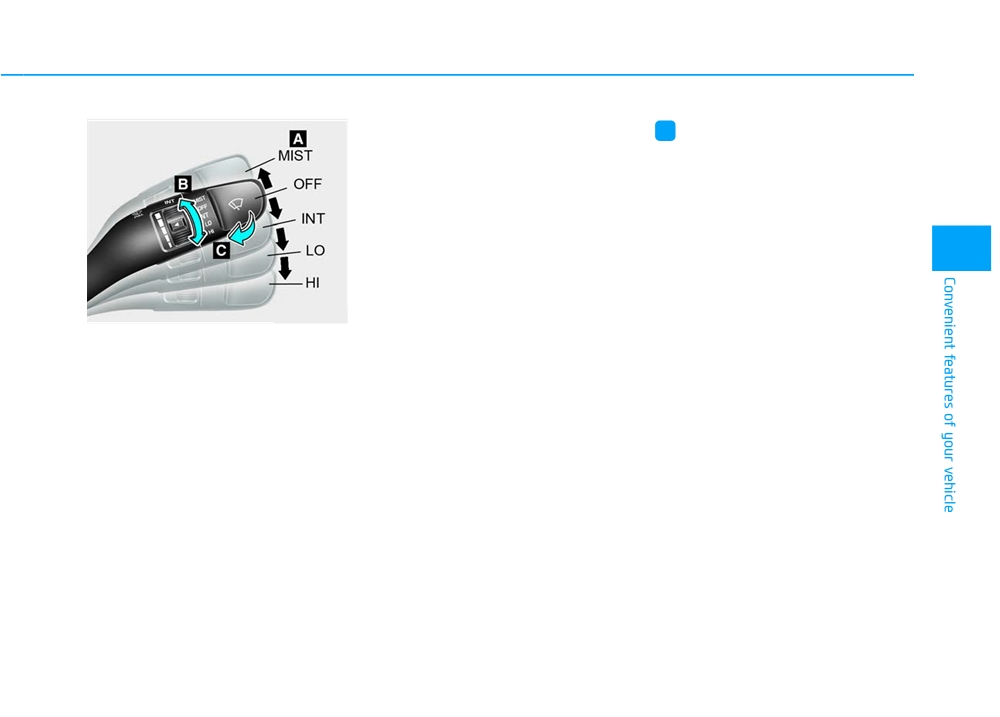

OLF044278
INT : Wiper operates intermittently at
system.
the same wiping intervals. To
A : Wiper speed control
vary the speed setting, move
· MIST - Single wipe
the speed control lever. The top
· OFF - Off
most setting will run the wipers
· INT - Intermittent wipe
most frequently (for more rain).
The bottom setting will run the
· LO - Low wiper speed
wipers the least frequently (for
· HI - High wiper speed
less rain).
LO : The wiper runs at a lower speed.
B : Intermittent control wipe time
HI : The wiper runs at a higher speed.
adjustment
C : Wash with brief wipes
3-127
Convenient features of your vehicle
Windshield Washers
NOTICE
WARNING
•
To prevent possible damage to
When the outside temperature
the washer pump, do not oper-
is below freezing, ALWAYS
ate the washer when the fluid
warm the windshield using the
reservoir is empty.
defroster to help prevent the
•
To prevent possible damage to
washer fluid from freezing on
the wipers or windshield, do not
the windshield and obscuring
operate the wipers when the
your vision which could result
windshield is dry.
in an accident and serious
•
To prevent damage to the wiper
injury or death.
arms and other components, do
not attempt to move the wipers
OLF044095N
manually.
In the OFF position, pull the lever
•
To prevent possible damage to
gently toward you to spray washer
the wipers and washer system,
fluid on the windshield and to run the
use anti-freezing washer fluids
wipers
1-3 cycles. The spray and
in the winter season or cold
wiper operation will continue until you
weather.
release the lever. If the washer does
not work, you may need to add wash-
er fluid to the washer fluid reservoir.
3-128
DRIVER ASSIST SYSTEM
Rear View Monitor
This is a supplemental system that
WARNING
helps provide a view of the area
behind the vehicle through the A/V
•
Never rely solely on the Rear
display while the vehicle is in the R
(Reverse) position.
View Monitor when backing-
up.
•
ALWAYS look around your
WARNING
vehicle to make sure there are
3
no objects or obstacles before
The Rear View Monitor is not a
moving the vehicle in any
safety device. It only serves to
direction to prevent a collision.
assist the driver in identifying
OAE046407N
•
Always pay close attention
objects directly behind the mid-
when the vehicle is driven
dle of the vehicle. The monitor
close to objects, particularly
does NOT cover the complete
pedestrians, and especially
area behind the vehicle.
children.
NOTICE
Always keep the monitor lens
clean. The monitor may not work
normally if the lens is covered
OAE046406
with dirt, water or snow.
The Rear View Monitor will activate
when the vehicle is in the ready (
)
mode and when you shift to the R
(Reverse) position.
3-129
Convenient features of your vehicle
Parking Distance Warning
Operation of the Parking
WARNING
(Reverse) System (if equipped)
Distance Warning (Reverse)
System
•
ALWAYS look around your vehi-
Operating condition
cle to make sure there are not
any objects or obstacles before
•
This system will activate when
moving the vehicle in any direc-
backing up. However, if the vehicle
tion to prevent a collision.
speed exceeds 3 mph (5 km/h), the
system may not detect objects.
•
Always pay close attention
when the vehicle is driven close
•
If the vehicle speed exceeds 6 mph
to objects, particularly pedestri-
(10 km/h), the system will not warn
ans, and especially children.
you even though objects are
detected.
•
Be aware that some objects
Sensor
may not be visible on the
•
When more than two objects are
OAE046403
screen or be detected by the
sensed at the same time, the clos-
sensors, due to the objects
est one will be recognized first.
The Parking Distance Warning
(Reverse) System assists the driver
distance, size or material, all of
during reverse movement of the vehi-
which can limit the effective-
cle by chiming if any object is sensed
ness of the sensor.
within approximately 50 in (120 cm)
behind the vehicle.
This system is a supplemental sys-
tem that senses objects within the
range and location of the sensors, it
cannot detect objects in other areas
where sensors are not installed.
3-130
Types of warning sound and indicator
Non-operational conditions of
Parking Distance Warning
Types of warning sound
Indicator
(Reverse) System
The Parking Distance Warning
When an object is approximately 24 to 47 in (60 to 120
(Reverse) System may not operate
cm) from the rear bumper, the warning sound beeps inter-
normally when:
mittently.
• Moisture is frozen to the sensor.
3
When an object is approximately 12 to 24 in (30 to 60 cm)
• The sensor is covered with dirt or
from the rear bumper, the warning sound beeps more fre-
debris such as snow or ice, or the
quently.
sensor cover is blocked.
There is a possibility of the Rear
When an object is within 12 in (30 cm) from the rear
Parking Distance Warning (Reverse)
bumper, the warning sound beeps continuously.
System malfunction when:
• Driving on uneven road surfaces
such as unpaved roads, gravel,
bumps, or gradient.
NOTICE
• Objects generating excessive noise
• The indicator may differ from the illustration as objects or sensors sta-
such as vehicle horns, loud motor-
tus. If the indicator blinks, have your vehicle checked by an authorized
cycle engines, or truck air brakes
HYUNDAI dealer.
can interfere with the sensor.
• Heavy rain or water spray is present.
• If the audible warning does not sound or if the buzzer sounds intermit-
tently when shifting into R (Reverse) position, this may indicate a mal-
• Wireless transmitters or mobile
function with the Parking Distance Warning (Reverse) System. If this
phones are present near the sensor.
occurs, have your vehicle checked by an authorized HYUNDAI dealer as
• The sensor is covered with snow.
soon as possible.
• Any non-factory equipment or
accessories have been installed, or
if the vehicle bumper height or sen-
sor installation has been modified.
3-131
Convenient features of your vehicle
Detecting range may decrease when:
Parking Distance Warning
• Do not push, scratch or strike the
(Reverse) System precautions
sensor with any hard objects that
• Outside air temperature is extreme-
could damage the surface of the
ly hot or cold.
•
The Parking Distance Warning
sensor. Sensor damage could occur.
• Undetectable objects smaller than
(Reverse) System may not operate
consistently in some circum-
• Do not spray the sensors or its sur-
40 inches (1 m) and narrower than
stances depending on the speed of
rounding area directly with a high
6 inches (14 cm) in diameter.
the vehicle and the shapes of the
pressure washer. Doing so may
objects detected.
cause the sensors to fail to operate
The following objects may not be
normally.
•
The Parking Distance Warning
recognized by the sensor:
(Reverse) System may malfunction
•
Sharp or slim objects such as
if the vehicle bumper height or sen-
WARNING
ropes, chains or small poles.
sor installation has been modified
•
Objects, which tend to absorb sen-
or damaged. Any non-factory
Your new vehicle warranty does
sor frequency such as clothes,
installed equipment or accessories
not cover any accidents or dam-
spongy material or snow.
may also interfere with the sensor
age to the vehicle or injuries to
performance.
its occupants related to a
•
The sensor may not recognize
Parking Distance Warning
objects less than 15 in. (40 cm)
(Reverse) System. Always drive
from the sensor, or it may sense an
safely and cautiously.
incorrect distance. Use caution.
•
When the sensor is blocked with
snow, dirt, debris, or ice, the
Parking
Distance
Warning
(Reverse) System may be inopera-
tive until the snow or ice melts, or
the debris is removed. Use a soft
cloth to wipe debris away from the
sensor.
3-132
AUTOMATIC CLIMATE CONTROL SYSTEM

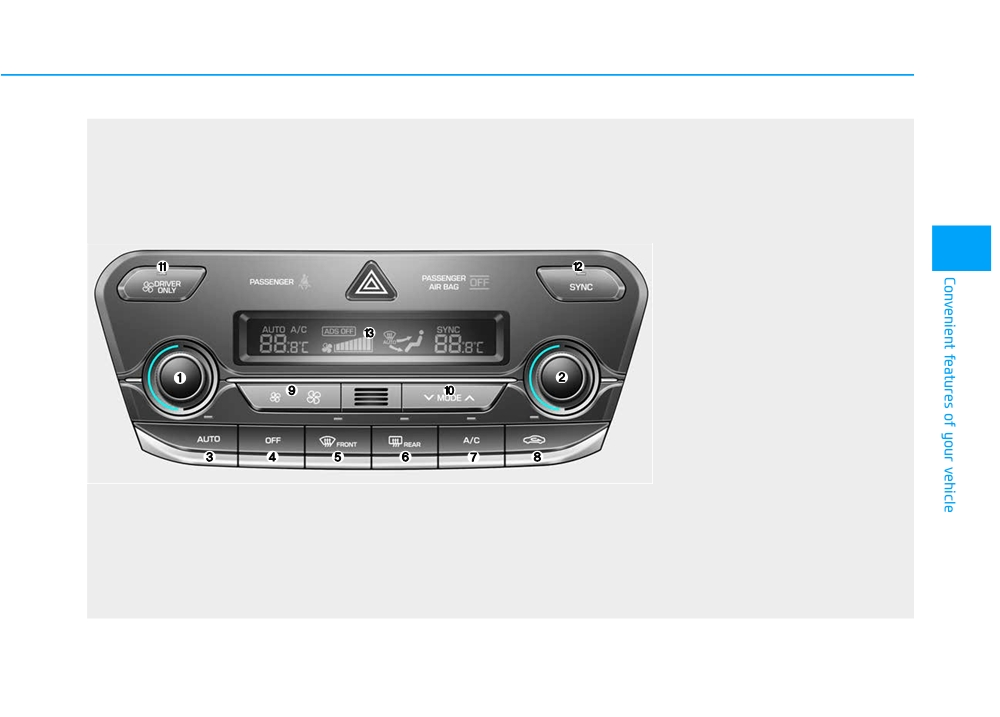

1. Driver's temperature control knob
2. Passenger’s temperature control knob
3
3. AUTO (automatic control) button
4. OFF button
5. Front windshield defrost button
6. Rear window defrost button
7. Air conditioning button
8. Air intake control button
9. Fan speed control button
10. Mode selection button
11. Driver only button
12. SYNC button
13. Climate control information screen
OAE046500
3-133
Convenient features of your vehicle
Automatic Heating and Air
To turn the automatic operation off,
Conditioning
select any button of the following:
- Mode selection button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO'
sign will illuminate on the infor-
mation screen once again.)
- Fan speed control button
OAE046303
The selected function will be con-
trolled manually while other functions
2. Turn the temperature control knob
operate automatically.
to the desired temperature. If the
OAE046302
For your convenience and to improve
temperature is set to the lowest
The Automatic Climate Control
setting
(Lo), the air conditioning
the effectiveness of the climate con-
System is controlled by setting the
system will operate continuously.
trol, use the AUTO button and set the
desired temperature.
After the interior has cooled suffi-
temperature to 73°F (23°C).
1. Press the AUTO button.
ciently, adjust the knob to a higher
temperature set point whenever
The modes, fan speeds, air intake
possible.
and air-conditioning will be controlled
automatically by the temperature set-
ting you select.
3-134
Manual Heating and Air
3. Set the temperature control to the
Conditioning
desired position.
4. Set the air intake control to the
The heating and cooling system can
be controlled manually by pushing
outside (fresh) air position.
buttons other than the AUTO button.
5. Set the fan speed control to the
In this case, the system works
desired speed.
sequentially according to the order of
6. If air conditioning is desired, turn
buttons selected.
3
the air conditioning system on.
When pressing any button except the
7. Press the AUTO button to convert
AUTO button while using automatic
to full automatic control of the sys-
operation, the functions not selected
OAE046304N
tem.
will be controlled automatically.
NOTICE
1. Start the vehicle
(
indicator
ON).
Never place anything near the
sensor to ensure better control of
2. Set the mode to the desired posi-
the heating and cooling system.
tion.
To improve the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3-135
Convenient features of your vehicle
Mode selection
The air flow outlet direction is cycled
as follows:
■ MODE DOWN (
)
■ MODE UP (
)
Face-Level (B, D, F)
Air flow is directed toward the upper
body and face. Additionally, each
outlet can be controlled to direct the
air discharged from the outlet.
Bi-Level (B, C, D, E, F)
OAE046306N/OAE046305
The mode selection button controls the direction of the air flow through the
Air flow is directed towards the face
ventilation system.
and the floor.
3-136
■ Front
Floor & Defrost
(A, C, E, F)
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
3
OAE046308
■ Rear
Floor-Level (A, C, E, F)
OAE046307
Defrost-Level (A)
Most of the air flow is directed to the
Most of the air flow is directed to the
floor, with a small amount of the air
windshield with a small amount of air
being directed to the windshield and
directed to the side window defrosters.
side window defrosters.
OAE046309
Interior panel vents
The outlet vents can be opened or
closed (
) using the vent control
lever.
Also, you can adjust the direction of
air delivered from these vents using
the vent control lever as shown.
3-137
Convenient features of your vehicle
Temperature control
Temperature conversion
Sync button
■ Driver’s side
■ Front passenger’s side
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.
To change the temperature unit from
°F to °C or °C to °F:
- On the instrument cluster, go to
User Settings Mode
➝ Other
(Features) ➝ Temperature Unit.
- Press and hold the AUTO and OFF
buttons on the climate control unit
for 3 seconds.
OAE046310
OAE046311
Turn the knob to the right to increase
Adjusting the driver and passenger
The temperature unit on both on the
the temperature. Turn the knob to the
side temperature equally
cluster LCD display and climate con-
left to decrease temperature.
trol information screen will change.
• Press the "SYNC" button to oper-
The temperature will increase or
ate the driver and passenger side
decrease by 1°F/0.5°C.
temperature equally.
The passenger side temperature
will be set to the same temperature
as the driver side temperature.
• Turn the left temperature control
knob. The driver and passenger
side temperature will be adjusted
equally.
3-138
Adjusting the driver and passenger
Air intake control
Outside (fresh) air position
side temperature individually
With the outside (fresh)
Press the "SYNC" button again to
air position selected, air
operate the driver and passenger
enters the vehicle from
side temperature individually.
The
outside and is heated or
button indicator will turn off.
cooled according to the
function selected.
3
i
Information
Using the system in the fresh air posi-
tion is recommended.
Prolonged operation of the heater in
OAE046312
the recirculated air position (without
This button is used to select the out-
air conditioning selected) can cause
side (fresh) air position or recirculat-
fogging of the windshield and side
ed air position.
windows and the air within the pas-
senger compartment will become
stale.
Recirculated air position
In addition, prolonged use of the air
With the recirculated air
conditioning with the recirculated air
position selected, air
position selected will result in exces-
from the passenger
sively dry air in the passenger com-
compartment will be
partment.
drawn through the heat-
ing system and heated
or cooled according to
the function selected.
3-139
Convenient features of your vehicle
Fan speed control
NOTICE
WARNING
Operating the fan when the
•
Continued use of the climate
Engine Start/Stop button is in the
control system operation in
ON position could cause the bat-
the recirculated air position
tery to discharge. Operate the fan
can cause drowsiness or
when the vehicle is in the ready
sleepiness, that may cause
(
) mode.
loss of vehicle control result-
ing in an accident. Set the air
intake control to the outside
(fresh) air position as much as
possible while driving.
•
Continued use of the climate
OAE046313
control system operation in
The fan speed can be set as desired
the recirculated air position
by pushing the fan speed control but-
(without the air conditioning
ton.
selected) may allow humidity
More air is delivered with higher fan
to increase inside the vehicle
speeds.
which may fog the glass and
obscure visibility.
Pressing the OFF button turns off the
fan.
•
Do not sleep in a vehicle with
the air conditioning or heating
system on. It may cause seri-
i
Information
ous injury or death due to a
For better voice recognition, fan speed
drop in the oxygen level
may automatically slow down for a
and/or body temperature.
couple of minutes when you activate
voice recognition or hands free.
3-140
