Hyundai Ioniq Hybrid (2019 year). Manual

Safety system of your vehicle

Occupant Classification

Main components of the

For example, if a child restraint of the

System (OCS)

Occupant Classification System

type specified in the regulations is on

the seat, the occupant classification

• A detection device located within

sensor can detect it and cause the

the front passenger seat cushion.

air bag to turn OFF.

• Electronic system to determine

Front passenger seat adult occu-

whether the passenger air bag

pants who are properly seated and

systems should be activated or

wearing the seat belt properly,

deactivated.

should not cause the passenger air

• An indicator light located on the

bag to be automatically turned OFF.

instrument panel which illuminates

For small adults it may be turned

the words "PASSENGER AIR BAG

OFF, however, if the occupant does

OFF" indicating the front passen-

not sit in the seat properly (for exam-

ger air bag system is deactivated.

ple, by not sitting upright, by sitting

OAEE036040N

• The instrument panel air bag indi-

on the edge of the seat, or by other-

cator light is interconnected with

wise being out of position), this could

Your vehicle is equipped with an

the OCS.

cause the sensor to turn the air bag

Occupant Classification System

(OCS) in the front passenger's seat.

OFF.

The OCS is designed to help detect

You will find the "PASSENGER AIR

the presence of a properly-seated

BAG OFF" indicator on the center

front passenger and determine if the

fascia panel. This system detects the

passenger's front air bag should be

conditions 1-4 in the following table

enabled (may inflate) or not.

and activates or deactivates the front

passenger air bag based on these

The purpose is to help reduce the

conditions.

risk of injury or death from an inflat-

ing air bag to certain front passenger

seat occupants, such as children, by

requiring the air bag to be automati-

cally turned OFF.

2-58

Always be sure that you and all vehi-

Condition and operation in the front passenger Occupant Classification System

cle occupants are seated properly

and wearing the seat belt properly for

Indicator/Warning light

Devices

the most effective protection by the

Condition detected by the

"PASSENGER

air bag and the seat belt.

SRS

Front passenger

occupant classification system

AIR BAG OFF"

warning light

air bag

The OCS may not function properly if

indicator light

the passenger takes actions which

1. Adult *1

Off

Activated

can affect the classification system.

These include:

2. Infant *2 or child restraint

Off

Deactivated

•

Failing to sit in an upright position.

system with 12 months old *3 *4

•

Leaning against the door or center

3. Unoccupied

Off

Deactivated

console.

4. Malfunction in the system

Off

Activated

•

Sitting towards the sides of the

front of the seat.

The system judges a person of adult size as an adult. When a smaller adult sits in the front

•

Putting their legs on the dashboard

passenger seat, the system may recognize him/her as a child depending on his/her physique

or resting them on other locations

and posture.

which reduce the passenger

Do not allow children to ride in the front passenger seat. When a larger child who has out-

weight on the front seat.

grown a child restraint system sits in the front passenger seat, the system may recognize

him/her as an adult depending upon his/her physique or sitting position.

•

Wearing the seat belt improperly.

Never install a child restraint system on the front passenger seat.

•

Reclining the seatback.

The PASSENGER AIR BAG "OFF" indicator may turn on or off when a child above 12 months

•

Wearing a thick cloth like ski wear

to 12 years old (with or without child restraint system) sits in the front passenger seat. This is

or hip protection wear.

a normal condition.

•

Putting an additional thick cushion

on the seat.

•

Putting electrical devices

(e.g.

notebook, satellite radio) on the

seat with inverter charging.

2-59

Safety system of your vehicle

WARNING

Riding in an improper position or placing weight on the front passenger's seat when it is unoccupied by a

passenger adversely affects the OCS. To reduce the risk of serious injury or death:

• NEVER put a heavy load in

• NEVER ride with the seat-

the front seat or seatback

back reclined when the

pocket, or hang any items

vehicle is moving.

on the front passenger

seat.

OVQ036013NB

OLMB033103

• NEVER place your feet on

• NEVER place your feet or

the front passenger seat-

legs on the dashboard.

back.

OLMB033100

OLMB033102

• NEVER sit with your hips

• NEVER lean on the door or

shifted towards the front

center console or sit on

of the seat.

one side of the front pas-

senger seat.

OLMB033101

OLMB033104

(continued)

2-60

(continued)

•

Do not sit on the passen-

•

Do not place electronic

ger seat wearing heavily

devices such as laptops,

padded clothes such as

DVD player, or conductive

ski wear and hip protector.

materials such as water

bottles on the passenger

seat.

•

Do not use electronic

ODH035900K

ODH035902K

devices such as laptops

and satellite radios which

use inverter chargers.

•

Do not use car seat

•

If large quantity of liquid

accessories such as thick

has been spilled on the

blankets and cushions

passenger seat, the air

which cover up the car

bag warning light may

seat surface.

illuminate or malfunction.

Therefore, make sure the

seat has been completely

ODH035901K

ODH035903K

dried before driving the

vehicle.

•

Do not place sharp objects on the front passenger seat. These may damage the occupant detection sys-

tem, if they puncture the seat cushion.

•

Do not place any items under the front passenger seat.

•

When changing or replacing the seat or seat cover, use original items only. The OCS has been devel-

oped based on using original HYUNDAI car seats only. Altering or changing the authentic parts may

result in system malfunction and increase risk of injury when in collision. Any of the above could inter-

fere with the proper operation of the OCS sensor thereby increasing the risk of an injury in an accident.

2-61

Safety system of your vehicle

Do Not Install a Child Restraint

WARNING

in the Front Passenger's Seat

Never allow an adult passenger

to ride in the front passenger

seat when the "PASSENGER AIR

BAG OFF" indicator is illuminat-

ed. During a collision, the air bag

will not inflate if the indicator is

illuminated. Have your passen-

ger reposition himself in the

seat. If the "PASSENGER AIR

B990A01O

BAG OFF" indicator remains illu-

Proper seated position for OCS

minated after the passenger

If the "PASSENGER AIR BAG OFF"

repositions himself properly and

1JBH3051

indicator is on when an adult is seat-

the vehicle is restarted, have the

Even though your vehicle is equipped

ed in the front passenger seat, place

passenger move to the rear seat

with the OCS, never install a child

the Engine Start/Stop button in the

because the air bag will not

restraint in the front passenger's seat.

OFF position and ask the passenger

inflate.

An inflating air bag can forcefully

to sit properly (sitting upright with the

strike a child or child restraint result-

seat back in an upright position, cen-

NOTICE

ing in serious or fatal injury.

tered on the seat cushion with their

seat belt on, legs comfortably

The "PASSENGER AIR BAG OFF"

extended and their feet on the floor).

indicator illuminates for approxi-

Restart the engine and have the per-

mately 4 seconds after the Engine

son remain in that position. This will

Start/Stop button is in the ON

allow the system to detect the person

position or after the engine is

and to enable the passenger air bag.

started. If the front passenger seat

If the "PASSENGER AIR BAG OFF"

is occupied, the OCS will then

indicator is still on, ask the passen-

classify the front passenger after

ger to move to the rear seat.

several more seconds.

2-62

Why Didn't My Air Bag Go Off

WARNING

(Continued)

in a Collision?

•

Do not perform maintenance

•

NEVER place a rear-facing or

Air bags are not designed to inflate in

on or around the air bag sen-

every collision. There are certain

front-facing child restraint in

sors. If the location or angle of

the front passenger's seat of

types of accidents in which the air bag

the sensors is altered, the air

would not be expected to provide

the vehicle.

bags may deploy when they

additional protection. These include

•

An inflating frontal air bag

should not or may not deploy

rear impacts, second or third colli-

when they should.

could forcefully strike a child

sions in multiple impact accidents, as

resulting in serious injury or

•

Do not install bumper guards

well as low speed impacts. Damage

death.

or replace the bumper with a

to the vehicle indicates a collision

•

Always properly restrain chil-

non-genuine HYUNDAI parts.

energy absorption, and is not an indi-

This may adversely affect the

dren in an appropriate child

cator of whether or not an air bag

restraint in the rear seat of the

collision and air bag deploy-

should have inflated.

ment performance.

vehicle.

•

Place the Engine Start/Stop

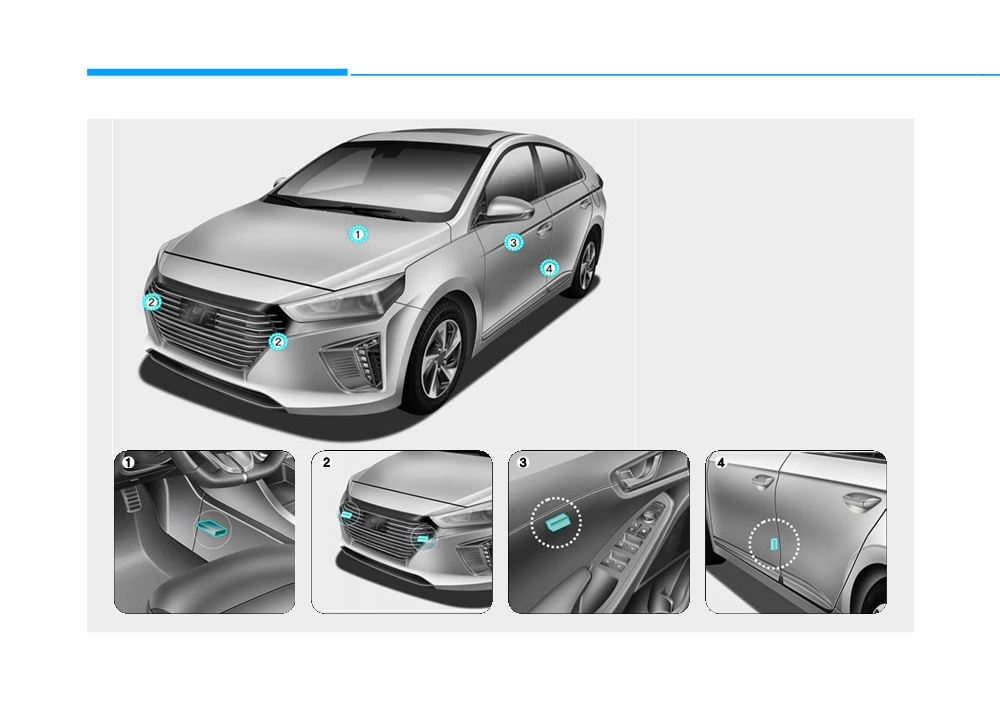

Air bag collision sensors

button in the OFF or ACC

position when the vehicle is

WARNING

being towed to prevent inad-

vertent air bag deployment.

To reduce the risk of an air bag

•

Have all air bag repairs conduct-

deploying unexpectedly and

ed by an authorized HYUNDAI

causing serious injury or death:

dealer.

• Do not hit or allow any objects

to impact the locations where air

bags or sensors are installed.

(Continued)

2-63

Air bag inflation conditions

Although the driver's and front pas-

senger's air bags are designed to

inflate only in frontal collisions, they

also may inflate in other types of col-

lisions if the front impact sensors

detect a sufficient impact. Side and

curtain air bags are designed to

inflate only in side impact collisions

or rollover situations, but they may

inflate in other collisions if the side

impact sensors detect a sufficient

OAE036049

impact.

If the vehicle chassis is impacted by

OAE036048

bumps or objects on unimproved

Front air bags

roads, the air bags may deploy. Drive

carefully on unimproved roads or on

Front air bags and the driver's knee

surfaces not designed for vehicle

air bag are designed to inflate in a

traffic to prevent unintended air bag

frontal collision depending on the

deployment.

severity of impact of the front colli-

sion.

OAE036050

Side and curtain air bags

Side and curtain air bags are

designed to inflate when an impact is

detected by side collision sensors

depending on the severity of impact

resulting from a side impact collision.

2-65

Safety system of your vehicle

Air bag non-inflation conditions

OAE036052

OAE036053

Front air bags are not designed to

Front air bags may not inflate in side

OAE036051

inflate in rear collisions, because

impact collisions, because occupants

In certain low-speed collisions the air

occupants are moved backward by

move in the direction of the collision,

bags may not deploy. The air bags

the force of the impact. In this case,

and thus in side impacts, front air bag

are designed not to deploy in such

inflated air bags would not provide

deployment would not provide addi-

cases because they may not provide

any additional benefit.

tional occupant protection.

benefits beyond the protection of the

However, side and curtain air bags

seat belts.

may inflate depending on the severi-

ty of impact.

2-66

OAE036061

OAE036054

OAE036055

In an angled collision, the force of

Just before impact, drivers often

Front air bags may not inflate in

impact may direct the occupants in a

brake heavily. Such heavy braking

rollover accidents because air bag

direction where the air bags would

lowers the front portion of the vehicle

deployment could not provide protec-

not be able to provide any additional

causing it to "ride" under a vehicle

tion to the occupants.

benefit, and thus the sensors may

with a higher ground clearance. Air

However, side and curtain air bags

not deploy any air bags.

bags may not inflate in this "under-

may inflate when the vehicle is rolled

ride" situation because deceleration

over by a side impact collision.

forces that are detected by sensors

may be significantly reduced by such

"underride" collisions.

2-67

Safety system of your vehicle

SRS Care

WARNING

The SRS is virtually maintenance-

free and there are no parts you can

To reduce the risk of serious

safely service by yourself. If the SRS

injury or death, take the follow-

air bag warning light does not illumi-

ing precautions:

nate when the Engine Start/Stop but-

•

Do not attempt to modify or

ton is in the ON position, or continu-

disconnect the SRS compo-

ously remains on, have your vehicle

nents or wiring, including the

immediately inspected by an author-

addition of any kind of badges

ized HYUNDAI dealer.

to the pad covers or modifica-

Any work on the SRS system, such

tions to the body structure.

OAE036056

as removing, installing, repairing, or

•

Do not place objects over or

Air bags may not inflate if the vehicle

any work on the steering wheel, the

near the air bag modules on

collides with objects such as utility

front passenger's panel, front seats

the steering wheel, instrument

poles or trees, where the point of

and roof rails must be performed by

panel, or the front passen-

impact is concentrated and the colli-

an authorized HYUNDAI dealer.

ger's panel above the glove

sion energy is absorbed by the vehi-

Improper handling of the SRS system

box.

cle structure.

may result in serious personal injury.

•

Clean the air bag pad covers

with a soft cloth moistened

with plain water. Solvents or

cleaners could adversely

affect the air bag covers and

proper deployment of the sys-

tem.

•

Always have inflated air bags

replaced by an authorized

HYUNDAI dealer.

(Continued)

2-68

Additional Safety Precautions

Modifications to accommodate

(Continued)

disabilities. If you require modifica-

Passengers should not move out of

•

If components of the air bag

tion to your vehicle to accommodate

or change seats while the vehicle is

system must be discarded, or if

a disability, contact the HYUNDAI

moving. A passenger who is not

the vehicle must be scrapped,

Customer Connect Center at 800-

wearing a seat belt during a crash or

certain safety precautions

633-5151.

emergency stop can be thrown

must be observed. Consult an

against the inside of the vehicle,

authorized HYUNDAI dealer for

against other occupants, or be ejected

Adding equipment to or modify-

the necessary information.

from the vehicle.

ing your air bag equipped vehicle

Failure to follow these precau-

tions could increase the risk of

Do not use any accessories on seat

If you modify your vehicle by chang-

personal injury.

belts. Devices claiming to improve

ing your vehicle's frame, bumper sys-

occupant comfort or reposition the

tem, front end or side sheet metal or

seat belt can reduce the protection

ride height, this may affect the oper-

provided by the seat belt and increase

ation of your vehicle's air bag sys-

the chance of serious injury in a crash.

tem.

Do not modify the front seats.

Modification of the front seats could

interfere with the operation of the sup-

plemental restraint system sensing

components or side air bags.

Do not place items under the front

seats. Placing items under the front

seats could interfere with the opera-

tion of the supplemental restraint sys-

tem sensing components and wiring

harnesses.

Do not cause impact to the doors.

Impact to the doors when the Engine

Start/Stop button is in the ON position

may cause the air bags to inflate.

2-69

Convenient features of your vehicle

Accessing Your Vehicle

3-3

Windows

3-37

Smart Key

3-3

Power Windows

3-38

Immobilizer System

3-8

Sunroof

3-41

Door Locks

3-9

Sunroof Opening and Closing

3-42

Operating Door Locks from Outside the Vehicle

3-9

Sliding the Sunroof

3-42

Operating Door Locks from Inside the Vehicle

3-10

Tilting the Sunroof

3-43

Auto Door Lock/Unlock Features

3-12

Sunshade

3-43

Child-Protector Rear Door Locks

3-12

Resetting the Sunroof

3-44

Theft-alarm System

3-13

Exterior Features

3-45

Driver Position Memory System

3-14

Hood

3-45

Storing Positions into Memory

3-14

Liftgate

3-46

Recalling Positions from Memory

3-15

Fuel Filler Door (Hybrid vehicle)

3-48

Easy Access Function

3-15

Fuel Filler Door (Plug-in hybrid vehicle)

3-51

Steering Wheel

3-16

Instrument Cluster

3-54

Electric Power Steering (EPS)

3-16

Instrument Cluster Control

3-56

Tilt Steering/Telescope Steering

3-16

Gauges and Meters

3-56

Horn

3-17

Warning and Indicator Lights

3-62

Heated Steering Wheel (for Canada)

3-17

LCD Display Messages

3-73

Mirrors

3-18

LCD Display

3-89

Inside Rearview Mirror

3-18

LCD Display Control

3-89

Side View Mirrors

3-33

LCD Display Modes (for cluster type A)

3-90

Reverse Parking Aid Function

3-36

LCD Display Modes (for cluster type B)

3-98

Trip Computer (Hybrid Vehicle)

3-105

Climate Control Additional Features

3-149

Trip Computer (Plug-In Hybrid Vehicle)

3-110

Automatic Ventilation

3-149

Lighting

3-116

Storage Compartment

3-150

Exterior Lights

3-116

Center Console Storage

3-150

Interior Lights

3-124

Glove Box

3-150

Welcome System

3-126

Sunglass Holder

3-151

Wipers and Washers

3-127

Multi Box

3-151

Windshield Wipers

3-127

Interior Features

3-152

Windshield Washers

3-128

Cup Holder

3-152

Sunvisor

3-153

Driver Assist System

3-129

Power Outlet

3-153

Rear View Monitor

3-129

USB Charger

3-154

Parking Distance Warning (Reverse) System

3-130

Wireless Cellular Phone Charging System

3-155

Automatic Climate Control System

3-133

Clock

3-157

Automatic Heating and Air Conditioning

3-134

Clothes Hanger

3-157

Manual Heating and Air Conditioning

3-135

Floor Mat Anchor(s)

3-158

System Operation

3-142

Cargo Security Screen

3-159

System Maintenance

3-143

Windshield Defrosting and Defogging

3-145

To Defog Inside Windshield

3-145

To Defrost Outside Windshield

3-146

Defogging Logic

3-146

Rear Window Defroster

3-146

Auto Defogging System

3-147

ACCESSING YOUR VEHICLE

Smart Key

Locking

Information

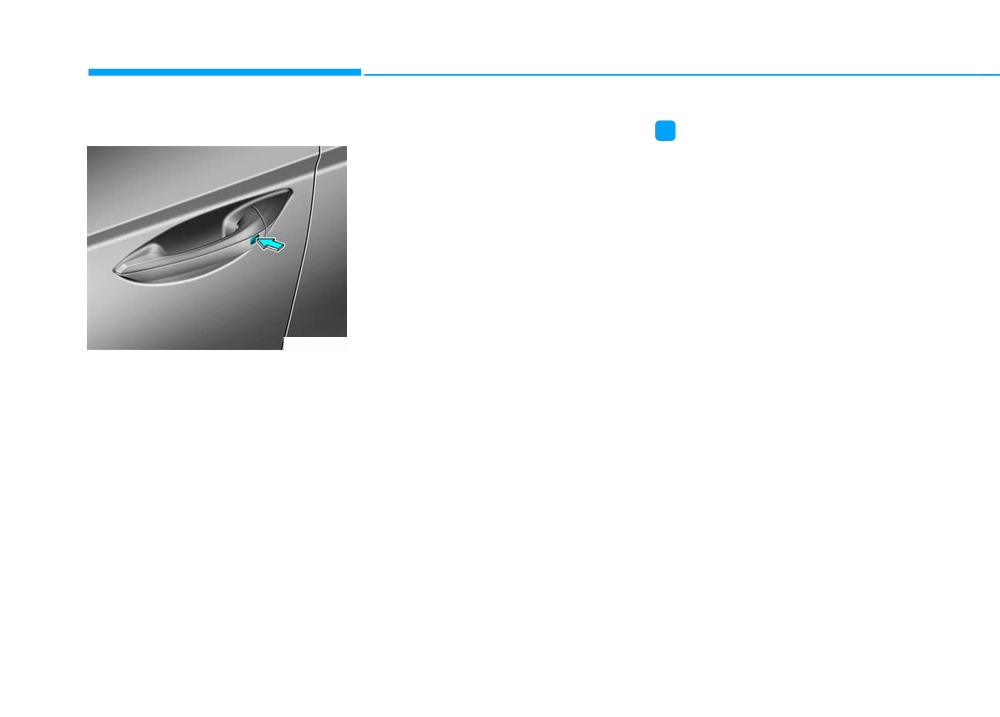

The door handle button will only

operate when the smart key is within

28~40 inches (0.7~1 m) from the out-

side door handle.

Even though you press the outside

door handle button, the doors will not

lock and the chime will sound for

three seconds if any of the following

occur:

• The Smart Key is in the vehicle.

OAE046029

OAE046001

• The Engine Start/Stop button is in

Your HYUNDAI uses a Smart Key,

To lock :

ACC or ON position.

which you can use to lock or unlock

1. Close all doors, hood and liftgate.

• Any door except the liftgate is

a door (and liftgate) and even start

2. Either press the door handle but-

open.

the vehicle.

ton or press the Door Lock button

1. Door Lock

(1) on the smart key.

WARNING

2. Door Unlock

3. The hazard warning lights will

3. Liftgate Unlock

blink and the chime will sound

Do not leave the Smart Key in

once.

your vehicle with unsupervised

4. Panic

children. Unattended children

4. Make sure the doors are locked by

could press the Engine Start/

checking the position of the door

Stop button and may operate

lock button inside the vehicle.

power windows or other con-

trols, or even make the vehicle

move, which could result in

serious injury or death.

3-3

Convenient features of your vehicle

Unlocking

3. The driver's door will unlock. The

Information

hazard warning lights will blink two

times.

•

The door handle button will only

operate when the smart key is with-

If you press the driver's outside

in 28~40 inches (0.7~1 m) from the

door handle button or Door Unlock

outside door handle and other peo-

button on the smart key again

ple can also open the doors.

within four seconds, then all the

doors will unlock.

•

If you press the front passenger's

outside door handle, while carrying

Two press unlock setting:

the Smart Key, all doors will unlock.

Two press unlock setting can be

•

After unlocking the doors, the doors

changed according to owner's

will lock automatically after 30 sec-

preference.

onds unless a door is opened.

OAE046001

Select or deselect the 'Two Press

•

Either the driver or front passenger

Unlock' menu in the User Settings

To unlock:

door can be opened with the door

mode on the LCD display (User

1. Carry the Smart Key.

handle button when the smart key is

Settings

➞ Door and select or

2. Either press the driver's outside

within this range.

deselect Two Press Unlock).

door handle button or press the

Door Unlock button

(2) on the

smart key.

3-4

Hyundai Ioniq Hybrid (2019 year). Manual - part 5
