WARNING

Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death.

Engine exhaust contains carbon monoxide which cannot be seen or smelled.

Do not inhale engine exhaust.

If at any time you smell engine exhaust inside the vehicle, open the windows immediately. Exposure to CO can cause

unconsciousness and death by asphyxiation.

Be sure the exhaust system does not leak.

The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If

you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the

vehicle, we recommend that the exhaust system be checked as soon as possible by an authorized HYUNDAI dealer.

Do not run the engine in an enclosed area.

Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Run the engine only

long enough to start the engine and to move the vehicle out of the garage.

Avoid idling the engine for prolonged periods with people inside the vehicle.

If it is necessary to idle the engine for a prolonged period with people inside the vehicle, be sure to do so only in an

open area with the air intake set at "Fresh" and fan control set to high so fresh air is drawn into the interior.

Keep the air intakes clear.

To assure proper operation of the ventilation system, keep the ventilation air intakes located in front of the windshield

clear of snow, ice, leaves, or other obstructions.

If you must drive with the tailgate open:

Close all windows.

Open instrument panel air vents.

Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan control set to high.

5-3

Driving your vehicle

BEFORE DRIVING

Before entering the vehicle

Before starting

WARNING

•

Be sure all windows, outside mir-

•

Make sure the hood, the tailgate,

ror(s), and outside lights are clean

and the doors are securely closed

To reduce the risk of SERIOUS

and unobstructed.

and locked.

INJURY or DEATH, take the fol-

•

Remove frost, snow, or ice.

•

Adjust the position of the seat and

lowing precautions:

•

Visually check the tires for uneven

steering wheel.

•

ALWAYS wear your seat belt.

wear and damage.

•

Adjust the inside and outside

All passengers must be prop-

rearview mirrors.

erly belted whenever the vehi-

•

Check under the vehicle for any

cle is moving. For more

sign of leaks.

•

Verify all the lights work.

details, refer to "Seat Belts" in

•

Be sure there are no obstacles

•

Fasten your seat belt. Check that

chapter 2.

behind you if you intend to back up.

all passengers have fastened their

•

Always drive defensively.

seat belt.

Assume other drivers or pedes-

•

Check the gauges and indicators in

trians may be careless and

the instrument panel and the mes-

make mistakes.

sages on the instrument display

•

Stay focused on the task of

when the ignition switch is in the

driving. Driver distraction can

ON position.

cause accidents.

•

Check that any items you are car-

•

Leave plenty of space between

rying are stored properly or fas-

you and the vehicle in front of

tened down securely.

you.

5-4

WARNING

(Continued)

You are much more likely to have

NEVER drink or take drugs and

a serious accident if you drink or

drive.

take drugs and drive. If you are

Drinking or taking drugs and

drinking or taking drugs, don't

driving is dangerous and may

drive. Do not ride with a driver

result in an accident and SERI-

who has been drinking or taking

OUS INJURY or DEATH.

drugs. Choose a designated driv-

er or call a taxi.

Drunk driving is the number

one contributor to the highway

death toll each year. Even a

small amount of alcohol will

affect your reflexes, percep-

tions and judgment. Just one

drink can reduce your ability to

respond to changing conditions

and emergencies and your reac-

tion time gets worse with each

additional drink.

Driving while under the influ-

ence of drugs is as dangerous

or more dangerous than driving

under the influence of alcohol.

(Continued)

5-5

Driving your vehicle

IGNITION SWITCH

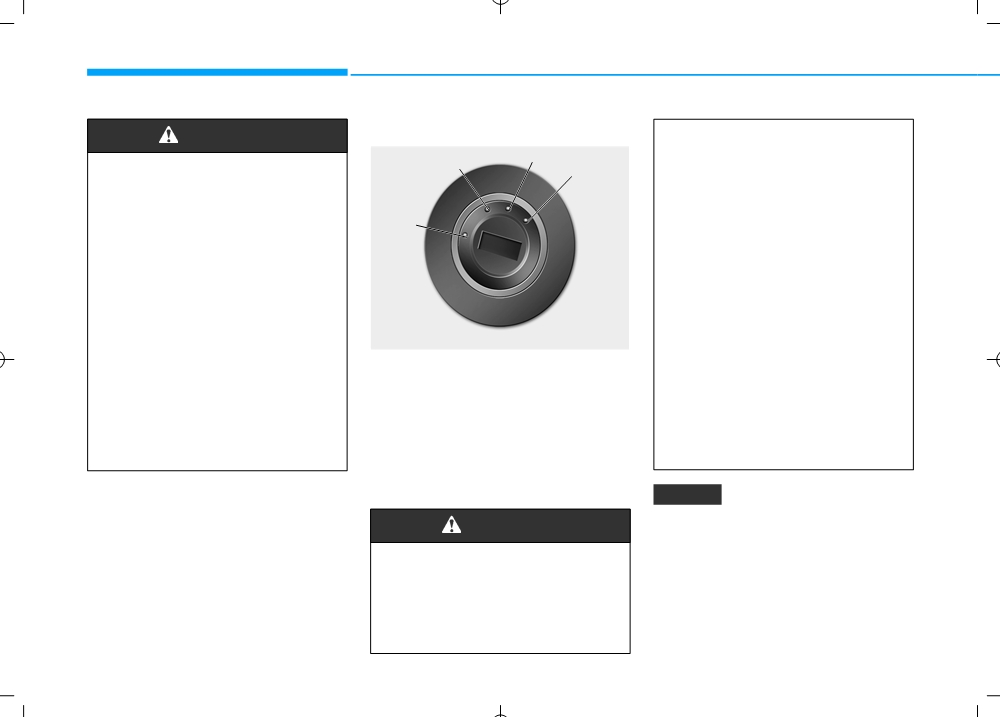

Key ignition switch (if equipped)

WARNING

(Continued)

This will result in the engine

ACC

To reduce the risk of SERIOUS

START

turning off and loss of power

INJURY or DEATH, take the fol-

assist for the steering and

lowing precautions:

brake systems. This may lead

LOCK

to loss of directional control

•

NEVER allow children or any

person who is unfamiliar with

and braking function, which

the vehicle to touch the igni-

could cause an accident.

tion switch or related parts.

•

Before leaving the driver's

Unexpected and sudden vehi-

seat, always make sure the

cle movement can occur.

shift lever is in 1st gear when

•

NEVER reach through the

the vehicle is parked on a

steering wheel for the ignition

OAE056172L

uphill and in R (Reverse) on a

switch, or any other control,

downhill, apply the parking

Whenever the front door is opened,

while the vehicle is in motion.

brake, and turn the ignition

the ignition switch will illuminate, pro-

The presence of your hand or

switch to the LOCK position.

vided the ignition switch is not in the

arm in this area may cause a

Unexpected vehicle movement

ON position. The light will go off

loss of vehicle control result-

immediately when the ignition switch

may occur if these precautions

ing in an accident.

are not followed.

is turned on or go off after about 30

seconds when the door is closed.

(if equipped)

NOTICE

Never use aftermarket keyhole cov-

WARNING

ers. This may generate start-up fail-

ure due to communication failure.

• NEVER turn the ignition switch

to the LOCK or ACC position

while the vehicle is in motion

except in an emergency.

(Continued)

5-6

Key ignition switch positions

Switch

Action

Notes

Position

To turn the ignition switch to the LOCK position, push the key in

at the ACC position and turn the key towards the LOCK position.

The ignition key can be removed in the LOCK position.

LOCK

The steering wheel locks to protect the vehicle from theft.

(if equipped)

Some electrical accessories are usable.

If difficulty is experienced turning the ignition

switch to the ACC position, turn the key while

The steering wheel unlocks.

ACC

turning the steering wheel right and left to

release.

This is the normal key position when the engine has started.

Do not leave the ignition switch in the ON

All features and accessories are usable.

position when the engine is not running to

prevent the battery from discharging.

The warning lights can be checked when you turn the ignition

switch from ACC to ON.

To start the engine, turn the ignition switch to the START position.

The engine will crank until you release the

START

The switch returns to the ON position when you let go of the key.

key.

5-7

Driving your vehicle

Starting the engine

1. Make sure the parking brake is

NOTICE

applied.

To prevent damage to the vehicle:

WARNING

2. Make sure the shift lever is in neu-

tral.

•

Do not hold the ignition key in

the START position for more

•

Always wear appropriate

3. Depress the clutch and brake ped-

than 10 seconds. Wait 5 to 10

shoes when operating your

als.

seconds before trying again.

vehicle. Unsuitable shoes,

4. Turn the ignition switch to the

such as high heels, ski boots,

•

Do not turn the ignition switch to

START position. Hold the key

sandals, flip-flops, etc., may

the START position with the

(maximum of 10 seconds) until the

interfere with your ability to

engine running. It may damage

engine starts and release it.

use the brake, accelerator and

the starter.

clutch pedals.

•

If traffic and road conditions

Information

•

Do not start the vehicle with the

permit, you may put the shift

accelerator pedal depressed.

•

Do not wait for the engine to warm

lever in the N (Neutral) position

The vehicle can move which

up while the vehicle remains station-

while the vehicle is still moving

can lead to an accident.

ary.

and turn the ignition switch to

the START position in an

•

Wait until the engine rpm is

Start driving at moderate engine

attempt to restart the engine.

normal. The vehicle may sud-

speeds.

(Steep accelerating and

denly move if the brake pedal

decelerating should be avoided.)

•

Do not push or tow your vehicle

is released when the rpm is

to start the engine.

•

Always start the vehicle with your

high.

foot on the brake pedal. Do not

depress the accelerator while start-

Turning off the engine

ing the vehicle. Do not race the

1. Stop the vehicle and depress the

engine while warming it up.

clutch and brake pedals at the

same time.

2. With the clutch and brake pedals

depressed, put the shift lever in

neutral.

3. Turn off the engine and apply the

parking brake.

5-8

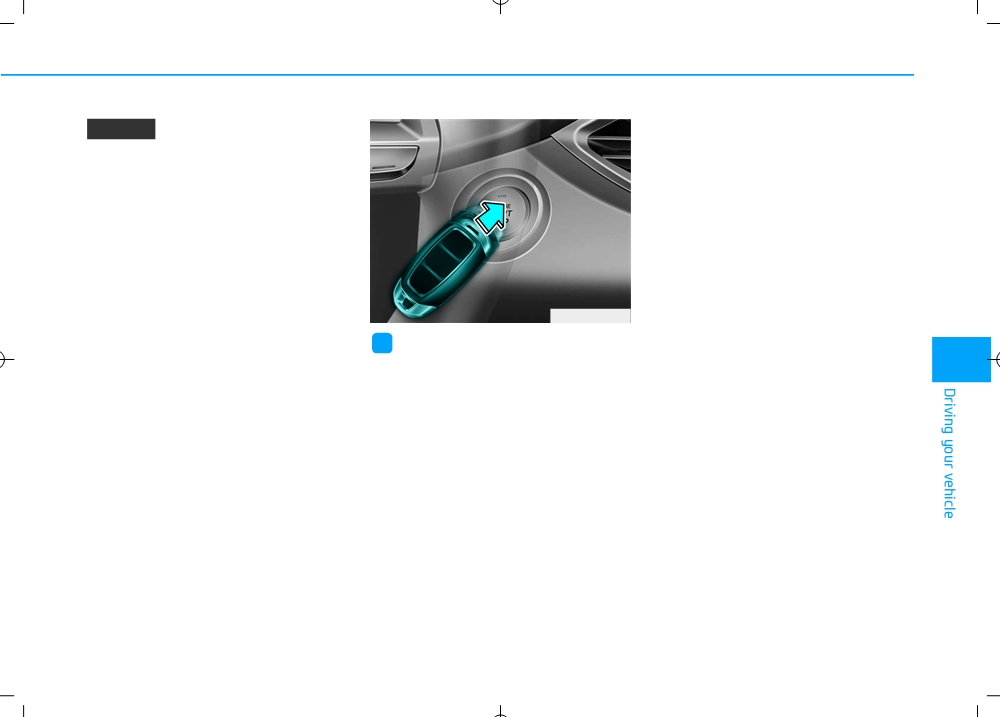

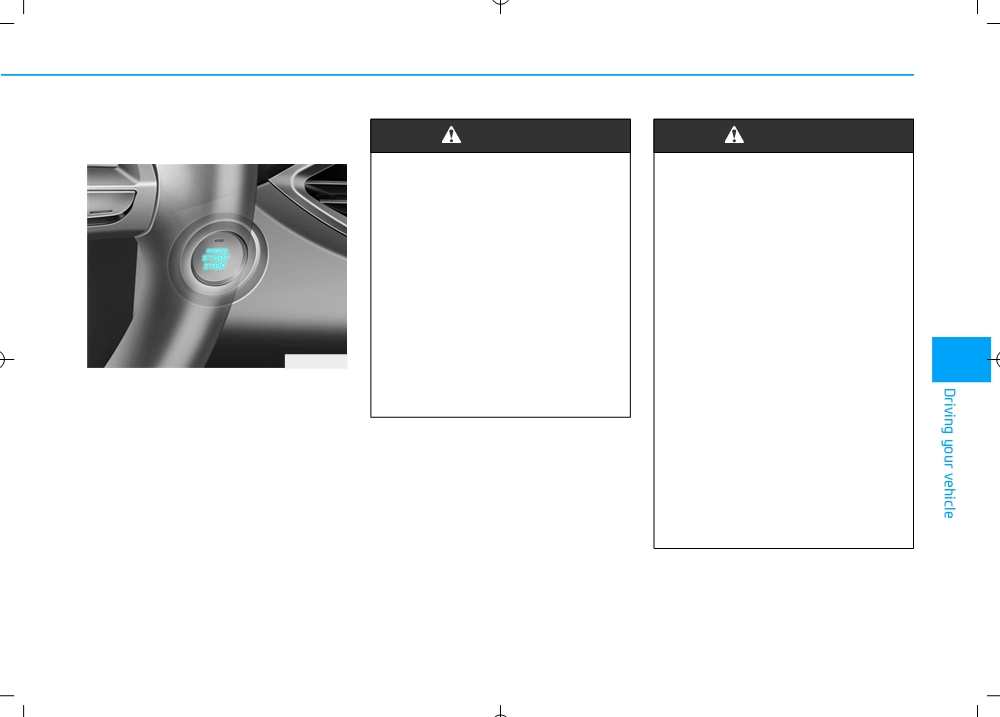

Engine Start/Stop button

WARNING

(if equipped)

To turn the engine off in an

•

NEVER press the Engine Start/

emergency:

Stop button while the vehicle is

in motion except in an emer-

Press and hold the Engine

Start/Stop button for more than

gency. This will result in the

engine turning off and loss of

two seconds OR Rapidly press

and release the Engine Start/

power assist for the steering

and brake systems. This may

Stop button three times (within

three seconds).

lead to loss of directional con-

trol and braking function,

If the vehicle is still moving, you

which could cause an accident.

can restart the engine without

depressing the brake pedal by

•

Before leaving the driver’s

OPD056001

pressing the Engine Start/Stop

seat, always make sure the

button with the shift lever in the

shift lever is in 1st gear when

Whenever the front door is opened,

N (Neutral) position.

the vehicle is parked on a

the Engine Start/Stop button will illu-

uphill and in R (Reverse) on a

minate and will go off 30 seconds

downhill, set the parking

after the door is closed.

brake, press the Engine Start/

Stop button to the OFF posi-

tion, and take the Smart Key

with you. Unexpected vehicle

movement may occur if these

precautions are not followed.

5-9

Driving your vehicle

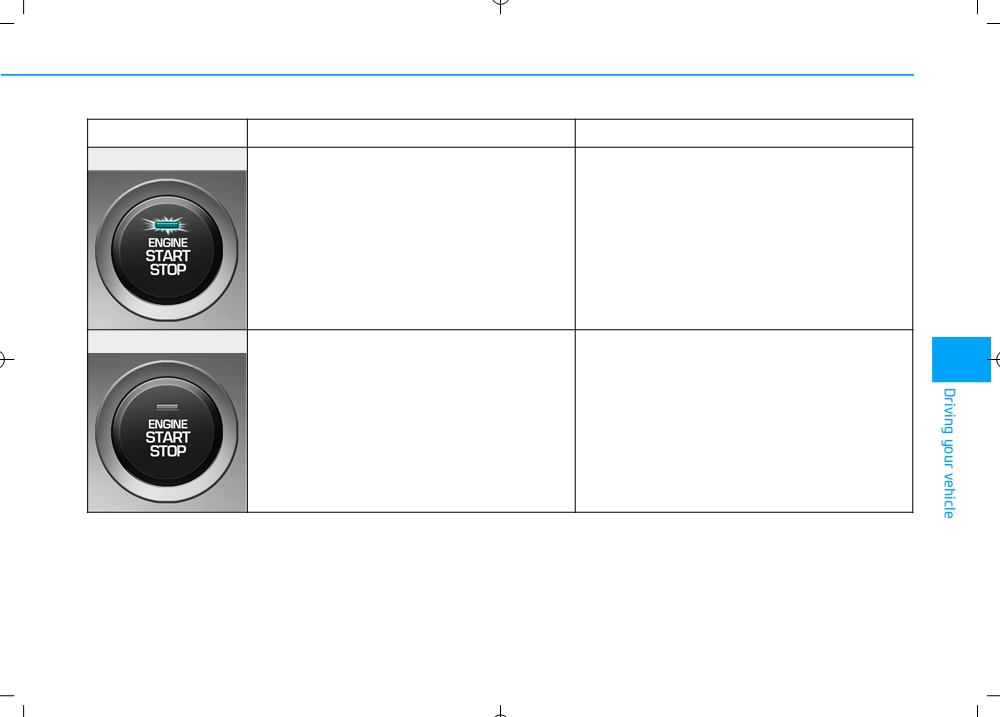

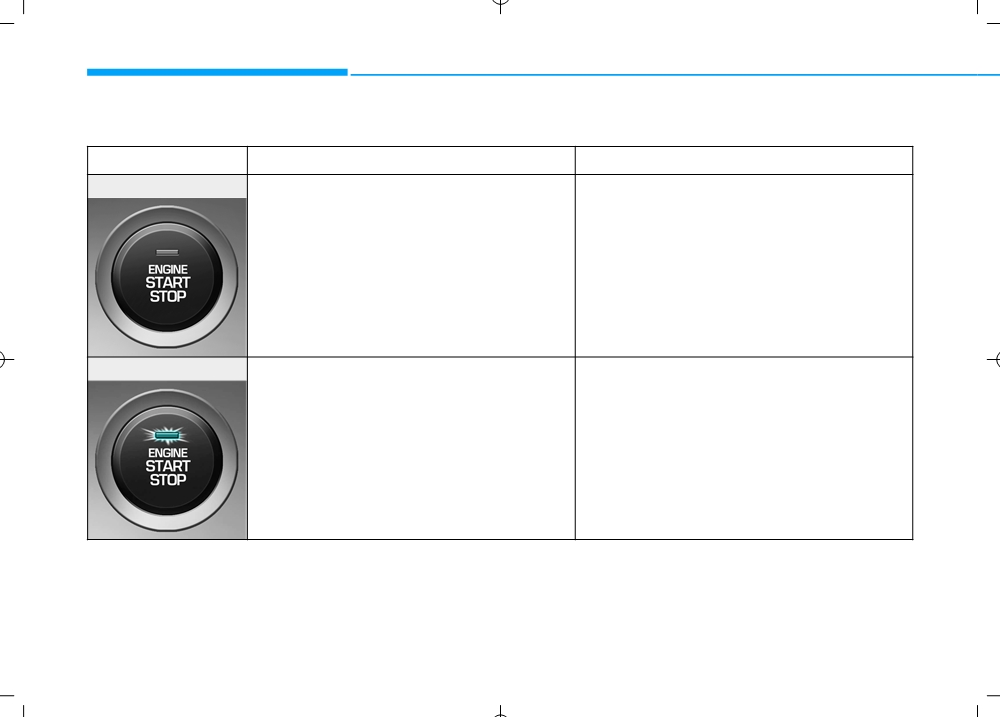

Engine Stop/Start button positions

Button Position

Action

Notes

OFF

To turn off the engine, stop the vehicle and

If the steering wheel is not locked properly

then press the Engine Start/Stop button.

when you open the driver's door, the warning

chime will sound.

The steering wheel locks to protect the vehi-

cle from theft. (if equipped)

ACC

Press the Engine Start/Stop button when

If you leave the Engine Start/Stop button in

the button is in the OFF position without

the ACC position for more than one hour, the

depressing the clutch pedal.

battery power will turn off automatically to

prevent the battery from discharging.

Some electrical accessories are usable.

If the steering wheel doesn't unlock properly,

The steering wheel unlocks.

the Engine Start/Stop button will not work.

Press the Engine Start/Stop button while

turning the steering wheel right and left to

release.

5-10

Button Position

Action

Notes

Press the Engine Start/Stop button while it

Do not leave the Engine Start/Stop button in

is in the ACC position without depressing

the ON position when the engine is not run-

the clutch pedal.

ning to prevent the battery from discharging.

The warning lights can be checked before

the engine is started.

START

To start the engine, depress the clutch and

If you press the Engine Start/Stop button

brake pedals and press the Engine Start/

without depressing the clutch pedal, the

Stop button with the shift lever in neutral.

engine does not start and the Engine

Start/Stop button changes as follows:

OFF  ACC  ON  OFF or ACC

5-11

Driving your vehicle

Starting the engine

Information

•

The engine will start by pressing the

• Do not wait for the engine to warm

WARNING

Engine Start/Stop button, only when

up while the vehicle remains station-

the smart key is in the vehicle.

ary.

•

Always wear appropriate

•

Even if the smart key is in the vehi-

Start driving at moderate engine

shoes when operating your

cle, if it is far away from the driver,

speeds. Steep accelerating and decel-

vehicle. Unsuitable shoes,

the engine may not start.

erating should be avoided.

such as high heels, ski boots,

sandals, flip-flops, etc., may

•

When the Engine Start/Stop button

• Always start the vehicle with your

interfere with your ability to

is in the ACC or ON position, if any

foot on the brake pedal. Do not

use the brake, accelerator and

door is open, the system checks for

depress the accelerator while start-

clutch pedals.

the smart key. If the smart key is not

ing the vehicle. Do not race the

in the vehicle, the "

" indicator

engine while warming it up.

•

Do not start the vehicle with the

will blink and the warning "Key not

accelerator pedal depressed.

in vehicle" will come on, and if all

NOTICE

The vehicle can move which

doors are closed, the chime will also

can lead to an accident.

To prevent damage to the vehicle:

sound for about 5 seconds. Keep the

•

Wait until the engine rpm is

smart key in the vehicle when using

• If traffic and road conditions

normal. The vehicle may sud-

the ACC position or if the vehicle

permit, you may put the shift

denly move if the brake pedal

engine is ON.

lever in the N (Neutral) position

is released when the rpm is

while the vehicle is still moving

high.

and press the Engine Start/Stop

1. Always carry the smart key with

button in an attempt to restart

you.

the engine.

2. Make sure the parking brake is

• Do not push or tow your vehicle

applied.

to start the engine.

3. Make sure the shift lever is in neutral.

4. Depress the clutch and brake ped-

als.

5. Press the Engine Start/Stop button.

5-12

NOTICE

Turning off the engine

1. Stop the vehicle and depress the

To prevent damage to the vehicle:

clutch and brake pedals at the

Do not press the Engine Start/

same time.

Stop button for more than 10 sec-

2. With the clutch and brake pedals

onds except when the stop lamp

depressed, put the shift lever in

fuse is blown.

neutral.

When the stop lamp fuse is blown,

3. Press the Engine Start/Stop but-

you can't start the engine normal-

ton to the off position and apply

ly. Replace the fuse with a new

the parking brake.

one. If you are not able to replace

the fuse, you can start the engine

OPDEN057005

by pressing and holding the

Information

Engine Start/Stop button for

seconds with the Engine Start/

If the smart key battery is weak or the

Stop button in the ACC position.

smart key does not work correctly,

For your safety always depress

you can start the engine by pressing

the brake and/or clutch pedal

the Engine Start/Stop button with the

before starting the engine.

smart key in the direction of the pic-

ture above.

5-13

Driving your vehicle

MANUAL TRANSMISSION

Manual transmission operation

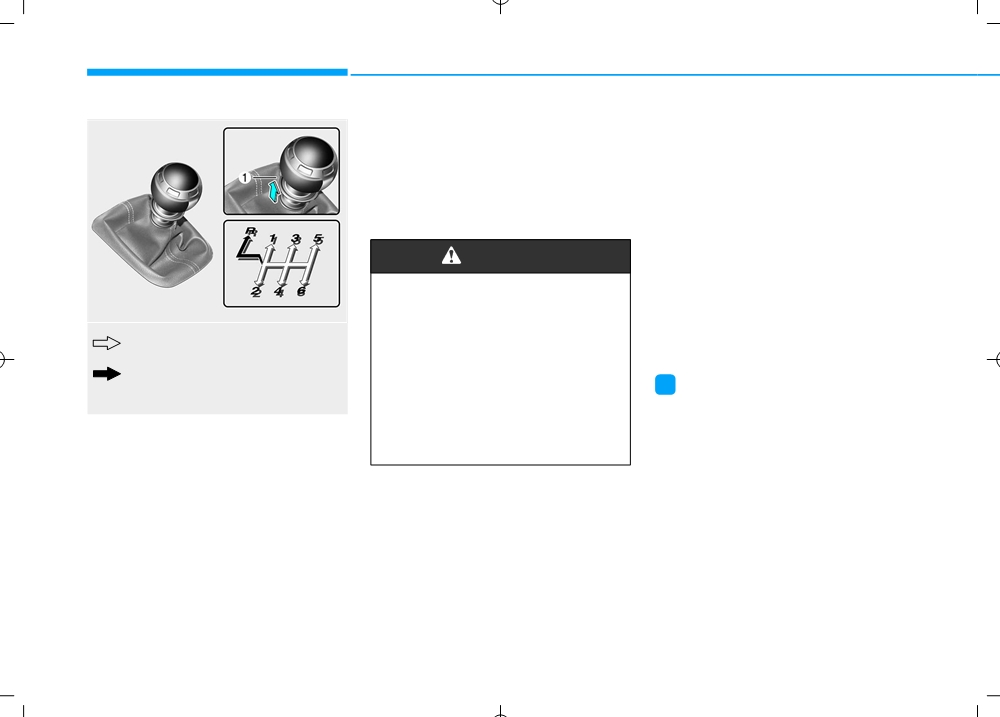

To shift to R (Reverse), make sure

the vehicle has completely stopped,

The manual transmission has 6 for-

and then move the shift lever to neu-

ward gears. The transmission is fully

tral before moving into R (Reverse).

synchronized in all forward gears so

shifting to either a higher or a lower

gear is easily accomplished.

When you've come to a complete

stop and it's hard to shift into 1st gear

or R (Reverse):

WARNING

1. Put the shift lever in neutral and

Before leaving the driver's seat,

release the clutch pedal.

always make sure the shift lever

2. Depress the clutch pedal, and

then shift into first or R (Reverse)

is in 1st gear when the vehicle

The shift lever can be moved without

is parked on a uphill and in R

gear.

pressing the button (1).

(Reverse) on a downhill, set the

The ring (1) must be pulled up while

parking brake, and place the

moving the shift lever.

Information

ignition switch in the LOCK/OFF

OPDEN057107

position. Unexpected vehicle

During cold weather, shifting may be

movement may occur if these

difficult until the transmission lubri-

precautions are not followed.

cant has warmed up.

5-14

Using the clutch

NOTICE

Downshifting

The clutch pedal should be

Downshift when you must slow down

To prevent unnecessary wear or

depressed all the way to the floor

in heavy traffic or drive up a steep

damage to the clutch:

before:

hill, to prevent engine load.

•

Do not rest your foot on the

- Starting the engine

Also, downshifting reduces the

clutch pedal while driving.

chance of stalling and helps to accel-

The engine will not start without

•

Do not hold the vehicle with the

erate when you need to increase

depressing the clutch pedal.

clutch on an incline, while wait-

your speed again.

- Shifting into gear, up shifting to the

ing for the traffic light, etc.

When the vehicle is going downhill,

next higher gear, or down shifting

•

Always depress the clutch pedal

downshifting helps maintain safe

to the next lower gear.

down fully to prevent noise or

speed by providing brake power from

When releasing the clutch pedal,

damage.

the engine and results in less wear

release it slowly. The clutch pedal

•

Do not repeatedly depress the

on the brakes.

should always be released while

clutch pedal before the clutch

driving.

pedal returns back to its original

place when released.

CAUTION

•

Do not start with the 2nd (sec-

ond) gear engaged except when

To start or reverse the vehicle,

you start on a slippery road.

release the clutch pedal slowly

• Do not drive with cargo loaded

after shifting the gear. Sudden

more than required loading

release of the clutch pedal may

capacity.

result in an abrupt accident.

5-15

Driving your vehicle

NOTICE

Good driving practices

• Exercise extreme caution when

driving on a slippery surface. Be

•

Never take the vehicle out of gear

To prevent damage to the engine,

especially careful when braking,

and coast down a hill. This is

clutch and transmission:

accelerating or shifting gears. On a

extremely dangerous.

•

When downshifting from

5th

slippery surface, an abrupt change

•

Don't "ride" the brakes. This can

gear to 4th gear, be careful not to

in vehicle speed can cause the

cause the brakes and related parts

inadvertently push the shift lever

drive wheels to lose traction and

to overheat and malfunction.

sideways engaging the 2nd gear.

may cause loss of vehicle control

A drastic downshift may cause

When you are driving down a long

resulting in an accident.

hill, slow down and shift to a lower

the engine speed to increase to

the point the tachometer will

gear. Engine braking will help slow

down the vehicle.

WARNING

enter the red-zone.

•

Do not downshift more than two

•

Slow down before shifting to a

Do not use aggressive engine

lower gear. This will help avoid

gears at a time or downshift the

braking (shifting from a higher

gear when the engine is running

over-revving the engine, which can

gear to a lower gear) on slip-

cause damage.

at high speed

(5,000 RPM or

pery roads. This could cause

higher). Such a downshifting

•

Slow down when you encounter

the tires to slip and may result

may damage the engine, clutch

cross winds. This gives you much

in an accident.

and the transmission.

better control of your vehicle.

•

Be sure the vehicle is completely

stopped before you shift into R

(Reverse) to prevent damage to

the transmission.

5-16

Rev matching

WARNING

(Continued)

The Rev Matching system automati-

•

In the event your vehicle

cally helps synchronize engine rpm

To reduce the risk of SERIOUS

leaves the roadway, do not

INJURY or DEATH:

steer sharply. Instead, slow

with the optimal speed of the gear

about to be engaged which reduces

•

ALWAYS wear your seat belt.

down before pulling back into

the impact of clutch connection and

In a collision, an unbelted

the travel lanes.

improves gear shift response.

occupant is significantly more

•

HYUNDAI recommends you

likely to be seriously injured

follow all posted speed limits.

or killed than a properly belt-

Information

ed occupant.

•

Fully depress the clutch pedal.

•

Avoid high speeds when cor-

Without the clutch pedal fully

nering or turning.

depressed, the system may not

•

Do not make quick steering

response correctly.

wheel movements, such as

•

The system does not operate when

sharp lane changes or fast,

backing up.

sharp turns.

•

Rev Matching controls the engine

•

The risk of rollover is greatly

speed up to the rev limit, but the

increased if you lose control

function cannot prevent over-

of your vehicle at highway

revving caused by shifting mistake.

speeds.

•

Loss of control often occurs if

two or more wheels drop off

the roadway and the driver

over steers to reenter the

roadway.

(Continued)

5-17

Driving your vehicle

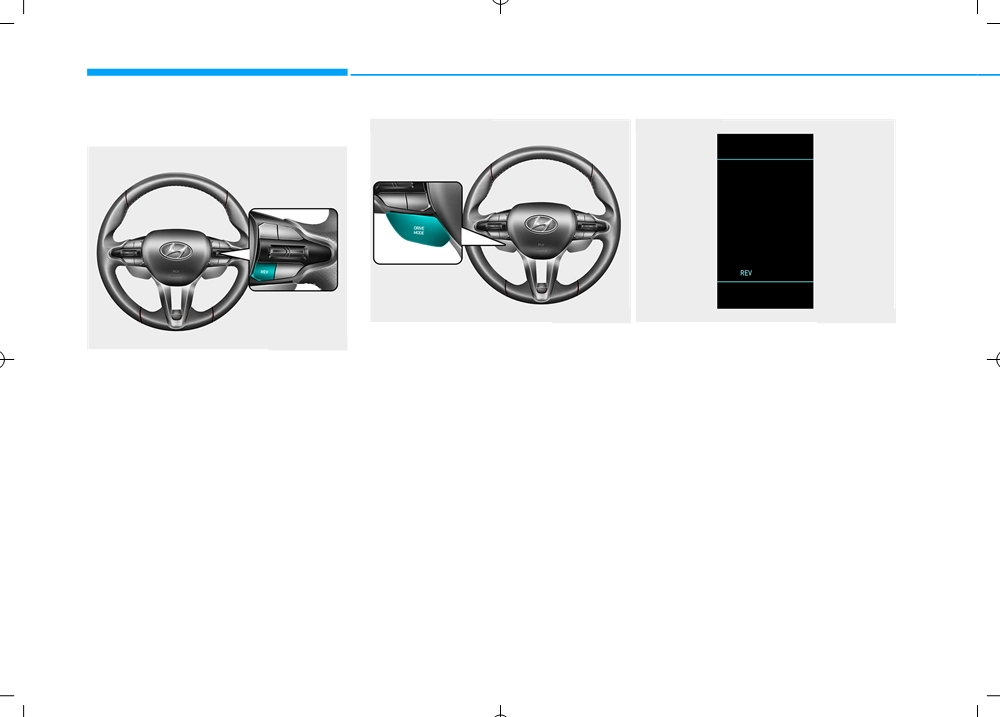

Rev Matching activation

■ DRIVE MODE button

■ REV indicator

OPDEN057494

OPDEN047447

OPDEN047435

2. Select Drive Mode.

1. Press REV button (ON/OFF)

DRIVE MODE button

Use Rev Matching in normal driving conditions in below modes.

• Press the REV button to turn on

the system. A message appears

• When ECO mode is selected:

"Rev Matching On" with a REV

- Rev Matching cannot be activated even if the driver presses the REV

indicator on the cluster LCD dis-

button.

play.

- REV indicator is off.

• Press the REV button again to turn

• When NORMAL mode is selected:

off the system. A message

- Rev Matching activates if Rev Matching is turned on by the REV button.

appears "Rev Matching Off" and

- White REV indicator illuminates.

the REV indicator disappears.

- Engine rpm response during gear shift is smooth.

• When SPORT mode is selected:

- Rev Matching activates if Rev Matching is turned on by the REV button.

- Yellow REV indicator illuminates.

- Engine rpm response is faster than NORMAL mode.

The system must be turned on by pressing the REV button whenever the

5-18

engine is turned on.

Hyundai i30 N (2018 year). Manual - part 15
