Hyundai i10 (2016 year). Manual - part 7

Features of your vehicle

Your vehicle is equipped with dual-diago-

Front fog light indicator

Shift pattern indicator

nal braking systems. This means you still

(if equipped)

have braking on two wheels even if one of

the dual systems should fail. With only one

of the dual systems working, more than

normal pedal travel and greater pedal

This indicator illuminates when the front

The indicator displays which automatic

pressure are required to stop the vehicle.

fog lights are ON.

transaxle shift lever is selected.

Also, the vehicle will not stop in as short a

distance with only a portion of the brake

Rear fog light indicator

system working. If the brakes fail while you

(If equipped)

are driving, shift to a lower gear for addi-

tional engine braking and stop the vehicle

as soon as it is safe to do so.

This indicator illuminates when the rear

To check bulb operation, check whether

fog lights are ON.

the parking brake and brake fluid warning

light illuminates when the ignition switch

is in the ON position.

WARNING

Driving the vehicle with a warning

light on is dangerous. If the brake

warning light remains on, we recom-

mend that the system be checked by

an authorized HYUNDAI dealer.

4 52

Features of your vehicle

Manual transaxle shift

Charging system warning

Tailgate/trunk open warn-

indicator (if equipped)

light

ing light

This indicator informs you which gear is

This warning light indicates a malfunction

This warning light illuminates when the

desired while driving to save fuel.

of either the generator or electrical

tailgate is not closed securely.

For example

charging system.

: Indicates that shifting up to the

If the warning light illuminates while the

Door ajar warning light

3rd gear is desired (currently

vehicle is in motion:

the shift lever is in the

2nd

1. Drive to the nearest safe location.

gear).

2. With the engine off, check the genera-

: Indicates that shifting down to

tor drive belt for looseness or break-

This warning light illuminates when a

the

3rd gear is desired (cur-

age.

door is not closed securely.

rently the shift lever is in the 4th

3. If the belt is adjusted properly, a prob-

gear).

lem exists somewhere in the electrical

charging system. We recommend that

✽ NOTICE

the system be checked by an author-

ized HYUNDAI dealer.

When the system is not working proper-

ly, up & down arrow indicator and gear

are not displayed.

4 53

Features of your vehicle

Immobilizer indicator

• If the indicator illuminates only for

Malfunction indicator light

(if equipped)

seconds and goes out when the

(MIL) (check engine light)

engine start/stop button is turned to

ON position with the smart key in the

vehicle, have the system checked by

Without smart key system

This indicator is part of the Engine

an authorized HYUNDAI dealer.

This indicator illuminates when the

Control System which monitors various

• When the battery is weak, if the engine

emission control system components. If

immobilizer key is inserted and turned to

start/stop button is pressed, the indica-

this indicator illuminates while driving, it

the ON position to start the engine. At

this time, you can start the engine. The

tor will blink and you are not able to

indicates that a potential malfunction has

light goes off after the engine runs. If this

start the engine. However, you are able

been detected somewhere in the emis-

light blinks when the ignition switch is in

to start the engine by inserting the

sion control system.

smart key in the smart key holder. Also,

the ON position before starting the

This indicator will also illuminates when

if the smart key system related parts

engine, we recommend that the system

the ignition switch is turned to the ON

be checked by an authorized HYUNDAI

have a problem, the indicator will blink.

position, and will go off in a few seconds

dealer.

after the engine is started. If it illuminates

while driving, or does not illuminate when

Low fuel level warning

the ignition switch is turned to the ON

With smart key system

light

position, we recommend that the system

If any of the following occurs in a vehicle

be checked by an authorized HYUNDAI

equipped with the smart key, the immobi-

dealer.

lizer indicator illuminates blinks or goes

Generally, your vehicle will continue to be

off.

This warning light indicates the fuel tank

drivable, we recommend that the system

• When the smart key is in the vehicle, if

is nearly empty. When it comes on, you

be checked by an authorized HYUNDAI

the engine start/stop button is in the

should add fuel as soon as possible.

dealer.

ACC or ON position, the indicator will

Driving with the fuel level warning light on

illuminate for approximately

30 sec-

or with the fuel level below “E” can cause

onds to indicate that you are able to

the engine to misfire and damage the

start the engine. However, when the

catalytic converter (if equipped).

smart key is not in the vehicle, if the

engine start/stop button is pressed, the

indicator will blink for a few seconds to

indicate that you are not be able to

start the engine.

4 54

Features of your vehicle

ESC (Electronic Stability

ESC OFF indicator

CAUTION

Control) indicator

(if equipped)

•

Prolonged driving with the

(if equipped)

Emission

Control

System

Malfunction Indicator Light illumi-

The ESC indicator will illuminate when

The ESC OFF indicator will illuminate

nated may cause damage to the

the ignition switch is turned ON, but

emission control systems which

when the ignition switch is turned ON,

should go off after approximately 3 sec-

could affect drivability and/or fuel

but should go off after approximately 3

onds. When the ESC is on, it monitors

economy.

seconds. To switch to ESC OFF mode,

the driving conditions. Under normal driv-

press the ESC OFF button. The ESC

•

If the Emission Control System

ing conditions, the ESC indicator will

OFF indicator will illuminate indicating

Malfunction Indicator Light illumi-

remain off. When a slippery or low trac-

the ESC is deactivated.

nates, potential catalytic convert-

tion condition is encountered, the ESC

er damage is possible which

will operate, and the ESC indicator will

could result in loss of engine

blink to indicate the ESC is operating.

power. We recommend that the

But, if the ESC system malfunctions the

system be inspected by an

indicator illuminates and stays on. We

authorized HYUNDAI dealer.

recommend that the system be checked

by an authorized HYUNDAI dealer.

4 55

Features of your vehicle

Key reminder warning chime

Electric power steering

KEY OUT indicator

KEY

(if equipped)

(EPS) system warning light

(if equipped)

OUT

If the driver’s door is opened while the

ignition key is left in the ignition switch

(ACC or LOCK position), the key

This indicator light illuminates after the

When the engine start/stop button is in

reminder warning chime will sound. This

ignition key is turned to the ON position

the ACC or ON position, if any door is

is to prevent you from locking your keys

and then it will go off when the engine

open, the system checks for the smart

in the vehicle. The chime sounds until the

starts.

key. If the smart key is not in the vehicle,

key is removed from the ignition switch or

This light also comes on when the EPS

the indicator will blink, and if all doors are

the driver’s door is closed.

closed, the chime will also sound for

has malfunctioned. If it comes on while

about 5 seconds. The indicator will go off

driving, we recommend that the system

while the vehicle is moving. Keep the

be inspected by an authorized HYUNDAI

smart key in the vehicle.

dealer.

4 56

Features of your vehicle

Overspeed warning

(if equipped)

120

km/h

Overspeed warning light

If you drive with the speed of 120 km/h or

more, the overspeed warning light will

blink. This is to prevent you from over-

speeding.

Overspeed warning chime (if equipped)

If you drive with the speed of 120km/h or

more, the overspeed warning chime will

sound for about 5 seconds. This is to pre-

vent you from overspeeding.

4 57

Features of your vehicle

HAZARD WARNING FLASHER

OBA043027L

The hazard warning flasher should be

used whenever you find it necessary to

stop the vehicle in a hazardous location.

When you must make such an emer-

gency stop, always pull off the road as far

as possible.

The hazard warning lights are turned on

by pushing in the hazard button. Both

turn signal lights will blink. The hazard

warning lights will operate even though

the key is not in the ignition switch.

To turn the hazard warning lights off,

push the button again.

4 58

Features of your vehicle

LIGHTING

Battery saver function (if equipped)

■ Type A

•

The purpose of this feature is to pre-

vent the battery from being dis-

charged. The system automatically

turns off the exterior lights when the

driver removes the ignition key and

ORB040046D

ORBC040047

opens the driver-side door.

■ Type B

•

With this feature, the parking lights will

turn off automatically if the driver parks

on the side of road at night.

If necessary, to keep the lights on

when the ignition key is removed, per-

form the following :

OBA043211IN

OBA043212IN

1) Open the driver-side door.

Lighting control

Parking light position (

)

2) Turn the parking lights OFF and ON

The light switch has a Headlight and a

When the light switch is in the parking

again using the light switch on the

Parking light position.

light position, the parking(position) light,

steering column.

To operate the lights, turn the knob at the

license and instrument panel lights will

end of the control lever to one of the fol-

turn ON.

lowing positions:

(1) OFF position

✽ NOTICE

(2) Parking light position

The ignition switch must be in the ON

(3) Headlight position

position to turn on the instrument panel

lights.

4 59

Features of your vehicle

■ Type A

ORBC040047

ORBC040049

ORBC040050

■ Type B

OBA043213IN

OBA043214IN

OBA043215IN

Headlight position (

)

High beam operation

Flashing headlights

When the light switch is in the headlight

To turn on the high beam headlights,

To flash the headlights, pull the lever

position, the headlight, parking(position)

push the lever away from you. Pull it back

towards you. It will return to the normal

light, license and instrument panel lights

for low beams.

(low beam) position when released. The

will turn ON.

The high beam indicator will light when

headlight switch does not need to be on

the headlight high beams are switched on.

to use this flashing feature.

✽ NOTICE

To prevent the battery from being dis-

charged, do not leave the lights on for a

The ignition switch must be in the ON

prolonged time whilst the engine is not

position to turn on the headlights.

running.

WARNING

Do not use high beam when there

are other vehicles. Using high beam

could obstruct the other driver's

vision.

4 60

Features of your vehicle

■ Type A

The lever will return to the OFF position

One-touch lane change function

when released or when the turn is com-

(if equipped)

pleted. If an indicator stays on and does

To activate an one-touch lane change

not flash or if it flashes abnormally, one of

function, move the turn signal lever

the turn signal bulbs may be burned out

slightly and then release it. The lane

and will require replacement.

change signals will blink 3 times.

✽ NOTICE

If an indicator flash is abnormally quick

or slow, a bulb may be burned out or have

ORBC040051

a poor electrical connection in the circuit.

■ Type B

OBA043217IN

Turn signals and lane change

signals

To signal a turn, push down on the lever

for a left turn or up for a right turn in posi-

tion (A). To signal a lane change, move

the turn signal lever slightly and hold it in

position (B).

4 61

Features of your vehicle

■ Type A

■ Type C

CAUTION

When in operation, the fog lights

consume large amounts of vehicle

electrical power. Only use the fog

lights when visibility is poor or

unnecessary battery and generator

drain could occur.

✽ NOTICE

■ Type B

■ Type D

The ignition switch must be in the ON

position to turn on the front fog light.

ORBC040052/ORB040052D/OTA040219R/ORBI041052

Front fog light (if equipped)

Fog lights are used to provide improved visibility and avoid accidents when visi-

bility is poor due to fog, rain or snow etc. The fog lights will turn on when fog light

switch (1) is turned to the ON position after the parking light is turned on.

To turn off the fog lights, turn the switch to the OFF position.

4 62

Features of your vehicle

■ Type A

■ Type C

✽ NOTICE

To turn on the rear fog light switch, the

ignition switch must be in the ON position.

■ Type B

■ Type D

ORBC040053/ORBC040052E/OTA040217R/OTA040218R

Rear fog light (if equipped)

The rear fog lights turn on when the rear fog light switch is turned on after the light

switch is in the parking light position or headlight position.

To turn off the rear fog lights, turn the switch to the OFF position.

4 63

Features of your vehicle

■ Left-hand drive

The higher the number of the switch

Daytime running light

position, the lower the headlight beam

(if equipped)

level. Always keep the headlight beam at

Daytime Running Lights (DRL) can make

the proper leveling position, or headlights

it easier for others to see the front of your

may dazzle other road users.

vehicle during the day. DRL can be help-

Listed below are the examples of proper

ful in many different driving conditions,

switch settings. For loading conditions

and it is especially helpful after dawn and

other than those listed below, adjust the

before sunset.

switch position so that the beam level

The DRL system will turn off the dedicat-

may be the nearest as the condition

ed lamp when:

obtained according to the list.

OBA043008L

•

The headlight (low beam) switch is ON.

■ Right-hand drive

Loading condition

Switch position

•

The engine is OFF

Driver only

•

The front fog light is ON.

Driver + Front passenger

Full passengers

Full passengers +

Maximum permissible

Driver + Maximum permis-

sible loading

OBA043008

Headlight leveling device

(if equipped)

To adjust the headlight beam level

according to the number of passengers

and loading weight in the luggage area,

turn the beam leveling switch.

4 64

Features of your vehicle

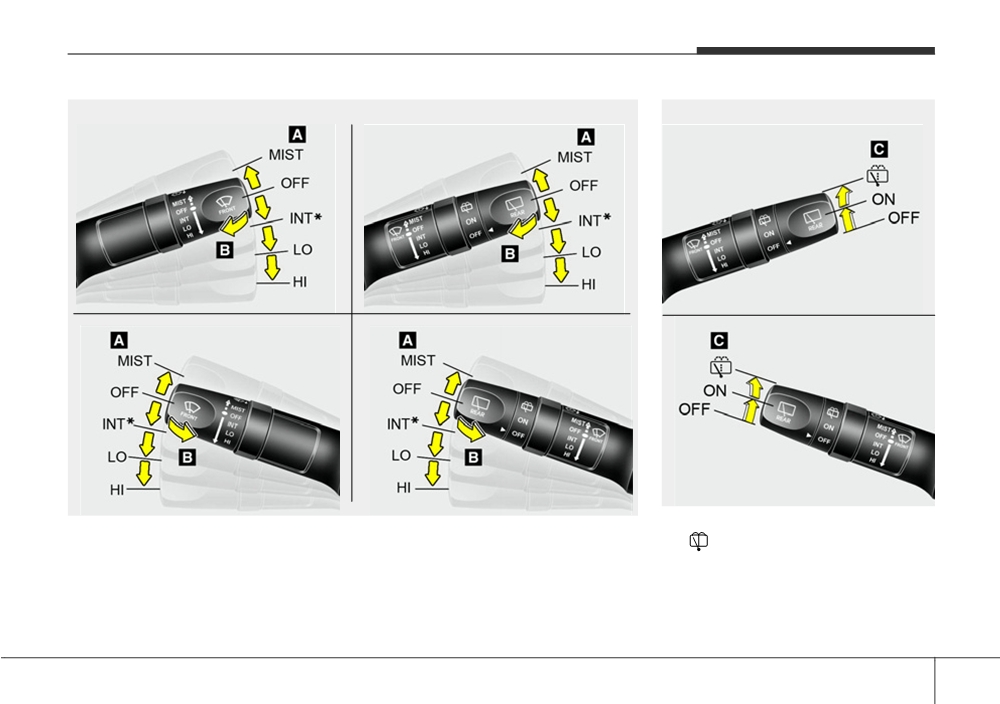

WIPERS AND WASHERS

■ Front

■ Rear

- Type A

- Type C

- Type B

- Type D

- Type B

OBA043236/OBA043237

OBA043232/OBA043234/OBA043233/OBA043235

C : Rear wiper/washer control

A : Wiper speed control

B : Wash with brief wipes (front)

- Wash with brief wipes

· MIST - Single wipe

· ON - Continuous wipe

· OFF - Off

* : if equipped

· INT - Intermittent wipe*

· OFF - Off

· LO - Low wiper speed

· HI - High wiper speed

4 65

Features of your vehicle

Windshield wipers

■ Type A

■ Type C

Operates as follows when the ignition

switch is turned ON.

MIST : For a single wiping cycle, push

the lever upward and release it.

The wipers will operate continu-

ously if the lever is pushed

upward and held.

OFF : Wiper is not in operation

INT : Wiper operates intermittently at the

■ Type B

■ Type D

same wiping intervals. Use this

mode in a light rain or mist. To vary

the speed setting, turn the speed

control knob. (if equipped)

LO : Normal wiper speed

HI : Fast wiper speed

✽ NOTICE

If there is heavy accumulation of snow

OBA043238/OBA043239/OBA043240/OBA043242

or ice on the windshield, defrost the

windshield for about

10 minutes, or

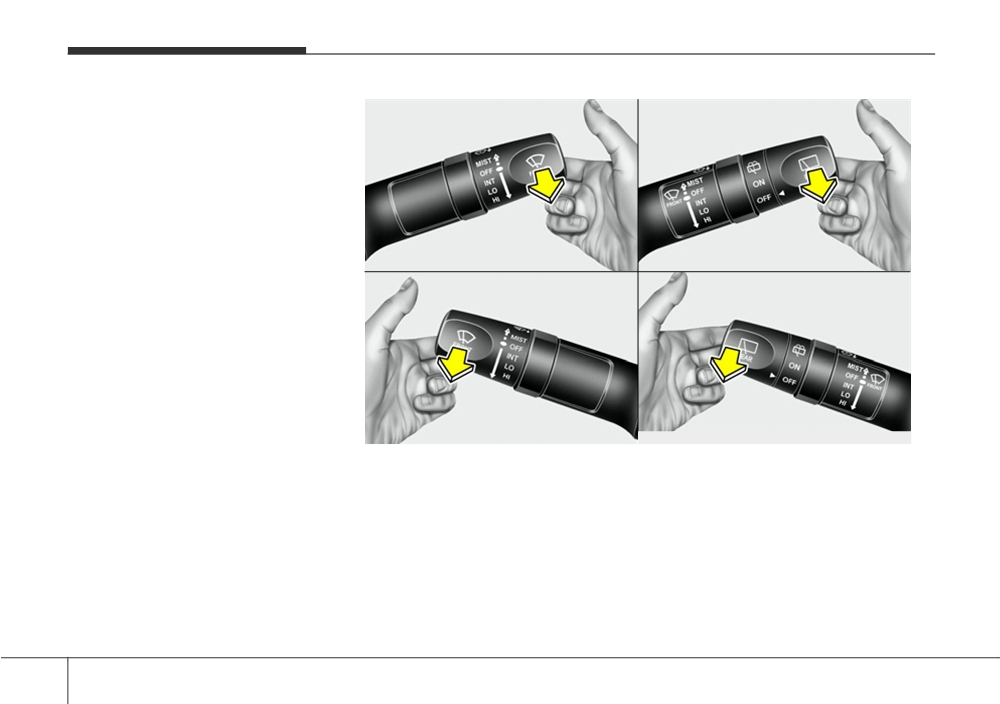

Windshield washers

until the snow and/or ice is removed

In the OFF position, pull the lever gently toward you to spray washer fluid on the

before using the windshield wipers to

windshield and to run the wipers 1-3 cycles.

ensure proper operation.

Use this function when the windshield is dirty.

The spray and wiper operation will continue until you release the lever.

If the washer does not work, check the washer fluid level. If the fluid level is not

sufficient, you will need to add appropriate non-abrasive windshield washer fluid

to the washer reservoir.

4 66

Features of your vehicle

■ Type A

■ Type B

CAUTION

To prevent possible damage to the

washer pump, do not operate the

washer when the fluid reservoir is

empty.

WARNING

Do not use the washer in freezing

temperatures without first warming

the windshield with the defrosters;

OBA043241

OBA043243

the washer solution could freeze on

contact with the windshield and

Rear window wiper and washer switch (if equipped)

obscure your vision.

The rear window wiper and washer switch is located at the end of the wiper and

washer switch lever. Turn the switch to the desired position to operate the rear wiper

and washer.

CAUTION

• To prevent possible damage to

- Spraying washer fluid and wiping

the wipers or windshield, do not

operate the wipers when the

ON - Normal wiper operation

windshield is dry.

OFF - Wiper is not in operation

• To prevent damage to the wiper

blades, do not use petrol,

kerosene, paint thinner, or other

solvents on or near them.

• To prevent damage to the wiper

arms and other components, do

not attempt to move the wipers

manually.

4 67

Features of your vehicle

INTERIOR LIGHT

• DOOR (2)

CAUTION

The light comes on when any door is

Do not use the interior lights for

opened regardless of the ignition switch

extended periods when engine is

position.

not running.

When doors are unlocked by the trans-

It may cause battery discharge.

mitter, the light comes on for approxi-

mately 30 seconds as long as any door is

not opened. The light goes out gradually

after approximately

30 seconds if the

door is closed. However, if the ignition

switch is ON or all doors are locked, the

light will go out immediately.

OTD049086

If a door is opened with the ignition

Room lamp

switch in the ACC or LOCK position, the

light stays on for about

20 minutes.

• ON (1)

However, if a door is opened with the

The light stays on at all times.

ignition switch in the ON position, the

light stays on continuously.

CAUTION

Do not leave the switch in this posi-

• OFF (3)

tion for an extended period of time

The light stays off at all times even when

when the engine is not running.

a door is opened.

4 68

Content .. 5 6 7 8 ..
