Hyundai Sonata Turbo (2011 year). Manual - part 9
Features of your vehicle
Cruise SET indicator
Key reminder warning chime
Warning on the LCD screen
SET
Without smart key
(if equipped)
If the driver’s door is opened while the
ignition key is left in the ignition switch
The indicator light illuminates when the
(ACC or LOCK position), the key
cruise function switch (SET- or RES+) is
reminder warning chime will sound. This
ON.
helps prevent you from locking your keys
The cruise SET indicator light in the
in the vehicle. The chime sounds until the
key is removed from the ignition switch or
instrument cluster is illuminated when
the driver’s door is closed.
the cruise control switch (SET- or RES+)
is pushed. The cruise SET indicator light
does not illuminate when the cruise con-
With smart key
trol switch (CANCEL) is pushed or the
If the driver’s door is opened while the
system is disengaged.
smart key is in the vehicle with the
engine start/stop button in ACC or the
OYF049062N
Electronic power steering
smart key is in the smart key holder with
Key is not in vehicle
(EPS) system warning light
EPS
the engine start/stop button in OFF, the
key reminder warning chime will sound.
If the smart key is not in the vehicle and
if any door is opened or closed with the
The chime sounds until the smart key is
This indicator light comes on after the
engine start/stop button in ACC, ON, or
removed from the smart key holder or the
ignition key is turned to the ON position
START, the warning illuminates on the
and then it will go out.
driver’s door is closed.
LCD screen. The chime also sounds for 5
This light also comes on when the EPS
seconds when the smart key is not in the
needs repairs. If it comes on while driv-
vehicle and any door is closed.
ing, have your vehicle inspected by an
Turn the ignition switch off or get hold of
authorized HYUNDAI dealer.
the smart key.
4 63
Features of your vehicle
OYF049063N
OYF049064N
OYF049065N

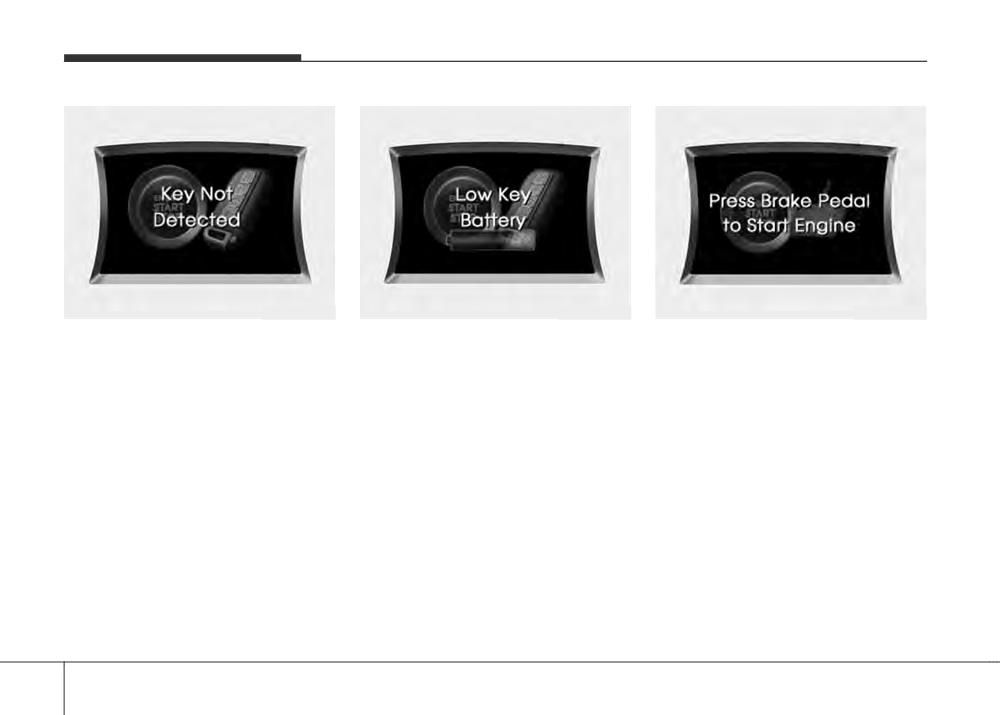

Key is not detected
Low key battery
Press brake pedal to start engine
If the smart key is not in the vehicle or is
When the smart key in the vehicle dis-
If the engine start/stop button turns to the
not detected and you push the engine
charges, the warning illuminates on the
ACC position twice by pushing the
start/stop button, the warning illuminates
LCD screen for 10 seconds.
engine start/stop button repeatedly with-
on the LCD screen for 10 seconds.
Replace the battery with a new one. If it
out pressing the brake pedal, the warn-
is not possible, you can start the engine
ing illuminates on the LCD screen for 10
by inserting the smart key into the smart
seconds to indicate that you should
key holder and pushing the engine
press the brake pedal to start the engine.
start/stop button.
4 64
Features of your vehicle
OYF049066N
OYF049067N
OYF049068N

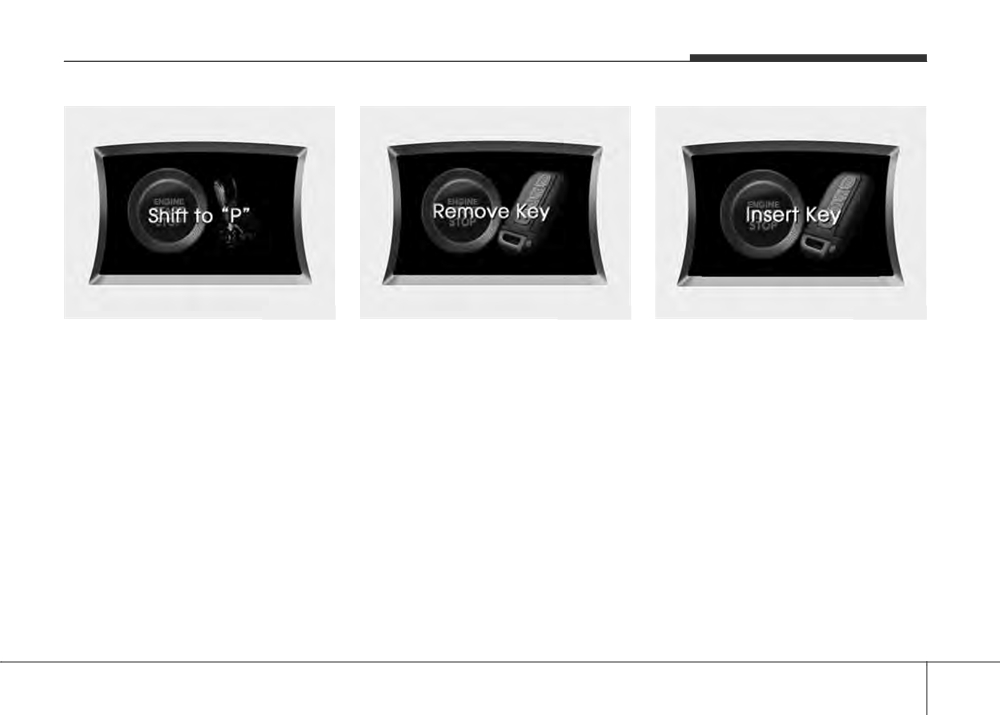

Shift to "P"
Remove key
Insert key
If you push the engine start/stop button
When you turn off the engine with the
If you push the engine start/stop button
with the engine start/stop button ON and
smart key in the smart key holder, the
while the "Key is not detected" illumi-
the shift lever not in P(Park), the warning
warning illuminates on the LCD screen
nates on the LCD screen, the warning
illuminates on the LCD screen for 10 sec-
for 10 seconds.
illuminates for 10 seconds.
onds to indicate that you should press
Push the smart key inward and pull it out
the engine start/stop button with the shift
from the smart key holder.
lever in P(Park) to turn off the engine.
4 65
Features of your vehicle
OYF049069N
OYF049070N
OYF049073N

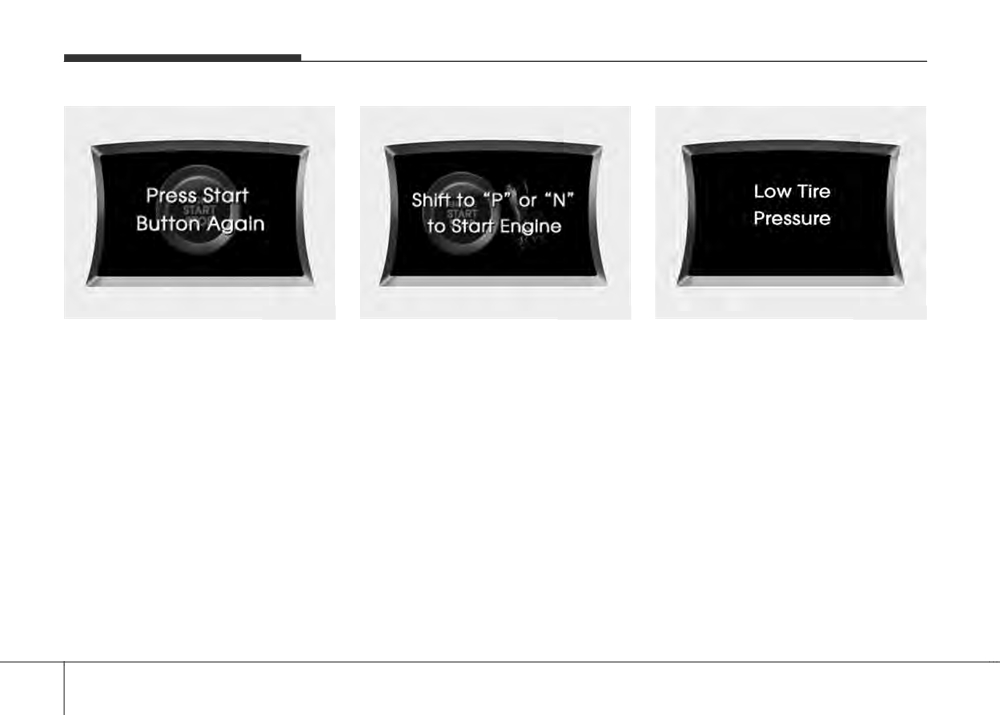

Press start button again
Shift to "P" or "N" to start engine
Low tire pressure
If there is a problem with the engine
If you try to start the engine with the shift
When one or more of your tires is signifi-
start/stop button system, the warning illu-
lever not in P(Park) or N(Neutral), the
cantly underinflated, the warning light
minates for 10 seconds to indicate that
warning illuminates for 10 seconds on
comes on.
you could start the engine by pressing
the LCD screen.
the engine start/stop button while press-
You can also start the engine with the
ing the brake pedal.
shift lever in N(Neutral), but for your safe-
If the warning illuminates each time you
ty start the engine with the shift lever in
push the engine start/stop button, take
P(Park).
your vehicle to an authorized HYUNDAI
dealer and have the system checked.
4 66
Features of your vehicle
REAR VIEW CAMERA (IF EQUIPPED)
WARNING
• This system is a supplementary
function only. It is the responsi-
bility of the driver to always
check the inside/outside rearview
mirror and the area behind the
vehicle before and while backing
up.
• Always keep the camera lens
clean. If the lens is covered with
OYF049081
foreign matter, the camera may
OYF049075N
not operate normally.
Low washer fluid
This warning light indicates the washer
✽ NOTICE
fluid reservoir is near empty. Refill the
The rearview camera may not operate
washer fluid as soon as possible.
normally, in extremely high or low
temperatures (operating temperature :
-13°F~149°F (-20°C~65°C)).
OYF049082N
The rearview camera will activate when
the back-up light is ON with the ignition
switch ON and the shift lever in the R
position.
This system is a supplemental system
that shows behind the vehicle through
the monitor while backing-up.
4 67
Features of your vehicle
HAZARD WARNING FLASHER
LIGHTING
Battery saver function
Headlamp delay (if equipped)
•
The purpose of this feature is to pre-
If you turn the ignition switch to the ACC
vent the battery from being dis-
or OFF position with the headlights ON,
charged. The system automatically
the headlights (and/or tail lights) remain
turns off the parking lights when the
on for about 20 minutes. However, if the
driver removes the ignition key (smart
driver’s door is opened and closed, the
key : turns off the engine) and opens
headlights are turned off after 30 sec-
the driver-side door.
onds.
•
With this feature, the parking lights will
The headlights can be turned off by
be turned off automatically if the driver
pressing the lock button on the transmit-
parks on the side of road at night.
ter
(or smart key) twice or turning the
If necessary, to keep the lights on
light switch to the OFF or Auto position.
OYF049084N
when the ignition key is removed
However, if you turn the light switch to the
The hazard warning flasher should be
(smart key : turns off the engine), per-
Auto position when it is dark outside, the
used whenever you find it necessary to
form the following:
headlights will not be turned off.
stop the car in a hazardous location.
1) Open the driver-side door.
When you must make such an emer-
2) Turn the parking lights OFF and ON
CAUTION
gency stop, always pull off the road as far
again using the light switch on the
as possible.
steering column.
If the driver gets out of the vehicle
through other doors
(except dri-
The hazard warning lights are turned on
ver's door), the battery saver func-
by pushing in the hazard switch. This
tion does not operate and the head-
causes all turn signal lights to blink. The
lamp delay does not turn off auto-
hazard warning lights will operate even
matically. Therefore, it causes the
though the key is not in the ignition
battery to be discharged. In this
switch.
case, make sure to turn off the lamp
To turn the hazard warning lights off,
before getting out of the vehicle.
push the switch a second time.
4 68
Features of your vehicle
Headlamp welcome function
When the headlight switch is in the ON or
AUTO position and all doors (and trunk)
are closed and locked, if you press the
door unlock button on the transmitter (or
the smart key), the headlights will come
on for about 15 seconds. At this time, if
you press the door lock button on the
transmitter (or smart key) the headlights
will turn off immediately.
OXM049110
OAM049041
Daytime running light
(if equipped)

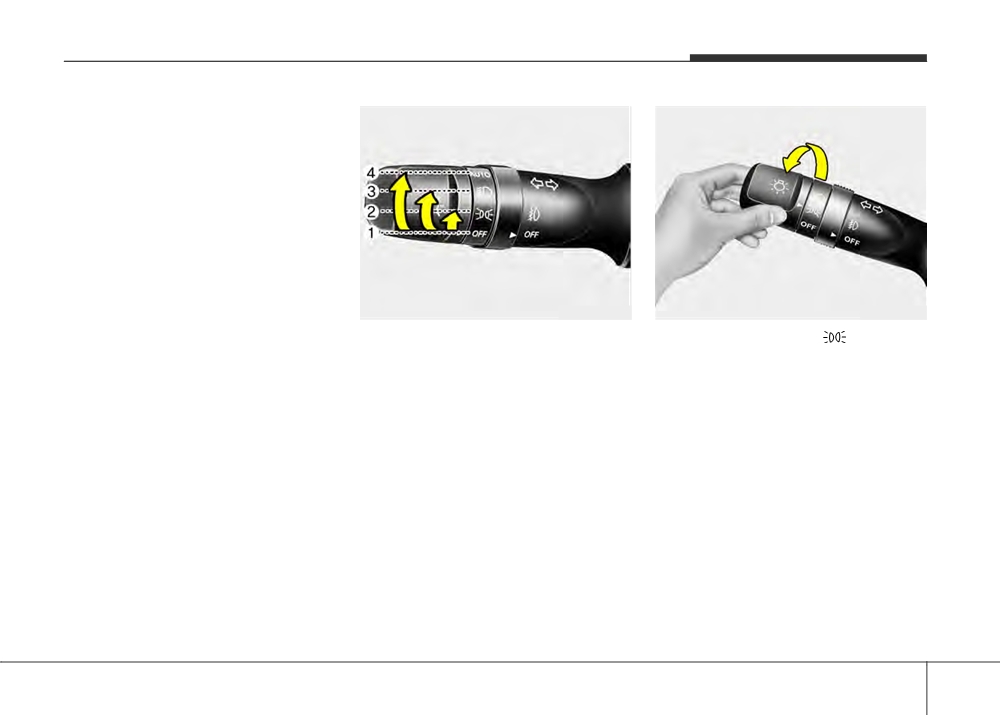

Lighting control
Parking light position (
)
Daytime Running Lights (DRL) can make
The light switch has a Headlight and a
When the light switch is in the parking
it easier for others to see the front of your
Parking light position.
light position, the tail, position and
vehicle during the day. DRL can be help-
To operate the lights, turn the knob at the
license lights are ON and the tail light
ful in many different driving conditions,
end of the control lever to one of the fol-
indicator is ON (if equipped).
and it is especially helpful after dawn and
lowing positions:
before sunset.
(1) OFF position
The DRL system will make the head-
(2) Parking light position
lights turn OFF when:
(3) Headlight position
1. The headlight is ON.
(4) Auto light position (if equipped)
2. Engine stops.
4 69
Features of your vehicle
CAUTION
•
Never place anything over sensor
(1) located on the instrument
panel. This will ensure better
auto-light system control.
•
Don’t clean the sensor using a
window cleaner. The cleaner may
leave a light film which could
interfere with sensor operation.
•
If your vehicle has window tint or
other types of metallic coating on
OAM049042
OYF049208
the front windshield, the Auto
Auto light position (if equipped)
light system may not work prop-
Headlight position (
)
erly.
When the light switch is in the AUTO light
When the light switch is in the headlight
position the head, tail, license and instru-
position, the taillights and headlights will
ment panel lights are ON.
be turned ON or OFF automatically
depending on the amount of light outside
the vehicle.
✽ NOTICE
The ignition switch must be in the ON
position to turn on the headlights.
4 70
Features of your vehicle
OAM049044
OAM049043
OAM049045

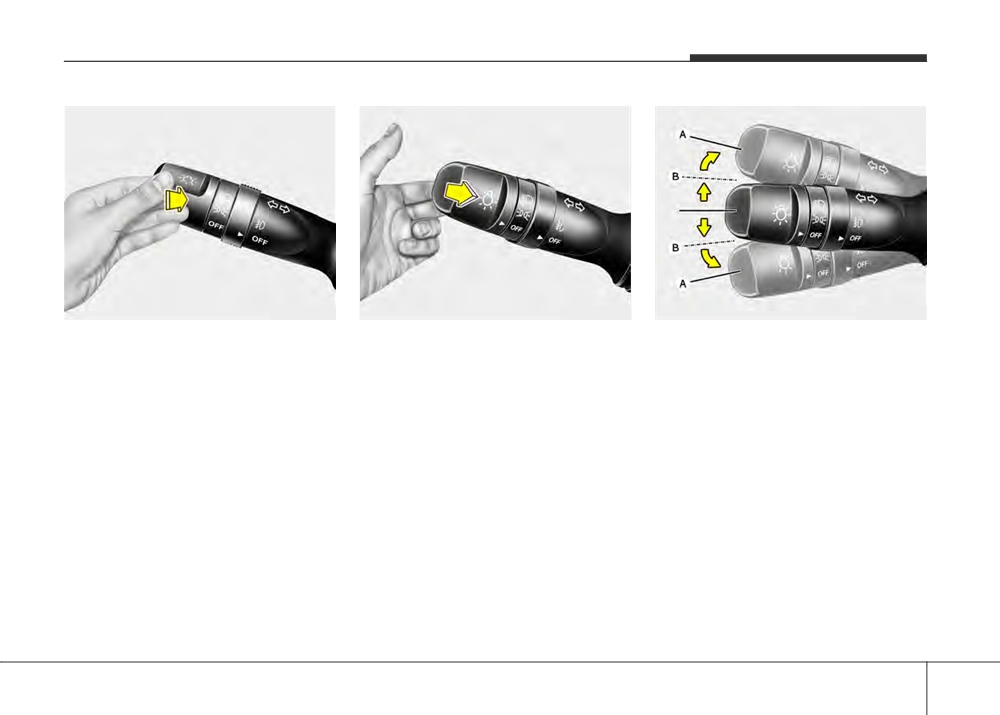

High beam operation
To flash the headlights, pull the lever
Turn signals and lane change sig-
towards you. It will return to the normal
nals
To turn on the high beam headlights,
(low beam) position when released. The
push the lever away from you. Pull it back
The ignition switch must be on for the
headlight switch does not need to be on
for low beams.
turn signals to function. To turn on the
to use this flashing feature.
The high beam indicator will light when
turn signals, move the lever up or down
the headlight high beams are switched
(A). Green arrow indicators on the instru-
on.
ment panel indicate which turn signal is
To prevent the battery from being dis-
operating. They will self-cancel after a
turn is completed. If the indicator contin-
charged, do not leave the lights on for a
prolonged time while the engine is not
ues to flash after a turn, manually return
running.
the lever to the OFF position.
4 71
Features of your vehicle
To signal a lane change, move the turn
signal lever slightly and hold it in position
CAUTION
(B). The lever will return to the OFF posi-
When in operation, the fog lights
tion when released.
consume large amounts of vehicle
If an indicator stays on and does not
electrical power. Only use the fog
flash or if it flashes abnormally, one of the
lights when visibility is poor or
turn signal bulbs may be burned out and
unnecessary battery and generator
will require replacement.
drain could occur.
One-touch triple turn signal
To activate an one-touch triple turn signal
move the turn signal lever up or down
OAM049046
slightly and then release it. The lane
change signals will blink 3 times.
Front fog light (if equipped)
Fog lights are used to provide improved
✽ NOTICE
visibility when visibility is poor due to fog,
If an indicator flash is abnormally quick
rain or snow etc. The fog lights will turn
or slow, a bulb may be burned out or
on when fog light switch (1) is turned to
have a poor electrical connection in the
ON after the headlights are turned on.
circuit.
To turn off the fog lights, turn the switch
to OFF.
4 72
Features of your vehicle
WIPERS AND WASHERS
✽ NOTICE
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about
10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.
CAUTION
When starting the vehicle in winter,
set the wiper switch in the OFF
position. Otherwise, wipers may
OYF049100
OYF049102
operate and ice may damage the
A : Wiper speed control
Windshield wipers
windshield wiper blades. Always
· MIST - Single wipe
Operates as follows when the ignition
remove all snow and ice and defrost
· OFF - Off
switch is turned ON.
the windshield properly prior to
· INT - Intermittent wipe
MIST : For a single wiping cycle, push
operating the windshield wipers.
· LO - Low wiper speed
the lever upward and release it
· HI - High wiper speed
with the lever in the OFF position.
The wipers will operate continu-
B : Intermittent or Auto control wipe
ously if the lever is pushed
time adjustment
upward and held.
OFF : Wiper is not in operation
C : Wash with brief wipes
INT : Wiper operates intermittently at
the same wiping intervals. Use this
mode in a light rain or mist. To vary
the speed setting, turn the speed
control knob(1).
LO
: Normal wiper speed
HI
: Fast wiper speed
4 73
Features of your vehicle
CAUTION
CAUTION
To prevent possible damage to the
•
To prevent possible damage to
washer pump, do not operate the
the wipers or windshield, do not
washer when the fluid reservoir is
operate the wipers when the
empty.
windshield is dry.
•
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
WARNING
solvents on or near them.
Do not use the washer in freezing
•
To prevent damage to the wiper
temperatures without first warming
arms and other components, do
OYF049101
the windshield with the defrosters;
not attempt to move the wipers
the washer solution could freeze on
manually.
Windshield washers
contact with the windshield and
In the OFF position, pull the lever gently
obscure your vision.
toward you to spray washer fluid on the
windshield and to run the wipers
1-3
cycles.
Use this function when the windshield is
dirty.
The spray and wiper operation will con-
tinue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropri-
ate non-abrasive windshield washer fluid
to the washer reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
passenger side.
4 74
Features of your vehicle
INTERIOR LIGHT
When doors are unlocked by
CAUTION
the transmitter (or smart key),
Do not use the interior lights for
the map lamp and the room
extended periods when the engine
lamp come on for approximate-
is not running.
ly
30 seconds as long as any
It may cause battery discharge.
door is not open. The map lamp
and the room lamp goes out
gradually after approximately 30
seconds if the door is closed.
Automatic turn off function (if
However, if the ignition switch is
equipped)
ON or all doors are locked, the
The interior lights automatically turn off
map lamp and the room lamp
approximately 20 minutes after the igni-
OYF049104K
will turn off immediately. If a
tion switch is turned off.
door is opened with the ignition
If your vehicle is equipped with the theft
Map lamp
switch in the ACC or LOCK
alarm system, the interior lights automat-
Push the lens to turn the map lamp on or
position, the map lamp and the
ically turns off approximately 5 seconds
off. This light produces a spot beam for
room lamp stay on for about 20
after the system is armed stage.
convenient use as a map lamp at night or
minutes. However, if a door is
as a personal lamp for the driver and the
opened with the ignition switch
front passenger.
in the ON position, the map
• DOOR : In the DOOR position, the map
lamp and the room lamp stay on
lamp and the room lamp come
continuously.
on when any door is opened
• ON : The light stays on at all times.
regardless of the ignition
• OFF : The lights turn off even if a door
switch position.
is opened.
❈ When the lamp is turned ON
by pressing the lens (1) the
lamp does not turn off even if
the switch (2) is in the OFF
position.
4 75
Features of your vehicle
OYF049105
OYF049108
OYF049107
Trunk lamp
Glove box lamp
The trunk room lamp comes on when the
When the ignition key is in the ignition
trunk is opened.
switch, the smart key is in the smart key
holder or the engine start/stop button is
in the ACC position, if the glove box is
CAUTION
opened, the glove box lamp will come on.
The trunk lamp comes on as long
as the trunk lid is open. To prevent
CAUTION
unnecessary charging system
OYF049216
To prevent unnecessary charging
drain, close the trunk lid securely
system drain, close the glove box
Room lamp
after using the trunk.
securely after using the glove box.
To turn the room lamp ON or OFF, push
the switch or lens.
CAUTION
Do not leave the lamp switches on
for an extended period of time when
the vehicle is not running.
4 76
Features of your vehicle
OYF049209
Vanity mirror lamp
Pull the sunvisor downward and you can
turn the vanity mirror lamp ON or OFF by
pushing the button.
•
: To turn the lamp ON.
• O : To turn the lamp OFF.
CAUTION
To prevent unnecessary charging
system drain, turn off the lamp by
pushing the O button after using
the lamp.
4 77
Features of your vehicle
DEFROSTER
The indicator on the rear window
CAUTION
defroster button illuminates when the
To prevent damage to the conduc-
defroster is ON.
tors bonded to the inside surface of
If there is heavy accumulation of snow on
the rear window, never use sharp
the rear window, brush it off before oper-
instruments or window cleaners
ating the rear defroster.
containing abrasives to clean the
The rear window defroster automatically
window.
turns off after approximately 20 minutes
or when the ignition switch is turned off.
To turn off the defroster, press the rear
✽ NOTICE
window defroster button again.
OYF049110
If you want to defrost and defog the
front windshield, refer to “Windshield
Outside rearview mirror defroster
defrosting and defogging” in this sec-
(if equipped)
tion.
If your vehicle is equipped with the out-
side rearview mirror defrosters, they will
operate at the same time you turn on the
rear window defroster.
OYF049155
Rear window defroster
The defroster heats the window to
remove frost, fog and thin ice from the
rear window, while the engine is running.
To activate the rear window defroster,
press the rear window defroster button
located in the center facia switch panel.
4 78
Features of your vehicle

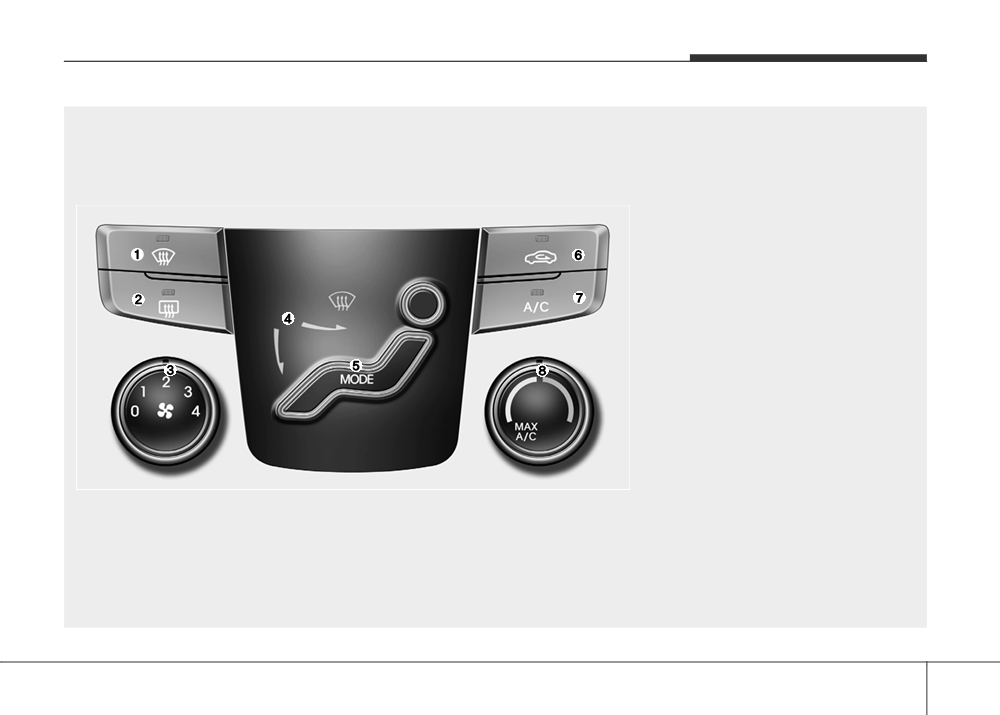

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Front windshield defrost button
2. Rear window defroster button
3. Fan speed control knob
4. Mode indicator
5. Mode selection button
6. Air intake control button
7. Air conditioning button
8. Temperature control knob
OYF049111
4 79
