Hyundai Sonata Turbo (2011 year). Manual - part 5
Safety features of your vehicle
Although the front air bags (driver’s and
front passenger’s air bags) are designed
to inflate only in frontal collisions, they
also may inflate in other types of colli-
sions if the front impact sensors detect a
sufficient impact. Side impact and curtain
air bags are designed to inflate only in
side impact collisions, but they may
inflate in other collisions if the side
impact sensors detect a sufficient
1JBA3514
impact.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
1JBA3515
the air bags may deploy. Drive carefully
Air bag non-inflation conditions
on unimproved roads or on surfaces not
• In certain low-speed collisions the air
designed for vehicle traffic to prevent
bags may not deploy. The air bags are
unintended air bag deployment.
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts
1LDA2057
in such collisions.
Side impact and curtain air bags
Side impact and curtain air bags are
designed to inflate when an impact is
detected by side collision sensors
depending on the strength, speed or
angles of impact resulting from a side
impact collision.
3 58
Safety features of your vehicle
OBH038058
1JBA3516
OBH038060
• Air bags are not designed to inflate in
• Front air bags may not inflate in side
• In an angled collision, the force of
rear collisions, because occupants are
impact collisions, because occupants
impact may direct the occupants in a
moved backward by the force of the
move to the direction of the collision,
direction where the air bags would not
impact. In this case, inflated air bags
and thus in side impacts, frontal air bag
be able to provide any additional bene-
would not be able to provide any addi-
deployment would not provide addi-
fit, and thus the sensors may not
tional benefit.
tional occupant protection.
deploy any air bags.
However, side impact and curtain air
bags may inflate depending on the
intensity, vehicle speed and angles of
impact.
3 59
Safety features of your vehicle
1JBA3517
1JBA3522
1JBA3518
• Just before impact, drivers often brake
• Front air bags may not inflate in
• Air bags may not inflate if the vehicle
heavily. Such heavy braking lowers the
rollover accidents because air bag
collides with objects such as utility
front portion of the vehicle causing it to
deployment would not provide protec-
poles or trees, where the point of
“ride” under a vehicle with a higher
tion to the occupants.
impact is concentrated to one area and
ground clearance. Air bags may not
Side impact and curtain air bags may
the full force of the impact is not deliv-
inflate in this "under-ride" situation
inflate when the vehicle is rolled over
ered to the sensors.
because deceleration forces that are
by a side impact collision.
detected by sensors may be signifi-
cantly reduced by such “under-ride”
collisions.
3 60
Safety features of your vehicle
SRS Care
(Continued)
WARNING
The SRS is virtually maintenance-free
•
If the air bags inflate, they must
and so there are no parts you can safely
•
Modification to SRS components
be replaced by an authorized
service by yourself. If the SRS air bag
or wiring, including the addition
HYUNDAI dealer.
warning light " " does not illuminate,
of any kind of badges to the pad
•
Do not tamper with or disconnect
when you turn the ignition on, or continu-
covers or modifications to the
body structure, can adversely
SRS wiring, or other components
ously remains on, have your vehicle
of the SRS system. Doing so
immediately inspected by an authorized
affect SRS performance and lead
to possible injury.
could result in injury, due to acci-
HYUNDAI dealer.
dental inflation of the air bags or
•
Not only the modification of the
by rendering the SRS inopera-
parts where the SRS sensors are
Any work on the SRS system, such as
tive.
but also the modification of other
removing, installing, repairing, or any
parts of the vehicle may affect the
•
If components of the air bag sys-
work on the steering wheel, the front
SRS performance and lead to
tem must be discarded, or if the
passenger's panel, front seats and roof
possible injury.
vehicle must be scrapped, certain
rails must be performed by an authorized
safety precautions must be
•
For cleaning the air bag pad cov-
HYUNDAI dealer. Improper handling of
observed.
An authorized
ers, use only a soft, dry cloth or
the SRS system may result in serious
one which has been moistened
HYUNDAI dealer knows these
personal injury.
with plain water. Solvents or
precautions and can give you the
cleaners could adversely affect
necessary information. Failure to
the air bag covers and proper
follow these precautions and pro-
deployment of the system.
cedures could increase the risk
•
No objects should be placed over
of personal injury.
or near the air bag modules on the
•
If your car was flooded and has
steering wheel, instrument panel,
soaked carpeting or water on the
and the front passenger's panel
flooring, you shouldn't try to start
above the glove box, because any
the engine; have the car towed to
such object could cause harm if the
an authorized HYUNDAI dealer.
vehicle is in a crash severe enough
to cause the air bags to inflate.
(Continued)
3 61
Safety features of your vehicle
Additional safety precautions
•
Keep occupants away from the air
•
Never let passengers ride in the
bag covers. All occupants should sit
WARNING
cargo area or on top of a folded-
upright, fully back in their seats with
•
Sitting improperly or out of posi-
down back seat. All occupants should
their seat belts on and their feet on the
tion can cause occupants to be
floor. If occupants are too close to the
sit upright, fully back in their seats with
shifted too close to a deploying
their seat belts on and their feet on the
air bag covers, they could be injured if
air bag, strike the interior struc-
floor.
the air bags inflate.
ture or be thrown from the vehicle
•
Passengers should not move out of
•
Do not attach or place objects on or
resulting in serious injury or
or change seats while the vehicle is
near the air bag covers. Any object
death.
moving. A passenger who is not wear-
attached to or placed on the front or
•
Always sit upright with the seat-
ing a seat belt during a crash or emer-
side air bag covers could interfere with
back in an upright position, cen-
the proper operation of the air bags.
gency stop can be thrown against the
tered on the seat cushion with
inside of the vehicle, against other
•
Do not modify the front seats.
your seat belt on, legs comfort-
occupants, or out of the vehicle.
Modification of the front seats could
ably extended and your feet on
•
Each seat belt is designed to
interfere with the operation of the sup-
the floor.
restrain one occupant. If more than
plemental restraint system sensing
•
Be careful not to cause impact to
one person uses the same seat belt,
components or side air bags.
the doors when the ignition is
they could be seriously injured or killed
•
Do not place items under the front
ON. The air bags may inflate.
in a collision.
seats. Placing items under the front
•
Do not use any accessories on seat
seats could interfere with the operation
of the supplemental restraint system
belts. Devices claiming to improve
Adding equipment to or modifying
occupant comfort or reposition the seat
sensing components and wiring har-
your air bag-equipped vehicle
belt can reduce the protection provided
nesses.
If you modify your vehicle by changing
by the seat belt and increase the
•
Never hold an infant or child on your
your vehicle's frame, bumper system,
chance of serious injury in a crash.
lap. The infant or child could be seri-
front end or side sheet metal or ride
•
Passengers should not place hard
ously injured or killed in the event of a
height, this may affect the operation of
or sharp objects between them-
crash. All infants and children should
your vehicle's air bag system.
selves and the air bags. Carrying
be properly restrained in appropriate
hard or sharp objects on your lap or in
child safety seats or seat belts in the
your mouth can result in injuries if an
rear seat.
air bag inflates.
3 62
Safety features of your vehicle
OYF039045
*
OYF039046
Air bag warning label (if equipped)
Air bag warning labels, some required by
the U.S. National Highway Traffic Safety
Administration (NHTSA), are attached to
alert the driver and passengers of poten-
tial risks of the air bag system.
3 63
Keys / 4-3
Smart key / 4-6
Remote keyless entry / 4-12
Theft-alarm system / 4-14
Door locks / 4-18
Trunk / 4-22
Windows / 4-24
Hood / 4-28
Features of your vehicle
4
Fuel filler lid / 4-29
Sunroof / 4-32
Steering wheel / 4-35
Mirrors / 4-37
Instrument cluster / 4-46
Rear view camera / 4-67
Hazard warning flasher / 4-68
Lighting / 4-68
Wipers and washers / 4-73
Interior light / 4-75
Defroster / 4-78
Manual climate control system / 4-79
Automatic climate control system / 4-88
Windshield defrosting and defogging / 4-95
Storage compartments / 4-98
Interior features / 4-100
Audio system / 4-105
4
Features of your vehicle
Features of your vehicle
KEYS
■ Type A
Key operations
(1) Master key (M)
WARNING
Used to start the engine, lock and unlock
Use only HYUNDAI original parts
the doors, lock and unlock the glove box,
for the ignition key in your vehicle.
and open the trunk.
If an aftermarket key is used, the
ignition switch may not return to
ON after START. If this happens,
(2) Sub key (S)
the starter will continue to operate
Used only to start the engine and lock
causing damage to the starter
and unlock the door.
motor and possible fire due to
OYF049001N
excessive current in the wiring.
■ Type B
WARNING - Ignition key
Leaving children unattended in a
vehicle with the ignition key is dan-
gerous even if the key is not in the
ignition switch. Children copy
adults and they could place the key
in the ignition switch. The ignition
key would enable children to oper-
ate power windows or other con-
trols, or even make the vehicle
OYF049213
move, which could result in serious
Record your key number
bodily injury or even death. Never
The key code number is stamped on the
leave the keys in your vehicle with
bar code tag attached to the key set.
unsupervised children.
Should you lose your keys, this number
will enable an authorized HYUNDAI deal-
er to duplicate the keys easily. Remove
the bar code tag and store it in a safe
place. Also, record the code number and
keep it in a safe place (not in the vehicle).
4 3
Features of your vehicle
Restrictions in handling keys
Lock release
Trunk
When leaving keys with parking lot and
valet attendants, the following proce-
1. Open the trunk lid with the master key.
dures will ensure that your vehicle’s trunk
2. Set the trunk lid control switch to
and glove box compartment can only be
UNLOCK position (
).
opened with the master key.
3. Close the trunk lid.
In this position the trunk will open with
Lock
the trunk lid release button or transmitter.
When leaving the key with a parking lot
The trunk can never be opened with the
attendant or valet, perform the following
sub key.
and leave the sub key with the attendant.
The sub key can start the engine and
Glove box
OYF049002
operate door locks only.
Unlock the glove box using the mechani-
Trunk
cal key.
1. Open the trunk lid.
2. Set the trunk lid control switch to
LOCK position (
).
3. Close the trunk lid.
Glove box
Close and lock the glove box using the
master key.
4 4
Features of your vehicle
Immobilizer system (if equipped)
✽ NOTICE
WARNING
Your vehicle is equipped with an elec-
If you need additional keys or lose your
tronic engine immobilizer system to
In order to prevent theft of your
keys, consult an authorized HYUNDAI
reduce the risk of unauthorized vehicle
vehicle, do not leave spare keys
dealer.
use.
anywhere in your vehicle. Your
Your immobilizer system is comprised of
Immobilizer password is a cus-
CAUTION
a small transponder in the ignition key
tomer unique password and should
be kept confidential. Do not leave
The transponder in your ignition
and electronic devices inside the vehicle.
this number anywhere in your vehi-
key is an important part of the
With the immobilizer system, whenever
immobilizer system. It is designed
cle.
you insert your ignition key into the igni-
to give years of trouble-free service,
tion switch and turn it to ON, it checks
however you should avoid expo-
and determines and verifies if the ignition
✽ NOTICE
sure to moisture, static electricity
key is valid.
When starting the engine, do not use the
and rough handling. Immobilizer
If the key is determined to be valid, the
system malfunction could occur.
key with other immobilizer keys around.
engine will start.
Otherwise the engine may not start or
If the key is determined to be invalid, the
may stop soon after it starts. Keep each
engine will not start.
key separate in order to avoid a starting
CAUTION
malfunction.
Do not change, alter or adjust the
To activate the immobilizer system:
immobilizer system because it
Turn the ignition key to the OFF position.
CAUTION
could cause the immobilizer sys-
The immobilizer system activates auto-
Do not put metal accessories near
tem to malfunction and should only
matically. Without a valid ignition key for
the ignition switch.
be serviced by an authorized
your vehicle, the engine will not start.
Metal accessories may interrupt the
HYUNDAI dealer.
transponder signal and may pre-
Malfunctions caused by improper
To deactivate the immobilizer sys-
vent the engine from being started.
alterations, adjustments or modifi-
tem:
cations to the immobilizer system
Insert the ignition key into the key cylin-
are not covered by your vehicle
der and turn it to the ON position.
manufacturer warranty.
4 5
Features of your vehicle
SMART KEY (IF EQUIPPED)
This device complies with Part 15 of
Smart key functions
the FCC rules.
Carrying the smart key, you may lock and
Operation is subject to the following two
unlock the vehicle doors. Also, you may
conditions:
start the engine. Refer to the following,
1. This device may not cause harmful
for more details.
interference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING
Changes or modifications not
OYF049211
expressly approved by the party
With a smart key, you can lock or unlock
responsible for compliance could
a door (and trunk) and even start the
void the user’s authority to operate
engine without inserting the key.
the equipment.
The functions of buttons on a smart key
are similar to the remote keyless entry.
(Refer to the “Remote keyless entry” in
this section.)
4 6
Features of your vehicle
However, if any door remains open, the

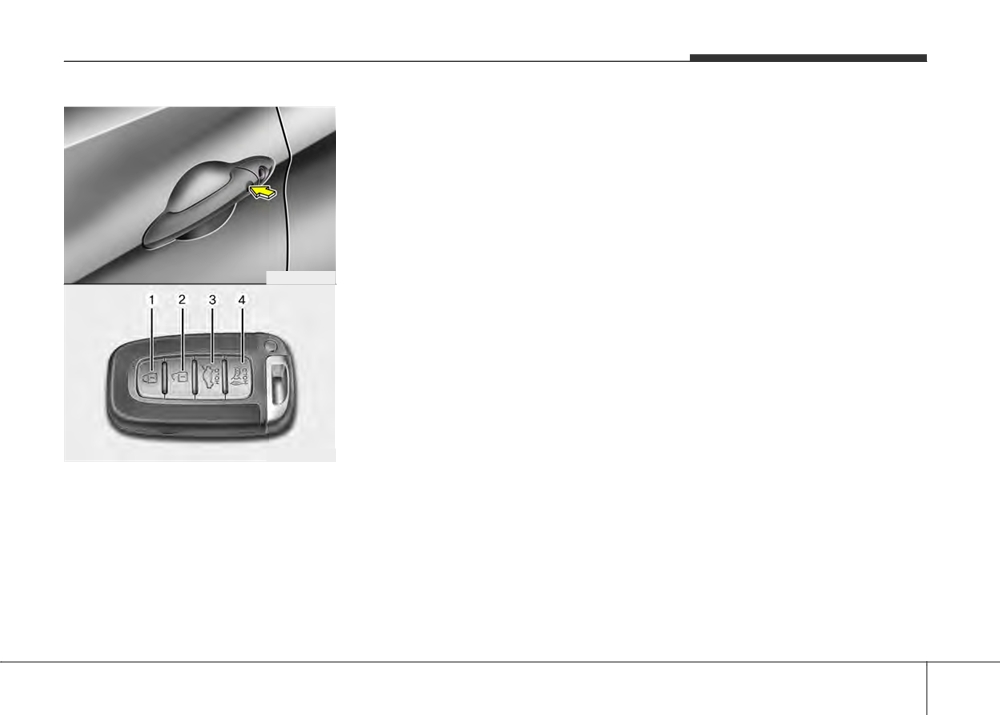

Using the button on the smart key
doors won't lock and the chime will sound
All doors are locked if the lock button(1)
for
3 seconds. Close the door and try
is pressed. If all doors, trunk and hood
again to lock the doors.
are closed, the hazard warning lights will
If trunk lid or engine hood remains open,
blink and the chime will sound once to
the hazard warning light and chime won't
indicate that all doors are locked.
operate. After this, trunk lid and engine
However, if any door, trunk or engine
hood are closed, the hazard warning
hood remains open, the hazard warning
lights blink once.
lights and the chime will not operate. If all
The button will only operate when the
doors, trunk and engine hood are closed
OYF049003
smart key is within 28~40in. (0.7~1m)
after the lock button is pressed, the haz-
from the outside door handle.
ard warning lights blink.
If you want to make sure that a door has
locked or not, you should check the door
lock button inside the vehicle or pull the
outside door handle.
Even though you press the outside door
handle buttons, the doors will not lock
and the chime will sound for 3 seconds if
any of following occur:
• The smart key is in the vehicle.
OYF049213
• The ignition switch is in ACC or ON
Locking
position.
Using the door handle switch
• Any door except the trunk is open.
Pressing the button of the front outside
door handles with all doors closed and
any door unlock, locks all the doors. If all
doors, trunk and engine hood are closed,
the hazard warning lights will blink and
the chime will sound once to indicate that
all doors are locked.
4 7
Features of your vehicle
Unlocking
Using the button on the smart key
Trunk unlocking
Using the door handle switch
The driver's door is unlocked if the unlock
Using the trunk handle switch
Press the button of the driver’s outside
button(2) is pressed once. The hazard
If the trunk is locked and if you are within
door handle with all doors closed and
warning lights will blink and the chime will
28~40 in. (0.7~1 m) from the outside
locked, unlocks the driver’s door. The
sound twice to indicate that the driver's
trunk handle with your smart key in your
hazard warning lights will blink and the
door is unlocked.
possession, the trunk will unlock when
chime will sound twice to indicate that the
All doors are unlocked if the unlock but-
you press the trunk handle switch.
driver’s door is unlocked. All doors are
ton is pressed once more within 4 sec-
Also, once the trunk is opened and then
unlocked if the button is pressed once
onds. The hazard warning lights will blink
closed, the trunk will be locked automati-
more within 4 seconds. The hazard warn-
and chime will sound twice again to indi-
cally.
ing lights will blink and the chime will
cate that all doors are unlocked.
sound twice to indicate that all the doors
After pressing this button, the doors will
Using the button on the smart key
are unlocked.
lock automatically unless you open any
The trunk is opened if the trunk unlock
Press the button of the front passenger’s
door within 30 seconds.
button(3) is pressed for more than 1 sec-
outside door handle with all doors closed
ond.
and locked, unlocks all the doors. The
hazard warning lights will blink and the
Once the trunk is opened and then
chime will sound twice to indicate that all
closed, the trunk will lock automatically.
doors are unlocked. The button will only
operate when the smart key is within
28~40 in. (0.7~1 m) from the outside
door handle.
When the smart key is recognized in the
area of 28~40 in. (0.7~1 m) from the front
outside door handle, other people can
also open the doors without possession
of the smart key.
After pressing the button, the doors will
lock automatically unless you open any
door within 30 seconds.
4 8
Features of your vehicle
Panic
Smart key precautions
The horn sounds and hazard warning
CAUTION
✽ NOTICE
lights flash for about 30 seconds if this
Keep the smart key away from
•
If, for some reason, you happen to lose
button(4) is pressed for more than 1 sec-
water or any liquid. If the keyless
your smart key, you will not be able to
ond. To stop the horn and lights, press
entry system is inoperative due to
start the engine. Tow the vehicle, if
any button on the smart key.
exposure to water or liquids, it will
necessary, and contact an authorized
not be covered by your manufactur-
HYUNDAI dealer.
er’s vehicle warranty.
Start-up
•
A maximum of 2 smart keys can be
You can start the engine without inserting
registered to a single vehicle. If you
the key. For detailed information refer to
lose a smart key, you should immedi-
the “Engine start/stop button” in section
ately take the vehicle and key to your
5.
authorized HYUNDAI dealer to pro-
tect it from potential theft.
•
The smart key will not work if any of
the following occur:
- The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the smart key.
- The smart key near a mobile two-
way radio system or a cellular
phone.
- Another vehicle’s smart key is being
operated close to your vehicle.
When the smart key does not work
correctly, open and close the door with
the mechanical key. If you have a
problem with the smart key, contact
an authorized HYUNDAI dealer.
4 9
Features of your vehicle
This device complies with Part 15 of
Lock
the FCC rules.
When leaving the key with a parking lot
Operation is subject to the following two
attendant or valet, perform the following.
conditions:
Remove the mechanical key from the
1. This device may not cause harmful
smart key and leave the smart key with
interference, and
the attendant. In this manner the smart
key can only be used to start the engine
2. This device must accept any interfer-
and operate door locks.
ence received, including interference
that may cause undesired operation.
Trunk
OYF049212
1. Open the trunk lid.
WARNING
2. Set the trunk lid control switch to
Changes or modifications not
LOCK position (
).
expressly approved by the party
3. Close the trunk lid.
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
Glove box
system is inoperative due to
1. Press and hold the release button(1)
changes or modifications not
and remove the mechanical key (2).
expressly approved by the party
To reinstall the mechanical key, put the
responsible for compliance, it will
key into the hole and push it until a
OYF049004
not be covered by your manufactur-
click sound is heard.
er’s vehicle warranty.
Restrictions in handling keys
2. Close and lock the glove box using the
When leaving keys with parking lot and
mechanical key.
valet attendants, the following proce-
dures will ensure that your vehicle’s trunk
and glove box compartment can only be
opened with the mechanical key.
4 10
Features of your vehicle
Lock release
Trunk
CAUTION
1. Open the trunk lid with the mechanical
•
The smart key is designed to give
key.
you years of trouble-free use,
however it can malfunction if
2. Set the trunk lid control switch to
exposed to moisture or static
UNLOCK (
).
electricity. If you are unsure how
3. Close the trunk lid.
to use or replace the battery, con-
In this position the trunk will open with
tact an authorized HYUNDAI deal-
the trunk lid release button or smart key.
er.
•
Using the wrong battery can
Glove box
cause the smart key to malfunc-
Unlock the glove box using the mechani-
OBH048004
tion. Be sure to use the correct
cal key.
battery.
Battery replacement
•
To avoid damaging the smart key,
A smart key battery should last for sever-
don't drop it, get it wet, or expose
al years, but if the smart key is not work-
it to heat or sunlight.
ing properly, try replacing the battery with
•
An inappropriately disposed bat-
a new one. If you are unsure how to use
tery can be harmful to the envi-
your smart key or replace the battery,
ronment and human health.
contact an authorized HYUNDAI dealer.
Dispose the battery according to
1. Insert a slim tool into the opening and
your local law(s) or regulation.
gently pry open the rear cover of the
smart key.
2. Replace the battery with a new battery
(CR2032). When replacing the battery,
make sure the battery positive “+” sym-
bol faces up as indicated in the illus-
tration.
3. Install the battery in the reverse order
of removal.
4 11
