Features of your vehicle
STEERING WHEEL
Electric power steering (EPS)
✽ NOTICE
Tilt steering (if equipped)
(if equipped)
The following symptoms may occur dur-
■ Left-hand drive
Power steering uses the motor to assist
ing normal vehicle operation:
you in steering the vehicle. If the engine
•
The EPS warning light does not illu-
is off or if the power steering system
minate.
becomes inoperative, the vehicle may
•
The steering effort is high immediate-
still be steered, but it will require
ly after turning the ignition switch on.
increased steering effort.
This happens as the system performs
Should you notice any change in the
the EPS system diagnostics. When the
diagnostics is completed, the steering
effort required to steer during normal
vehicle operation, we recommend that
wheel will return to its normal condi-
the system be checked by an authorized
tion.
•
A click noise may be heard from the
OBA043007L
HYUNDAI dealer.
EPS relay after the ignition switch is
■ Right-hand drive
turned to the ON or LOCK/OFF posi-
tion.
•
Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.
•
The steering effort can suddenly
increase, if the operation of the EPS
system is stopped to prevent serious
accidents when it detects malfunction
of the EPS system by self-diagnosis.
OBA043007
•
The steering effort increases if the
steering wheel is rotated continuously
To change the steering wheel angle, pull
when the vehicle is not in motion.
down the lock release lever (1), adjust
However, after a few minutes, it will
the steering wheel to the desired angle
return to its normal conditions.
(2), then pull up the lock-release lever to
lock the steering wheel in place. Be sure
to adjust the steering wheel to the
desired position before driving.
4 35
Features of your vehicle
WARNING
CAUTION
• Never adjust the steering wheel
Do not strike the horn severely to
while driving. You may lose steer-
operate it, or hit it with your fist. Do
ing control and cause severe per-
not press on the horn with a sharp-
sonal injury, death or accidents.
pointed object.
• After adjusting, push the steering
wheel both up and down to be
certain it is locked in position.
OBA043022L
Horn
To sound the horn, press the area indi-
cated by the horn symbol on your steer-
ing wheel (see illustration). The horn will
operate only when this area is pressed.
4 36
Features of your vehicle
MIRRORS
Inside rearview mirror
Outside rearview mirror
Before you start driving, adjust the
Be sure to adjust the mirror angles
rearview mirror to the center on the view
before driving.
through the rear window.
Your vehicle is equipped with both left-
Night
hand and/or right-hand outside rearview
mirrors. The mirrors can be adjusted
WARNING - Rear visibility
remotely with the remote switch
(or
Make sure your line of sight is not
lever). The mirror heads can be folded
obstructed. Do not place objects in
back to prevent damage during an auto-
the rear seat, cargo area, or behind
matic car wash or when passing through
the rear headrests which could
a narrow street.
interfere with your vision through
Day
the rear window.
OBA043023L
Day/night rearview mirror (if equipped)
WARNING - Rearview
Make this adjustment before you start
mirrors
WARNING
driving and while the day/night lever is in
• Objects seen in the mirror are
Do not adjust the rearview mirror
the day position.
closer than they appear.
while the vehicle is moving. This
Pull the day/night lever toward you to
• Use your interior rearview mirror
could result in loss of control, and
reduce glare from the headlights of the
or direct observation to deter-
an accident which could cause
vehicles behind you during night driving.
mine the actual distance of fol-
death, serious injury or property
Remember that you lose some rearview
lowing vehicles when changing
damage.
clarity in the night position.
lanes.
4 37
Features of your vehicle
■ Left-hand drive
CAUTION
Do not scrape ice off the mirror
face; this may damage the surface
of the glass. If ice should restrict
movement of the mirror, do not
force the mirror for adjustment. To
remove ice, use a deicer spray, or a
sponge or soft cloth with very warm
water.
OBA043024L
■ Right-hand drive
B510A01E
CAUTION
If the mirror is jammed with ice, do
Remote control
not adjust the mirror by force. Use
Manual type (if equipped)
an approved spray de-icer (not radi-
To adjust an outside mirror, move the
ator antifreeze) to release the
control lever.
frozen mechanism or move the
vehicle to a warm place and allow
the ice to melt.
OBA043024R
Electric type (if equipped)
The electric remote control mirror switch
allows you to adjust the position of the left
and right outside rearview mirrors. To
adjust the position of either mirror, the igni-
tion switch should be in the ACC position.
4 38
Features of your vehicle
Move the lever (1) to R or L to select the
■ Left-hand drive
right side mirror or the left side mirror,
CAUTION
then press a corresponding point on the
The electric type outside rearview
mirror adjustment control to position the
mirror operates even though the
selected mirror up, down, left or right.
ignition switch is in the OFF posi-
After the adjustment, put the lever into
tion. However, to prevent unneces-
the neutral (center) position to prevent
sary battery discharge, do not adjust
inadvertent adjustment.
the mirrors longer than necessary
while the engine is not running.
CAUTION
• The mirrors stop moving when
OBA043026L
they reach the maximum adjust-
■ Right-hand drive
CAUTION
ing angles, but the motor contin-
In case it is an electric type outside
ues to operate while the switch is
rearview mirror, don’t fold it by
pressed. Do not press the switch
hand. It could cause motor failure.
longer than necessary, the motor
may be damaged.
• Do not attempt to adjust the out-
side rearview mirror by hand.
Doing so may damage the parts.
OBA043026R
Folding the outside rearview mirror
Electric Type (if equipped)
To fold the outside rearview mirror,
depress the button.
To unfold it, depress the button again.
4 39
Features of your vehicle
OBA043025L

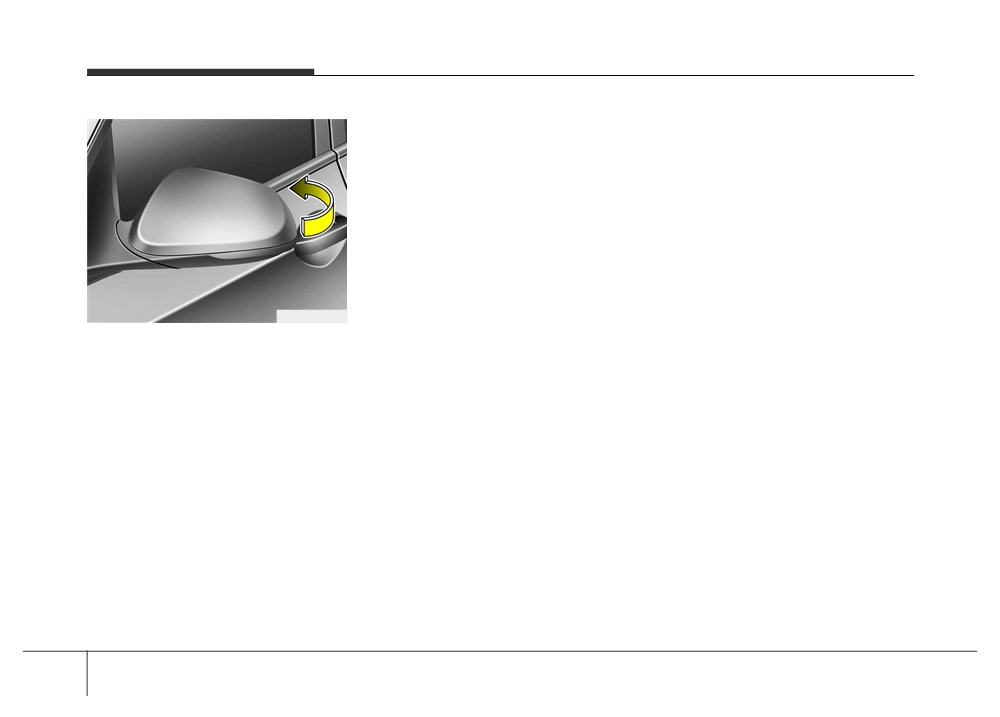

Manual type
To fold outside rearview mirror, grasp the
housing of the mirror and then fold it
toward the rear of the vehicle.
4 40
Features of your vehicle
INSTRUMENT CLUSTER
1. Tachometer
2. Engine temperature gauge
3. Fuel gauge
4. Speedometer
5. Turn signal indicators
6. Warning and indicator lights
7. Odometer / Trip computer
❈ The actual cluster in the vehicle may differ
from the illustration.
For more details refer to the "Gauges" in
the next pages.
OBA043100
4 41
Features of your vehicle
■ Type A (km/h)
CAUTION
Do not operate the engine within
the tachometer's RED ZONE. This
may cause severe engine damage.
OBA043103
■ Type B (MPH)
OBA043105
Tachometer
The tachometer indicates the approxi-
mate number of engine revolutions per
minute (rpm).
Use the tachometer to select the correct
shift points and to prevent lugging and/or
over-revving the engine.
OBA043104
Gauges
Speedometer
The speedometer indicates the forward
speed of the vehicle.
The speedometer is calibrated in kilome-
ters per hour and/or miles per hour.
4 42
Features of your vehicle
CAUTION
If the gauge pointer moves beyond
the normal range area toward the
“H” it indicates overheating that
may damage the engine.
WARNING
Never remove the radiator cap
when the engine is hot. The engine
coolant is under pressure and
OBA043107
OBA043108
could cause severe burns. Wait
Engine coolant temperature gauge
until the engine is cool before
Fuel gauge
(if equipped)
adding coolant to the reservoir.
The fuel gauge indicates the approximate
This gauge shows the temperature of the
amount of fuel remaining in the fuel tank.
engine coolant when the ignition switch
The fuel tank capacity is given in chapter
is ON.
8. The fuel gauge is supplemented by a
Do not continue driving with an overheat-
low fuel warning light, which will illuminate
ed engine. If your vehicle overheats, refer
when the fuel tank is nearly empty.
to “If the engine overheats” in chapter 6.
On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel warn-
ing light may come on earlier than usual
due to the movement of fuel in the tank.
4 43
Features of your vehicle
✽ NOTICE
WARNING - Fuel gauge
It is forbidden to alter the odometer of
Running out of fuel can expose
all vehicles with the intent to change the
vehicle occupants to danger.
mileage registered on the odometer. The
You must stop and obtain addition-
alteration may void your warranty cov-
al fuel as soon as possible after the
erage.
warning light comes on or when the
gauge indicator comes close to the
“E” level.
CAUTION
OBA043110
Avoid driving with a very low fuel
Odometer (km or mi)
level. Running out of fuel could
The odometer indicates the total dis-
cause the engine to misfire, damag-
tance the vehicle has been driven.
ing the catalytic converter.
You will also find the odometer useful to
determine when periodic maintenance
should be performed.
4 44
Features of your vehicle
Press the TRIP button for less than 1
second to select any mode as follows:
Tripmeter A
Tripmeter B
Distance to empty
Average fuel consumption
OBA043099
OBA043111
Tripmeter/Trip computer (if equipped)
Tripmeter (km or mi.)
Instant fuel consumption
The trip computer is a microcomputer-
TRIP A : Tripmeter A
controlled driver information system that
TRIP B : Tripmeter B
displays information related to driving,
Average speed
This mode indicates the distance of indi-
when the ignition switch is in the ON
vidual trips selected since the last trip-
position. All stored driving information
meter reset.
(except odometer) resets if the battery is
Elapsed time
disconnected.
The meter's working range is from 0.0 to
ECO ON/OFF*
9999.9 km.
(0.0 to
9999.9 miles).
Pressing the RESET button for more
* if equipped
than 1 second, when the tripmeter is
being displayed, clears the tripmeter to
zero (0.0).
4 45
Features of your vehicle
OBA043112
OBA043113
OBA043231
Distance to empty
Average fuel consumption
Instant fuel consumption
(km or mi.)
(l/100 km or MPG)
(l/100 km or MPG)
This mode indicates the estimated dis-
This mode calculates the average fuel
This mode calculates the instant fuel
tance to empty based on the current fuel in
consumption from the total fuel used and
consumption of the last few seconds.
the fuel tank and the amount of fuel deliv-
the distance since the last average con-
ered to the engine. When the remaining
sumption reset. The total fuel used is cal-
distance is below 50 km (30 miles), “---” will
culated from the fuel consumption input.
be displayed.
For an accurate calculation, drive more
The meter’s working range is from 50 to
than 300 m (0.18 miles).
999 km (30 to 615 miles).
Pressing the RESET button for more than
1 second, when the average fuel con-
sumption is being displayed, clears the
average fuel consumption to zero (--.-).
4 46
Features of your vehicle
✽ NOTICE
•
If the vehicle is not on level ground or
the battery power has been interrupt-
ed, the “Distance to empty” function
may not operate correctly.
The trip computer may not register
additional fuel if less than 6 liters (1.6
gallons) of fuel are added to the vehicle.
•
The fuel consumption and distance to
empty may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
•
The distance to empty is an estimate
OBA043114
OBA043115
of the available driving distance. This
Average speed (km/h or MPH)
Elapsed time
may differ from the actual driving dis-
This mode calculates the average speed
This mode indicates the total time trav-
tance available.
of the vehicle since the last average
eled since the last driving time reset.
speed reset.
Even if the vehicle is not in motion, the
Even if the vehicle is not in motion, the
driving time keeps going while the engine
average speed keeps going while the
is running.
engine is running.
The meter’s working range is from
For an accurate calculation, drive more
00:00~99:59.
than 300 m (0.18 miles).
Pressing the RESET button for more
Pressing the RESET button for more
than 1 second, when the driving time is
than 1 second, when the average speed
being displayed, clears the driving time to
is being displayed, clears the average
zero (00:00).
speed to zero (---).
4 47
Features of your vehicle
“FUSE ON” warning light
Warnings and indicators
(if equipped)
All warning lights are checked by turning
the ignition switch ON (do not start the
engine). If any light that does not illumi-
nate, we recommend that the system be
checked by an authorized HYUNDAI
dealer. After starting the engine, check to
make sure that all warning lights are off.
If any warning lights are still on, this indi-
cates a situation that needs attention.
OBA043116
This warning light illuminates if the fuse
switch in the fuse box is OFF.
ECO ON/OFF mode (if equipped)
Turn the fuse switch on, when the “FUSE
You can turn the ECO indicator on/off on
ON” warning light illuminates.
the instrument cluster in this mode.
If you press the RESET button for more
For more details, refer to “Fuses” in chap-
than 1 second in the ECO ON mode,
ter 7.
ECO OFF is displayed in the screen and
the ECO indicator turns off while driving.
If you want to display the ECO indicator
again, press the RESET button for more
than 1 second in the ECO OFF mode
and then ECO ON mode is displayed in
the screen.
4 48
Features of your vehicle
Air bag warning light
Anti-lock brake system
Electronic brake force distri-
(if equipped)
(ABS) warning light
bution (EBD) system warning
(if equipped)
light
This warning light illuminates if the igni-
If these two warning lights
This warning light will illuminate for
tion switch is turned to the ON position
illuminate at the same time
approximately 6 seconds each time you
and goes off after approximately 3 sec-
while driving, your vehicle’s
turn the ignition switch to the ON position.
onds if the system is operating normally.
ABS and EBD system may have mal-
This light also comes on when the
functioned.
Supplemental Restraint System (SRS) is
If the ABS warning light remains on,
comes on while driving, or does not
In this case, your ABS and regular brake
not working properly. If the air bag warn-
ing light does not come on, or continu-
come on when the ignition switch is
system may not work normally. We rec-
ously remains on after operating for
turned to the ON position, this indicates
ommend that the system be checked by
that the ABS may have malfunctioned.
an authorized HYUNDAI dealer.
about 6 seconds when you turned the
ignition switch to the ON position or start-
If this occurs, we recommend that the
ed the engine, or if it comes on while
system be checked by an authorized
WARNING
driving, we recommend that the system
HYUNDAI dealer. The normal braking
If both ABS and Brake warning
be inspected by an authorized HYUNDAI
system will still be operational, but with-
lights are on and stay on, your vehi-
dealer.
out the assistance of the anti-lock brake
cle’s brake system will not work
system.
normally during sudden braking. In
this case, avoid high speed driving
and abrupt braking. We recommend
that the system be checked by an
authorized HYUNDAI dealer.
4 49
Features of your vehicle
Seat belt warning
Turn signal indicator
Parking (Position)
light indicator
As a reminder to the driver, the seat belt
The left or right turn signal indicator
This indicator illuminates when the park-
warning light will blink for approximately
blinks when you signal a lane change or
ing (position) lights are on.
6 seconds each time you place the igni-
turn. If the arrow comes on but does not
tion switch in the ON position regardless
blink, blinks more rapidly than normal, or
of belt fastening. If the driver’s seat belt is
does not illuminate at all, a malfunction in
unfastened after the ignition switch is
the turn signal system is indicated. We
placed in the ON position, the seat belt
recommend that you consult an author-
warning light blinks again for approxi-
ized HYUNDAI dealer repairs.
mately 6 seconds. If the driver's seat belt
is not fastened when the ignition switch is
High beam indicator
placed in the ON position or if it is unfas-
tened after the ignition switch is placed in
the ON position, the seat belt warning
chime will sound for approximately 6 sec-
onds. At this time, if the seat belt is fas-
This indicator illuminates when the head-
lights are on and in the high beam posi-
tened, the chime will stop at once. (if
tion or when the turn signal lever is pulled
equipped)
into the Flash-to-Pass position.
4 50
Features of your vehicle
Engine oil pressure warn-
Parking brake & brake
ing light
CAUTION
fluid warning
If the oil pressure warning light
stays on while the engine is run-
This warning light indicates the engine oil
ning, serious engine damage may
This light illuminates if the ignition switch is
pressure is low.
result. The oil pressure warning
turned ON and goes off in approximately 3
light comes on whenever there is
seconds if the parking brake is not applied.
If the warning light illuminates while driv-
insufficient oil pressure. In normal
ing:
operation, it should come on when
1. Drive safely to the side of the road and
Parking brake warning
the ignition switch is turned on, then
stop.
This warning light is illuminated when the
goes off when the engine starts. If
2. With the engine off, check the engine
parking brake is applied with the ignition
the oil pressure warning light stays
oil level. If the level is low, add oil as
switch in the START or ON position. The
on while the engine is running, there
required.
warning light should go off when the
is a serious malfunction.
If the warning light remains on after
parking brake is released.
If this happens, stop the vehicle as
adding oil or if oil is not available, we rec-
soon as it is safe to do so, turn off
ommend that you call an authorized
Low brake fluid level warning
the engine and check the oil level. If
HYUNDAI dealer.
the oil level is low, fill the engine oil
If the warning light remains on, it may
to the proper level and start the
indicate that the brake fluid level in the
engine again. If the light stays on
reservoir is low.
CAUTION
with the engine running, turn the
If the warning light remains on:
If the engine is not stopped imme-
engine off immediately. In any
1. Drive carefully to the nearest safe loca-
diately after the engine oil pressure
instance where the oil light stays on
tion and stop your vehicle.
warning light is illuminated, severe
when the engine is running, we rec-
damage could result.
2. With the engine stopped, check the
ommend that the system be
brake fluid level immediately and add
checked by an authorized HYUNDAI
fluid as required. Then check all brake
dealer.
components for fluid leaks.
3. Do not drive the vehicle if leaks are
found, the warning light remains on or
the brakes do not operate properly. We
recommend that you contact an
authorized HYUNDAI dealer.
4 51
