Hyundai Grand i10 (2015 year). Manual - part 2

Safety system of your vehicle

✽ NOTICE

If you are not able to smoothly pull

enough of the seat belt out from the

retractor, firmly pull the seat belt out

and release it. After release, you will be

able to pull the belt out smoothly.

1

2

1GQA2083

B180A01NF

Seat belt warning

Lap/shoulder belt

As a reminder to the driver, the seat belt

To fasten your seat belt:

warning light on the instrument cluster

Pull the seat belt out of the retractor and

will blink for approximately

6 seconds

insert the metal tab (1) into the buckle

each time you place the ignition switch in

(2). There will be an audible "click" when

the ON position regardless of belt fasten-

the tab locks into the buckle.

ing.

The seat belt automatically adjusts to the

If the driver's seat belt is unfastened after

proper length only after the lap belt por-

the ignition switch is in the ON position,

tion is adjusted manually so that it fits

the seat belt warning light will blink again

snugly around your hips. If you lean for-

for approximately 6 seconds.

ward in a slow, easy motion, the belt will

If the driver's seat belt is unfastened

extend and let you move around. If there

when the ignition switch is in the ON

is a sudden stop or impact, however, the

position or if it is unfastened after the

belt will lock into position. It will also lock

ignition switch is in the ON position, the

if you try to lean forward too quickly.

seat belt warning chime will sound for

approximately 6 seconds. At this time, if

the seat belt is fastened, the chime will

stop at once. (if equipped)

3 12

Safety system of your vehicle

WARNING

Always position the shoulder belt

anchor into locked position at the

appropriate height. Never position

the shoulder belt across your neck

or face. Improperly positioned seat

belts can cause serious injuries in

an accident.

OBA033024R

B200A01NF

Height adjustment (if equipped)

You can adjust the height of the shoulder

WARNING

belt anchor to one of the 4 positions for

Improperly positioned seat belts

maximum comfort and safety.

may increase the risk of serious

The shoulder portion should be adjusted

injury in an accident. Take the follow-

so it lies across your chest and midway

ing precautions when adjusting the

over your shoulder nearest the door, not

seat belt:

over your neck.

• Position the lap portion of the seat

To adjust the height of the seat belt

belt as low as possible across

anchor, lower or raise the height adjuster

your hips, not on your waist, so

into an appropriate position.

that it fits snugly.

To raise the height adjuster, pull it up (1).

• Position one arm under the shoul-

To lower it, push it down (3) while press-

der belt and the other over the belt,

ing the height adjuster button (2).

as shown in the illustration.

Release the button to lock the anchor

into position. Try sliding the height

adjuster to make sure that it has locked

into position.

3 13

Safety system of your vehicle

OEN036030

1

B210A01NF/Q

B220A04NF-1/Q

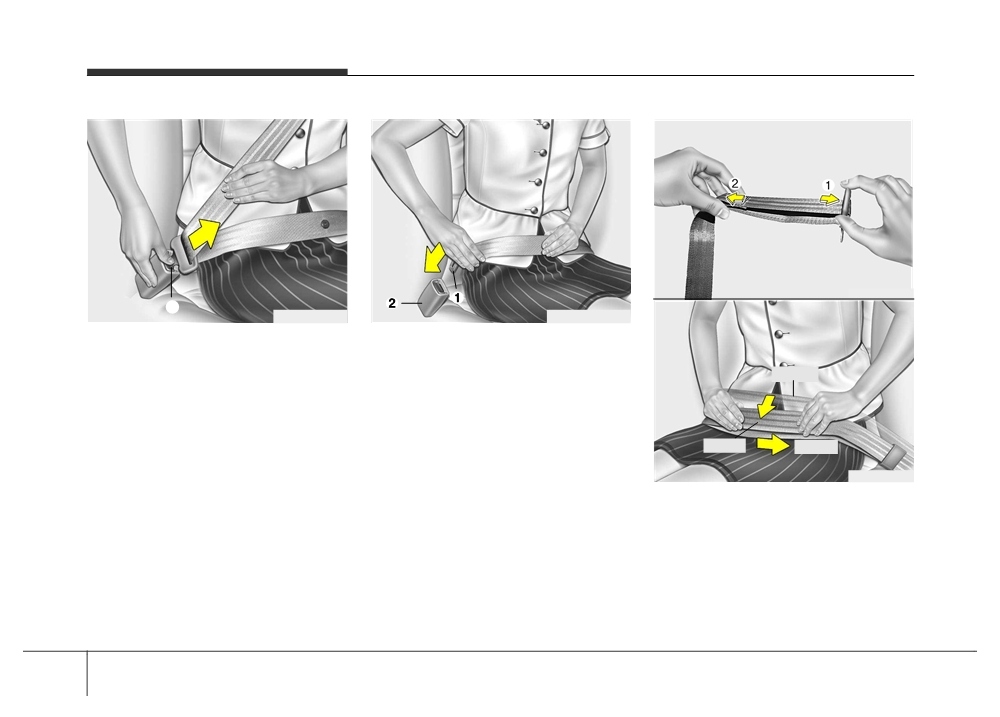

To release the seat belt:

Lap belt (if equipped)

The seat belt is released by pressing the

To fasten your seat belt:

release button (1) in the locking buckle.

To fasten a 2-point static type belt, insert

Too high

When it is released, the belt should auto-

the metal tab (1) into the locking buckle

matically draw back into the retractor.

(2). There will be an audible "click" when

If this does not happen, check the belt to

the tab locks into the buckle. Make sure

be sure it is not twisted, then try again.

the belt is properly locked and that the

Correct

Shorten

belt is not twisted.

B220B01NF

With a 2-point static type seat belt, the

length must be adjusted manually so it

fits snugly around your hip. Fasten the

belt and pull on the loose end to tighten

the belt. The belt should be placed as low

as possible on your hips, not on your

waist. If the belt is too high, it could

increase the possibility of injury in an

accident.

3 14

Safety system of your vehicle

OBA033030

B210A02NF-1

OMG035300

When using the rear center seat belt, the

To release the seat belt:

Pre-tensioner seat belt

buckle with the “CENTER” mark must be

Press the release button (1) on the buck-

(if equipped)

used. (if equipped)

le and remove the metal tab from the

Your vehicle is equipped with driver's and

buckle.

front passenger's pre-tensioner seat

belts. The purpose of the pre-tensioner is

to make sure that the seat belts fit tightly

against the occupant's body in certain

frontal collisions. The pre-tensioner seat

belts can be activated, where the frontal

collision is severe enough, together with

the air bags.

3 15

Safety system of your vehicle

When the vehicle stops suddenly, or if

(Continued)

the occupant tries to lean forward too

WARNING

•

Improper handling of the pre-ten-

quickly, the seat belt retractor will lock

•

Pre-tensioners are designed to

sioner seat belt assemblies, and

into position. In certain frontal collisions,

operate only one time. After acti-

failure to heed the warnings not

the pre-tensioner will activate and pull

vation, pre-tensioner seat belts

to strike, modify, inspect, replace,

the seat belt into tighter contact against

must be replaced. All seat belts,

service or repair the pre-tension-

the occupant's body.

of any type, should always be

er seat belt assemblies may lead

If the system senses excessive seat belt

replaced after they have been

to improper operation or inadver-

tension on the driver or passenger's seat

worn during a collision.

tent activation and serious injury.

belt when the pre-tensioner activates, the

•

The pre-tensioner seat belt

•

If the vehicle or pre-tensioner

load limiter inside the pre-tensioner will

assembly mechanisms become

seat belt must be discarded, we

release some of the pressure on the

hot during activation. Do not

recommend that you contact an

affected seat belt. (if equipped)

touch the pre-tensioner seat belt

authorized HYUNDAI dealer.

assemblies for several minutes

after they have been activated.

WARNING

•

Do not hit the pre-tensioner seat

To obtain maximum benefit from a

belt assemblies.

pre-tensioner seat belt:

•

Do not attempt to inspect or

1. The seatbelt must be worn cor-

replace the pre-tensioner seat

rectly and adjusted to the proper

belts yourself. We recommend

position. Please read and follow

that the system be serviced by an

all of the important information

authorized HYUNDAI dealer.

and precautions about your vehi-

•

Do not attempt to service or

cle’s occupant safety features -

repair the pre-tensioner seat belt

including seat belts and air bags

system in any manner.

- that are provided in this manu-

al.

(Continued)

2. Be sure you and your passen-

gers always wear seat belts prop-

erly.

3 16

Safety system of your vehicle

■ Left-hand drive

✽ NOTICE

✽ NOTICE

The sensor that activates the SRS air

•

Both the driver's and front passen-

bag is connected with the pre-tensioner

ger's pre-tensioner seat belts will be

seat belts. The SRS air bag warning

activated in certain frontal collisions.

light on the instrument panel will illumi-

•

When the pre-tensioner seat belts are

nate for approximately 6 seconds after

activated, a loud noise may be heard

the ignition switch is placed in the ON

and fine dust, which may appear to be

position, and then it should turn off.

smoke, may be visible in the passenger

If the pre-tensioner is not working prop-

compartment. These are normal oper-

erly, the warning light will illuminate

ating conditions and are not haz-

even if the SRS air bag is not malfunc-

ardous.

tioning. If the warning light does not

•

Although it is non-toxic, the fine dust

1KMB3311A

illuminate, stays illuminated or illumi-

may cause skin irritation and should

■ Right-hand drive

nates when the vehicle is being driven,

not be breathed for prolonged peri-

we recommend the pre-tensioner seat

ods. Wash all exposed skin areas thor-

belts and/or SRS air bags be inspected

oughly after an accident in which the

by an authorized HYUNDAI dealer as

pre-tensioner seat belts were activat-

soon as possible.

ed.

8KMB3311/H

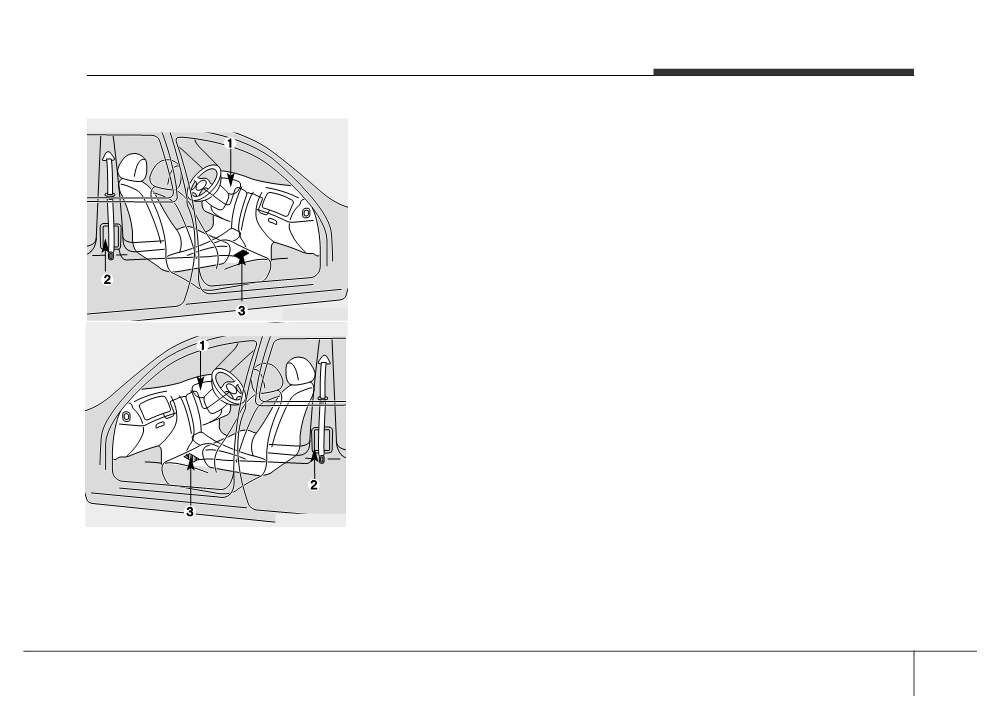

The seat belt pre-tensioner system con-

sists mainly of the following components.

Their locations are shown in the illustration:

1. SRS air bag warning light

2. Retractor pre-tensioner assembly

3. SRS control module

3 17

Safety system of your vehicle

Additional seat belt safety pre-

Seat belt use and children

Small children are best protected from

cautions

Infant and small children

injury in an accident when properly

restrained in the rear seat by a child

Seat belt use during pregnancy

Most countries have child restraint laws

restraint system that meets the require-

which require children to travel in

The seat belt should always be used dur-

ments of the Safety Standards of your

approved child restraint devices, includ-

ing pregnancy. The best way to protect

country. Before buying any child restraint

your unborn child is to protect yourself by

ing booster seats. The age at which seat

belts can be used instead of child

system, make sure that it has a label cer-

always wearing the seat belt.

tifying that it meets Safety Standard of

restraints differs among countries, so you

Pregnant women should always wear a

your country. The restraint must be

should be aware of the specific require-

lap-shoulder seat belt. Place the shoul-

appropriate for your child's height and

ments in your country, and where you are

der belt across the chest, routed away

weight. Check the label on the child

travelling. Infant and child restraints must

from the neck. Place the lap belt below

be properly placed and installed in a rear

restraint for this information. Refer to

the belt line so that it fits snugly and as

“Child Restraint Systems” in this chapter.

seat. For more information refer to the

low as possible across the hips, not

“Child Restraint Systems” in this chapter.

across the abdomen.

Larger children

Children under age 13 and who are too

WARNING

WARNING

large for a booster seat must always

To reduce the risk of serious injury

ALWAYS properly restrain infants

occupy the rear seat and use the avail-

or death to an unborn child during

and small children in a child

able lap/shoulder belts. A seat belt

an accident, pregnant women

restraint appropriate for the child’s

should lie across the upper thighs and be

should NEVER place the lap por-

height and weight.

snug across the shoulder and chest to

tion of the seat belt above or over

To reduce the risk of serious injury

restrain the child safely. Check belt fit

the area of the abdomen where the

or death to a child and other pas-

periodically. A child's squirming could put

unborn child is located.

sengers, NEVER hold a child in

the belt out of position. In the event of an

your lap or arms when the vehicle

accident, children are safest when they

is moving. The violent forces creat-

are seated in the rear seat and restrained

ed during an accident will tear the

by the seat belts or by a child restraint

child from your arms and throw the

system.

child against the interior of the

vehicle.

3 18

Safety system of your vehicle

If a larger child over age 13 must be seat-

Transporting an injured person

ed in the front seat, the child must be

A seat belt should be used when an

WARNING

securely restrained by the available

injured person is being transported.

•

NEVER ride with a reclined seat-

lap/shoulder belt and the seat should be

Consult a physician for specific recom-

back when the vehicle is moving.

placed in the rearmost position.

mendations.

•

Riding with a reclined seatback

If the shoulder belt portion slightly touch-

increases your chance of serious

es the child’s neck or face, try placing the

One person per belt

or fatal injuries in the event of a

child closer to the center of the vehicle. If

collision or sudden stop.

Two people (including children) should

the shoulder belt still touches their face

never attempt to use a single seat belt.

•

Drivers and passengers should

or neck they need to be returned to an

This could increase the severity of

always sit well back in their seats,

appropriate booster seat.

injuries in case of an accident.

properly belted, and with the

seatbacks upright.

WARNING

Do not lie down

•

Always make sure children are

Sitting in a reclined position when the

wearing their seat belts and that

vehicle is in motion can be dangerous.

they are properly adjusted before

Even when buckled up, the protections of

driving.

your restraint system (seat belts and/or

•

NEVER allow the shoulder belt to

air bags) is greatly reduced by reclining

contact the child’s neck or face.

your seatback.

•

Do not allow more than one child

To reduce the chance of injuries in the

to use a single seat belt.

event of an accident and to achieve the

maximum effectiveness of the restraint

system, all passengers should be sitting

up and the front and rear seats should be

in an upright position when the car is

moving. A seat belt cannot provide prop-

er protection if the person is lying down in

the rear seat or if the front or rear seats

are in a reclined position.

3 19

Safety system of your vehicle

CHILD RESTRAINT SYSTEM (CRS)

Most countries have child restraint laws

Child Restraint System (CRS)

WARNING

which require children to travel in

Infants and younger children must be

Always properly restrain children in

approved child restraint devices. The

restrained in an appropriate rear-facing

the rear seats of the vehicle.

laws governing the age or height/weight

or forward-facing CRS that has first been

restrictions at which seat belts can be

properly secured to the rear seat of the

Children of all ages are safer when

used instead of child restraints differs

vehicle. Read and comply with the

restrained in the rear seat. A child

among countries, so you should be

instructions for installation and use pro-

riding in the front passenger seat

aware of the specific requirements in

vided by the manufacturer of the child

can be forcefully struck by an inflat-

your country, and where you are travel-

restraint.

ing air bag resulting in SERIOUS

ling.

INJURY or DEATH.

Child restraint systems must be properly

WARNING

placed and installed in the rear seat. You

An improperly secured child

Children under age 13 must always ride

must use a commercially available child

restraint can increase the risk of

in the rear seats and must always be

restraint system that meets the require-

SERIOUS INJURY or DEATH in an

ments of the Safety Standards of your

properly restrained to minimize the risk of

accident. Always take the following

country.

injury in an accident, sudden stop or sud-

precautions when using a child

den maneuver. According to accident

Child restraint systems are generally

restraint system:

statistics, children are safer when proper-

designed to be secured in a vehicle seat

• NEVER install a child or infant

ly restrained in the rear seats than in the

by lap belt or the lap belt portion of a

restraint in the front passenger’s

front seat. Even with air bags, children

lap/shoulder belt in the rear seats of the

seat.

can be seriously injured or killed.

vehicle.

• Always properly secure the child

Children too large for a child restraint

restraint to a rear seat of the vehi-

must use the seat belts provided.

cle.

• Always follow the child restraint

system manufacturer’s instruc-

tions for installation and use.

(Continued)

3 21

Safety system of your vehicle

Selecting a Child Restraint

Child restraint system types

(Continued)

System (CRS)

There are three main types of child

•

Always properly restrain your

restraint systems: rear-facing seats, for-

child in the child restraint.

When selecting a CRS for your child,

always:

ward-facing seats, and booster seats.

•

Do not use an infant carrier or a

They are classified according to the

child safety seat that "hooks“ over

• Make sure the CRS has a label certify-

child’s age, height and weight.

ing that it meets applicable Safety

a seatback, it may not provide ade-

Standards of your country.

quate protection in an accident.

• Select a child restraint system based

Rear-facing child seats

•

After an accident, we recommend

on your child’s height and weight. The

a HYUNDAI dealer check the child

required label or the instructions for

restraint system, seat belts,

WARNING

ISOFIX lower anchorages and top-

use typically provide this information.

NEVER install a child or infant

tether anchorages.

• Select a child restraint system that fits

restraint in the front passenger’s

the vehicle seating position where it

seat.

will be used.

Placing a rear-facing child restraint

• Read and comply with the warnings

in the front seat can result in SERI-

and instructions for installation and use

OUS INJURY or DEATH if the child

provided with the child restraint system.

restraint is struck by an inflating air

bag.

3 22

Safety system of your vehicle

Continue to use a rear-facing child seat

for as long as your child will fit within the

height and weight limits allowed by the

child seat manufacturer. It’s the best way

to keep them safe. Once your child has

outgrown the rear-facing child restraint,

your child is ready for a forward-facing

child restraint with a harness.

CRS09

OUN026150

A rear-facing child seat provides restraint

Forward-facing child seats

with the seating surface against the back

A forward-facing child seat provides

of the child. The harness system holds

restraint for the child’s body with a har-

the child in place, and in an accident,

ness. Keep children in a forward-facing

acts to keep the child positioned in the

child seat with a harness until they reach

seat and reduce the stress to the neck

the top height or weight limit allowed by

and spinal cord.

your child restraint’s manufacturer.

All children under age one must always

Once your child outgrows the forward-

ride in a rear-facing infant child restraint.

facing child restraint, your child is ready

Convertible and 3-in-1 child seats typi-

for a booster seat.

cally have higher height and weight limits

for the rear-facing position, allowing you

to keep your child rear-facing for a longer

period of time.

3 23

Safety system of your vehicle

Booster seats

Installing a Child Restraint

After selecting a proper child seat for

A booster seat is a restraint designed to

System (CRS)

your child, check to make sure it fits prop-

improve the fit of the vehicle’s seat belt

erly in your vehicle. Follow the instruc-

system. A booster seat positions the seat

tions provided by the manufacturer when

belt so that it fits properly over the lap of

WARNING

installing the child seat. Note these gen-

your child. Keep your child in a booster

Before installing your child

eral steps when installing the seat to your

seat until they are big enough to sit in the

restraint system always:

vehicle:

seat without a booster and still have the

• Read and follow the instructions

• Properly secure the child restraint

seat belt fit properly.

provided by the manufacturer of

system to the vehicle. All child seats

For a seat belt to fit properly, the lap belt

the child restraint.

must be secured to the vehicle with the

must lie snugly across the upper thighs,

• Read and follow the instructions

lap belt or lap part of a lap/shoulder belt.

not the stomach. The shoulder belt

regarding child restraint systems

• Make sure the child restraint system

should lie snug across the shoulder and

in this manual.

is firmly secured. After installing a

chest and not across the neck or face.

Failure to follow all warnings and

child seat to the vehicle, push and pull

Children under age 13 must always ride

instructions could increase the

the seat forward and from side-to-side

in the rear seats and must always be

risk of the SERIOUS INJURY or

to verify that it is securely attached to

properly restrained to minimize the risk of

DEATH if an accident occurs.

the seat. A child seat secured with a

injury.

seat belt should be installed as firmly

as possible. However, some side-to-

side movement can be expected.

WARNING

A child restraint system in a closed

vehicle can become very hot. To

prevent burns, check the seating

surface and buckles before placing

your child in the child restraint.

3 24

Safety system of your vehicle

Securing a child restraint system

4. Push and pull on the child restraint

with a lap belt or lap/shoulder belt

system to confirm that the seat belt is

All child restraint system must be secured

holding it firmly in place.

to a vehicle rear seat with the lap belt or

To remove the child restraint system,

the lap part of a lap/shoulder belt.

press the release button on the buckle

and then pull the lap belt out of the

restraint.

WARNING

ALWAYS place a rear-facing child

restraint system in the rear seat of

the vehicle.

Placing a rear-facing child restraint

system in the front seat can result in

1GHA2260

serious injury or death if the child

Installing a child restraint system with a

restraint system is struck by an

lap belt

inflating air bag.

To install a child restraint system on the

center rear seats, do the following:

1. Place the child restraint system on the

center rear seat and route the lap belt

through the restraint, following the

restraint manufacturer’s instructions.

Be sure the seat belt webbing is not

twisted.

2. Fasten the lap belt latch into the buck-

le. Listen for the distinct “click” sound.

3. Adjust the lap belt for a snug hold on

the child restraint system by pulling the

loose end of the belt.

3 25

Safety system of your vehicle

E2MS103005

OEN036101

OEN036104

Installing a child restraint system with a

2. Fasten the lap/shoulder belt latch into

3. Remove as much slack from the belt

lap/shoulder belt

the buckle. Listen for the distinct “click”

as possible by pushing down on the

To install a child restraint system on the

sound.

child restraint system while feeding the

rear seats, do the following:

shoulder belt back into the retractor.

1. Place the child restraint system on a

✽ NOTICE

4. Push and pull on the child restraint

rear seat and route the lap/shoulder

system to confirm that the seat belt is

Position the release button so that it is

belt around or through the restraint, fol-

holding it firmly in place.

easy to access in case of an emergency.

lowing the restraint manufacturer’s

To remove the child restraint system,

instructions.

press the release button on the buckle

Be sure the seat belt webbing is not

and then pull the lap/shoulder belt out of

twisted.

the restraint and allow the seat belt to

retract fully.

3 26

Safety system of your vehicle

AIR BAG - SUPPLEMENTAL RESTRAINT SYSTEM

■ Left-hand drive

(1) Driver’s front air bag*

(2) Passenger’s front air bag *

(3) Front passenger’s air bag ON/OFF

switch *

* : if equipped

WARNING

Even in vehicles with air bags, you

and your passengers must always

wear the safety belts provided in

order to minimize the risk and

severity of injury in the event of a

collision or rollover.

3

❈ The actual air bags in the vehicle may differ from the illustration.

OBA033017/OBA033032

3 27

Safety system of your vehicle

■ Right-hand drive

(1) Driver’s front air bag*

(2) Passenger’s front air bag *

(3) Front passenger’s air bag ON/OFF

switch *

* : if equipped

WARNING

Even in vehicles with air bags, you

and your passengers must always

wear the safety belts provided in

order to minimize the risk and

severity of injury in the event of a

collision or rollover.

3

❈ The actual air bags in the vehicle may differ from the illustration.

OBA033017R/OBA033032R

3 28

Content   ..   1  2  3   ..
