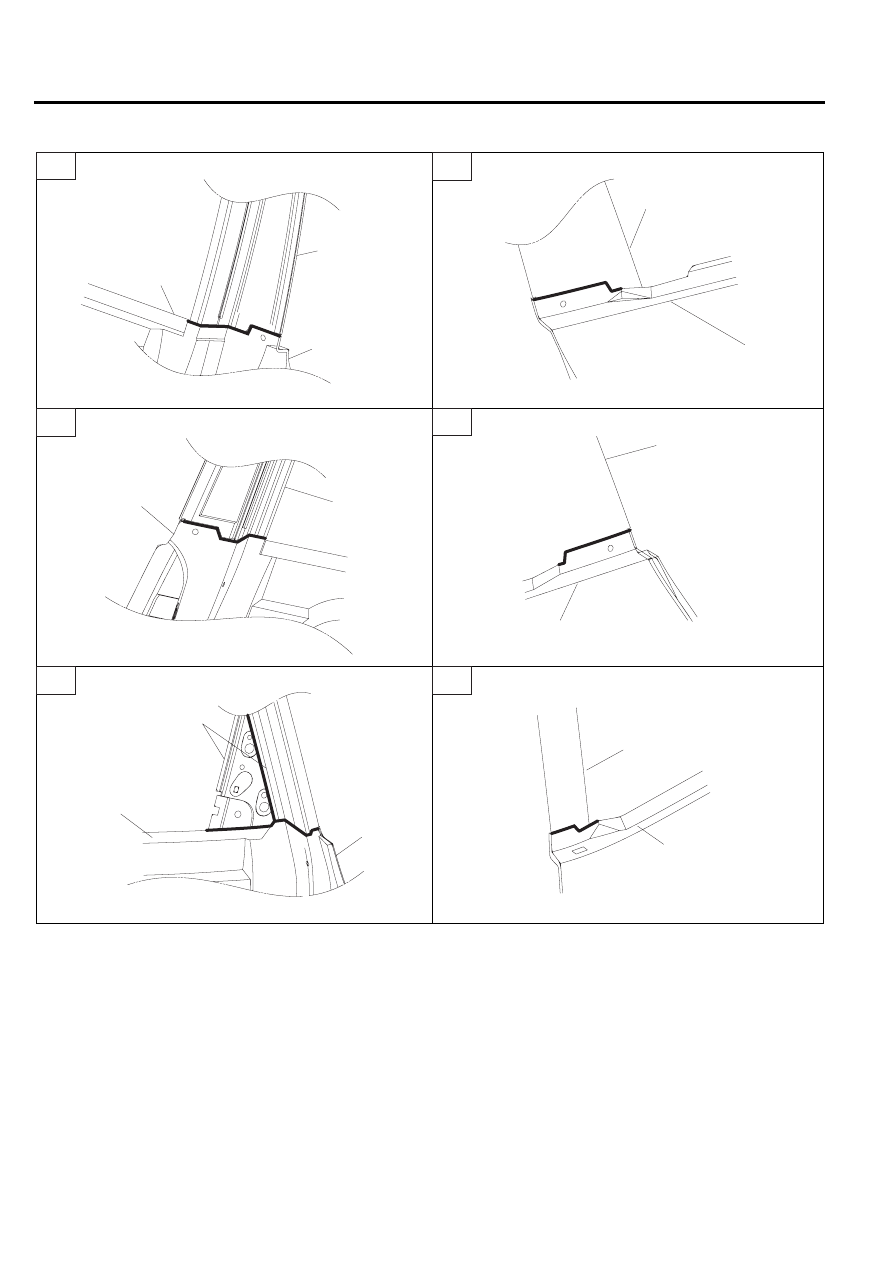

BODY SEALING LOCATIONS

BS-11

BEDBS6028

BEDBS6033

BEDBS6032

BEDBS6030

BEDBS6031

BEDBS6029

A -A

B -B

V

C -C

T

D1

D2

E

BEDBS6027

BEDBS6026

V

94   5 mm

+_

T

V

Rear door front frame

Rear door rear frame

Front door rear frame

Front door inner panel

Front door

outer panel

Front door
frame assembly

Front door

frame assembly

1.5 m

m

5 mm

BS-12

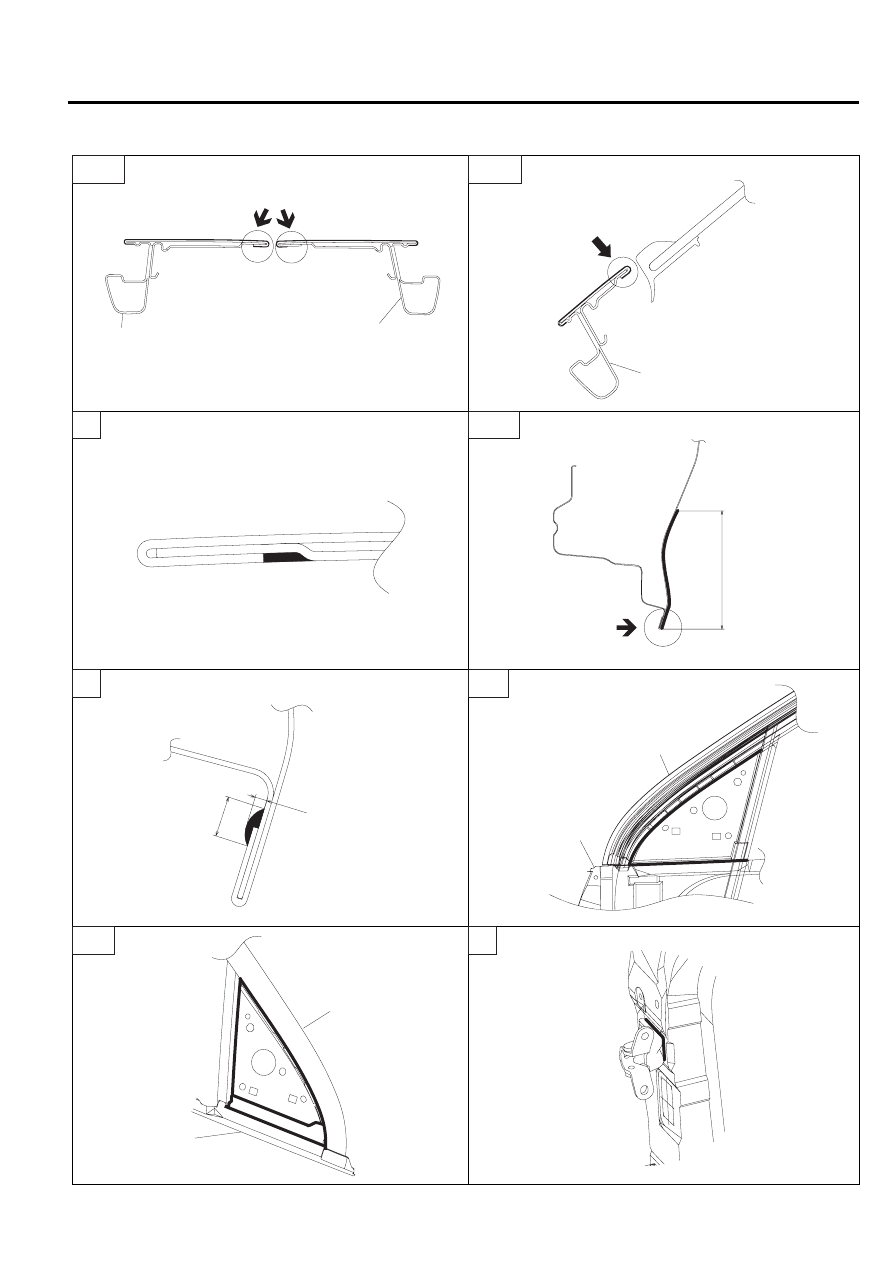

BODY SEALING LOCATIONS

BEDBS6036

BEDBS6038

BEDBS6039

BEDBS6037

F2

BEDBS6035

BEDBS6034

G1

H1

F1

H2

F2

Front door
frame assembly

Front door frame assembly

Front door outer panel

Rear door outer panel

Rear door frame assembly

Front door inner panel

Front door
outer panel

Rear door
frame assembly

Rear door inner panel

Rear door frame assembly

Rear door inner panel

Rear door
outer panel

Rear door frame assembly

Rear door outer panel

BODY SEALING LOCATIONS

BS-13

BEDBS6024

BFDBS6021

BEDBS6022

Z

BEDBS6023

Z

A - A

B - B

2.5 mm

5mm

A

A

B

B

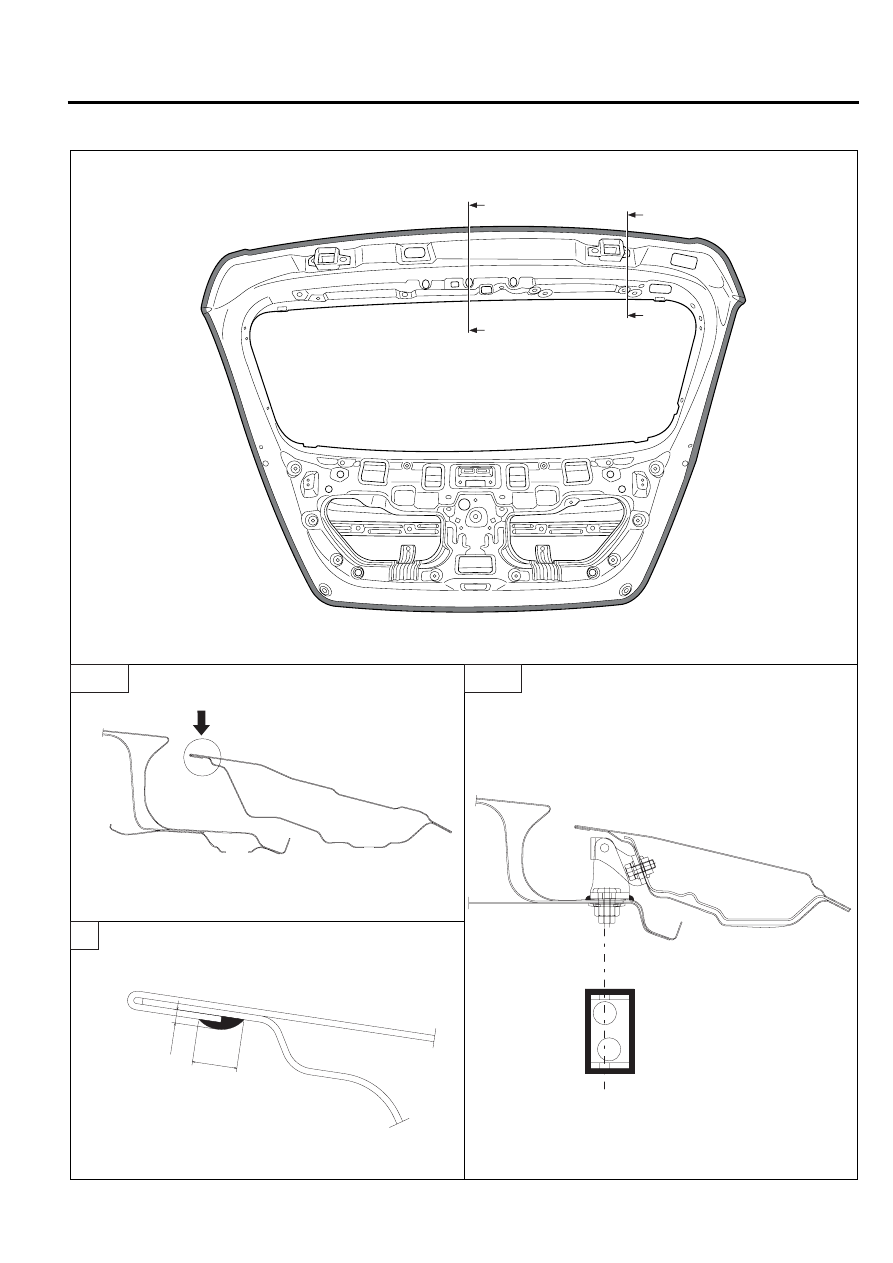

TAIL GATE

CP-2

CORROSION PROTECTION

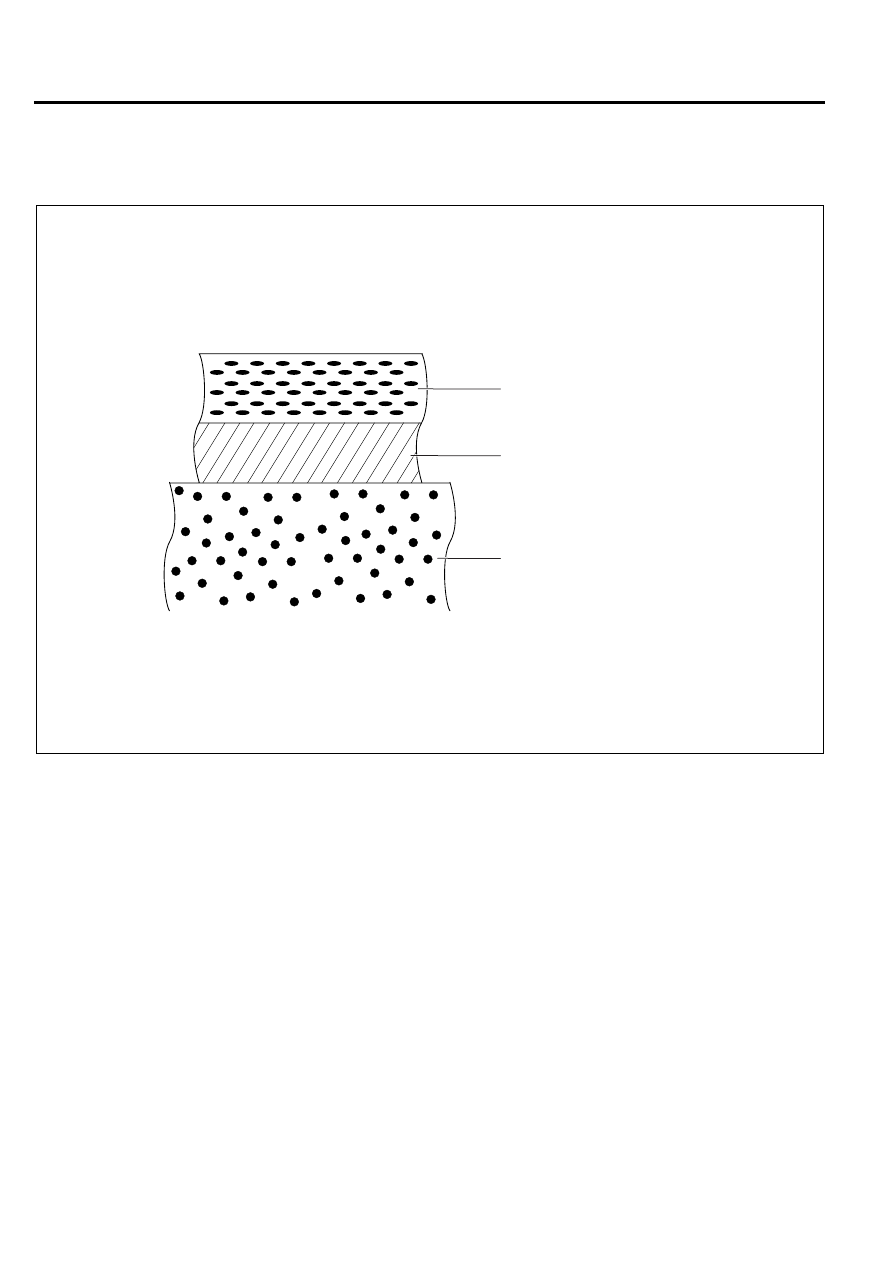

ZINC-PHOSPHATE COAT & CATIONIC ELECTRODEPOSITION PRIMER

In order to improve the adhesion of the paint coat on the steel panel, and also to improve the corrosion resistance, the entire
body is coated with a film of Zinc-phosphate and a cationic electrodeposition primer.

BMCCP6020

Cationic electrodeposition primer

Zinc-phosphate film

Body steel panel
