Indicator, Coming On/Blinking

If the Electric Power Steering (EPS) System Indicator Comes On

Han

lin
g the U

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

■

Reasons for the indicator to come on

• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine

speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

■

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one minute, and then stays on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

■

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

TPMS with Tire Fill Assist provides visual and audible
assistance during tire pressure adjustment. With the
power mode in ON, while you adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash rapidly for three seconds with
five seconds intervals.
Above recommended pressure: The beeper
sounds and lights flash twice every two seconds.

723

Indicator, Coming On/Blinking

If the Transmission System Indicator Blinks along with the Warning Message

Han

lin
g the U

expected

If the Transmission System Indicator Blinks along
with the Warning Message

■

Reasons for the indicator to blink

The transmission is malfunctioning.

■

What to do when the indicator blinks

• Immediately have your vehicle inspected by a dealer.
• Change the gear position to

(

N after starting the engine.

Check if the

(

N position in the instrument panel and the indicator

on the

(

N button light/blink.

2 Starting the Engine P. 538

If the Transmission System Indicator Blinks along with the
Warning Message

You may not be able to turn on the engine.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

2 Emergency Towing P. 731

724

Han

lin
g the U

expected

Fuses

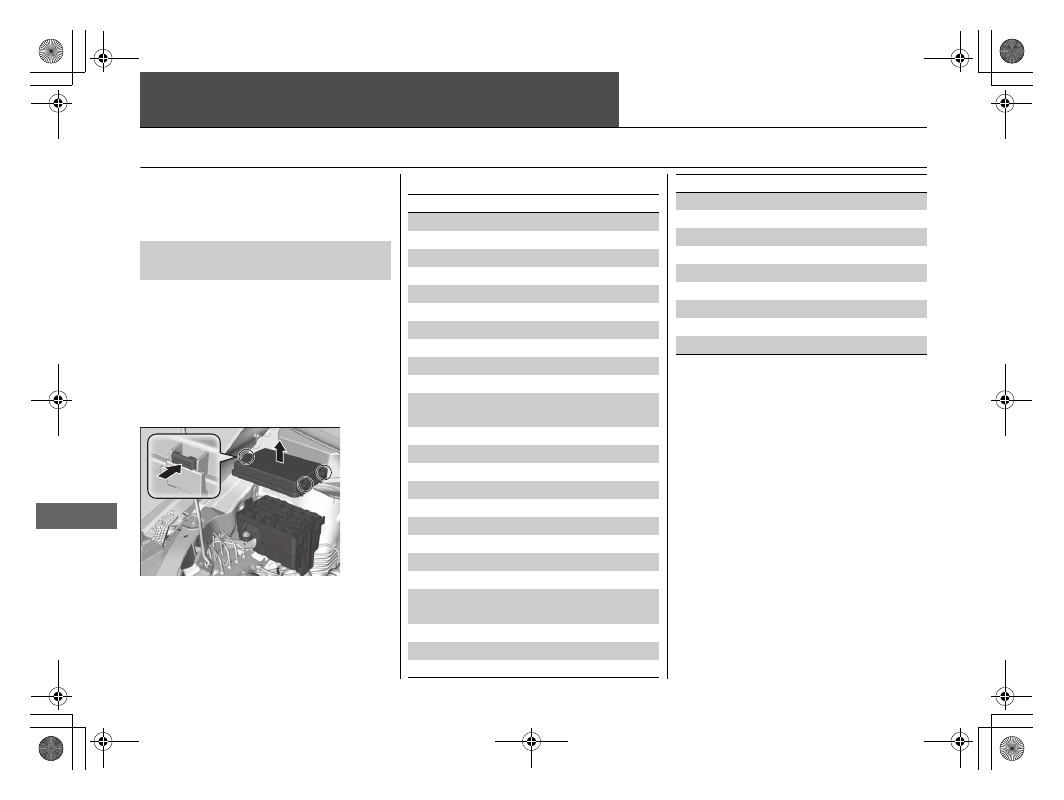

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applicable fuse is blown.

■

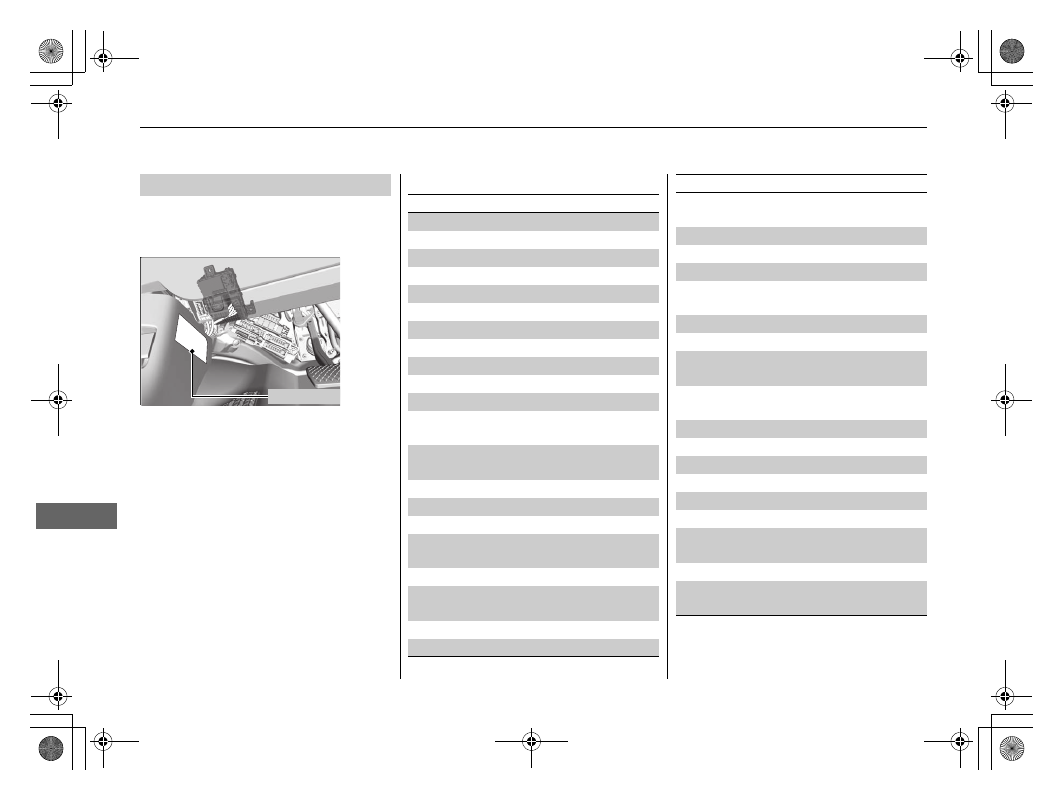

Fuse box A

Located at the rear end of the engine
compartment on the right side. Push the
tabs to open the box.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

■

Engine Compartment Fuse
Box

■

Circuit protected and fuse rating

Circuit Protected

Amps

−

IG1 VB SOL

10 A

VSA/ABS

5 A

Wiper

30 A

IG1 DBW

15 A

TCU

15 A

IGP1

15 A

Sub Fan Motor

30 A

Rear Driver’s Side Power

Window

30 A

Ignition Coil/Injector

30 A

TCU 2

10 A

TCU 3

10 A

PDM LT2

30 A

ST CUT

30 A

Shutter Grill

10 A

Back Up

10 A

Stop

10 A

PDM LT1

30 A

Rear Passenger’s Side

Power Window

30 A

ACM

20 A

Hazard

15 A

Washer

15 A

Main Fan Motor

30 A

STRLD

5 A

IGPS

5 A

Stop

10 A

29 Right Headlight Low Beam

10 A

Left Headlight Low Beam

10 A

Injector

20 A

Ignition Coil

15 A

FET Module

5 A

Circuit Protected

Amps

725

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

■

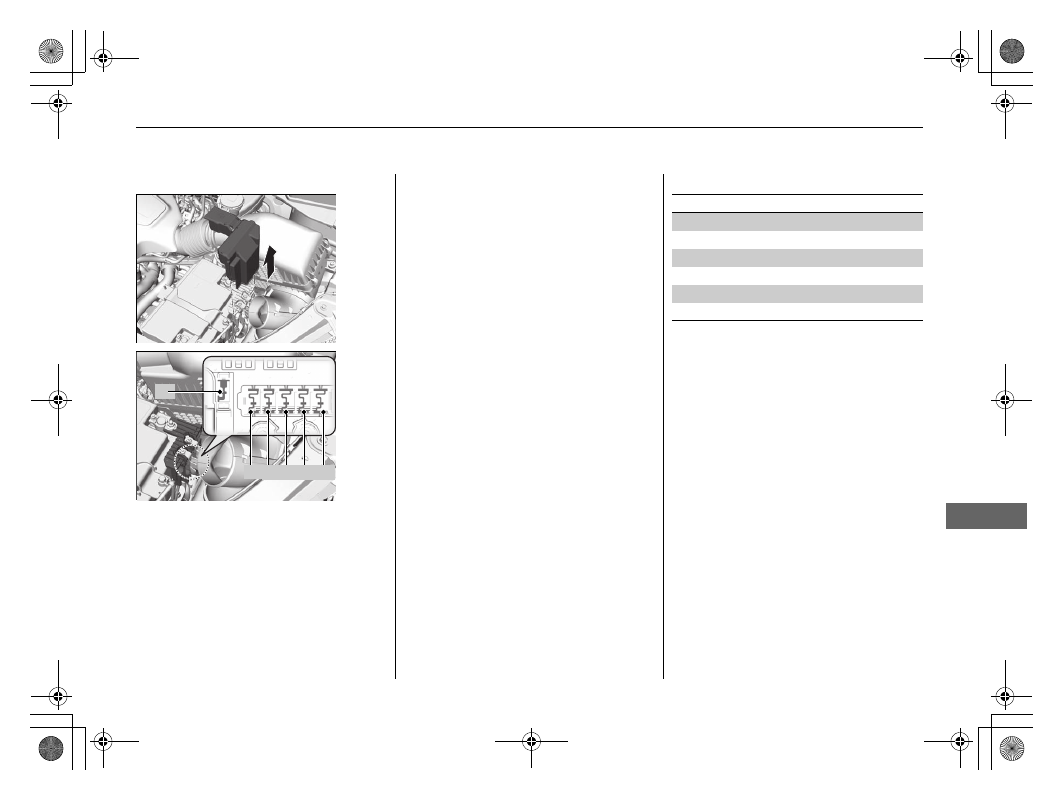

Fuse box B

b c

d e f

1. Remove the engine compartment cover

and the air intake duct.

2 Engine Compartment Cover P. 649
2 High Beam Headlights P. 660

2. Remove the cover on the + terminal (as

shown).
Replacement of engine compartment
fuses should be done by a dealer.

■

Circuit protected and fuse rating

Circuit Protected

Amps

Battery Main

150 A

FET

70 A

R/B Main 1

70 A

R/B Main 2

70 A

EPS

70 A

VAC

60 A

726

Fuses

Fuse Locations

Han

lin
g the U

expected

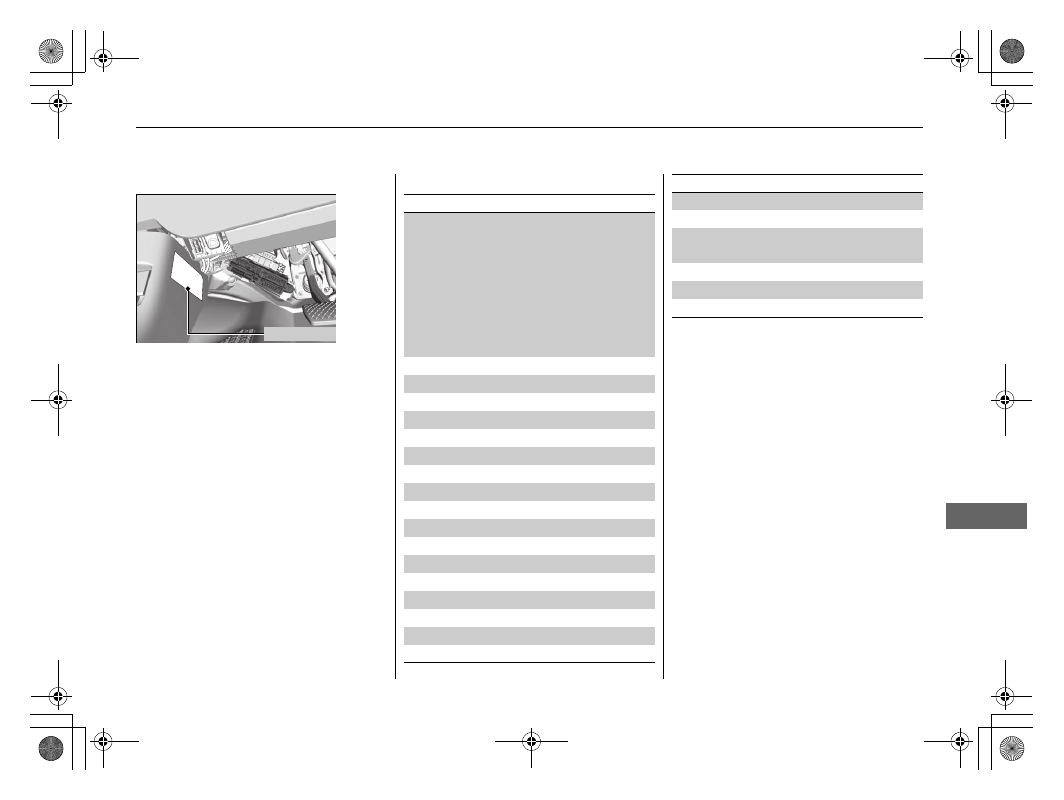

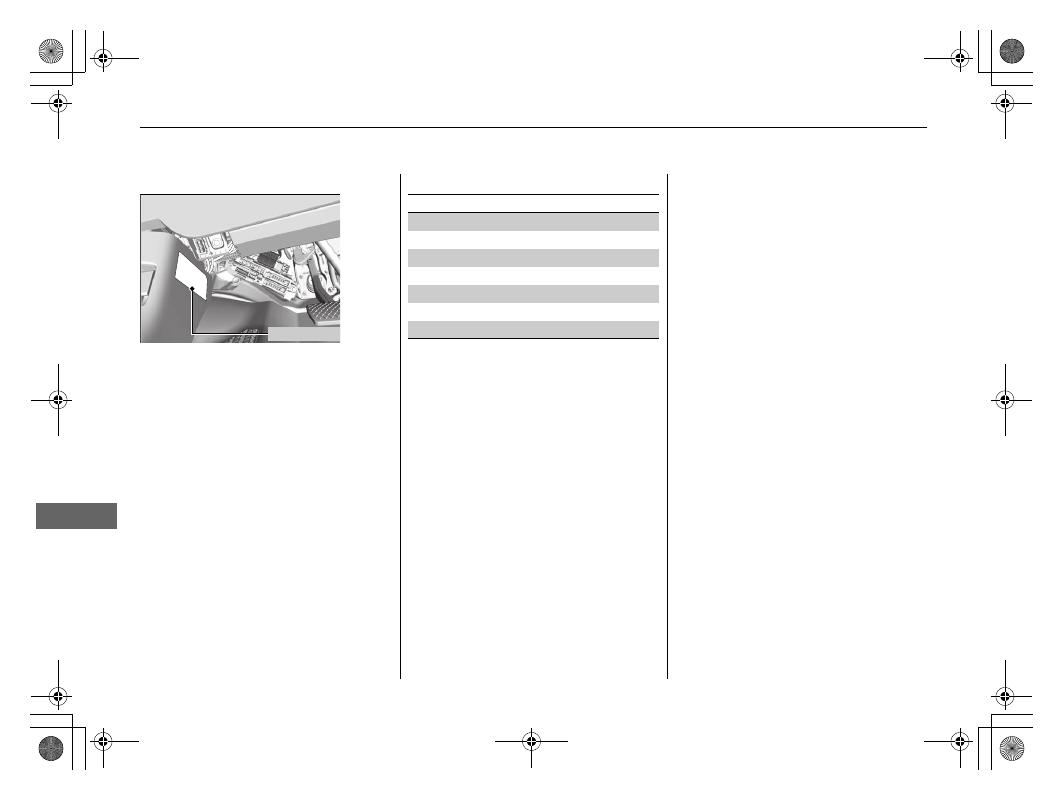

Located under the dashboard.

■

Fuse Box A

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

■

Driver’s Side Interior Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

Meter

10 A

Starter Motor

(10 A)

Option

10 A

−

Moonroof

(20 A)

−

Rear Fuse Box

10 A

IG1 Front

15 A

10 Rear Passenger’s Door Lock

10 A

Driver’s Door Lock

10 A

Front Passenger’s Door

Lock

10 A

Front Passenger’s Door

Unlock

10 A

Driver’s Door Unlock

(10 A)

Rear Wiper

10 A

SMART

10 A

Driver’s Power Seat

Reclining

20 A

Heated Steering Wheel

(10 A)

Front Passenger’s Power

Seat Reclining

20 A

SRS

10 A

Fuel Pump

20 A

*1:Models with color audio system
*2:Models without color audio system

Front Accessory Power

Socket

20 A

Left Headlight High Beam

10 A

24 Right Headlight High Beam

10 A

Driver’s Power Window

20 A

Rear Passenger’s Door

Unlock

10 A

ACC

10 A

SRS2

10 A

Driver’s Power Seat Lumbar

Support

(10 A)

Front Passenger’s Power

Seat Sliding

20 A

31 Driver’s Power Seat Sliding

20 A

Tailgate Lock

(10 A)

−

ACG

15 A

DRL

10 A

A/C

10 A

Radio

20 A

15 A

Door Lock Main

20 A

Front Passenger’s Power

Window

20 A

Circuit Protected

Amps

* Not available on all models

727

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

■

Fuse Box B

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

DC/DC2

(30 A)

DC/DC1

(30 A)

−

Fuse Box Main1

50 A

Fuse Box Main2

50 A

Rear Fuse Box Main1

50 A

Rear Fuse Box Main2

50 A

Vacuum

(60 A)

IG Main1

30 A

AC Outlet

(30 A)

IG Main2

30 A

−

Rear Blower

30 A

Audio Amp2

(20 A)

Audio Amp1

(20 A)

Rear Defogger

40 A

−

Heated Windshield

(15 A)

BMS

5 A

Audio Amp3

(30 A)

−

VSA Motor

40 A

Front Blower

40 A

−

Horn

10 A

−

3rd Row Accessory Power

Socket

(20 A)

Shift By Wire

10 A

VBUM

10 A

VSA

40 A

Circuit Protected

Amps

* Not available on all models

728

Fuses

Fuse Locations

Han

lin
g the U

expected

■

Fuse Box C

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

Meter

(10 A)

VSA

(10 A)

ACG

(10 A)

Body Control Module

(10 A)

−

Back Up

(10 A)

ACC

(10 A)

* Not available on all models

729

Fuses

Fuse Locations

Han

lin
g the U

expected

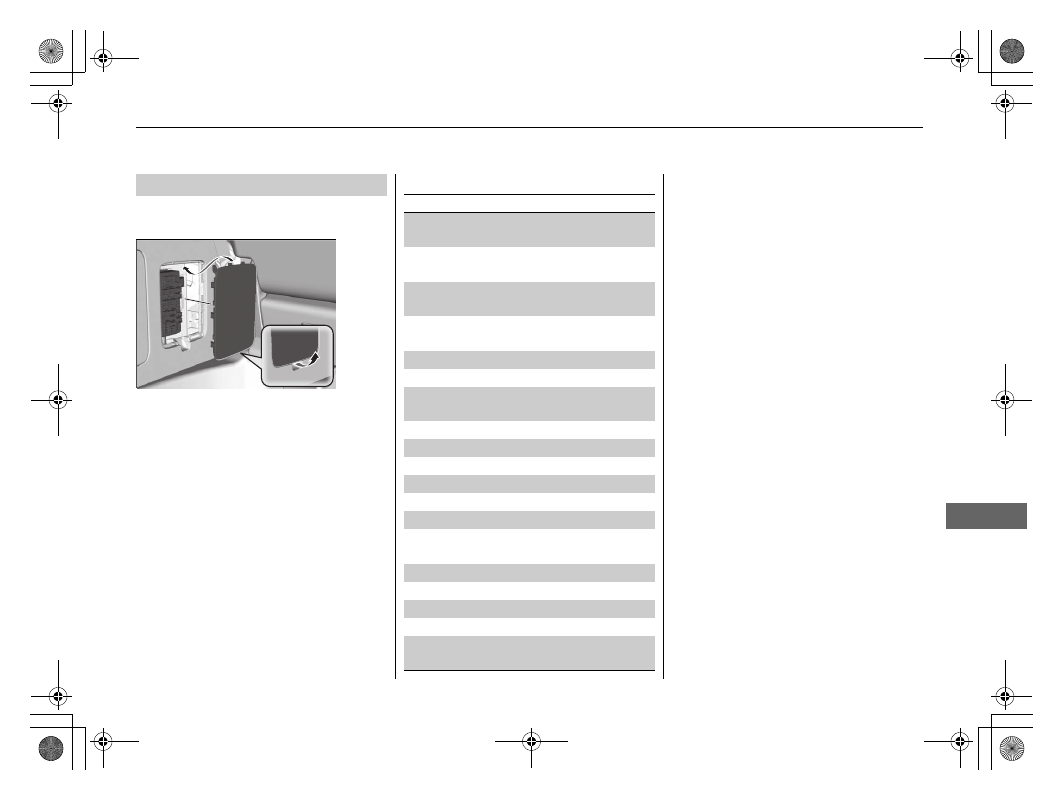

Located on the left side of cargo area. Take
off the cover to open.

Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.

■

Rear Side Interior Fuse Box

■

Circuit protected and fuse rating

Circuit Protected

Amps

Rear Driver’s Side Door

Lock

10 A

Passenger’s Side Power

Sliding Door Closer

(20 A)

Power Tailgate Closer

Motor

(20 A)

Cargo Area’s Accessory

Power Socket

20 A

Fuel Fill Door

10 A

−

Driver’s Side Power Sliding

Door Closer

(20 A)

−

Passenger’s Side Power

Sliding Door Motor

(30 A)

−

Power Tailgate Motor

(40 A)

−

Driver’s Side Power Sliding

Door Motor

(30 A)

* Not available on all models

730

Fuses

Inspecting and Changing Fuses

Han

lin
g the U

expected

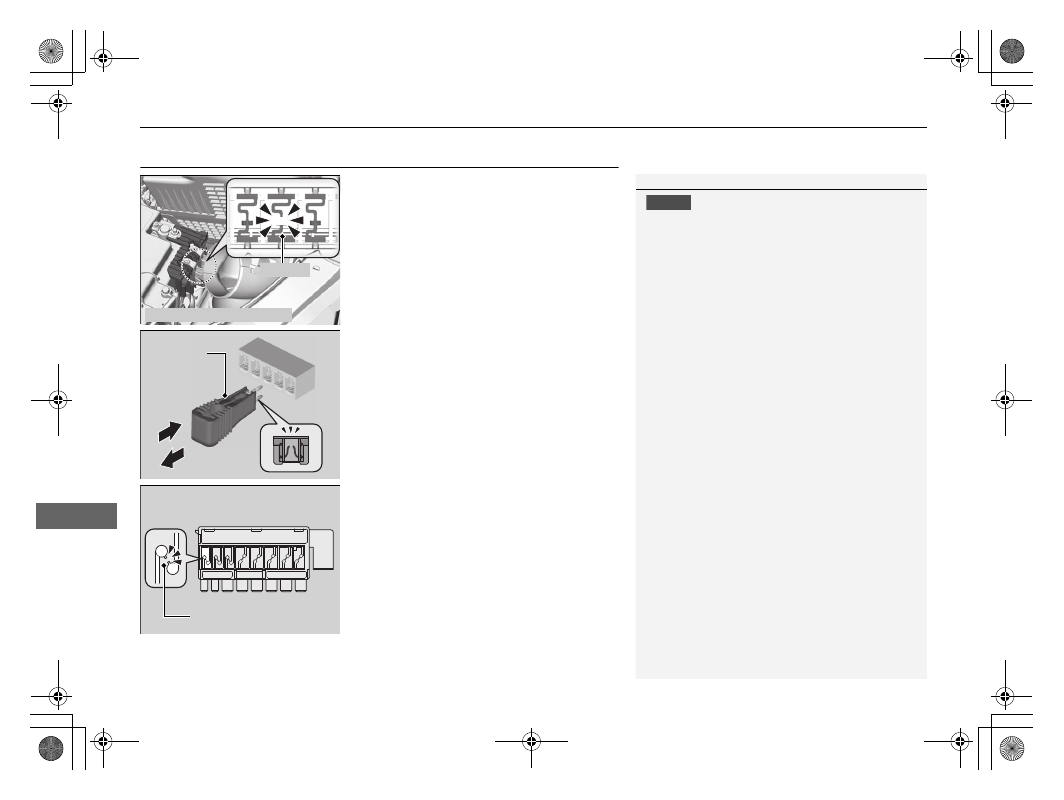

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF. Turn

headlights and all accessories off.

2. Check the fuses on the battery in the

engine compartment.

If the fuse is blown, have it replaced by a
dealer.

3. Remove the fuse box cover.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

5. Check the large fuse in the vehicle interior.

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuses with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2 Fuse Locations P. 724

There is a fuse puller on the back of the engine
compartment fuse box cover.

Blown

Fuse Box on the Battery

Fuse Puller

Combined Fuse

Blown Fuse

731

Han

lin
g the U

expected

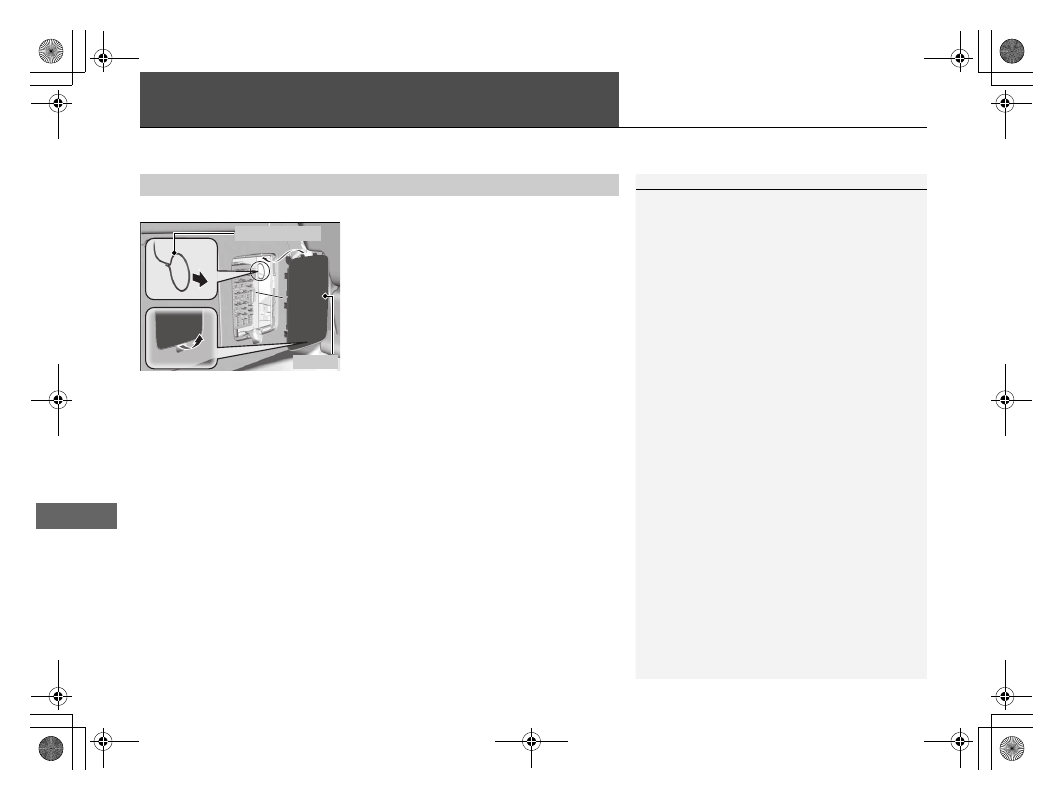

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will damage the vehicle’s drive system.

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

732

Han

lin
g the U

expected

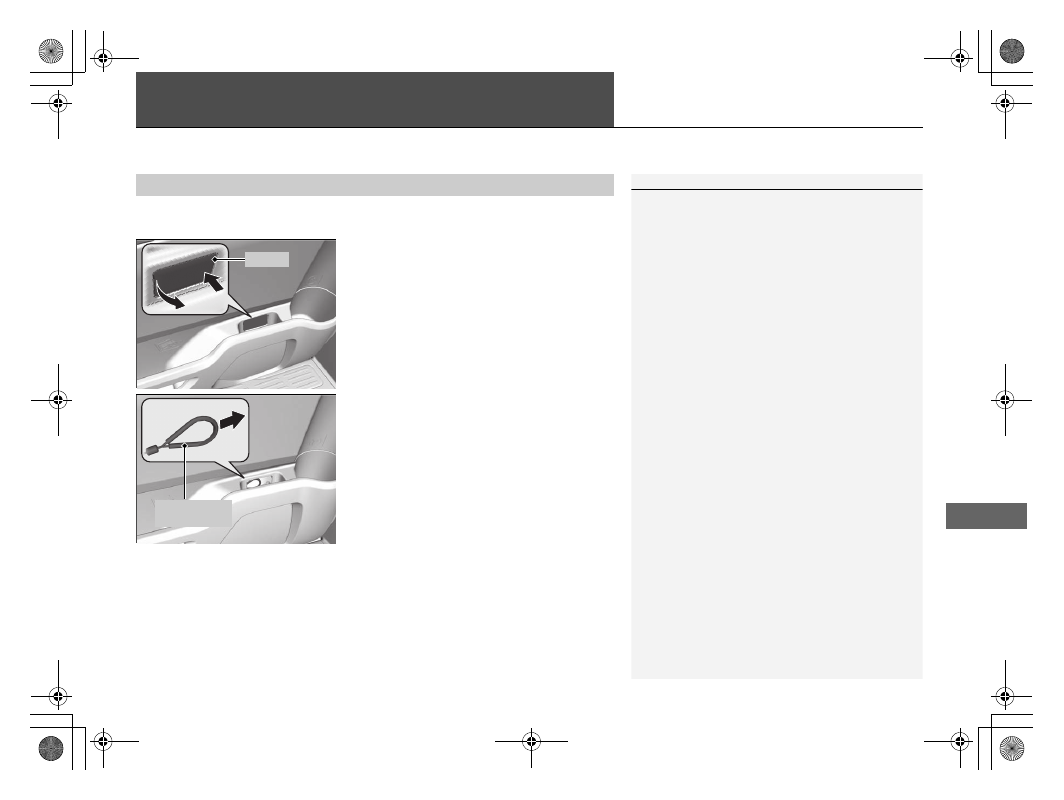

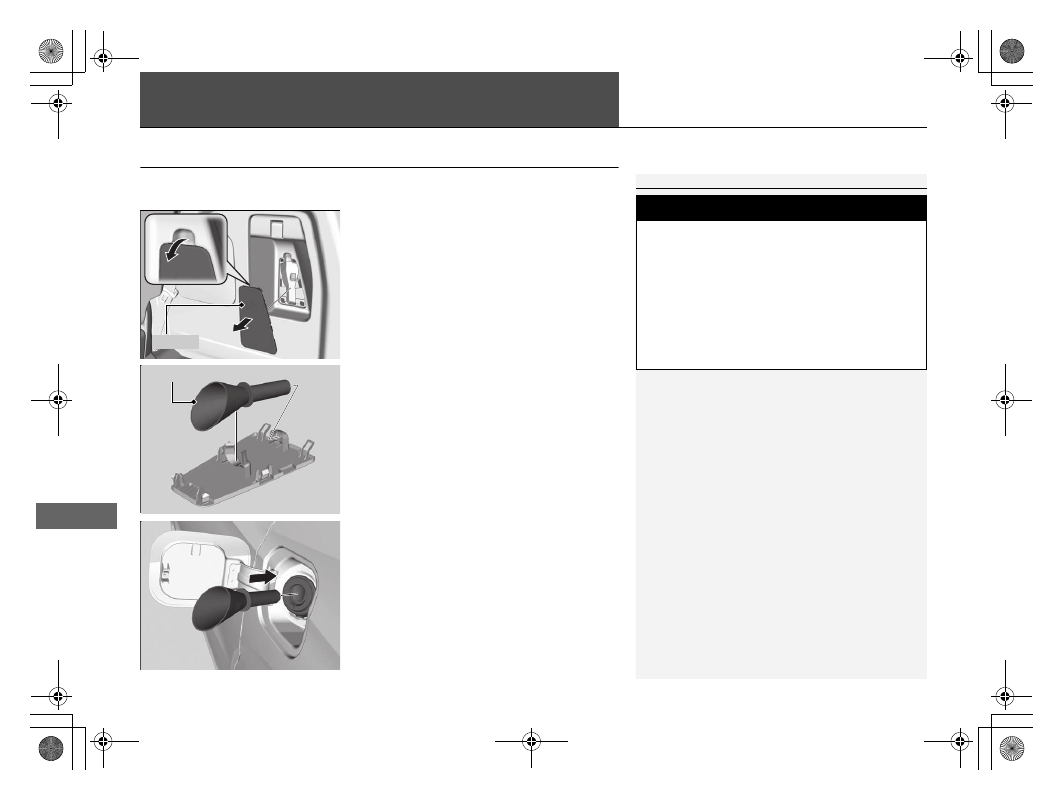

When You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure:

1. Open the tailgate and remove the cover on

the left side of cargo area.

2. Pull the yellow release cord (as shown).

The release cord opens the fuel fill door
when it is pulled.

■

What to Do When Unable to Unlock the Fuel Fill Door

When You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have
your vehicle checked.

Cover

Release Cord

733

Continued

Han

lin
g the U

expected

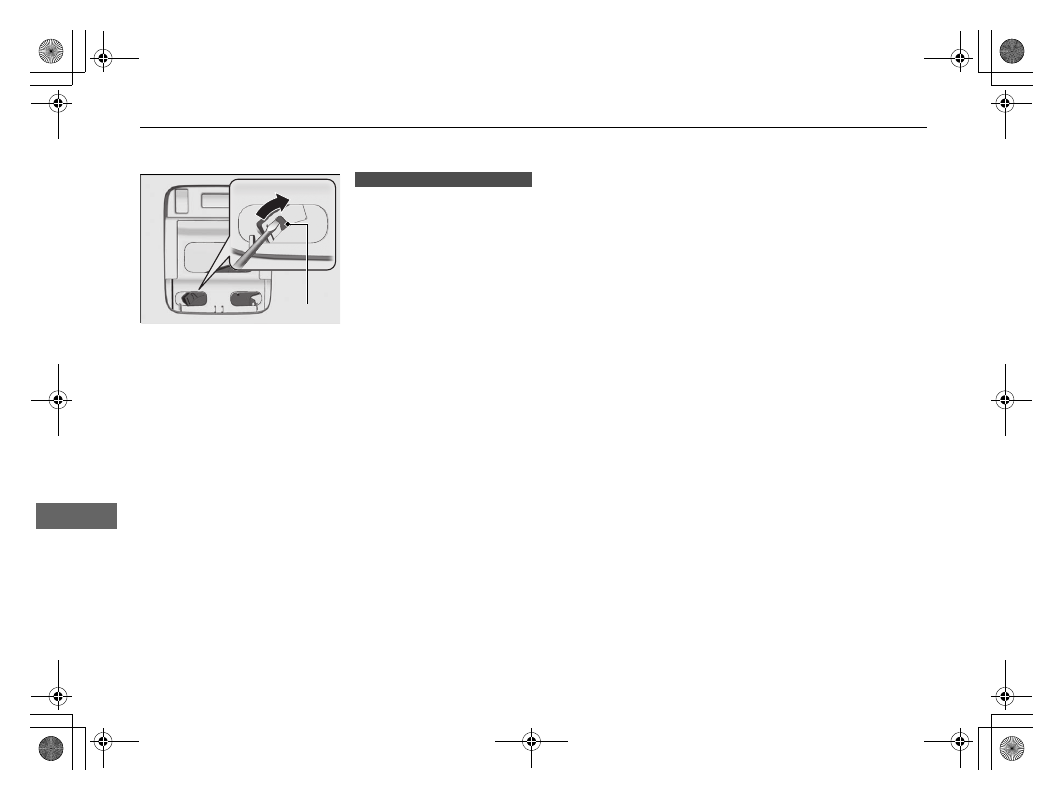

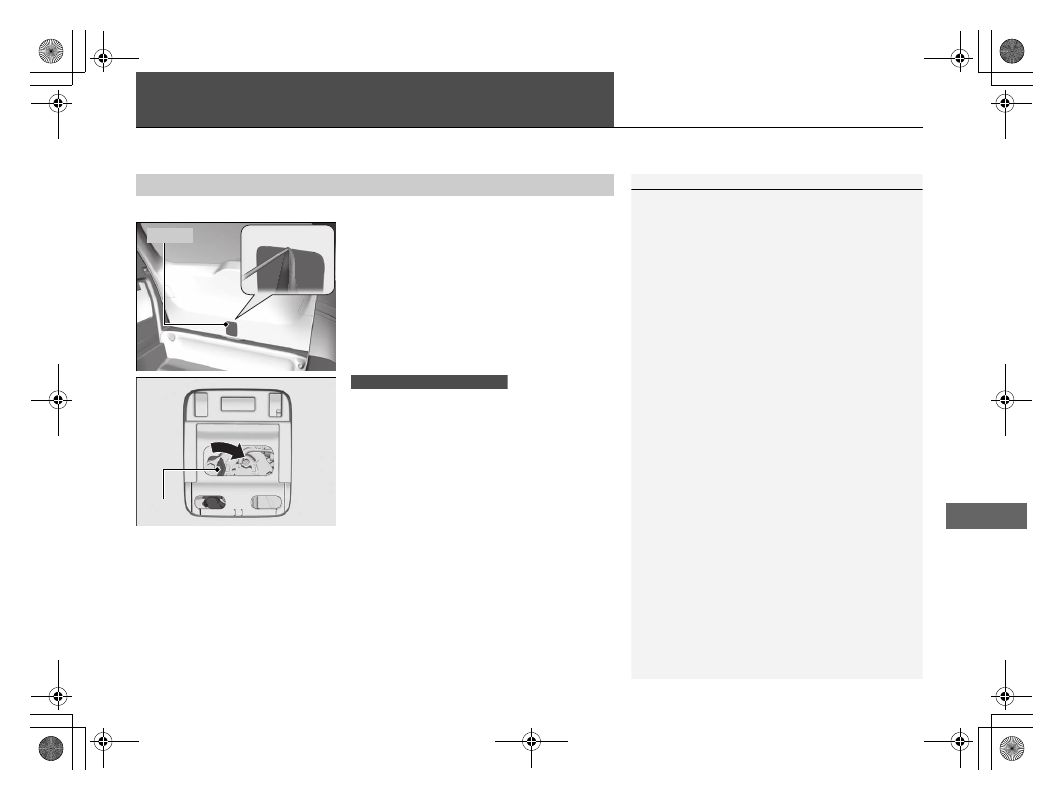

When You Cannot Open the Tailgate

If you cannot open the tailgate or power tailgate, use the following procedure:

1. Use a flat-tip screwdriver and remove the

cover on the back of the tailgate.

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2. To open the tailgate, push the tailgate

while pushing the lever to the right.

■

What to Do When Unable to Open the Tailgate

When You Cannot Open the Tailgate

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.

Cover

Lever

Models with power tailgate

734

When You Cannot Open the Tailgate

Han

lin
g the U

expected

2. To open the tailgate, push the tailgate

while pushing the lever to the right with the
flat-tip screwdriver.

Lever

Models without power tailgate

735

Han

lin
g the U

expected

When You Cannot Close the Power Sliding Doors

If either power sliding door does not latch when closed, use the following
procedure.

1. Set the sliding door main switch in the OFF

position.

2 Switching between manual and

automatic operations P. 173

2. Push front edge of the cover on hand

pocket of the power sliding door to pop it
out, and remove it as shown in the image.

3. Pull the rear latch reset cable (yellow)

towards the front of the vehicle until it
bottoms out (about 15 mm).

4. Manually close the door and confirm

latches engage.

■

What to Do When Unable to Close the Power Sliding Doors

When You Cannot Close the Power Sliding Doors

After taking these steps, contact a dealer to have
your vehicle checked.

Cover

Rear Latch
Reset Cable

* Not available on all models

736

Han

lin
g the U

expected

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the engine.
2. Press on the edge of the fuel fill door to

make it pop up slightly.

The fuel fill door opens.

3. Remove the cover on the right side panel of

the cargo area.

4. Pick up the funnel from the cover (as

shown).

2 Types of Tools P. 700

5. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

Make sure that the end of the funnel
goes down along with the filler pipe.

Refueling From a Portable Fuel Container

WARNING

Fuel is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Cover

Funnel

737

Refueling

Refueling From a Portable Fuel Container

Han

lin
g the U

expected

6. Fill the tank with fuel from the portable fuel

container.

Pour fuel carefully so you do not spill any.

7. Remove the funnel from the filler neck.

Wipe up any fuel from the funnel before
storing it.

8. Shut the fuel fill door by hand.

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

Content .. 44 45 46 47 ..
