Honda Odyssey (2019 year). Manual - part 40

624

Parking Your Vehicle

Parking Sensor System

Driving

■

When the distance between your vehicle and obstacles behind becomes shorter

*1:At this stage, only the center sensors detect obstacles.

Length of the

intermittent beep

Distance between the Bumper and Obstacle

Indicator

Audio/information screen

Corner Sensors

Center Sensors

Moderate

—

Rear: About 43-24 in

(110-60 cm)

Blinks in Yellow

Short

About 24-18 in

(60-45 cm)

About 24-18 in

(60-45 cm)

Blinks in Amber

Very short

About 18-14 in

(45-35 cm)

About 18-14 in

(45-35 cm)

Continuous

About 14 in

(35 cm) or less

About 14 in

(35 cm) or less

Blinks in Red

Indicators light where the
sensor detects an obstacle

625

Parking Your Vehicle

Parking Sensor System

Driving

1. Make sure that the parking sensor system is not activated. Set the power mode to

VEHICLE OFF.

2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for 10 seconds. Release the button when the indicator

in the button blinks.

The beeper sounds once.

4. Press the button again. The indicator in the button goes off.

The beeper sounds twice. The rear sensors are now turned off.

To turn the rear sensors on again, follow the above procedure. The beeper sounds
three times when the rear sensors come back on.

■

Turning off All Rear Sensors

Turning off All Rear Sensors

When you set the gear position to

(

R, the indicator

in the parking sensor system button blinks as a
reminder that the rear sensors have been turned off.

626

Parking Your Vehicle

Cross Traffic Monitor

Driving

Cross Traffic Monitor

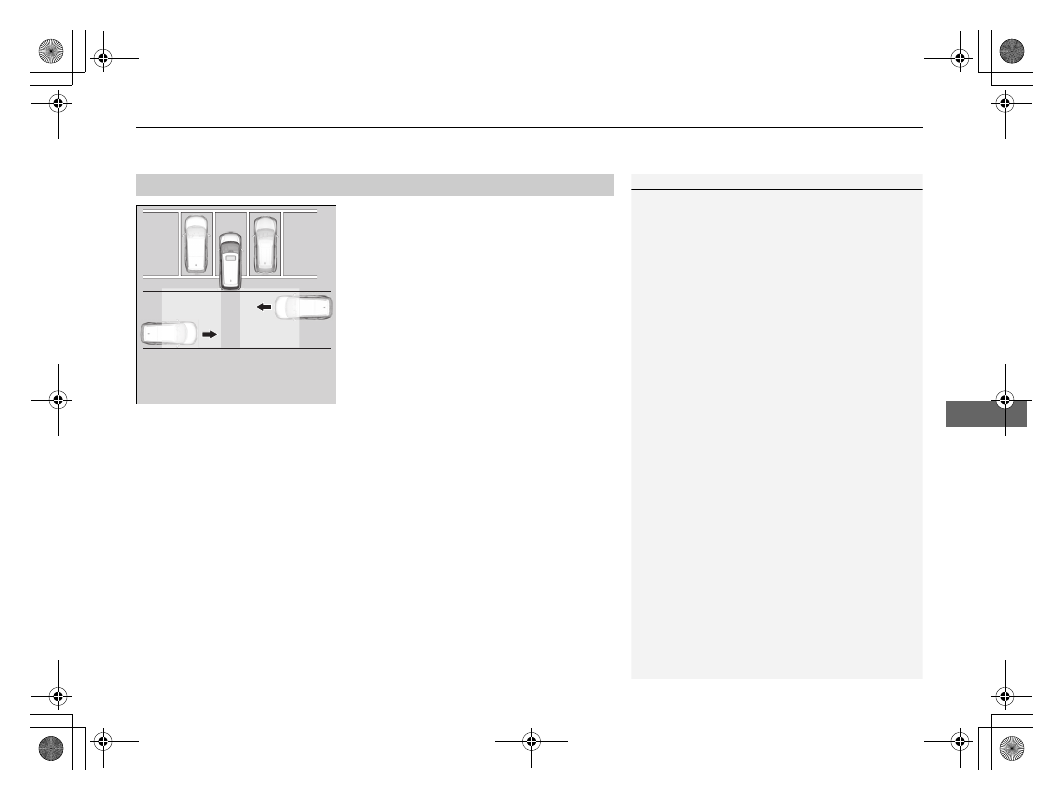

Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.

The system is convenient when you are backing out of a parking space.

Cross Traffic Monitor

CAUTION

Cross Traffic Monitor cannot detect all
approaching vehicles and may not
detect an approaching vehicle at all.

Failure to visually confirm that it is safe
to back up the vehicle before doing so
may result in a collision.

Do not solely rely on the system when
reversing; always also use your mirrors,
and look behind and to the sides of your
vehicle before reversing.

* Not available on all models

Continued

627

Parking Your Vehicle

Cross Traffic Monitor

Driving

The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned

on.

2 Cross Traffic Monitor On and Off P. 629

• The transmission is in

(

• Your vehicle is moving at 3 mph (5 km/h) or

lower.

When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.

The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.

The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may not detect or alert for pedestrians, bicycles, or stationary objects.

■

How the System Works

Cross Traffic Monitor

Cross Traffic Monitor may not detect or may delay
alerting an approaching vehicle, or may alert without
an approaching vehicle under the following
conditions:

•

An obstacle, such as another vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.

•

Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.

•

A vehicle is approaching at the speed other than
between about 6 and 16 mph (10 and 25 km/h).

•

The system picks up external interference such as
other radar sensors from another vehicle or strong
radio wave transmitted from a facility nearby.

•

Either corner of the rear bumper is covered with
snow, ice, mud or dirt.

•

When there is bad weather.

•

Your vehicle is on an incline.

•

Your vehicle is tilted due to a heavy load in the rear.

•

Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.

•

The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have your vehicle checked by a dealer.

For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.

Radar sensors:
Underneath the rear bumper
corners

* Not available on all models

Parking Your Vehicle

Cross Traffic Monitor

628

Driving

An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.

■

When the System Detects a Vehicle

Cross Traffic Monitor

The parking sensor system’s alerting buzzer overrides
the Cross Traffic Monitor buzzer when the parking
sensors are detecting obstacles at the closest range.

When the System Detects a Vehicle

If the on the lower right changes to

in amber

when the transmission is in

(

R, mud snow or ice may

have accumulated in the vicinity of the sensor. The
system is temporarily canceled. Check the bumper
corners for any obstructions, and thoroughly clean
the area if necessary.

If the

comes on when the transmission is in

(

there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.

If the display remains the same with the gear position
is in

(

R, there may be a problem with the rear

camera system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.

Arrow Icon

Normal View

Top Down View

Wide View

* Not available on all models

629

Parking Your Vehicle

Cross Traffic Monitor

Driving

You can switch on and off the system using the audio/information screen.
1. Select .
2. Select Settings.
3. Select Camera.
4. Select Rear Camera.
5. Select Cross Traffic Monitor.
6. Select ON or OFF.

The system can also be turned on and off on
the audio/information screen by pressing the
CTM icon.

■

Cross Traffic Monitor On and Off

Check Your Surroundings

Icon

630

Driving

Multi-View Rear Camera

About Your Multi-View Rear Camera

The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into

(

■

Multi-View Rear Camera Display Area

About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

You can change the Camera Guideline On or Off
settings.

2 Customized Features P. 443

You can change the Fixed, Dynamic, Both and OFF
settings.

2 Customized Features P. 443

Fixed: Guidelines appear when you put the
transmission into

(

Dynamic: Guidelines move according to the steering
wheel direction.
Both: Guidelines appear when you put the
transmission into

(

R and Guidelines move according

to the steering wheel direction.
OFF: Guidelines do not appear.

Models with color audio system

Models with Display Audio

Top Down View Mode

Normal View Mode

Wide View Mode

Guidelines

Bumper

Camera

Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)

631

Multi-View Rear Camera

About Your Multi-View Rear Camera

Driving

You can view three different camera modes on the rearview display.

Press the selector knob to switch the mode.

Select the appropriate icon to switch the mode.

: Wide view mode
: Normal view mode
: Top down view mode

• If the last used viewing mode was Wide view mode or Normal view mode, the

same view mode will be activated the next time you put the transmission into

(

• If Top down view mode was last used before you set the power mode to OFF,

Wide View mode is selected next time you set the power mode to ON and put the
transmission into

(

• If Top down view mode was last used more than 10 seconds after you put the

transmission out of

(

R, Wide View mode is selected the next time you put the

transmission into

(

About Your Multi-View Rear Camera

You can change the Last Used, Normal View and
Wide View settings.

2 Customized Features P. 443

Models with Display Audio

Models with color audio system

Models with Display Audio

632

Driving

Refueling

Fuel Information

■

Fuel recommendation

Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.

■

Top tier detergent gasoline

Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.

Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com.

■

Fuel tank capacity: 19.5 US gal (73.8 L)

Unleaded gasoline, pump octane number 87 or higher

Fuel Information

NOTICE

We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.

Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.

633

Refueling

How to Refuel

Continued

Driving

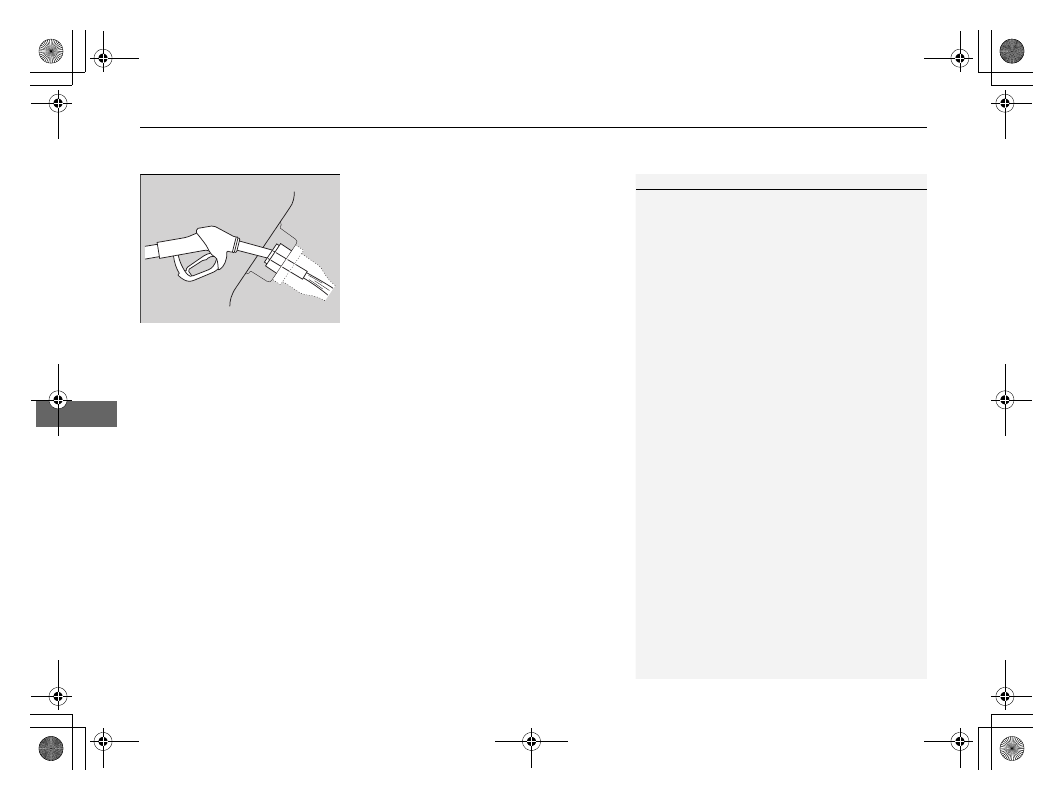

How to Refuel

Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle.

1. Stop your vehicle with the service station

pump on the left side of the vehicle in the
rear.

2. Turn off the engine.
3. Unlock the driver’s door using the master

door lock switch.

The fuel fill door on the outer side of the
vehicle will unlock.

2 Locking/Unlocking the Doors from

the Inside P. 154

4. Press firmly and then release the area

indicated by the arrow to release the fuel
filler door.

How to Refuel

The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diameter tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.

The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.

If the filler nozzle keeps turning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try filling at another pump. If
this does not fix the problem, consult a dealer.

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Press

Refueling

How to Refuel

634

Driving

5. Place the end of the filler nozzle on the

lower part of filler opening, then insert it
slowly and fully.

Make sure that the end of the filler
nozzle goes down along with the filler
pipe.

Keep the filler nozzle level.

When the tank is full, the filler nozzle will
click off automatically.

After filling, wait about five seconds
before removing the filler nozzle.

6. Shut the fuel fill door by hand.

How to Refuel

Use the lock tab or the master door lock switch to
unlock the fuel fill door.
The vehicle doors and fuel fill door automatically
relock if the remote unlock function is used. This can
be deactivated by briefly opening then closing the
driver’s door.

Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.

If you have to refuel your vehicle from a portable
container, use the funnel provided with your vehicle.

2 Refueling From a Portable Fuel Container

P. 736

635

Driving

Fuel Economy and CO

Emissions

Improving Fuel Economy and Reducing CO

Emissions

Achieving fuel economy and reducing CO

emissions is dependent on several

factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.

You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
driver information interface.
• Use engine oil with the viscosity recommended.

2 Recommended Engine Oil P. 650

• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside

adds weight and increases wind resistance.

■

Maintenance and Fuel Economy

Improving Fuel Economy and Reducing CO

Emissions

Direct calculation is the recommended method to
determine actual fuel consumed while driving.

In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/

Miles driven

Gallons of

fuel

Miles per

Gallon

100

L per 100 km

Liters of

fuel

Kilometers

driven

636

637

Maintenance

This chapter discusses basic maintenance.

Before Performing Maintenance

Inspection and Maintenance ............ 638
Safety When Performing Maintenance .... 639
Parts and Fluids Used in Maintenance

Service ........................................... 640

Maintenance Minder

..................... 641

Maintenance Under the Hood

Maintenance Items Under the Hood .... 647
Opening the Hood ........................... 648
Recommended Engine Oil ................ 650
Oil Check ......................................... 651
Adding Engine Oil ............................ 652

Changing the Engine Oil and Oil Filter..... 653
Engine Coolant ................................ 655
Transmission Fluid............................ 657
Brake Fluid....................................... 658
Refilling Window Washer Fluid......... 659

Replacing Light Bulbs ....................... 660
Checking and Maintaining Wiper Blades.... 671
Checking and Maintaining Tires

Checking Tires ................................. 675
Tire and Loading Information Label ..... 676
Tire Labeling .................................... 676
DOT Tire Quality Grading (U.S. Vehicles)...... 678
Wear Indicators................................ 680

Tire Service Life................................ 680
Tire and Wheel Replacement ........... 681
Tire Rotation.................................... 682
Winter Tires ..................................... 683

Battery............................................... 684
Remote Transmitter Care................. 686
Remote Control and Wireless

Headphone Care

........................... 687

Climate Control System Maintenance .... 689
Cleaning

Interior Care .................................... 690
Exterior Care.................................... 693

Accessories and Modifications ........ 696

* Not available on all models

638

Main

tenan

Before Performing Maintenance

Inspection and Maintenance

For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)

■

Daily inspections

Perform inspections before long distance trips, when washing the vehicle, or when
refueling.

■

Periodic inspections

• Check the brake fluid level monthly.

2 Brake Fluid P. 658

• Check the tire pressure monthly. Examine the tread for wear and foreign objects.

2 Checking and Maintaining Tires P. 675

• Check the operation of the exterior lights monthly.

2 Replacing Light Bulbs P. 660

• Check the condition of the wiper blades at least every six months.

2 Checking and Maintaining Wiper Blades P. 671

■

Types of Inspection and Maintenance

Inspection and Maintenance

Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.

According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the driver information interface.

2 Maintenance Service Items P. 644

If you want to perform complex maintenance tasks
that require more skills and tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com.

2 Authorized Manuals P. 750

If you want to perform maintenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.

U.S. models

639

Before Performing Maintenance

Safety When Performing Maintenance

Main

tenan

Safety When Performing Maintenance

Some of the most important safety precautions are given here. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether you should perform a given task.

• To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames

away from the battery and all fuel related parts.

• Never leave rags, towels, or other flammable objects under the hood.

Heat from the engine and exhaust can ignite them causing a fire.

• To clean parts, use a commercially available degreaser or parts cleaner, not

gasoline.

• Wear eye protection and protective clothing when working with the battery or

compressed air.

• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.

Only operate the engine if there is sufficient ventilation.

• The vehicle must be in a stationary condition.

Make sure your vehicle is parked on level ground, the parking brake is set, and
the engine is off.

• Be aware that hot parts can burn you.

Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.

• Be aware that moving parts can injure you.

Do not start the engine unless instructed, and keep your hands and limbs away
from moving parts.

Do not open the hood while the Auto Idle Stop function is activated.

■

Maintenance Safety

■

Vehicle Safety

Safety When Performing Maintenance

WARNING

Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.

Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.

WARNING

Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.

Always follow the procedures and
precautions in this owner’s manual.

Models with Auto Idle Stop

Content .. 38 39 40 41 ..
