Honda Odyssey (2019 year). Manual - part 15

224

uu

Adjusting the Seats

u

Armrest

Co
ntrols

Armrest

Pull down the armrest.

Pull the armrest all the way down, then pull it
up to the desired angle.

Pull down the center backrest to use as an
armrest.

■

Using the Front and Second Row Outer

*

 Seat Armrest

Front seat with adjustable armrest

■

Using the Second Row Seat Armrest

*

* Not available on all models

225

Continued

Co
ntrols

Interior Lights/Interior Convenience Items

Interior Lights

■

ON

The interior lights come on regardless of
whether the doors or the tailgate are open or
closed.

■

Door activated

The interior lights come on in the following
situations:
Front:
• When any of the doors or the tailgate are

opened.

• You unlock the driver’s door.
• When the power mode is set to VEHICLE

OFF.

Cargo area:
When the tailgate is open.

■

OFF

The interior lights remain off regardless of
whether the doors or the tailgate are open or
closed.

■

Interior Light Switches

1

Interior Light Switches

In the door activated position, the interior lights fade
out and go off about 30 seconds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:

•

When you unlock the driver’s door but do not open
it.

•

When you set the power mode to VEHICLE OFF but
do not open a door.

You can change the interior light dimming time.

2 Vehicle Customization P. 133

2 Customized Features P. 443

The interior lights go off immediately in the following
situations:

•

When you lock the driver’s door.

•

When you set the power mode to ON.

•

When you close the driver’s door in ACCESSORY
mode.

If you leave any of the doors open in VEHICLE OFF
mode, the interior lights go off after about 15
minutes.

If you leave the tailgate open in VEHICLE OFF mode,
the cargo area light goes off after about 30 minutes.

To avoid draining the battery, do not leave the
interior light on for an extended length of time when
the engine is off.

Models with color audio system

Models with Display Audio

Door
Activated
Position

Off

On

Front

Door Activated Position

Off

On

Cargo Area

uu

Interior Lights/Interior Convenience Items

u

Interior Lights

226

Co
ntrols

■

Front

The map lights can be turned on and off by
pressing the lenses.

■

Second and third row

The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.

■

Map Lights

1

Interior Light Switches

To avoid draining the battery, do not leave the
interior light on for an extended length of time when
the engine is off.

1

Map Lights

When the front interior light switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.

227

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Continued

Co
ntrols

Interior Convenience Items

Pull the handle to open the glove box. You
can lock the glove box with the built-in key.

■

Glove Box

1

Glove Box

3

WARNING

An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.

Always keep the glove box closed while
driving.

228

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

To open the console box, pull the handle and
slide the box forward.

You can create more storage space by
removing the divider.

■

Console Box

*

Handle

Divider

* Not available on all models

229

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Continued

Co
ntrols

To open the console compartment, press the
knob to unlock the lid, and then slide it
rearward.

■

Console Compartment with Lid

*

Knob

* Not available on all models

230

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

Pull the handle to open the center pocket.

■

Center Pocket

*

Handle

* Not available on all models

Continued

231

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

■

Center console beverage holders

■

Front door beverage holders

■

Second row seat beverage holders

*

To use the beverage holder, fold the backrest.

2 Using the Second Row Seat Armrest

*



P. 224

■

Beverage Holders

1

Beverage Holders

NOTICE

Spilled liquids can damage the upholstery, carpeting,
and electrical components in the interior.

Be careful when you are using the beverage holders.
Hot liquid can scald you.

* Not available on all models

232

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

■

Rear door beverage holders

■

Third row seat beverage holders

Continued

233

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.

■

Accessory power socket (console panel)

Open the cover to use it.

■

Accessory Power Sockets

1

Accessory Power Sockets

NOTICE

Do not insert an automotive type cigarette lighter
element: The power socket can overheat.

The accessory power socket is designed to supply
power for 12 volt DC accessories that are rated 180
watts (15 amps) or less.

To prevent battery drain, use the power socket only
when the engine is running.

Models without center pocket

Models with center pocket

234

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

■

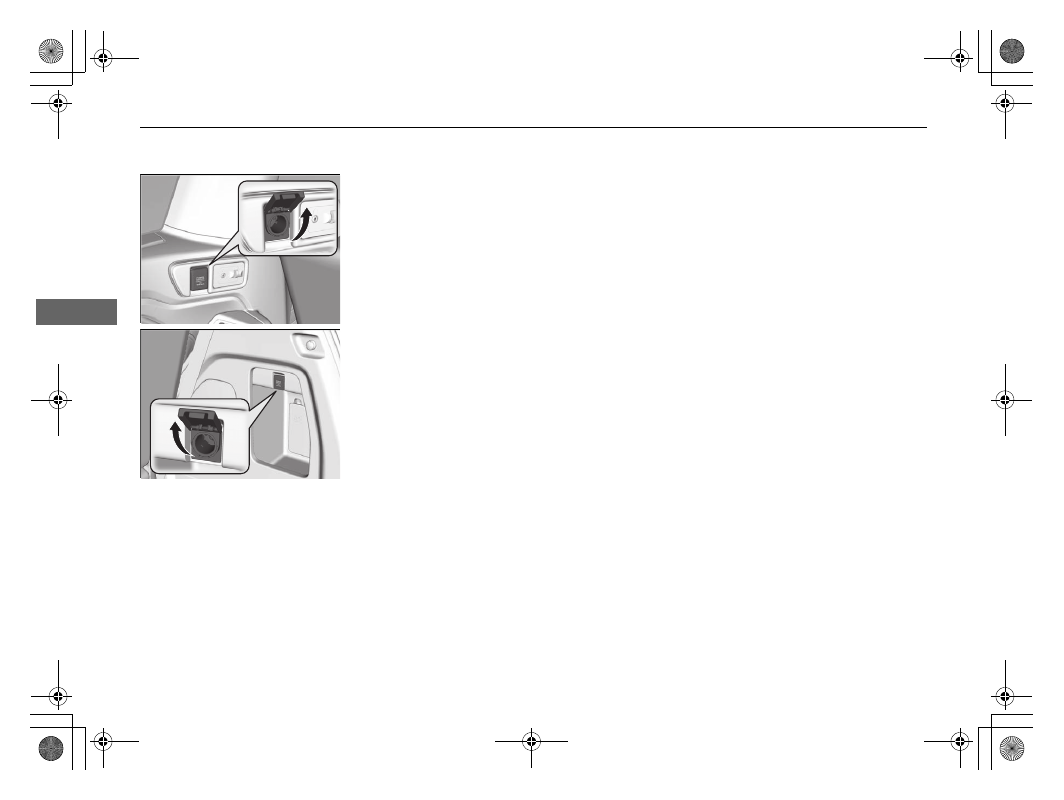

Accessory power socket (third row
seat)

*

Open the cover to use it.

■

Accessory power socket (cargo area)

Open the cover to use it.

* Not available on all models

Continued

235

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

The AC power outlet can be used when the engine is running.

Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.

■

AC Power Outlet

*

1

AC Power Outlet

*

NOTICE

Do not use the AC power outlet for electric
appliances that require high initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precise data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touch sensor lamps, etc.

The AC power outlet is designed to supply power for
up to 115 volt appliances that are rated 150 watts or
less.

Continued use of any electric appliance/device
exceeding these ratings may result in damage to the
appliance/device.

* Not available on all models

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

236

Co
ntrols

To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the area indicated by the

 and

 marks as

follows:

1. Place the device you want to charge on the

charging area.

u

The system will automatically start
charging the device, and the green
indicator light will come on.

u

Make sure that the device is compatible
with the system and placed with the
chargeable side in the center of the
charging area.

2. When charging is completed, the green

indicator light will go off.

u

If the device is not located on the charge
area correctly, the green indicator light
will blink.

■

Wireless Charger

*

1

Wireless Charger

*

Using the audio/information screen, you can disable

the wireless charger function.

2 Customized Features P. 443

This system consumes a lot of power. Do not use the system

for a long time when the engine is not running. This may

weaken the battery, making it difficult to start the engine.

When using the wireless charger, check the user’s manual

that came with the compatible device you want to charge.

3

CAUTION

Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.
• Always remove foreign objects from

the charge pad before charging the
device.

• Be sure the surface is clear of dust and

other debris before charging.

• Do not spill liquids (i. e. water, drinks,

etc.) on the charger and the device.

• Do not use oil, grease, alcohol,

benzine or thinner for cleaning the
charge pad.

• Do not cover the system with towels,

clothing, or other objects while
charging etc.

• Avoid spraying aerosols which may

come in contact with the charge pad
surface.

Green
Indicator

Charging Area

* Not available on all models

Continued

237

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

■

When charging does not start

Perform one of the solutions in the following table.

Indicator

Cause

Solution

Slow Blink

There is an obstacle(s) between
the charging area and the
device.

Remove the
obstacle(s).

The device is not within the
charging area.

Move the device to the
center of the charging
area where

 and



are located.

Fast Blink

The wireless charger is faulty.

Turn the vehicle off
and back on. If the
indicator still blinks,
contact a dealer.

1

Wireless Charger

*

NOTICE

Do not place any magnetic recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magnetic effect. Also precision
machines such as watches can go wrong.

“Qi” and

 marks are the registered trademarks

owned by Wireless Power Consortium (WPC).


 mark is the registered trademark owned by

Power Matters Alliance (PMA).

In the following cases, charging may stop or not start:

•

The device is already fully charged.

•

The temperature of the device is extremely high

while charging.

•

You are at a place that emits strong

electromagnetic waves or noises, such as a TV

station, electric power plant, or gas station.

A device may not charge if the size or shape of its chargeable

side is not appropriate for use with the charging area.

Not all devices are compatible with the system.

During the charging phase, it is normal for the

charging area and device to heat up.

Charging may be briefly interrupted when:

•

All the doors and the tailgate are closed

- to avoid interference with the proper functioning

of the smart entry system.

•

The position of the device is altered.

Do not charge more than one device at a time on a

charging area.

* Not available on all models

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

238

Co
ntrols

There are coat hooks under the grab handles
in the second row, and under the window
frames in the third row. Pull it down to use it.

■

Coat Hooks

1

Coat Hooks

The coat hooks are not designed for large or heavy
items.

Second row

Third row

Continued

239

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

Use the cargo hooks to secure luggage in the
cargo area.

■

Cargo Hooks

■

Grocery Bag Hook

1

Grocery Bag Hook

The hook is designed to hold light items. Heavy
objects may damage the hook.

Hook
