Honda Odyssey (2019 year). Manual

112

Indicators

Driver Information Interface Warning and Information Messages

strum

nt Pa

nel

Message

Condition

Explanation

• Appears when you pull the electric parking brake

switch without depressing the brake pedal.

• Depress the brake pedal to release the parking brake.

2 Parking Brake P. 602

• Appears as soon as a problem is detected in the

smart entry system.

• Appears constantly - Have your vehicle checked by a

dealer.

• Appears as soon as a problem is detected in the push

button starting system.

• Appears constantly - Have your vehicle checked by a

dealer.

• Appears if there is a problem with the Auto high-

beam.

• Manually operate the headlight switch.
• If you are driving with the high-beam headlights when

this happens, the headlights are changed to low beams.

• Appears when the Auto high-beam is in operation,

or the headlight switch is turned in AUTO, but the
temperature inside the camera is too high. The Auto
high-beam cancels automatically.

• Use the climate control system to cool down the

camera.

• Goes off - The camera has been cooled down. Turning

the headlight switch to AUTO can resume the system.

2 Front Sensor Camera

P. 564

• Appears when the area around the camera is

blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.

• May appear when driving in bad weather (rain,

snow, fog, etc.)

• Have your vehicle checked by a dealer if the message

comes back on after you cleaned the area around the
camera.

Models with smart entry system

Models with Auto high-beam

* Not available on all models

113

Indicators

Driver Information Interface Warning and Information Messages

Continued

strum

nt Pa

nel

Message

Condition

Explanation

• Appears if there is a problem with the fuel pump

system.

• Set the power mode to OFF for a while, then set the

power mode to ON. The message disappears if there is
no problem. If the message appears again, take your
vehicle to a dealer.

• Appears if there is a problem with the engine

management system.

• Set the power mode to OFF for a while, then set the

power mode to ON. The message disappears if there is
no problem. If the message appears again, take your
vehicle to a dealer.

• Appears if there is a problem with the ignition

system.

• Set the power mode to OFF for a while, then set the

power mode to ON. The message disappears if there is
no problem. If the message appears again, take your
vehicle to a dealer.

• Appears if there is a problem with the seat heaters

. • Turn off the seat heaters

until the message disappears.

If the message appears again, take your vehicle to a
dealer.

• Appears if there is a problem with the climate

control system.

• Turn off the climate control system until the message

disappears. If the message appears again, take your
vehicle to a dealer.

* Not available on all models

114

Indicators

Driver Information Interface Warning and Information Messages

strum

nt Pa

nel

Message

Condition

Explanation

• Appears when you unlock and open the driver’s

door while the engine is running by remote engine
start.

2 Remote Engine Start with Vehicle Feedback

P. 540

Message

Condition

Explanation

• Flashes when the system senses a likely collision with

a vehicle in front of you.

• Take the appropriate means to prevent a collision (apply

the brakes, change lanes, etc.)

2 Collision Mitigation Braking System

(CMBS

)

P. 610

2 Adaptive Cruise Control (ACC)

P. 566

• Appears when ACC has been automatically

canceled.

• You can resume the set speed after the condition that

caused ACC to cancel improves. Press the RES/+
button.

2 Adaptive Cruise Control (ACC)

P. 566

• Appears when pressing the –/SET button while the

vehicle is moving and the brake pedal is depressed.

• ACC cannot be set.

2 Adaptive Cruise Control (ACC)

P. 566

• Appears if the VSA® or traction control function

operates while ACC is in operation.

• ACC has been automatically canceled.

2 Adaptive Cruise Control (ACC)

P. 566

Models with remote engine starter

Models with ACC

* Not available on all models

115

Indicators

Driver Information Interface Warning and Information Messages

Continued

strum

nt Pa

nel

Message

Condition

Explanation

• Appears when the vehicle is driving out of a detected

lane. The steering wheel vibrates rapidly.

• Keep the vehicle within the lane you are driving.

2 Lane Keeping Assist System (LKAS)

P. 583

• Appears when the vehicle is driving out of a detected

lane.

- The steering wheel vibrates rapidly when the

vehicle is drifting out of a detected lane.

- The steering wheel vibrates rapidly when the

vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.

• Keep the vehicle within the lane you are driving.

2 Road Departure Mitigation (RDM) System

P. 578

• You can change the setting for the road departure

mitigation system. Normal, Wide, and Warning Only
can be selected.

2 Customized Features P. 443

• Blinks when you fail to steer the vehicle. The beeper

sounds simultaneously.

• Operate the steering wheel to resume the LKAS.

Models with LKAS

Lane Keeping Assist System (LKAS)

Road Departure Mitigation (RDM) System

When you selected Warning Only

When you selected Normal or Wide

* Not available on all models

116

Indicators

Driver Information Interface Warning and Information Messages

strum

nt Pa

nel

Message

Condition

Explanation

• Appears when the LKAS is in operation, or the LKAS

button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously if
selected by customization.

• If any other system indicators come on, such as the

VSA®, ABS and brake system, take appropriate action.

2 Indicators P. 84

• Appears when the LKAS is in operation, or the LKAS

button is pressed, but the temperature inside the
LKAS camera is too high. The LKAS cancels
automatically. The beeper sounds simultaneously if
selected by customization.

• Use the climate control system to cool down the

camera.

• Goes off - The camera has been cooled down. Pressing

the LKAS button can resume the system.

2 Front Sensor Camera

P. 564

• Appears when the area around the camera is

blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.

• May appear when driving in bad weather (rain,

snow, fog, etc.)

• Have your vehicle checked by a dealer if the indicator

and message come back on after you cleaned the area
around the camera.

Models with LKAS

* Not available on all models

117

Indicators

Driver Information Interface Warning and Information Messages

Continued

strum

nt Pa

nel

Message

Condition

Explanation

• Appears when Auto Idle Stop Display ON has

been selected from the customization menu.

• Appears when Auto Idle Stop does not activate for

some reason.

• Appears when the engine restarts automatically.
• Appears when the battery temperature is around

14°F (−10°C) or lower.

• Appears when Auto Idle Stop does not activate

because the climate control system is in use, and the
difference between the set temperature and actual
interior temperature becomes significant.

• Appears when Auto Idle Stop does not activate

because the engine coolant temperature is too low
or high.

2 Auto Idle Stop

P. 554

• Appears when Auto Idle Stop does not activate

because the battery charge level is low.

• Appears even though the battery is fully charged

- The system may not read the battery amount
correctly. Drive for a few minutes.

• Appears after charging the battery or jump

starting - Disconnect the negative - cable once and
reconnect it again to the battery. Drive a few minutes.

Models with Auto Idle Stop

* Not available on all models

118

Indicators

Driver Information Interface Warning and Information Messages

strum

nt Pa

nel

Message

Condition

Explanation

• Appears when Auto Idle Stop does not activate

because the pressure to the brake pedal is not
enough.

• Depress the brake pedal firmly.

• Appears when Auto Idle Stop Display ON has

been selected from the customization menu.

• Appears when the system is under the following

conditions while Auto Idle Stop activates:
• The battery charge level is low.
• The battery temperature is around 14°F (−10°C)

or lower.

• The climate control system is in use, and the

difference between the set temperature and
actual interior temperature becomes significant.

• The humidity in the interior is high.

• The engine restarts automatically in a few seconds.

2 Starting the Engine P. 538

Models with Auto Idle Stop

119

strum

nt Pa

nel

Gauges and Displays

Gauges

Gauges include the fuel gauge, temperature gauge, and related indicators. They are
displayed when the power mode is set to ON.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

■

Fuel Gauge

■

Temperature Gauge

Fuel Gauge

NOTICE

You should refuel when the reading approaches

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

Temperature Gauge

NOTICE

Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

2 Overheating P. 715

120

Gauges and Displays

Driver Information Interface

strum

nt Pa

nel

Driver Information Interface

The driver information interface displays the speedometer, tachometer, odometer,
trip computer, outside temperature, and other gauges. It also displays important
messages such as warnings and other helpful information.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

■

Speedometer

■

Tachometer

Speedometer

You can set the speedometer and the displayed
measurements to read in either mph and km/h.

2 Units P. 128

Tachometer

You can turn on or off the tachometer display.

2 Show Tachometer P. 132

Continued

121

Gauges and Displays

Driver Information Interface

strum

nt Pa

nel

Shows the total number of miles or kilometers
that your vehicle has accumulated.

Shows the outside temperature in Fahrenheit
(U.S.) or Celsius (Canada).

Adjusting the outside temperature
display
Adjust the temperature reading by up to ±5°F
or ±3°C if the temperature reading seems
incorrect.
Use the audio/information screen to correct
the temperature.

2 Customized Features P. 443

■

Odometer

Odometer

■

Outside Temperature

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Outside Temperature

* Not available on all models

Gauges and Displays

Driver Information Interface

122

strum

nt Pa

nel

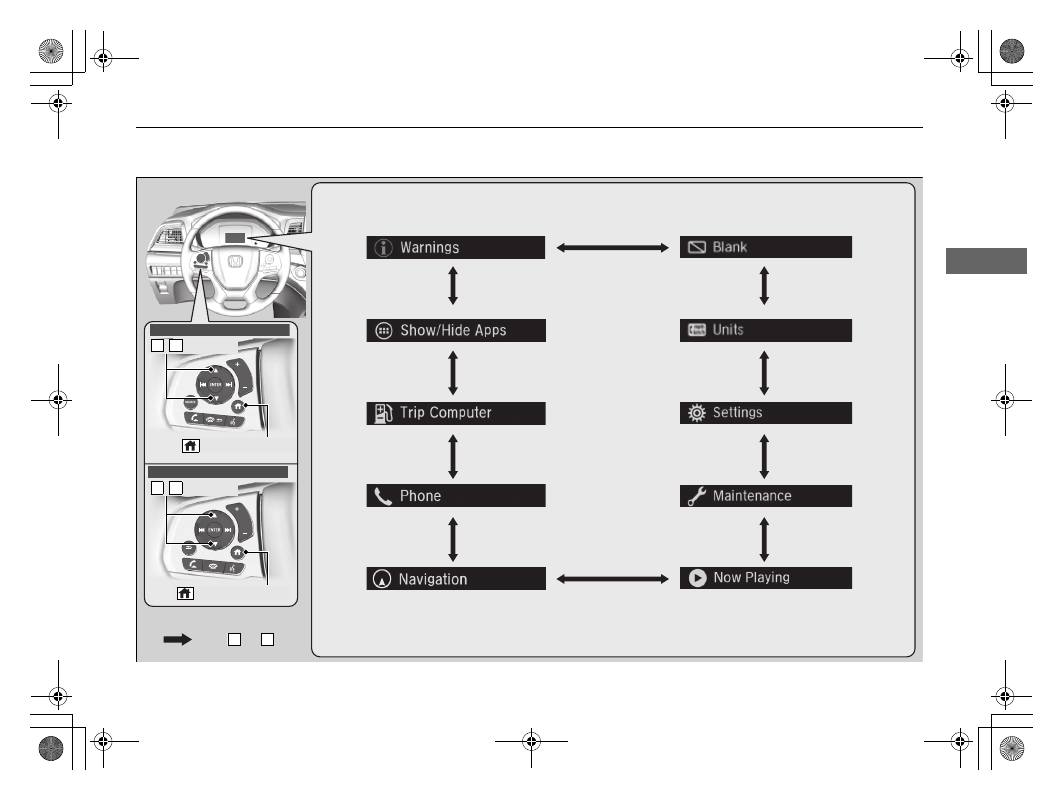

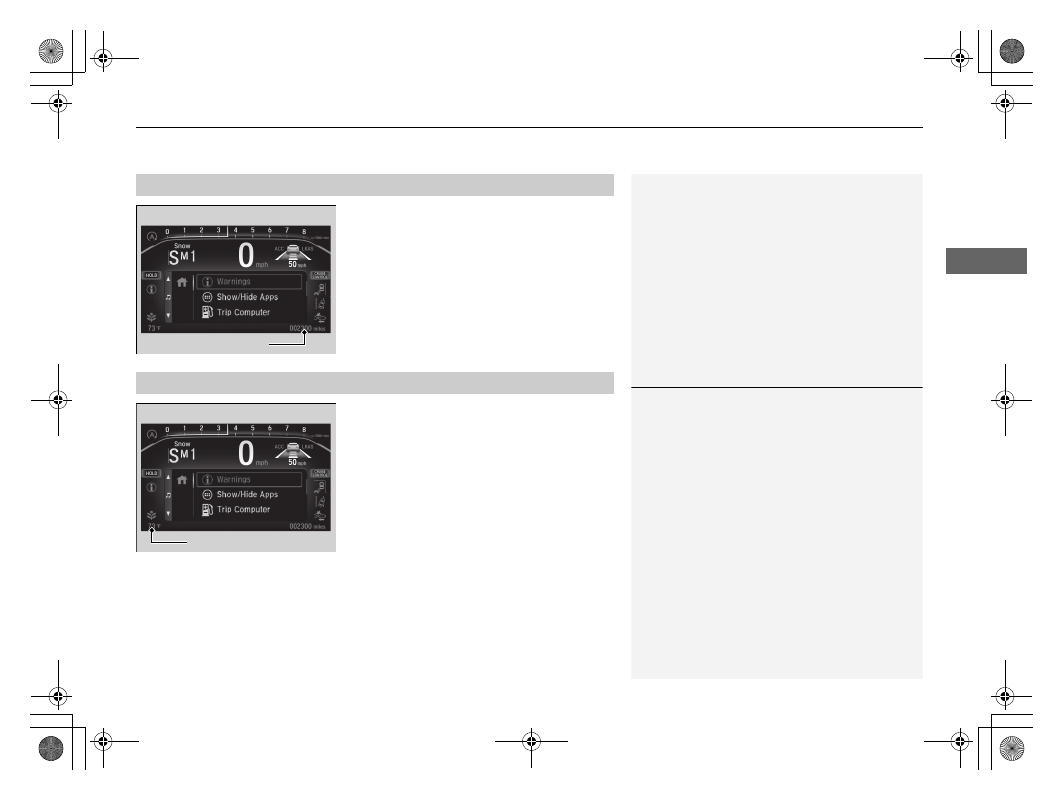

Press the

(home) button, then press the

button to scroll to the content

you want to see. Press ENTER to see detailed information.

*1: Models with color audio system
*2: Models with Display Audio

■

Accessing Content

Accessing Content

To go back to the previous screen, press the

(back) button.

You can edit, add, or delete the meter contents using
the driver information interface.

2 Arrange Apps P. 131
2 Show/Hide Apps P. 130

3 4

123

Gauges and Displays

Driver Information Interface

Continued

strum

nt Pa

nel

(Home) Button

Button

3 4

Press

or .

P. 126

P. 130

P. 124

P. 128

P. 126

P. 128

P. 131

P. 127

P. 129

Models with color audio system

Models with Display Audio

(Home) Button

Button

3 4

* Not available on all models

124

Gauges and Displays

Driver Information Interface

strum

nt Pa

nel

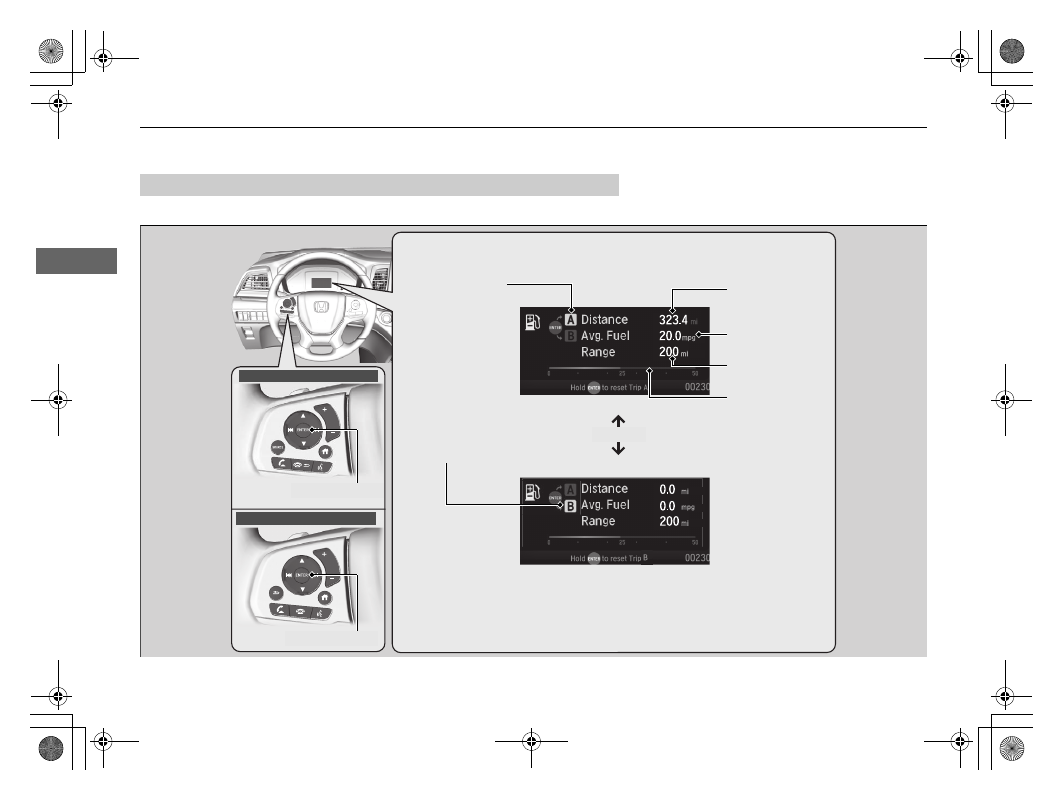

Press the ENTER button to switch between trip computer A and trip computer B.

■

Trip Computer

ENTER Button

ENTER

Trip Computer A

Trip Computer B

Distance

Range

Average Fuel
Economy

Instant Fuel
Economy

Models with color audio system

Models with Display Audio

ENTER Button

Continued

125

Gauges and Displays

Driver Information Interface

strum

nt Pa

nel

■

Distance

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

Resetting distance
To reset the Distance, display it and then press and hold the ENTER button until the
Distance is reset to 0.0.

■

Average fuel economy (Avg. Fuel)

Shows the estimated average fuel economy of each Distance in mpg or l/100 km.
The display is updated at set intervals. When a Distance is reset, the average fuel
economy is also reset.

■

Instant fuel economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

■

Range

Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.

Distance

Switch between Distance A and Distance B by
pressing the ENTER button.

Average fuel economy (Avg. Fuel)

You can change when the average fuel economy is
reset.

2 Vehicle Customization P. 133

2 Customized Features P. 443
