Harley Davidson Parts Catalog 2019: touring models - page 11
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
29
65400178
EXHAUST SHIELD
FLHR, FLHRC, FLHT,
ASSEMBLY, catalytic
FLHTCU, FLHTK, FLHTK
converter
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
29
65400485
EXHAUST SHIELD
FLHRXS, FLHXS, FLTRXS
ASSEMBLY, catalytic
converter (black)
30
65400179
SHIELD, left exhaust
FLHR, FLHRC, FLHT,
pipe, rear
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
30
65400486
SHIELD, left exhaust
FLHRXS, FLHXS, FLTRXS
pipe, rear (black)
31
65500042
BRACKET, muffler strap,
ALL
male
32
65500043
BRACKET, muffler strap,
ALL
female
33
65600176
HEADER ASSEMBLY,
FLHR, FLHRXS, FLHT,
catalytic (Domestic,
FLHTCU, FLHTK, FLHTK
Canada, California)
SHRINE, FLHTKL, FLHX,
(chrome)
FLHXS, FLTRU, FLTRX,
FLTRXS
33
65600177
HEADER ASSEMBLY,
FLHR, FLHRC, FLHRXS,
catalytic (Australia,
FLHT, FLHTK, FLHTK
England, Japan, HDI,
SHRINE, FLHTKL, FLHX,
Asia-Pacific, Brazil)
FLHXS, FLTRU, FLTRX,
(chrome)
FLTRXS
34
65600178
CROSSOVER PIPE
ALL
ASSEMBLY (chrome)
35
65900012
CLAMP, muffler (2)
ALL
36
65900015
CLAMP, muffler
ALL
37
65400545
SHIELD, muffler (left)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
37
65400546
SHIELD, muffler (left)
FLHRXS, FLHXS, FLTRXS
(black) (China)
38
66047-05
CLAMP (China) (6)
ALL
39
65400547
SHIELD, muffler (right)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
300/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
39
65400548
SHIELD, muffler (right)
FLHRXS, FLHXS, FLTRXS
(black) (China)

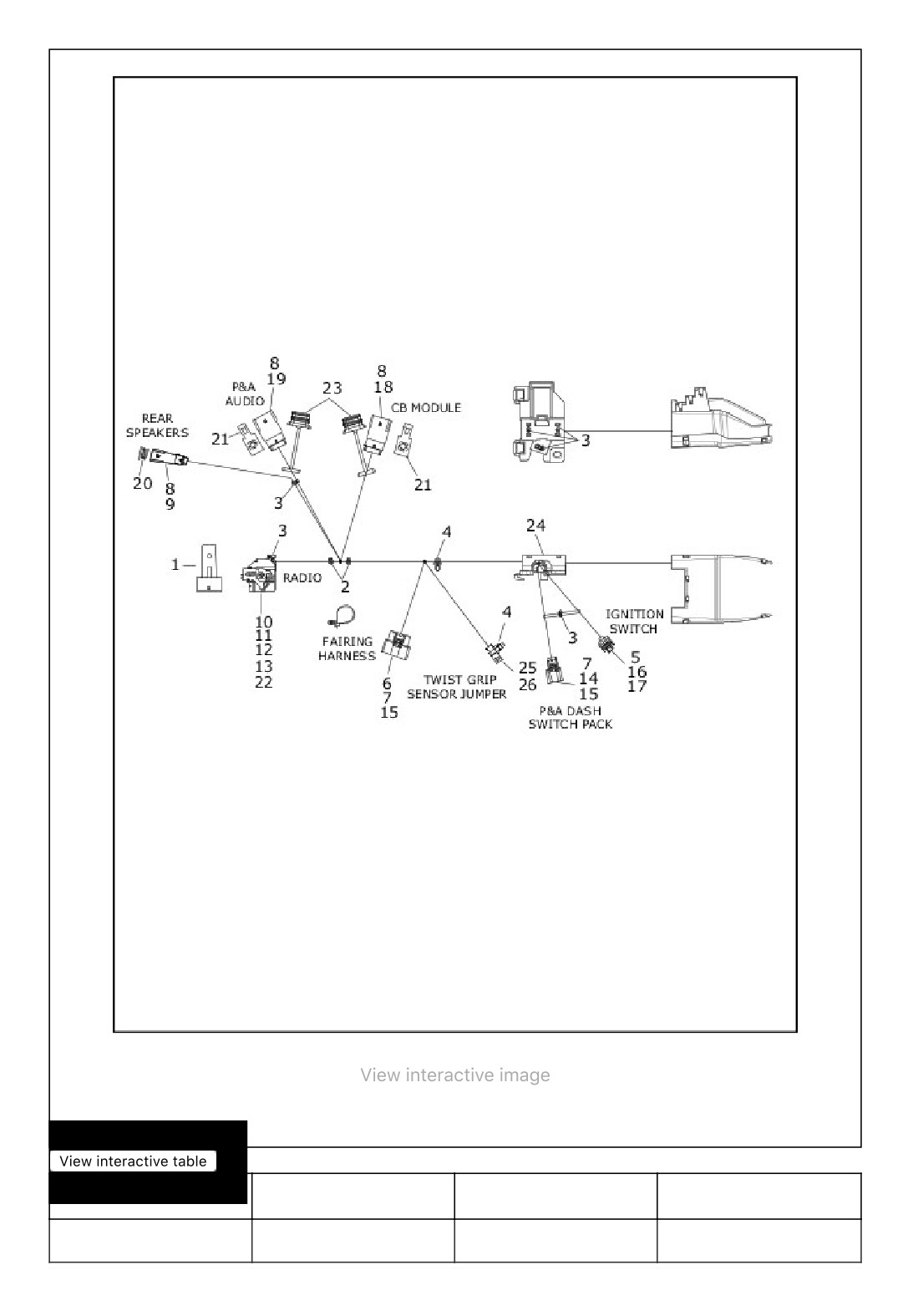

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (1 OF 8)
301/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
302/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (7)
FLHT, FLHX
2
72168-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (7)
3
72272-07
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG (4)
4
72364-06
TERMINAL, socket, 10-
FLHT, FLHX
14 AWG
5
72414-07BK
HOUSING, six-way
FLHT, FLHX
socket (black)
6
72473-07
SEAL PIN, natural (7)
FLHT, FLHX
7
72489-07GY
HOUSING, 12-way
FLHT, FLHX
socket (gray)
8
72721-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (2)
9
69200201
HOUSING, two-way
FLHT, FLHX
socket (black)
10
69200202A
WIRE TROUGH
FLHT, FLHX
11
69200203A
COVER, wire trough, with
FLHT, FLHX
15368-01A and
69201459
12
69200214
CADDY, left steer head
FLHT, FLHX
13
69200294
CABLE, AM/FM antenna
FLHT, FLHX
14
69201287
BRACKET, mounting,
FLHT, FLHX
electrical connector
15
69201459
BRACKET
FLHT, FLHX

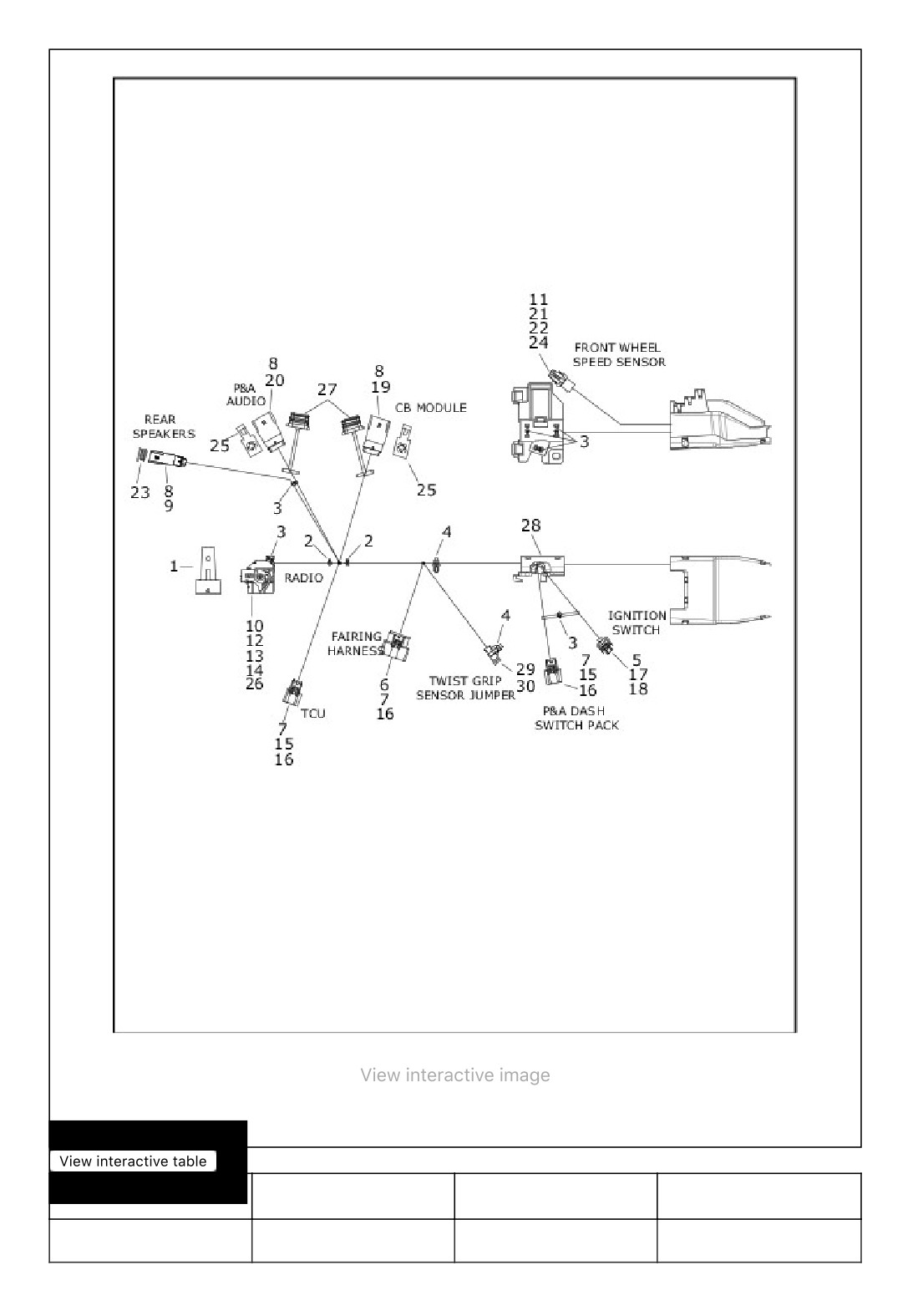

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (2 OF 8)
303/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
69202354
PLUG, weather
FLHT
304/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
2
10006
CABLE STRAP (2)
FLHT, FLHX
3
10065
CABLE STRAP (6)
FLHT, FLHX
4
10177
CABLE STRAP, anchored
FLHT, FLHX
(2)
5
72062-06
HOUSING, two-way
FLHT, FLHX
socket (gray)
6
72166-07BK
HOUSING, 16-way
FLHT, FLHX
socket (black)
7
72168-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (16)
8
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (28)
9
72175-07BK
HOUSING, four-way pin
FLHT, FLHX
(black)
10
72209-11
COVER, wire
FLHT, FLHX
11
72222-11
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (26)
12
72226-11
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG (8)
13
72256-11
SEAL PIN (14)
FLHT, FLHX
14
72414-07BK
HOUSING, six-way
FLHT, FLHX
socket (black)
15
72473-07
SEAL PIN, natural (6)
FLHT, FLHX
16
72484-08
TERMINAL, socket, 20
FLHT, FLHX
AWG (2)
17
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX
(green) (2)
18
72488-07BK
HOUSING, 12-way pin
FLHT, FLHX
(black)
19
72490-07GY
HOUSING, 12-way pin
FLHT, FLHX
(gray)
305/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
20
72632-10
PLUG, weather, four-way
FLHT, FLHX
pin
21
73213-07
RETAINER, anchored (2)
FLHT, FLHX
22
69200193
HOUSING, 48-way
FLHT, FLHX
socket (black)
23
69200205
PLUG, weather, 12-way
FLHT, FLHX
pin (2)
24
69200215
CADDY, right steer head
FLHT, FLHX
25
69201163
HOUSING, six-way pin
FLHT, FLHX
(black)
26
69201164
TERMINAL, pin, 22 AWG
FLHT, FLHX
(6)

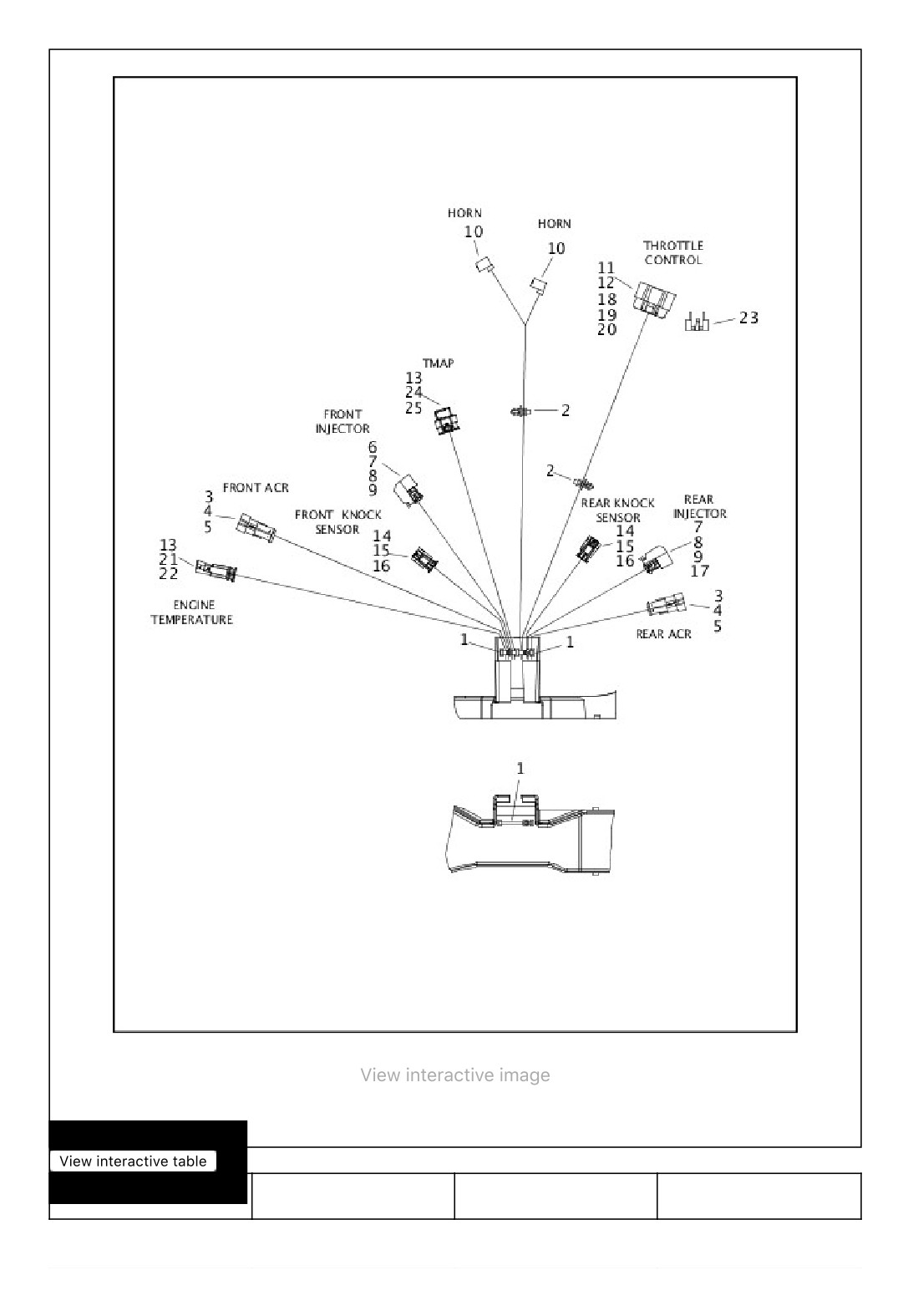

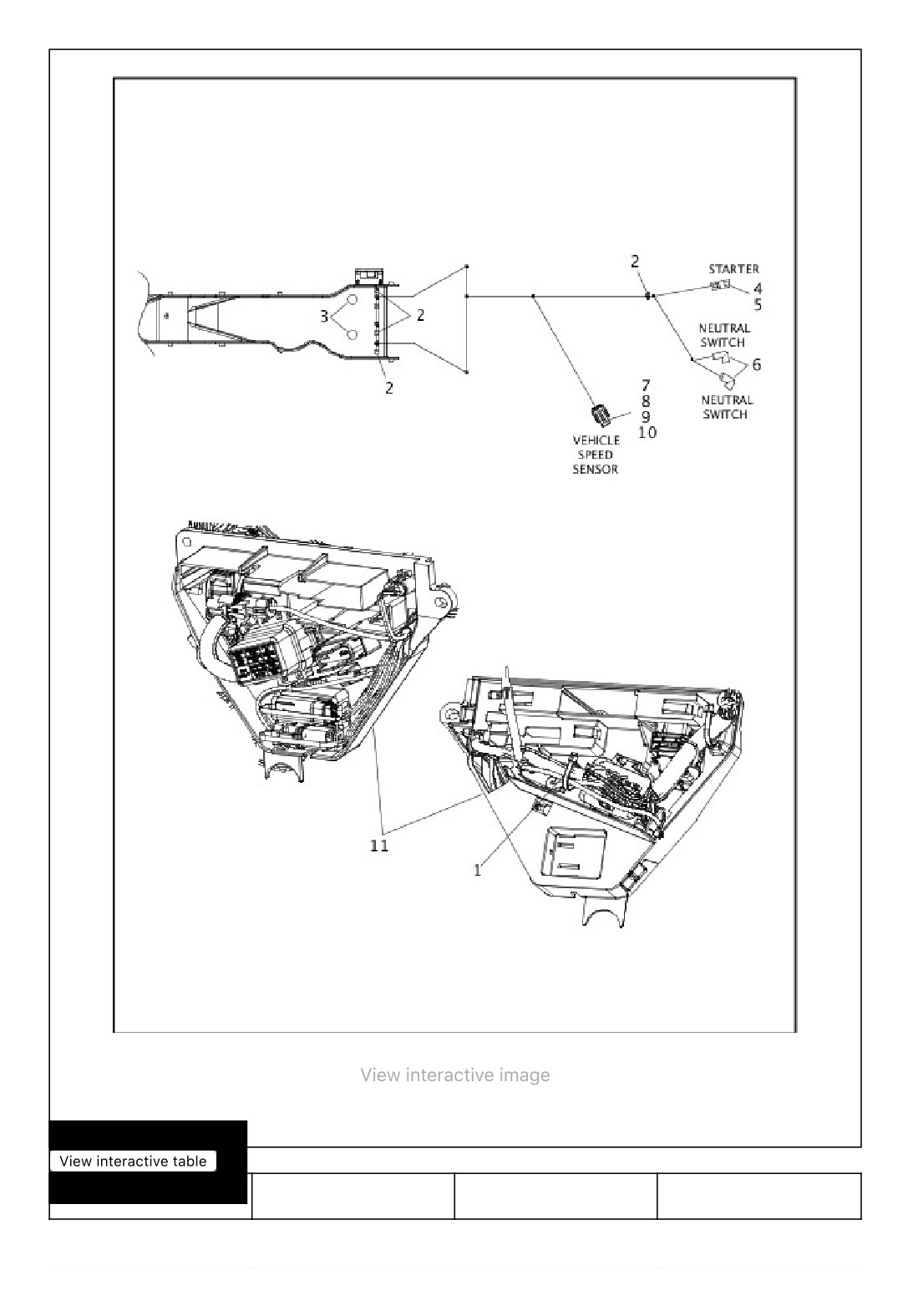

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (3 OF 8)
306/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
307/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHT, FLHX
2
10177
CABLE STRAP, anchored
FLHT, FLHX
(2)
3
72008-05
TERMINAL, pin, 20-22
FLHT, FLHX
AWG (4)
4
72009-05
HOUSING, two-way pin
FLHT, FLHX
(black) (2)
5
72010-05
WIRE SEAL, 22-26 AWG
FLHT, FLHX
(green) (4)
6
72098-06
HOUSING, two-way
FLHT, FLHX
socket (gray)
7
72099-06
WIRE SEAL, 16-18 AWG
FLHT, FLHX
(blue) (4)
8
72110-06
TERMINAL, socket, 16-
FLHT, FLHX
18 AWG (4)
9
72145-06
SECONDARY LOCK,
FLHT, FLHX
two-way socket (2)
10
72283-09
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG, 90 degree (2)
11
72499-07
WIRE SEAL, 20-22 AWG
FLHT, FLHX
(green) (6)
12
72569-08
TERMINAL, socket, 20-
FLHT, FLHX
22 AWG (2)
13
69201301
WIRE SEAL, 20-22 AWG
FLHT, FLHX
(green) (6)
14
69201390
HOUSING, two-way
FLHT, FLHX
socket (black) (2)
15
69201391
TERMINAL, socket, 20
FLHT, FLHX
AWG (4)
16
69201392
WIRE SEAL, 20 AWG
FLHT, FLHX
(yellow) (4)
308/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLHT, FLHX
socket (black)
18
69201394
HOUSING, six-way
FLHT, FLHX
socket (black)
19
69201395
SECONDARY LOCK, six-
FLHT, FLHX
way socket
20
69201396
TERMINAL, socket, 20
FLHT, FLHX
AWG (4)
21
69201397
HOUSING, two-way pin
FLHT, FLHX
(gray)
22
69201398
TERMINAL, pin, 20 AWG
FLHT, FLHX
(2)
23
69201416
CPA, six-way socket
FLHT, FLHX
24
69201441
HOUSING, four-way
FLHT, FLHX
socket
25
69201442
TERMINAL, socket, 18
FLHT, FLHX
AWG (4)
WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (4 OF 8)
309/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
310/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLHT, FLHX
2
10147
CLIP, connector
FLHT, FLHX
3
72213-94
TERMINAL, socket, 16-
FLHT, FLHX
20 AWG (2)
4
72518-01
HOUSING, two-way
FLHT, FLHX
socket (red)
5
72533-06
PLUG, weather, two-way
FLHT, FLHX
pin
6
72609-08
SECONDARY LOCK,
FLHT, FLHX
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHX
(white) (2)
8
72664-12A
HOUSING, 18-way
FLHT, FLHX
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (43)
10
72720-07
HOUSING, two-way
FLHT, FLHX
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (2)
12
69201168
TERMINAL, socket, 22
FLHT, FLHX
AWG (2)
13
69201415
HOUSING, 18-way
FLHT, FLHX
socket (brown)
14
69201440
HOUSING, 18-way
FLHT, FLHX
socket (gray)
WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (5 OF 8)
311/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
312/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLHT, FLHX
(2)
2
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (4)
3
72249-94
HEAT SHRINK TUBE,
FLHT, FLHX
.415 x 1 in (black)
4
72415-07GY
HOUSING, four-way pin
FLHT, FLHX
(gray)
5
73213-07
RETAINER, anchored
FLHT, FLHX
6
69200294
CABLE, AM/FM antenna
FLHT, FLHX
7
69201596
TERMINAL, ring, 8-10
FLHT, FLHX
AWG
WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (6 OF 8)
313/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
314/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLHT, FLHX
2
10065
CABLE STRAP (4)
FLHT, FLHX
3
11779
FASTENER, push-in
FLHT, FLHX
(black) (2)
4
72291-94
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG
5
72295-94
HOUSING, one-way
FLHT, FLHX
socket (white)
6
72405-98BK
WIRE ASSEMBLY, push-
FLHT, FLHX
on, right angle molded,
65-1/2 in length (black)
(2)
7
72484-08
TERMINAL, socket, 20
FLHT, FLHX
AWG (3)
8
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX
(green) (3)
9
72543-07BK
HOUSING, three-way
FLHT, FLHX
socket (black)
10
72544-07
SECONDARY LOCK,
FLHT, FLHX
three-way socket
11
69200175
CADDY, fuse block,
FLHT, FLHX
electrical panel
WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (7 OF 8)
315/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
316/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP
FLHT, FLHX
2
10147
CLIP, connector (2)
FLHT, FLHX
3
10177
CABLE STRAP, anchored
FLHT, FLHX
(3)
4
72065-06A
HOUSING, three-way
FLHT, FLHX
socket (black)
5
72127-06
SECONDARY LOCK,
FLHT, FLHX
three-way
6
72168-07
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (4)
8
72175-07BK
HOUSING, four-way pin
FLHT, FLHX
(black)
9
72213-94
TERMINAL, socket, 16-
FLHT, FLHX
20 AWG (2)
10
72232-96
SEAL PIN (red) (2)
FLHT, FLHX
11
72343-10
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (4)
12
72415-07GY
HOUSING, four-way pin
FLHT, FLHX
(gray)
13
72473-07
SEAL PIN, natural
FLHT, FLHX
14
72484-08
TERMINAL, socket, 20
FLHT, FLHX
AWG (6)
15
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX
(green) (6)
16
72499-07
WIRE SEAL, 20-22 AWG
FLHT, FLHX
(green) (2)
17
72512-07BK
HOUSING, three-way
FLHT, FLHX
socket (black) (2)
317/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72519-09BK
PLUG, weather, three-
FLHT, FLHX
way socket (2)
19
72533-06
PLUG, weather, two-way
FLHT, FLHX
pin
20
72544-07
SECONDARY LOCK,
FLHT, FLHX
three-way socket
21
72589-09
HOUSING, three-way
FLHT, FLHX
socket (black)
22
72606-08
HOUSING, two-way
FLHT, FLHX
socket (black) (2)
23
72607-08
HOUSING, two-way pin
FLHT, FLHX
(black)
24
72608-08
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (2)
25
72609-08
SECONDARY LOCK,
FLHT, FLHX
two-way socket (2)
26
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHX
(white) (4)
27
73213-07
RETAINER, anchored (4)
FLHT, FLHX
28
74112-98BK
HOUSING, two-way
FLHT, FLHX
socket (black)
29
74152-98
SECONDARY LOCK,
FLHT, FLHX
two-way socket
30
74191-98
TERMINAL, socket 16-20
FLHT, FLHX
AWG (2)
31
12500014
CABLE STRAP (2)
FLHT, FLHX
32
12500018
CABLE STRAP
FLHT, FLHX
33
69200238
TERMINAL, socket, 20
FLHT, FLHX
AWG (2)
34
69201396
TERMINAL, socket, 20
FLHT, FLHX
AWG (2)
35
69201400
HOUSING, two-way
FLHT, FLHX
socket,(black)
36
69201401
SECONDARY LOCK,
FLHT, FLHX
two-way socket
318/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
69201404
CONNECTOR, anchored
FLHT, FLHX
38
69201405
RESISTOR PACK
FLHT, FLHX
39
69201423
DC LEAD ASSEMBLY,
FLHT, FLHX
two-way socket
WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (8 OF 8)
319/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
320/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201125A
MAIN WIRING HARNESS
FLHT, FLHX
- NON-ABS
NOTE: Includes the following parts.
1
6990
PLUG WEATHER, six-
FLHT, FLHX
way pin
2
10006
CABLE STRAP (2)
FLHT, FLHX
3
10065
CABLE STRAP (2)
FLHT, FLHX
4
31586-07
RELAY (2)
FLHT, FLHX
5
72064-06
HOUSING, three-way
FLHT, FLHX
socket (black)
6
72081-11
HOUSING, 48-way
FLHT, FLHX
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLHT, FLHX
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLHT, FLHX
way pin
9
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX
AWG (10)
10
72175-07BK
HOUSING, four-way pin
FLHT, FLHX
(black)
11
72188-07BK
HOUSING, six-way pin
FLHT, FLHX
(black)
12
72190-94
TERMINAL, pin, 16-18
FLHT, FLHX
AWG (2)
13
72194-94
TERMINAL, pin, 20 AWG
FLHT, FLHX
(3)
14
72195-94
SEAL PIN
FLHT, FLHX
15
72209-11
COVER, wire
FLHT, FLHX
16
72222-11
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (21)
17
72226-11
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG
321/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72227-11
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (5)
19
72256-11
SEAL PIN, 0.6 MM
FLHT, FLHX
(white) (9)
20
72296-95
TERMINAL, socket, 14-
FLHT, FLHX
16 AWG (3)
21
72298-95
WIRE SEAL, 14-18 AWG
FLHT, FLHX
(green) (3)
22
72299-95
SEAL PIN, green (2)
FLHT, FLHX
23
72308-97
TERMINAL, socket, 12-
FLHT, FLHX
14 AWG (5)
24
72330-95
FUSE, 15 A (blue)
FLHT, FLHX
25
72331-95
FUSE, 5 A (tan) (2)
FLHT, FLHX
26
72345-02
FUSE, 20 A (yellow) (3)
FLHT, FLHX
27
72350-11
HOUSING, one-way
FLHT, FLHX
socket (black)
28
72356-95
TERMINAL, socket, 18-
FLHT, FLHX
20 AWG (14)
29
72412-97
WIRE SEAL, 12-14 AWG
FLHT, FLHX
(gray) (5)
30
72484-08
TERMINAL, socket, 20
FLHT, FLHX
AWG (3)
31
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX
(green) (3)
32
72575-11
SECONDARY LOCK,
FLHT, FLHX
one-way socket
33
72632-10
PLUG, weather, four-way
FLHT, FLHX
pin
34
73213-07
RETAINER, anchored
FLHT, FLHX
35
73301-04
HOUSING, two-way pin
FLHT, FLHX
(black)
36
73303-04
SECONDARY LOCK,
FLHT, FLHX
two-way socket
322/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
73304-04
TERMINAL, socket, 10
FLHT, FLHX
AWG (3)
38
73305-04
WIRE SEAL, 10 AWG
FLHT, FLHX
(blue) (3)
39
11100115
CLOTH, HARNESS
FLHT, FLHX
WRAP, 50 m (not shown)
40
69200194
FUSE BLOCK, 24-way
FLHT, FLHX
41
69200199
WIRE SEAL, 18-20 AWG
FLHT, FLHX
(purple) (14)
42
69200212
HARNESS, battery
FLHT, FLHX
tender
43
69200293
FUSE, 7.5 A (brown) (2)
FLHT, FLHX
44
69200312
SECONDARY LOCK,
FLHT, FLHX
fuse block (3)
45
69200336
MAIN FUSE, 50 A (red),
FLHT, FLHX
NOTE: Fuse is sold
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLHT, FLHX
positive to starter, with
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLHT, FLHX
48
69201411
COVER, fuse block
FLHT, FLHX
WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (1 OF 8)
323/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
324/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (7)
FLHT, FLHX, FLHXS
2
72168-07
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (7)
3
72272-07
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG (4)
4
72364-06
TERMINAL, socket, 10-
FLHT, FLHX, FLHXS
14 AWG
5
72414-07BK
HOUSING, six-way
FLHT, FLHX, FLHXS
socket (black)
6
72473-07
SEAL PIN, natural (7)
FLHT, FLHX, FLHXS
7
72489-07GY
HOUSING, 12-way
FLHT, FLHX, FLHXS
socket (gray)
8
72721-07
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (2)
9
69200201
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black)
10
69200202A
WIRE TROUGH
FLHT, FLHX, FLHXS
11
69200203A
COVER, wire trough, with
FLHT, FLHX, FLHXS
15368-01A and
69201459
12
69200214
CADDY, left steer head
FLHT, FLHX, FLHXS
13
69200294
CABLE, AM/FM antenna
FLHT, FLHX, FLHXS
14
69201287
BRACKET, mounting,
FLHT, FLHX, FLHXS
electrical connector
15
69201459
BRACKET
FLHT, FLHX, FLHXS
WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (2 OF 8)
325/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
69202354
PLUG, weather
FLHT
326/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201121A
MAIN WIRING HARNESS
FLHT, FLHX, FLHXS
- ABS
NOTE: Includes the following parts.
2
10006
CABLE STRAP (2)
FLHT, FLHX, FLHXS
3
10065
CABLE STRAP (6)
FLHT, FLHX, FLHXS
4
10177
CABLE STRAP, anchored
FLHT, FLHX, FLHXS
(2)
5
72062-06
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (gray)
6
72166-07BK
HOUSING, 16-way
FLHT, FLHX, FLHXS
socket (black)
7
72168-07
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (16)
8
72169-07
TERMINAL, pin, 16-20
FLHT, FLHX, FLHXS
AWG (28)
9
72175-07BK
HOUSING, four-way pin
FLHT, FLHX, FLHXS
(black)
10
72209-11
COVER, wire
FLHT, FLHX, FLHXS
11
72213-94
TERMINAL, socket, 16-
FLHT, FLHX, FLHXS
20 AWG (2)
12
72222-11
TERMINAL, socket, 18-
FLHT, FLHX, FLHXS
20 AWG (26)
13
72226-11
TERMINAL, socket, 14-
FLHT, FLHX, FLHXS
16 AWG (8)
14
72256-11
SEAL PIN, 0.6 mm (white)
FLHT, FLHX, FLHXS
(14)
15
72414-07BK
HOUSING, six-way
FLHT, FLHX, FLHXS
socket (black)
16
72473-07
SEAL PIN, natural (6)
FLHT, FLHX, FLHXS
17
72484-08
TERMINAL, socket, 20
FLHT, FLHX, FLHXS
AWG (2)
18
72486-08
WIRE SEAL, 20 AWG
FLHT, FLHX, FLHXS
(green) (2)
327/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
72488-07BK
HOUSING, 12-way pin
FLHT, FLHX, FLHXS
(black)
20
72490-07GY
HOUSING, 12-way pin
FLHT, FLHX, FLHXS
(gray)
21
72606-08
HOUSING, two-way
FLHT, FLHX, FLHXS
socket (black)
22
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHX, FLHXS
(white) (2)
23
72632-10
PLUG, weather, four-way
FLHT, FLHX, FLHXS
pin
24
72639-10
SECONDARY LOCK,
FLHT, FLHX, FLHXS
two-way socket
25
73213-07
RETAINER, anchored (2)
FLHT, FLHX, FLHXS
26
69200193
HOUSING, 48-way
FLHT, FLHX, FLHXS
socket (black)
27
69200205
PLUG, weather, 12-way
FLHT, FLHX, FLHXS
pin (2)
28
69200215
CADDY, right steer head
FLHT, FLHX, FLHXS
29
69201163
HOUSING, six-way pin
FLHT, FLHX, FLHXS
(black)
30
69201164
TERMINAL, pin, 22 AWG
FLHT, FLHX, FLHXS
(6)
WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (3 OF 8)
328/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
329/956
