Harley Davidson Parts Catalog 2015: Touring models - page 4

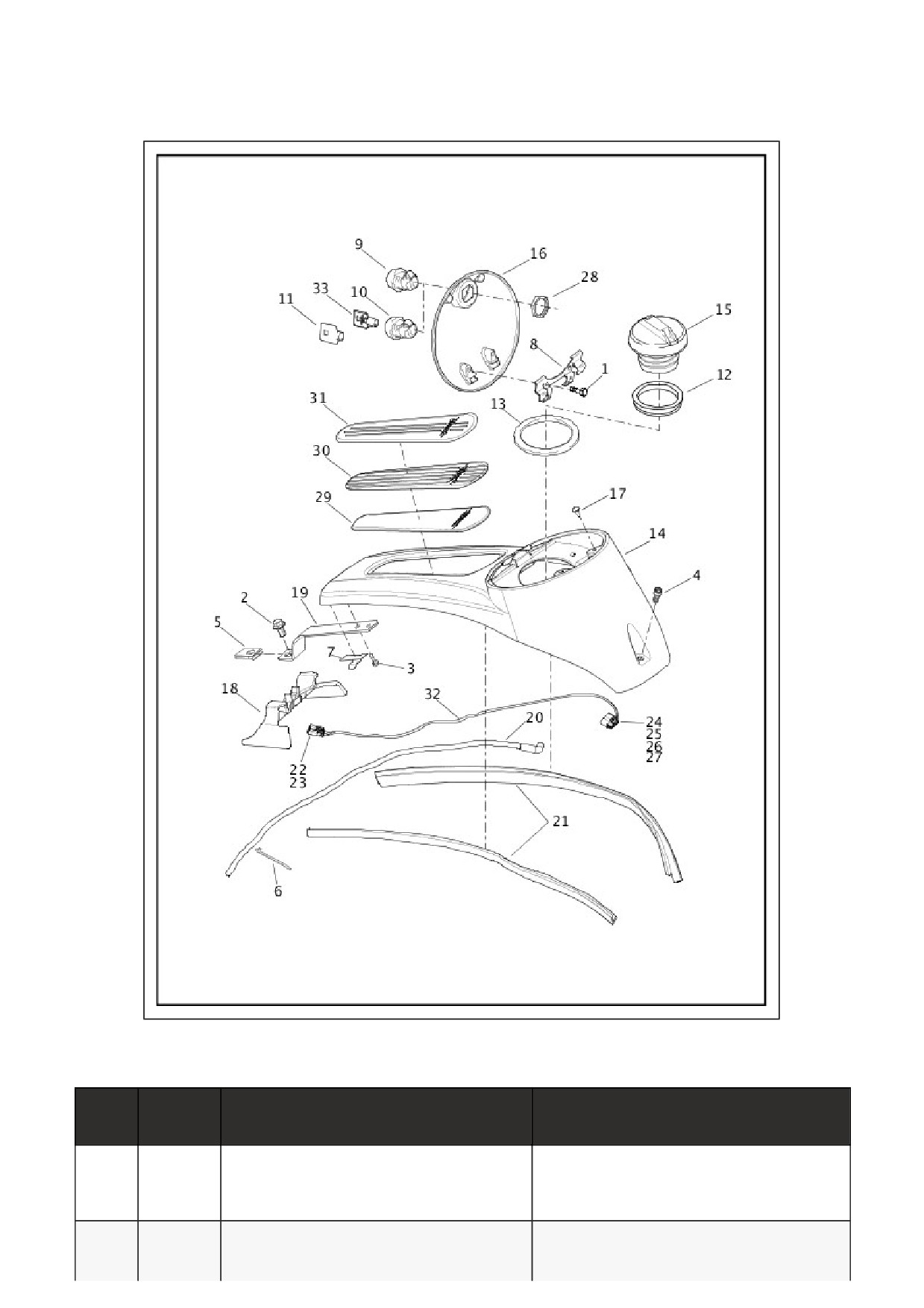

CONSOLE, FUEL TANK - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX,
FLHXS, FLTRX & FLTRXS (2 OF 2)
Index
Part No.
Description
Model(s)
No.
26
72494-07
WIRE SEAL, 16-18 AWG (4)
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
27
72557-07
SECONDARY LOCK, 4-way socket
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
28
84850-92
NUT
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
29
14100082
INSERT, console panel
FLHX
30
14100279
INSERT, console panel
FLHXS
31
14100615
INSERT, console panel
FLTRX, FLTRXS
32
69200125
WIRE HARNESS, console, w/ 72168-07,
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
72444-07GY, 72485-07, 72493-07, 72494-07
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
& 72557-07
FLTRX
33
90300043
KEY, w/ 61081-92 (set of 2) (specify key
FLHTCU TC, FLHX, FLHTK, FLTRXS,
number) (HDI)
FLHTKL, FLTRX, FLHXS
NOTE: See CB & INTERCOM CONTROL POD for pod and console insert for FLHTCU, FLHTCUL, FLHTK and FLHTKL
models.

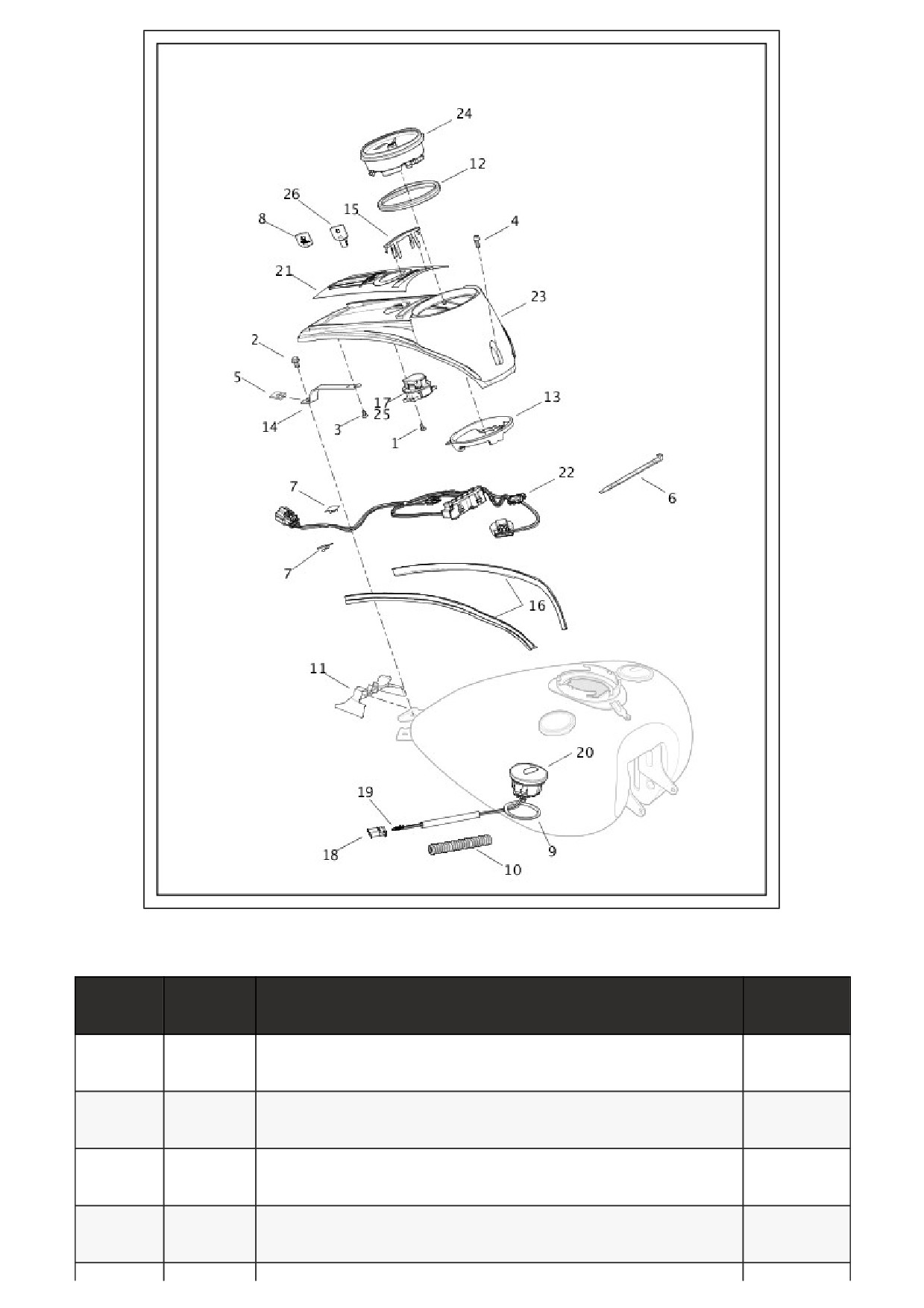

INSTRUMENTS, FUEL TANK - FLHR & FLHRC
Index
Part No.
Description
Model(s)
No.
1
3622
SCREW (4)
FLHR,
FLHRC
2
3588
SCREW
FLHR,
FLHRC
3
4194
SCREW (2)
FLHR,
FLHRC
4
4856
SCREW
FLHR,
FLHRC
5
8142
NUT, speed
FLHR,
FLHRC
6
10065
CABLE STRAP (2)
FLHR,
FLHRC
7
10103
CLIP, under instrument panel (2)
FLHR,
FLHRC
8
61081-92
COVER, key-head (set of 2)
FLHR,
FLHRC
9
61192-96A
GASKET, fuel gauge
FLHR,
FLHRC
10
62519-03
HOSE, shield 1/4 in. I.D., 5.00 in. long, fuel gauge wires
FLHR,
FLHRC
11
62775-08
TRIM COVER, fuel tank
FLHR,
FLHRC
12
67208-08
SEAL, speedometer
FLHR,
FLHRC
13
67341-04B
BACK CLAMP, 5-speedo (red)
FLHR,
FLHRC
14
67493-08
BRACKET, console mount
FLHR,
FLHRC
15
68253-08A
INDICATOR BEZEL
FLHR,
FLHRC
16
71294-08
TRIM (2)
FLHR,
FLHRC
17
71517-11
IGNITION SWITCH, (keyed-to-match)
FLHR,
FLHRC
18
72904-
HOUSING, pin, 4-way
FLHR,
01BK
FLHRC
19
72990-01
PIN TERMINAL (3)
FLHR,
FLHRC
20
75241-08
FUEL GAUGE, w/o LED, w/ 72990-01
FLHR,
FLHRC
21
14100087
INSERT, console
FLHR,
FLHRC
22
69200124
WIRE HARNESS, console
FLHR,
FLHRC
23
70900117
INSTRUMENT PANEL, (chrome)
FLHR,
FLHRC
24
70900167A
SPEEDOMETER, mph (Domestic, California)
FLHR
70900168
SPEEDOMETER, kph (FBM - Canada, FRM - HDI)
FLHR,
FLHRC
70900169
SPEEDOMETER, dual, mph/kph, (England only)
FLHRC
25
71400010
LOCKSET, complete w/ keys, ignition switch, cover, fork lock & saddle bag
FLHR
lock
71400011
LOCKSET, complete w/ keys, ignition switch, cover, & fork lock
FLHRC
26
90300043
KEY, w/ 61081-92 (set of 2) (specify key number)
FLHR,
FLHRC

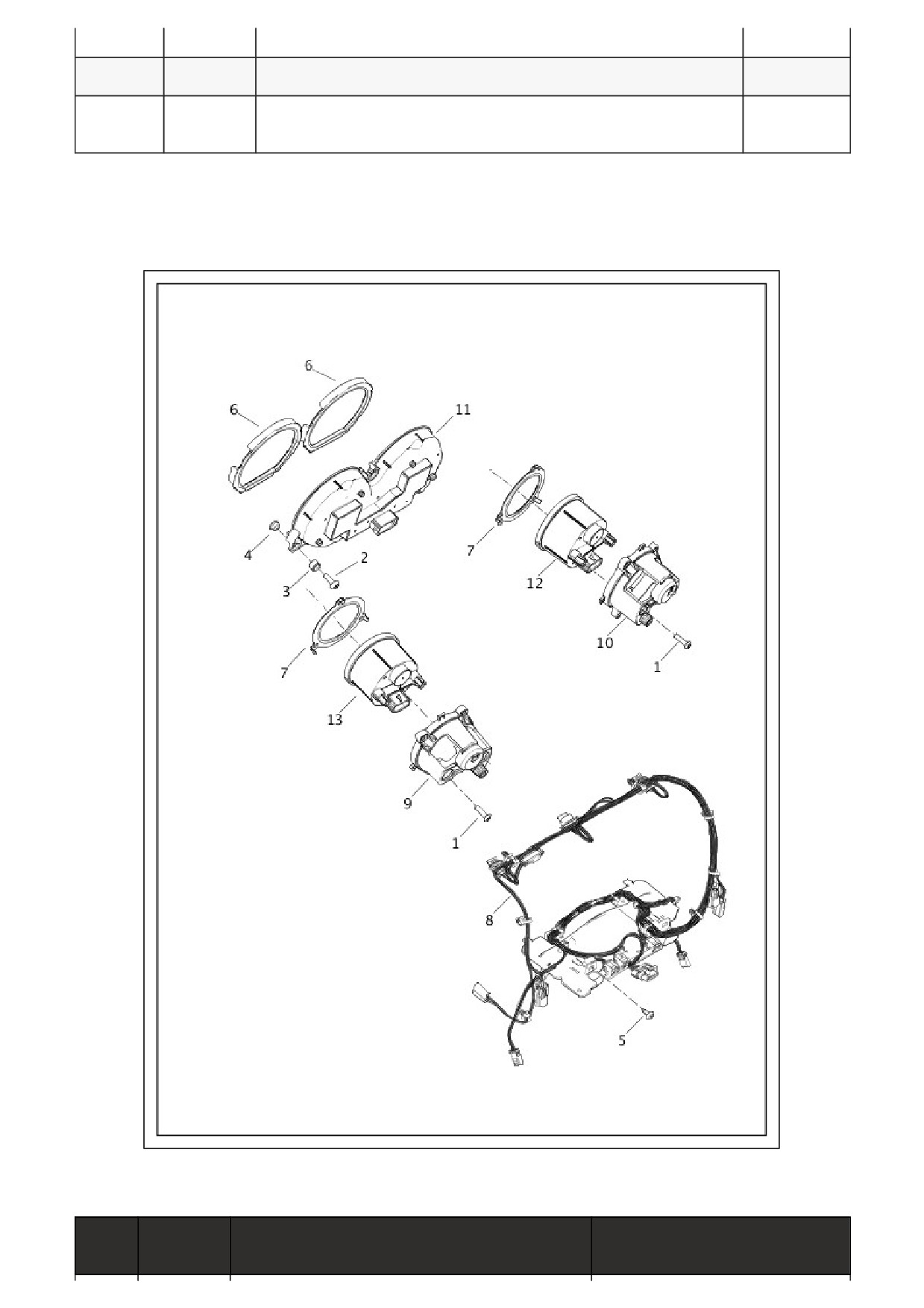

INSTRUMENTS - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX &
FLHXS
Index
Part No.
Description
Model(s)
No.
1
2563
SCREW (6)
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
2
10200147
SCREW (3)
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
3
12100020
GROMMET, instrument cluster mount (3)
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
4
12400034
INSERT, instrument cluster mount (3)
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
5
12600067
FASTENER, plastic (2)
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
6
61400080
GAUGE TRIM BEZEL ASSEMBLY, large (2)
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
7
61400081
GAUGE TRIM BEZEL ASSEMBLY, small (2)
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
8
69200121
WIRING HARNESS, fairing
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
9
69200257
BACK CLAMP, gauge, right
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
10
69200258
BACK CLAMP, gauge, left
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS,
FLHTCU TC
11
70900118A
INSTRUMENT CLUSTER, mph, w/ 12100020 &
FLHTK, FLHTKL
12400034 (Domestic, California)
70900119
INSTRUMENT CLUSTER, kph, w/ 12100020 &
FLHTK, FLHTKL
12400034 (Brazil, Canada, HDI, Australia, Japan,
Asia-Pacific)
70900120
INSTRUMENT CLUSTER, dual - mph/kph, w/
FLHTK, FLHTKL
12100020 & 12400034 (England)
70900121
INSTRUMENT CLUSTER, mph, w/ 12100020 &
FLHTCU, FLHTCUL
12400034 (Domestic, California) (black)
70900122
INSTRUMENT CLUSTER, kph, w/ 12100020 &
FLHTCU, FLHTCUL, FLHTCUL TC,
12400034 (Canada, HDI, Australia, Japan, Asia-
FLHTCU TC
Pacific) (black)
70900123
INSTRUMENT CLUSTER, dual - mph/kph, w/
FLHTCUL TC, FLHTCU TC
12100020 & 12400034 (England) (black)
70900124A
INSTRUMENT CLUSTER, mph, w/ 12100020 &
FLHX, FLHXS
12400034 (Domestic, California) (silver)
70900125
INSTRUMENT CLUSTER, kph, w/ 12100020 &
FLHX, FLHXS
12400034 (Brazil, Canada, HDI, Australia, Japan,
Asia-Pacific) (silver)
70900126
INSTRUMENT CLUSTER, dual - mph/kph, w/
FLHXS
12100020 & 12400034 (England) (silver)
12
70900161
FUEL GAUGE
FLHTK, FLHTKL
70900162
FUEL GAUGE, (black)
FLHTCU, FLHTCUL, FLHTCUL TC,
FLHTCU TC
70900163
FUEL GAUGE, (silver)
FLHX, FLHXS
13
70900164
VOLTMETER
FLHTK, FLHTKL
70900165
VOLTMETER, (black)
FLHTCU, FLHTCUL, FLHTCUL TC,
FLHTCU TC
70900166
VOLTMETER, (silver)
FLHX, FLHXS

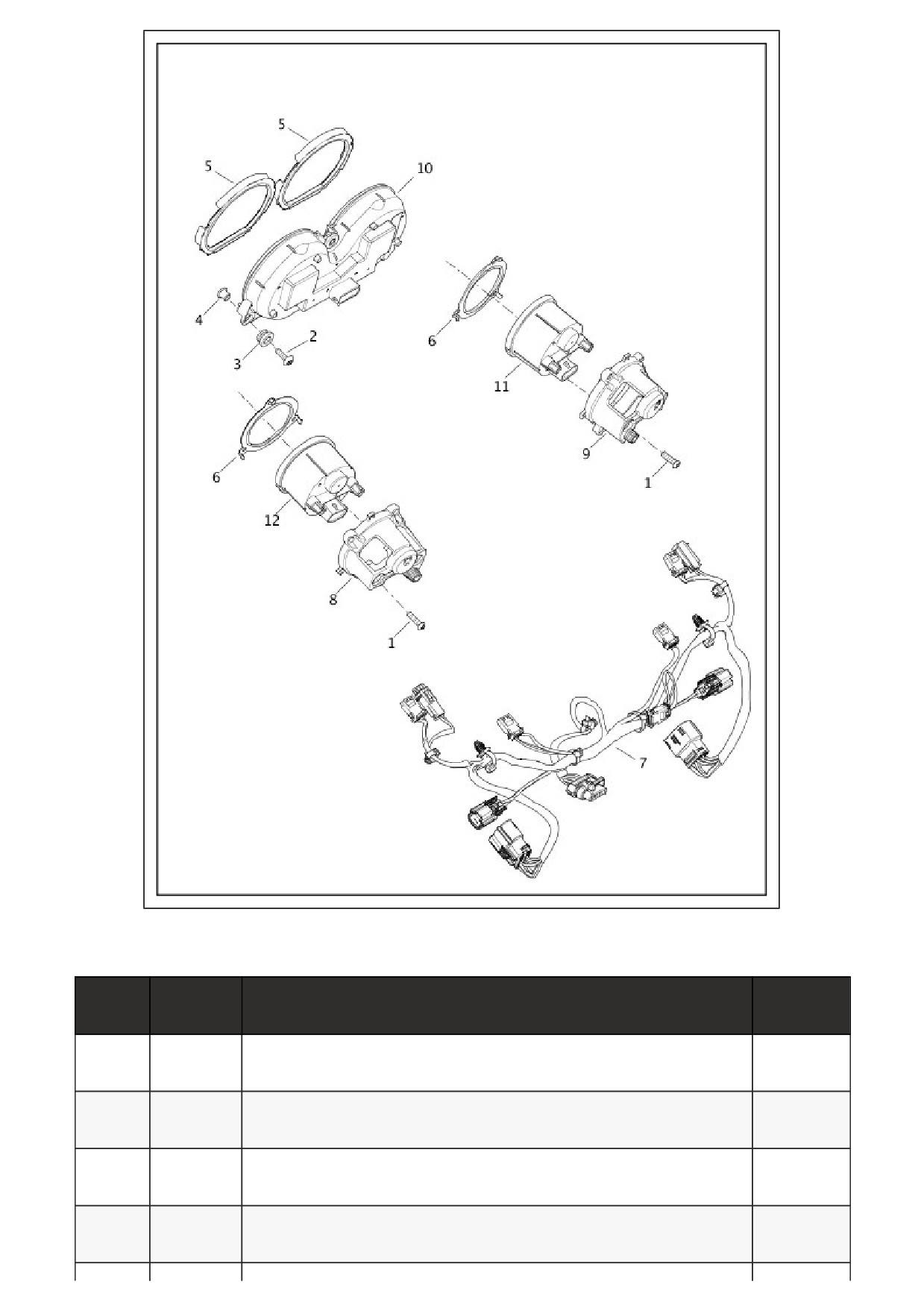

INSTRUMENTS - FLTRX & FLTRXS
Index
Part No.
Description
Model(s)
No.
1
2563
SCREW (6)
FLTRX,
FLTRXS
2
10200147
SCREW (3)
FLTRX,
FLTRXS
3
12100020
GROMMET, instrument cluster mount (3)
FLTRX,
FLTRXS
4
12400034
INSERT, instrument cluster mount (3)
FLTRX,
FLTRXS
5
61400080
GAUGE TRIM BEZEL ASSEMBLY, large (2)
FLTRX,
FLTRXS
6
61400081
GAUGE TRIM BEZEL ASSEMBLY, small (2)
FLTRX,
FLTRXS
7
69200122
WIRING HARNESS - FAIRING
FLTRX,
FLTRXS
8
69200257
BACK CLAMP, gauge, right
FLTRX,
FLTRXS
9
69200258
BACK CLAMP, gauge, left
FLTRX,
FLTRXS
10
70900124A
INSTRUMENT CLUSTER, mph, w/ 12100020 & 12400034 (Domestic,
FLTRX,
California)
FLTRXS
70900125
INSTRUMENT CLUSTER, kph, w/ 12100020 & 12400034 (Canada, HDI,
FLTRXS
Australia, Japan, Asia-Pacific)
70900126
INSTRUMENT CLUSTER, dual - mph/kph, w/ 12100020 & 12400034
FLTRXS
(England)
11
70900163
FUEL GAUGE
FLTRX,
FLTRXS
12
70900166
VOLTMETER
FLTRX,
FLTRXS

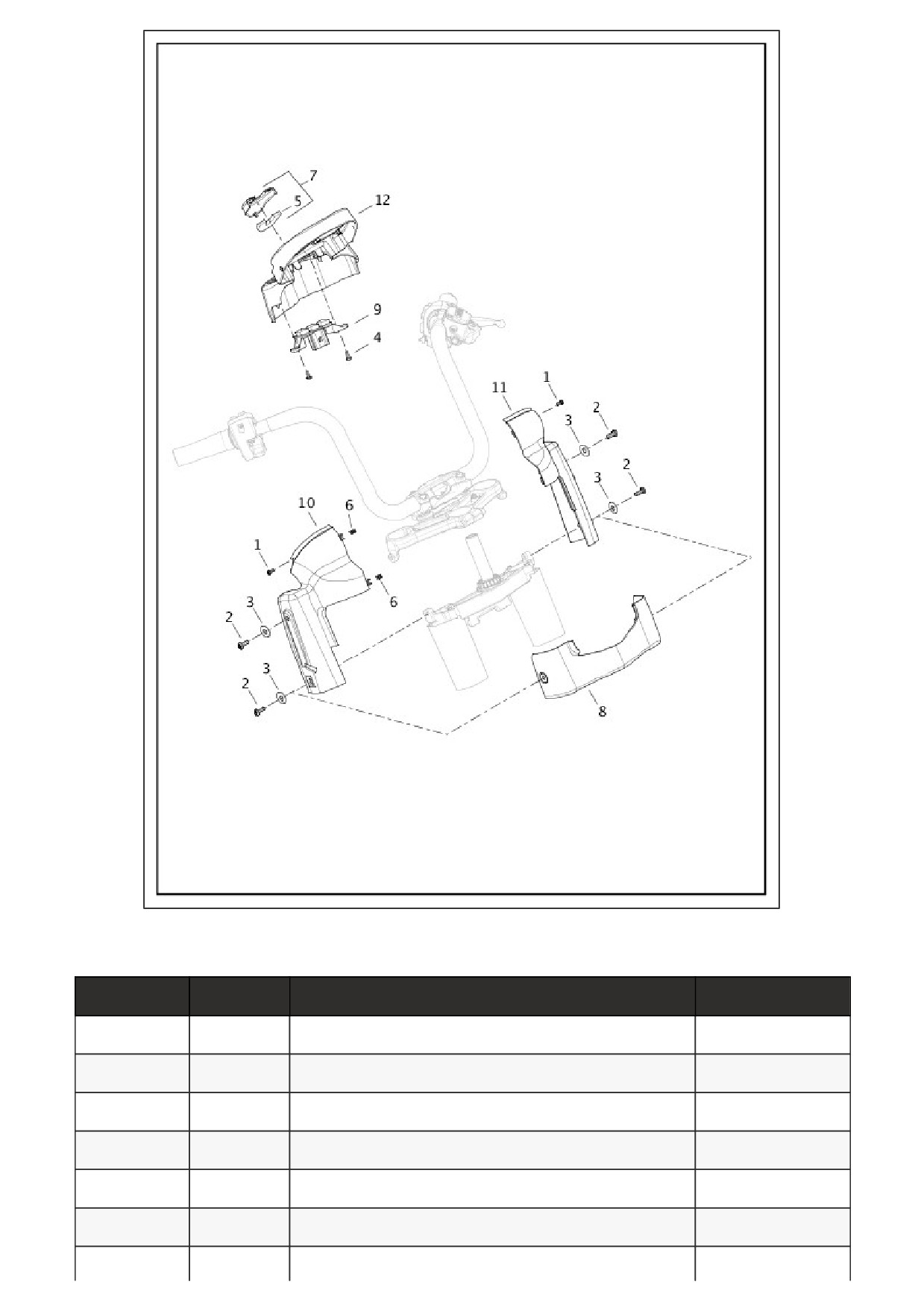

INSTRUMENT HOUSING - FLTRX & FLTRXS
Index No.
Part No.
Description
Model(s)
1
3152
SCREW (2)
FLTRX, FLTRXS
2
3676
SCREW (4)
FLTRX, FLTRXS
3
6333
WASHER (4)
FLTRX, FLTRXS
4
10200205
SCREW (4)
FLTRX, FLTRXS
5
11100152
FOAM PAD, ignition switch
FLTRX, FLTRXS
6
12200025
CLIP (2)
FLTRX, FLTRXS
7
25700489
COVER ASSEMBLY, ignition switch, w/ 11100152
FLTRX, FLTRXS
8
57000412
SKIRT, front (chrome)
FLTRX
57000508
SKIRT, front (unpainted)
FLTRXS
9
70900138
HOLE PLUG (2)
FLTRX, FLTRXS
10
70900372
HOUSING ASSEMBLY, right (prime)
FLTRX, FLTRXS
11
70900373
HOUSING ASSEMBLY, left (prime)
FLTRX, FLTRXS
12
70900374
HOUSING COVER, (prime)
FLTRX, FLTRXS

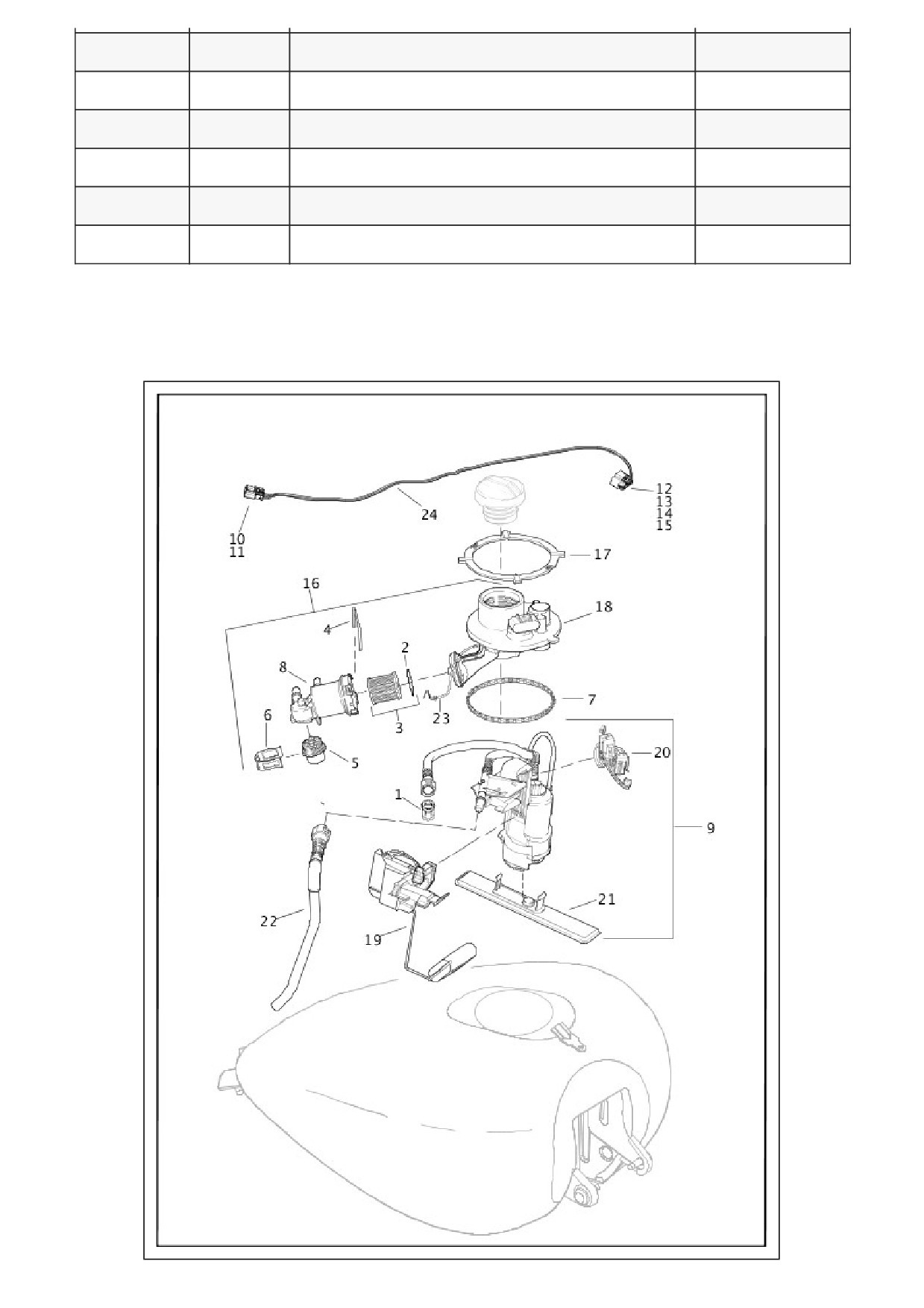

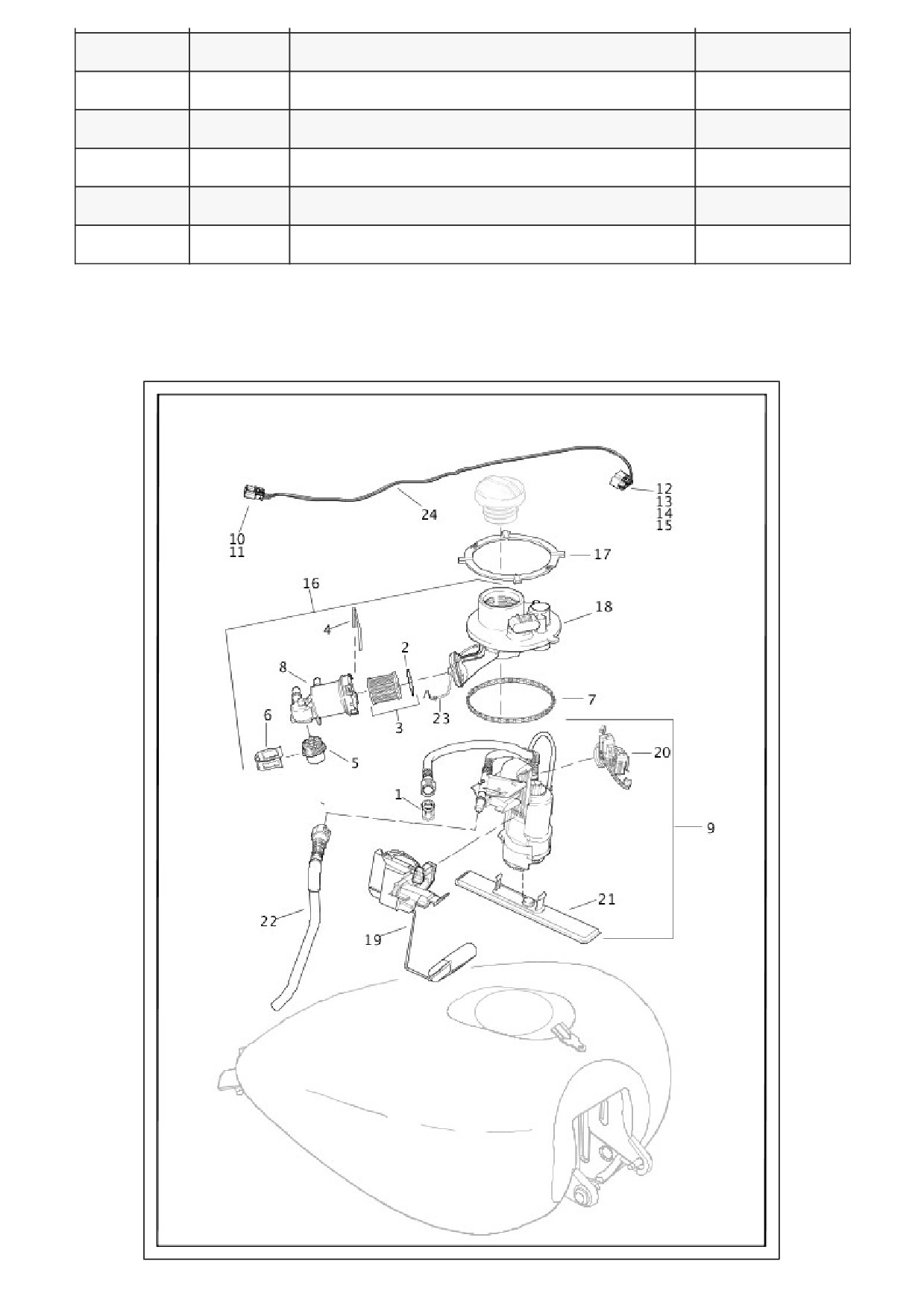

FUEL PUMP - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX, FLHXS,
FLTRX & FLTRXS
Index
Part No.
Description
Model(s)
No.
1
10395
RETAINER, fuel line, 5/16 (black)
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
2
11686
O-RING
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
3
61011-
FUEL FILTER KIT, w/ 11686
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
04A
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
4
61012-
CLIP, filter retainer
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
04A
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
5
61015-
FUEL REGULATOR ASSEMBLY KIT, w/ o-
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
04A
rings, spacer & screen
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
6
61213-
CLIP, regulator retainer
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
04A
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
7
61402-08
GASKET, top plate
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
8
62229-
FILTER SHELL
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
08B
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
9
62908-08
PUMP ASSEMBLY, fuel, w/ 10395, 75229-08
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
& 75254-04A
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
10
72168-07
TERMINAL, socket, 18-20 AWG (4)
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
11
72444-
HOUSING, 4-way, socket (gray)
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
07GY
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
12
72485-07
SOCKET HOUSING, 4-way
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
13
72493-07
TERMINAL SOCKET, 16-18 AWG (4)
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
14
72494-07
WIRE SEAL, 16-18 AWG (4)
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
15
72557-07
SECONDARY LOCK, 4-way socket
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
16
75069-
TOP PLATE ASSEMBLY, w/ 3, 4, 5, 6, 8, 18 &
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
08C
23
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
17
75089-08
RING, fuel tank, cam
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
18
75147-
TOP PLATE
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
08B
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
19
75205-
FUEL LEVEL SENDER
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
08A
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
20
75229-08
HARNESS, fuel pump module
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
21
75254-
STRAINER, fuel pump inlet
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
04A
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
22
75269-08
TRANSFER TUBE, fuel pump
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
23
75322-09
GROUND HARNESS
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
FLTRX
24
69200125
WIRE HARNESS, console, w/ 72168-07,
FLHTCU, FLHTCU TC, FLHX, FLHTK, FLHXS,
72444-07GY, 72485-07, 72493-07, 72494-07
FLHTCUL, FLHTCUL TC, FLTRXS, FLHTKL,
& 72557-07
FLTRX

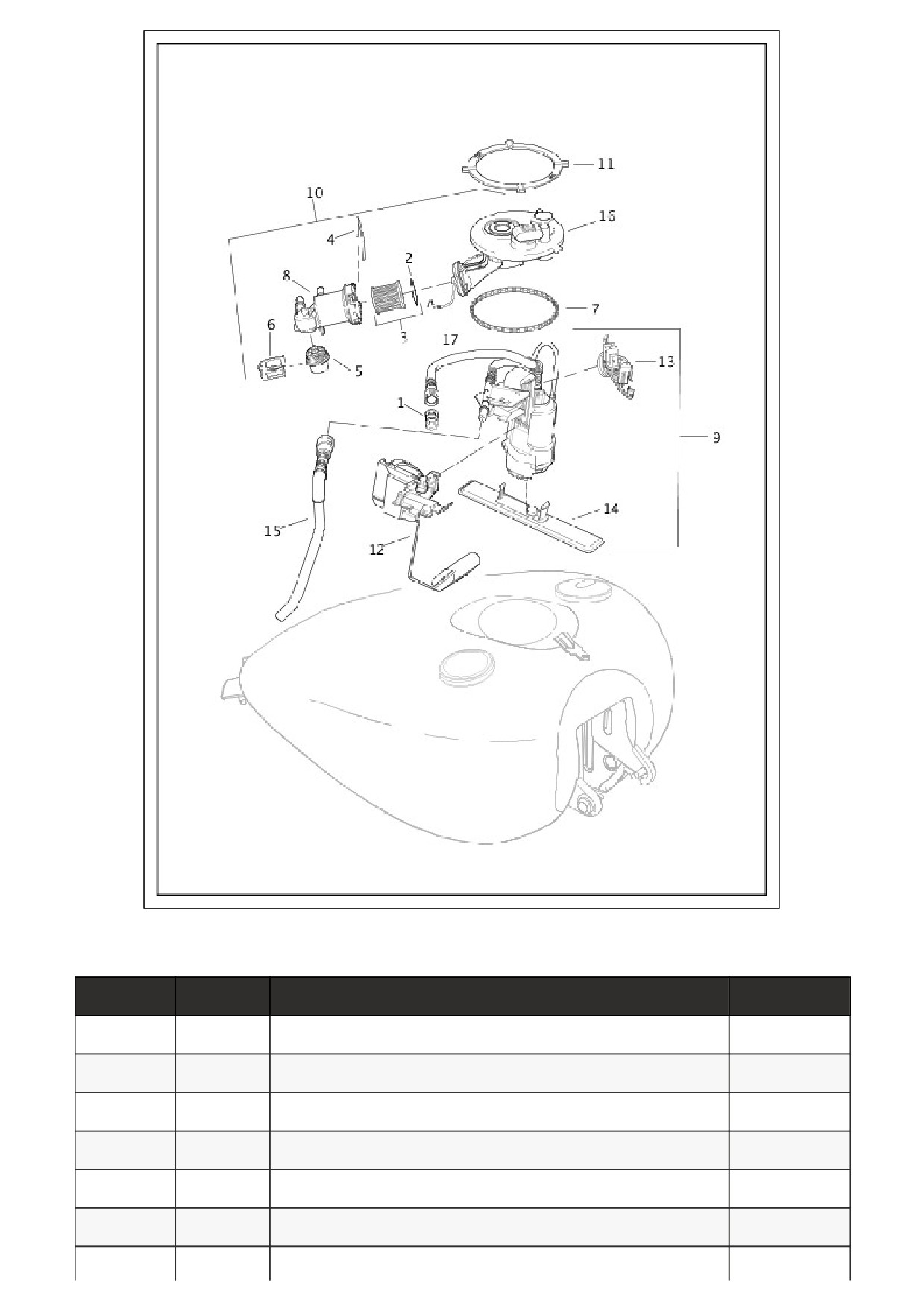

FUEL PUMP - FLHR & FLHRC
Index No.
Part No.
Description
Model(s)
1
10395
RETAINER, fuel line, 5/16 (black)
FLHR, FLHRC
2
11686
O-RING
FLHR, FLHRC
3
61011-04A
FUEL FILTER KIT, w/ 11686
FLHR, FLHRC
4
61012-04A
CLIP, filter retainer
FLHR, FLHRC
5
61015-04A
FUEL REGULATOR ASSEMBLY KIT, w/ o-rings, spacer & screen
FLHR, FLHRC
6
61213-04A
CLIP, regulator retainer
FLHR, FLHRC
7
61402-08
GASKET, top plate
FLHR, FLHRC
8
62229-08B
FILTER SHELL
FLHR, FLHRC
9
62908-08
PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A
FLHR, FLHRC
10
75076-08B
TOP PLATE ASSEMBLY, w/ 3, 4, 5, 6, 8, 16 & 17
FLHR, FLHRC
11
75089-08
RING, fuel tank, cam
FLHR, FLHRC
12
75205-08A
FUEL LEVEL SENDER
FLHR, FLHRC
13
75229-08
HARNESS, fuel pump module
FLHR, FLHRC
14
75254-04A
STRAINER, fuel pump inlet
FLHR, FLHRC
15
75269-08
TRANSFER TUBE, fuel pump
FLHR, FLHRC
16
75291-08A
TOP PLATE
FLHR, FLHRC
17
75322-09
GROUND HARNESS
FLHR, FLHRC

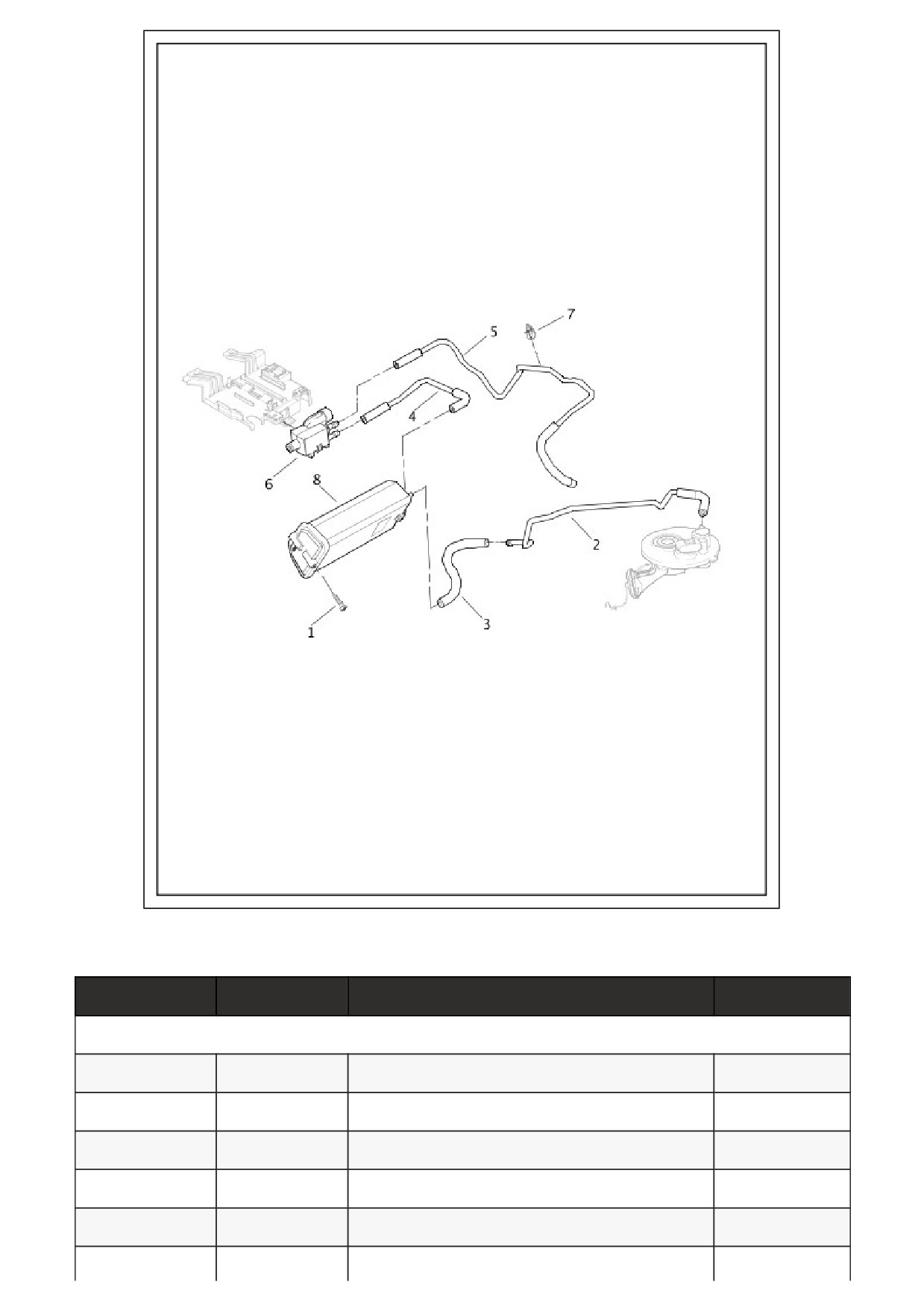

EVAPORATIVE EMISSIONS COMPONENTS
Index No.
Part No.
Description
Model(s)
NOTE: These parts are required for motorcycles sold in Asia-Pacific markets.
1
4612
SCREW (2)
2
27291-09A
EVAP LINE, tank
3
27297-09A
EVAP LINE, canister
4
27298-09A
EVAP LINE, purge to canister
5
27439-09A
TUBE, solenoid to induction module
6
27715-07
SOLENOID, purge valve
7
70681-09
RETAINER
8
60800006
CARBON CANISTER

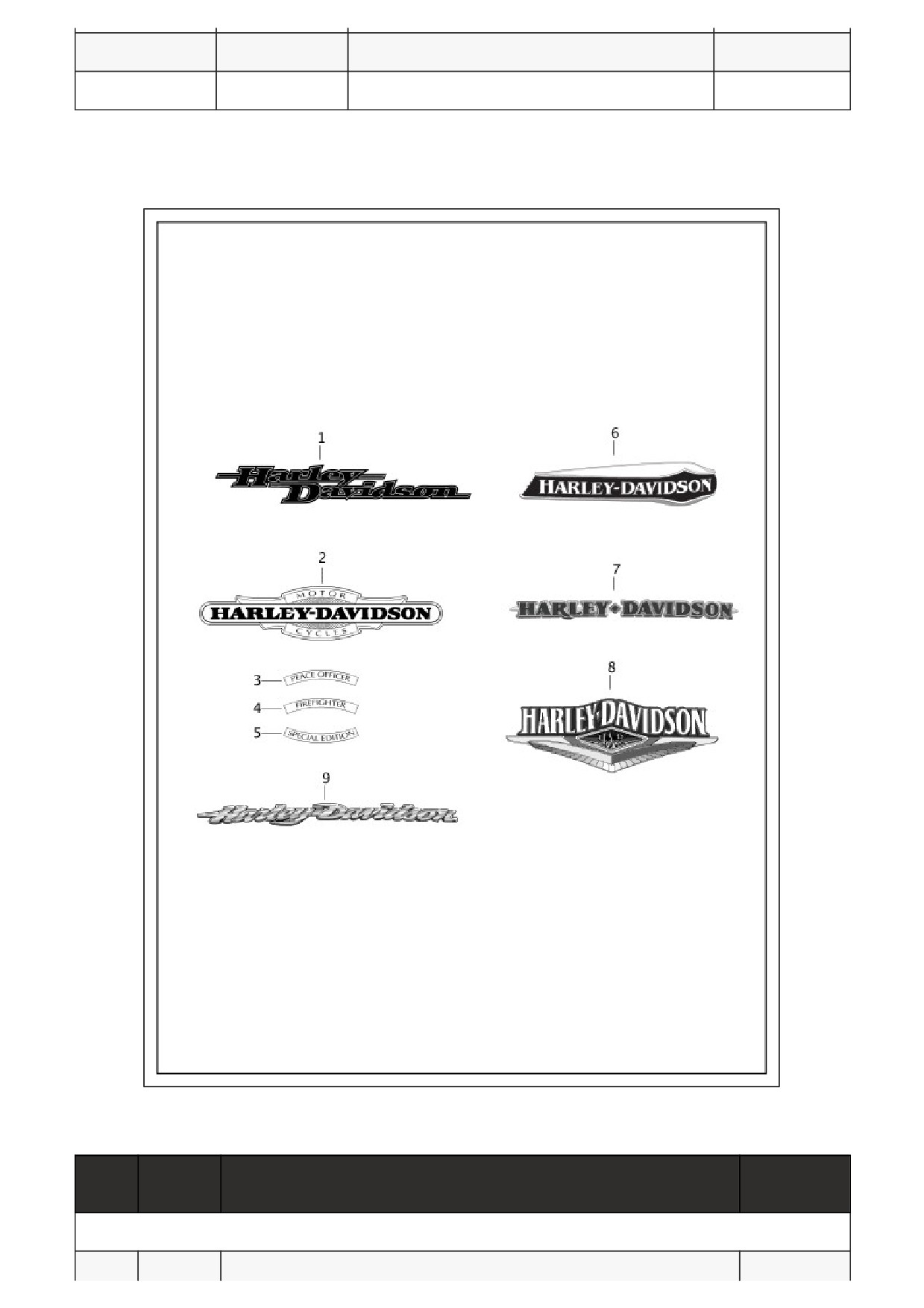

FUEL TANK TRIM
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
1
62435-11
MEDALLION, left (for vivid black, mysterious red sunglo, charcoal satin, superior
FLHX, FLHXS
blue, brilliant silver pearl, amber whiskey, charcoal pearl, morocco gold pearl,
black denim, deep jade pearl tanks)
62437-11
MEDALLION, right (for vivid black, mysterious red sunglo, charcoal satin,
FLHX, FLHXS
superior blue, brilliant silver pearl, amber whiskey, charcoal pearl, morocco gold
pearl, black denim, deep jade pearl tanks)
2
62152-08
MEDALLION, fuel tank, left
FLHTK,
FLHTKL
62153-08
MEDALLION, fuel tank, right
FLHTK,
FLHTKL
3
62241-08
INSERT, PEACE OFFICER (2)
FLHTK,
FLHTKL
4
62242-08
INSERT, FIREFIGHTER (2)
FLHTK,
FLHTKL
5
62243-08
INSERT, SPECIAL EDITION (2)
FLHTK,
FLHTKL
6
14100073
MEDALLION, right (for vivid black, brilliant silver pearl, mysterious red sunglo, 2-
FLHTCU,
tone mysterious red sunglo/blackened cayenne sunglo, 2-tone white hot
FLHTCU TC,
pearl/blue hot pearl, 2-tone amber whiskey/charcoal pearl tanks)
FLHTCUL,
FLHTCUL TC
14100074
MEDALLION, left (for vivid black, brilliant silver pearl, mysterious red sunglo, 2-
FLHTCU,
tone mysterious red sunglo/blackened cayenne sunglo, 2-tone white hot
FLHTCU TC,
pearl/blue hot pearl, 2-tone amber whiskey/charcoal pearl tanks)
FLHTCUL,
FLHTCUL TC
7
14100075
MEDALLION, right (for vivid black, superior blue, 2-tone brilliant silver pearl/vivid
FLHTK,
black, 2-tone amber whiskey/vivid black, 2-tone mysterious red
FLHTKL
sunglo/blackened cayenne sunglo, 2-tone deep jade pearl/vivid black tanks)
14100076
MEDALLION, left (for vivid black, superior blue, 2-tone brilliant silver pearl/vivid
FLHTK,
black, 2-tone amber whiskey/vivid black, 2-tone mysterious red
FLHTKL
sunglo/blackened cayenne sunglo, 2-tone deep jade pearl/vivid black tanks)
8
14100079
MEDALLION, right (for vivid black, morocco gold pearl, superior blue, 2-tone
FLHR,
brilliant silver pearl/vivid black, 2-tone mysterious red sunglo/blackened
FLHRC
cayenne sunglo, 2-tone deep jade pearl/vivid black, 2-tone white hot pearl/blue
hot pearl tanks)
14100080
MEDALLION, left (for vivid black, morocco gold pearl, superior blue, 2-tone
FLHR,
brilliant silver pearl/vivid black, 2-tone mysterious red sunglo/blackened
FLHRC
cayenne sunglo, 2-tone deep jade pearl/vivid black, 2-tone white hot pearl/blue
hot pearl tanks)
9
14100587
MEDALLION, right (for vivid black, amber whiskey, mysterious red sunglo, black
FLTRX,
denim, superior blue tanks)
FLTRXS
14100588
MEDALLION, left (for vivid black, amber whiskey, mysterious red sunglo, black
FLTRX,
denim, superior blue tanks)
FLTRXS

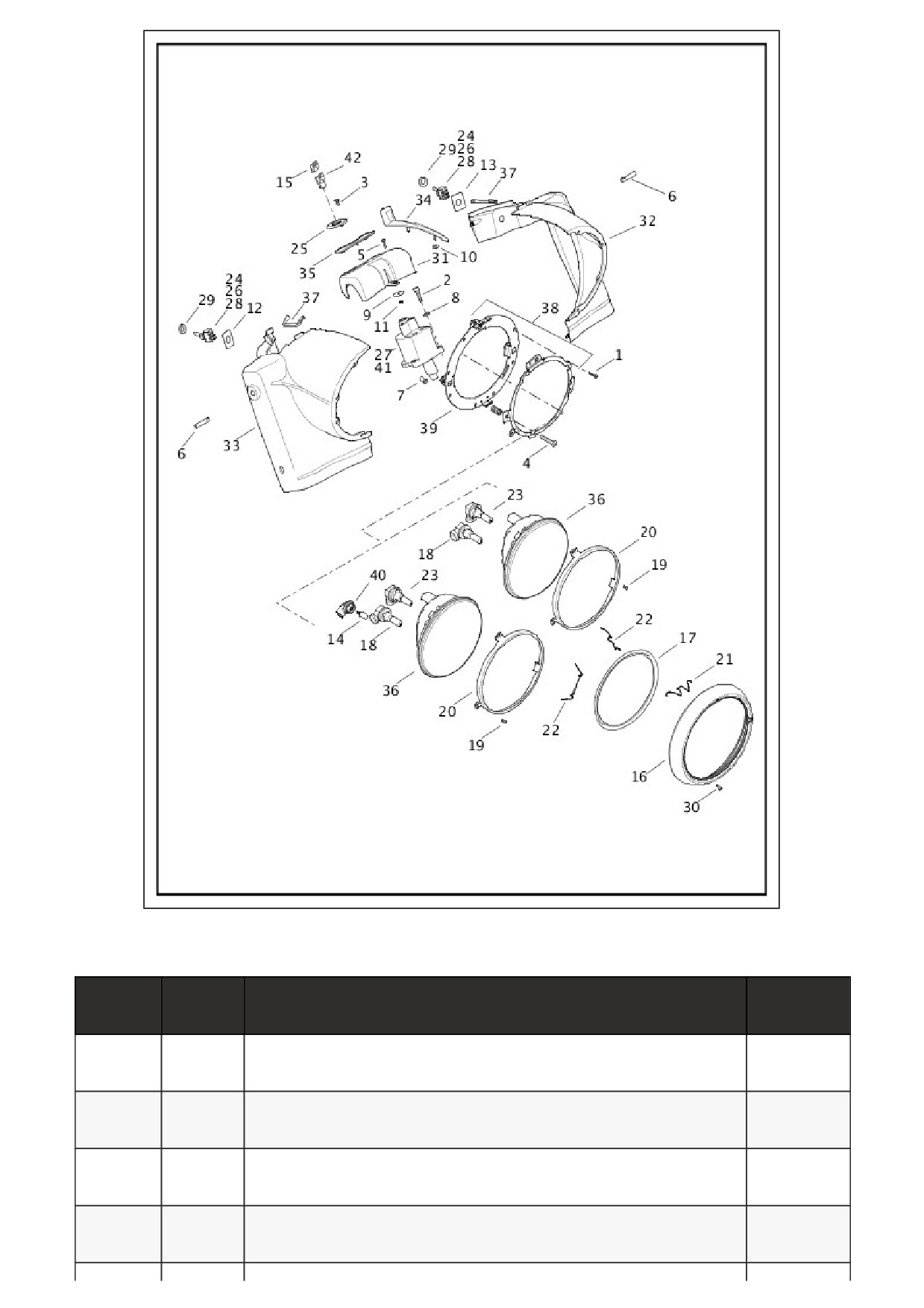

NACELLE & HEADLAMP - FLHR & FLHRC
Index
Part No.
Description
Model(s)
No.
1
787
SCREW (8)
FLHR,
FLHRC
2
2647B
SCREW (2)
FLHR,
FLHRC
3
2933
SCREW (2)
FLHR,
FLHRC
4
3088
SCREW (3)
FLHR,
FLHRC
5
3225
BOLT
FLHR,
FLHRC
6
3265A
STUD (4)
FLHR,
FLHRC
7
5210
WELL NUT (8)
FLHR,
FLHRC
8
6150W
WASHER (2)
FLHR,
FLHRC
9
6789
WASHER
FLHR,
FLHRC
10
7888A
NUT
FLHR,
FLHRC
11
7889
NUT
FLHR,
FLHRC
12
14019-
LABEL ON/OFF SWITCH, right
FLHR,
83A
FLHRC
13
15346-
LABEL, fog lamp, left
FLHR,
98A
FLHRC
14
53436-97
BULB, position lamp (HDI)
FLHRC
15
61081-92
COVER, key-head (set of 2)
FLHR,
FLHRC
16
67712-
TRIM RING, headlamp
FLHR,
83B
FLHRC
17
67716-
GASKET, headlamp door
FLHR,
60C
FLHRC
18
67717-01
BULB, high beam halogen
FLHR,
FLHRC
19
67721-48
SCREW (3)
FLHR,
FLHRC
20
67726-08
RETAINING RING
FLHR,
FLHRC
21
67778-
SPRING, trim ring, headlamp, top
FLHR,
60A
FLHRC
22
67780-
SPRING, trim ring, headlamp, bottom
FLHR,
60A
FLHRC
23
68881-01
BULB, low beam halogen
FLHR,
FLHRC
24
70292-89
SOCKET HOUSING, 4-place (2)
FLHR,
FLHRC
25
71310-94
TRIM ASSEMBLY, fork lock
FLHR,
FLHRC
26
71522-08
SWITCH, auxiliary lamp & accessories, w/ 70292-89 & 72038-71A (except
FLHR,
Japan) (2)
FLHRC
71565-08
SWITCH, illuminated, w/ 70292-89 & 72038-71A (Japan) (2)
FLHR,
FLHRC
27
71540-
FORK LOCK, (specify key number)
FLHR,
94A
FLHRC
28
72038-
TERMINAL SOCKET (8)
FLHR,
71A
FLHRC
29
74408-
DRESS NUT, (chrome) (2)
FLHR,
08A
FLHRC
30
10200156
SCREW
FLHR,
FLHRC
31
55800091
COVER, handlebar (chrome)
FLHR,
FLHRC
32
61300095
NACELLE, left (chrome)
FLHR,
FLHRC
33
61300096
NACELLE, right (chrome)
FLHR,
FLHRC
34
61400077
TRIM, nacelle (chrome)
FLHR,
FLHRC
35
61400159
INSERT, handlebar cover
FLHR,
FLHRC
36
67700062
HEADLAMP ASSEMBLY, w/ 67717-01 & 68881-01(Domestic)
FLHR
67700065
HEADLAMP ASSEMBLY, w/ 54346-97, 67717-01, 68881-01 & 68000038
FLHRC
(HDI)
37
67700105
TRIM (2)
FLHR,
FLHRC
38
67700204
MOUNTING RING ASSEMBLY, w/ 3088 & 67700205
FLHR,
FLHRC
39
67700205
MOUNTING RING, headlamp
FLHR,
FLHRC
40
68000038
CONNECTOR, position bulb (HDI)
FLHRC
41
71400010
LOCKSET, complete, w/ keys, ignition switch, fork lock & saddle bag lock
FLHR
71400011
LOCKSET, complete w/ keys, ignition switch, cover, & fork lock (HDI)
FLHRC
42
90300043
KEY, w/ 61081-92 (set of 2) (specify key number)
FLHR,
FLHRC

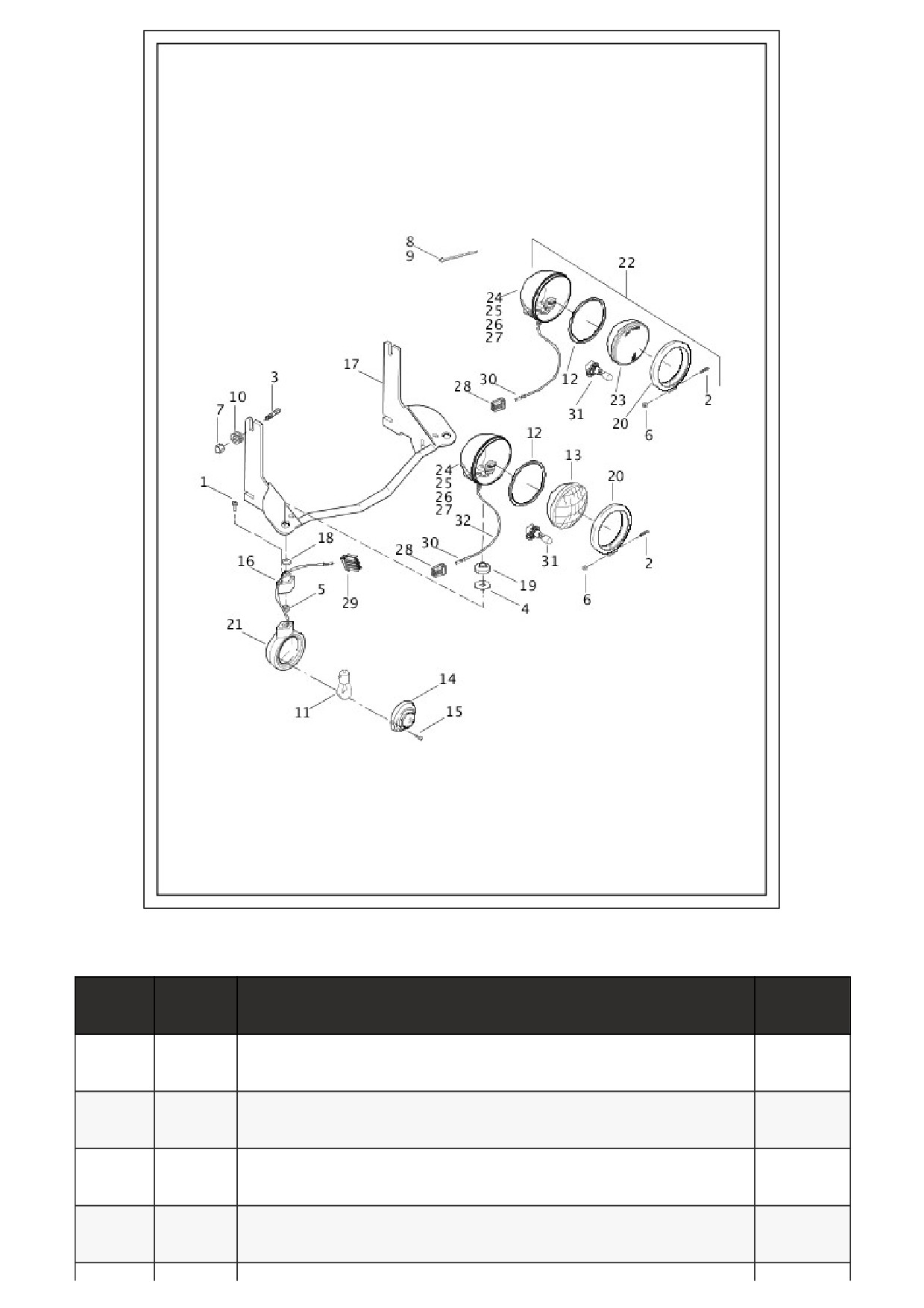

AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - FLHR & FLHRC
Index
Part No.
Description
Model(s)
No.
1
2647B
SCREW (4)
FLHR,
FLHRC
2
3514
SCREW (2)
FLHR,
FLHRC
3
3265A
STUD (4)
FLHR,
FLHRC
4
6072
WASHER (2)
FLHR,
FLHRC
5
7601
LOCKNUT (2)
FLHR,
FLHRC
6
7606
LOCKNUT (2)
FLHR,
FLHRC
7
7992
ACORN NUT (4)
FLHR,
FLHRC
8
10039
CABLE STRAP (2)
FLHR,
FLHRC
9
10065
CABLE STRAP
FLHR,
FLHRC
10
67621-94
BUSHING (4)
FLHR,
FLHRC
11
68168-
BULB, turn signal (Domestic) (2)
FLHR
89A
68163-84
BULB, turn signal (2) (HDI)
FLHRC
12
68331-02
RING, auxiliary lamps (2)
FLHR,
FLHRC
13
68414-
LAMP, auxiliary, w/ 68000056 (Domestic) (2)
FLHR
05A
14
68440-86
LENS, turn signal (Domestic) (amber) (2)
FLHR
68505-90
LENS, turn signal (HDI) (amber) (2)
FLHRC
15
68452-86
SCREW (4)
FLHR,
FLHRC
16
68519-
MOUNTING BRACKET (2)
FLHR,
68A
FLHRC
17
68712-
BRACKET, auxiliary/fog lamps
FLHR,
94A
FLHRC
18
68720-62
CLAMP BLOCK, auxiliary/fog lamps (2)
FLHR,
FLHRC
19
68721-62
SWIVEL BLOCK, auxiliary/fog lamps (2)
FLHR,
FLHRC
20
68725-
BEZEL RING, auxiliary/fog lamps (2)
FLHR,
62A
FLHRC
21
68766-94
TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68440-86, & 68452-86 (Domestic)
FLHR
(2)
68767-94
TURN SIGNAL, w/ 68163-84, 68452-86 & 68505-90 (2) (HDI)
FLHRC
22
68846-09
FOG LAMP ASSEMBLY, w/ 3514, 7606, 68331-02, 68725-62A, 68847-09 &
FLHRC
72160-06 (HDI) (2)
23
68847-09
BULB ASSEMBLY, fog lamp, w/ 68000056 (HDI) (2)
FLHRC
24
72160-06
HOUSING, auxiliary/fog lamp, w/ 72161-06, 72298-95 & 72356-95 (2)
FLHR,
FLHRC
25
72161-06
SOCKET HOUSING, 2-way (2)
FLHR,
FLHRC
26
72298-95
TERMINAL SEAL, (green) (4)
FLHR,
FLHRC
27
72356-95
SOCKET TERMINAL, 18-20 AWG (4)
FLHR,
FLHRC
28
73154-
SOCKET HOUSING, 4-place (black)
FLHR,
96BK
FLHRC
29
73156-
SOCKET HOUSING, 6-place (black)
FLHR,
96BK
FLHRC
30
73191-96
TERMINAL, socket, 16-20 gauge (8)
FLHR
30
73191-96
TERMINAL, socket, 16-20 gauge (6)
FLHRC
31
68000056
BULB, auxiliary/fog lamp (2)
FLHR,
FLHRC
NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length.
32
70554-69
CONDUIT, (10-foot length) (black)
FLHR,
FLHRC

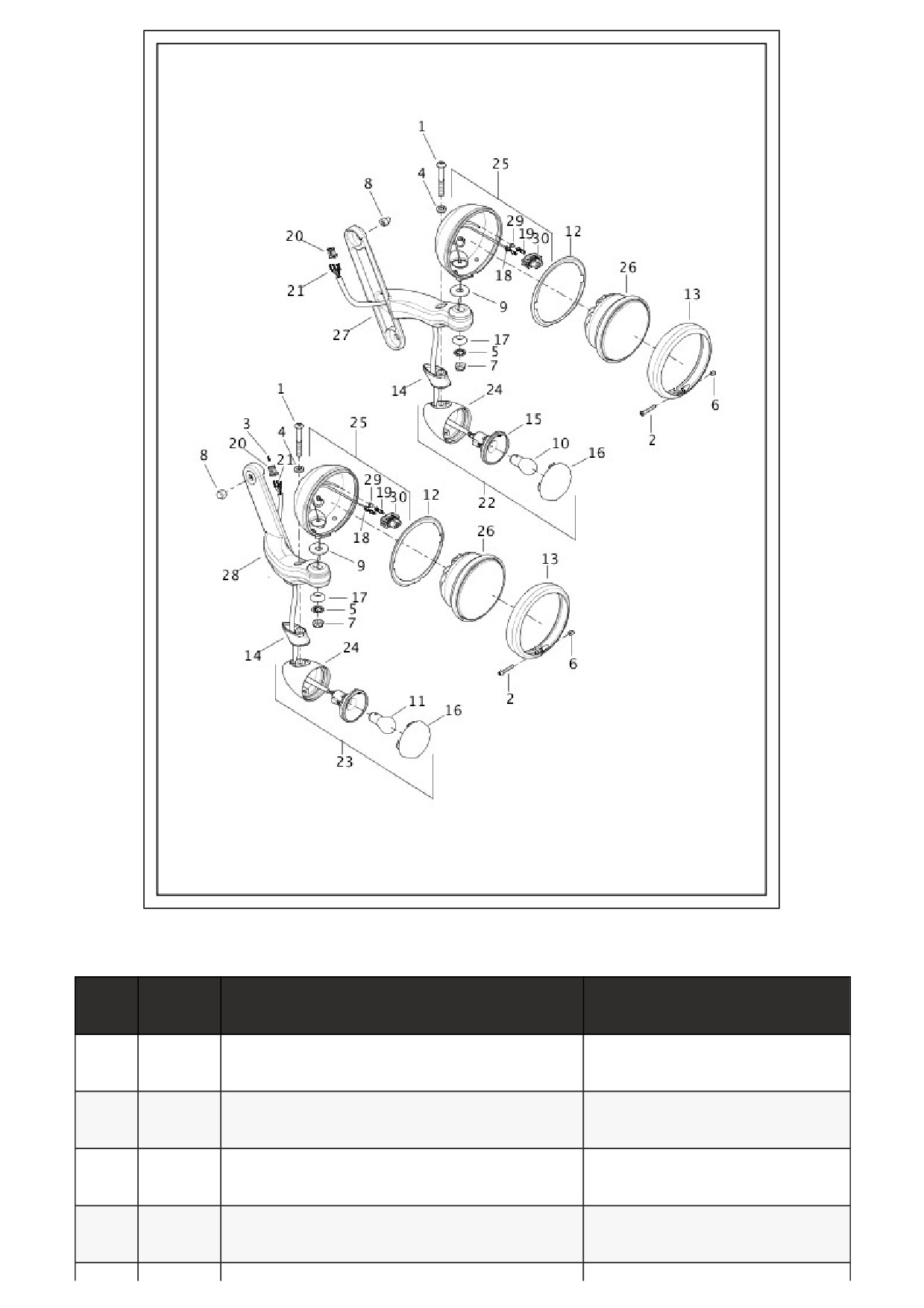

AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - FLHTCU,
FLHTCUL, FTHTK & FLHTKL
Index
Part No.
Description
Model(s)
No.
1
1332
SCREW (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
2
3514
SCREW (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
3
5118
SEAL PIN, (HDI) (2)
FLHTK, FLHTCU TC, FLHTCUL TC,
FLHTKL
4
7041
LOCKWASHER (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
5
7130W
LOCKWASHER (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
6
7606
LOCKNUT (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
7
7667
NUT (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
8
7992
ACORN NUT (4)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
9
40901-05
ISOLATOR, rubber (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
10
68168-
BULB, turn signal (Domestic) (2)
FLHTCU, FLHTK, FLHTCUL, FLHTKL
89A
11
68163-84
BULB, turn signal (2) (HDI)
FLHTK, FLHTCU TC, FLHTCUL TC,
FLHTKL
12
68331-02
RING, auxiliary lamps (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
13
68725-
BEZEL RING, auxiliary/fog lamps (2)
FLHTCU, FLHTK, FLHTCU TC,
62A
FLHTCUL, FLHTCUL TC, FLHTKL
14
68821-00
STAND-OFF, directional (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
15
68904-00
SOCKET ASSEMBLY, turn signal (Domestic) (2)
FLHTCU, FLHTK, FLHTCUL, FLHTKL
16
68973-00
LENS (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
17
69563-06
CLAMP BLOCK, auxiliary/fog lamps (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
18
72298-95
TERMINAL SEAL, (green) (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
19
72356-95
SOCKET TERMINAL, 18-20 AWG (4)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
20
72908-11
SOCKET HOUSING, 4-place (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
21
72910-11
SOCKET TERMINAL, 20-22 AWG (Domestic) (8)
FLHTCU, FLHTK, FLHTCUL, FLHTKL
21
72910-11
SOCKET TERMINAL, 20-22 AWG (HDI) (6)
FLHTK, FLHTCU TC, FLHTCUL TC,
FLHTKL
22
67800103
TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68904-00,
FLHTCU, FLHTK, FLHTCUL, FLHTKL
68973-00 & 67800109 (Domestic) (2)
23
67800104
TURN SIGNAL ASSEMBLY, w/ 68163-84, 68973-00,
FLHTK, FLHTCU TC, FLHTCUL TC,
67800109 & socket assembly (HDI) (2)
FLHTKL
24
67800109
HOUSING, turn signal (chrome) (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
25
67800254
HOUSING, auxiliary/fog lamp, w/ 72298-95, 72356-95,
FLHTCU, FLHTK, FLHTCU TC,
72910-11, 69200199 & 69200259 (2)
FLHTCUL, FLHTCUL TC, FLHTKL
26
68000020
AUXILIARY/FOG LAMP, LED (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
27
68000021
BRACKET, auxiliary/fog lamp, left
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
28
68000022
BRACKET, auxiliary/fog lamp, right
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
29
69200199
WIRE SEAL, purple (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL
30
69200529
SOCKET HOUSING, 2-way (2)
FLHTCU, FLHTK, FLHTCU TC,
FLHTCUL, FLHTCUL TC, FLHTKL

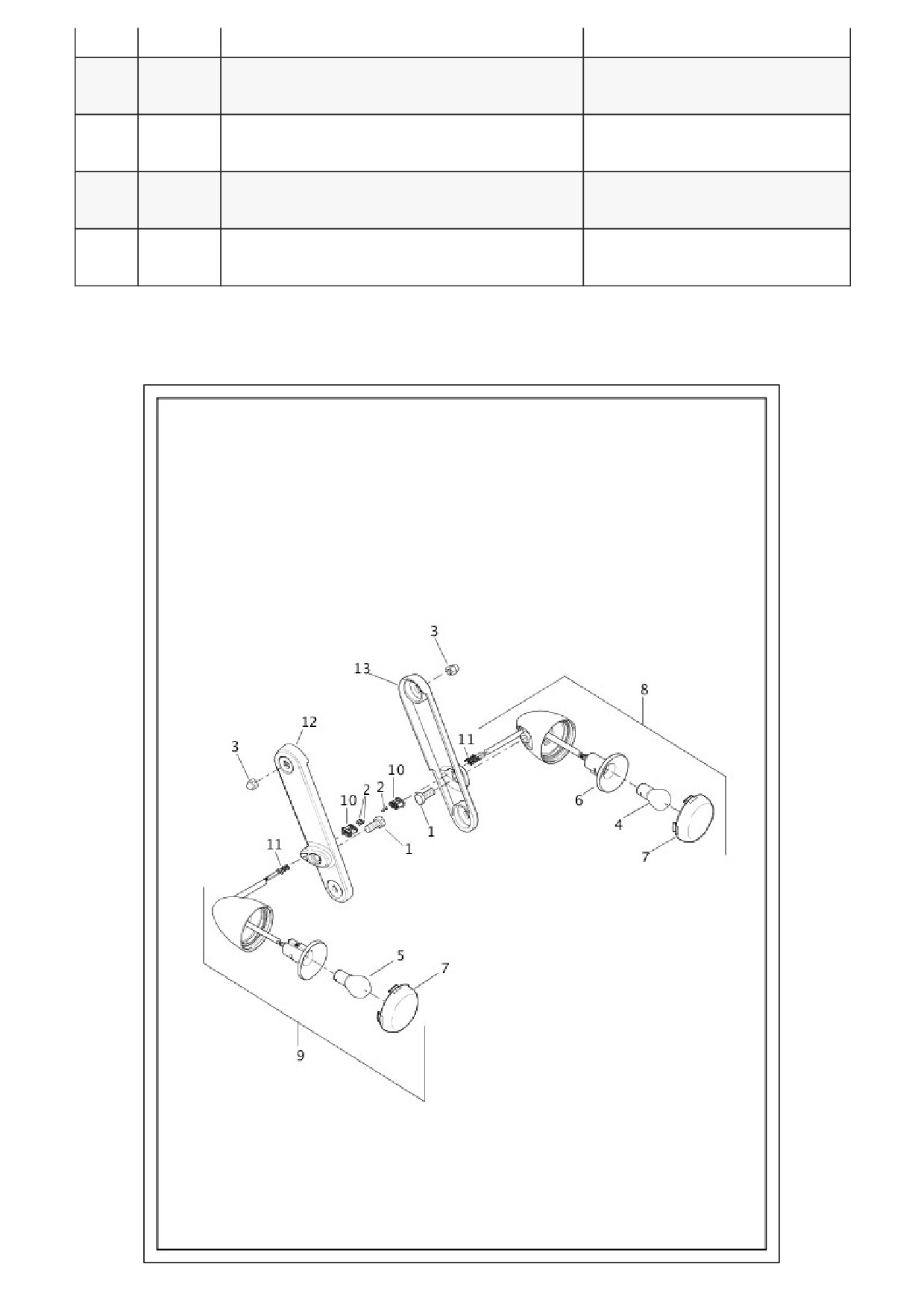

TURN SIGNALS, FRONT - FLHX & FLHXS
Index
Part No.
Description
Model(s)
No.
1
3987
BOLT (2)
FLHX,
FLHXS
2
5118
SEAL PIN, (Domestic) (2)
FLHX,
FLHXS
2
5118
SEAL PIN, (HDI) (4)
FLHXS
3
7992
ACORN NUT (4)
FLHX,
FLHXS
4
68168-
BULB, turn signal (Domestic) (2)
FLHX,
89A
FLHXS
5
68163-84
BULB, turn signal (2) (HDI)
FLHXS
6
68904-00
SOCKET ASSEMBLY, turn signal (Domestic) (2)
FLHX,
FLHXS
7
68973-00
LENS (2)
FLHX,
FLHXS
8
69292-06
TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68904-00 & 68973-00
FLHX,
(Domestic) (2)
FLHXS
9
69293-06
TURN SIGNAL ASSEMBLY, w/ 68163-84, 68973-00 & socket housing (HDI)
FLHXS
(2)
10
72908-11
SOCKET HOUSING, 4-place (2)
FLHX,
FLHXS
11
72910-11
SOCKET TERMINAL, 20-22 AWG (Domestic) (6)
FLHX,
FLHXS
11
72910-11
SOCKET TERMINAL, 20-22 AWG (HDI) (4)
FLHXS
12
68000036
BAR, right upright
FLHX,
FLHXS
13
68000037
BAR, left upright
FLHX,
FLHXS

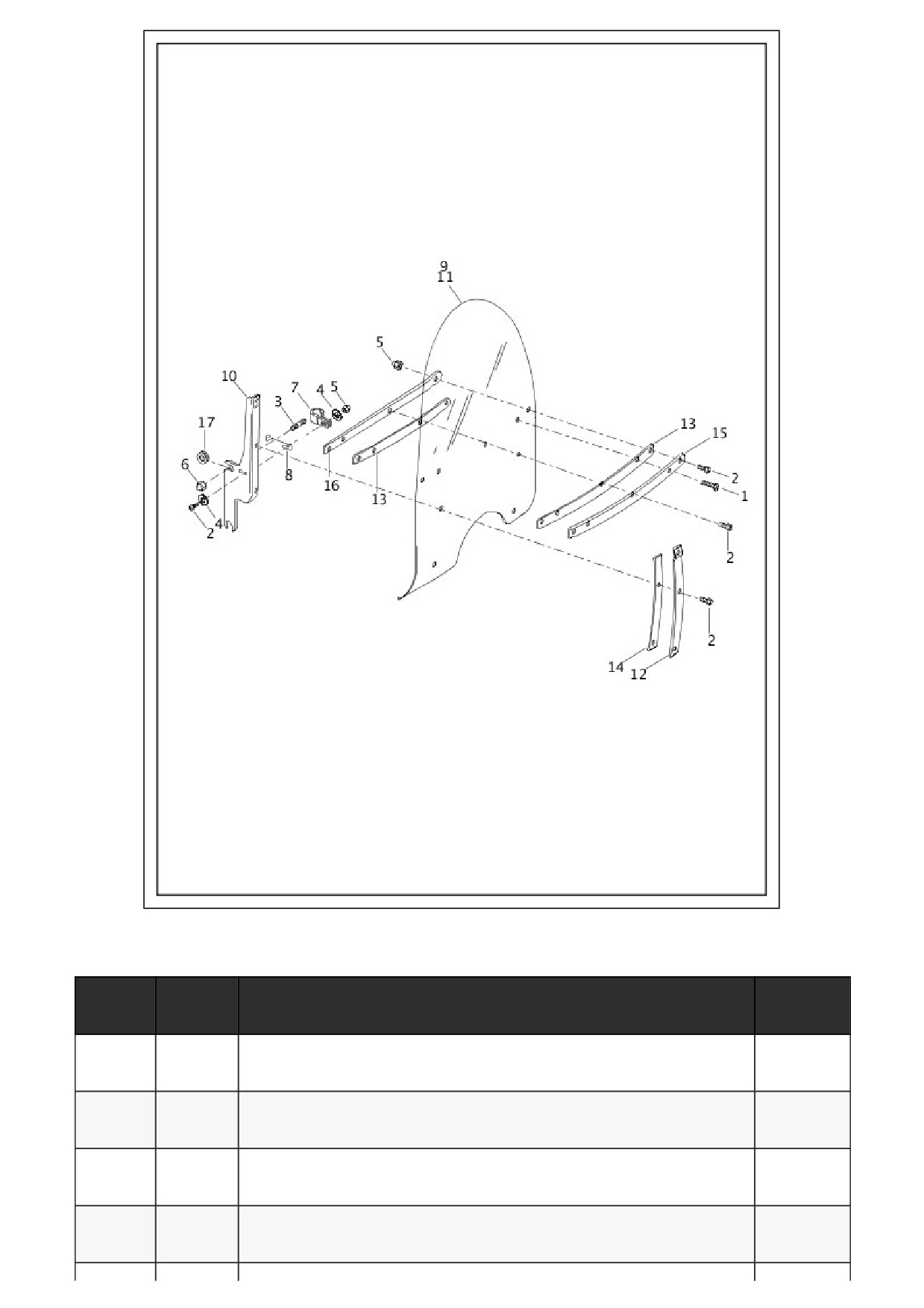

WINDSHIELD - FLHR & FLHRC
Index
Part No.
Description
Model(s)
No.
1
2452
SCREW (2)
FLHR,
FLHRC
2
2921
SCREW (11)
FLHR,
FLHRC
3
3265A
STUD (4)
FLHR,
FLHRC
4
6119
WASHER (8)
FLHR,
FLHRC
5
7651A
ACORN NUT (13)
FLHR,
FLHRC
6
7992
ACORN NUT (4)
FLHR,
FLHRC
7
9990W
CLAMP
FLHR,
FLHRC
8
38722-94
SPRING LATCH (2)
FLHR,
FLHRC
9
57668-10
WINDSHIELD ASSEMBLY, complete, low (clear) (Asia-Pacific)
FLHRC
57994-94
WINDSHIELD ASSEMBLY, complete (Domestic, Canada, California)
FLHR
57994-94
WINDSHIELD ASSEMBLY, complete (Australia, Brazil)
FLHRC
58325-06
WINDSHIELD ASSEMBLY, complete (HDI, England, Japan)
FLHRC
10
58084-94
ADJUSTING BRACKET, right
FLHR,
FLHRC
58088-94
ADJUSTING BRACKET, left
FLHR,
FLHRC
11
58193-94
WINDSHIELD REPLACEMENT KIT, w/ 58416-77A & 58417-77 (Domestic,
FLHR
Canada, California)
58193-94
WINDSHIELD REPLACEMENT KIT, w/ 58416-77A & 58417-77 (Australia,
FLHRC
Brazil)
58327-06
WINDSHIELD REPLACEMENT KIT, w/ 58416-77A & 58417-77 (HDI, England,
FLHRC
Japan)
57400005
WINDSHIELD REPLACEMENT KIT, w/ 58416-77A & 58417-77 (Asia-Pacific)
FLHRC
12
58406-
BRACE, right
FLHR,
75A
FLHRC
58408-
BRACE, left
FLHR,
75A
FLHRC
13
58416-
TAPE (2)
FLHR,
77A
FLHRC
14
58417-77
TAPE (2)
FLHR,
FLHRC
15
58428-94
BRACE, outer
FLHR,
FLHRC
16
58431-94
BRACE, inner
FLHR,
FLHRC
17
67621-94
BUSHING (4)
FLHR,
FLHRC

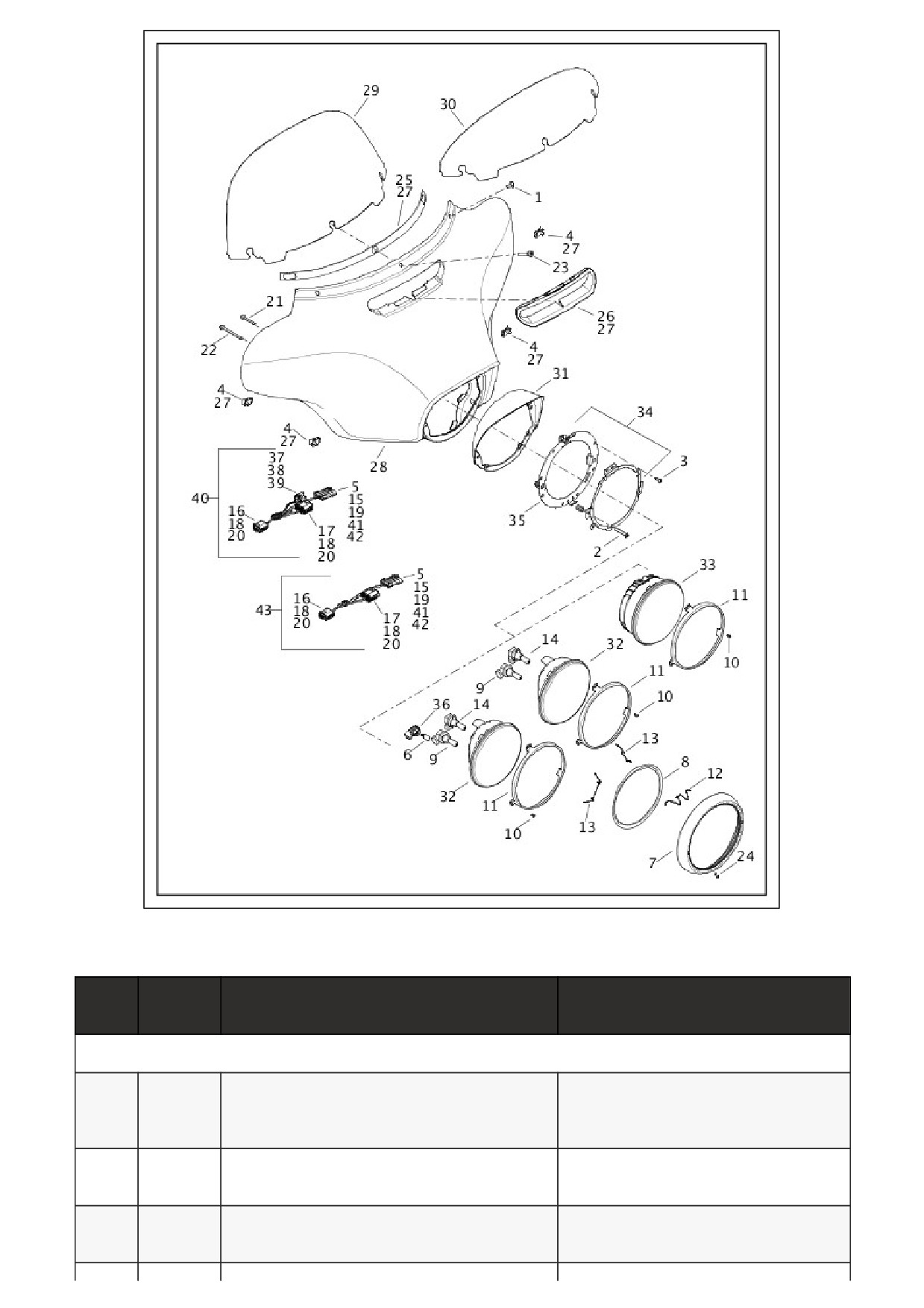

WINDSHIELD, FAIRING & HEADLAMP - FLHTCU/L, FLHTK/L, FLHX &
FLHXS (1 OF 2)
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
1
2445
SCREW (2)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
2
3088
SCREW (3)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
3
4790
SCREW (4)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
4
7900
CLIP NUT (4)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
5
10147
CLIP, connector
FLHX, FLHXS
6
53436-97
BULB, position lamp (HDI)
FLHX
7
67712-
TRIM RING, headlamp
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
83B
FLHTKL, FLHXS, FLHTCU TC
8
67716-
GASKET, headlamp door
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
60C
FLHTKL, FLHXS, FLHTCU TC
9
67717-01
BULB, high beam halogen
FLHX, FLHXS
10
67721-48
SCREW (3)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
11
67726-08
RETAINING RING, headlamp
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
12
67778-
SPRING, trim ring, headlamp, top
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
60A
FLHTKL, FLHXS, FLHTCU TC
13
67780-
SPRING, trim ring, headlamp, bottom
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
60A
FLHTKL, FLHXS, FLHTCU TC
14
68881-01
BULB, low beam halogen
FLHX, FLHXS
15
72214-94
SEAL, cable (3)
FLHX, FLHXS
16
72449-01
HOUSING, 2-way socket (black)
FLHX, FLHXS
17
72450-01
HOUSING, 2-way socket (gray)
FLHX, FLHXS
18
72527-01
TERMINAL, socket, 18-20 AWG (4)
FLHX, FLHXS
19
72608-08
TERMINAL PIN, 16-20 awg (3)
FLHX, FLHXS
20
72633-02
WIRE SEAL, 14-16 AWG (white) (4)
FLHX, FLHXS
21
10200059
SCREW (2)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
22
10200060
SCREW (2)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
23
10200112
SCREW
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
24
10200156
SCREW
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
25
11100055
TAPE, windshield mounting
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
26
29200007
BEZEL, air duct, outer fairing
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
27
57000377
KIT, HARDWARE, fairing, w/ 7900,
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
11100055 & 29200007
FLHTKL, FLHXS, FLHTCU TC
28
57000383
FAIRING, outer, w/ 57000377
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
(unfinished)
FLHTKL, FLHXS, FLHTCU TC
29
57400001
WINDSHIELD, (clear) (Domestic)
FLHTCU, FLHTK
57400001
WINDSHIELD, (clear) (Brazil, Australia)
FLHTK, FLHTCU TC
57400002
WINDSHIELD, (clear) (HDI, England,
FLHTK, FLHTCU TC
Japan)
57400250
WINDSHIELD, (clear) (Domestic, HDI,
FLHTCUL, FLHTCUL TC, FLHTKL
Australia, England, Japan)
30
57400003
WIND DEFLECTOR, (smoked)
FLHX, FLHXS
(Domestic)
57400003
WIND DEFLECTOR, (smoked) (Brazil,
FLHXS
Australia)
57400004
WIND DEFLECTOR, (smoked) (HDI,
FLHXS
England, Japan)
57400058
WIND DEFLECTOR, (clear) (Asia-
FLHXS, FLHTK, FLHTCU TC, FLHTCUL TC,
Pacific)
FLHTKL

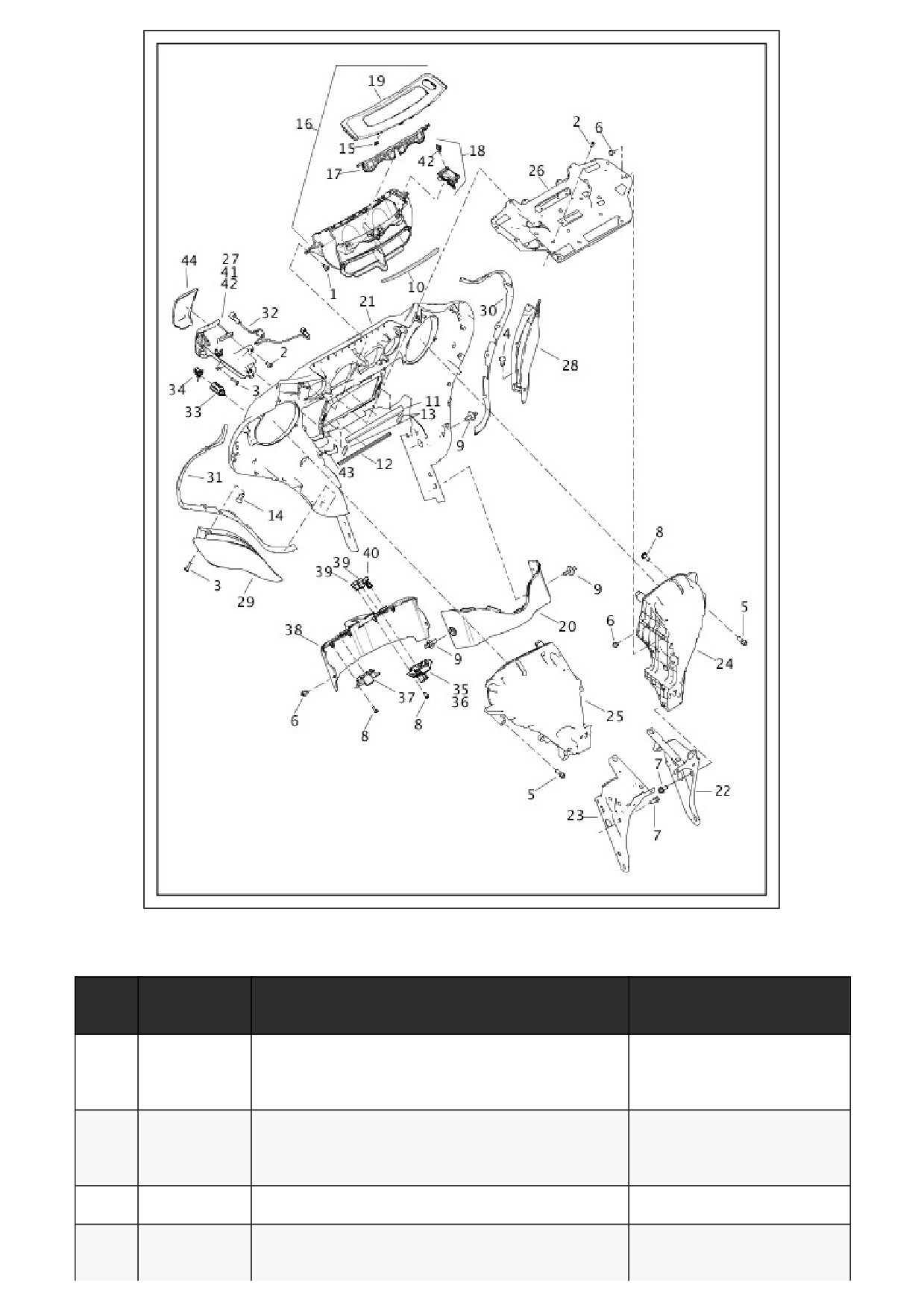

WINDSHIELD, FAIRING & HEADLAMP - FLHTCU/L, FLHTK/L, FLHX &
FLHXS (2 OF 2)
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
31
61400135
TRIM, headlamp
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS, FLHTCU
TC
32
67700062
HEADLAMP, dual halogen, w/ 67717-01 & 68881-
FLHX, FLHXS
01 (Domestic)
67700065
HEADLAMP, dual halogen, w/ 53436-97, 67717-
FLHX
01, 68881-01 & 68000038 (HDI)
33
67700066
HEADLAMP, LED
FLHTCU, FLHTK, FLHTCU TC, FLHTCUL,
FLHTCUL TC, FLHTKL
34
67700204
MOUNTING RING ASSEMBLY, headlamp, w/
FLHTCU, FLHX, FLHTCUL, FLHTK,
3088 & 67700205
FLHTCUL TC, FLHTKL, FLHXS, FLHTCU
TC
35
67700205
MOUNTING RING, headlamp
FLHTCU, FLHX, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL, FLHXS, FLHTCU
TC
36
68000038
CONNECTOR, position lamp, 90 degree (HDI)
FLHXS
37
69200220
HOUSING, 2-way socket (HDI)
FLHXS
38
69200221
TERMINAL, socket, 16-18 AWG (HDI) (2)
FLHXS
39
69200222
WIRE SEAL, 16 AWG (white) (HDI) (2)
FLHXS
40
69200223
WIRE HARNESS, dual halogen headlamp, w/ 5,
FLHXS
15, 16, 17, 18, 19, 20, 37, 38, 39, 41 & 42 (HDI)
41
69200255
PIN HOUSING, 4-way
FLHXS
42
69200256
LOCK, secondary, 4-way
FLHXS
43
69200298
WIRE HARNESS, dual halogen headlamp, w/ 5,
FLHXS
15, 16, 17, 18, 19, 20, 41 & 42 (Domestic)

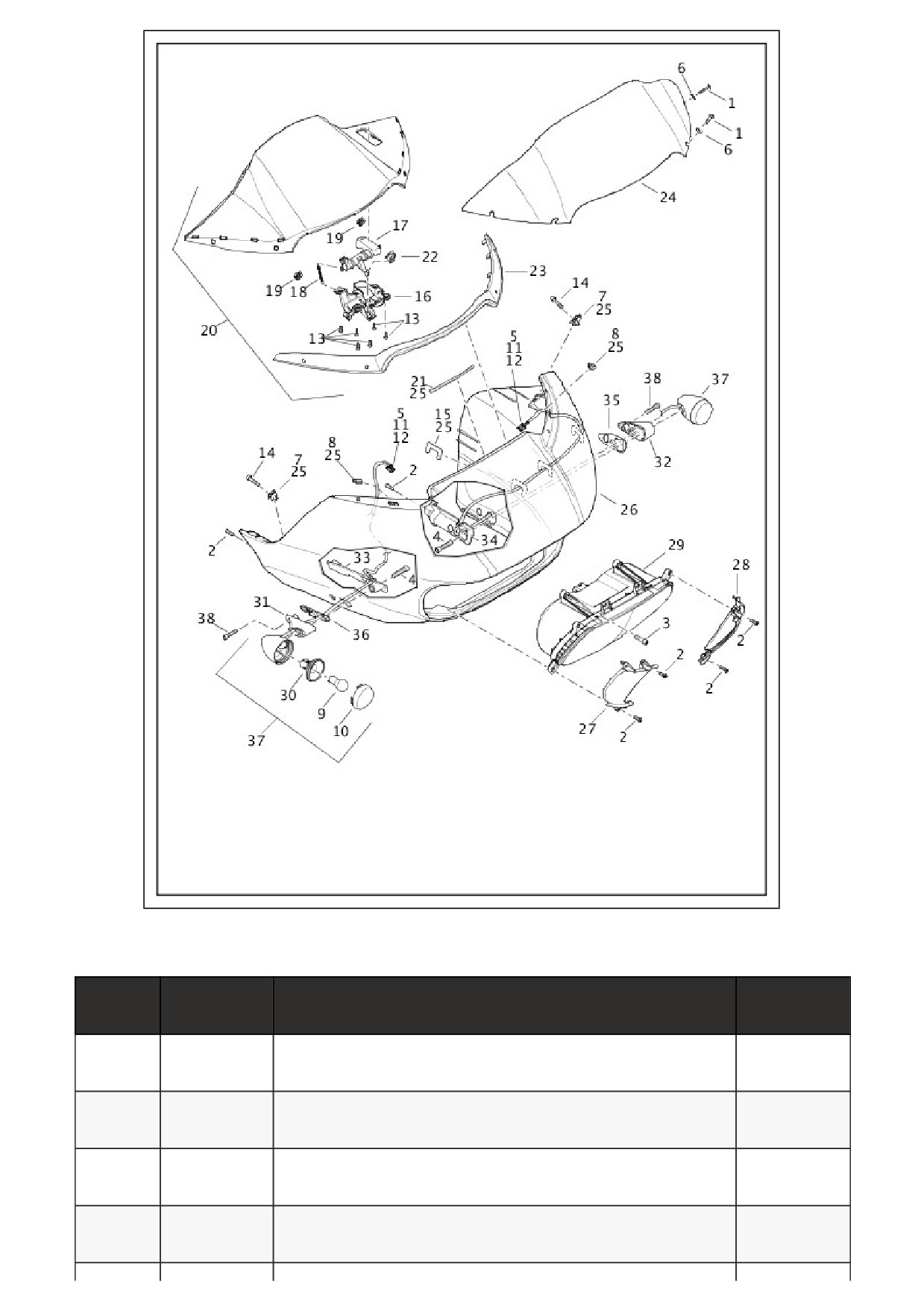

WINDSHIELD, FAIRING & HEADLAMP - FLTRX & FLTRXS
Index
Part No.
Description
Model(s)
No.
1
933
SCREW (4)
FLTRX,
FLTRXS
2
2563
SCREW (6)
FLTRX,
FLTRXS
3
4741A
SCREW (4)
FLTRX,
FLTRXS
4
4816A
SCREW (2)
FLTRX,
FLTRXS
5
5118
SEAL PIN (2)
FLTRX,
FLTRXS
6
6054
WASHER (4)
FLTRX,
FLTRXS
7
7900
CLIP NUT (2)
FLTRX,
FLTRXS
8
10065
CABLE STRAP (2)
FLTRX,
FLTRXS
9
68168-89A
BULB, (Domestic) (2)
FLTRX,
FLTRXS
68163-84
BULB, (HDI) (2)
FLTRXS
10
68973-00
LENS, turnsignal (amber) (2)
FLTRX,
FLTRXS
11
72908-11
HOUSING, 4-way socket (2)
FLTRX,
FLTRXS
12
72910-11
TERMINAL, socket, 20-22 AWG (6)
FLTRX,
FLTRXS
13
10200257
SCREW (6)
FLTRX,
FLTRXS
14
10200365
SCREW (6)
FLTRX,
FLTRXS
15
11100066
PAD (6)
FLTRX,
FLTRXS
16
29200073
MECHANISM HOUSING
FLTRX,
FLTRXS
17
29200075
BUTTON
FLTRX,
FLTRXS
18
29200078
SPRING
FLTRX,
FLTRXS
19
29200080
CLIP
FLTRX,
FLTRXS
20
29200041BYM
TOP DUCT ASSEMBLY, w/ 13, 16, 17, 18, 19, 22 & 23 (black denim)
FLTRX,
FLTRXS
29200041DH
TOP DUCT ASSEMBLY, w/ 13, 16, 17, 18, 19, 22 & 23 (vivid black)
FLTRXS
21
29200081
FOAM PAD, top duct
FLTRX,
FLTRXS
22
57100167
DOOR LATCH
FLTRX,
FLTRXS
23
57400187
GASKET
FLTRX,
FLTRXS
24
57400190
WINDSHIELD KIT, w/ 933 & 6054 (smoked) (Domestic, Australia)
FLTRX,
FLTRXS
57400191
WINDSHIELD KIT, w/ 933 & 6054 (smoked) (HDI, England, Japan,
FLTRXS
Asia-Pacific)
25
57000501
HARDWARE KIT, fairing, w/ 7900, 10065, 11100066 & 29200081
FLTRX,
FLTRXS
26
57000504
FAIRING KIT, front, w/ 57000501 (unpainted)
FLTRX,
FLTRXS
27
61400173
BEZEL, right (prime)
FLTRX,
FLTRXS
28
61400198
BEZEL, left (prime)
FLTRX,
FLTRXS
29
67700199
HEADLAMP
FLTRX,
FLTRXS
30
67800147
SOCKET ASSEMBLY, turn signal (Domestic) (2)
FLTRX,
FLTRXS
67800148
SOCKET ASSEMBLY, turn signal (HDI) (2)
FLTRXS
31
67800299
STANDOFF, right
FLTRX,
FLTRXS
32
67800300
STANDOFF, left
FLTRX,
FLTRXS
33
67800301
MOUNT, turn signal, right
FLTRX,
FLTRXS
34
67800302
MOUNT, turn signal, left
FLTRX,
FLTRXS
35
67800303
GASKET, left
FLTRX,
FLTRXS
36
67800471
GASKET, right
FLTRX,
FLTRXS
37
67800512
TURN SIGNAL, front, w/ 68168-89A, 68973-00 & 67800147 (Domestic)
FLTRX,
(2)
FLTRXS
67800513
TURN SIGNAL, front, w/ 68163-84, 68973-00 & 67800148 (HDI) (2)
FLTRXS
38
10200350
SCREW (2)
FLTRX,
FLTRXS
FAIRING, INNER - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX &
FLHXS (1 OF 2)
Index
Part No.
Description
Model(s)
No.
1
2445
SCREW (2)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
2
2478
SCREW (5)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
3
2563
SCREW
FLHX, FLHXS
3
2563
SCREW (7)
FLHTCU, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL,
FLHTCU TC
4
57638-08
SNAP HINGE, air deflector (2)
FLHTCU, FLHTCUL, FLHTK,
FLHTCUL TC, FLHTKL,
FLHTCU TC
5
10200134
SCREW (6)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
6
10200141
SCREW (6)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
7
10200142
SCREW (6)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
8
10200205
SCREW (12)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
9
10900005
STUD, double sided (4)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
10
11100038
FOAM TAPE
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
11
11100050
FOAM TAPE
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
12
11100051
FOAM TAPE
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
13
11100057
FOAM TAPE (2)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
14
12100034
PLUG, air deflector hole (6)
FLHX, FLHXS
15
12200064
CLIP, panel (10)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
16
29200003
AIR DUCT, inner fairing, w/ 10, 15, 17, 18, 19 & 42
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
17
29200034
DOOR, inner duct
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
18
29200035
BUTTON ASSEMBLY, inner duct, w/ 76000127
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
19
29200039
BEZEL, air duct,inner fairing, w/ 12200064
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
20
57000017
SKIRT, outer fairing (chrome)
FLHTCU, FLHX, FLHTCUL,
FLHTK, FLHTCUL TC,
