Harley Davidson 2008 Touring Models. Service Manual - page 2





2.37 INNER FAIRING: FLHX, FLHT/C/U

Removal.........................................................................2-109
Installation......................................................................2-111

2.38 AIR DEFLECTORS: FLHTCU

Air Deflectors (FLHTCU)................................................2-113

Removal..................................................................2-113
Installation...............................................................2-113

2.39 UPPER FAIRING AND WINDSHIELD:
FLTR

Windshield......................................................................2-114

Removal..................................................................2-114
Installation...............................................................2-114

Outer Fairing...................................................................2-114

Removal..................................................................2-114
Installation...............................................................2-115

2.40 INSTRUMENT BEZEL: FLTR

Bezel...............................................................................2-117

Removal..................................................................2-117
Installation...............................................................2-118

2.41 INSTRUMENT NACELLE: FLTR

Instrument Nacelle.........................................................2-119

Removal..................................................................2-119
Installation...............................................................2-120

2.42 INNER FAIRING: FLTR

Removal.........................................................................2-122
Installation......................................................................2-124

Outer Fairing...........................................................2-124
Inner Fairing............................................................2-124

2.43 GLOVE BOX DOOR AND HINGE: FLTR

Glove Box Door and Hinge.............................................2-126

Removal..................................................................2-126
Installation...............................................................2-126

2.44 WINDSHIELD: FLHR/C

Windshield......................................................................2-127

Removal..................................................................2-127
Installation...............................................................2-127

Windshield Window........................................................2-127

Removal..................................................................2-127
Installation...............................................................2-128

2.45 HEADLAMP NACELLE: FLHR/C

Removal.........................................................................2-130
Installation......................................................................2-131

2.46 FRONT FENDER

Removal.........................................................................2-132
Installation......................................................................2-132

2.47 REAR FENDER

Removal.........................................................................2-133
Installation......................................................................2-134
Rear Fender Lights Conduit...........................................2-134

Removal..................................................................2-134

Installation...............................................................2-135

Rear Fender Cloisonne..................................................2-135

Removal..................................................................2-135
Installation...............................................................2-135

2.48 REAR FACIA: FLHX

Removal.........................................................................2-136
Installation......................................................................2-136
Stud Plate.......................................................................2-136

Removal..................................................................2-136
Installation...............................................................2-136

Rear Facia Lamp............................................................2-136

Removal..................................................................2-136
Installation...............................................................2-137

2.49 FOOTBOARDS AND FOOTRESTS

Rider Footboards............................................................2-138

Removal..................................................................2-138
Installation...............................................................2-138
Disassembly............................................................2-139
Assembly.................................................................2-139

Passenger Footboard.....................................................2-140

Removal..................................................................2-140
Installation...............................................................2-140
Disassembly............................................................2-140
Assembly.................................................................2-140

Passenger Footrest (FLHX)............................................2-141

Removal..................................................................2-141
Installation...............................................................2-141
Disassembly............................................................2-141
Assembly.................................................................2-141

2.50 JIFFY STAND

General...........................................................................2-143
Removal.........................................................................2-143
Installation......................................................................2-143
Jiffy Stand Bracket..........................................................2-144

Removal..................................................................2-144
Installation...............................................................2-144

Jiffy Stand Interlock Sensor............................................2-144

Removal..................................................................2-144
Installation...............................................................2-144

ENGINE

3.1 SPECIFICATIONS

Specifications.....................................................................3-1

3.2 SERVICE WEAR LIMITS

General...............................................................................3-3

3.3 ENGINE OIL FLOW

Oil Feed..............................................................................3-5
Top End..............................................................................3-5
Bottom End.........................................................................3-7
Oil Return...........................................................................3-9

3.4 OIL PUMP OPERATION

General.............................................................................3-11
Operation..........................................................................3-11

TABLE OF CONTENTS  VII

TABLE OF CONTENTS

3.5 BREATHER OPERATION

General.............................................................................3-13

3.6 OIL PRESSURE

Oil Pressure Indicator Lamp.............................................3-14
Checking Oil Pressure......................................................3-14

3.7 TROUBLESHOOTING

Diagnosing Valve Train Noise...........................................3-15
Compression Test.............................................................3-15
Cylinder Leakdown Test....................................................3-15
Diagnosing Smoking Engine or High Oil Consumption.....3-16

Check Prior To Cylinder Head Removal....................3-16
Check After Cylinder Head Removal.........................3-16

3.8 HOW TO USE THIS SECTION

General.............................................................................3-17
Top End Overhaul.............................................................3-17
Bottom End Overhaul.......................................................3-17
Subassembly Service and Repair....................................3-18

3.9 TOP END SERVICE

Engine in Chassis.............................................................3-19
Engine Removed from Chassis........................................3-20

3.10 BOTTOM END SERVICE

Engine in Chassis.............................................................3-21
Engine Removed From Chassis.......................................3-22

3.11 STRIPPING MOTORCYCLE FOR
SERVICE

Procedure.........................................................................3-23

Cam Compartment Service Only..............................3-23
Top End Service........................................................3-23

3.12 ASSEMBLING MOTORCYCLE AFTER
SERVICE

Procedure.........................................................................3-24

After Top End Service................................................3-24
After Cam Compartment Service..............................3-24

3.13 REMOVING ENGINE FROM CHASSIS

Procedure.........................................................................3-25

3.14 INSTALLING ENGINE IN CHASSIS

Procedure.........................................................................3-26

3.15 TOP END OVERHAUL: DISASSEMBLY

General.............................................................................3-27
Rocker Covers..................................................................3-27
Rocker Arm Support Plate................................................3-27
Push Rods, Lifters and Covers.........................................3-29
Cylinder Head...................................................................3-30
Cylinder............................................................................3-31
Piston...............................................................................3-31

3.16 TOP END OVERHAUL: ASSEMBLY

General.............................................................................3-33
Piston...............................................................................3-33

Cylinder............................................................................3-34
Cylinder Head...................................................................3-36
Push Rods, Lifters and Covers.........................................3-39
Rocker Arm Support Plate................................................3-40
Breather Assembly...........................................................3-41

3.17 BOTTOM END OVERHAUL:
DISASSEMBLY

General.............................................................................3-43
Cover and Cam Support Plate..........................................3-43

Prepare Engine.........................................................3-43
Cam Chain and Sprockets........................................3-43
Cam Support Plate....................................................3-44

Crankcase........................................................................3-45

3.18 BOTTOM END OVERHAUL: ASSEMBLY

General.............................................................................3-47
Crankcase........................................................................3-47
Cover and Cam Support Plate..........................................3-49

3.19 BREATHER ASSEMBLY

Removal Overview............................................................3-54
Disassembly.....................................................................3-54
Cleaning and Inspection...................................................3-54
Assembly..........................................................................3-54
Installation Overview........................................................3-54

3.20 ROCKER ARM SUPPORT PLATE

Removal Overview............................................................3-55
Disassembly.....................................................................3-55
Cleaning and Inspection...................................................3-55

Inspection..................................................................3-55
Rocker Shaft Fit.........................................................3-55
Rocker Arm Shaft to Bushing....................................3-56
Replace Rocker Arm Bushings.................................3-56

Assembly..........................................................................3-57
Installation Overview........................................................3-57

3.21 PUSH RODS, LIFTERS AND COVERS

Removal Overview............................................................3-59
Disassembly.....................................................................3-59
Cleaning and Inspection...................................................3-59
Lifter Inspection................................................................3-60
Assembly..........................................................................3-60
Installation Overview........................................................3-61

3.22 CYLINDER HEAD

Removal Overview............................................................3-62
Disassembly.....................................................................3-62
Cleaning...........................................................................3-63
Inspection.........................................................................3-64

Cylinder Head............................................................3-64
Valve Guides.............................................................3-64
Valves........................................................................3-64
Valve Springs............................................................3-64
Tapered Keepers.......................................................3-65
Valve Seats...............................................................3-65

Valve Guide Replacement................................................3-65

Removal....................................................................3-65
Installation.................................................................3-66

Valve and Seat Refacing..................................................3-69

VIII TABLE OF CONTENTS

TABLE OF CONTENTS

Assembly..........................................................................3-71
Installation Overview........................................................3-72

3.23 CYLINDER

Removal Overview............................................................3-73
Cleaning...........................................................................3-73
Inspection.........................................................................3-74
Deglazing Cylinder...........................................................3-75
Boring and Honing Cylinder.............................................3-76
Installation Overview........................................................3-76

3.24 PISTON

Removal Overview............................................................3-77
Disassembly.....................................................................3-77

Piston Rings..............................................................3-77

Cleaning...........................................................................3-77
Inspection.........................................................................3-78
Assembly..........................................................................3-79

Checking Piston Ring Gap........................................3-79
Installing Piston Rings...............................................3-80

Installation Overview........................................................3-81

3.25 COVER AND CAM SUPPORT PLATE

Removal Overview............................................................3-82
Camshafts........................................................................3-82

Removal....................................................................3-82
Assembly...................................................................3-82

Oil Pressure Relief Valve..................................................3-84

Removal....................................................................3-84
Installation.................................................................3-84
Inspection..................................................................3-84

Cam Needle Bearings......................................................3-84

Removal....................................................................3-84
Installation.................................................................3-86

Cleaning and Inspection...................................................3-87

Oil Pressure Valve.....................................................3-87
Cam Support Plate....................................................3-88

Installation Overview........................................................3-88

3.26 OIL PUMP

Removal Overview............................................................3-89
Cleaning and Inspection...................................................3-89
Installation Overview........................................................3-89

3.27 CRANKCASE

Removal Overview............................................................3-90
Right Crankcase Half........................................................3-90

Main Bearing Removal..............................................3-90
Main Bearing Installation...........................................3-90
Piston Jets Removal..................................................3-91
Piston Jets Installation...............................................3-91

Left Crankcase Half..........................................................3-91

Main Bearing Removal..............................................3-91
Main Bearing Installation...........................................3-93

Sprocket Shaft Bearing Inner Race..................................3-94

Removal....................................................................3-94
Installation.................................................................3-95

Cylinder Studs..................................................................3-96

Removal....................................................................3-96
Installation.................................................................3-96

Pipe Plug and Oil Fittings.................................................3-97

Removal....................................................................3-97

Installation.................................................................3-97

Cleaning and Inspection...................................................3-97
Installation Overview........................................................3-97

3.28 FLYWHEEL AND CONNECTING RODS

Removal Overview............................................................3-98
Inspection.........................................................................3-98
Installation Overview........................................................3-98

3.29 OIL PAN

Removal...........................................................................3-99
Installation........................................................................3-99

FUEL SYSTEM

4.1 SPECIFICATIONS: FUEL SYSTEM

Specifications.....................................................................4-1

4.2 ELECTRONIC FUEL INJECTION (EFI)

Troubleshooting..................................................................4-2

4.3 AIR CLEANER ASSEMBLY

Removal.............................................................................4-3
Installation..........................................................................4-3

4.4 FUEL TANK

General...............................................................................4-5
Removal.............................................................................4-5
Installation..........................................................................4-6
Fuel Supply Check Valve/Tube...........................................4-6

Removal......................................................................4-6
Installation...................................................................4-7

4.5 FUEL TANK TOP PLATE

Removal.............................................................................4-9
Installation........................................................................4-10

4.6 FUEL FILTER

Removal...........................................................................4-12
Installation........................................................................4-12

4.7 FUEL PRESSURE REGULATOR

Removal...........................................................................4-13
Installation........................................................................4-13

4.8 FUEL LEVEL SENDER

Removal...........................................................................4-14
Installation........................................................................4-14

4.9 TWIST GRIP SENSOR

Removal...........................................................................4-15
Installation........................................................................4-16
Twist Grip Sensor Jumper Harness..................................4-17

Removal....................................................................4-17
Installation.................................................................4-17

4.10 THROTTLE CONTROL ACTUATOR
(TCA)

General.............................................................................4-19

TABLE OF CONTENTS  IX

TABLE OF CONTENTS

4.11 ENGINE TEMPERATURE SENSOR (ET)

General.............................................................................4-20
Removal...........................................................................4-20
Installation........................................................................4-20

4.12 INDUCTION MODULE

Removal...........................................................................4-21
Installation........................................................................4-22

4.13 MANIFOLD ABSOLUTE PRESSURE
SENSOR (MAP)

General.............................................................................4-24
Removal...........................................................................4-24
Installation........................................................................4-24

4.14 OXYGEN SENSORS (O2)

General.............................................................................4-25
Removal...........................................................................4-25
Installation........................................................................4-25

4.15 FUEL INJECTORS

General.............................................................................4-27
Removal...........................................................................4-27
Installation........................................................................4-27

4.16 FUEL PUMP

General.............................................................................4-29
Removal...........................................................................4-29
Installation........................................................................4-29
Fuel Pump and Fuel Level Sender Wire Harness............4-30

Removal....................................................................4-30
Installation.................................................................4-30

4.17 FUEL PRESSURE TEST

General.............................................................................4-31
Testing..............................................................................4-31

4.18 EXHAUST SYSTEM

Removal...........................................................................4-33
Installation........................................................................4-34
Disassembly.....................................................................4-35
Assembly..........................................................................4-37

4.19 ACTIVE EXHAUST (HDI)

Exhaust Valve Actuator.....................................................4-39

Removal....................................................................4-39
Installation.................................................................4-39

Exhaust Valve Actuator Cable..........................................4-39

Removal....................................................................4-39
Installation.................................................................4-39

Active Exhaust Valve........................................................4-39

General......................................................................4-39

4.20 INTAKE LEAK TEST

General.............................................................................4-40
Leak Tester.......................................................................4-40

Parts List...................................................................4-40
Tester Assembly........................................................4-40
Tester Adjustment......................................................4-40

Procedure.........................................................................4-40

4.21 EVAPORATIVE EMISSIONS CONTROL
(CA MODELS)

General.............................................................................4-42
Vapor Valve.......................................................................4-43
Fuel Vapor Vent Tube........................................................4-43

Removal....................................................................4-46
Installation.................................................................4-43

Charcoal Canister.............................................................4-43

Removal....................................................................4-43
Installation.................................................................4-44

Purge Tube (Long)............................................................4-45

Removal....................................................................4-46
Installation.................................................................4-45

Purge Solenoid.................................................................4-45

Removal....................................................................4-46
Installation.................................................................4-46

Purge Tube (Short)...........................................................4-46

Removal....................................................................4-46
Installation.................................................................4-46

STARTER

5.1 SPECIFICATIONS: STARTER

Specifications.....................................................................5-1

5.2 STARTER

General...............................................................................5-3

Wiring Diagrams..........................................................5-3

Removal.............................................................................5-3
Installation..........................................................................5-3
Testing................................................................................5-3

Armature.....................................................................5-3
Brushes and Brush Holder..........................................5-5

Field Coil Assembly............................................................5-6

Disassembly................................................................5-6
Inspection....................................................................5-6
Assembly.....................................................................5-6

Drive Assembly...................................................................5-7

Disassembly................................................................5-7
Inspection....................................................................5-7
Assembly.....................................................................5-7

5.3 STARTER SOLENOID

Solenoid Assembly.............................................................5-8

Disassembly................................................................5-8
Assembly.....................................................................5-8

Solenoid Plunger................................................................5-8

Disassembly................................................................5-8
Assembly.....................................................................5-8

Solenoid Contacts..............................................................5-8

Disassembly................................................................5-8
Assembly.....................................................................5-9

DRIVE

6.1 SPECIFICATIONS: DRIVE

Specifications.....................................................................6-1

6.2 PRIMARY CHAINCASE COVER

General...............................................................................6-2

X TABLE OF CONTENTS

TABLE OF CONTENTS

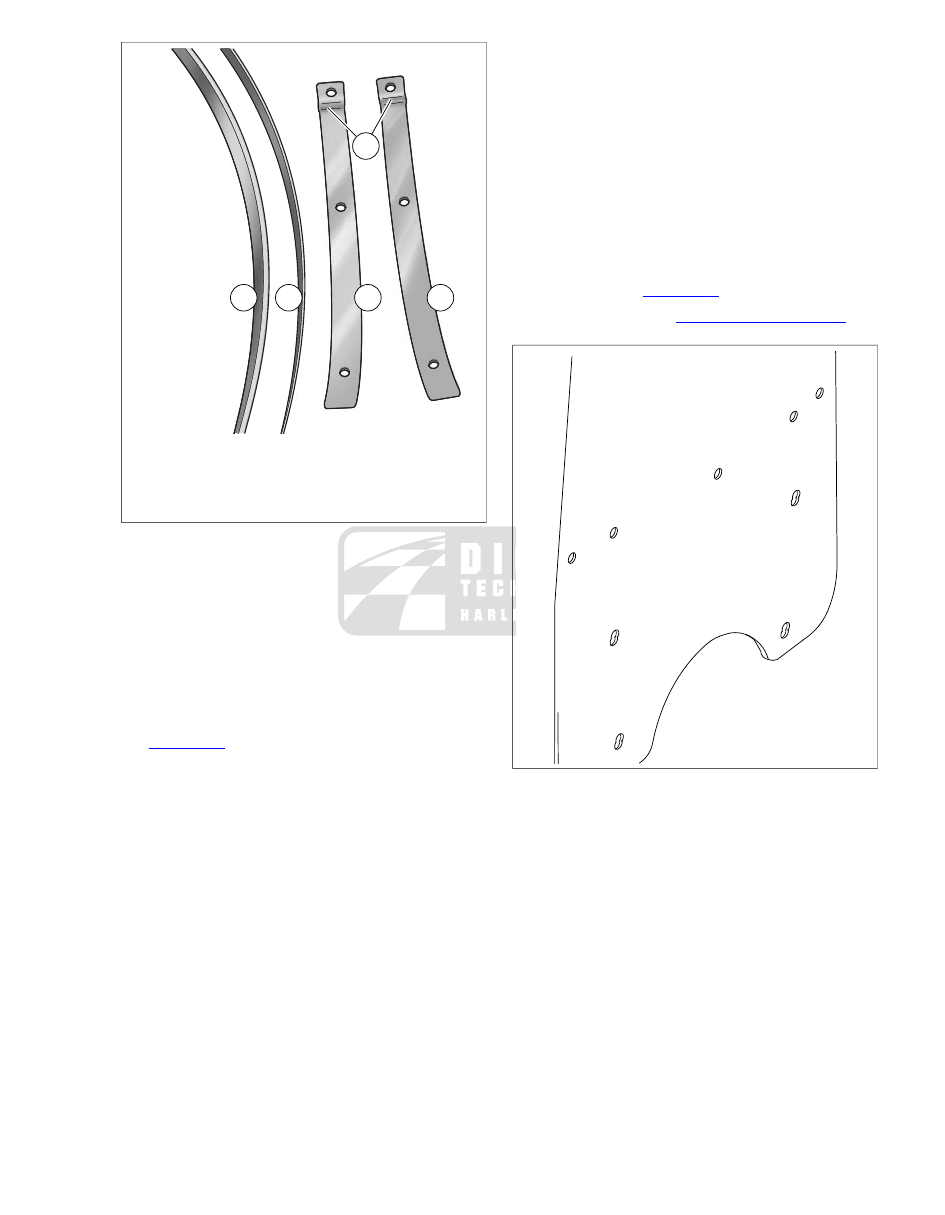

1

4

2

3

5

sm02881

1.

Horizontal brace - thick (rear)

2.

Horizontal brace - thin (front)

3.

Vertical brace (right side)

4.

Vertical brace (left side)

5.

Stepped ends

Figure 2-157. Windshield Braces

9.

Apply one drop of Loctite Medium Strength Threadlocker
243 (blue) to threads of three short screws. Slide screws
through the middle and outer holes of the horizontal
braces. Loosely install acorn nuts on rear side.

10. Remove paper backing from adhesive strip on vertical

brace. With the stepped end overlapping the installed
horizontal brace (and the slight bend on the opposite end
angled outward), align holes in brace with vertical set of
holes in windshield, and press into position. See

Figure 2-157

.

11. Position mounting bracket on rear side of windshield with

the wireform facing inboard. Align three holes in mounting
bracket with those in vertical brace.

12. Apply one drop of Loctite Medium Strength Threadlocker

243 (blue) to threads of two short screws and one long
screw. Slide screws through holes in vertical brace and
mounting bracket, the longer screw at the stepped end
where the vertical brace overlaps the horizontal brace.
Loosely install acorn nuts on rear side.

13. Repeat previous steps to install second vertical brace and

mounting bracket.

14. Holding acorn nuts on rear side, alternately tighten nine

T27 TORX screws to 20-25 in-lbs (2.3-2.8 Nm) in the
pattern shown in

Figure 2-158

.

15. Install windshield. See

2.44 WINDSHIELD: FLHR/C

.

9

8

2

1

3

6

4

5

7

sm02882

Figure 2-158. Windshield Torque Sequence

2008 Touring Service:  Chassis  2-129

2.45

HEADLAMP NACELLE: FLHR/C

REMOVAL

1.

Remove windshield. See

2.44 WINDSHIELD: FLHR/C

.

2.

Remove the Phillips screw at the bottom of the headlamp
door (chrome ring). Remove the headlamp door.

3.

Remove the seven Phillips screws to free the headlamp
housing from the headlamp nacelle.

4.

Remove headlamp connector [38] at back of headlamp
bulb. Remove the headlamp housing assembly from the
motorcycle.

5.

Reaching inside the headlamp nacelle, remove the flange
nut to release the chrome strip at the top of the nacelle.
See

Figure 2-159

.

6.

Carefully pry off the fork lock plate at the rear of the
handlebar clamp shroud. Remove two Phillips screws
beneath the lock plate.

7.

Loosen the Phillips screw from tab at the front of the
handlebar clamp shroud (but do not remove Keps nut and
flat washer).

8.

Remove the two acorn nuts from the left side fork bracket
studs. Remove acorn nuts from the right side fork bracket
studs.

9.

Cover the front fender with suitable material to protect the
fender paint. Remove the auxiliary lamp bracket from the
left and right side fork bracket studs and carefully set on
front fender.

10. Remove the grommets (and clutch cable clamp) from the

left and right side fork bracket studs.

11. Raise the handlebar clamp shroud, and after separating

the halves of the headlamp nacelle slightly, slide the
shroud forward running the shaft of the Phillips screw down
the gap. See

Figure 2-160

.

12. Reaching inside the headlamp nacelle, disconnect

accessory switch connector [67] and auxiliary lamp switch
connector [109].
 See

Figure 2-161

.

13. Carefully separate the halves of the headlamp nacelle and

remove from motorcycle.

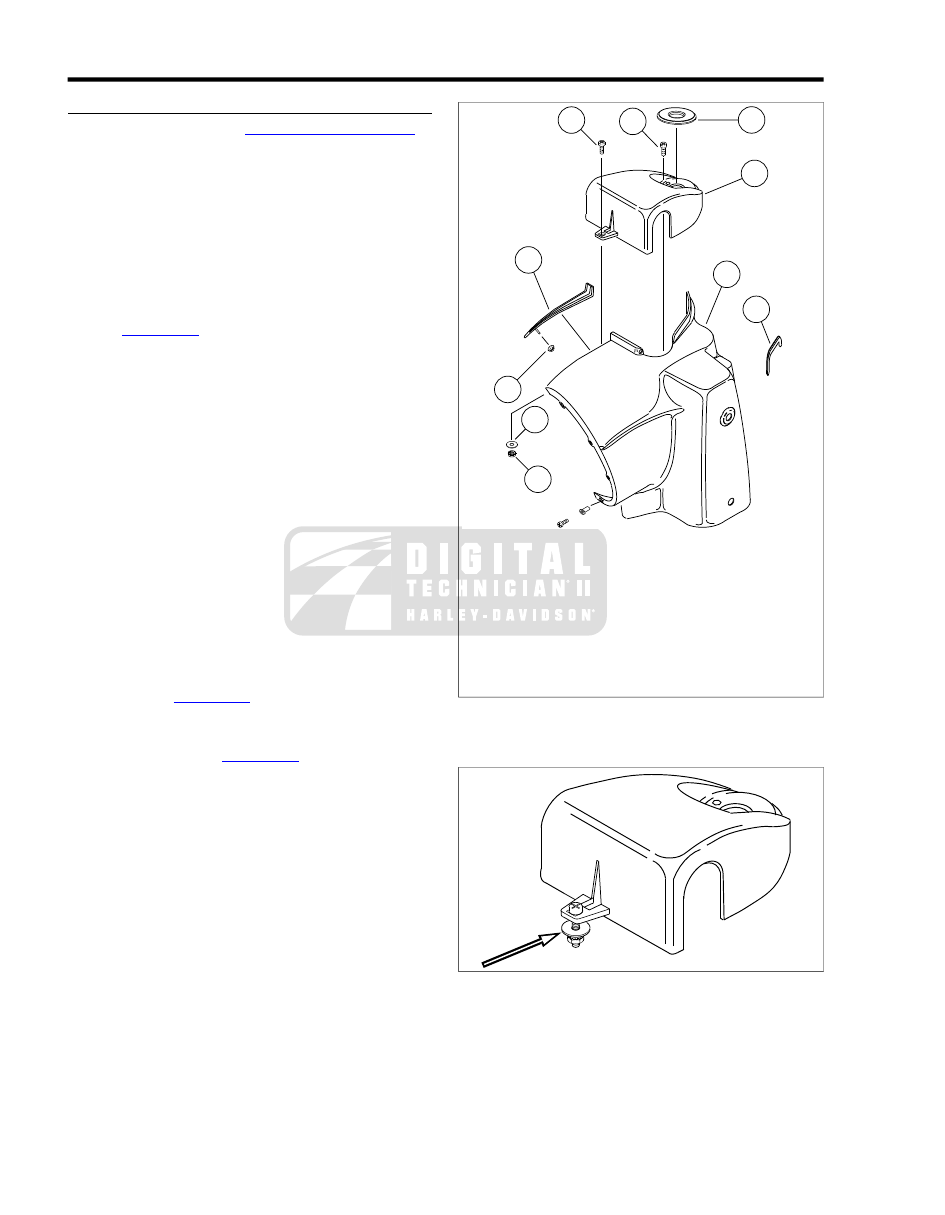

7

3

10

5

9

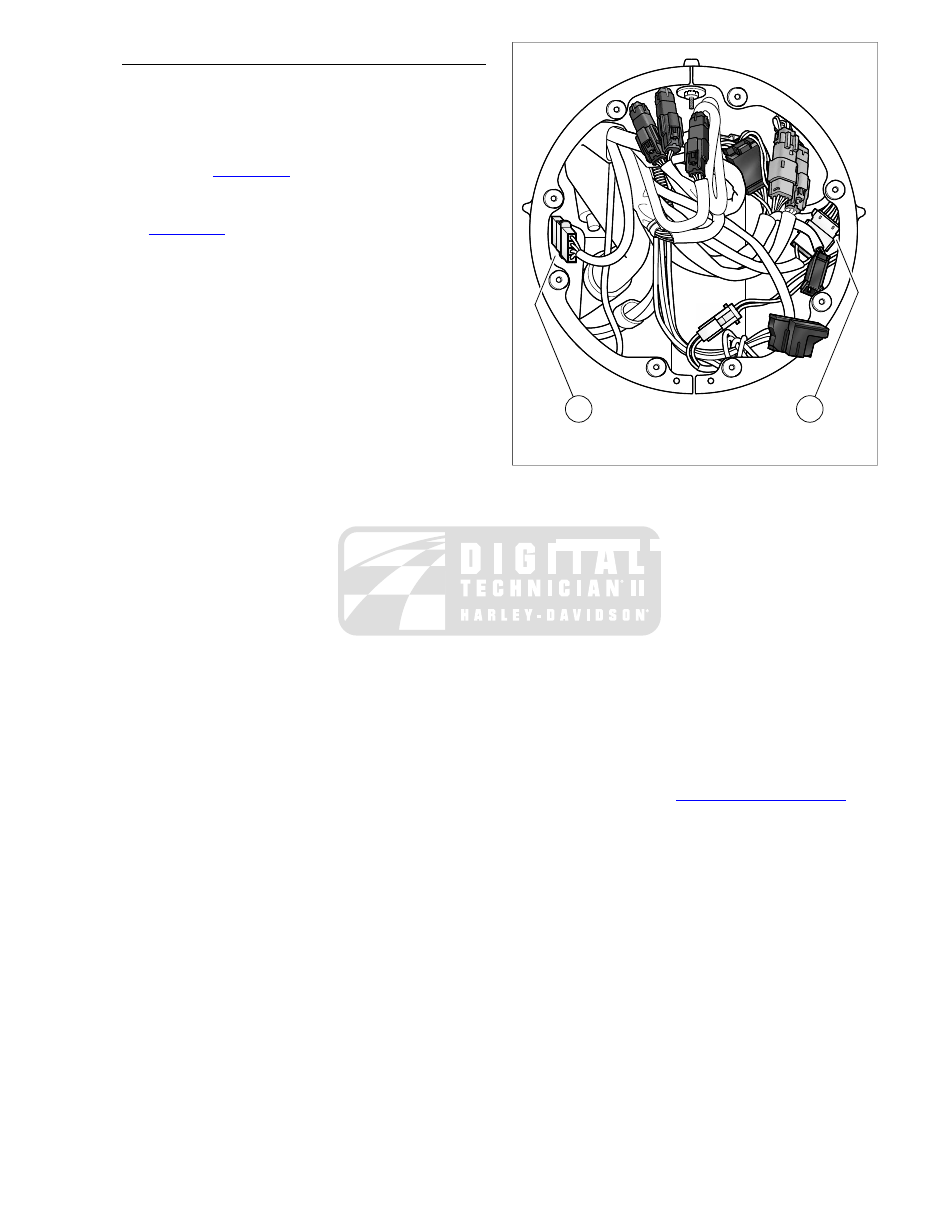

1

2

6

4

8

sm02883

1.

Headlamp nacelle (left side

2.

Trim strip

3.

Flange nut

4.

Chrome strip

5.

Fork lock plate

6.

Handlebar clamp shroud

7.

Phillips screw (2)

8.

Phillips screw

9.

Flat washer

10. Keps nut

Figure 2-159. Headlamp Nacelle Assembly

sm02884

Figure 2-160. Handlebar Clamp Shroud and Screw

Assembly

2-130  2008 Touring Service:  Chassis

INSTALLATION

1.

Fit halves of the headlamp nacelle together engaging the
holes in the nacelle with the left and right side fork bracket
studs.

2.

Reaching inside the headlamp nacelle, connect accessory
switch connector [67] and auxiliary lamp switch connector
[109]. See

Figure 2-161

.

3.

If disassembled, install Phillips screw, flat washer and
Keps nut on the handlebar clamp shroud as shown in

Figure 2-160

.

4.

Part the halves of the headlamp nacelle slightly. With the
flat washer on the inboard side of the nacelle, slide the
shroud rearward running the shaft of the Phillips screw
down the gap. Position the shroud over the flange at the
top of the nacelle.

5.

Mate the halves of the headlamp nacelle and tighten the
Phillips screw to 10-20 in-lbs (1.1-2.3 Nm).

6.

Install two Phillips screws to secure handlebar clamp
shroud to the fork lock mechanism. Alternately tighten
screws to 10-20 in-lbs (1.1-2.3 Nm). Install fork lock plate.

NOTE

To avoid possible damage to the brake hose and/or handlebar
switch wires, verify that trim strips are installed on inside edges
of the headlamp nacelle. Cutting or severe chafing of the brake
hose and/or handlebar switch wires could cause loss of function
while riding.

7.

Verify that trim strips are installed on inside edges of
headlamp nacelle. Install new trim strips if cracked, broken
or missing.

8.

Inserting the weld stud on the chrome strip into the hole
at the top of the headlamp nacelle, reach inside the nacelle
to install flange nut. Tighten flange nut to 15-20 in-lbs (1.7-
2.3 Nm).

9.

Install the grommets on the left and right side fork studs.

10. Slide the auxiliary lamp bracket onto the left and right side

fork bracket studs. Verify that the four grommets are in
place on the inboard side of the auxiliary lamp brackets.

1

2

sm02918

1.

Accessory switch [67]

2.

Auxiliary lamps switch [109]

Figure 2-161. Headlamp Nacelle (FLHRC)

11. Install the acorn nuts on the fork bracket studs and tighten

to 72-108 in-lbs (8.1-12.2 Nm). Be sure to capture the
clutch cable clamp on the upper left stud before installing
the acorn nut.

12. Install headlamp connector [38] at back of headlamp bulb.

13. Align holes in headlamp housing with wellnuts in headlamp

nacelle (headlamp door bracket at bottom). Install the
seven Phillips screws and alternately tighten to 9-18 in-
lbs
 (1.0-2.0 Nm).

14. Fit the square-shaped portion of the headlamp door spring

into the slot at the top of the headlamp housing and then
snap the headlamp door (chrome ring) into place. Install
Phillips screw at the bottom of the headlamp door and
tighten to 9-18 in-lbs (1.0-2.0 Nm).

15. Install windshield. See

2.44 WINDSHIELD: FLHR/C

.

2008 Touring Service:  Chassis  2-131
