1. Incorrect Password Test

2. BCM Replacement Test

1. Using DIGITAL TECHNICIAN II (Part No. HD-48650),

1. Turn IGN OFF.

attempt to calibrate the ECM using the module replace

2. Replace BCM.

feature found in vehicle set up.

3. Attempt to calibrate the BCM using the module replace

2. Clear DTCs.

feature found in vehicle set up.

3. Turn IGN OFF.

4. Clear DTCs.

4. Check DTCs.

5. Turn IGN OFF.

5. Did DTC reset?

6. Check DTCs.

a. Yes. Go to Test 2.

7. Did DTC reset?

b. No. System operating properly.

a. Yes. Install original BCM and replace ECM.

b. No. System operating properly.

6-68 2013 Softail Diagnostics: Engine Management

HOME

DTC P1353,

P1356

6.20

DESCRIPTION AND OPERATION

ed02980

See Figure 6-42. A feedback voltage signal in the secondary

ignition circuit (terminal B) detects the presence of combustion

each time a cylinder fires on ECM [78-1] terminal 9. For dia-

gnostic purposes, this signal is only analyzed at high speed

and load conditions where it may be easily measured. Failure

to detect combustion at high speed and load means one of

following conditions is true:

•

Cylinder is truly misfiring.

•

There is a lack of continuity in the ignition coil secondary

circuit.

NOTES

Check for non-OE spark plugs and cables before testing.

1. Terminal A: power

•

The incorrect resistance values of non-original equipment

2. Terminal B: ion sense

components will set these DTCs.

3. Terminal C: rear coil

•

Make sure vehicle is running properly before performing

4. Terminal D: front coil

the tests in this section. Perform fuel pressure tests if

Figure 6-42. Ignition Coil: Typical

required.

Table 6-58. Code Description

Connector Information

For additional information about the connectors in the following

DTC

DESCRIPTION

diagram(s) and diagnostic procedure(s), including the color of

P1353

No combustion detected (front)

the harness test kit terminal probes, see B.1 CONNECTORS.

P1356

No combustion detected (rear)

2013 Softail Diagnostics: Engine Management 6-69

HOME

em00997

[242A] [242B]

BCM

System Power

R/GN

Purge

System Power

R/GN

Solenoid

Purge Solenoid

LGN/BK

[95A] [95B]

System Power

R/GN

Active

Ground

Exhaust

Exhaust Actuator

LGN/O

Exhaust Feedback

LGN/BE

[78B-2] [78A-2]

ECM

[179A] [179B]

GY/BN

Rear HO2 Sensor

Active

Active Intake

LGN/V

R/GN

System Power

Intake

LGN/BE

Exhaust Feedback

System Power

R/GN

BK/GN

Ground

BK/W

5V Sensor Ground

[178A] [178B]

LGN/BK

Purge Solenoid

LGN/R

ACR Enable

System Power

R/GN

LGN/O

Exhaust Actuator

Rear HO2

Rear O2 Heater Ground

BK/PK

LGN/V

Active Intake

Sensor

Rear O2 Sensor

GY/BN

5V Sensor Ground

BK/W

LGN/BN

Front HO2 Sensor

[138B] [138A]

BK/PK

Rear HO2 Heater Sensor

BK/GN

Ground

LGN/BN

ION Sense

System Power

R/GN

GY/Y

Rear Fuel Injector

Front HO2

Front O2 Heater Ground

BK/O

GN/Y

Front Fuel Injector

Sensor

Front O2 Sensor

GN/BN

BK/O

Front HO2 Heater Ground

5V Sensor Ground

BK/W

GN/BE

Front Ignition Coil

GY/BE

Rear Ignition Coil

[138B] [138A]

[78B-1] [78A-1]

A B C D

[83B]

[84B]

A B

[203FB]

A B

[203RB]

A B

[85B]

A B

A B C D

[83A]

[84A]

A B

[203FA]

A B

[203RA]

A B

[85A]

A B

GND 2

GND 1

Front Fuel

Front ACR

Rear ACR

Rear Fuel

Injector

Ignition Coil

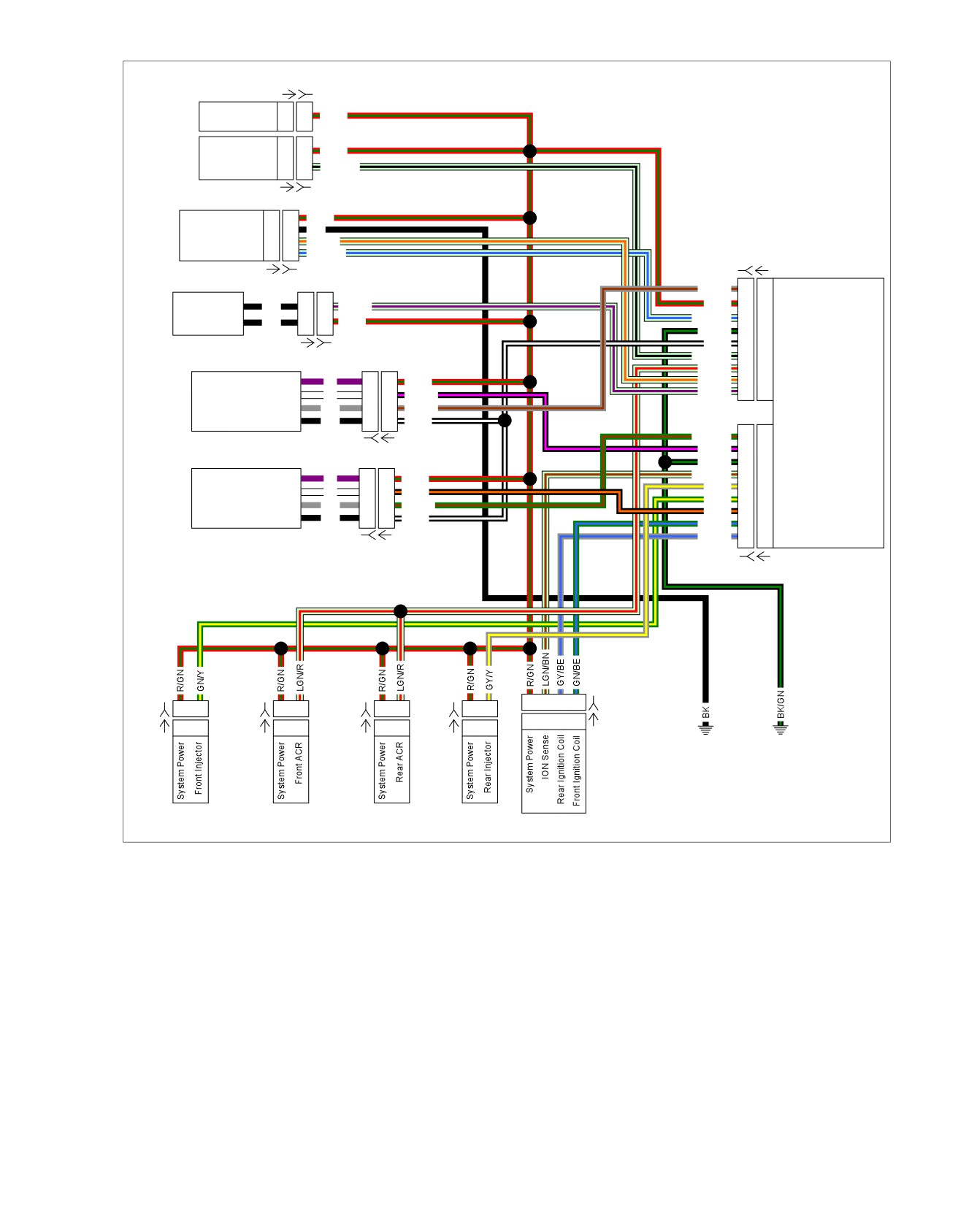

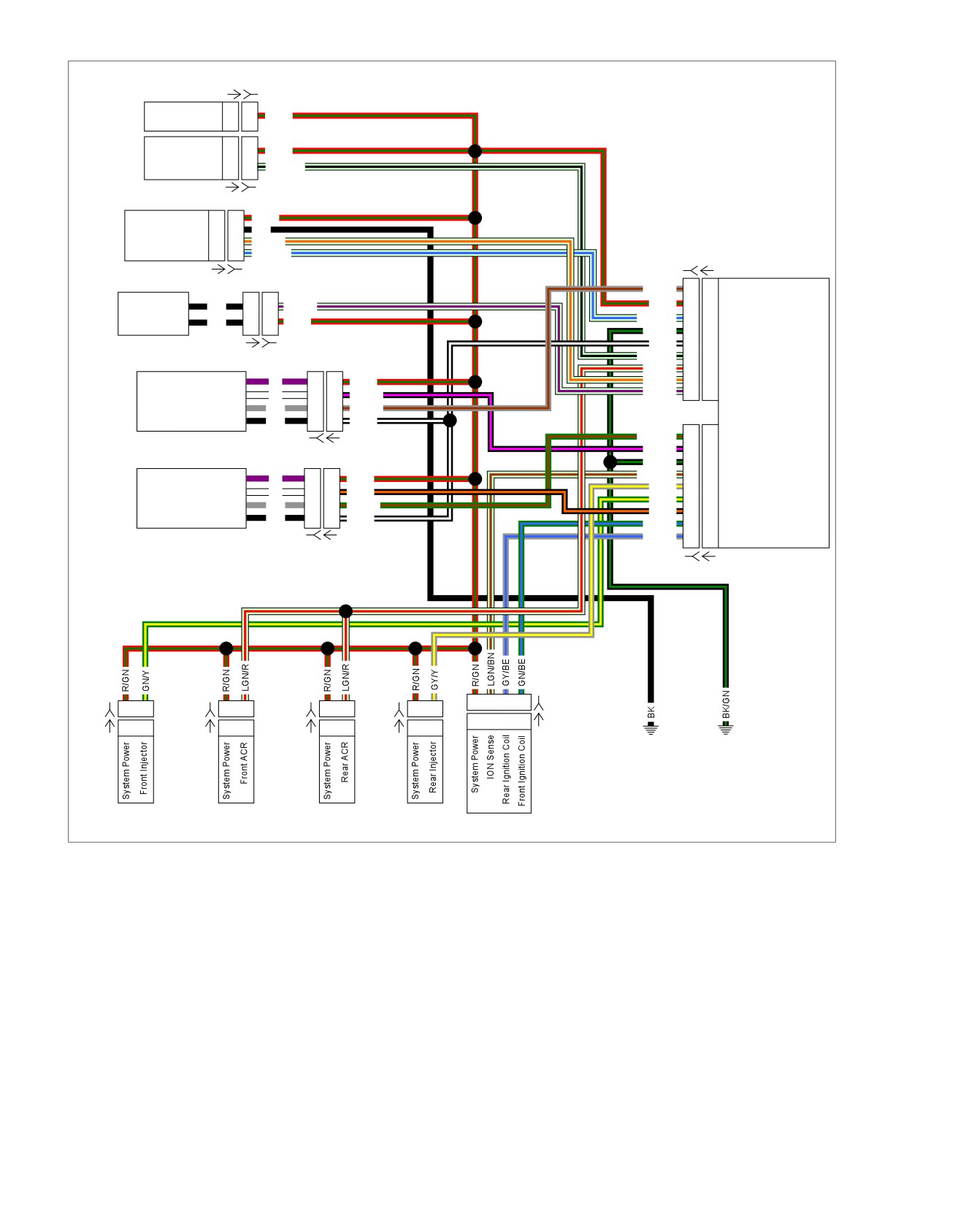

Figure 6-43. System Power Circuit

6-70 2013 Softail Diagnostics: Engine Management

HOME

DTC P1353, P1356

4. Spark Plug Cable Test

1. Disconnect spark plug cables.

PART NUMBER

TOOL NAME

2. Inspect spark plug cables for carbon tracking or loose

HD-41404

HARNESS CONNECTOR TEST KIT

connections.

HD-50390-1

BREAKOUT BOX

3. Test resistance of the spark plug cables.

HD-50390-4

ECM CABLE

4. Is resistance within specifications? Refer to Table 1-5.

HD-50390-4-P

ECM OVERLAY

a. Yes. Go to Test 5.

b. No. Replace out of range spark plug cable.

Table 6-59. DTC P1353, P1356 Diagnostic Faults

5. Ignition Rear Coil Primary Resistance

POSSIBLE CAUSES

Test

Ignition coil malfunction

1. Test resistance between [83A] terminals A and C.

Fuel system problems

2. Is resistance 0.3-1.5 Ohms?

Open or short to voltage in signal circuit

a. Yes. Go to Test 6.

Spark plug wire connections faulty

Spark plug cables

b. No. Replace ignition coil.

Spark plug

6. Ignition Front Coil Primary Resistance

1. Absence of Fuel Test

Test

1. Verify vehicle has fuel.

1. Test resistance between [83A] terminals A and D.

2. Has vehicle run out of fuel recently?

2. Is resistance 0.3-1.5 Ohms?

a. Yes. Clear DTCs. Fill with fresh fuel and restart. If

a. Yes. Go to Test 7.

code returns, then continue with tests. Go to Test 2.

b. No. Replace ignition coil.

b. No. Go to Test 2.

7. Ion Sense Coil Resistance Test

2. Ion Sense Continuity Test

1. Test resistance between [83A] terminal B to front coil

1. Connect BREAKOUT BOX (Part No. HD-50390-1) and

secondary output tower. Repeat test for rear output tower.

ECM CABLE (Part No. HD-50390-4) to wiring harness

2. Is resistance within specifications?

[78B-1] and [78B-2], leaving ECM [78A-1] and [78A-2]

a. Yes. FXS/B (1200-1800 Ohms). Go to Test 8.

disconnected. See 1.2 DIAGNOSTIC TOOLS.

b. Yes. Except FXS/B (2700-3800 Ohms). Go to Test

2. Verify ECM OVERLAY (Part No. HD-50390-4-P) is in

position on BOB.

c. No. Replace ignition coil.

3. Disconnect ignition coil [83].

4. Using HARNESS CONNECTOR TEST KIT (Part No. HD-

8. Ignition Coil Secondary Resistance Test

41404), test continuity between [83B] terminal B (LGN/BN)

1. Test resistance across ignition coil front and rear sec-

wire and BOB [78-1] terminal 9.

ondary output towers.

5. Is continuity present?

2. Is resistance within specifications? Refer to Table 1-6.

a. Yes. Go to Test 3.

a. Yes. Go to Test 9.

b. No. Repair open in (LGN/BN) wire.

b. No. Replace ignition coil.

3. Ion Sense Short to Voltage Test

9. Coil Internal Short Test

1. Connect [78A-1] and [78A-2].

1. Test continuity between [83A] terminals A and B.

2. Turn IGN ON.

2. Is continuity present?

3. Test voltage between [83B] terminal B (LGN/BN) wire and

a. Yes. Replace ignition coil.

BOB [78-1] terminal 10.

b. No. Replace spark plugs and spark plug cables.

4. Is voltage present?

a. Yes. Repair short to voltage on (LGN/BN) wire.

b. No. Go to Test 4.

2013 Softail Diagnostics: Engine Management 6-71

HOME

DTC P1475,

P1478

6.21

DESCRIPTION AND OPERATION

ed03355

The active exhaust actuator is included on HDI vehicles only.

The active exhaust actuator system utilizes an actuator valve

located in the rear exhaust pipe which is connected to a servo

motor via a cable. The valve position automatically adjusts to

enhance engine performance.

Table 6-60. Code Description

DTC

DESCRIPTION

P1475

Exhaust actuator position error

P1478

Exhaust actuator shorted/high

NOTE

The AIS and active exhaust actuator share the same power

source and function simultaneously.

1. Open position

2. Closed position

Figure 6-44. Bellcrank

Diagnostic Tips

Before replacing the exhaust actuator, check the cable and

bellcrank assembly from exhaust actuator to exhaust valve for

proper operation.

Connector Information

For additional information about the connectors in the following

diagram(s) and diagnostic procedure(s), including the color of

the harness test kit terminal probes, see B.1 CONNECTORS.

6-72 2013 Softail Diagnostics: Engine Management

HOME

em00995

[78A-1] [78B-1]

ECM

CKP Sensor Low

Sensor Low

CKP

CKP Sensor High

Sensor High

Ground

BK/GN

[79B] [79A]

Main

R/GN

System Power

BCM

Harness

[242B] [242A]

[179B] [179A]

System Power

R/GN

CKP Sensor Low

LGN/BE

Feedback

CKP Sensor High

GY/W

LGN/O

Actuator

Exhaust

Actuator

IAC A High

GN/W

Ground

(HDI)

IAC B Low

GY/O

R/GN

System Power

IAC A Low

BK/GN

GND 2

IAC B High

LGN/O

Ground

LGN/V

Active Intake

AIS

(HDI)

Ground

GN/O

R/GN

System Power

[178B] [178A]

[78A-2] [78B-2]

GY/W

B Low

GN/W

B High

IAC

GND 1

GY/O

A Low

GN/O

A High

[87B] [87A]

Figure 6-45. Active Exhaust Actuator and AIS Circuit

DTC P1475

[78B-1] and [78B-2], leaving ECM [78A-1] and [78A-2]

disconnected. See 1.2 DIAGNOSTIC TOOLS.

PART NUMBER

TOOL NAME

3. Verify ECM OVERLAY (Part No. HD-50390-4-P) is in

position on BOB.

HD-41404

HARNESS CONNECTOR TEST KIT

HD-50390-1

BREAKOUT BOX

4. Using HARNESS CONNECTOR TEST KIT (Part No. HD-

41404), jump BOB [78-2] terminals 3 to 10.

HD-50390-4

ECM CABLE

5. Turn IGN ON.

HD-50390-4-P

ECM OVERLAY

6. Does actuator activate immediately?

a. Yes. Replace ECM.

Table 6-61. DTC P1475 Diagnostic Faults

b. No. Go to Test 2.

POSSIBLE CAUSES

Cable and bellcrank malfunction

2. Voltage Test

Open in ground circuit

1. Turn IGN OFF.

Open in power circuit

2. Turn IGN ON.

Open in active exhaust feedback circuit

3. Disconnect exhaust actuator [179].

Exhaust actuator malfunction

4. Test the voltage between [179B] terminals 1 (R/GN) wire

Short to voltage in active exhaust feedback circuit

and 2 (BK) wire.

Short to ground in active exhaust feedback circuit

5. Is battery voltage present?

1. Exhaust Actuator Test

a. Yes. Go to Test 4.

1. Turn IGN OFF.

b. No. Go to Test 3.

2. Connect BREAKOUT BOX (Part No. HD-50390-1) and

3. Motor Ground Wire Continuity Test

ECM CABLE (Part No. HD-50390-4) to wiring harness

1. Turn IGN OFF.

2013 Softail Diagnostics: Engine Management 6-73

HOME

2. Test continuity between [179B] terminal 2 (BK) wire and

4. Is voltage present?

ground.

a. Yes. Repair short to voltage on (LGN/BE) wire.

3. Is continuity present?

b. No. Replace ECM.

a. Yes. Repair open in (R/GN) wire.

9. Feedback Short to Ground Test

b. No. Repair open on (BK) wire.

1. Disconnect [78A-1] and [78A-2].

4. Feedback Voltage Test

2. Test continuity between [179B] terminal 4 (LGN/BE) wire

1. Turn IGN ON.

and ground.

2. Test voltage between BOB [78-2] terminal 10 and 14.

3. Is continuity present?

a. Yes. Repair short to ground on (LGN/BE) wire.

3. Is voltage 4.5-5.5V?

a. Yes. Go to Test 5.

b. No. Replace ECM.

b. No. Battery voltage. Go to Test 8.

DTC P1478

c. No. 0V. Go to Test 9.

PART NUMBER

TOOL NAME

5. Feedback Continuity Test

HD-41404

HARNESS CONNECTOR TEST KIT

1. Turn IGN OFF.

HD-50390-1

BREAKOUT BOX

2. Test continuity between [179B] terminal 4 (LGN/BE) wire

HD-50390-4

ECM CABLE

and BOB [78-2] terminal 14.

HD-50390-4-P

ECM OVERLAY

3. Is continuity present?

a. Yes. Go to Test 6.

Table 6-62. DTC P1478 Diagnostic Faults

b. No. Repair open in (LGN/BE) wire.

POSSIBLE CAUSES

6. Feedback Control Test

Short to voltage in active exhaust circuit

1. Connect [179].

Exhaust actuator malfunction

2. Turn IGN ON.

1. Exhaust Actuator Motor High Test

3. Test voltage between BOB [78-2] terminals 10 and 14.

1. Turn IGN OFF.

4. Jump between BOB [78-2] terminals 3 and 10 several

2. Connect BREAKOUT BOX (Part No. HD-50390-1) and

times.

ECM CABLE (Part No. HD-50390-4) to wiring harness

5. Does voltage change to less than 1.0V and exhaust actu-

[78B-1] and [78B-2], leaving ECM [78A-1] and [78A-2]

ator valve open each time?

disconnected. See 1.2 DIAGNOSTIC TOOLS.

a. Yes. Go to Test 7.

3. Verify ECM OVERLAY (Part No. HD-50390-4-P) is in

position on BOB.

b. No. Replace exhaust actuator.

4. Turn IGN ON.

7. Feedback Run Test

5. Using HARNESS CONNECTOR TEST KIT (Part No. HD-

1. Turn IGN OFF.

41404), test voltage between BOB [78-2] terminal 3 and

ground.

2. Clear codes.

6. Is voltage present?

3. Start engine.

a. Yes. Go to Test 2.

4. Run engine between 1500-2500 rpm.

b. No. Replace ECM.

5. Does exhaust valve open at 1600 rpm or less and close

at 1800 or more?

2. Motor Shorted to Voltage Test

a. Yes. System operating properly.

1. Turn IGN OFF.

b. No. Replace ECM.

2. Disconnect exhaust actuator [179].

8. Feedback Short to Voltage Test

3. Turn IGN ON.

1. Turn IGN OFF.

4. Test voltage between BOB [78-2] terminal 3 and ground.

2. Disconnect [78A-1] and [78A-2].

5. Is voltage present?

3. Test voltage between BOB [78-2] terminal 14 and ground.

a. Yes. Repair short to voltage on (LGN/O) wire.

b. No. Replace active exhaust control actuator.

6-74 2013 Softail Diagnostics: Engine Management

HOME

DTC P1501,

P1502

6.22

DESCRIPTION AND OPERATION

NOTE

The Jiffy Stand Sensor (JSS) uses a Hall-effect sensor to

The ECM supplies 5V reference voltage to the VSS, TPS and

monitor jiffy stand position.

MAP sensors in addition to the JSS. Problems on the 5V refer-

ence will cause other DTCs.

•

When the jiffy stand is fully retracted the sensor picks up

the presence of the metal tab mounted to the jiffy stand.

ed03292

The metal tab is moved away from the sensor as the jiffy

stand is extended.

•

When the jiffy stand is extended the engine will only start

and run if the BCM determines the transmission is in

neutral. This is done by monitoring the neutral switch input

to the BCM and communicating that input over the CAN

bus circuit to the ECM.

See Figure 6-47. The JSS is powered and monitored by the

ECM. The ECM supplies the 5V reference to the JSS. The JSS

sends a signal back to the ECM. This signal is used by the

ECM to determine when the jiffy stand is retracted or extended.

The JSS is grounded through the ECM.

The JSS also has a Fail Enable Mode. This mode allows the

engine to start and run if the system recognizes a problem with

1. Voltage regulator to stator [47]

the JSS circuit. When a problem exists or if the transmission

2. Front HO2 sensor [138]

is put in gear with the jiffy stand extended the odometer will

3. Voltage regulator [77]

display "SIdE Stand." DTC P1501 or P1502 will set if the JSS

4. JSS [133]

circuits are out of range.

5. CKP sensor [79]

Figure 6-46. Under Voltage Regulator

Table 6-63. Code Description

DTC

DESCRIPTION

Diagnostic Tips

P1501

JSS low

When disconnecting any connectors always inspect connector

for corrosion or backed out terminals and repair as required.

P1502

JSS high/open

Connector Information

For additional information about the connectors in the following

diagram(s) and diagnostic procedure(s), including the color of

the harness test kit terminal probes, see B.1 CONNECTORS.

2013 Softail Diagnostics: Engine Management 6-75

HOME

em00996

5V Sensor Power

R/W

VSS

VSS Input

LGN/Y

Ground

BK/GN

[65A] [65B]

5V Sensor Ground

BK/W

MAP

MAP Input

Sensor

5V Sensor Power

R/W

To BCM

[80A] [80B]

5V Sensor Power

R/W

TPS

5V Sensor Ground

BK/W

TPS

GN/V

[88A] [88B]

System Power

R/GN

Rear HO2

Rear O2 Heater Ground

BK/PK

Sensor

Rear O2 Sensor

GY/BN

5V Sensor Ground

BK/W

[138B] [138A]

5V Sensor Ground

R/W

JSS

JSS Signal

LGN/GY

(HDI)

Sensor Ground

BK/GN

[133A] [133B]

System Power

R/GN

Front HO2

Front O2 Heater Ground

BK/O

Sensor

Front O2 Sensor

GN/BN

5V Sensor Ground

BK/W

[138B] [138A]

IAT

GN/GY

IAT

Sensor

5V Sensor Ground

BK/W

[89A] [89B]

ET Sensor

Sensor

5V Sensor Ground

BK/W

[90A] [90B]

GND 1

[78B-1]

[78B-2]

[78A-1]

[78A-2]

ECM

Figure 6-47. Sensor Circuit

6-76 2013 Softail Diagnostics: Engine Management

HOME

DTC P1501

3. 5V Reference and Signal Shorted

Together Test

Table 6-64. DTC P1501 Diagnostic Faults

1. Turn IGN OFF.

POSSIBLE CAUSES

2. Disconnect ECM [78-1] and [78-2].

JSS malfunction

3. Test continuity between [133B] terminals 1 (R/W) wire and

Open or short to ground in signal circuit

2 (LGN/GY) wire.

4. Is continuity present?

1. Signal Wire Shorted to Ground Test

a. Yes. Repair short between (R/W) and (LGN/GY)

1. Turn IGN OFF.

wires.

2. Disconnect JSS [133].

b. No. Go to Test 4.

3. Test continuity between [133B] terminal 2 (LGN/GY) wire

and ground.

4. Signal Wire Open Circuit Test

4. Is continuity present?

1. Connect BREAKOUT BOX (Part No. HD-50390-1) and

ECM CABLE (Part No. HD-50390-4) to wiring harness

a. Yes. Repair short to ground on (LGN/GY) wire.

[78B-1] and [78B-2], leaving ECM [78A-1] and [78A-2]

b. No. Replace JSS.

disconnected. See 1.2 DIAGNOSTIC TOOLS.

2. Verify ECM OVERLAY (Part No. HD-50390-4-P) is in

DTC P1502

position on BOB.

PART NUMBER

TOOL NAME

3. Test continuity between BOB [78-1] terminal 8 and [133B]

terminal 2 (LGN/GY) wire.

HD-41404

HARNESS CONNECTOR TEST KIT

4. Is continuity present?

HD-50390-1

BREAKOUT BOX

a. Yes. Replace JSS.

HD-50390-4

ECM CABLE

b. No. Go to Test 4.Repair open on (LGN/GY) wire.

HD-50390-4-P

ECM OVERLAY

SIDE STAND DISPLAYED ON

Table 6-65. DTC P1502 Diagnostic Faults

SPEEDOMETER

POSSIBLE CAUSES

PART NUMBER

TOOL NAME

JSS malfunction

HD-41404

HARNESS CONNECTOR TEST KIT

Short to voltage in signal circuit

HD-50390-1

BREAKOUT BOX

Open ground

HD-50390-4

ECM CABLE

Short between 5V reference circuit and signal circuit

HD-50390-4-P

ECM OVERLAY

Open in signal circuit

1. JSS Ground Wire Test

Table 6-66. Side Stand Displayed on Speedometer

1. Turn IGN OFF.

Diagnostic Faults

2. Disconnect JSS [133].

POSSIBLE CAUSES

3. Using HARNESS CONNECTOR TEST KIT (Part No. HD-

Jiffy stand is down

41404), test continuity between [133B] terminal 3 and

Jiffy stand out of adjustment

ground.

Open 5V sensor power wire

4. Is continuity present?

1. Starts, Then Stalls Test

a. Yes. Go to Test 2.

1. Start engine.

b. No. Repair open in (BK/GN) wire.

2. Does engine start and stall?

2. JSS Signal Wire Short to Voltage Test

a. Yes. See 6.28 STARTS, THEN STALLS.

1. Test voltage between [133B] terminal 2 (LGN/GY) wire

b. No. Go to Test 2.

and ground.

2. Is voltage greater than 5V?

2. Neutral Test

a. Yes. Repair short to voltage between (LGN/GY) wire.

1. Verify transmission is in neutral.

b. No. Go to Test 3.

2013 Softail Diagnostics: Engine Management 6-77

HOME

2. Is neutral indicator on?

2. With IGN OFF, connect BREAKOUT BOX (Part No. HD-

50390-1) and ECM CABLE (Part No. HD-50390-4) to

a. Yes. Go to Test 3.

wiring harness [78B-1] and [78B-2], leaving ECM [78A-1]

b. No. See 4.5 INDICATOR LAMPS.

and [78A-2] disconnected. See 1.2 DIAGNOSTIC TOOLS.

3. Verify ECM OVERLAY (Part No. HD-50390-4-P) is in

3. JSS Clearance Test

position on BOB.

1. Inspect JSS and jiffy stand for correct mounting and

4. Using the HARNESS CONNECTOR TEST KIT (Part

clearance to jiffy stand tab.

No. HD-41404), test continuity between BOB [78-2] ter-

2. Is clearance less than 0.18 in (4.5 mm)?

minal 9 and [133B] terminal 1 (R/W) wire.

a. Yes. Go to Test 4.

5. Is continuity present?

b. No. Install JSS and jiffy stand correctly.

a. Yes. Replace JSS.

b. No. Repair open on (R/W) wire.

4. 5V Reference Open Circuit Test

1. Disconnect JSS [133].

6-78 2013 Softail Diagnostics: Engine Management

HOME

DTC P1632

6.23

GNOSTICS, Odometer Self-Diagnostics. If the code returns,

DESCRIPTION AND OPERATION

the ECM may not be powering down properly. Verify that 12V

If the speedometer mileage is higher than the mileage in the

is continually present on [78-2] terminal 18.

ECM, the ECM will set a DTC P1632 and increase its mileage

to match the speedometer. This will normally occur when the

Table 6-67. Code Description

ECM is replaced or if continuous battery is not present on [78-

2] terminal 18 of the ECM. If this code is set, verify the

DTC

DESCRIPTION

speedometer or ECM have not been replaced with a used part

P1632

Odometer learned up

from another vehicle. Clear the DTC. See 2.1 INITIAL DIA-

ed03300

1. Battery negative

7. ECM [78B-2]

2. Battery

8. DLC [91]

3. Fuse block [64]

9. Battery positive

4. Tail lamp harness to main harness [7]

10.

Rear HO2 sensor [137]

5. ECM [78B-1]

11. Ground [GND1]

6. Security antenna [209]

12. Ground [GND2]

Figure 6-48. Under Seat: Except FXS/B and FLS

2013 Softail Diagnostics: Engine Management 6-79

HOME

DTC P1655,

P1656

6.24

DESCRIPTION AND OPERATION

ed03295

See Figure 6-51. When open, compressed gases are released

through the exhaust port.

See Figure 6-52. The Automatic Compression Release (ACR)

is opened and closed by the ECM to assist starting.

Table 6-68. Code Description

DTC

DESCRIPTION

P1655

ACR solenoid low/open

P1656

ACR solenoid high

ed03356

1. Engine

2. Rear ACR [203R]

3. Front ACR [203F]

Figure 6-52. Under Fuel Tank Right Side

Connector Information

For additional information about the connectors in the following

diagram(s) and diagnostic procedure(s), including the color of

the harness test kit terminal probes, see B.1 CONNECTORS.

Figure 6-51. ACR in Head

6-82 2013 Softail Diagnostics: Engine Management

HOME

em00997

[242A] [242B]

BCM

System Power

R/GN

Purge

System Power

R/GN

Solenoid

Purge Solenoid

LGN/BK

[95A] [95B]

System Power

R/GN

Active

Ground

Exhaust

Exhaust Actuator

LGN/O

Exhaust Feedback

LGN/BE

[78B-2] [78A-2]

ECM

[179A] [179B]

GY/BN

Rear HO2 Sensor

Active

Active Intake

LGN/V

R/GN

System Power

Intake

LGN/BE

Exhaust Feedback

System Power

R/GN

BK/GN

Ground

BK/W

5V Sensor Ground

[178A] [178B]

LGN/BK

Purge Solenoid

LGN/R

ACR Enable

System Power

R/GN

LGN/O

Exhaust Actuator

Rear HO2

Rear O2 Heater Ground

BK/PK

LGN/V

Active Intake

Sensor

Rear O2 Sensor

GY/BN

5V Sensor Ground

BK/W

LGN/BN

Front HO2 Sensor

[138B] [138A]

BK/PK

Rear HO2 Heater Sensor

BK/GN

Ground

LGN/BN

ION Sense

System Power

R/GN

GY/Y

Rear Fuel Injector

Front HO2

Front O2 Heater Ground

BK/O

GN/Y

Front Fuel Injector

Sensor

Front O2 Sensor

GN/BN

BK/O

Front HO2 Heater Ground

5V Sensor Ground

BK/W

GN/BE

Front Ignition Coil

GY/BE

Rear Ignition Coil

[138B] [138A]

[78B-1] [78A-1]

A B C D

[83B]

[84B]

A B

[203FB]

A B

[203RB]

A B

[85B]

A B

A B C D

[83A]

[84A]

A B

[203FA]

A B

[203RA]

A B

[85A]

A B

GND 2

GND 1

Front Fuel

Front ACR

Rear ACR

Rear Fuel

Injector

Ignition Coil

Figure 6-53. System Power Circuit

2013 Softail Diagnostics: Engine Management 6-83

HOME

DTC P1655

4. Front ACR Control Circuit Short to

Ground Test

PART NUMBER

TOOL NAME

1. Turn IGN OFF.

HD-34730-2E

FUEL INJECTOR TEST LIGHT

2. Disconnect ECM [78-2].

HD-41404

HARNESS CONNECTOR TEST KIT

3. Using HARNESS CONNECTOR TEST KIT (Part No. HD-

HD-50390-1

BREAKOUT BOX

41404), test continuity between

[203FB] terminal

HD-50390-4

ECM CABLE

(LGN/R) wire and ground.

HD-50390-4-P

ECM OVERLAY

4. Is continuity present?

a. Yes. Go to Test 5.

Table 6-69. DTC P1655 Diagnostic Faults

b. No. Replace ECM.

POSSIBLE CAUSES

5. Rear ACR Control Circuit Short to Ground

ACR solenoid malfunction

Test

Open in ACR control circuit

1. Disconnect rear ACR [203RB].

Open in system relay circuit

2. Test continuity between [203FB] terminal 2 (LGN/R) wire

Short to ground in ACR control circuit

and ground.

1. Front ACR Test

3. Is continuity present?

1. Turn IGN OFF.

a. Yes. Repair short to ground in (LGN/R) wire.

2. Disconnect front ACR [203F].

b. No. Replace front and rear ACR solenoids.

3. Connect FUEL INJECTOR TEST LIGHT (Part No. HD-

6. Shorted ACR Test

34730-2E).

1. Turn IGN OFF.

4. Crank engine for 5 seconds.

2. Disconnect rear ACR [203RB].

5. Does the test light flash on and off?

3. Crank engine for 5 seconds.

a. Yes. Go to Test 2.

4. Does the test light flash on and off?

b. No, test light stays on steady. Go to Test 4.

a. Yes. Replace front and rear ACR solenoids.

c. No, did not stay on steady. Go to Test 6.

b. No. Go to Test 7.

2. Rear ACR Test

7. ACR Control Circuit Continuity Test

1. Turn IGN OFF.

2. Disconnect rear ACR [203R].

2. Connect BREAKOUT BOX (Part No. HD-50390-1) and

3. Connect FUEL INJECTOR TEST LIGHT (Part No. HD-

ECM CABLE (Part No. HD-50390-4) to wiring harness

34730-2E).

[78B-1] and [78B-2], leaving ECM [78A-1] and [78A-2]

disconnected. See 6.28 STARTS, THEN STALLS.

4. Crank engine for 5 seconds.

3. Verify ECM OVERLAY (Part No. HD-50390-4-P) is in

5. Does the test light flash on and off?

position on breakout box.

a. Yes. Replace front and rear ACR solenoids.

4. Using HARNESS CONNECTOR TEST KIT (Part No. HD-

b. No. Go to Test 3.

41404), test continuity between BOB [78-2] terminal 4 and

[203FB] terminal 2 (LGN/R) wire.

3. Rear ACR Control Circuit Test

5. Is continuity present?

1. Turn IGN OFF.

a. Yes. Go to Test 8.

2. Disconnect test light.

b. No. Repair open in (LGN/R) wire.

3. Using HARNESS CONNECTOR TEST KIT (Part No. HD-

41404), test continuity between [203FB] terminal 1 (R/GN)

8. Power Circuit Continuity Test

wire and [203RB] terminal 1 (R/GN) wire.

1. Test continuity between BOB [78-2] terminal 16 and [203B]

4. Is continuity present?

terminal 1 (R/GN) wire.

a. Yes. Repair open in (LGN/R)wire.

2. Is continuity present?

b. No. Repair open in (R/GN) wire.

a. Yes. Replace ECM.

b. No. Repair open in (R/GN) wire.

6-84 2013 Softail Diagnostics: Engine Management

HOME

3. Disconnect test light from [203F].

DTC P1656

4. Connect test light to [203R].

PART NUMBER

TOOL NAME

5. Crank engine for 5 seconds.

HD-34730-2E

FUEL INJECTOR TEST LIGHT

6. Does test light flash on and off?

HD-41404

HARNESS CONNECTOR TEST KIT

a. Yes. Replace front and rear ACR solenoids.

b. No. Go to Test 3.

Table 6-70. DTC P1656 Diagnostic Faults

3. Rear ACR Control Circuit Test

POSSIBLE CAUSES

Short to voltage in ACR control circuit

1. Disconnect test light.

ACR solenoid malfunction

2. While cranking the engine, using HARNESS CON-

NECTOR TEST KIT (Part No. HD-41404), test voltage

1. Front ACR Test

between [203RB] terminal 2 (LGN/R) wire and ground.

1. Turn IGN OFF.

3. Is voltage greater than 5.0V?

2. Disconnect front ACR [203F].

a. Yes. Repair short to voltage on (LGN/R) wire.

3. Connect FUEL INJECTOR TEST LIGHT (Part No. HD-

b. No. Replace ECM.

34730-2E).

4. Front ACR Control Circuit Test

4. Crank engine for 5 seconds.

1. Disconnect rear ACR [203R].

5. Does test light flash on and off?

2. While cranking the engine, using HARNESS CON-

a. Yes. Go to Test 2.

NECTOR TEST KIT (Part No. HD-41404), test voltage

b. No. Go to Test 4.

between [203FB] terminal 2 (LGN/R) wire and ground.

3. Is voltage greater than 5.0V?

2. Rear ACR Test

a. Yes. Repair short to voltage on (LGN/R) wire.

1. Turn IGN OFF.

b. No. Replace front and rear ACR solenoids.

2. Disconnect rear ACR [203R].

2013 Softail Diagnostics: Engine Management 6-85

HOME

DTC P2300,

P2301, P2303, P2304

6.25

DESCRIPTION AND OPERATION

ed02980

Ignition coil DTCs will set if the ignition coil primary voltage is

out of range. This could occur if there is an open coil or loss

of power to the coil. If front and rear DTCs are set simultan-

eously, it is likely a coil power failure or a coil failure. The coil

receives power from the BCM at the same time the purge

solenoid, active exhaust actuator, active intake solenoid, ECM

and injectors are activated.

Table 6-71. Code Description

DTC

DESCRIPTION

P2300

Ignition coil driver low/open (front)

P2301

Ignition coil driver high/shorted (front)

P2303

Ignition coil driver low/open (rear)

1. Terminal A: power

P2304

Ignition coil driver high/shorted (rear)

2. Terminal B: ion sense

3. Terminal C: rear coil

4. Terminal D: front coil

ed03323

Figure 6-55. Ignition Coil: Typical

Diagnostic Tips

When disconnecting any connectors always inspect connector

for corrosion or backed out terminals and repair as required.

Connector Information

For additional information about the connectors in the following

diagram(s) and diagnostic procedure(s), including the color of

the harness test kit terminal probes, see B.1 CONNECTORS.

1. ET sensor [90]

2. Ignition switch

3. Ignition coil

4. Ignition coil [83]

Figure 6-54. Behind Ignition Switch: FXS/B

6-86 2013 Softail Diagnostics: Engine Management

HOME

em00997

[242A] [242B]

BCM

System Power

R/GN

Purge

System Power

R/GN

Solenoid

Purge Solenoid

LGN/BK

[95A] [95B]

System Power

R/GN

Active

Ground

Exhaust

Exhaust Actuator

LGN/O

Exhaust Feedback

LGN/BE

[78B-2] [78A-2]

ECM

[179A] [179B]

GY/BN

Rear HO2 Sensor

Active

Active Intake

LGN/V

R/GN

System Power

Intake

LGN/BE

Exhaust Feedback

System Power

R/GN

BK/GN

Ground

BK/W

5V Sensor Ground

[178A] [178B]

LGN/BK

Purge Solenoid

LGN/R

ACR Enable

System Power

R/GN

LGN/O

Exhaust Actuator

Rear HO2

Rear O2 Heater Ground

BK/PK

LGN/V

Active Intake

Sensor

Rear O2 Sensor

GY/BN

5V Sensor Ground

BK/W

LGN/BN

Front HO2 Sensor

[138B] [138A]

BK/PK

Rear HO2 Heater Sensor

BK/GN

Ground

LGN/BN

ION Sense

System Power

R/GN

GY/Y

Rear Fuel Injector

Front HO2

Front O2 Heater Ground

BK/O

GN/Y

Front Fuel Injector

Sensor

Front O2 Sensor

GN/BN

BK/O

Front HO2 Heater Ground

5V Sensor Ground

BK/W

GN/BE

Front Ignition Coil

GY/BE

Rear Ignition Coil

[138B] [138A]

[78B-1] [78A-1]

A B C D

[83B]

[84B]

A B

[203FB]

A B

[203RB]

A B

[85B]

A B

A B C D

[83A]

[84A]

A B

[203FA]

A B

[203RA]

A B

[85A]

A B

GND 2

GND 1

Front Fuel

Front ACR

Rear ACR

Rear Fuel

Injector

Ignition Coil

Figure 6-56. System Power Circuit

2013 Softail Diagnostics: Engine Management 6-87

Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Electrical Diagnostics - page 15
