If a Fuse Blows

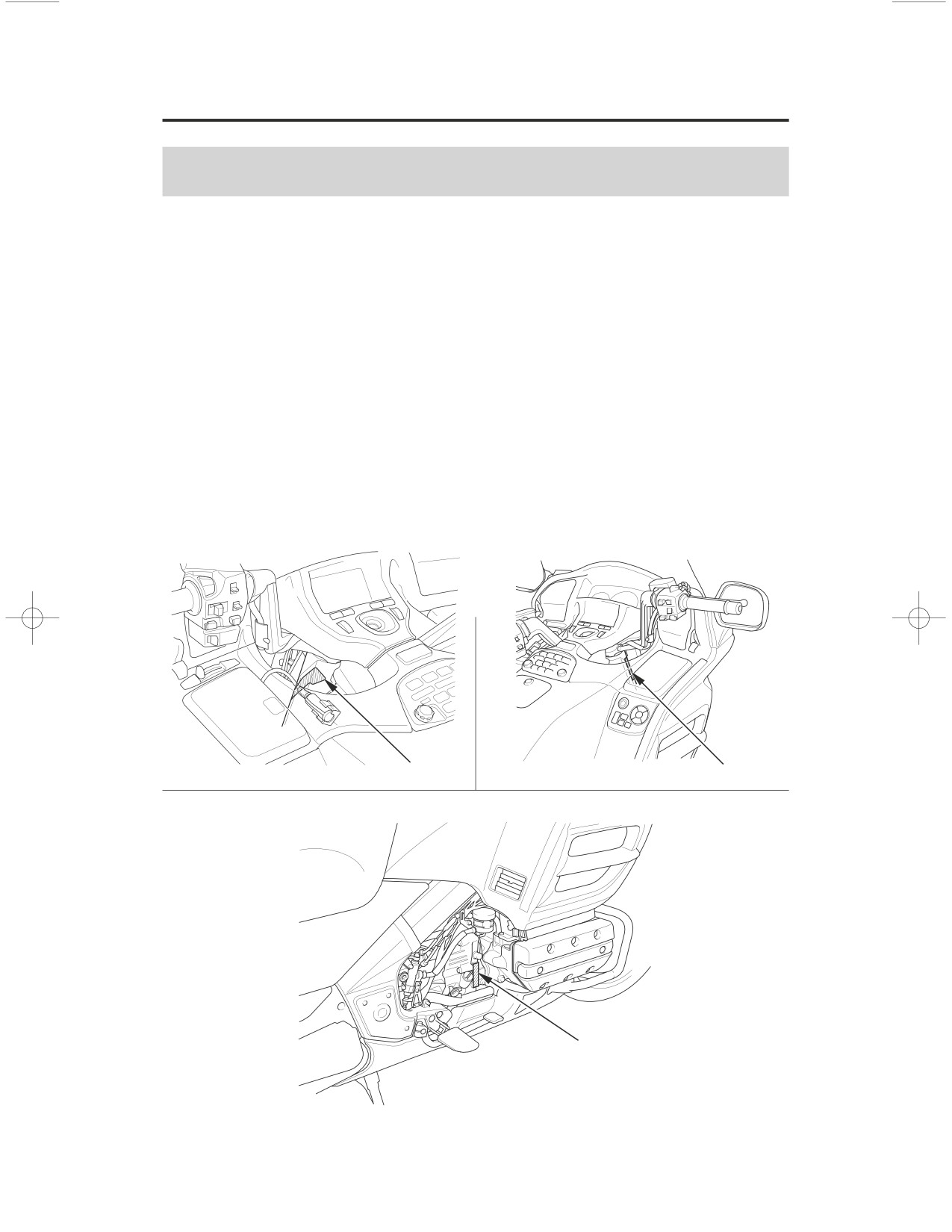

LEFT SIDE

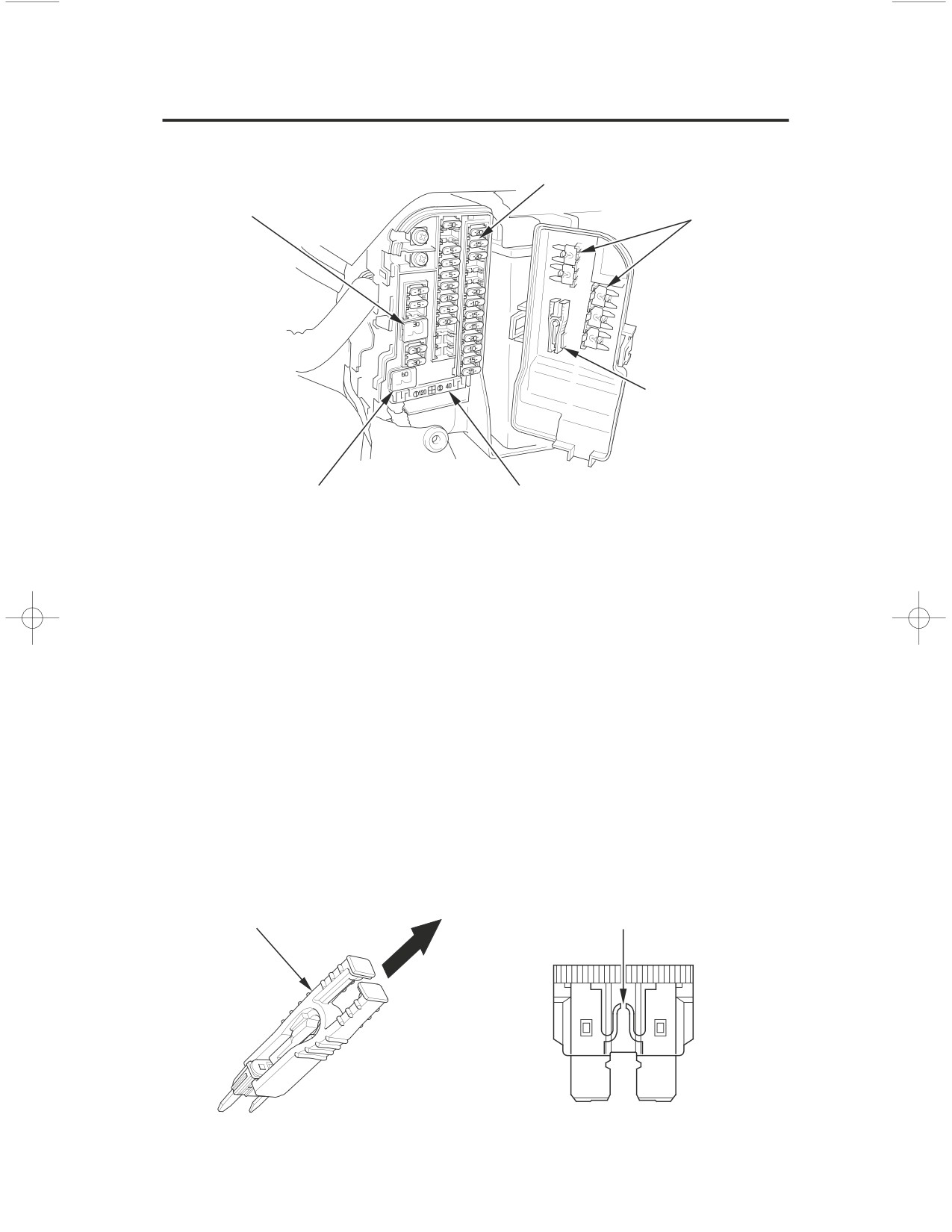

circuit fuses

main fuse A

spare fuses

fuse remover

speed limiter fuse

main fuse B/external amplifier fuse

8. Close the fuse box cover.

Install the left side cover.

If you do not have a spare fuse and you cannot ride the motorcycle without

fixing the problem, take a fuse of the same rating or a lower rating from one of

the other circuits that you can do without temporarily.

If you replace a blown fuse with a spare fuse that has a lower rating, replace the

fuse with the correct rating as soon as you can. Also remember to replace any

spare fuses that were installed.

If the replacement fuse of the same rating burns out in a short time, there is

probably a serious electrical problem on your motorcycle. Leave the blown fuse

in that circuit and have your motorcycle checked by your Honda dealer.

fuse remover

blown fuse

234

Taking Care of the Unexpected

If You Crash

Personal safety is your first priority after a crash. If you or anyone else has

been injured, take time to assess the severity of the injuries and whether it

is safe to continue riding. Call for emergency assistance if needed. Also

follow applicable laws and regulations if another person or vehicle is

involved in the crash.

If you decide that you are capable of riding safely, first evaluate the condition

of your motorcycle. If the engine is still running, turn it off and look it over

carefully; inspect it for fluid leaks, check the tightness of critical nuts and bolts,

and secure such parts as the handlebar, control levers, brakes, and wheels.

If there is minor damage, or you are unsure about possible damage, ride slowly

and cautiously. Sometimes, crash damage is hidden or not immediately apparent,

so you should have your motorcycle thoroughly checked at a qualified service

facility as soon as possible. Also, be sure to have your Honda dealer check the

frame and suspension after any serious crash.

If your motorcycle cannot be ridden, see Transporting Your Motorcycle,

page 210 .

235

Taking Care of the Unexpected

If You Lose Your Key

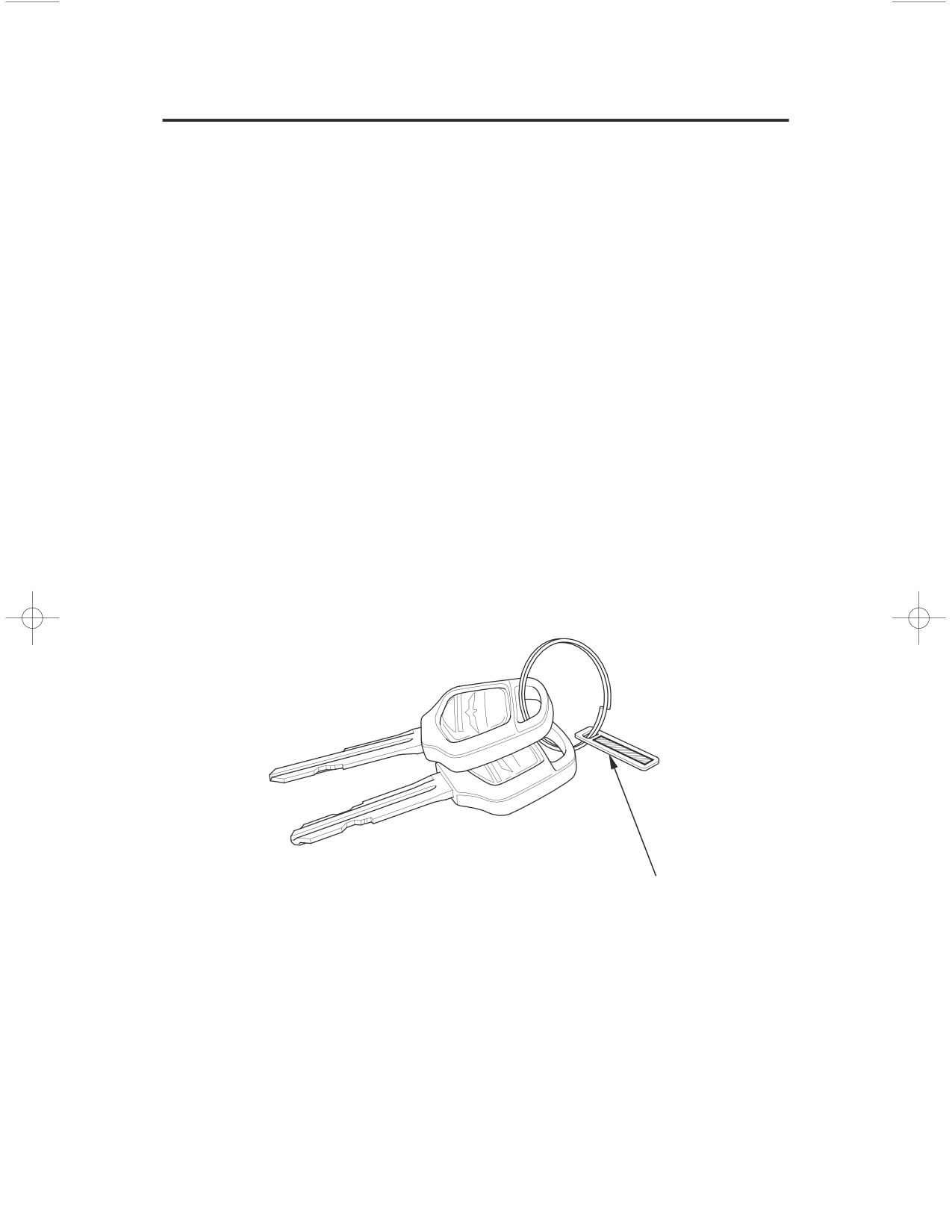

You should receive a key number plate with your keys. Store this plate in a safe

place.

Be sure to record your key number in the Quick Reference section at the rear of

the manual. You’ll need this number to have a duplicate key made.

A lost key won’t be a problem if you take preventative action. Store one

duplicate key in a safe place at home and carry a second duplicate in your wallet.

If you lose your key and aren’t carrying a duplicate, either get your spare or

have one made. If you don’t know your key number, call the dealer where you

purchased your Honda. They may have it listed in their records. If they don’t,

transport your motorcycle to them or the nearest Honda dealer. The dealer will

probably have to remove the ignition switch assembly to find the key number so

they can make a key for you.

key number plate

236

Taking Care of the Unexpected

If Your Battery Is Low (or Dead)

Jump starting is not recommended, especially if you use an automobile

battery. The greater amperage of an automobile battery when the car

engine is running can damage your motorcycle’s electrical system.

Bump starting is also not recommended.

If you can’t charge the battery or it appears unable to hold a charge, contact your

Honda dealer.

237

Taking Care of the Unexpected

Technical Information

This section contains dimensions, capacities, and other technical data, plus

information on government requirements and how to break-in your

motorcycle.

Vehicle Identification

240

Specifications

242

Break-in Guidelines

248

Tire Pressure Monitoring System (TPMS) Explanation

249

Emission Control Systems

251

Catalytic Converters

255

Oxygenated Fuels

256

Technical Information

239

Vehicle Identification

Serial Numbers

The VIN and engine serial number are required when you register your

motorcycle. They may also be required when ordering replacement parts. You

may record these numbers in the Quick Reference section at the rear of this

manual.

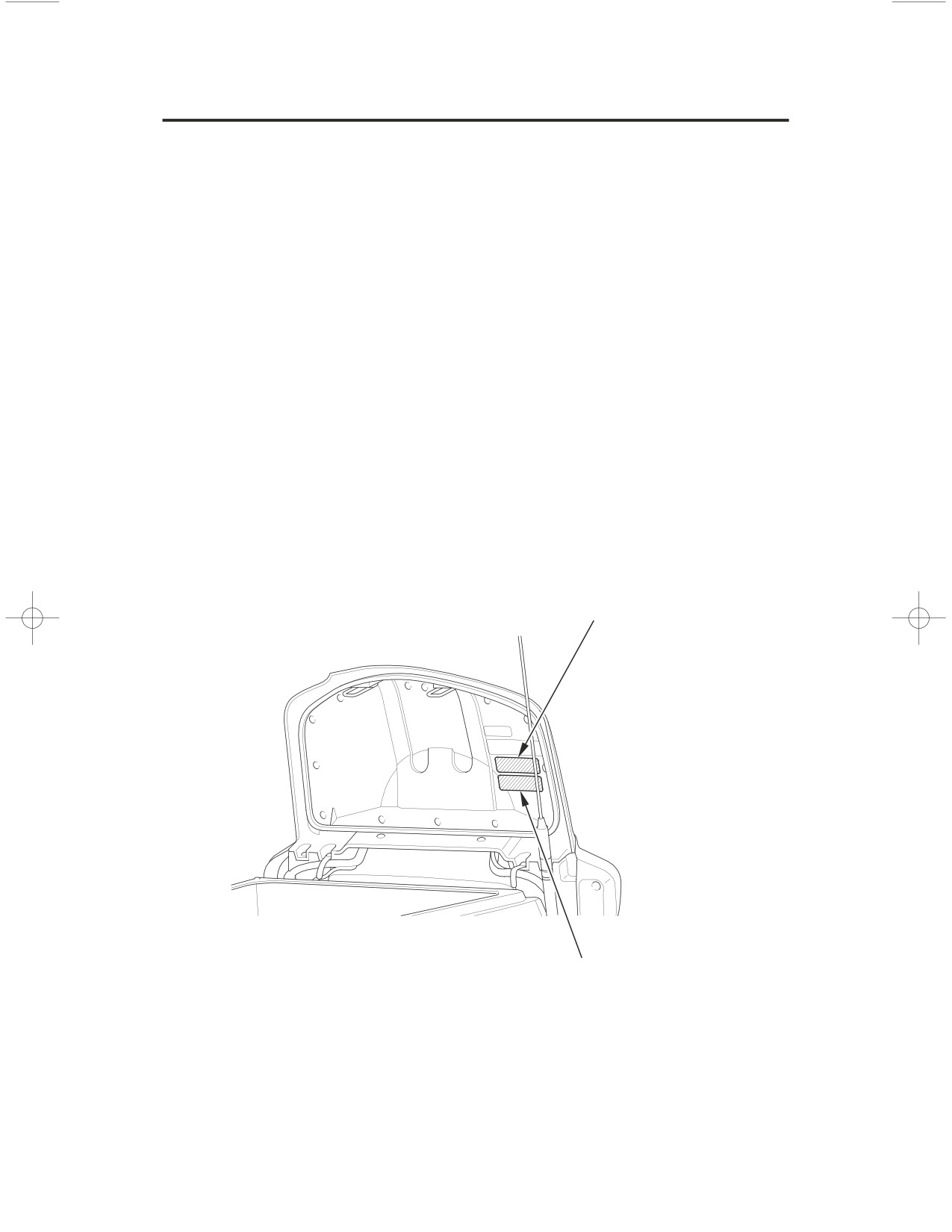

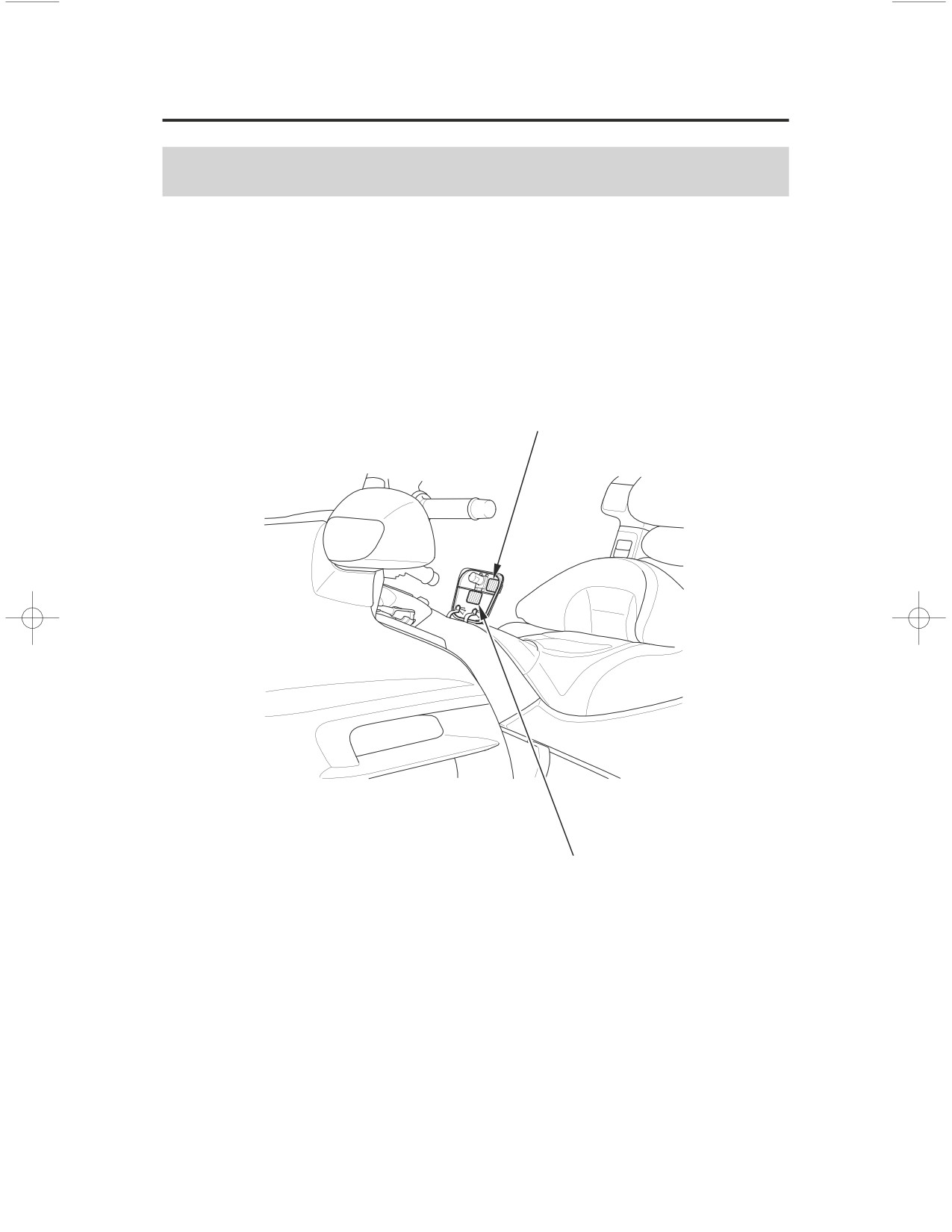

The VIN (vehicle identification number) is stamped on the right side of the

steering head and also appears on the Safety Certification Label attached to the

left side of the steering head.

The engine number is stamped on the right side of the crankcase.

LEFT SIDE

RIGHT SIDE

VIN

RIGHT SIDE

engine number

240

Technical Information

Specifications

Dimensions

overall length

103.7 in (2,635 mm)

overall width

37.2 in (945 mm)

overall height

57.3 in (1,455 mm)

wheelbase

66.5 in (1,690 mm)

ground clearance

4.9 in (125 mm)

Fuel & Lubricants

fuel

unleaded gasoline, pump octane number of

recommendation

86 or higher

fuel tank capacity

6.6 US gal (25

)

engine oil capacity

after disassembly:

4.9 US qt (4.6

)

after draining:

3.8 US qt (3.6

)

after draining & oil filter change:

3.9 US qt (3.7

)

engine oil

API Service Classification SG or higher

recommendation

except oils labeled as energy conserving on

the circular API service label, SAE 10W-30,

JASO T 903 standard MA,

Pro Honda GN4 4-stroke oil (USA & Canada)

or Honda 4-stroke oil (Canada only), or an

equivalent motorcycle oil

242

Technical Information

Specifications

Fuel & Lubricants (Cont’d)

final drive oil

after draining:

capacity

4.1 US oz (120 cm )

cooling system,

Pro Honda HP Coolant or an equivalent high

recommendation

quality ethylene glycol antifreeze containing

corrosion protection inhibitors specifically

recommended for use in aluminum engines

cooling system,

4.07 US qt (3.85

)

capacity

Capacities

passenger

Operator and one passenger

capacity

maximum weight

410 lbs (186 kg)

capacity

419 lbs (190 kg)(Canada only)

rider, passenger, all cargo and accessories

cargo capacity

travel trunk:

20.0 lbs (9.0 kg)

each saddlebag:

20.0 lbs (9.0 kg)

each fairing pocket (Models not equipped

with Airbag):

4.5 lbs (2.0 kg)

fairing pocket (Models equipped with

Airbag):

4.5 lbs (2.0 kg)

each trunk side pocket:

1.0 lbs (0.5 kg)

total of all cargo:

71 lbs (32 kg)

(Models not equipped

with Airbag)

66 lbs (30 kg)

(Models equipped with

Airbag)

Technical Information

243

Specifications

Engine Specifications

displacement

111.8 cu-in (1,832 cm )

bore & stroke

2.91

2.80 in (74.0 mm

71.0 mm)

compression ratio

9.8 : 1

spark plug

BKR6E-11 (NGK)

(standard)

K20PR-U11 (DENSO)

spark plug

BKR5E-11 (NGK)

(cold climate)

K16PR-U11 (DENSO)

spark plug (high

BKR7E-11 (NGK)

speed riding)

K22PR-U11 (DENSO)

valve clearance

intake

0.006 in (0.15 mm)

(cold)

exhaust

0.009 in (0.22 mm)

spark plug gap

0.039ʵ

0.043 in (1.00ʵ

1.10 mm)

idle speed

700

70 rpm

(No adjustment)

Power Transmission

primary reduction

1.591

secondary reduction

1.028

final reduction

2.750

gear ratio, 1st

2.375

2nd

1.454

3rd

1.068

4th

0.843

0.686

final drive

shaft

244

Technical Information

Specifications

Chassis & Suspension

caster

29°15’

trail

4.3 in (109 mm)

tire size, front

130/70R18M/C 63H

DUNLOP D250F

BRIDGESTONE G709 RADIAL

tire size, rear

180/60R16M/C 74H

DUNLOP D250

BRIDGESTONE G704 RADIAL

tire type

radial, tubeless

tire pressure, front

36 psi (250 kPa , 2.50 kgf/cm )

(cold)

tire pressure, rear

41 psi (280 kPa , 2.80 kgf/cm )

(cold)

Electrical

battery

12 Vʵ20 Ah

generator

1.2 kW/5,000 rpm

Technical Information

245

Specifications

Lights

headlight

12 Vʵ55 Wʷ

(high)

12 Vʵ55 Wʷ

(low)

brake/tail light

12 Vʵ21/5Wʷ

turn signal lights

12 Vʵ21/5Wʷ

(front)

12 Vʵ21 Wʷ

(rear)

license light

12 Vʵ5

instrument light

LED

neutral indicator

LED

turn signal indicator

LED

high beam indicator

LED

low oil pressure

LED

indicator

side stand indicator

LED

low fuel indicator

LED

PGM-FI indicator

LED

reverse indicator

LED

overdrive indicator

LED

CRUISE ON

LED

indicator

CRUISE SET

LED

indicator

ABS indicator

LED

(models equipped

with ABS)

AIRBAG indicator

LED

(models equipped

with Airbag)

246

Technical Information

Specifications

Fuses

main A

30 A

main B

120 A

speed limit fuse

external amplifier

fuse (models

equipped with

Premium Audio)

other fuses

A, 20 A, 15 A, 10 A, 5 A

Torque Specifications

engine oil drain bolt

lbf·ft (34 N·m , 3.5 kgf·m)

engine oil filter

lbf·ft (26 N·m , 2.7 kgf·m)

front wheel axle bolt

lbf·ft (59 N·m , 6.0 kgf·m)

right front wheel

lbf·ft (31 N·m , 3.2 kgf·m)

caliper fixing bolts

left front wheel

lbf·ft (31 N·m , 3.2 kgf·m)

caliper socket bolt

front wheel axle

lbf·ft (22 N·m , 2.2 kgf·m)

pinch bolts

rear wheel nuts

lbf·ft (108 N·m , 11.0 kgf·m)

final drive oil drain

lbf·ft (20 N·m , 2.0 kgf·m)

bolt

Technical Information

247

Tire Pressure Monitoring System

(TPMS) Explanation

Both tires should be checked monthly when cold, and inflated to the

inflation pressure recommended by the vehicle manufacturer on the tire

information label.

(If your vehicle has different tires than those indicated on the vehicle tire

information label, you should determine the proper tire inflation pressure

for those tires.)

As an added safety feature, your vehicle has been equipped with a tire

pressure monitoring system (TPMS) that illuminates a

low tire pressure

indicator when one or more of your tires significantly under-inflated.

Accordingly, when the low tire pressure indicator illuminates, you should

stop and check your tires as soon as possible, and inflate them to the proper

pressure.

Riding on a significantly under-inflated tire causes the tire to overheat and

can lead to tire failure. Under-inflation also reduces fuel efficiency and tire

tread life, and may affect the vehicle’s handling and stopping ability.

Please note that the TPMS is not a substitute for proper tire maintenance,

and it is the rider’s responsibility to maintain correct tire pressure, even if

under-inflation has not reached the level to trigger illumination of the

TPMS low tire pressure indicator.

low tire pressure indicator

Technical Information

249

Tire Pressure Monitoring System

(TPMS) Explanation

Your vehicle has also been equipped with a TPMS indicator to indicate

when the system is not operating properly. The TPMS indicator displays the

symbol ‘‘TPMS’’ when illuminated.

When the TPMS indicator is illuminated, the system may not be able to

detect or signal low tire pressure as intended.

TPMS malfunctions may occur for a variety of reasons, including the

installation of replacement or alternate tires or wheels on the vehicle that

prevent the TPMS from functioning properly.

Always check the TPMS indicator after replacing one or more tires or

wheels on your vehicle to ensure that the replacement or alternate tires and

wheels allow the TPMS to continue to function properly.

TPMS indicator

250

Technical Information

Emission Control Systems

Exhaust Emission Requirements

The U.S. Environmental Protection Agency (EPA), the California Air Resources

Board (CARB), and Environment Canada (EC) require that your motorcycle

comply with applicable exhaust emissions standards during its useful life, when

operated and maintained according to the instructions provided.

Noise Emission Requirements

The EPA also requires that motorcycles built after January 1, 1983 comply with

applicable noise emission standards for one year or 3,730 miles (6,000 km) after

the time of sale to the ultimate purchaser, when operated and maintained

according to the instructions provided.

Warranty Compliance

Compliance with the terms of the Distributor’s Warranties for Honda

Motorcycle Emission Control Systems is necessary in order to keep the

emissions system warranty in effect. (USA only)

vehicle emission control

information label

vehicle emission control

information label (Canada only)

The Vehicle Emission Control Information label is attached inside the trunk lid.

Technical Information

251

Emission Control Systems

Source of Exhaust Emissions

The combustion process produces carbon monoxide (CO), oxides of nitrogen

(NOx) and hydrocarbons (HC). Control of hydrocarbons and oxides of nitrogen

is very important because, under certain conditions, they react to form

photochemical smog when subjected to sunlight. Carbon monoxide does not

react in the same way, but it is toxic.

Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide,

oxides of nitrogen and hydrocarbons.

Exhaust Emission Control System

The exhaust emission control system includes a PGM-FI system, two three-way

catalytic converters, a secondary air injection system, and two heated oxygen

sensors or two air fuel ratio sensors.

No adjustment to these systems should be made although periodic inspection of

the components is recommended.

PGM-FI System

The PGM-FI system uses sequential multiport fuel injection. It has four

subsystems: Air Intake, Engine Control, Fuel Control, and Exhaust Control.

The Engine Control Module (ECM) uses various sensors to determine how

much air is going into the engine. It then controls how much fuel to inject under

all operating conditions.

Ignition Timing Control System

The system constantly adjusts the ignition timing, reducing the amount of HC,

CO and NOx produced.

Secondary Air Injection System

The secondary air injection system introduces filtered air into the exhaust gases

in the exhaust port. The secondary air injection system helps improve emission

control performance.

Three-Way Catalytic Converters

The three-way catalytic converters are in the exhaust system. Through chemical

reactions, they convert HC, CO, and NOx in the engine’s exhaust to carbon

dioxide (CO2), nitrogen (N), and water vapor.

252

Technical Information

Emission Control Systems

Evaporative Emission Control System

This motorcycle complies with the requirements of the California Air Resources

Board (CARB) evaporative emission regulations. Fuel vapor from the fuel tank

is directed into the charcoal canister and air cleaner where it is adsorbed and

stored while the engine is stopped. When the engine is running and the purge

control solenoid valve is open, fuel vapor in the charcoal canister and air cleaner

is drawn into the engine through the throttle body.

Crankcase Emission Control System

The engine is equipped with a closed crankcase system to prevent discharging

crankcase emissions into the atmosphere. Blow-by gas is returned to the

combustion chamber through the air cleaner and the intake manifold.

Technical Information

253

Emission Control Systems

Problems That May Affect Motorcycle Exhaust Emissions

If you are aware of any of the following symptoms, have the vehicle inspected

and repaired by your authorized Honda motorcycle dealer.

Symptoms:

1. Hard starting or stalling after starting

2. Rough idle

3. Misfiring or backfiring during acceleration

4. After-burning (backfiring)

5. Poor performance (driveability) and poor fuel economy

Noise Emission Control System

TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED:

U. S. federal law prohibits, or Canadian provincial laws may prohibit the

following acts or the causing thereof: (

) The removal or rendering inoperative

by any person, other than for purposes of maintenance, repair or replacement, of

any device or element of design incorporated into any new vehicle for the

purpose of noise control prior to its sale or delivery to the ultimate purchaser or

while it is in use; or (

) the use of the vehicle after such device or element of

design has been removed or rendered inoperative by any person.

AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE

THE FOLLOWING ACTS:

1. Removal of, or puncturing the muffler, baffles, header pipes or any other

component which conducts exhaust gases.

2. Removal of, or puncturing of any part of the intake system.

3. Lack of proper maintenance.

4. Replacing any moving parts of the vehicle, or parts of the exhaust or intake

system, with parts other than those specified by the manufacturer.

Fuel Permeation Emission Control System

This vehicle complies with the Fuel Permeation Emission Control regulations of

the U.S. Environmental Protection Agency (EPA), the California Air Resources

Board (CARB), and Environment Canada (EC). The fuel tank, fuel hoses, and

fuel vapor charge hoses used on this vehicle incorporate fuel permeation control

technologies. Tampering with the fuel tank, fuel hoses, or fuel vapor charge

hoses to reduce or defeat the effectiveness of the fuel permeation technologies

is prohibited by federal regulations.

254

Technical Information

Catalytic Converters

This motorcycle is equipped with two three-way catalytic converters. Each

catalytic converter contains precious metals that serve as catalysts, promoting

chemical reactions to convert the exhaust gasses without affecting the metals.

The catalytic converters act on HC, CO, and NOx. Replacement parts must be

original Honda parts or equivalents.

The catalytic converters must operate at high temperature for the chemical

reactions to take place. They can set fire to any combustible materials that come

near them. Park your motorcycle away from high grasses, dry leaves, or other

flammables.

Defective catalytic converters contribute to air pollution, and can impair your

engine’s performance. Follow these guidelines to protect your motorcycle’s

catalytic converters.

Always use unleaded gasoline. Even a small amount of leaded gasoline can

contaminate the catalyst metals, making the catalytic converters ineffective.

Keep the engine in good running condition.

A poorly running engine can cause the catalytic converter to overheat causing

damage to the converter or the motorcycle.

If your engine is misfiring, backfiring, stalling, or otherwise not running

properly, stop riding and turn off the engine. Have your motorcycle serviced

as soon as possible.

Technical Information

255

Oxygenated Fuels

Some conventional gasolines are being blended with alcohol or an ether

compound. These gasolines are collectively referred to as oxygenated fuels. To

meet clean air standards, some areas of the United States and Canada use

oxygenated fuels to help reduce emissions.

If you use an oxygenated fuel, be sure it is unleaded and meets the minimum

octane rating requirement.

Before using an oxygenated fuel, try to confirm the fuel’s contents. Some states/

provinces require this information to be posted on the pump.

The following are the EPA-approved percentages of oxygenates:

ETHANOL (ethyl or grain alcohol) 10% by Volume

You may use gasoline containing up to 10% ethanol by volume. Gasoline

containing ethanol may be marketed under the name ‘‘Gasohol’’.

MTBE (Methyl Tertiary Butyl Ether) 15% by Volume

You may use gasoline containing up to 15% MTBE by volume.

METHANOL (methyl or wood alcohol) 5% by Volume

You may use gasoline containing methanol containing up to 5% methanol by

volume as long as it also contains cosolvents and corrosion inhibitors to

protect the fuel system. Gasoline containing more than 5% methanol by

volume may cause starting and/or performance problems. It may also damage

metal, rubber, and plastic parts of your fuel system.

If you notice any undesirable operating symptoms, try another service station or

switch to another brand of gasoline.

Fuel system damage or performance problems resulting from the use of an

oxygenated fuel containing more than the percentages of oxygenates mentioned

above are not covered under warranty.

Oxygenated fuels can damage paint and plastic. Be careful not to spill fuel when

filling the fuel tank. Wipe up any spills immediately.

Oxygenated f uels can damage paint and plastic. Damage caused by spilled f uel

is not covered by warranty.

256

Technical Information

Authorized Manuals

The Service Manual used by your authorized Honda dealer is available from

Helm, Inc. (USA only, Canada: See your Honda dealer to order authorized

manuals.)

Also available but not necessary to service your model is the Honda Common

Service Manual which explains theory of operation and basic service

information for various systems common to all Honda motorcycles, motor

scooters and ATVs.

These Honda manuals are written for the professional technician, but most

mechanically capable owners should find them easy to use if they have the

proper tools and observe proper safety standards. Special Honda tools are

necessary for some procedures.

Publication Item No.

Description

Price Each

61MCA54

2009 GL1800 Service Manual/ETM

$75.00

61MCAC53

2009 GL1800 SM/ETM CDʵROM

$60.00

61CM002

Common Service Manual

$48.00

31MCA680

2009 GL1800 Owner’s Manual

$16.00

31MCAT30

2009 GL1800 Navigation System Manual

$16.00

Prices are subject to change without notice and without incurring obligation.

(Also available for Models equipped with Airbag)

Publication Item No.

Description

Price Each

31MCAU30

2009 GL1800 Owner’s Manual Airbag

$16.00

Supplement

31MCAV10

2009 GL1800 Airbag Brochure

$14.00

^ˎPrices are subject to change without notice and without incurring obligation.

258

Consumer Information

Authorized Manuals

Order On-Line: www.helminc.com

Order Toll Free: 1-888-CYCLE93

(1-888-292-5393)

(NOTE: For Credit Card Orders Only)

Monday

Friday 8:00 AM

6:00 PM EST

By completing this form you can order the materials desired. You can pay by

check or money order, or charge to your credit card. Mail to Helm, Inc. at the

address shown on the back of this order form (USA only).

Canada: See your Honda dealer to order authorized manuals.

Publication

Item Description

Qty.

Price Each

Total

Item No.

Price

Prices are subject to change without notice and without incurring

Sub Total

obligation.

Purchaser’s Sales Tax

Mich. add 6 %

Calif. add 7.25 %

Orders are mailed within 10 days. Please allow adequate time

Handling Charge

$3.75

for delivery.

Grand Total

Consumer Information

259

NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to

whose attention the shipment should be sent.

Customer Name

Attention

Apartment Number

T Streetaddress/P.O.BOX

City

State

Zip Code

Daytime Telephone Number

(

)

Check or money order enclosed payable to Helm Inc. U.S. funds only. Do not send cash.

Check here if your billing address is different from the shipping address shown above.

MasterCard

VISA

Discover

Account Number

Expiration: Mo. Yr.

Security Code

Customer Signature

Date

These Publications cannot be returned for credit without receiving advance authorization within 14 days of delivery. For returns, a

restocking fee may be applied against the original order.

HELM P.O. BOX 07280, DETROIT, MICHIGAN 48207

260

Consumer Information

Warranty Coverage

Your new Honda is covered by these warranties:

Motorcycle Limited Warranty

Emission Control System Warranty

Noise Control Warranty

There are responsibilities, restrictions, and exclusions which apply to these

warranties. Please read the Warranties Booklet given to you by your Honda

dealer at the time of purchase. Be sure to keep your Honda owner’s card with

your Warranties Booklet (USA only).

It is important to realize that your warranty applies to defects in material or

workmanship of your Honda. Your warranty coverage does not apply to normal

wear or deterioration associated with using the motorcycle.

Your warranty coverage will not be voided if you choose to perform your own

maintenance. However, you should have the proper tools and service

information and be mechanically qualified. Failures that occur due directly to

improper maintenance are not covered.

Almost all of your warranty coverage can be extended through the Honda

Protection Plan (USA only). For more information, see your Honda dealer.

Consumer Information

261

Warranty Service

Please remember that recommended maintenance interval servicing is not

included in your warranty coverage. Additionally, your warranty does not apply

to the normal wear of items (such as brakes, tires, etc.).

If you believe you have a problem with your motorcycle, call the service

department of your Honda dealer. Make an appointment for an inspection and

diagnosis. Remember, as the owner of the motorcycle, you will be asked to

authorize that inspection. Your dealer will give you the results of the inspection.

If the problem is covered under warranty, your dealer will perform the warranty

repairs for you.

If you have questions about warranty coverage or the nature of the repair, it is

best to talk to the Service Manager of your Honda dealer.

Sometimes, in spite of the best intentions of all concerned, a misunderstanding

may occur. If you aren’t satisfied with your dealer’s handling of the situation,

we suggest you discuss your problem with the appropriate member of the

dealership’s management team. If the problem has already been reviewed with

the Service Manager, Parts Manager, Sales Manager, etc., contact the Owner of

the dealership or their designated representative.

262

Consumer Information

Contacting Honda

Your owner’s manual was written to cover most of the questions you might ask

about your Honda. Any questions not answered in the owner’s manual can be

answered by your Honda dealer. If your dealer doesn’t have the answer right

away, they will get it for you.

If you have a difference of opinion with your dealer, please remember that each

dealership is independently owned and operated. That’s why it’s important to

work to resolve any differences at the dealership level.

If you wish to comment on your experiences with your Honda or with your

dealer, please send your comments to the following address (USA only):

Motorcycle Division, American Honda Motor Co., Inc., P.O. Box 2200,

Torrance, CA 90509-2200, mailstop: 100-4C-7B, telephone: (866) 784-1870.

Canada: Refer to the Warranties Booklet that was supplied with your vehicle.

Please include the following information in your letter:

name, address, and telephone number

product model, year, and VIN

date of purchase

dealer name and address

We will likely ask your Honda dealer to respond, or possibly acknowledge your

comments directly.

Consumer Information

263

Your Honda Dealer

Once you purchase your new Honda, get familiar with the organization of your

Honda dealer so you can utilize the full range of services available.

The service department is there to perform regular maintenance and unexpected

repairs. It has the latest available service information from Honda. The service

department will also handle warranty inspections and repairs.

The parts department offers Honda Genuine Parts, Pro Honda products, Honda

Genuine Accessories (USA only), and Honda accessories and products (Canada

only). The same quality that went into your Honda can be found in Honda

Genuine replacement parts. You’ll also find comparable quality in the

accessories and products available from the parts department.

The sales department offers the Honda Protection Plan to extend almost all of

your warranty coverage (USA only).

Your Honda dealer can inform you about competition and other riding events in

your area. You’ll also find that your dealer is a source of information about

American Honda’s Rider Education Centers and the Honda Rider’s Club of

America (USA only).

We’re sure you’ll be as pleased with the service your Honda dealer continues to

provide after the sale as you are with the quality and dependability of your

Honda.

264

Consumer Information

Reporting Safety Defects (USA only)

If you believe that your vehicle has a defect which could cause a crash or

could cause injury or death, you should immediately inform the National

Highway Traffic Safety Administration (NHTSA) in addition to notifying

American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if

it finds that a safety defect exists in a group of vehicles, it may order a

recall and remedy campaign. However, NHTSA cannot become involved in

individual problems between you, your dealer, or American Honda Motor

Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at

1-888-327-4236

(TTY: 1-800-424-9153); go to

http://www.saf ercar.gov; or write to: Administrator, NHTSA, 1200 New

Jersey Avenue, SE., Washington, DC 20590.

You can also obtain other information about motor vehicle safety from

http://www.saf ercar.gov.

266

Consumer Information

Table of Contents

The following presents the contents of each section of your owner’s manual.

MOTORCYCLE SAFETY

Important Safety Information

Accessories & Modifications

Safety Labels

INSTRUMENTS & CONTROLS

Operation Component Locations

Gauges & Indicators

Multi Information Display

Opening/Ending Ceremony

On/Off-Opening/Ending Ceremony

Special Message for Opening/Ending Ceremony

Odometer/Tripmeter

Switch the Day Mode Display and Night Mode Display

Display Illumination Adjustment

Digital Clock

Air Temperature Meter

Travel Trunk & Saddlebags Open Indicator

Display Type Selection

Changing the Information Display

Controls & Features

Ignition Switch

Engine Stop Switch

Start/Reverse Button

Reverse (RVS) Switch

Cruise Control Switches

Headlight Dimmer Switch

Turn Signal Switch

Horn Button

Audio Control Switches

Hazard Switch

Headlight Beam Adjustment Knob

Rear Suspension Spring Pre-load Adjustment Switch

Ventilation Controls

Windscreen Height Adjustment

268

Table of Contents

BEFORE RIDING

Are You Ready to Ride?

Protective Apparel

Rider Training

Is Your Motorcycle Ready to Ride?

Pre-ride Inspection

Load Limits & Guidelines

Load Limits

Loading Guidelines

Cargo Compartment

Travel Trunk & Saddlebags

Remote Transmitter

Fairing Pockets

Trunk Side Pockets

Comfort & Convenience Adjustment

Windscreen Height Adjustment

Windscreen Ventilation Louver

Side Ventilation Louvers

Foot Warmer Ventilation Louvers

Handgrip Heater

Seat Heater

Accessories

Accessory (ACC) Terminal

Table of Contents

269

Table of Contents

BASIC OPERATION & RIDING

Safe Riding Precautions

Starting & Stopping the Engine

Preparation

Starting Procedure

Flooded Engine

Bank Angle Sensor Ignition Cut-off System

How to Stop the Engine

Shifting Gears

While You Are Riding

Riding in Reverse

Braking

Anti-Lock Brake System (ABS)

ABS Indicator Light

Tire Pressure Monitoring System (TPMS)

Low Tire Pressure Indicator

Tire Pressure Monitoring System (TPMS) Indicator

Changing a Tire with TPMS

Parking

Theft-prevention Tips

Riding with a Passenger or Cargo

Riding with Cruise Control

Cruise Control

To Set Cruise Control

To Change the Set Speed

To Cancel Cruise Control

Riding in Bad Weather

AUDIO SYSTEMS

Audio Systems

MODE Knob/Button Function

VOLUME Knob/Button Function

100

Display Locations

101

Controls Locations

103

Audio Component Locations

105

System Control

106

270

Table of Contents

Switch Output

107

VOLUME Control

108

Tone Control

109

Fader Control

111

Ambience (AMB)

112

Beep Set

113

Auto Volume Control (AVC)

114

Muting

115

AM/FM Radio

116

Radio Antenna

116

Select Band

117

Select Station

118

Preset Stations

119

Auto Select

120

XM Radio (USA only)

121

Receiving Satellite Radio Service

121

Operating the XM Radio

124

XM Radio Display Messages

124

Select Channel

125

Preset Channel

126

Weather Information

127

Weather Band (WB)

127

Auxiliary Function

129

Auxiliary (AUX) Input

129

Input Jack Setup

130

Intercom (I-COM) System

132

System Control

132

VOLUME Control

133

Intercom Muting

134

Navigation System

135

System Control

135

Switch Output

135

Navi Volume Control

136

Table of Contents

271

SERVICING YOUR HONDA

137

Bef ore You Service Your Honda

The Importance of Maintenance

140

Maintenance Safety

141

Important Safety Precautions

142

Periodic Maintenance

143

Maintenance Schedule

144

Maintenance Record

148

Service Preparations

Maintenance Component Locations

149

Tool Kit

152

Owner’s Manual Storage

153

Cover Removal

154

Clip Removal

159

Service Procedures

Fluids & Filters

Fuel

160

Engine Oil & Filter

163

Coolant

170

Crankcase Breather

173

Final Drive Oil

174

Engine

Clutch System

176

Spark Plugs

178

Chassis

Suspension

180

Brakes

184

Tires

189

Side Stand

196

Electrical

Battery

197

Appearance Care

201

272

Table of Contents

TIPS

207

Storing Your Honda

208

Transporting Your Motorcycle

210

You & the Environment

211

TAKING CARE OF THE UNEXPECTED

213

General Guidelines

214

If Your Engine Quits or Won’t Start

215

If You Have a Flat Tire

218

If Your Engine Overheats

229

If the Low Oil Pressure Indicator Lights

231

If a Fuse Blows

232

If You Crash

235

If You Lose Your Key

236

If Your Battery Is Low (or Dead)

237

TECHNICAL INFORMATION

239

Vehicle Identification

240

Specifications

242

Break-in Guidelines

248

Tire Pressure Monitoring System (TPMS) Explanation

249

Emission Control Systems

251

Catalytic Converters

255

Oxygenated Fuels

256

CONSUMER INFORMATION

257

Authorized Manuals

258

Warranty Coverage

261

Warranty Service

262

Contacting Honda

263

Your Honda Dealer

264

The Honda Rider’s Club (USA only)

265

Reporting Safety Defects (USA only)

266

Table of Contents

273

Honda GL1800 Goldwing. Owners Manual - page 7
