Great Wall. Service manual for chassis and body (2006) - page 33





B0-14

3.

Tear down the door interior trim panel

Dr manually operated)

(a)

Tear down the inner clip bolts and inner clip;

(b)

Tear down the door lamp bolts and the door lamp;

(c)

Insert the screwdriver into the seams between fixed

clipes and the door interior trim panel.

Notice: before using the screwdriver, its head must be

wrapped with adhesive strap,

(d)

Tear down the door interior trim panel.

(Dr electric)

(a)

Tear down the inner clip bolts and inner clip;

(b)

Tear down the door lamp bolts and the door lamp;

(c)

Tear down the electric switch and its panel; and

(d)

Insert the screwdriver into the seam between the fixed

clip and the door interior trim panel to loose the interior

trim panel.

(f)

Tear down the door interior trim panel.

SL SK SY)

(a)

Tear down the inner clip bolts and inner clip;

(b)

Tear down the electric switch and its panel;

(c)

Tear down the screw cap and screw of door interior trim

panel;

(d)

Insert the screwdriver into the seam between the fixed

clipes and door interior trim panel to loose the panel.

Notice: the head of screwdriver must be wrapped with

adhesive strap when using the screwdriver.

(e)

Tear down the door interior trim panel.

SF)

(a)

Tear down the inner clip bolts and the inner clip;

(b)

Tear down the door lamp bolts and the door lamp;

(c)

Tear down the electric switch and panel;

(d)

Insert the screwdriver into the seam between the fixed

clipes and door interior trim panel to loose the panel;

(e)

Tear down the door interior trim panel

SJ)

(a)

Tear down the inner clip bolts and the inner clip;

(b)

Tear down the electric switch and panel;

(c)

Tear down the screw caps and screws of door interior trim

panel;

(d)

Insert the screwdriver into seam between fixed clipes and

door interior trim panel to loosen the panel.

Notice: the screwdriver head must be wrapped with

adhesive strap before using the screwdriver.

(e)

Tear down the door interior trim panel.

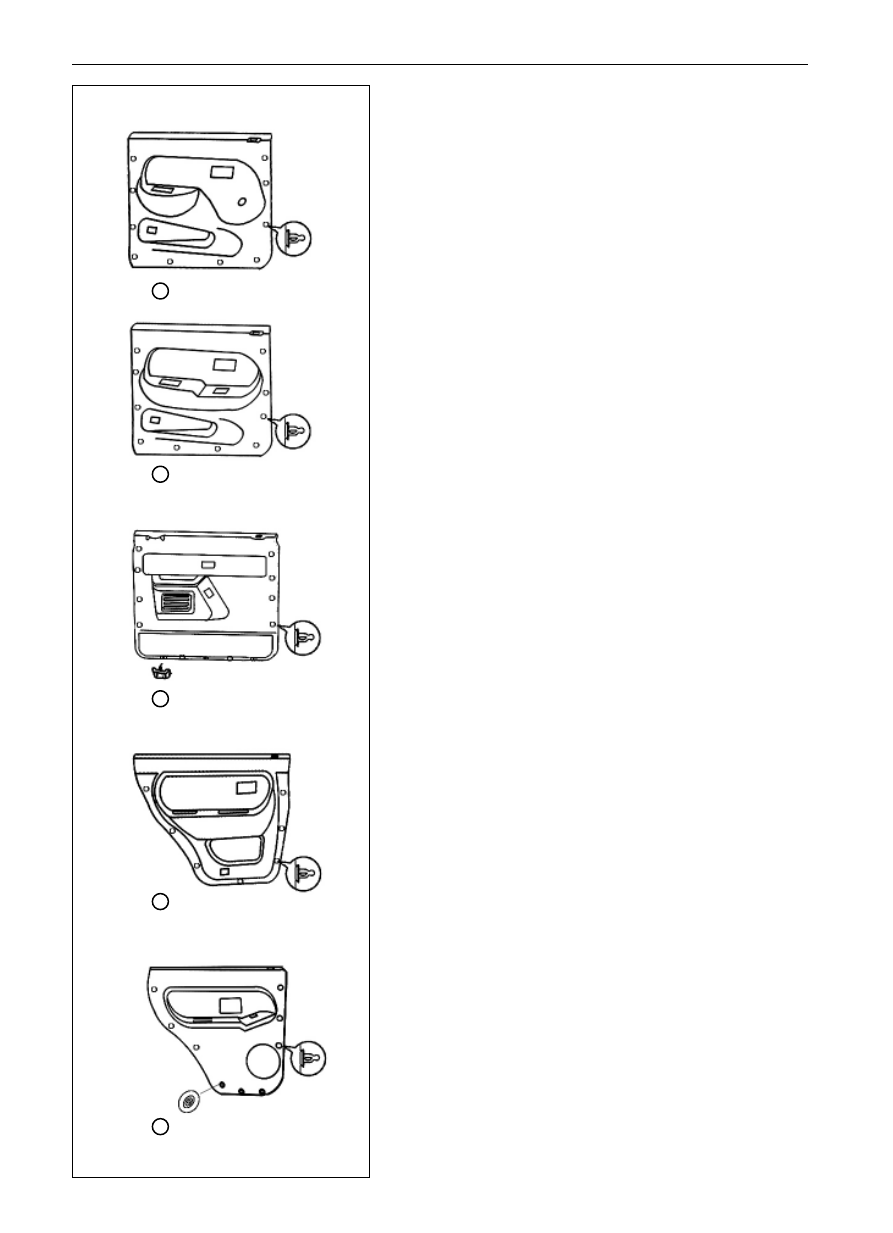

Vehicle Body

Rear Door

manually operated indoor plate (Dr)

 electric indoor plate (Dr)

electric indoor plate(SL. SK. SL)

electric indoor plate(SF)

electric indoor plate(SJ)

ten clipes

ten clipes

eight clipes

sevenclips

sixclips

B0-15

Vehicle Body

Rear Door

SF

SJ

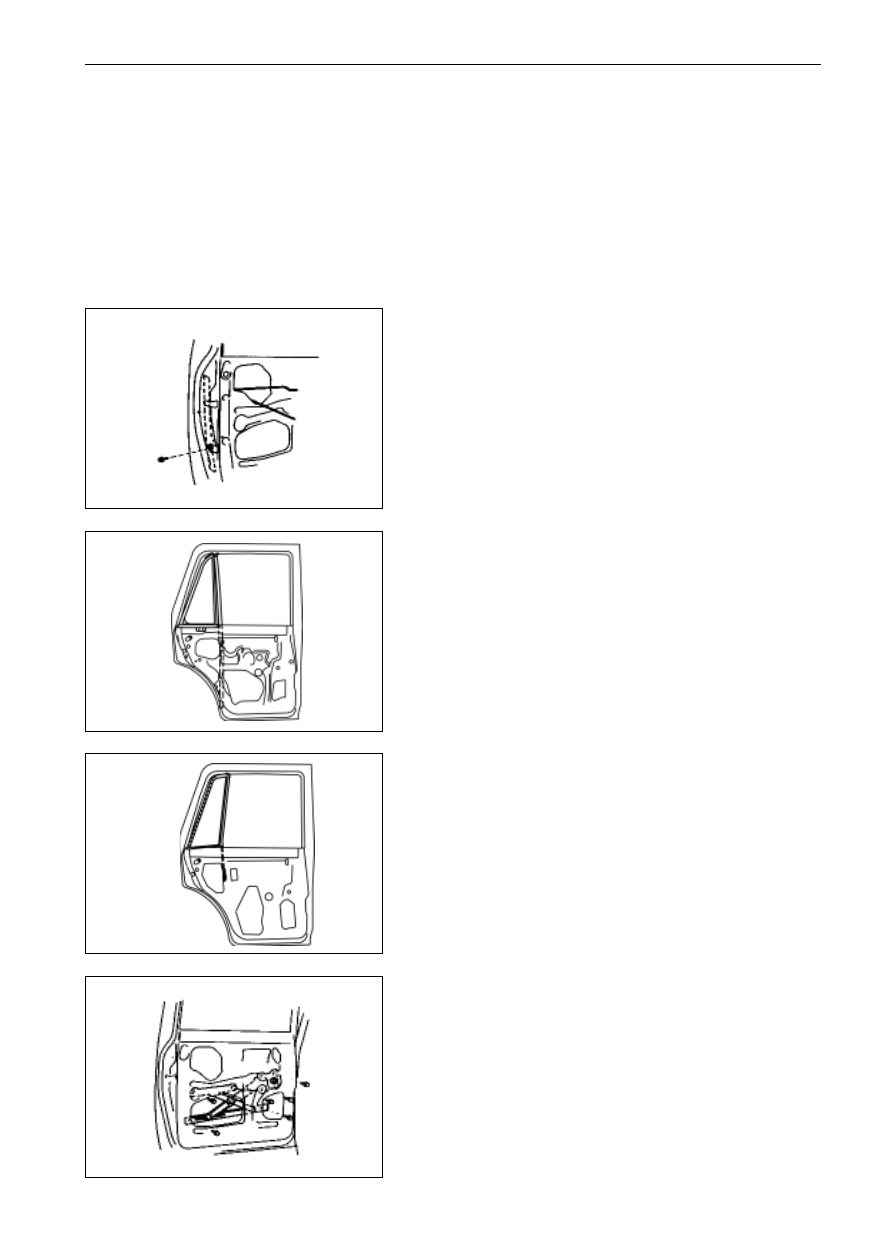

4.

Tear down the outer auchi

Prize the clipes alongside the edge of paneling to tear down the

outer

5.

Tear down the door window glass;(Dr SF SL SK SY SJ)

Tear down the fixing bolts of two glass channels

(a)

Pull the glass up to take it down.

(b)

Pull the glass downwardly to take it down after disassem-

bling the tail door lower baffle and lower dust strip (Dr)

6.

Tear down the upper glass guide track (SF)

Tear down the bolts and guide track.

7.

Tear down the lower rear glass guide track (Dr SF);

Tear down the bolts and guide track.

8.

Tear down the quarter window glass (SF SJ)

9.

Tear down the door glass channel

10. Tear down the glass elevator(Dr SF SL SK SY)

(a)

Tear down the two fixing bolts of small sliding track.

(b)

Tear down the fixing bolts of three elevators (manually

operated)

(c)

Disassemble the elevator through auxiliary hole.

B0-16

(SJ)

(a)

Tear down the four fixing bolts of elevator bracket;

(b)

Tear down fixing bolts of three elevators;

(c)

Disassemble the elevator through the auxiliary hole.

Vehicle Body

Rear Door

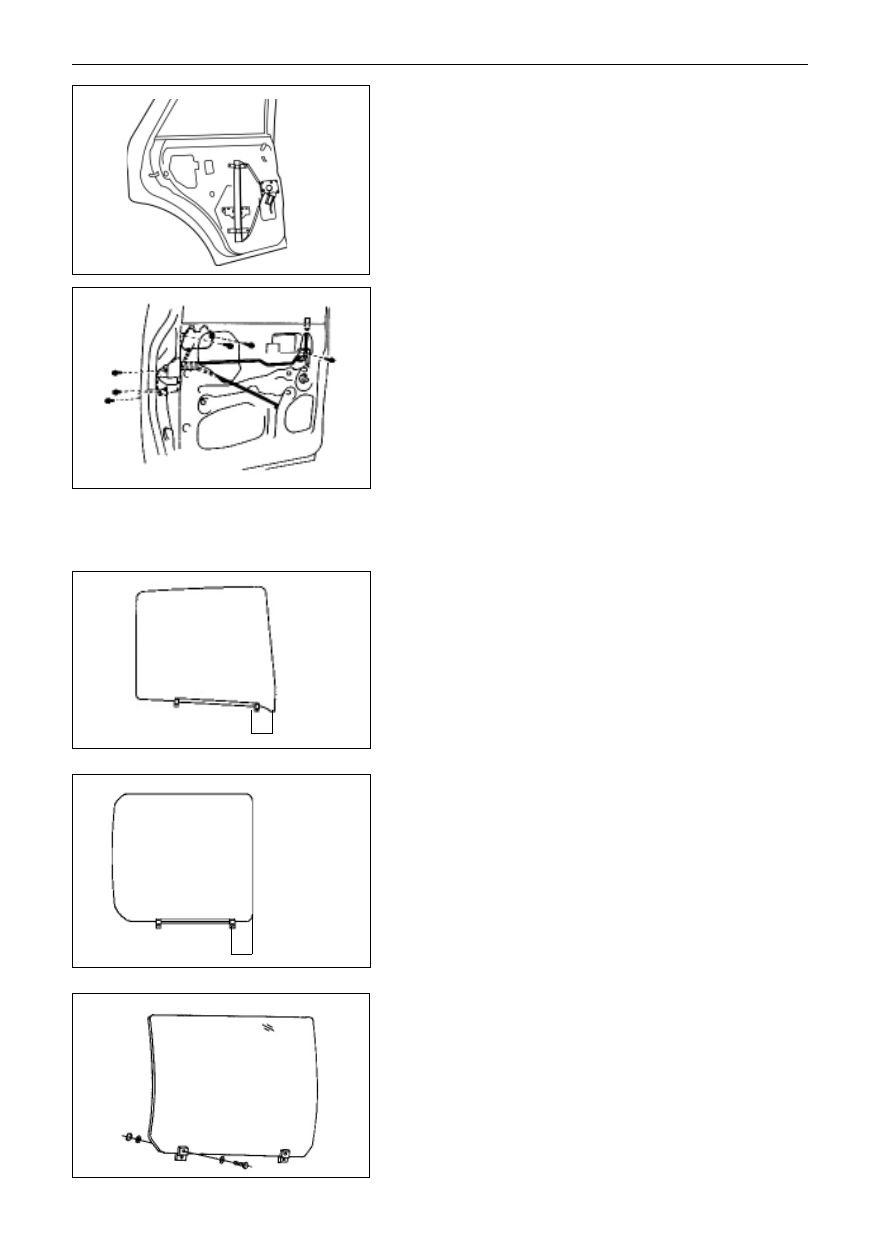

11. Tear down the lock ring inside the vehicle;

Disconnect the connecting bar to tear down the lock ring inside

vehicle body.

12. Tear down door lock and the outdoor handle with lock

barrel:

(a)

Disconnect the outdoor with lock barrel from the con-

necting bar.

(b)

Tear down three screws and door lock.

(c)

Tear down the two bolts and the outdoor handle with lock

barrel.

(d)

Tear down the spring snapping ring and lock barrel.

Change of Glass

(Dr SF)

1.

Tear down the glass bracket with screwdriver or similar

tool.

2.

Coat the black glue on the inner side of glass bracket

liner.

3.

Tap the glass bracket with rubber hammer to encase it.

Tear down the bolts on gear panel with the pliers or similar

tool.

4.

Tear down the bolts of door window glass bracket to take the

glass out.

SJ

a

Dr

a:35mm

b

b:80mm(manual)

  65mm(electric)

SF
