Brake-22

2. Install the piston gasket in the tong body.

a. Screw the bleed screw into the bleed hole;

b. Install the square gasket in the sealing groove of two cylinders of

pump respectively after coat its working surface with proper

rubber lubricant.

Tightening torque 7

10N

m.

3. Connect the brake pipeline

Connect the brake oil pipe to the tong.

Tightening force:   50

5N

m

4. Fill up the brake system with the brake fluid and drain the air

in the brake system.

5. Check for leakage of brake fluid.

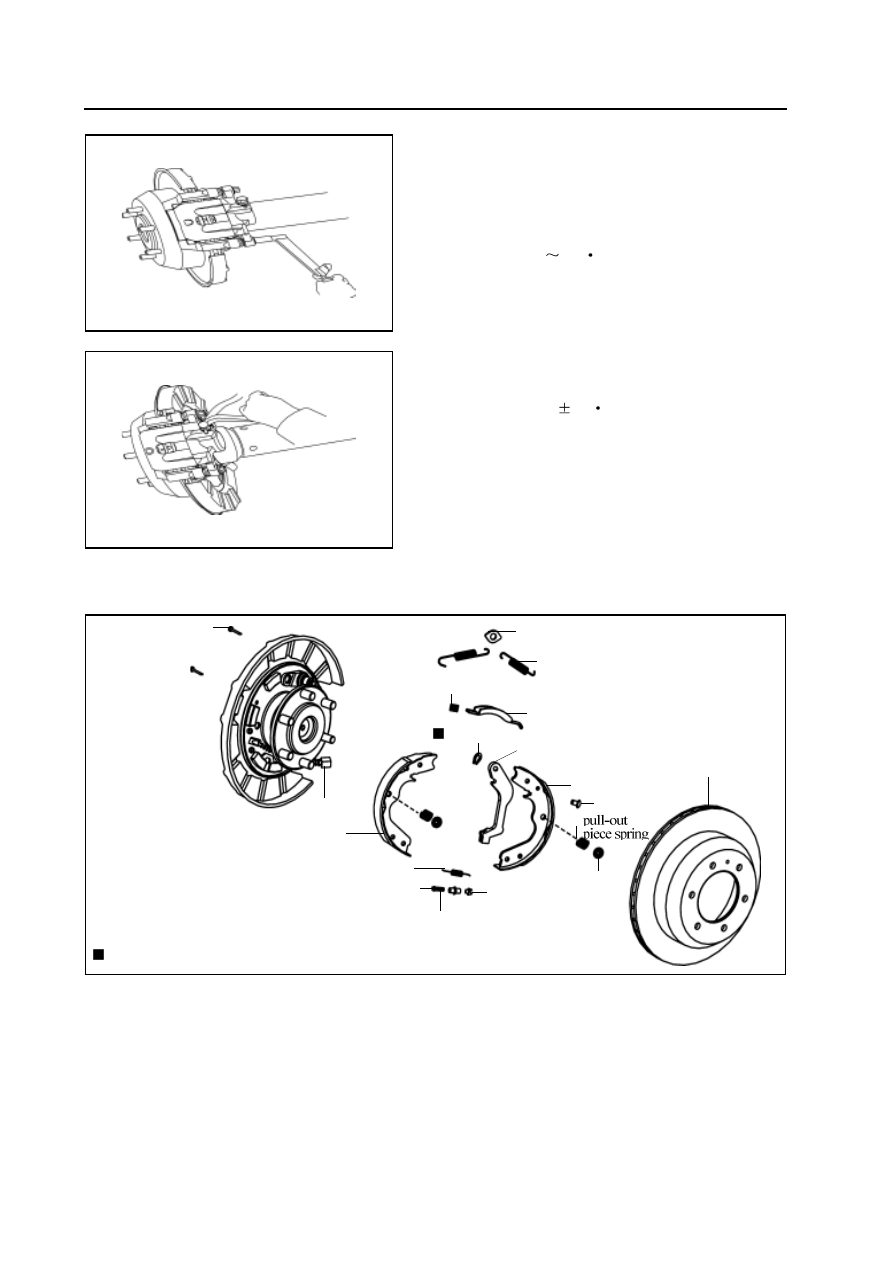

Rear parking brake

pull-out piece

spring draw bar

hand brake
stay wire

front brake shoe

lower tension spring

clearance-adjusting bolt

clearance-adjusting gear

clearance-adjusting
bolt head

pull-out piece
spring seat

pulling arm pin

rear brake shoe

brake shoe pulling arm

saddle type washer

push pedal

push pedal
 release spring

stopper

upper release spring

rear brake disc

 Used component which can not be used any more.

Removal of rear brake

Remarks: When the brake torque of the hand brake cannot meet

the brake requirement, the thickness of the brake shoe gasket

shall be tested. If it is less than the minimum value of brake show

gasket, the brake shoe shall be replaced.

minimum thickness: 1.0mm

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-23

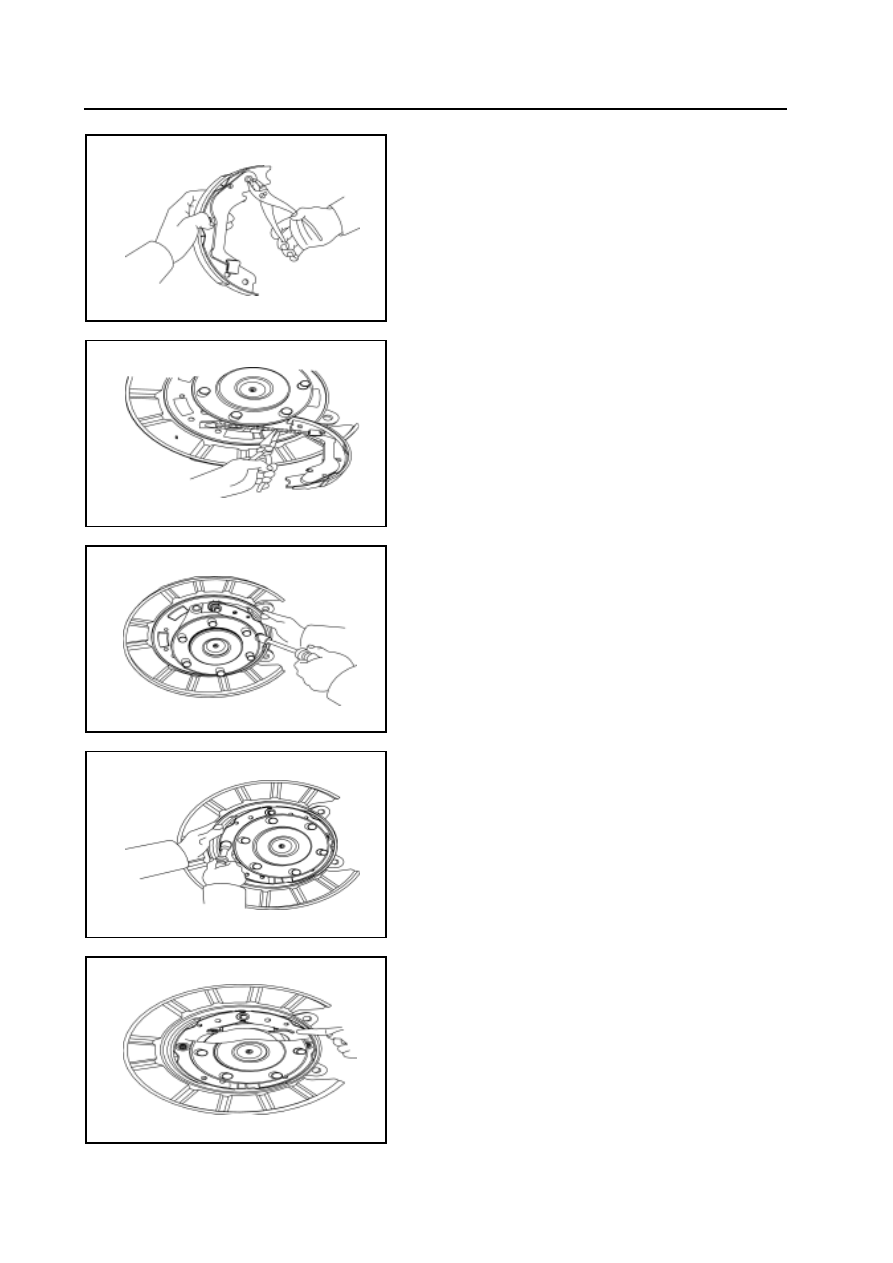

1. Remove the rear wheel

2. Remove the rear brake caliper

3. Remove the rear brake disc

 Remarks:   If the brake disc is difficult to remove, remove the

 adjust ment spout plug, insert the screwdriver into the adjust

 ment spout of the rear brake bedplate, Release the brake shoe

 adjustment device through twisting the clearance-adjusting gear.

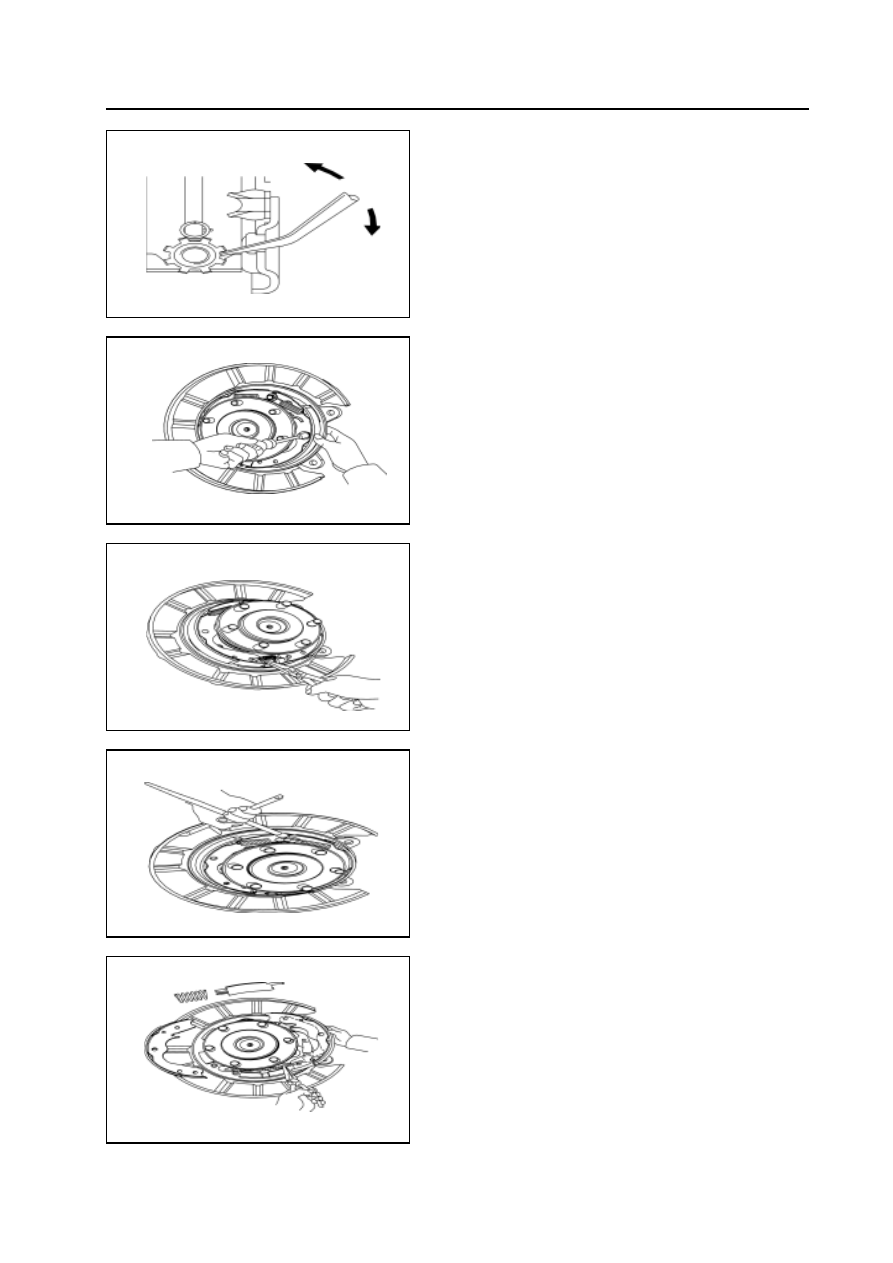

4. Remove the shoe plate, pull-out the piece spring , pull-out piece

 spring seat, pull-out piece spring draw bar

5. Remove the lower tension spring and clearance-adjusting device

Use clipper to remove the extension spring, release the clearance

adjusting device and remove it.

6. Remove the two upper extension springs

7. Remove the brake shoe

a. Remove the brake shoe, baffle, baffle return spring.

b. Remove the band brake stay wire from the stay and brake pulling

arm.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-24

8. Remove the parking brake pulling arm

Use the screw driver to remove the parking brake pulling arm

Check and maintain the components of brake

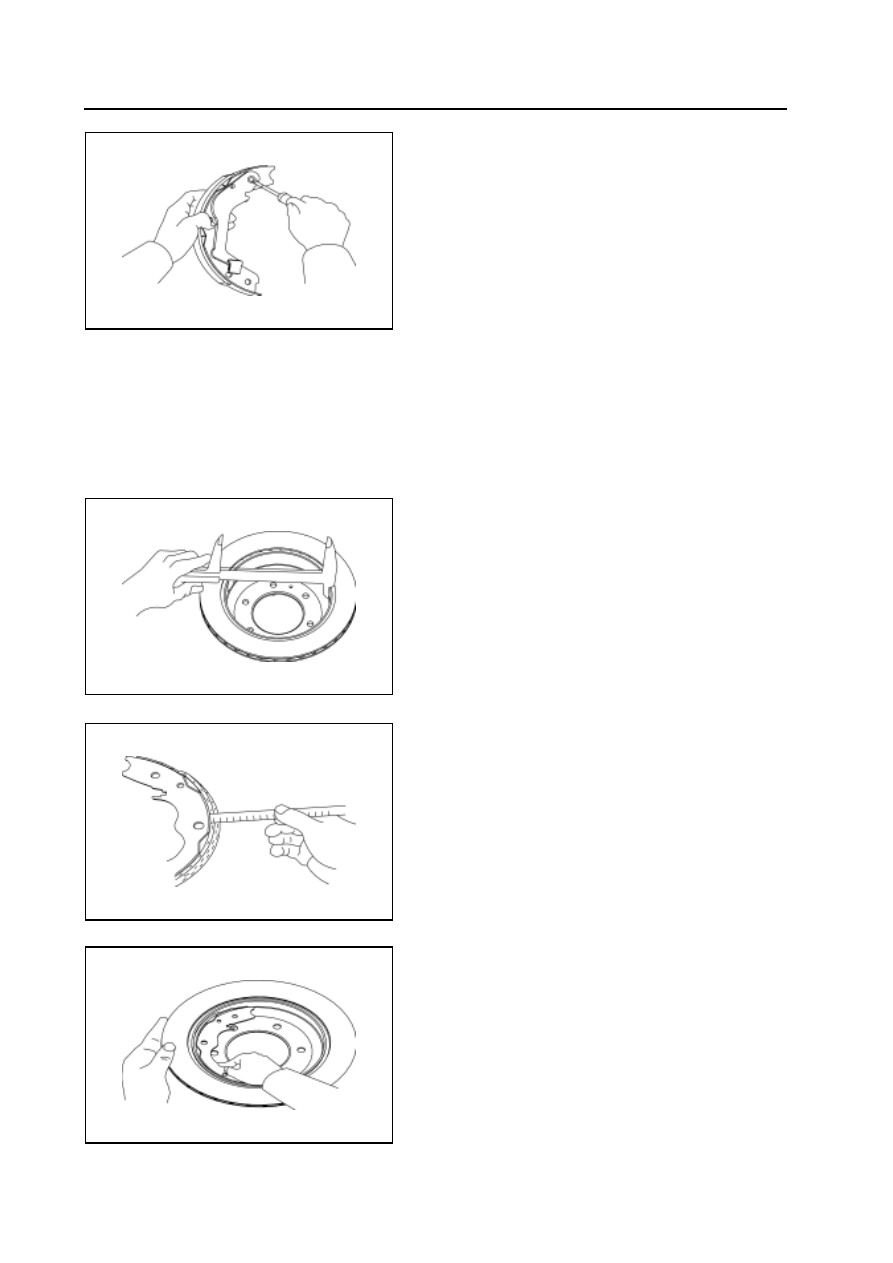

1. Check the dismantled components

Check to se whether the dismantled components are wearing, rusted

or damaged.

2. Measure the internal diameter of the brake disc

Standard inter diameter: 210mm

maximum internal diameter: 212mm

3. Measure the thickness of the brake shoe

standard thickness:   4.0mm

minimum thickness:   1.0mm

If the thickness of the brake shoe is less than the minimum value, or

there is uneven wearing, the brake shoe shall be replaced.

Remarks:   If any one of the brake shoes needs to be replaced, all

the brake shoes need to be replaced to keep the even brake

performance.

4. Check whether the contact between the brake shoe gasket and

brake disc is sound.

If the contact between the brake shoe gasket and brake disc is bad, it

should use the brake shoe grinding device to repair or replace the

brake shoe assembly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-25

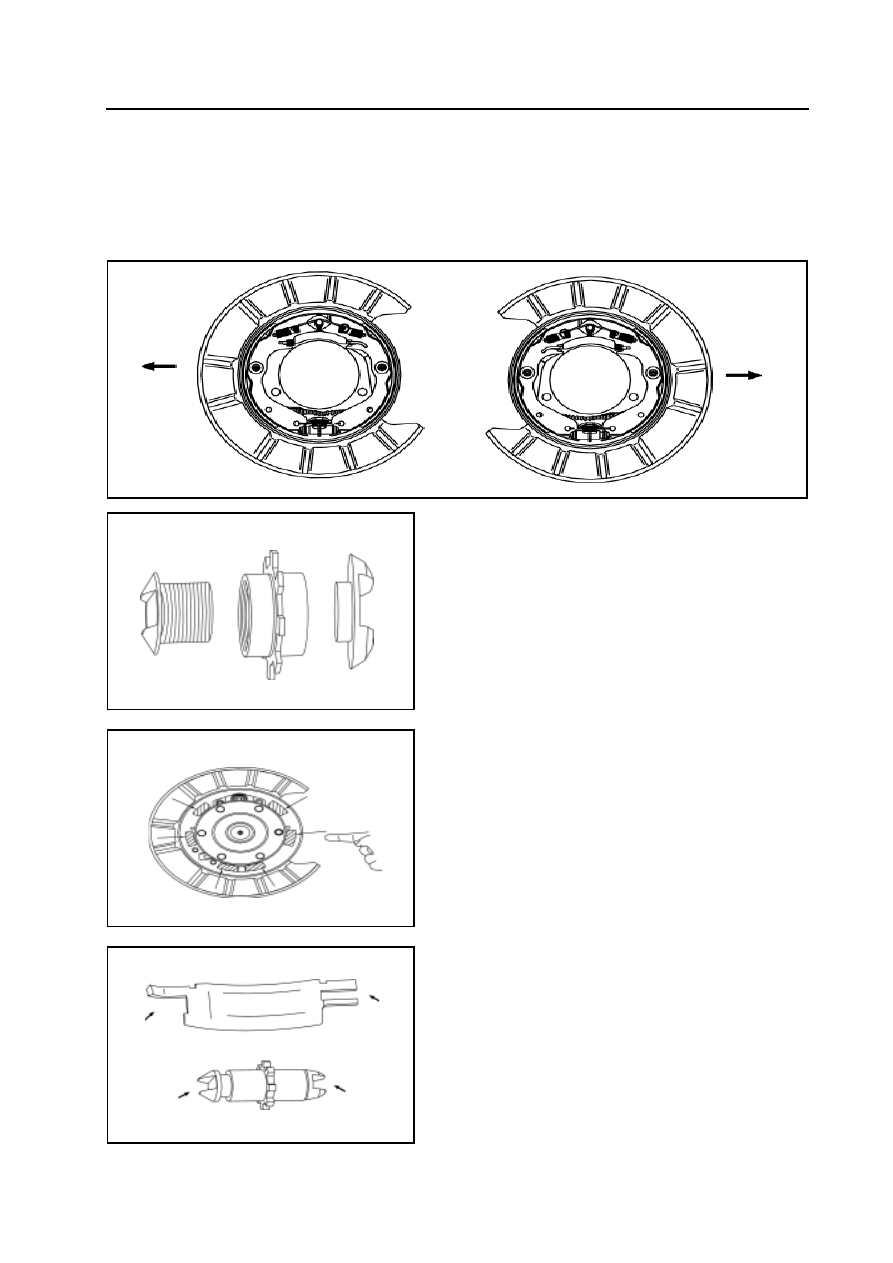

1. Install the clearance-adjusting device assembly

Insert the clearance-adjusting shaft head into the clearance-adjusting

wheel; screw the clearance-adjusting screw rod into the clearance

adjusting wheel.

Remarks: The screw direction of left clearance-adjusting screw

rod is the left hand.

The screw direction of right clearance-adjusting

screw rod is the right hand.

2. Coat the following components with the proper anti-high tem

 perature grease :

a. Contact position of brake soleplate and brake shoe.

b. Contacting surface of push plate and shoe plate; contacting sur-

face of clearance-adjusting device assembly and shoe plate.

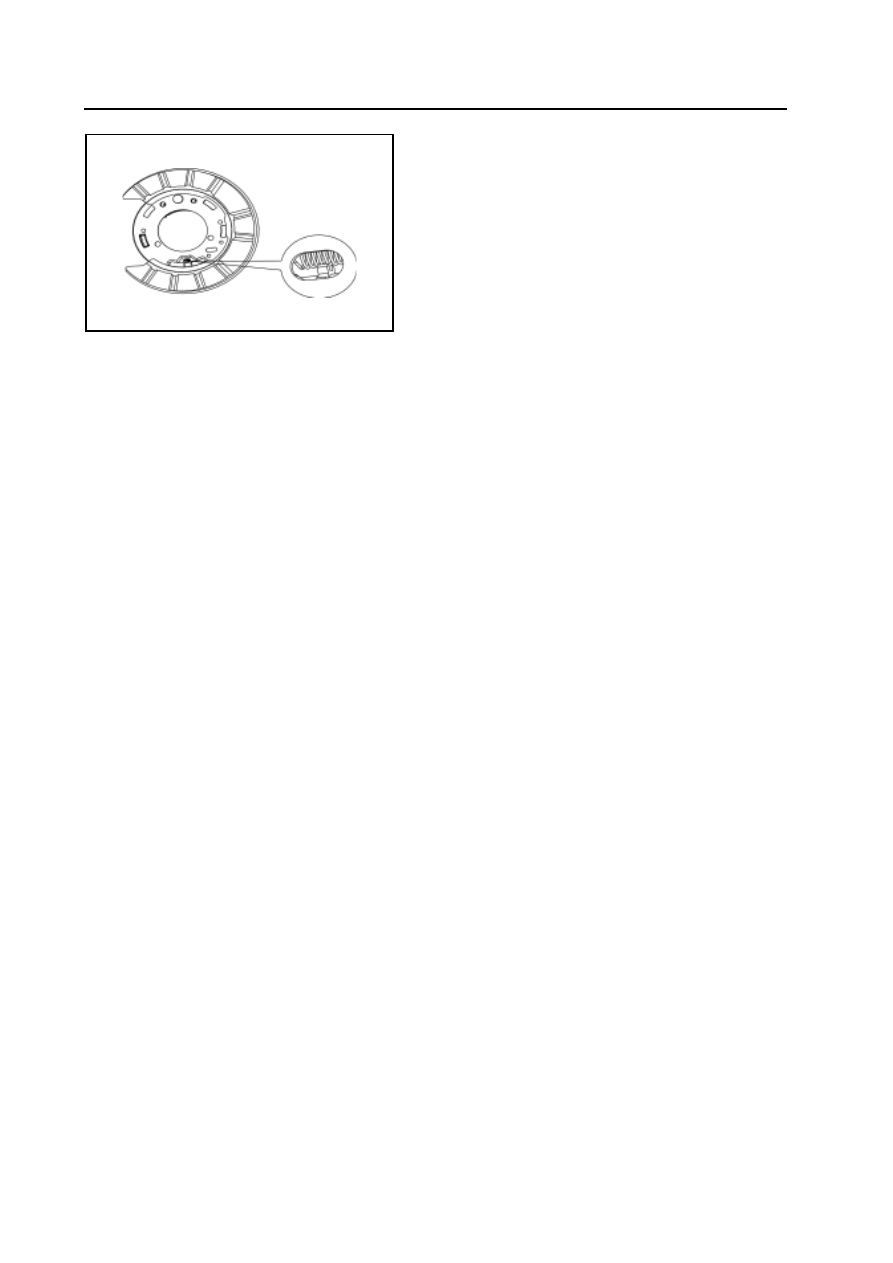

Assembly of rear parking brake

Remarks:   Assemble the component according to the direction shown in figure;

It is prohibited strictly that the working surface of brake drum and abrasion disk is polluted by the  paint and grease. It

should be removed by the fine abrasive paper if the abrasion disk has little dirty. The brake shoe should be replaced when

the polluted area is large, otherwise it will cause the serious effect of insufficient brake force.

left wheel

front

right wheel

front

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-26

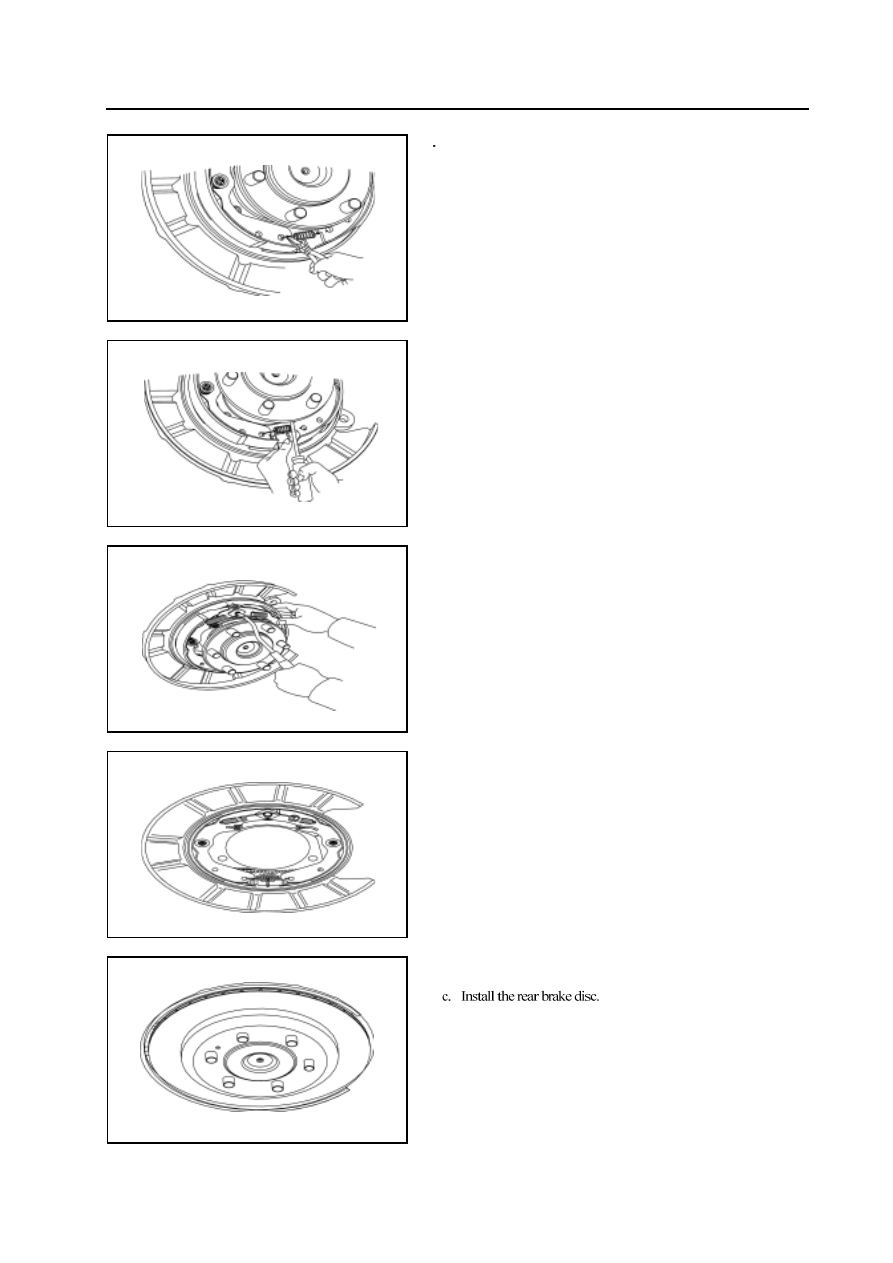

2. Install the parking brake pulling arm

Install the parking brake pulling arm and use a new saddle washer.

3. Install the rear brake shoe

a. Install the parking brake pull wire on the parking brake pulling

arm.

b. Insert the end of rear brake shoe into the support pin of brake

soleplate.

Insert the pull-out piece spring pull bar into the brake soleplate and

brake shoe assembly, then insert the pull-out piece spring and pull-

out piece spring base. Use the  pull-out piece spring fork to rotate

the pull-out piece spring base in position.

4. Install the front brake shoe

install the front shoe plate; insert one of its ends into the fixed pin of

soleplate.

Insert the pull-out piece spring pull bar into the brake soleplate and

brake shoe assembly, then insert the pull-out piece spring and pull-

out piece spring base. Use the  pull-out piece spring fork to rotate the

pull-out piece spring base in position.

5. Install the brake push plate

Insert the push plate release spring into the push plate; then install

the push plate on the place between the front and rear brake shoe

assemblies.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-27

6

Install the lower tension spring

Install the lower tension spring between the front and rear shoe plate.

7. Install the clearance-adjusting device.

Install the clearance-adjusting device after poke the brake shoe by

screwer.

8. Install two upper release springs

Insert the block into the support pin, then install the upper release

spring on the place between two brake assemblies.

9. Check the operating process of automatic adjusting mechanism.

a. Pull the instruction brake pill-wire, then release it. Check the clear-

ance-adjusting gear for rotation. If can not rotate, check the rear

brake and find the problem.

b. Adjust the clearance-adjuster to the length as short as possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-28

10. Adjust the clearance between the brake drum and brake shoe.

Poke the adjusting hole plug on the brake drum, insert the screwdriver

into the clearance-adjusting hole; rotate the clearance-adjusting gear

to expand the brake shoe until the brake disc can not be rotated by

hand. Then rotate it for 3-5 teeth in anticlockwise, rotate the brake

disc by hand at the same time, it is proper that it can rotate freely

and without the contact between the abrasion and disc. It is allowable

that the non-running-in brake shoe has the slight abrasion sensing.

When adjust the clearance, the left and right wheel must be adjust at

the same, install the adjusting hole plug after the completion of

adjusting .

11.Rear brake caliper assembly

12.Rear wheel assembly



Tighten torque :120N.m

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-29

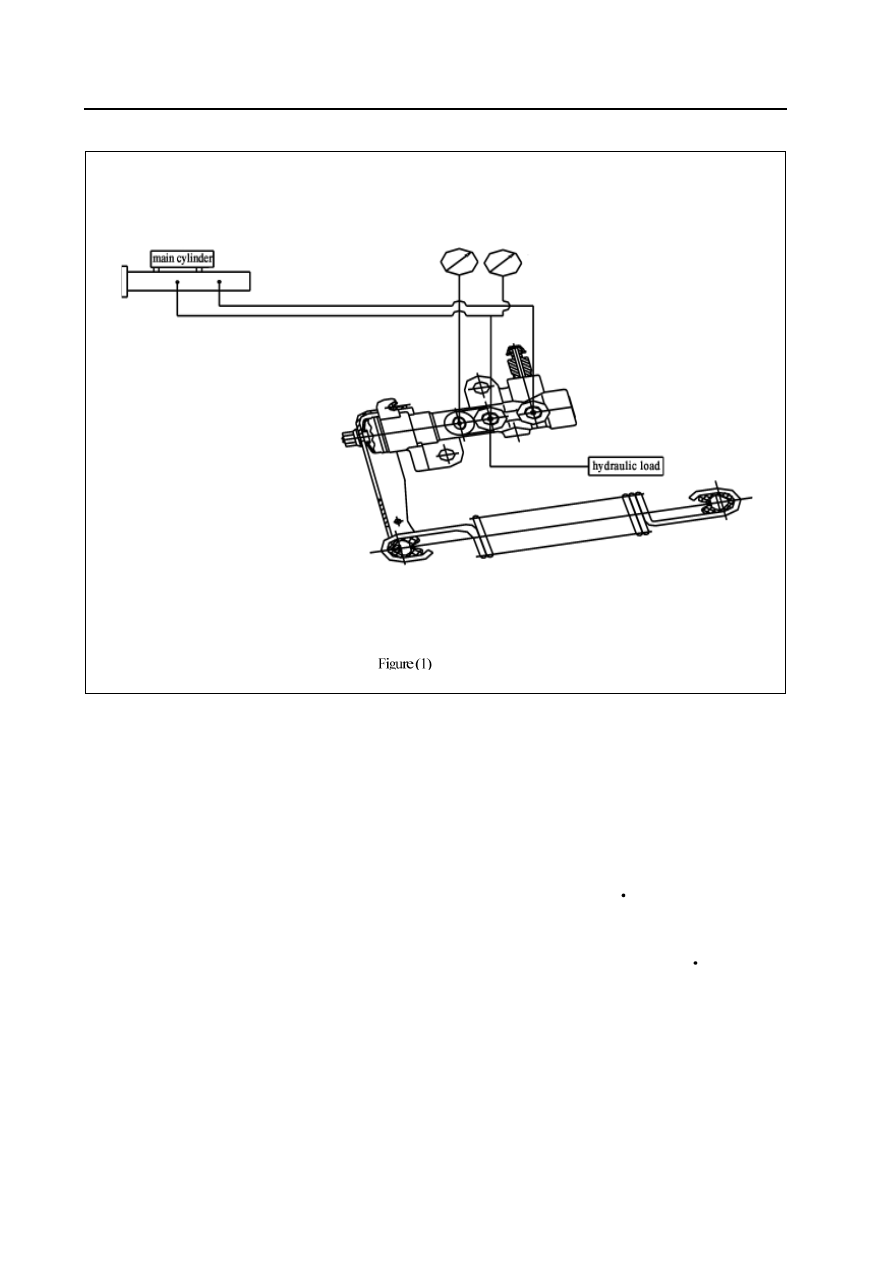

The action of load-sensing proportional valve is to prevent the rear wheel is braked before the front wheel is braked by adjusting the

distribution of front and rear brake force according to the difference of vehicle rear shaft load, then avoid the risk of vehicle rotation.

The adjustment of proportional valve is shown as follows:

a. The rear shaft load can be 820Kg after adjustment (including driver).

b. Install the brake pressure measuring meter and drain the air.

c. Increase the front brake pressure to 12Mpa, the rear brake pressure should be within 8

9 Mpa.

d. If necessary, adjust the hydraulic pressure.

1. Move the sensing spring bracket on the rear axle, the right hook of sensing spring moves to right; the rear brake

pressure is  increased .

2. Vice versa, the rear brake pressure decreases, the adjustment scope of the frame is 20mm.

3.  The extension amount of spring of load sensing proportional valve is controlled within 84

95mm.

Adjustment load-sensing proportional valve

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-30

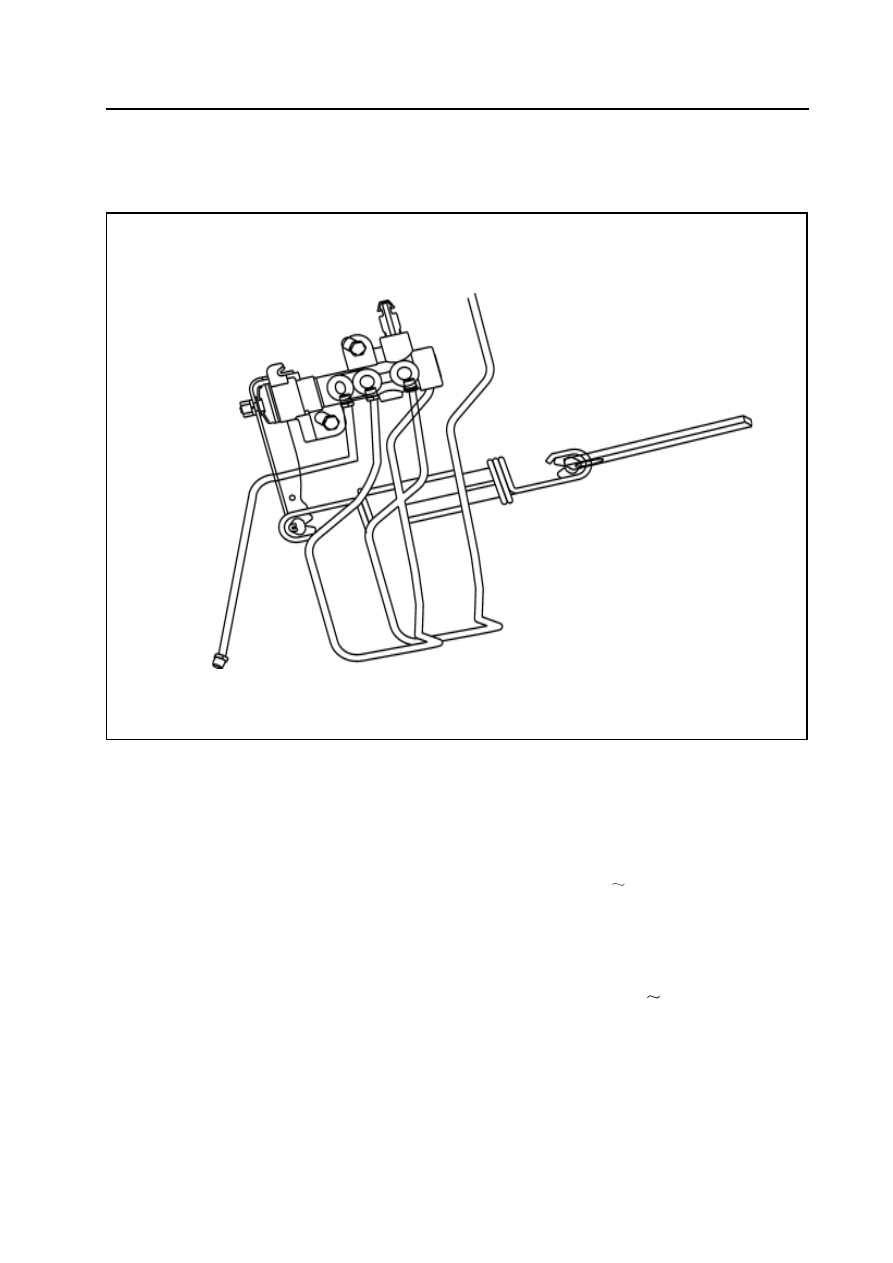

Replace of load-sensing proportional valve

1. Removal

Disconnect the brake pipeline form the valve; remove the lock nut and

remove the adjusting bolt from the suspension arm bracket; remove the

installation bolt and take off the  load-sensing proportional valve assembly.

2. Installation

a. Use two installation bolts to fix the load-sensing proportional valve.

The bolt tightening torque is 23N

m,

b.   Tighten the adjusting bolt locking nut,

c. Connect each brake pipeline.

The tightening torque of the connector is 16N

m,

d. Filled with the brake fluid, discharge the air from the brake system;

check the brake pressure and leakage.

output manometer

input manometer

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-31

Antilock Braking System (ABS)

Cautions

1.

It must not remove or install the electric elements and wire bunch plug when the ignition switch is in ON to avoid

the damage of ECU. It should turn off the ignition switch if needs disassembly.

2.

Pay attention to do not knock or impact the ABS ECU during the maintenance and repair, for it will damage the

ABS ECU easily.

3.

The wheel speed sensor and hydraulic unit (integrated with ECU) of BOSCH ABS8.0 can not be repaired, it should

be replaced in integral if damaged.

4.

After the brake system is maintained, the brake pedal maybe soft. Discharge the air according to the normal brake

system.

5.

It must use the brake fluid from original manufacturer; the brake fluid of different number cannot be used in mixed,

otherwise it will cause the failure of brake system. Select the tyre of original type as most as possible

Repair of Antilock Braking System (ABS)

1.

It should process the failure diagnosis for the brake system before process the ABS failure diagnosis. It can

diagnose out the failure rapidly by using Table 1. In Table 1, the small number means the failure which occurs most

possibly. Check each element according to the sequence and maintain or replace it if necessary.

2.

Check the following elements for normal operation before the diagnosis:

 Brake fluid level and brake fluid quality

       Pressure of tyre, size of tyre, shape and depth of tyre figure

       Other brake component

These components will affect the brake effect of the ABS. Check the system sensor, connecting wire and connector for correct

installation, arrangement and connection. Ensure the completeness of fuse, repair or replace it if necessary.

3.

Process the analysis and diagnosis according to the ABS advanced by owner. Use the diagnosis instrument (Annex

1) for final check and confirmation. It must process the run inspection after the competition of all  ABS maintenance.

The test condition is shown as follows:

a.

Confirm the tyre complies with the requirement, the tyre pressure is normal.

b.

The brake system (including brake light ) is normal

c.

The brake system is without leakage.

d.

The position and installation of wheel speed sensor is correct.

e.

All fuses are normal.

4.

test method:

Run for 1 min at least when the vehicle speed is beyond 40Km/h, process a proper brake. Then read out the failure code to

ensure the ABS is without failure code.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake-32

Table 1



Name of element

(failure)

Brake is low or

soft

Lag of brake

Block of brake

The brake is very hard

but has bad effect

Brake

noise

Brake system    (leakage of brake

fluid)

1



1

Brake system (with air)







brake shoe    (worn)









Piston oil seal      (worn or

damaged)

3





brake pedal    (small free stroke)









Brake main pump (failure)

11







parking brake    (brake shoe is out

of round)

 4





parking brake    (improper

adjustment)

 2





parking brake pull-wire (lag)









Assist push bar (improper

adjustment)

5 9



8

Tension or release spring (failure)







brake shoe    (crack or

deformation)

 5

4  1

Piston (lag)







brake shoe    (with oil)







Piston (block)







assist system    (vacuum leakage)



10





brake shoe support plate (loose)









fixed bolt    (loose)









Slide pin (worn)









brake drum  (crack)





brake shoe    (with foreign

material)





6 6

brake shoe    (harden )









Noise reduction plate (worn)









Press spring    (damaged)









10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Steering-1

Chapter 9

Steering

Precautions...............................................................................2

Troubleshooting........................................................................2

Inspection on vehicle.................................................................3

Steering linkage........................................................................4

Hydraulic power steering system...............................................6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

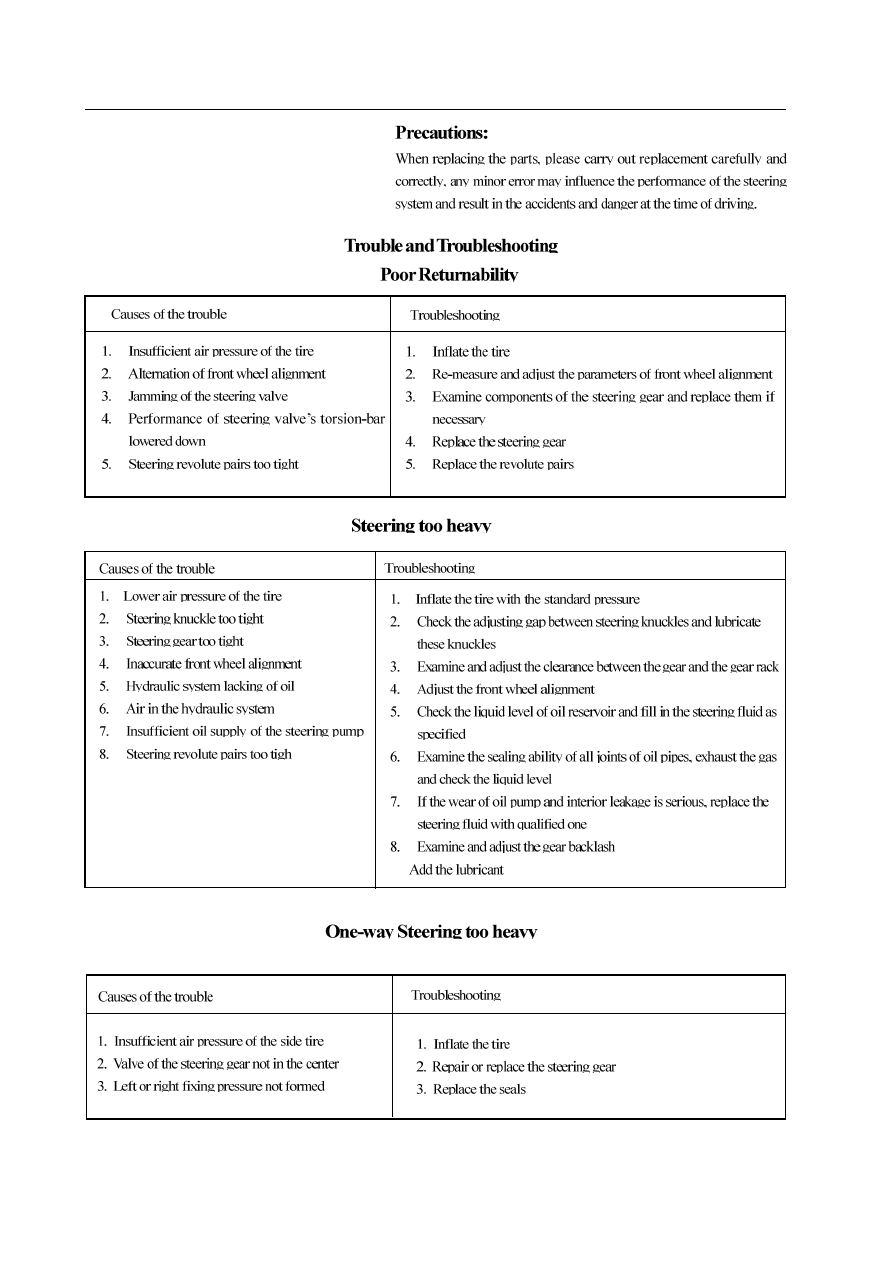

Steering-2





-------------------------------------------------------------------------------------------------------------------------------------------------------------

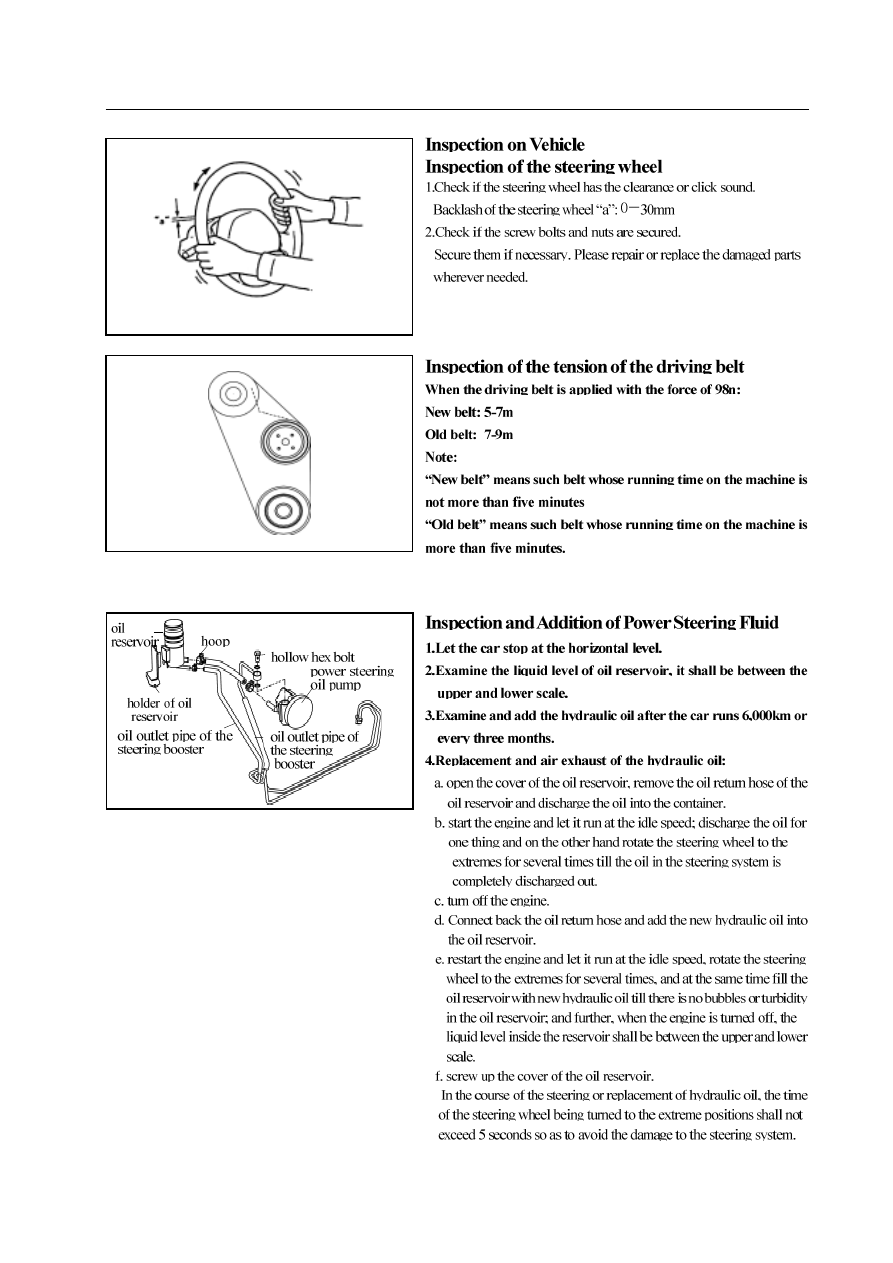

Steering-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

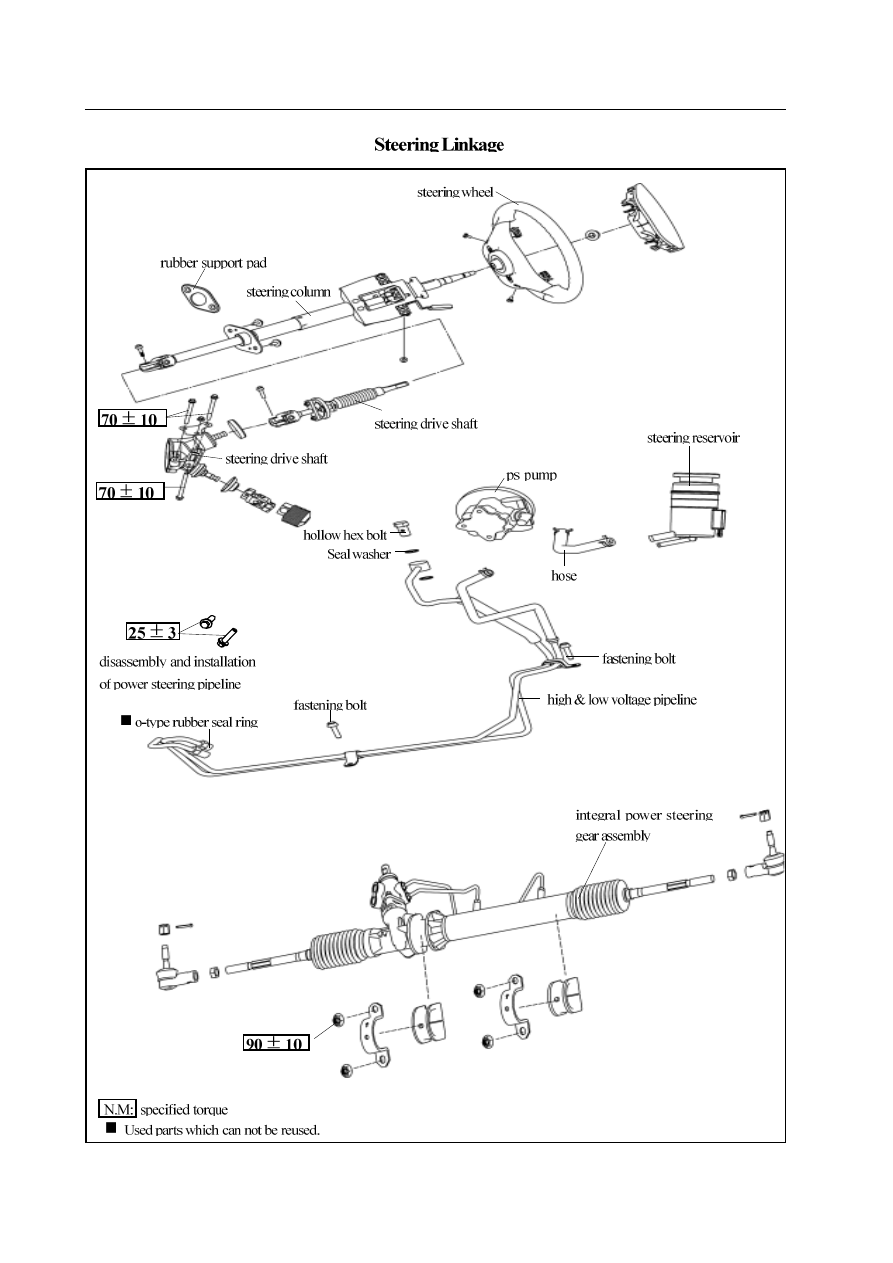

Steering-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     18      19      20      21     ..
