14 Release the door-ajar sensor from the clip
near the lock (see illustration).
15 Using a Torx key, unscrew the lock
mounting screws, and withdraw the lock for
access to the cables (see illustration).
16 Disconnect both the inner and outer
cables from the lock bracket (see
illustration)
.
17 Prise open the plastic clip, and remove
the central locking control rod.
18 Withdraw the lock assembly.

Lock (Estate)

19 Disconnect the battery negative (earth)
lead (Chapter 5, Section 1).
20 Open the tailgate. Undo the screws and
remove the inner trim.
21 Using a Torx key, unscrew the lock
mounting screws, and carefully withdraw the
lock (see illustration).
22 Release the door-ajar sensor from the clip
near the lock.
23 Disconnect the barrel operating rod, and
remove the lock.
24 If necessary, the lock striker assembly
may be removed by disconnecting the release
cable and unscrewing the mounting bolts (see
illustration)
.

Refitting

Lock barrel and lock - all models

25 Refitting is a reversal of the removal
procedure.

Testing

The central locking module incorporates a
service-test mode, which is activated by
operating one of the lock position switches 8
times within 10 seconds. A buzzer will sound,
to indicate that the service-test mode is
operating, and to indicate that no faults have
been found in the system. If a fault has been
found, the system should be checked by a
Ford dealer or electrical specialist. The central
locking module also incorporates the alarm
system module.

Removal

Central locking/alarm module

To remove the module, first remove the
lower right-hand facia panel (right-hand-drive
models) or the glovebox (left-hand-drive
models).
Disconnect the battery negative (earth) lead
(Chapter 5, Section 1).
Unscrew the mounting bolts, and remove
the module from the bracket beneath the
facia.
Disconnect the wiring multi-plug, and
withdraw the module from inside the vehicle.

Note that a different module is used for
models without an anti-theft alarm.

Central locking set/reset switch

This procedure is covered in Section 14,
under front door handle removal.

Central locking door-ajar switch

This procedure is covered in Section 14,
under front door lock motor removal.

Refitting

Central locking/alarm module

Refitting is a reversal of the removal
procedure.

Central locking set/reset switch

10 Refitting is a reversal of the removal
procedure.

Central locking door-ajar switch

11 Refitting is a reversal of the removal
procedure.

The windscreen and rear window on all
models are bonded in place with special
mastic, as are the rear side windows on
Estate models. Special tools are required to
cut free the old units and fit replacements;
special cleaning solutions and primer are also
required. It is therefore recommended that
this work is entrusted to a Ford dealer or
windscreen replacement specialist.
Note that the windscreen contributes
towards the structural strength of the vehicle
as a whole, so it is important that it is fitted
correctly.

Removal

Insert a length of strong cord (fishing line is
ideal) behind the moulding or emblem
concerned. With a sawing action, break the

25 Body side-trim mouldings

and adhesive emblems -
removal and refitting

24 Windscreen and fixed

windows - removal and refitting

23 Central locking system

components
testing, removal and refitting

Bodywork and fittings  11•17

11

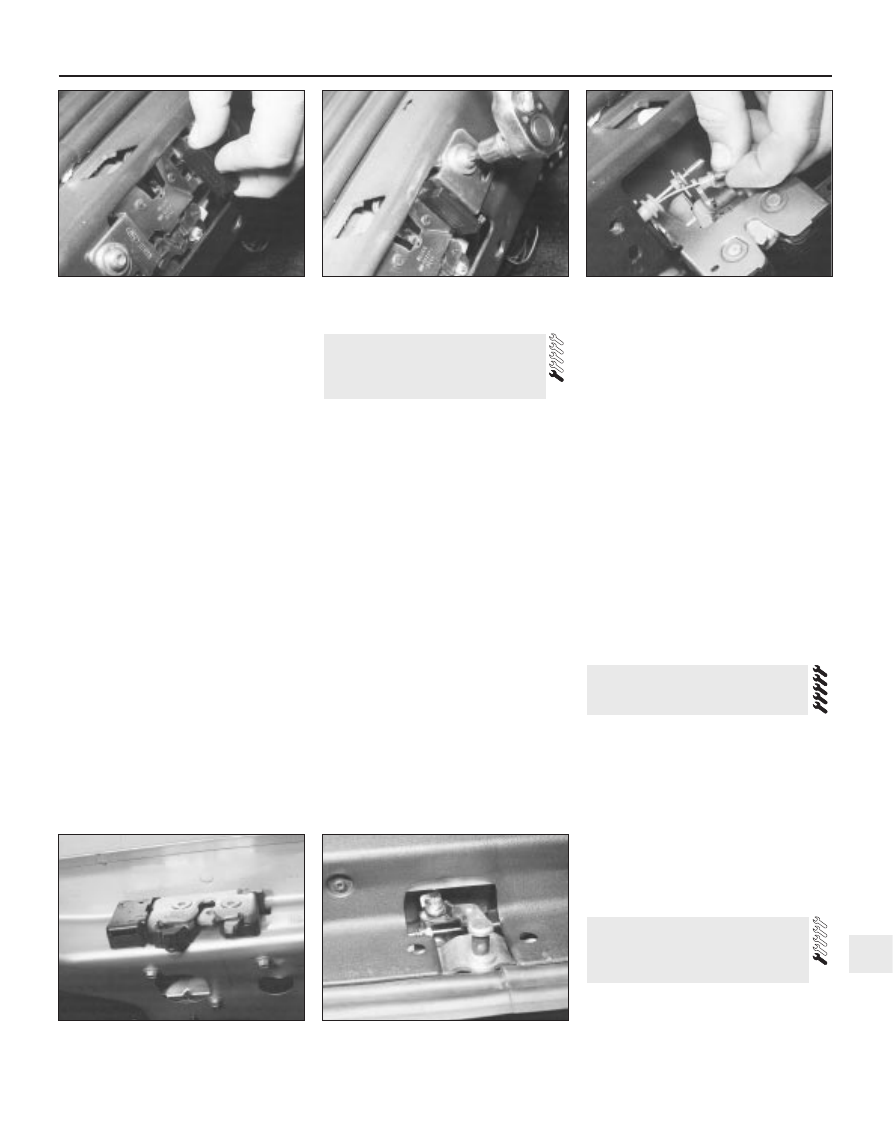

22.21  Tailgate lock - Estate models

22.24  Lock striker assembly - Estate

models

22.14  Removing the door-ajar sensor from

the lock

22.15  Removing a lock mounting screw

22.16  Disconnecting the cables from the

lock

adhesive bond between the moulding or
emblem and the panel (see illustration).
Thoroughly clean all traces of adhesive
from the panel using
methylated spirit, and allow the location to
dry.

Refitting

Peel back the protective paper from the
rear face of the new moulding or emblem.
Carefully fit it into position on the panel
concerned, but take care not to touch the
adhesive. When in position, apply hand
pressure to the moulding/emblem for a short
period, to ensure maximum adhesion to the
panel.

The sunroof should operate freely, without
sticking or binding, as it is opened and
closed. When in the closed position, check
that the panel is flush with the surrounding
roof panel.
If adjustment is required, open the sun
blind, but leave the glass panel shut. Unscrew
and remove the three lower frame-to-glass
panel retaining screws. Slide the lower frame
back into the roof.
Loosen the central and front securing
screws. Adjust the glass roof panel so that it is
flush at its front edge with the roof panel, then
retighten the securing screws.
Pull the lower frame forwards, and insert
and tighten its retaining screws to complete.

Removal

Front seat

Release the seat belt, and slide the seat
fully forwards.
Using a Torx key, undo the screws and
remove the rear mounting trims, then unscrew
the rear mounting bolts (see illustrations).
Slide the seat fully rearwards.
Where electric seats are fitted, disconnect

the battery negative (earth) lead (Chapter 5,
Section 1). Disconnect the seat wiring multi-
plugs (see illustration).
Unscrew the front mounting bolts, and
remove the seat from the vehicle (see
illustration)
.

Rear seat cushion

Fold the rear seat cushion forwards. (Note
that, on some models, the seat cushion is
held in place by screws which must be
removed first.) Using a Torx key, unscrew and
remove the mounting bolts from the hinges on
each side (see illustration).
Withdraw the seat cushion from the vehicle.

Rear seat backrest

Fold the rear seat cushion and both
backrests forwards.
Unclip the backrest rear trims, where fitted,
and raise them.
10 Using a Torx key, unscrew the mounting
bolts (see illustration).
11 Withdraw the backrest from inside the
vehicle.

Rear seat side bolster

12 Fold the rear seat backrest forwards.
13 On low-series models, remove the screw
and pull the bolster forwards to disengage the
clips. On high-series models, simply pull the
bolster upwards to disengage the clips.

Refitting

14 Refitting is a reversal of the removal
procedure, but tighten the mounting bolts to
the specified torque.

27 Seats - removal and refitting

26 Sunroof - general

information and adjustment

11•18 Bodywork and fittings

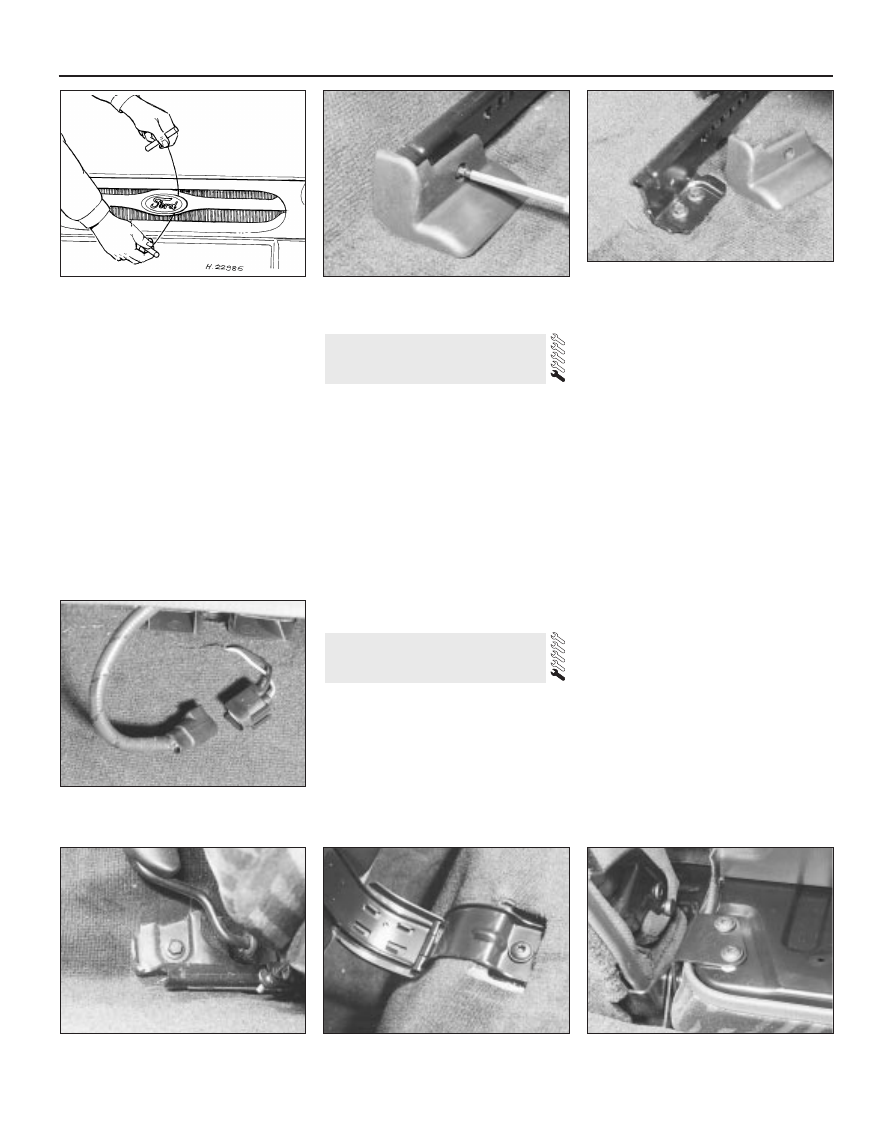

25.1  Using a length of cord to remove the

emblem from the radiator grille

27.2A  Unscrew the Torx-headed

screws . . .

27.2B  . . . and remove the mounting trims

for access to the front seat rear mounting

bolts

27.5  Front seat front mounting bolt

27.4  Disconnecting an electric seat multi-

plug

27.6  Rear seat cushion hinge bolt

27.10  Rear seat backrest mounting bolts

Warning: Be careful when
handling the seat belt tensioning
device (“grabber”). It contains a
powerful spring, which could

cause injury if released in an uncontrolled
fashion. Once fired, the grabber cannot be
reset, and must be renewed. Note also
that seat belts and associated
components which have been subject to
impact loads must be renewed.

Removal

Front seat belt

Remove the trim from the “B” pillar and the
scuttle.
Unscrew the mounting bolts and remove
the seat belt reel unit (see illustration).
Unscrew the bolt securing the seat belt
guide to the “B” pillar, then unscrew the nut
securing the seat belt shackle (see
illustrations)
.
Detach the stalk cable, then undo the
mounting nut, and remove the stalk and
grabber assembly from the front seat (see
illustrations)

Warning: There is a potential risk
of the grabber firing during
removal, so it should be handled
carefully. As an extra precaution,

a spacer may be fitted on the cable before
removal. Hold the adjustment lever in the
“adjust” position while inserting the
spacer.
Remove the recline adjustment knob and
trim from the outer side of the front seat, then
unscrew the bolt and remove the seat belt
end from the seat (see illustrations).

Rear side seat belt

Unscrew the screws and remove the trim
from the “C” pillar. It will be necessary to
detach the rear seat release cable, and
remove the plastic cover from the rear seat
lock (see illustrations).
Fold the rear seat cushions forward.
Unscrew the mounting bolts from the seat belt
shackle and reel (see illustrations).

28 Seat belts

removal and refitting

Bodywork and fittings  11•19

11

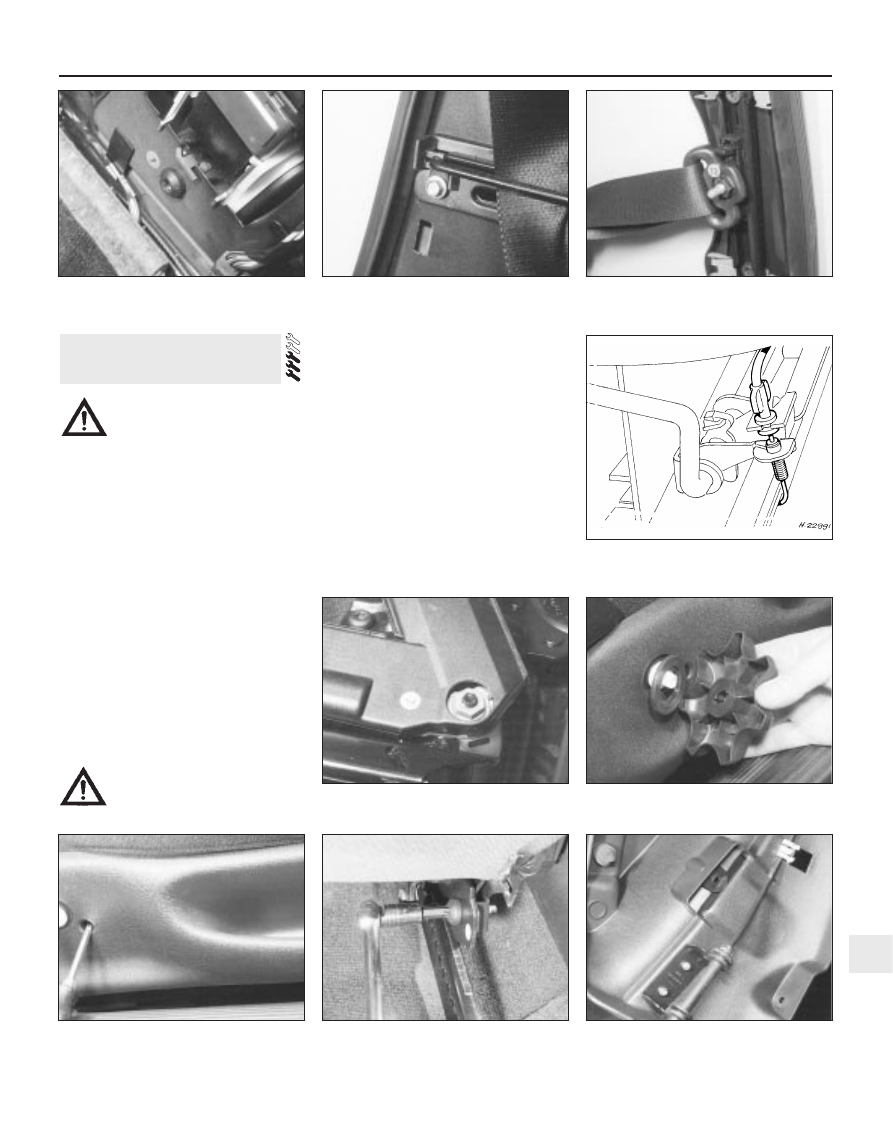

28.5B  . . . unscrew the trim retaining

screws . . .

28.5C  . . . and unscrew the seat belt end

retaining bolt

28.6A  Detach the rear seat release cable

28.4A  Front seat belt stalk cable

28.4B  Front seat stalk mounting nut

28.5A  Remove the recline adjustment

knob . . .

28.2  Front seat belt reel unit lower

mounting bolt

28.3A  Front seat belt guide and mounting

bolt

28.3B  Front seat belt shackle and

mounting nut

Unscrew the mounting bolt securing the
seat belt stalk, and withdraw the stalk. Also
unscrew the mounting bolt from the lower
anchorage, where applicable (see
illustration)
.

Rear centre seat belt

Unscrew the mounting bolts securing the
seat belt and stalks to the floor. Note that the
stalks are handed, and are marked Left or
Right.

Refitting

10 Refitting is a reversal of the removal
procedure. Tighten the mounting nuts and
bolts to the specified torque.

Removal

Sun visor

Disconnect the wiring for the vanity mirror
light, where fitted.
Unscrew the mounting screws and remove
the visor.
Prise up the cover, unscrew the inner
bracket mounting screws, and remove the
bracket.

Passenger grab handle

Prise up the covers, then unscrew the
mounting screws and remove the grab
handle.

“A” pillar trim

Pull away the door weatherstrip in the area
of the trim.
Release the alarm and aerial wiring from the
upper and middle clips.
Carefully press the trim away from the
upper and middle clips, and pull the trim
upwards. Recover the lower sealing strip.
Remove the upper and middle clips from
the pillar.

“B” pillar and cowl side trim

Pull away the door weatherstrip in the area
of the trim.
10 Undo the screws, release the fasteners
and remove the lower trim (see illustrations).
11 Carefully separate the lower trim from the
upper trim, using a screwdriver if necessary
(see illustration).
12 Unscrew the seat belt mounting bolt from
under the front seat, remove the remaining
trim from the “B” pillar, and feed the belt
through the trim.

“C” pillar trim (Saloon and Hatchback)

13 Pull away the door weatherstrip in the
area of the trim.
14 Fold the rear seat cushion forwards.
15 Pull up the rear seat bolster, and release

29 Interior trim panels

removal and refitting

11•20 Bodywork and fittings

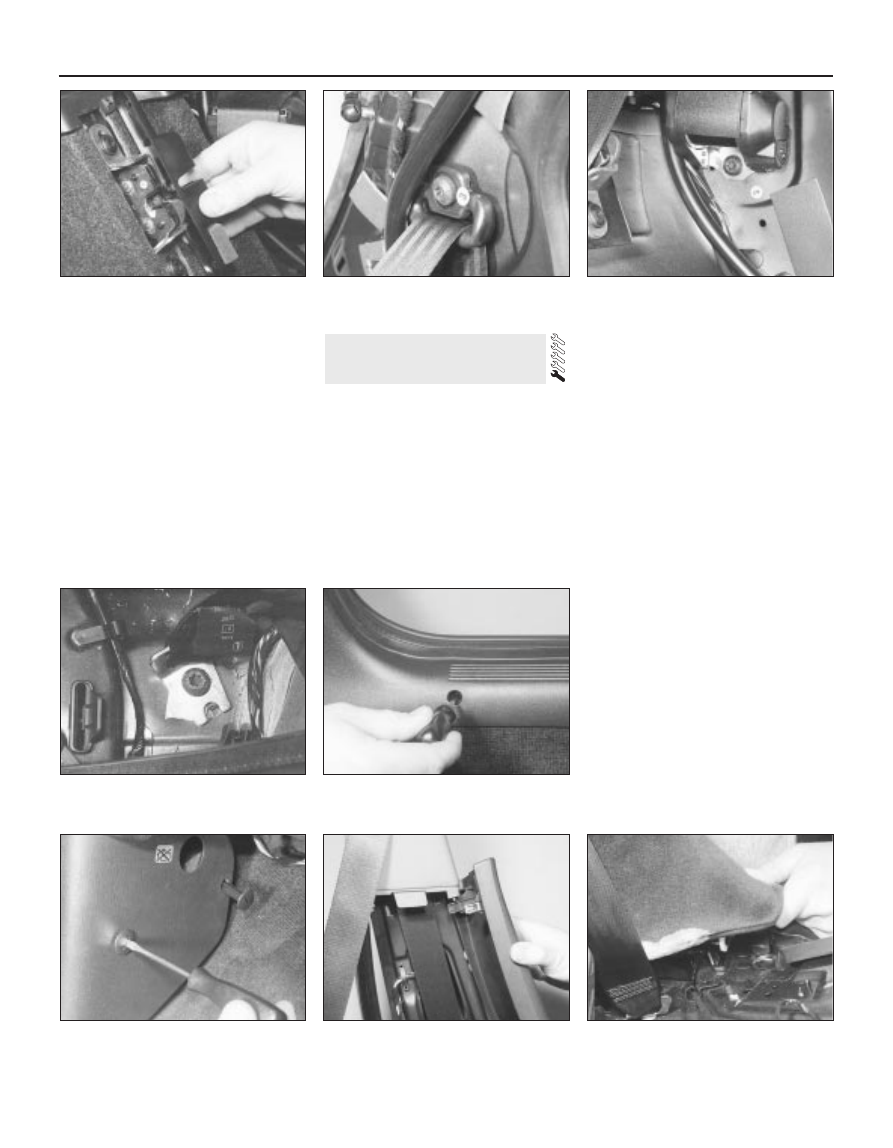

28.6B  Removing the plastic cover from the

rear seat lock

28.7A  Rear seat belt shackle mounting

bolt

28.7B  Rear seat belt reel mounting bolt

29.10B  Releasing the fasteners from the

cowl side trim

29.11  Separating the “B” pillar lower and

upper trim

28.8  Rear seat belt lower anchorage

29.10A  Removing a middle screw from the

lower trim

29.15A  Pull up the rear seat bolster . . .















Content   ..  113  114  115  116   ..
