Ford Mondeo (petrol engines). Manual - part 59

12•34

Wiring diagrams

Diagram 10: Exterior lighting – side and headlights (left-hand drive models: daytime running lights)

Wiring diagrams  12•35

12

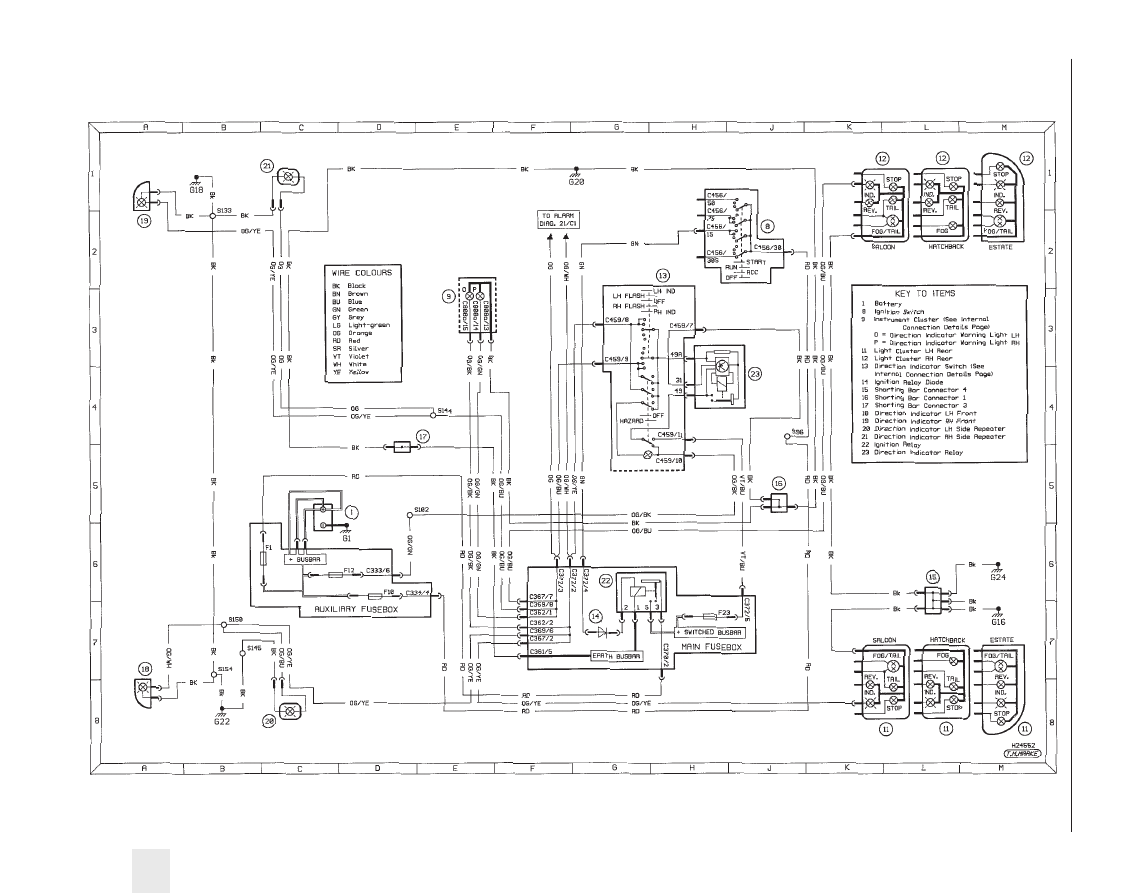

Diagram 11: Exterior lighting – hazard flasher and direction indicators

12•36

Wiring diagrams

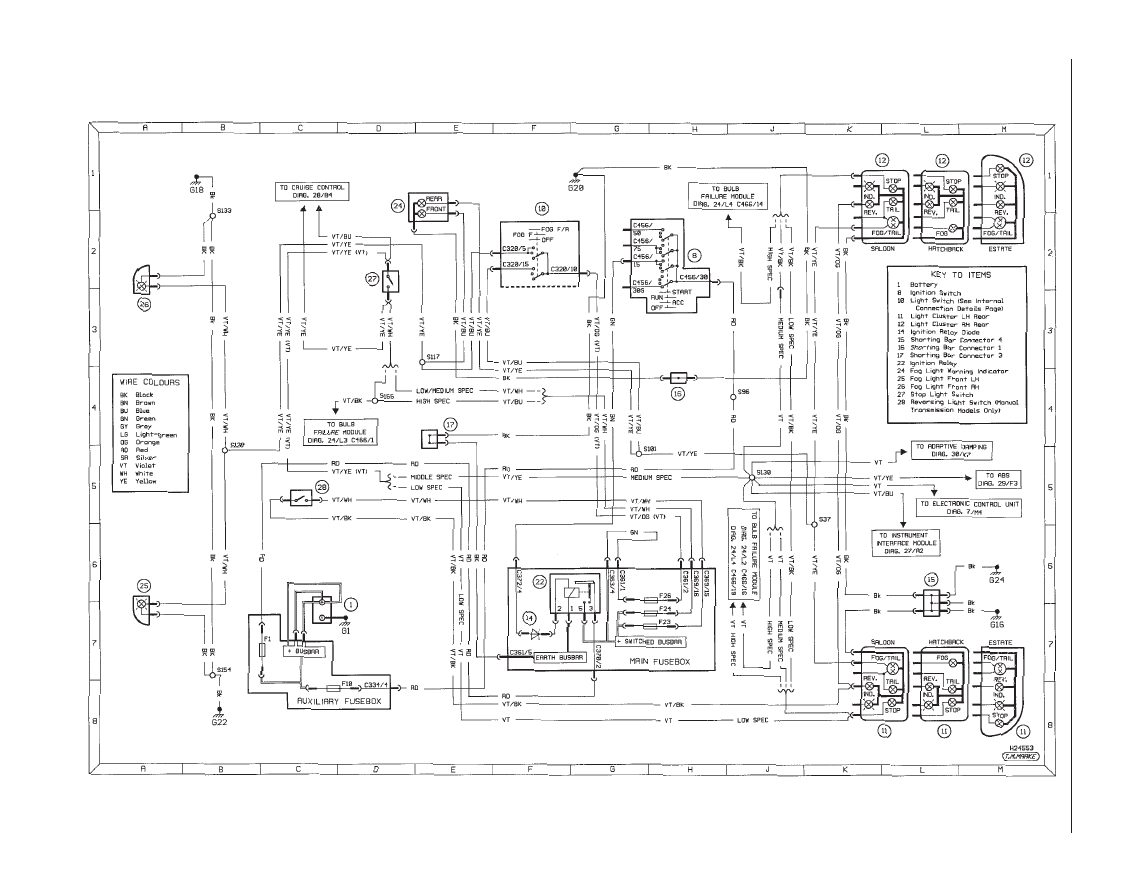

Diagram 12: Exterior lighting – foglights, stop-lights and reversing lights

Wiring diagrams  12•37

12

Diagram 13: Interior lighting – front and rear courtesy, footwell and luggage compartment lights
