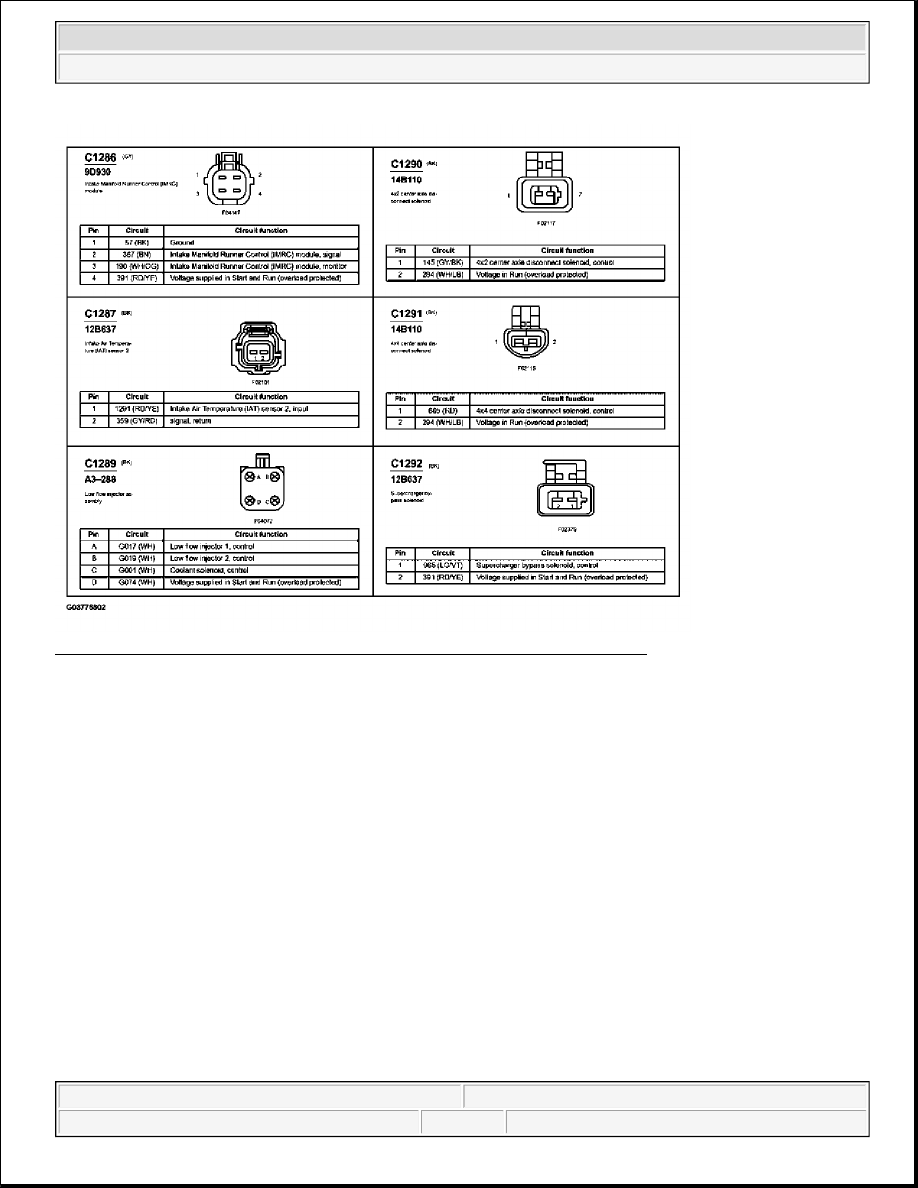

Fig. 88: Identifying Connector C1286, C1287, C1289, C1290, C1291 & C1292
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

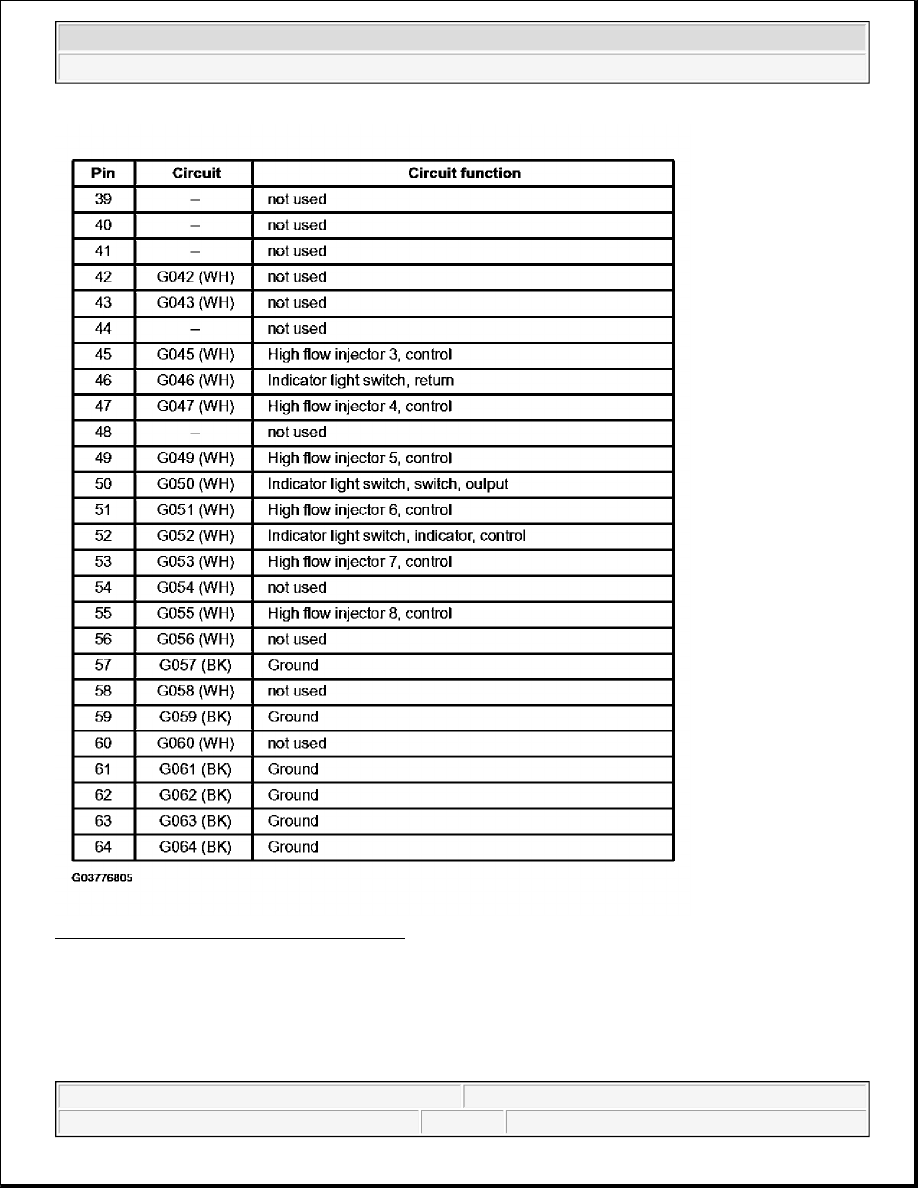

Fig. 89: Identifying Connector C1293
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

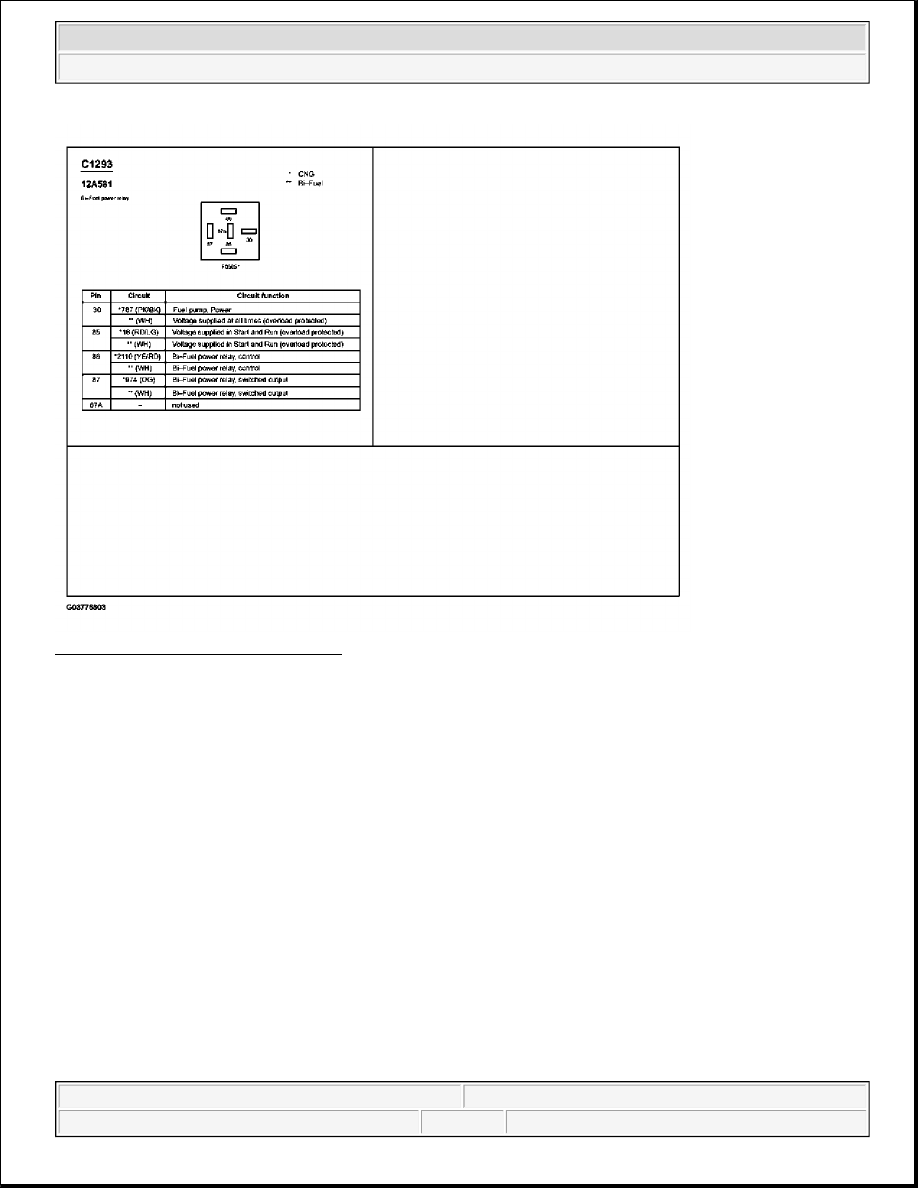

Fig. 90: Identifying Connector C1294 (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

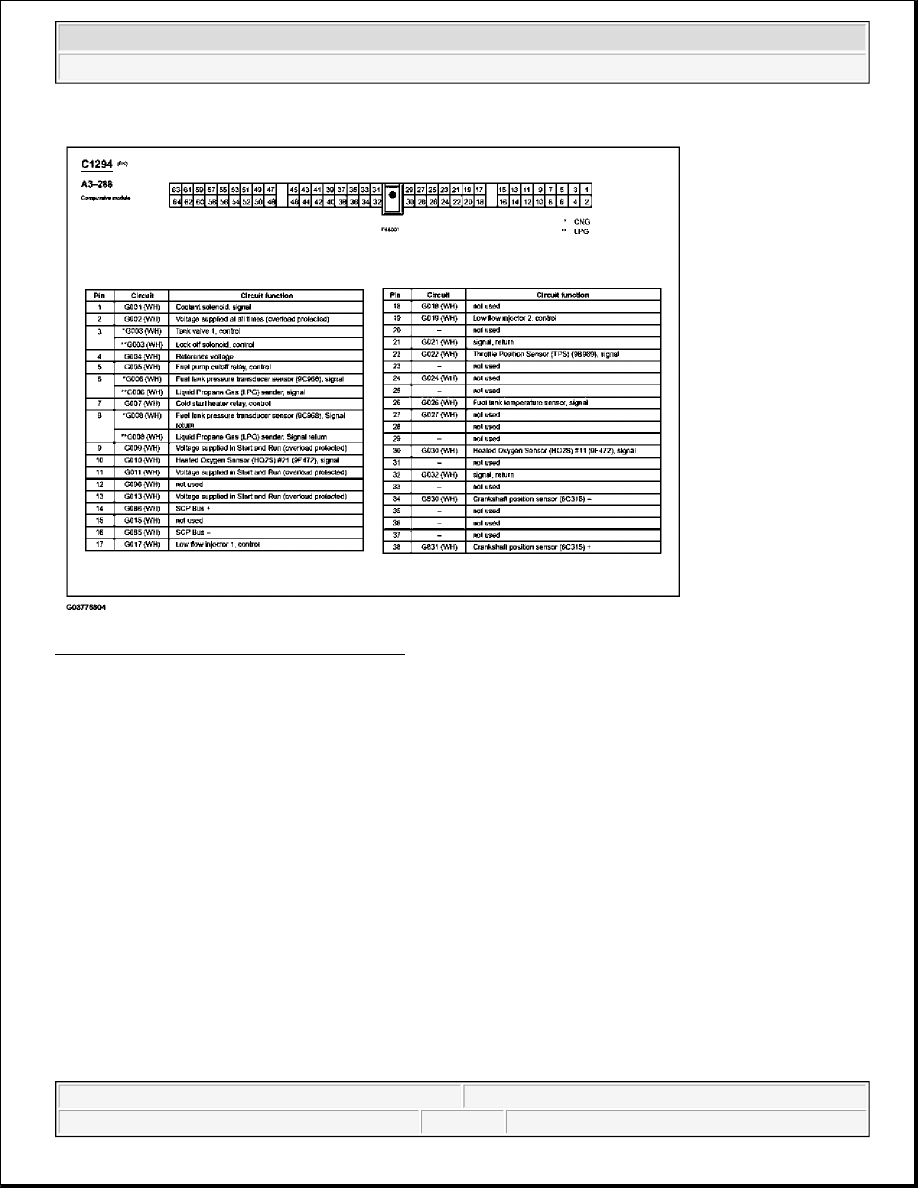

Fig. 91: Identifying Connector C1294 (2 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup
