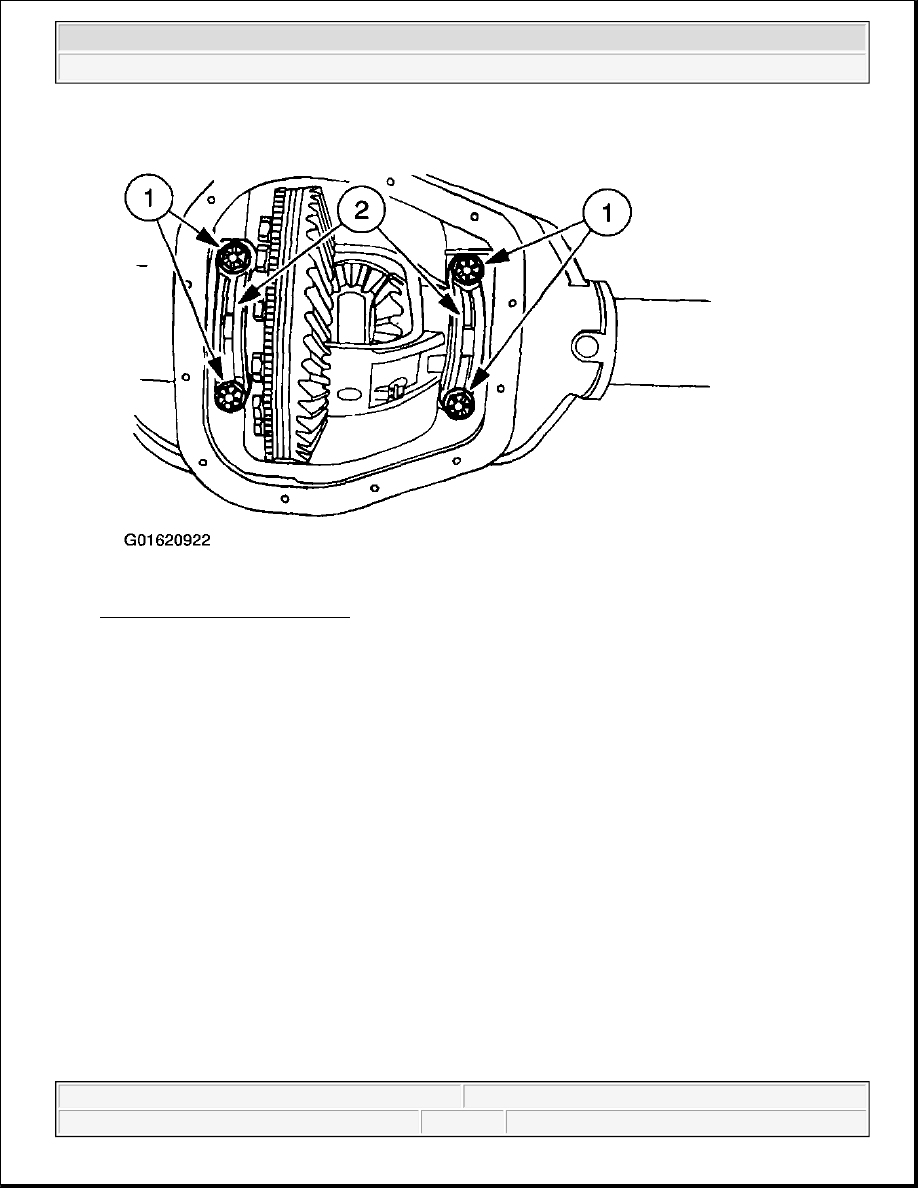

Fig. 78: Removing Bearing Caps
Courtesy of FORD MOTOR CO.

5. Loosen the differential case.

1. Remove the bearing cap bolts.

2. Remove the bearing caps.

6. Fabricate two differential case retaining straps from metal stock as shown.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 79: Differential Case Retaining Straps Specifications
Courtesy of FORD MOTOR CO.

WARNING:

Be careful not to allow the differential case to fall.

CAUTION: Place a wood block between the pry bar and the rear axle housing

(4010) to protect the machined surface from damage.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



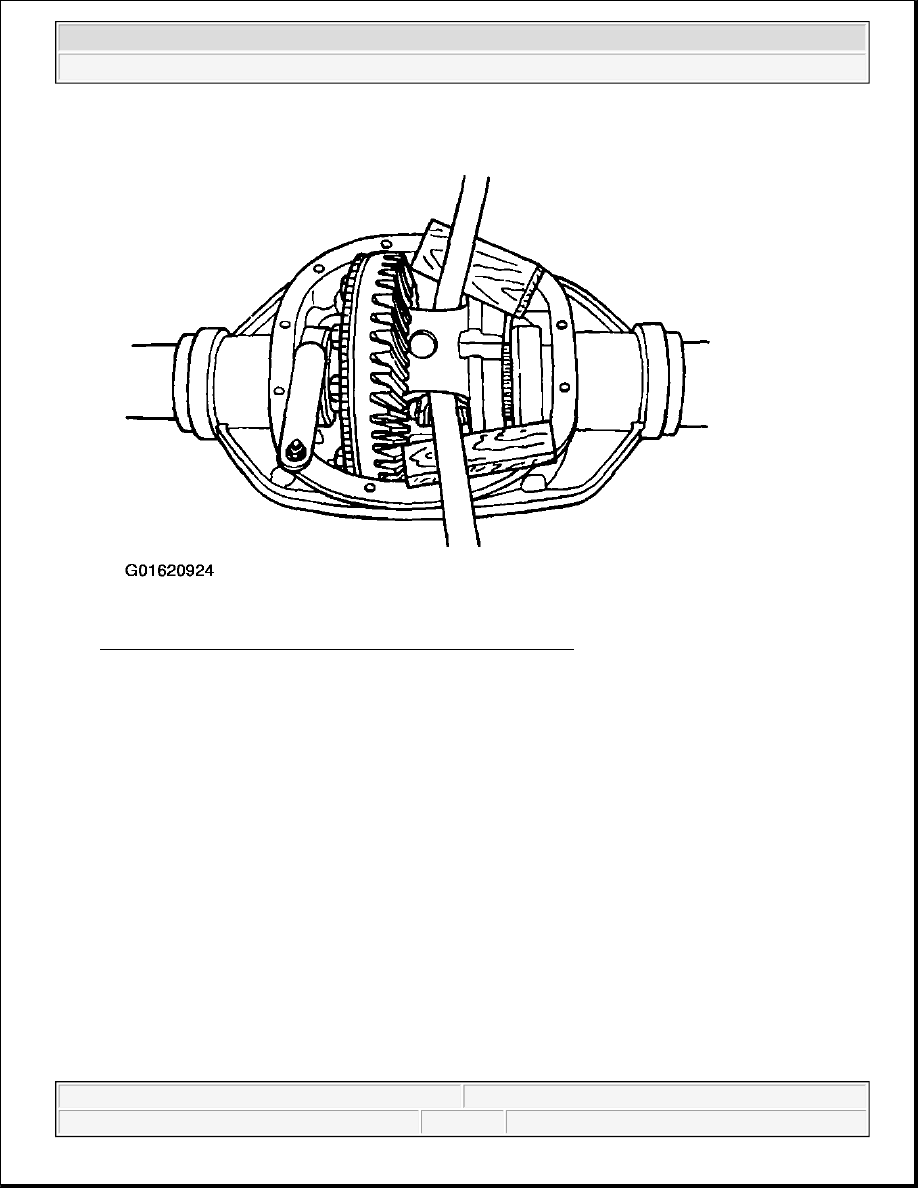

Fig. 80: Removing Differential Case From Rear Axle Housing
Courtesy of FORD MOTOR CO.

7. Use the pry bar and the wood block to remove the differential case from the rear axle housing.

8. Remove the differential ring gear bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



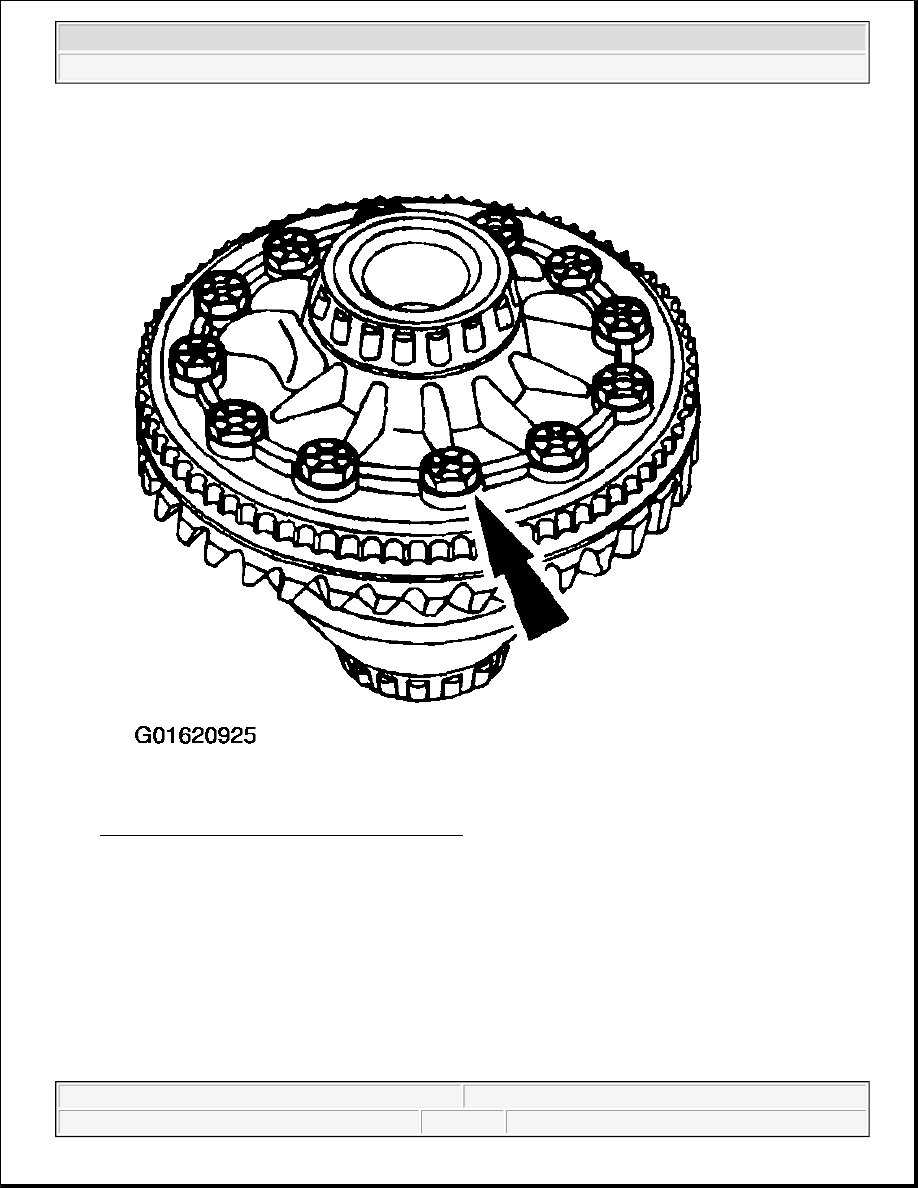

Fig. 81: Removing Differential Ring Gear Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Care should be taken not to damage the differential ring gear bolt

hole thread.

NOTE:

The anti-lock speed sensor ring cannot be reused once removed.
