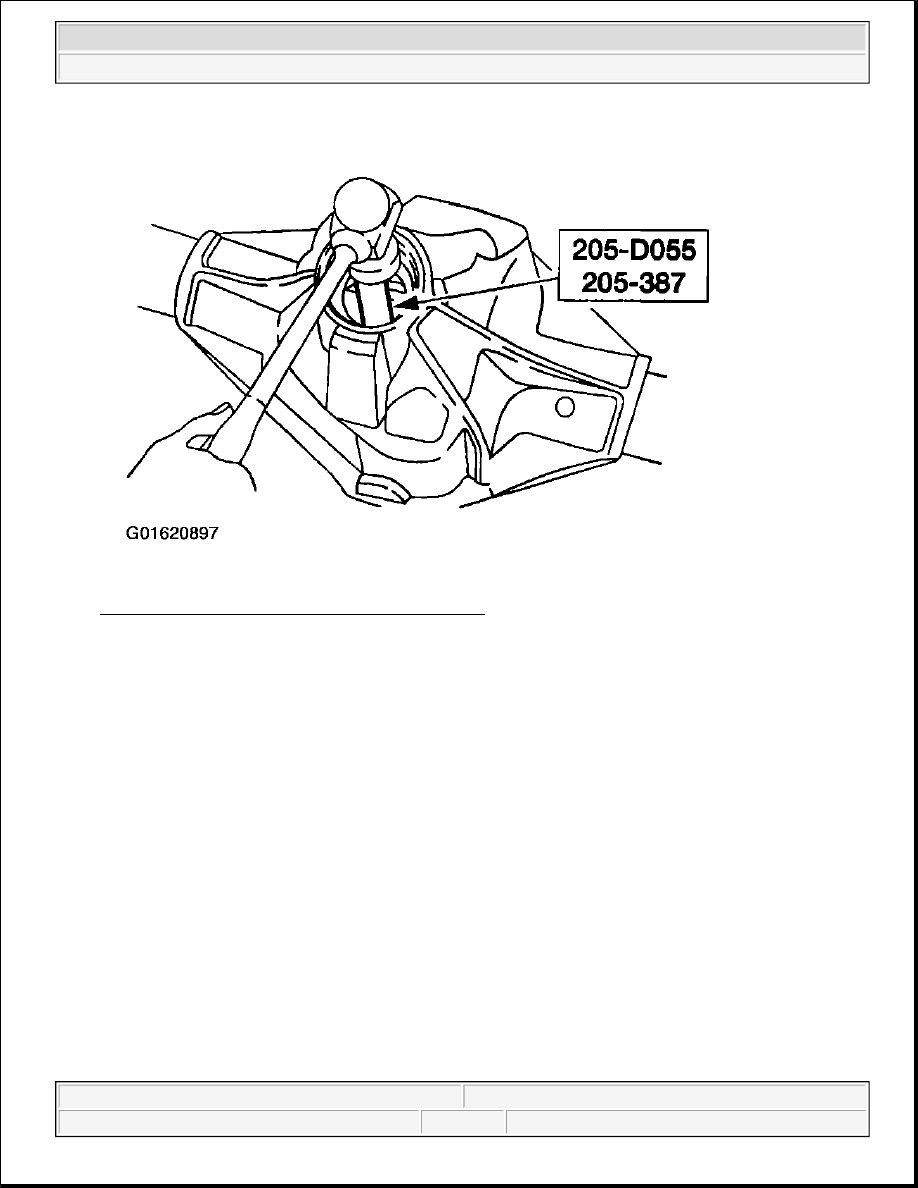

Fig. 50: Removing Drive Pinion Collapsible Spacer
Courtesy of FORD MOTOR CO.

11. Using the special tool, remove the pinion bearing cone and roller assembly.

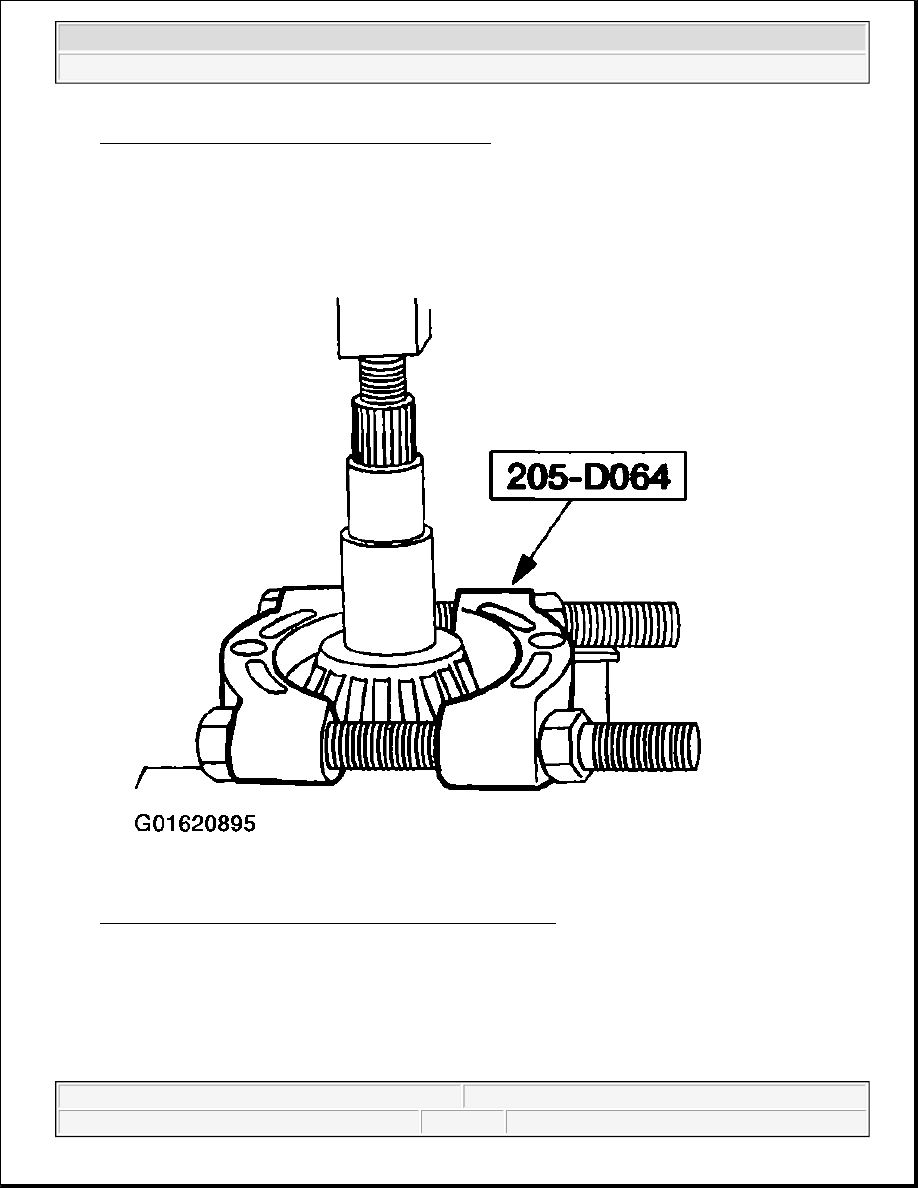

Fig. 51: Removing Pinion Bearing Cone & Roller Assembly
Courtesy of FORD MOTOR CO.

NOTE:

Do not remove the pinion bearing cups from the carrier casting unless the
cups are damaged.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

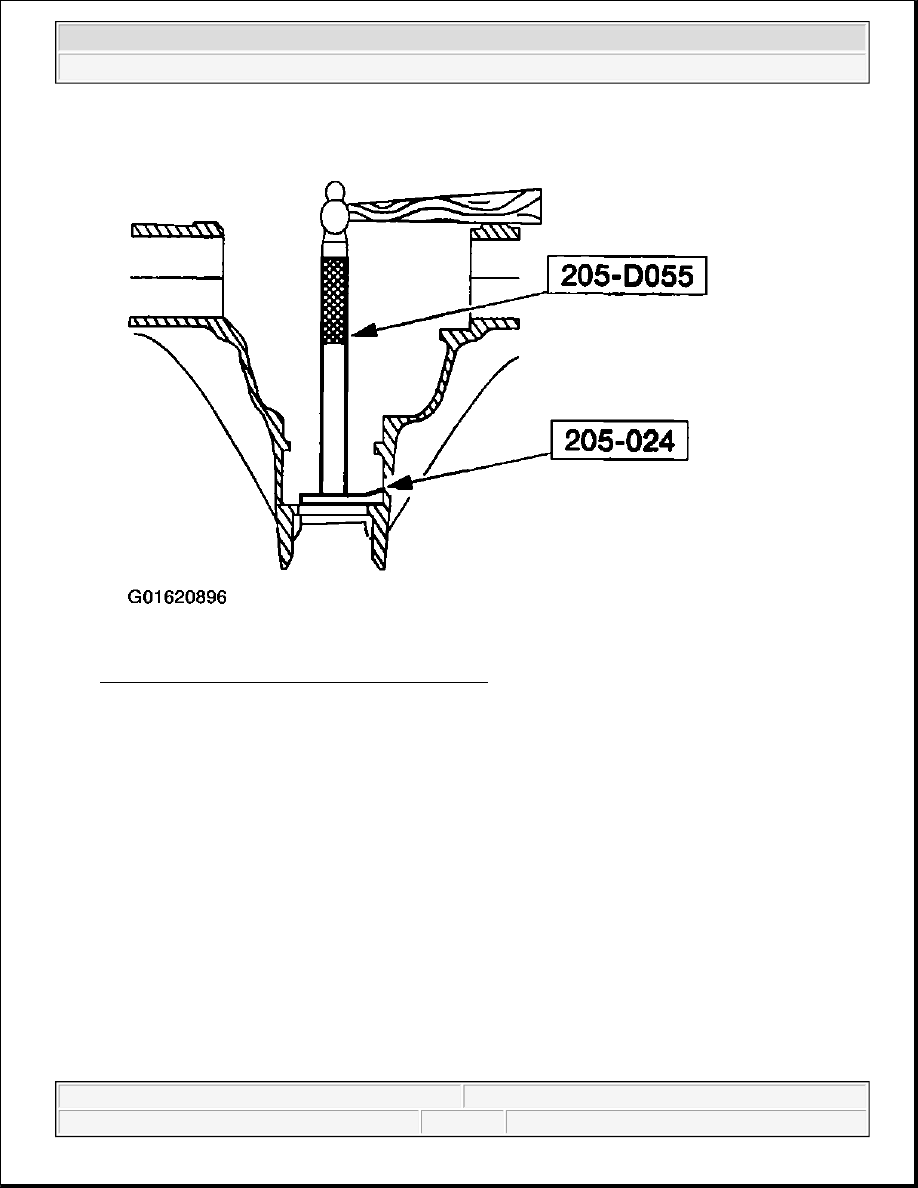

Fig. 52: Removing Outer Differential Bearing Cup
Courtesy of FORD MOTOR CO.

12. Remove the outer differential bearing cup with the special tools.

13. Remove the inner differential bearing cup with the special tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 53: Removing Inner Differential Bearing Cup
Courtesy of FORD MOTOR CO.

Installation

Using 205-024

1. Position the special tools and the inner and outer bearing cups in their respective bores.

1. After placing the inner and outer bearing cups in their bores, place the special tool on the inner

pinion bearing cup.

2. Place the special tool on the outer pinion bearing cup.

3. Install the special tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

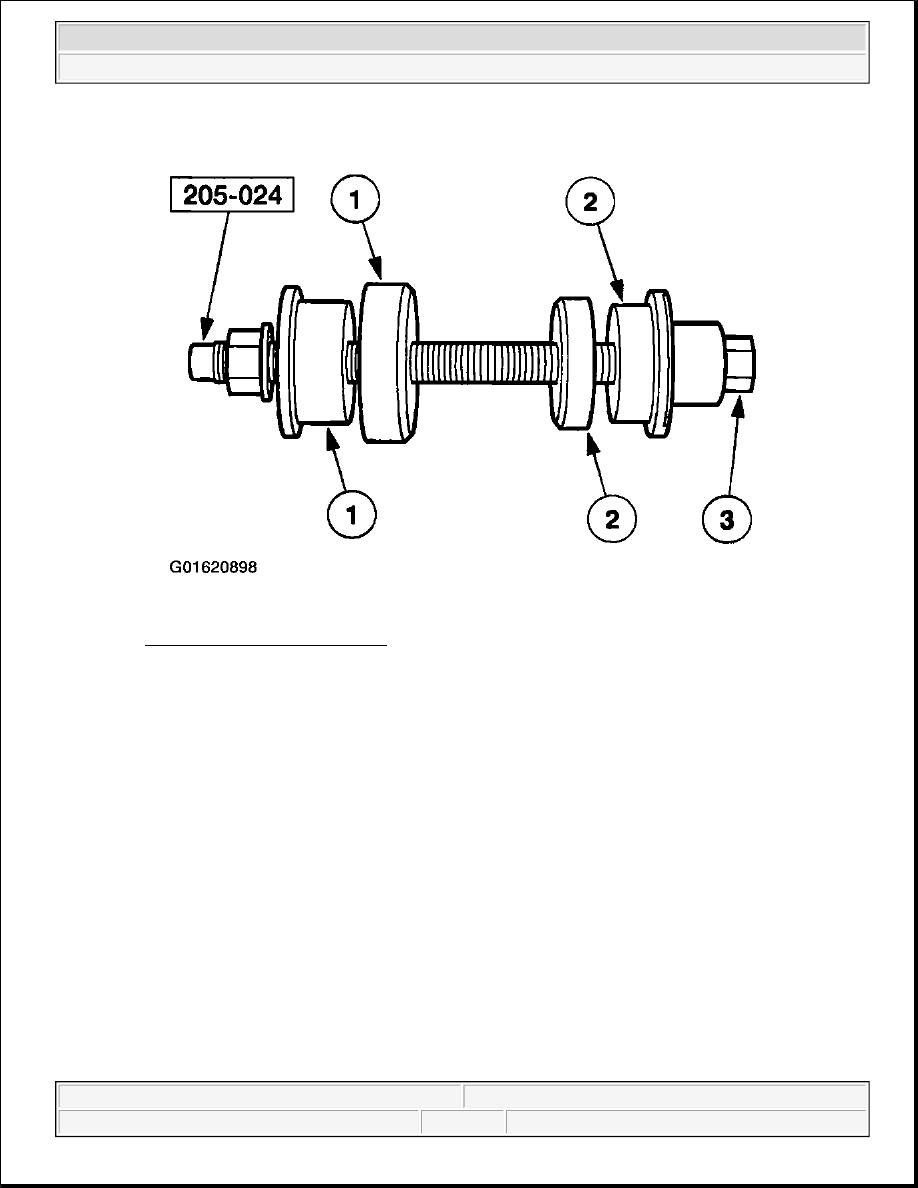

Fig. 54: Installing Special Tools
Courtesy of FORD MOTOR CO.

2. Tighten the special tool to seat the pinion bearing cups into their bores.
