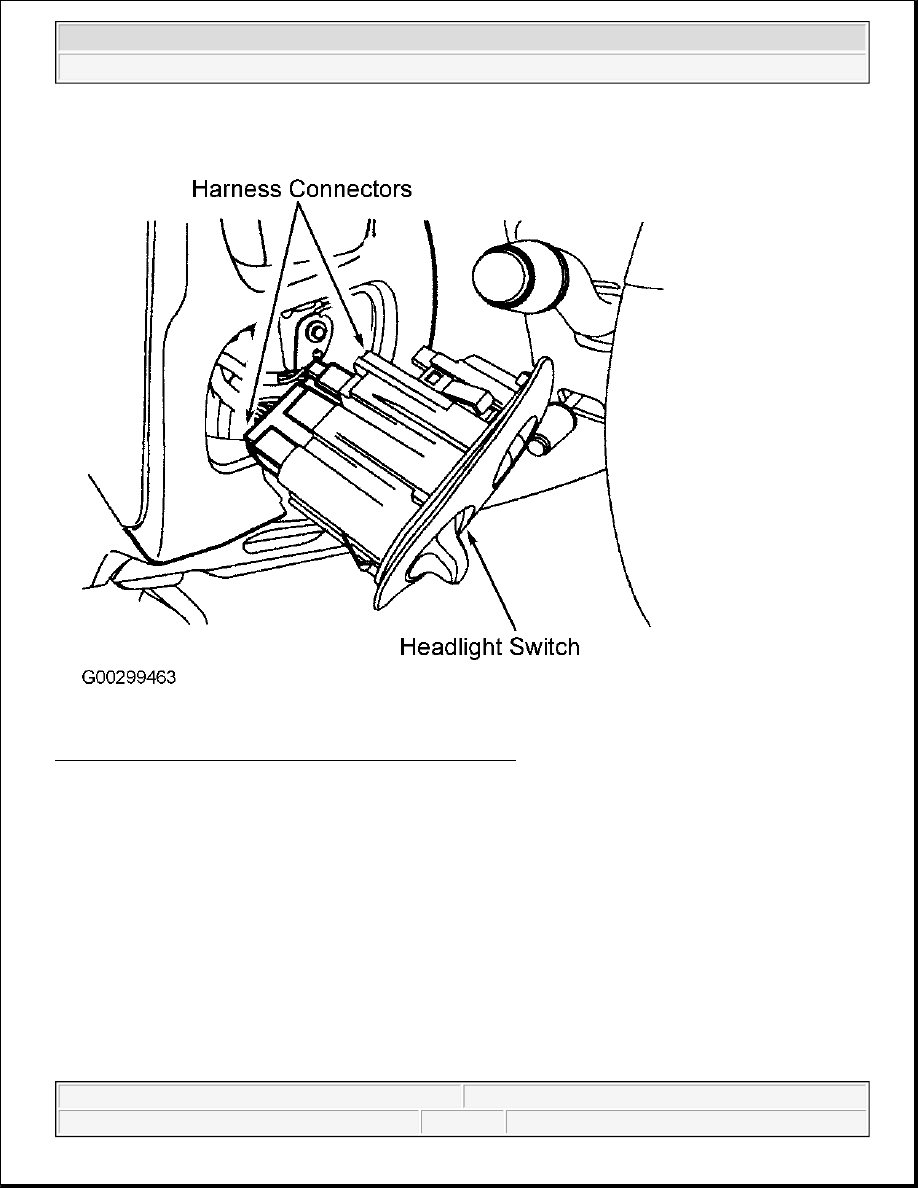

Fig. 46: Disconnecting Headlight Switch Harness Connector
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

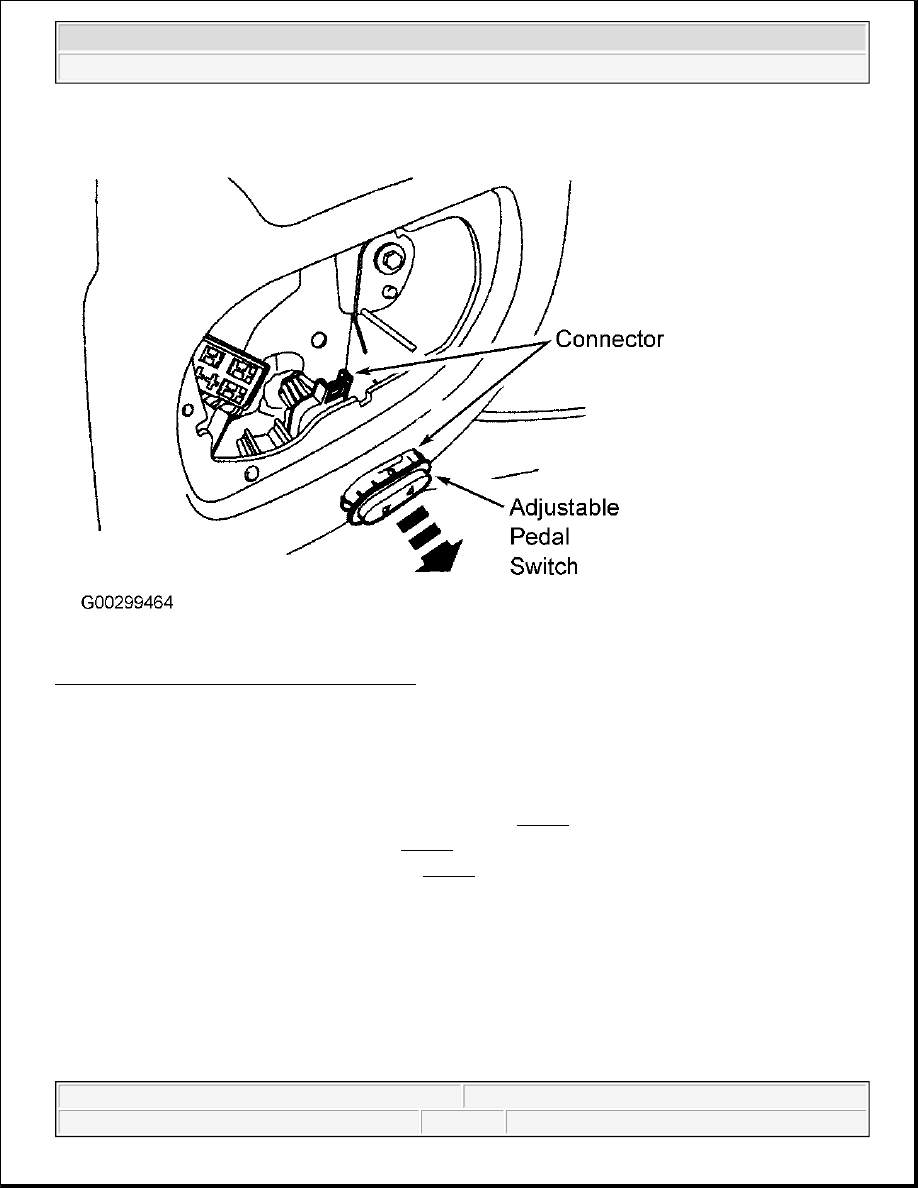

Fig. 47: Removing Brake Pedal Control Switch
Courtesy of FORD MOTOR CO.

BRAKE PEDAL MOTOR & CABLE

Removal & Installation

1. Disconnect the brake pedal motor harness connector. See Fig. 48 .

2. Remove the brake pedal motor bolts. See Fig. 49 .

3. Remove the brake pedal to motor cable. See Fig. 50 .

4. To install, reverse removal procedure. Hand tighten brake pedal motor bolts.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

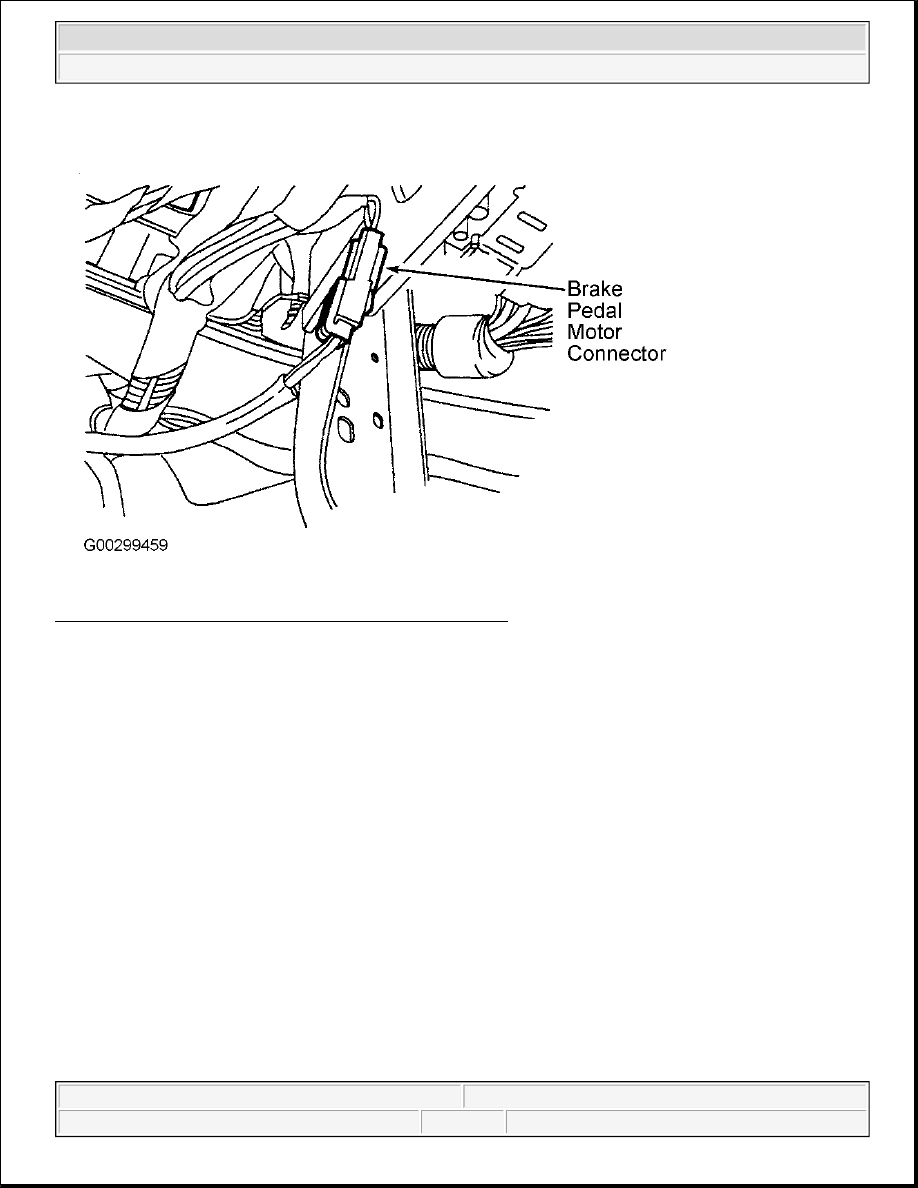

Fig. 48: Identifying Brake Pedal Motor Harness Connector
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

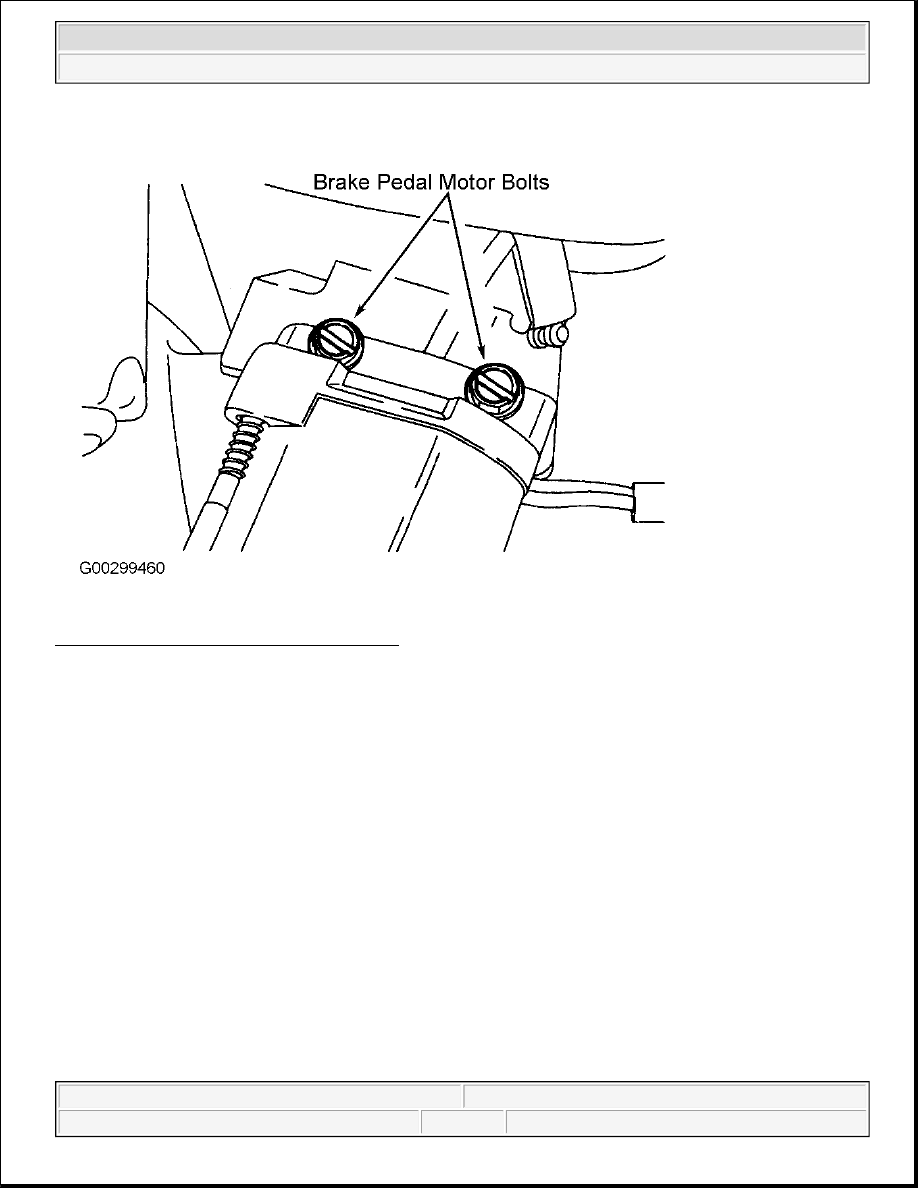

Fig. 49: Identifying Brake Pedal Motor Bolts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup
