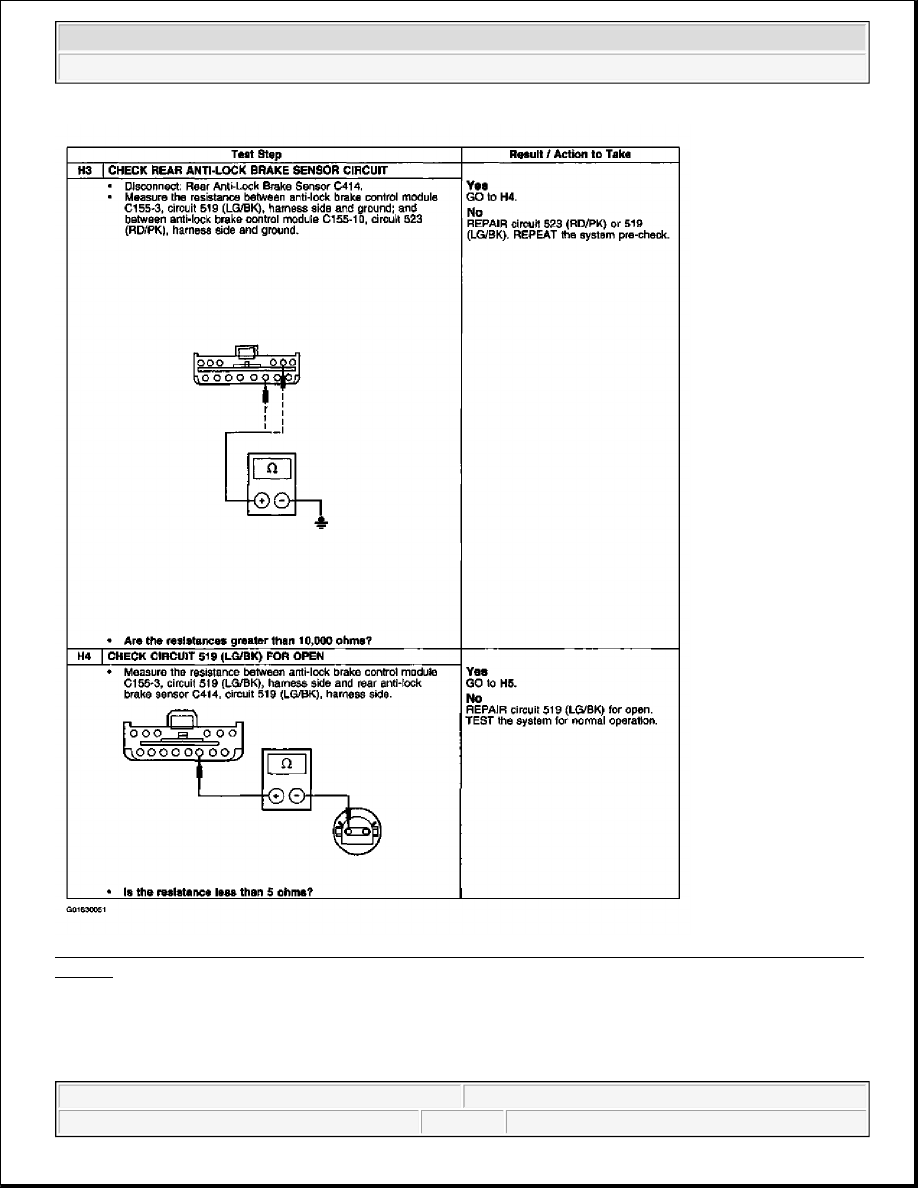

Fig. 24: Pinpoint Test H: DTC 6 - Erratic Rear Anti-Lock Brake Sensor Circuit - Diagnostic Chart (Steps
H3-H4)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

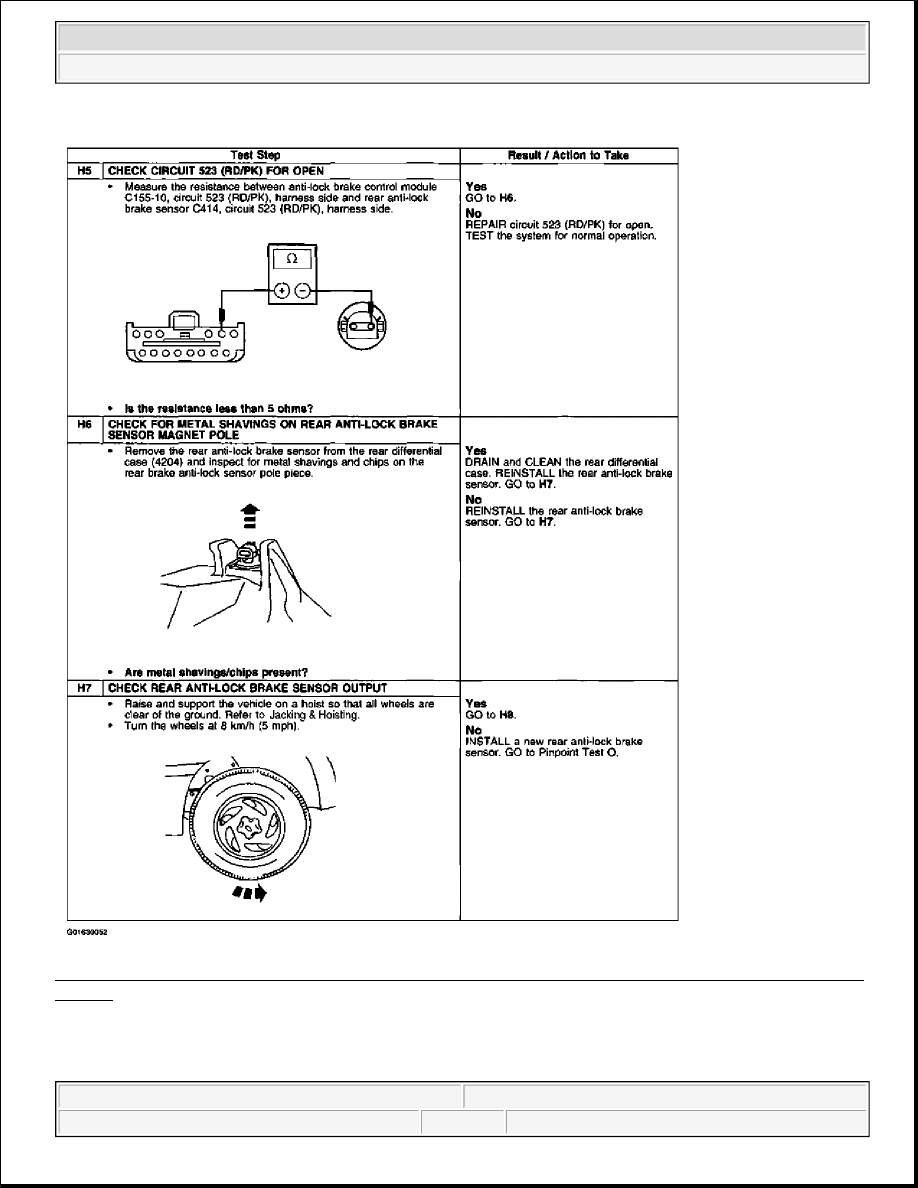

Fig. 25: Pinpoint Test H: DTC 6 - Erratic Rear Anti-Lock Brake Sensor Circuit - Diagnostic Chart (Steps
H5-H7)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

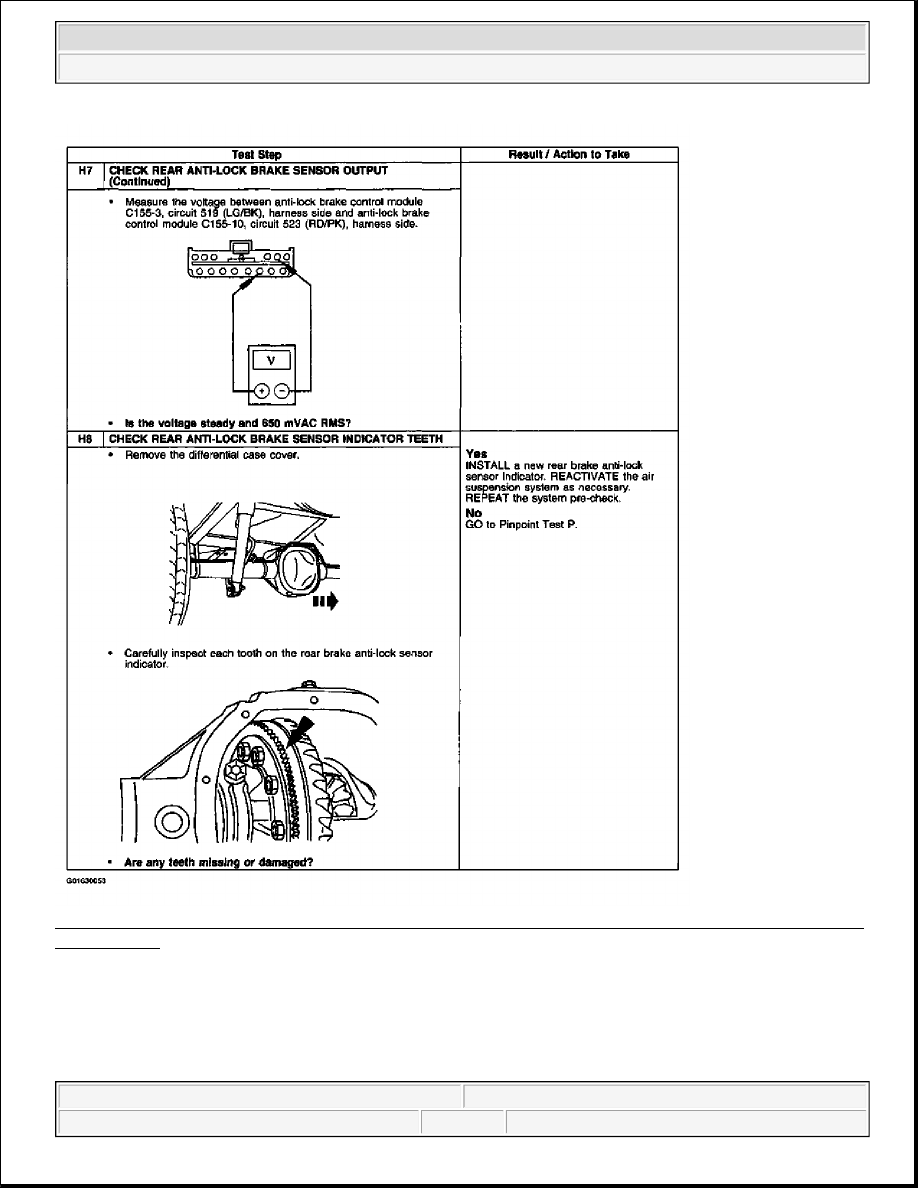

Fig. 26: Pinpoint Test H: DTC 6 - Erratic Rear Anti-Lock Brake Sensor Circuit - Diagnostic Chart (Steps
H7 Cont.-H8)
Courtesy of FORD MOTOR CO.

Pinpoint Test I: Diagnostic Trouble Code (DTC) 7 - No Isolation Solenoid During Self-Check

2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

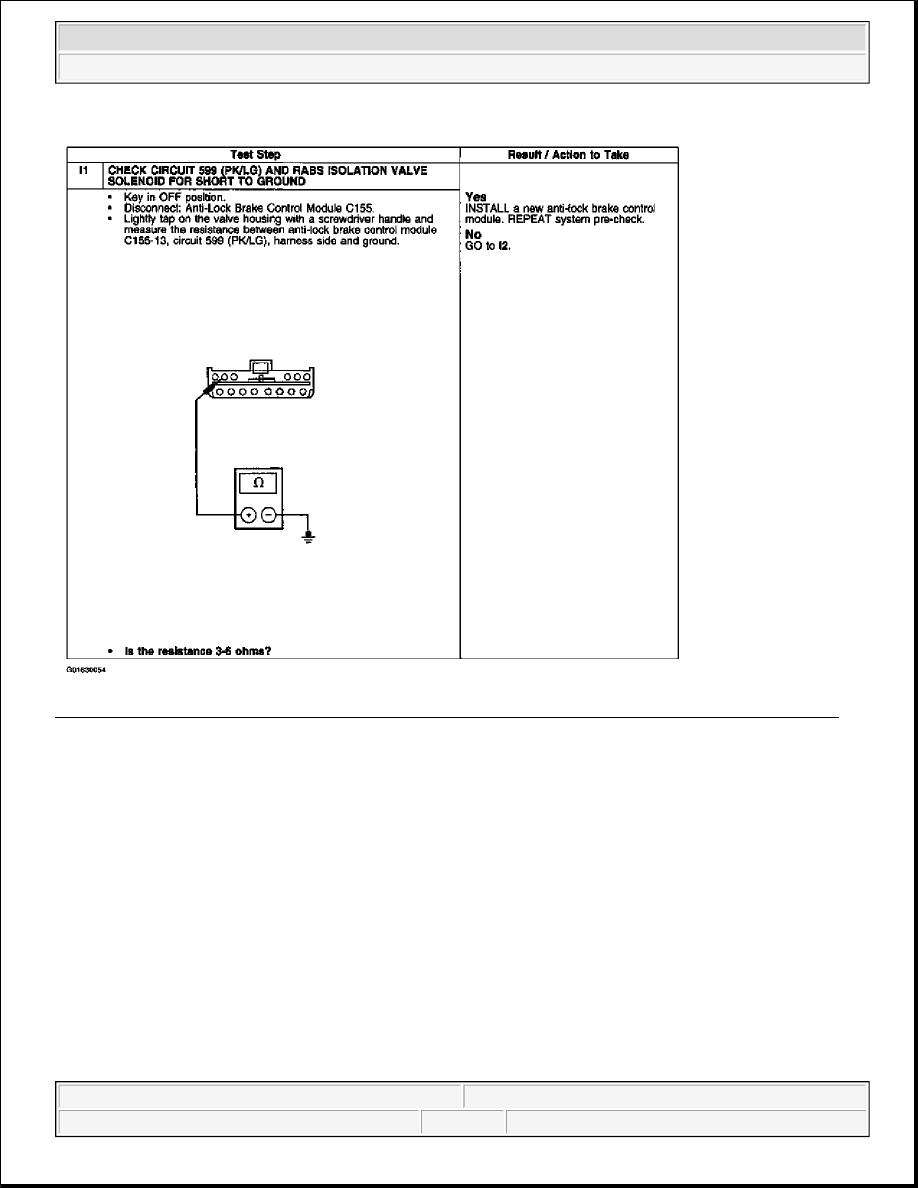

Fig. 27: Pinpoint Test I: DTC 7 - No Isolation Solenoid During Self-Check - Diagnostic Chart (Step I1)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup
