Ford F150 Pickup. Manual - part 359

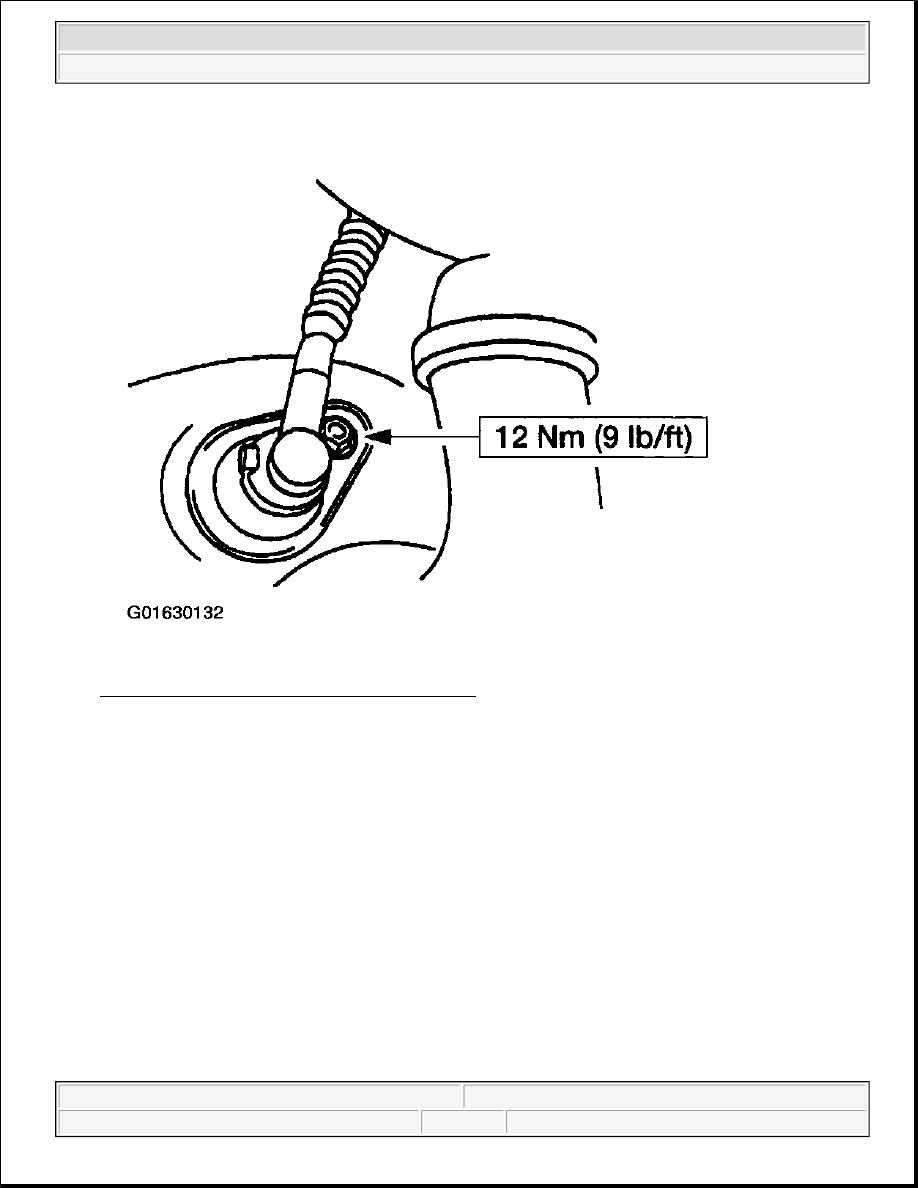

Fig. 59: Installing Front Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.

SENSOR - FRONT, 4X4

Removal

1. Disconnect the front brake anti-lock sensor electrical connector.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

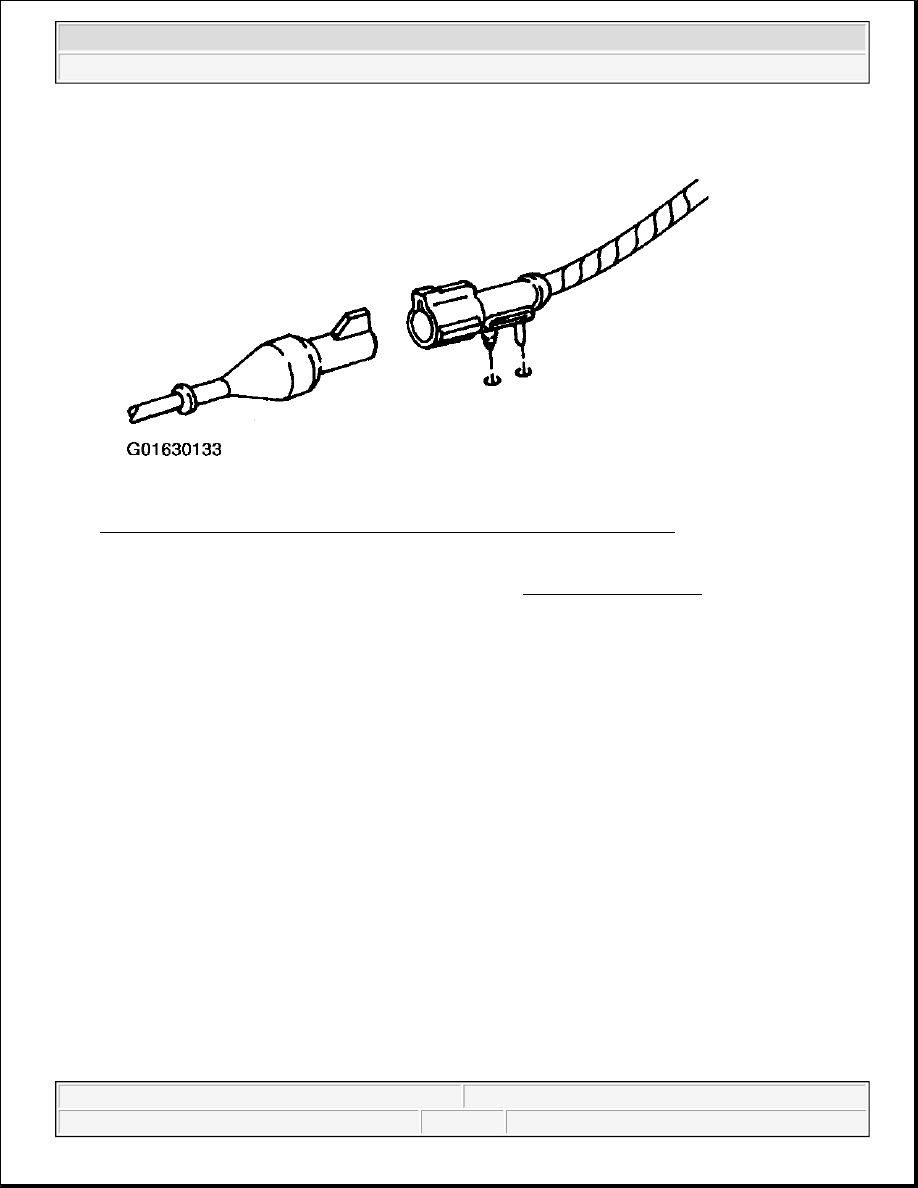

Fig. 60: Disconnecting Front Brake Anti-Lock Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

2. Remove the front disc brake rotor shield (2K005); refer to FRONT BRAKE DISC .

3. Remove the (A) front brake anti-lock sensor bolts and the (B) front brake anti-lock sensor (2C204).



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

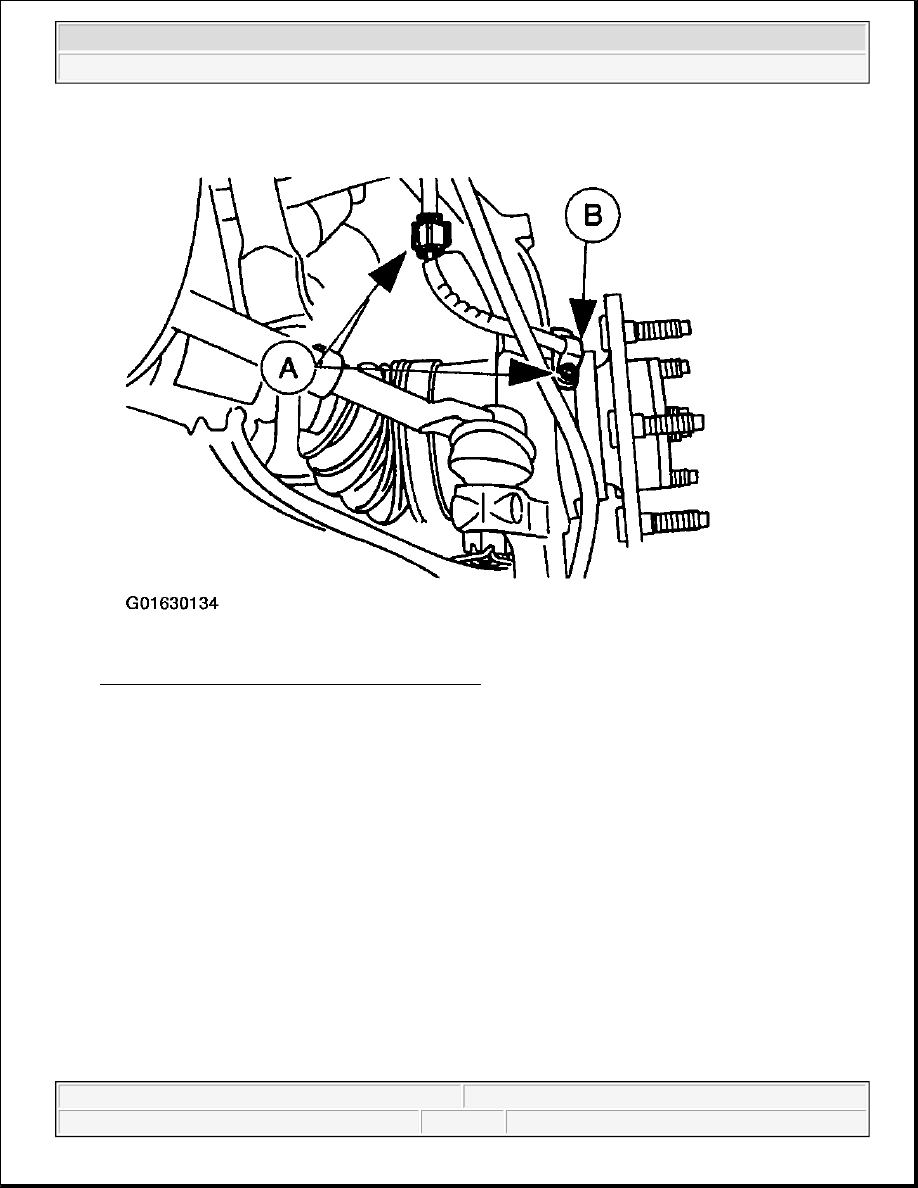

Fig. 61: Removing Front Brake Anti-Lock Sensor
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

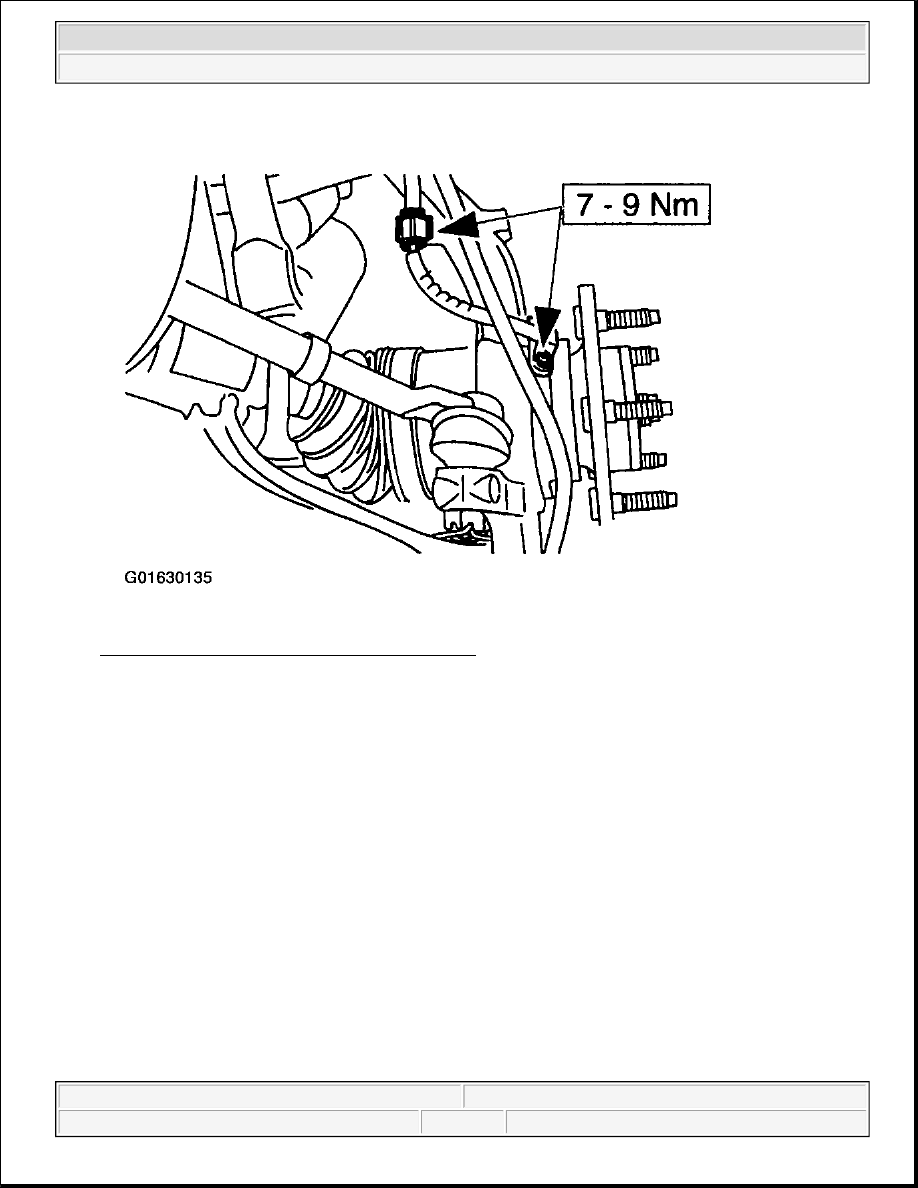

Fig. 62: Installing Front Brake Anti-Lock Sensor
Courtesy of FORD MOTOR CO.

SENSOR INDICATOR - FRONT, 4X2

Special Tool(s)



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup
