Ford F150 Pickup. Manual - part 319

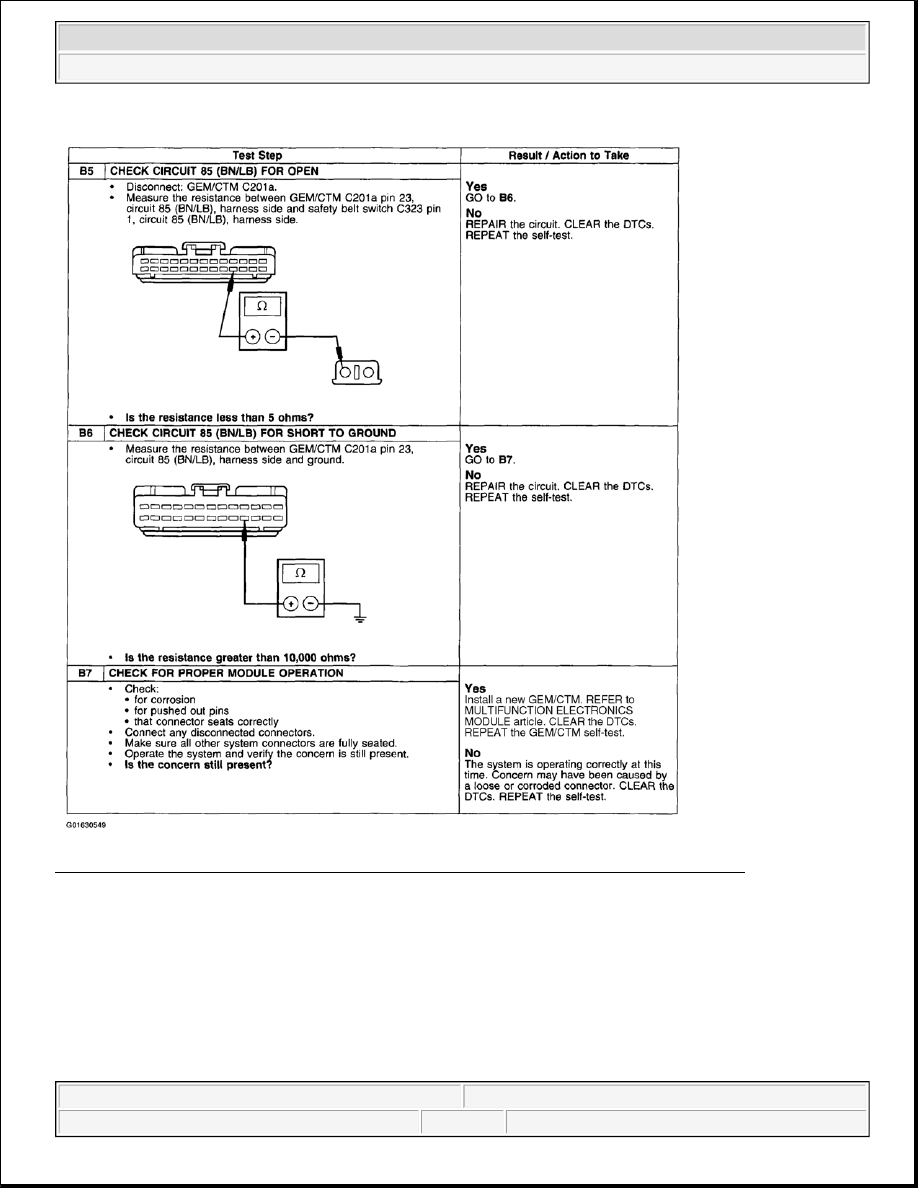

Fig. 9: Pinpoint Test B: Safety Belt Warning Chime Does Not Operate Correctly (B5 - B7)
Courtesy of FORD MOTOR CO.

PINPOINT TEST C: KEY - IN - IGNITION CHIME DOES NOT OPERATE CORRECTLY



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup

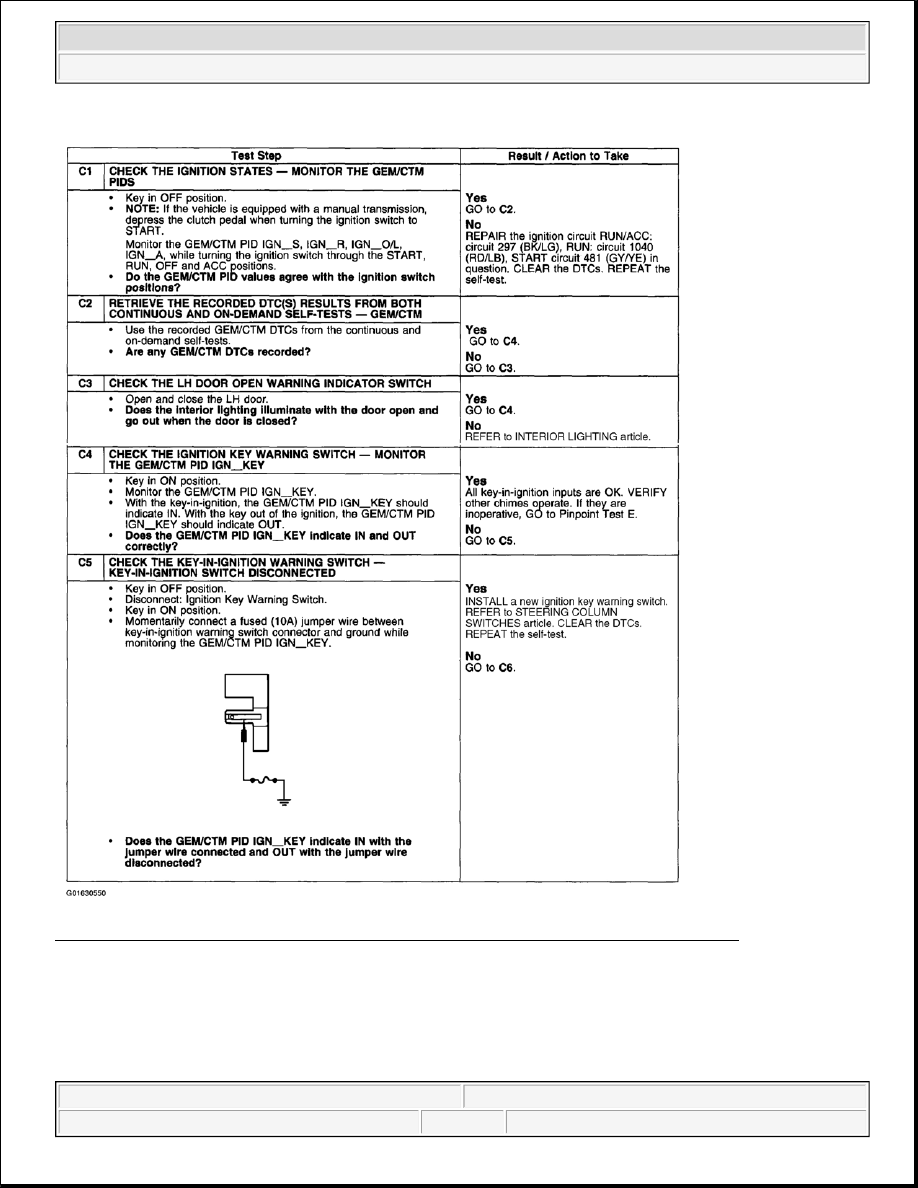

Fig. 10: Pinpoint Test C: Key - In - Ignition Chime Does Not Operate Correctly (C1 - C5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup

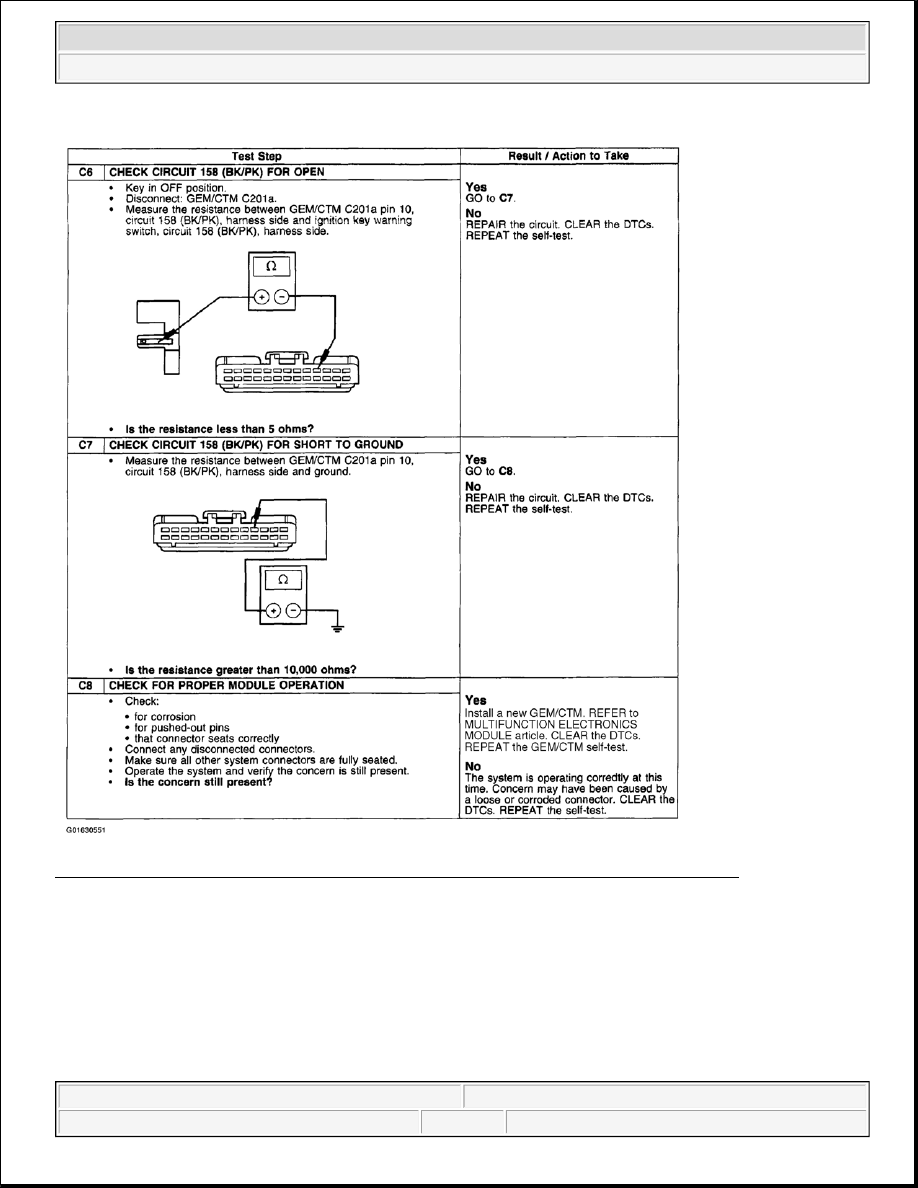

Fig. 11: Pinpoint Test C: Key - In - Ignition Chime Does Not Operate Correctly (C6 - C8)
Courtesy of FORD MOTOR CO.

PINPOINT TEST D: DOOR AJAR CHIME DOES NOT OPERATE CORRECTLY



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup

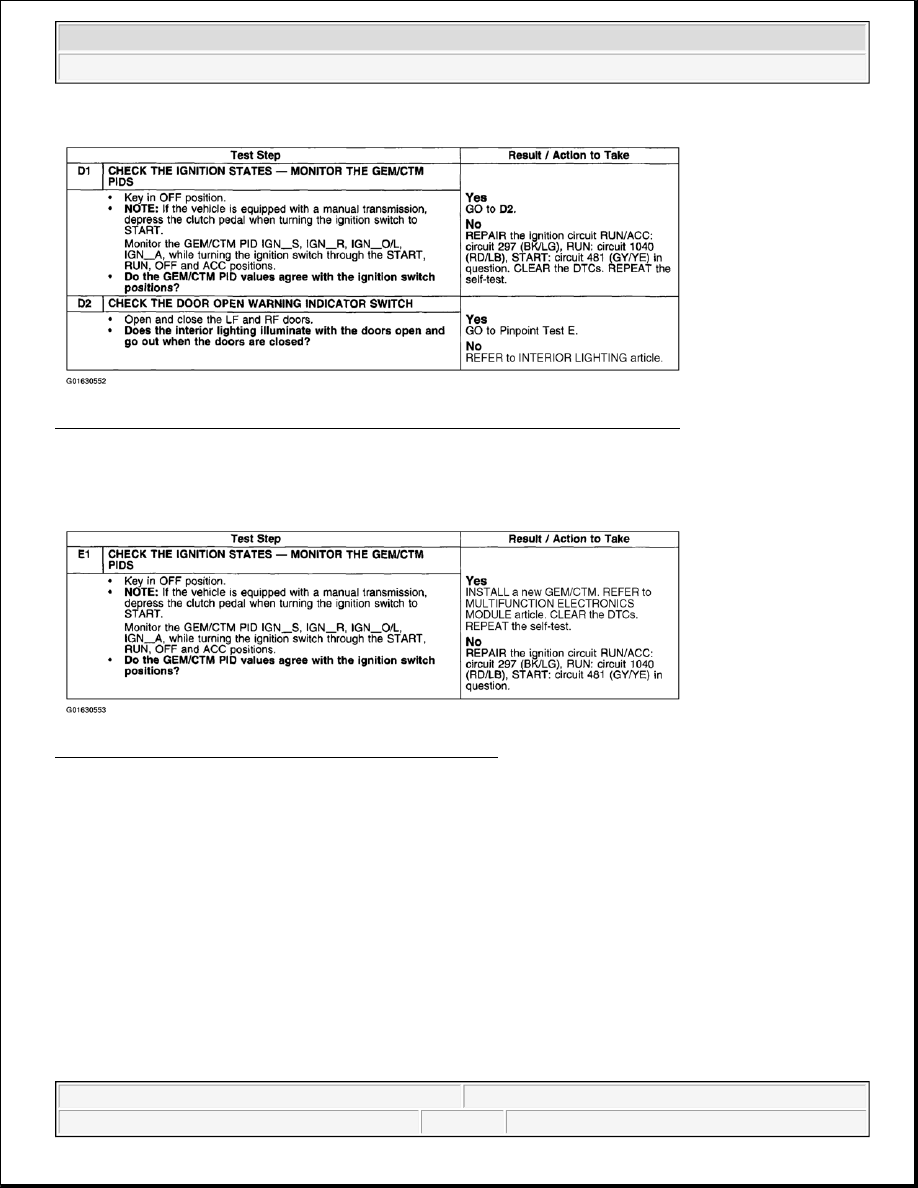

Fig. 12: Pinpoint Test D: Door Ajar Chime Does Not Operate Correctly (D1 - D2)
Courtesy of FORD MOTOR CO.

PINPOINT TEST E: ALL CHIMES ARE INOPERATIVE

Fig. 13: Pinpoint Test E: All Chimes Are Inoperative (E1)
Courtesy of FORD MOTOR CO.

PINPOINT TEST F: HEADLAMP ON REMINDER CHIME DOES NOT OPERATE CORRECTLY



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup
