Fig. 55: Timing Bus Bar Repair Area With Solder
Courtesy of FORD MOTOR CO.

3. Tin the bus bar repair area with solder.

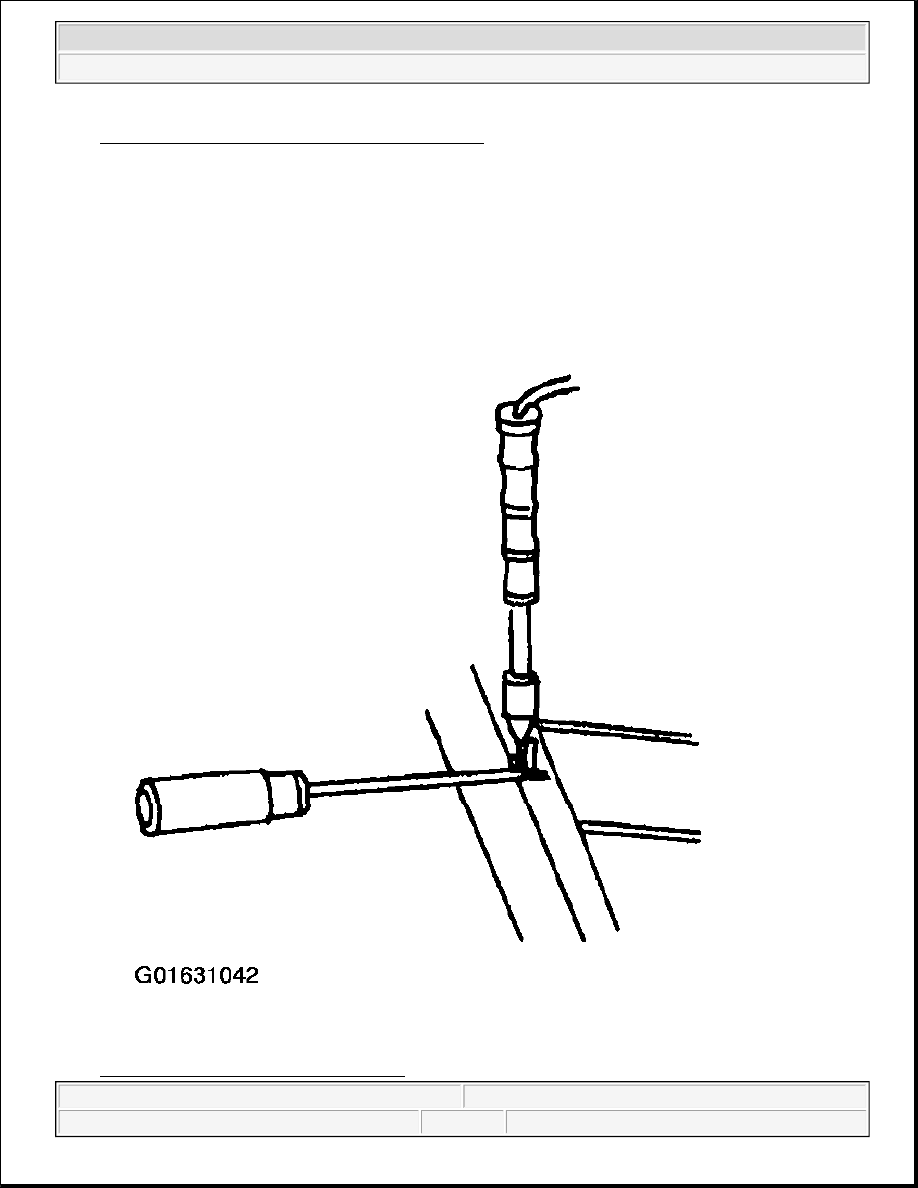

Fig. 56: Preheating Rear Window Glass

CAUTION: To prevent overheating the rear window glass, remove the soldering

gun as soon as the solder flows.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Courtesy of FORD MOTOR CO.

4. Preheat the rear window glass in the area to be serviced using the special tool and solder the terminal to

the bus bar.

5. Apply rear window defroster repair to the repair area as needed.

REMOVAL AND INSTALLATION

WINDOW CONTROL SWITCH

Removal and Installation

1. Disconnect the battery.

2. Remove the window control switch plate.

1. Release the window control switch plate.

2. Disconnect the electrical connectors.

NOTE:

Turn the heated rear window switch ON for five minutes prior to the final
inspection of the repair.

NOTE:

F150 shown, SuperCrew similar.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

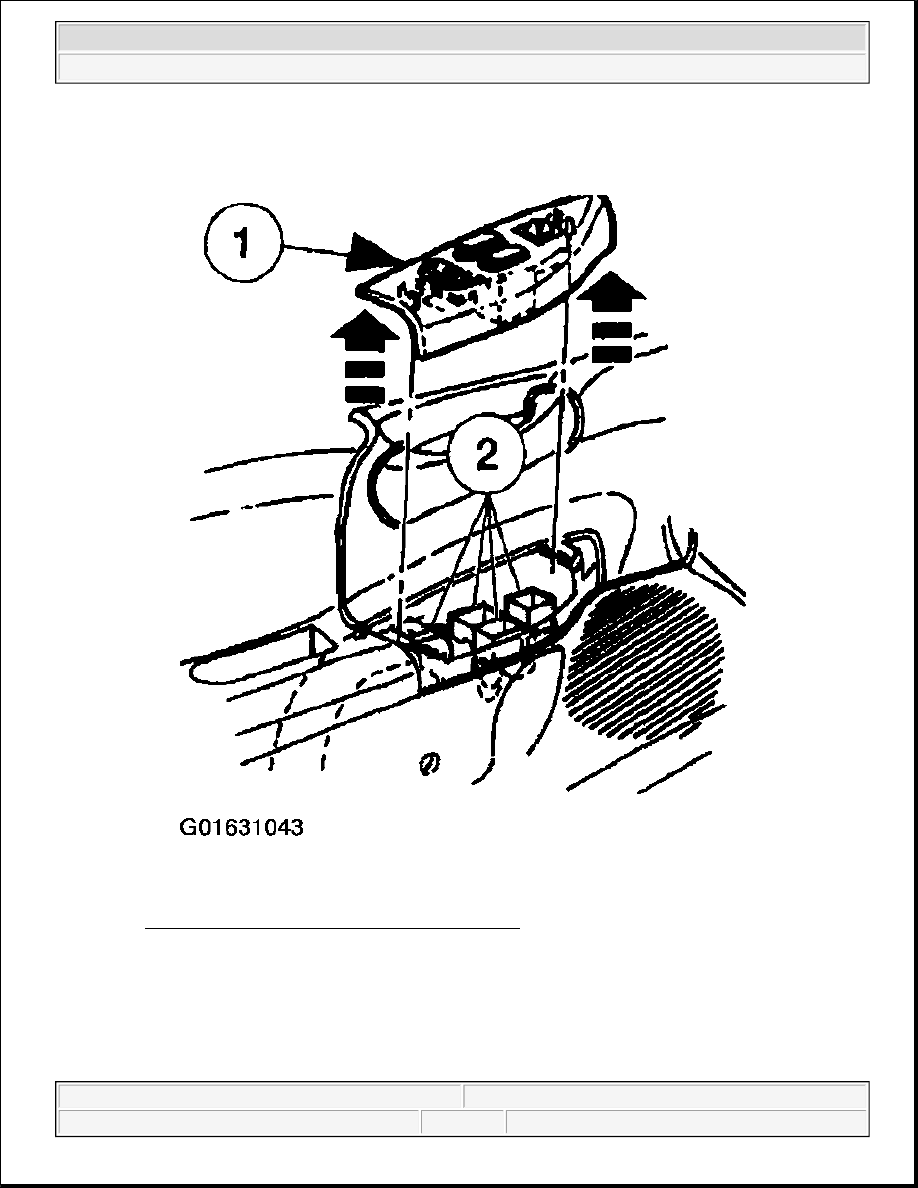

Fig. 57: Removing Window Control Switch Plate
Courtesy of FORD MOTOR CO.

3. Remove the window control switch.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

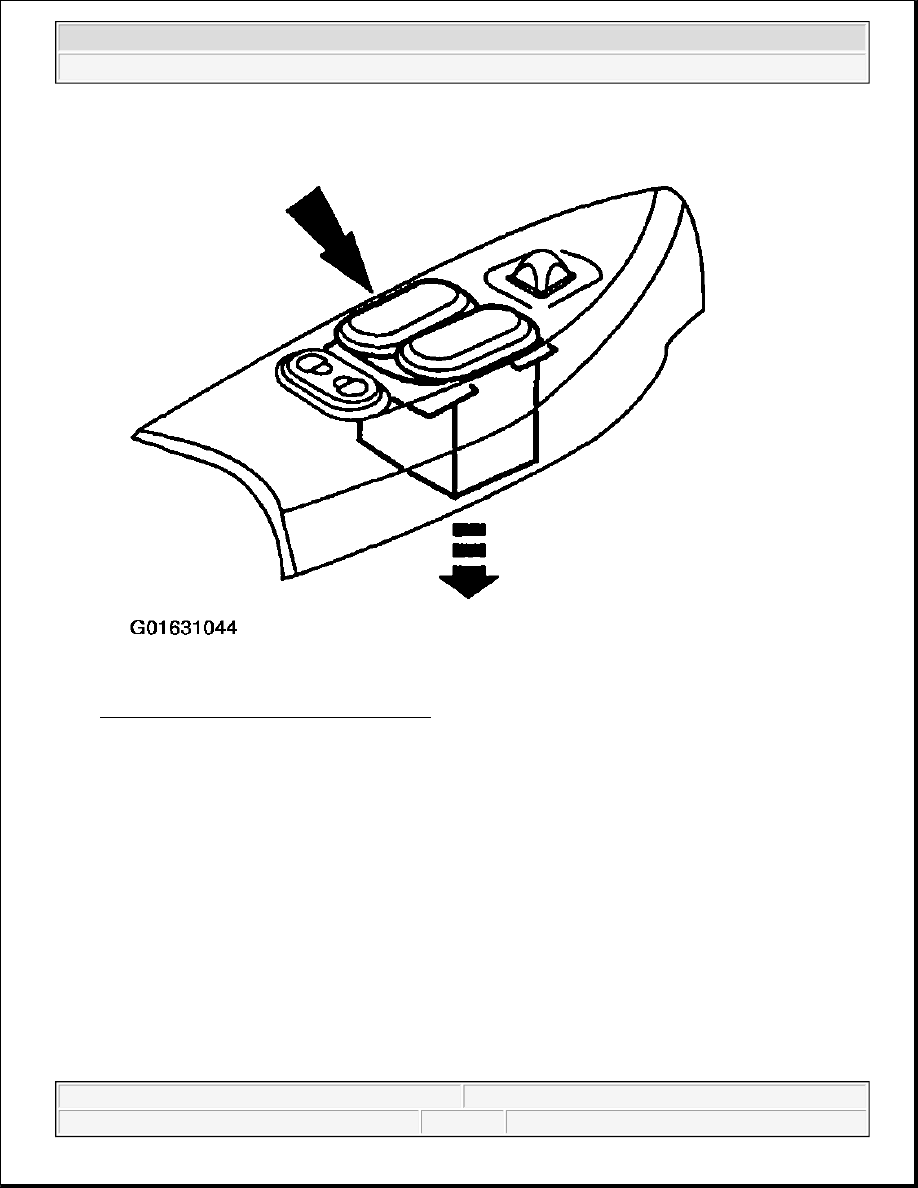

Fig. 58: Removing Window Control Switch
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.

WINDOW GLASS - REAR SIDE

Removal

1. If equipped, remove the rear door window latch screws.

NOTE:

Hinged glass shown, fixed glass similar.
