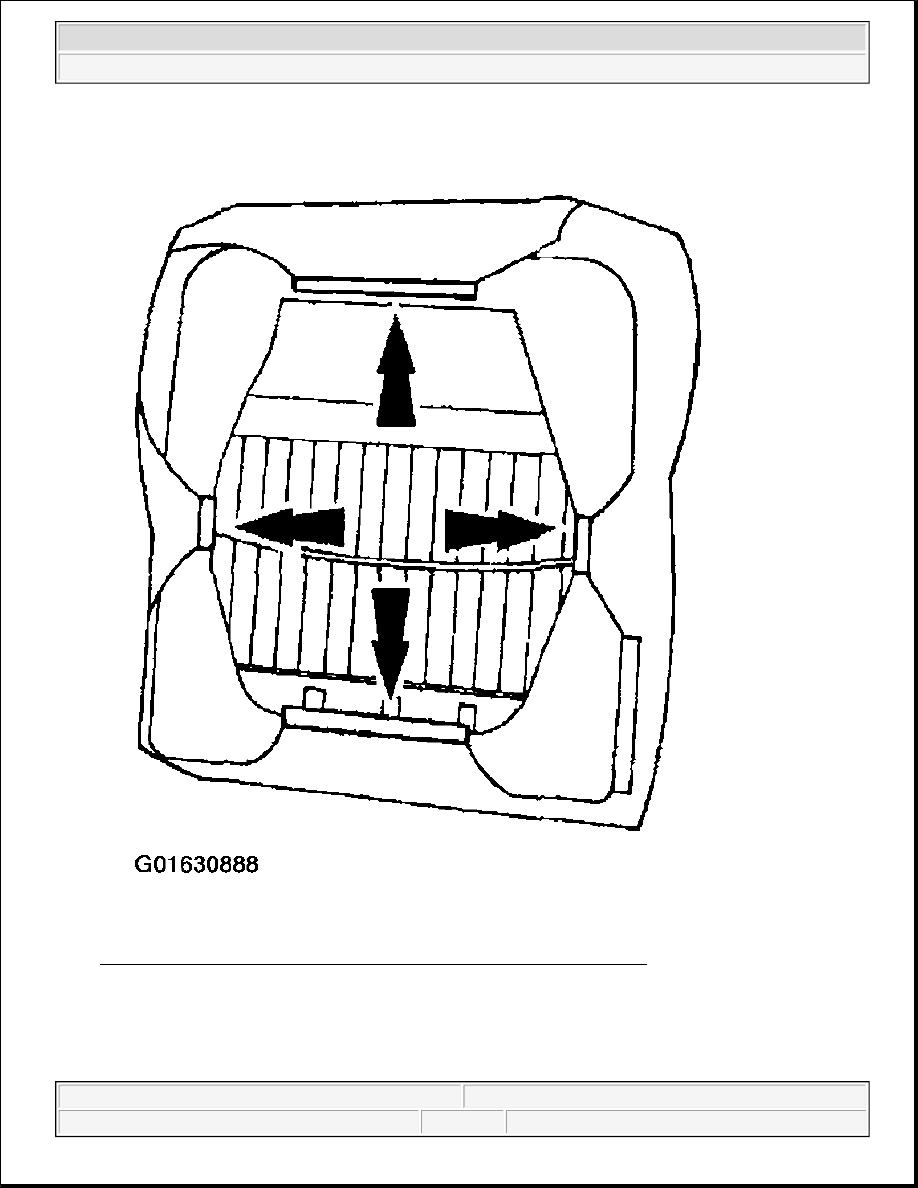

Fig. 282: Removing Seat Cushion Frame From Seat Cushion Foam
Courtesy of FORD MOTOR CO.

Assembly

1. To assemble, reverse the disassembly procedure.

z

Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .

FRONT SEAT CUSHION - 60 PERCENT

Disassembly

1. Disassemble the 60 percent front seat. Refer to SEAT-60 PERCENT FRONT BENCH .

2. Unfasten the front seat cushion cover retainers.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

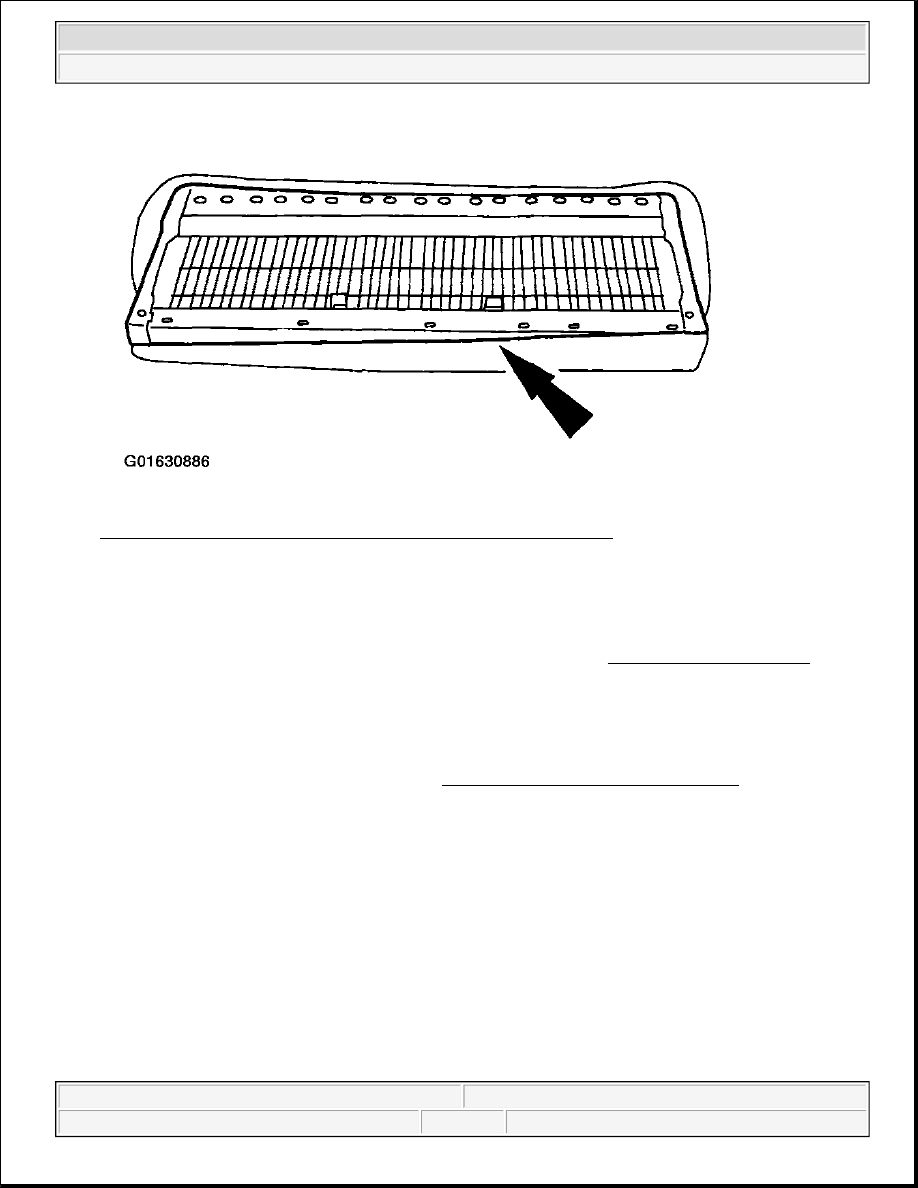

Fig. 283: Unfastening Front Seat Cushion Cover Retainers (60 Percent)
Courtesy of FORD MOTOR CO.

3. Remove the five front seat cushion trim cover hog rings and remove the 60 percent front seat cushion trim

cover.

4. Separate the front seat cushion frame from the front seat cushion foam.

Assembly

1. To assemble, reverse the disassembly procedure.

FRONT SEAT CUSHION - 40 PERCENT AND CAPTAIN'S CHAIR

Disassembly

1. Disassemble the captains chair. Refer to SEAT-40 PERCENT AND CAPTAIN'S CHAIR .

2. Unfasten the front seat cushion cover J-clips.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

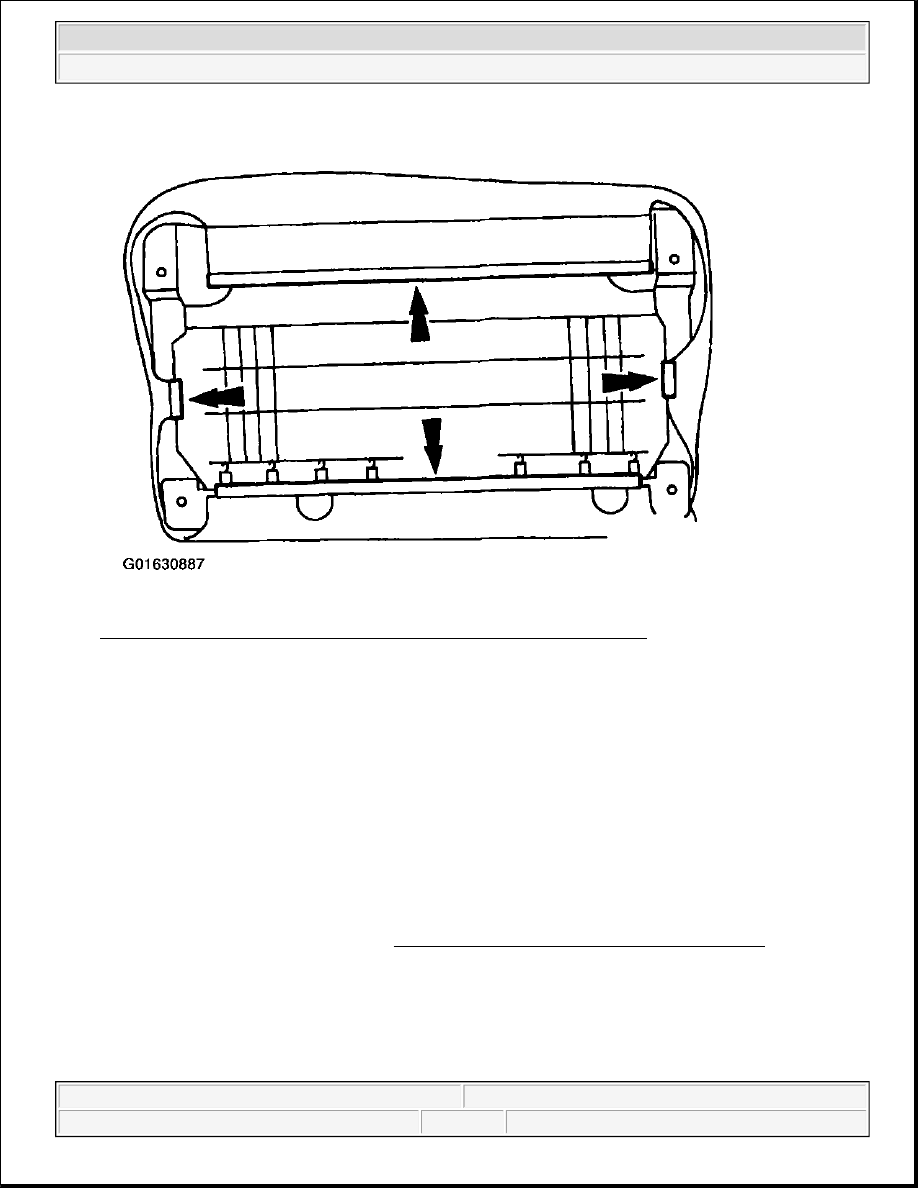

Fig. 284: Unfastening Front Seat Cushion Cover Retainers (40 Percent)
Courtesy of FORD MOTOR CO.

CAUTION: Use care when separating the seat cushion trim cover from the hook

and loop strip, or the hook and loop strip can be torn from the seat
cushion foam.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

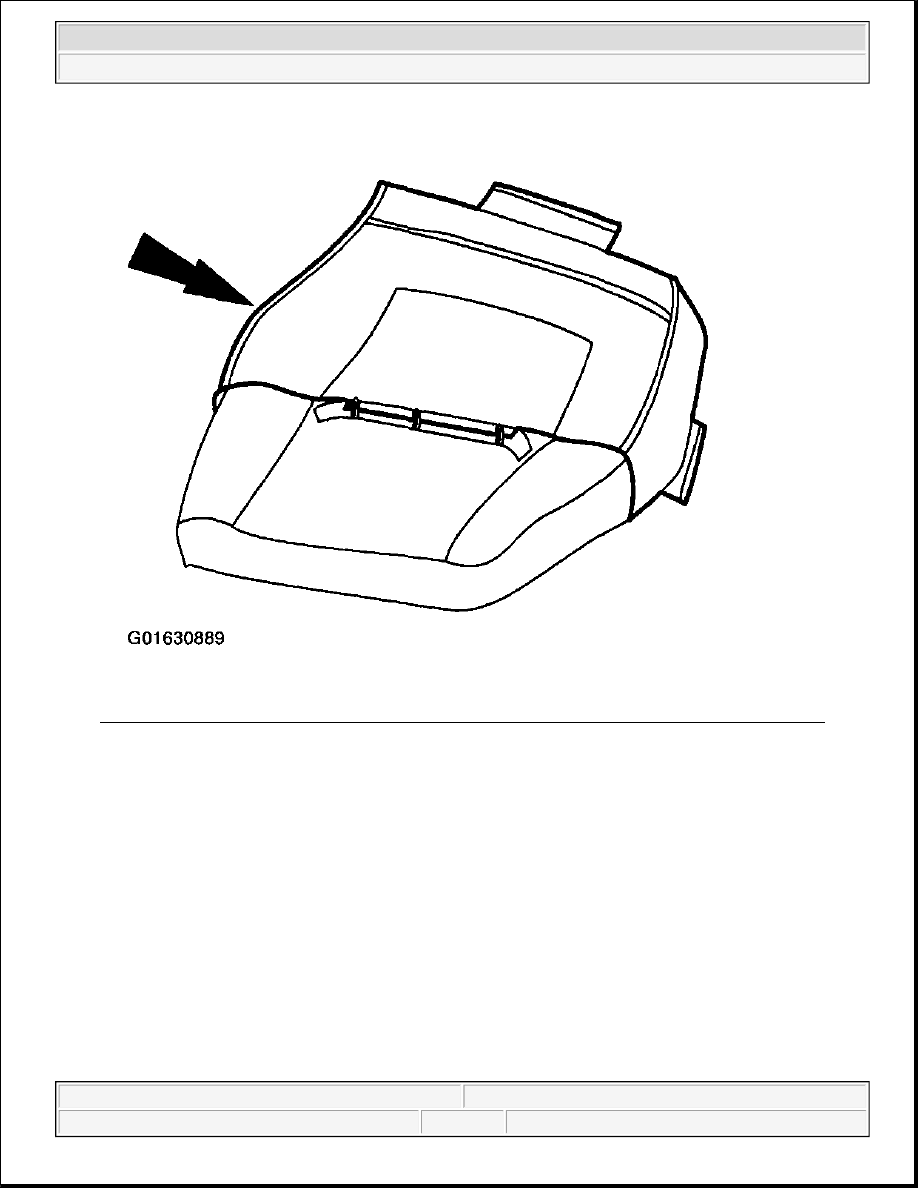

Fig. 285: Inverting Seat Cushion Trim Cover To Expose Hog Rings And Hook And Loop Strip
Courtesy of FORD MOTOR CO.

3. Invert the seat cushion trim cover to expose the hog rings and hook and loop strip.

4. Remove the seat cushion trim cover (62901).

1. Remove the hog rings.

2. Remove the seat cushion trim cover.
