Ford F150 Pickup. Manual - part 1870

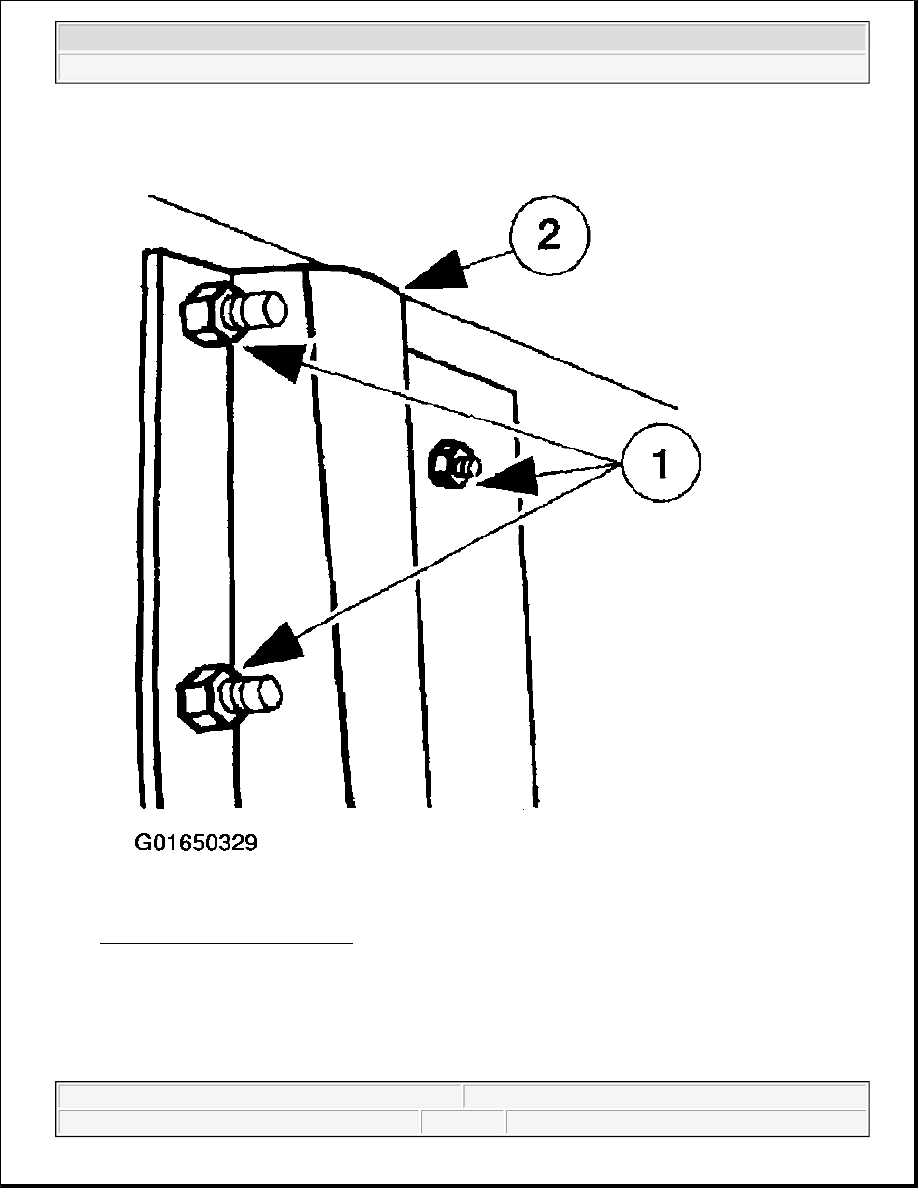

Fig. 19: Removing Crossmember
Courtesy of FORD MOTOR CO.

11. Remove the transmission mount.

1. Remove the bolts.

2. Remove the transmission mount.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

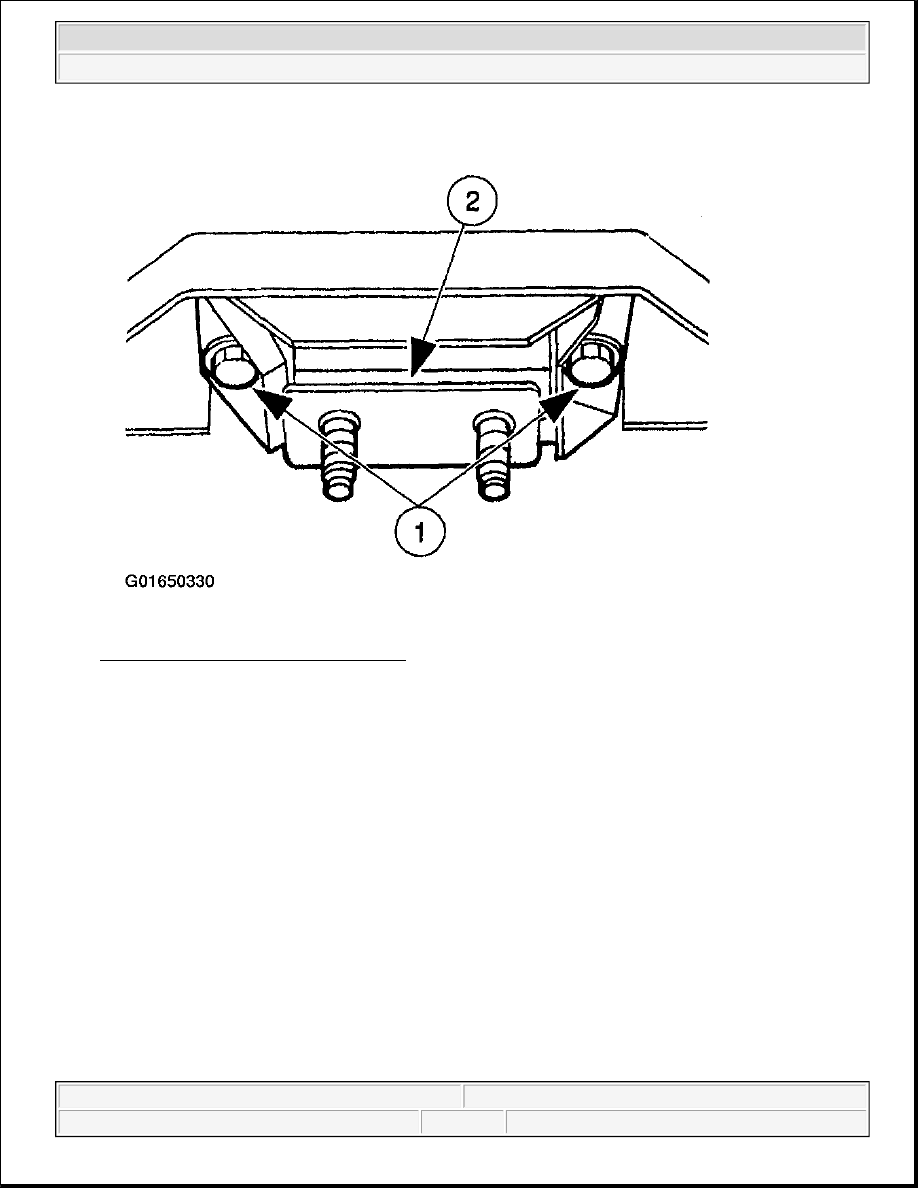

Fig. 20: Removing Transmission Mount
Courtesy of FORD MOTOR CO.

12. Remove the exhaust pipe bracket.

1. Remove the nuts.

2. Remove the exhaust pipe bracket.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

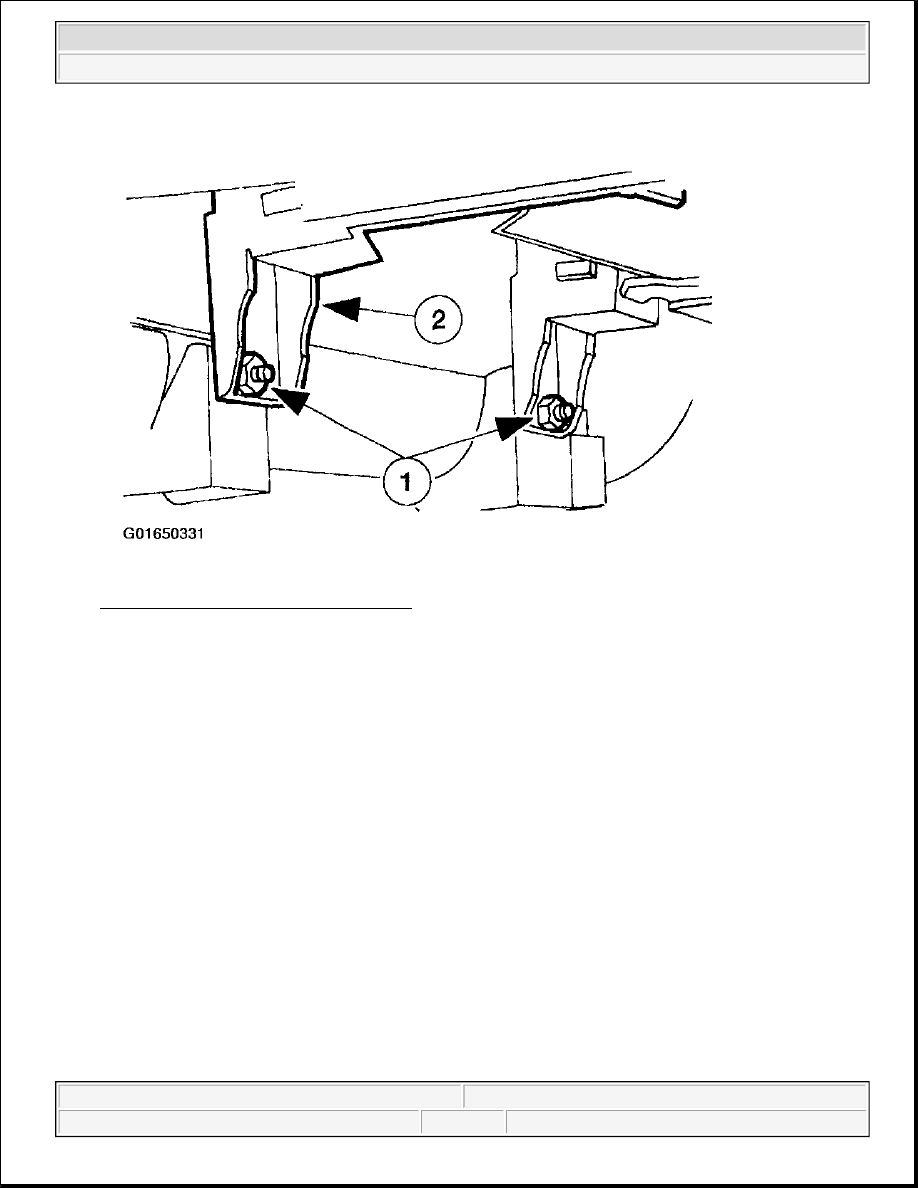

Fig. 21: Removing Exhaust Pipe Bracket
Courtesy of FORD MOTOR CO.

13. Lower the transmission to access extension housing bolts.

14. Use (A) Seal Remover to remove the (B) extension housing seal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

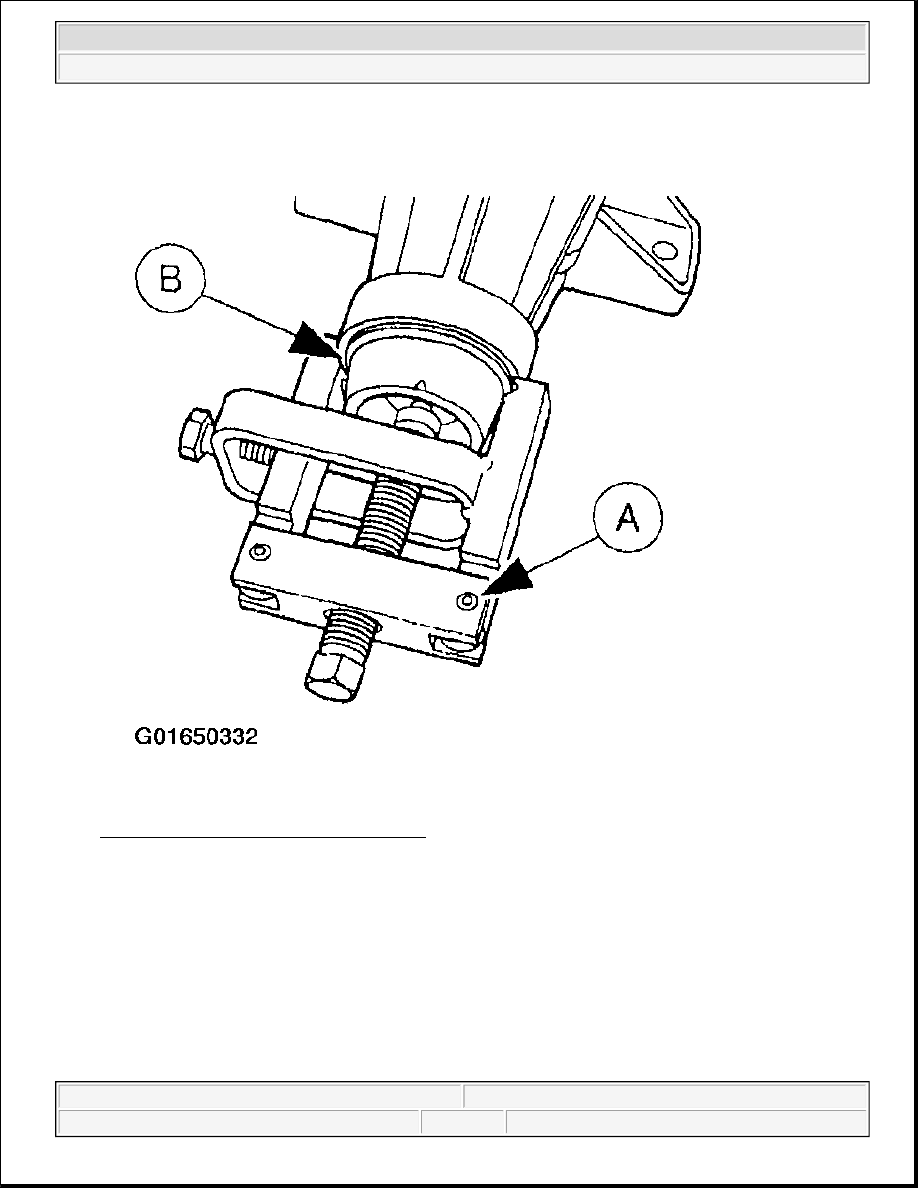

Fig. 22: Removing Extension Housing Seal
Courtesy of FORD MOTOR CO.

15. Remove the extension housing.

1. Remove the bolts.

2. Remove the extension housing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup
