2003 TRANSMISSIONS

Transmission Cooling - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

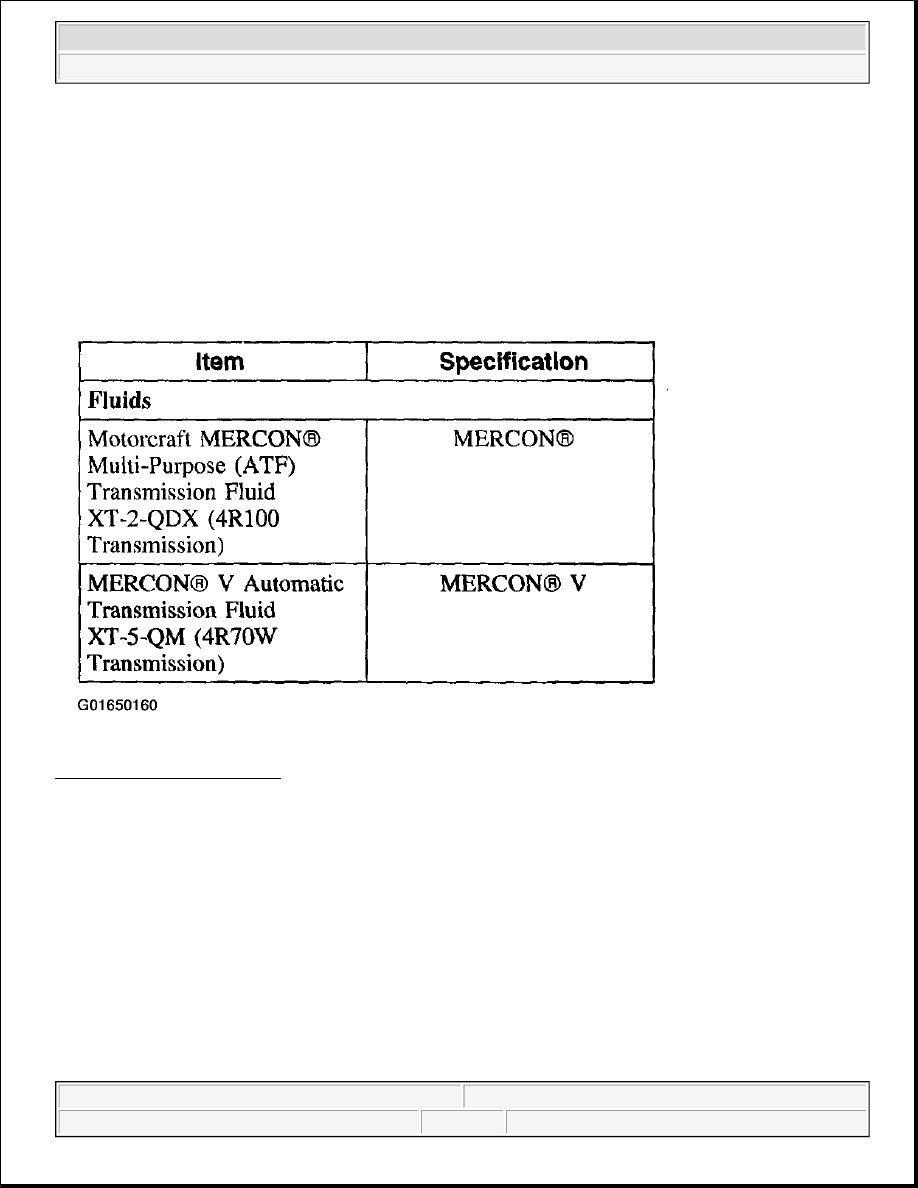

Fig. 1: General Specifications
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup





2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup

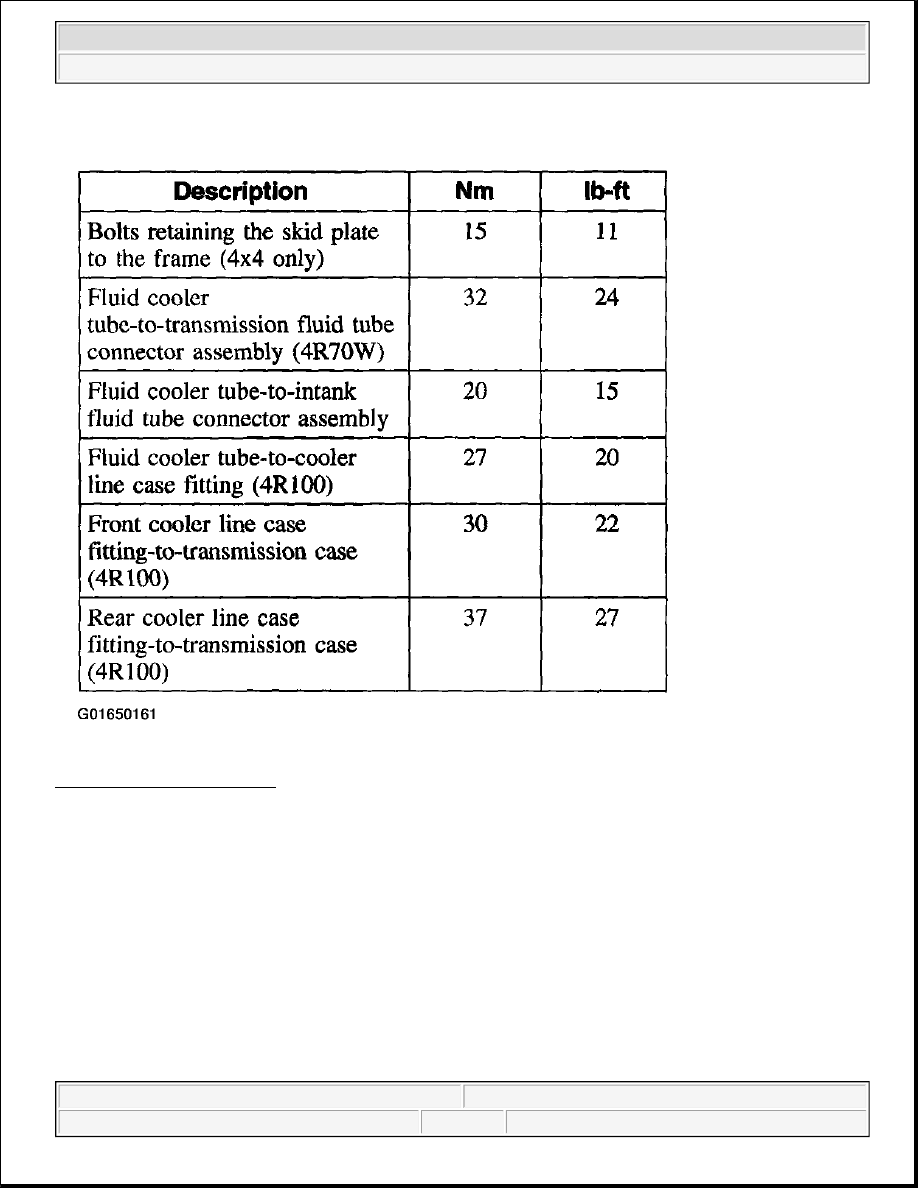

Fig. 2: Torque Specifications
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION

TRANSMISSION COOLING

The transmission fluid cooling system, without an auxiliary transmission fluid cooler, consists of:

z

an intank fluid cooler inlet tube

z

a non-repairable intank transmission fluid cooler

z

an intank fluid cooler return tube

The transmission fluid cooling system, with an auxiliary transmission fluid cooler, consists of:



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup



z

an intank fluid cooler inlet tube

z

a non-repairable intank transmission fluid cooler

z

an auxiliary fluid cooler inlet tube

z

an auxiliary transmission fluid cooler

z

an auxiliary fluid cooler return tube

The transmission fluid flows from the transmission (front fitting for 4R100) (bottom fitting for 4R70W), to the
intank transmission fluid cooler, to the auxiliary transmission fluid cooler, if so equipped, and returns to the
transmission (rear fitting for 4R100) (top fitting for 4R70W).

For fluid cooler flow testing, and backflushing and cleaning procedures, refer to AUTOMATIC
TRANSMISSION-4R100 - F150 PICKUP or AUTOMATIC TRANSMISSION-4R70W - F150 PICKUP .

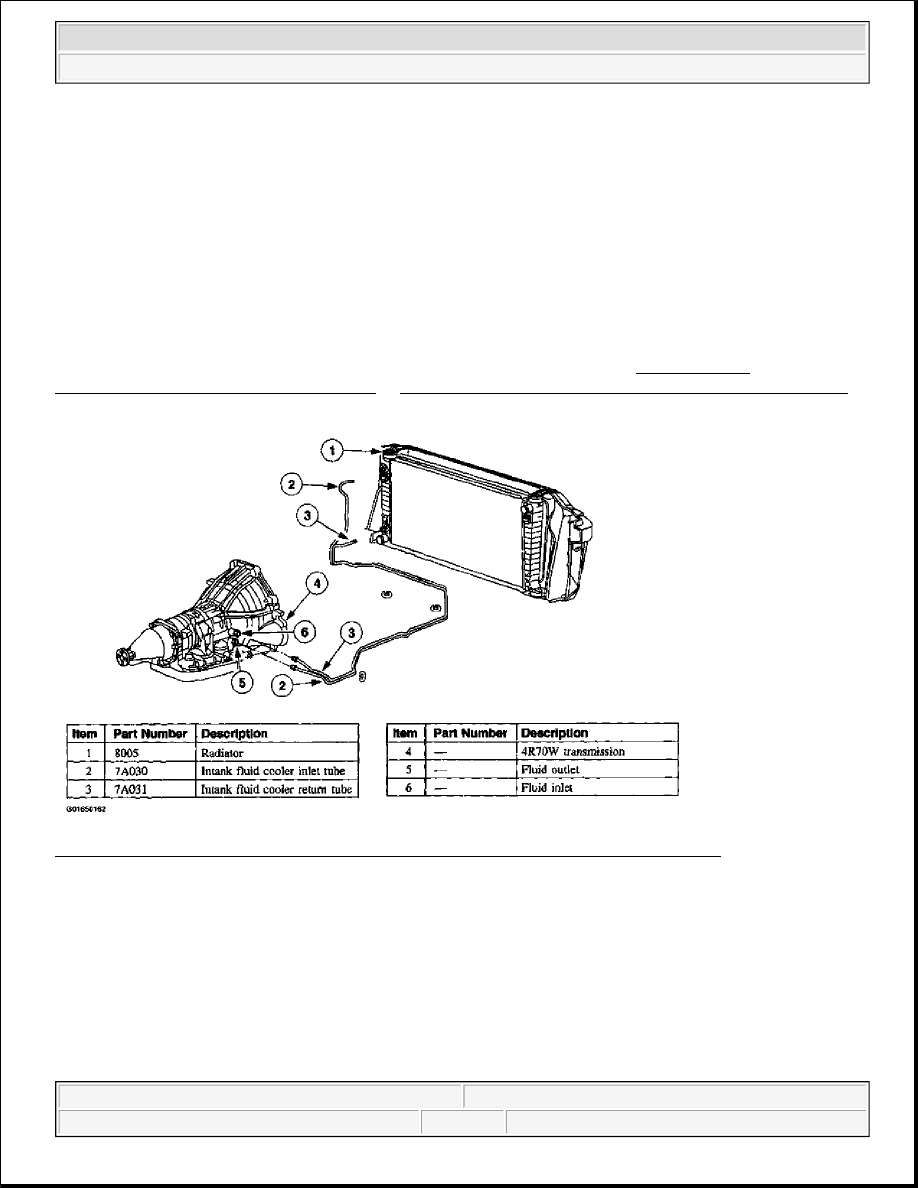

Fig. 3: Identifying 4R70W Transmission Without Auxiliary Transmission Fluid Cooler
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup

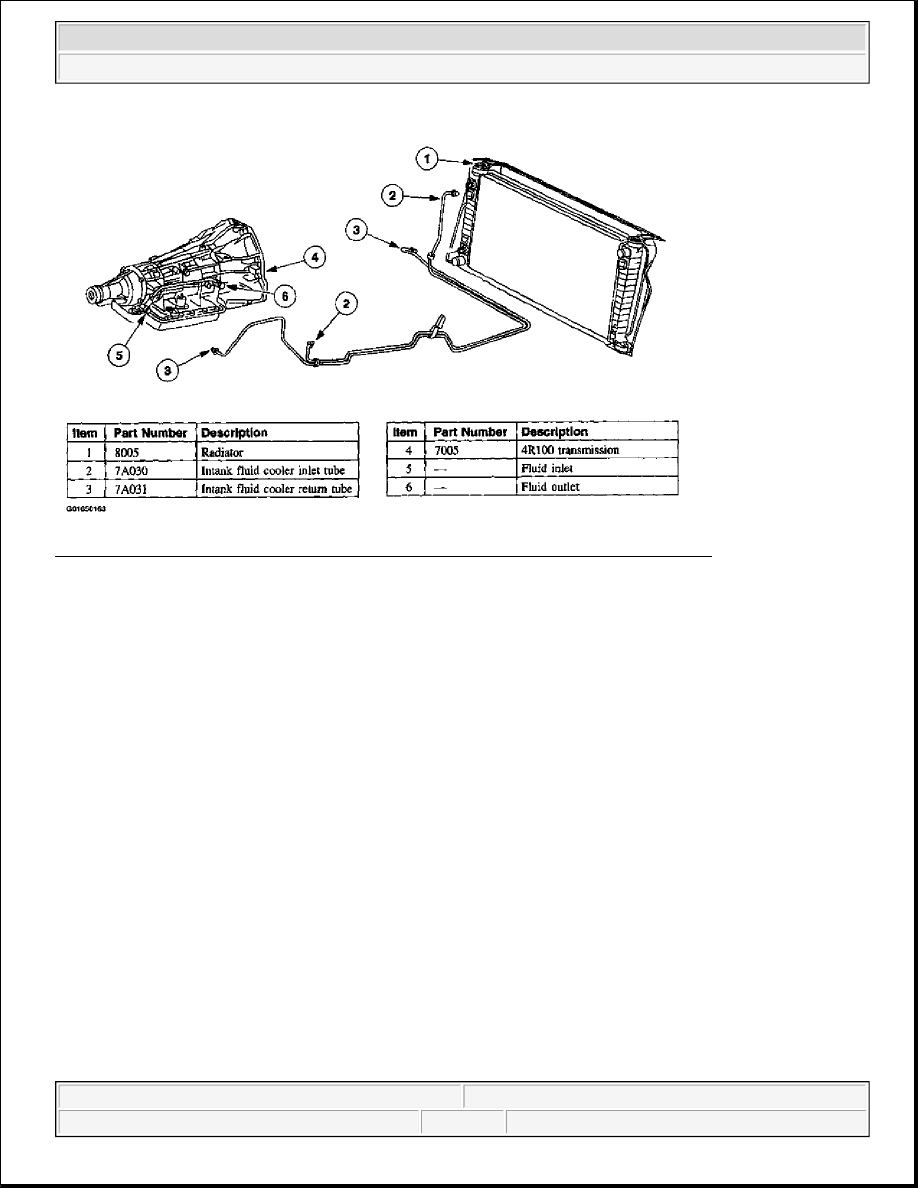

Fig. 4: Identifying 4R100 Transmission Without Auxiliary Transmission Fluid Cooler
Courtesy of FORD MOTOR CO.
