Ford F150 Pickup. Manual - part 173

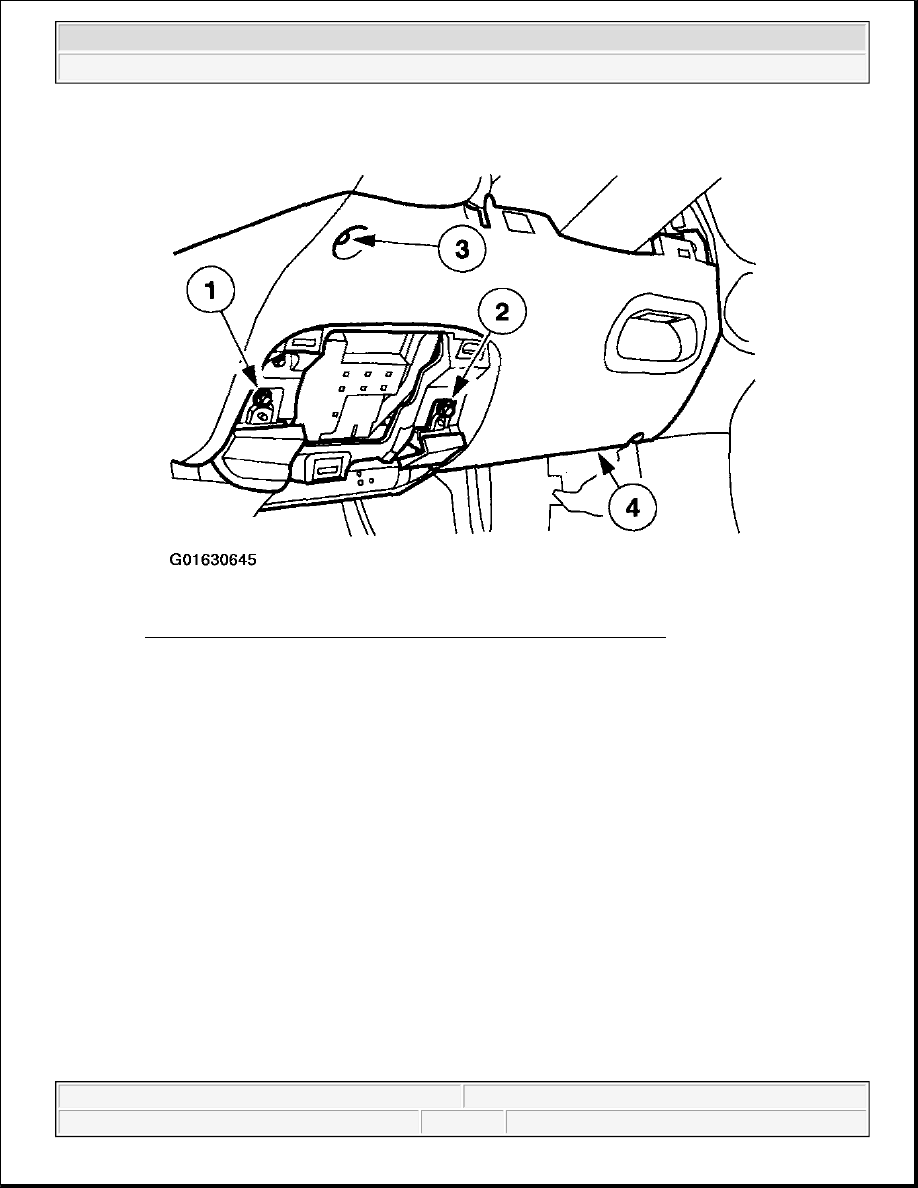

Fig. 41: Removing Lower Instrument Panel Steering Column Cover
Courtesy of FORD MOTOR CO.

5. Disconnect the clockspring electrical connector at the base of the steering column.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

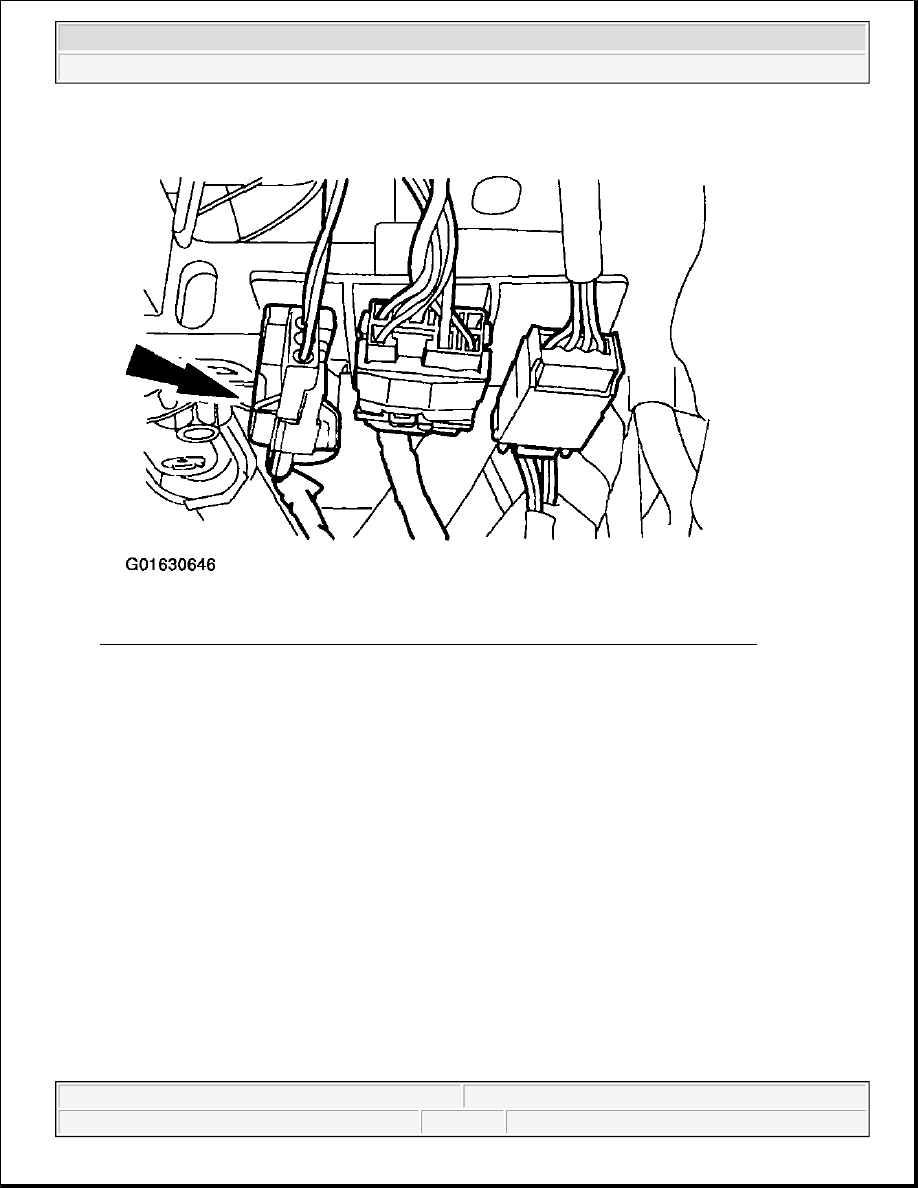

Fig. 42: Disconnecting Clockspring Electrical Connector At Base Of Steering Column
Courtesy of FORD MOTOR CO.

6. Attach the restraint system diagnostic tool to the vehicle harness side of the clockspring electrical

connector at the base of the steering column.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

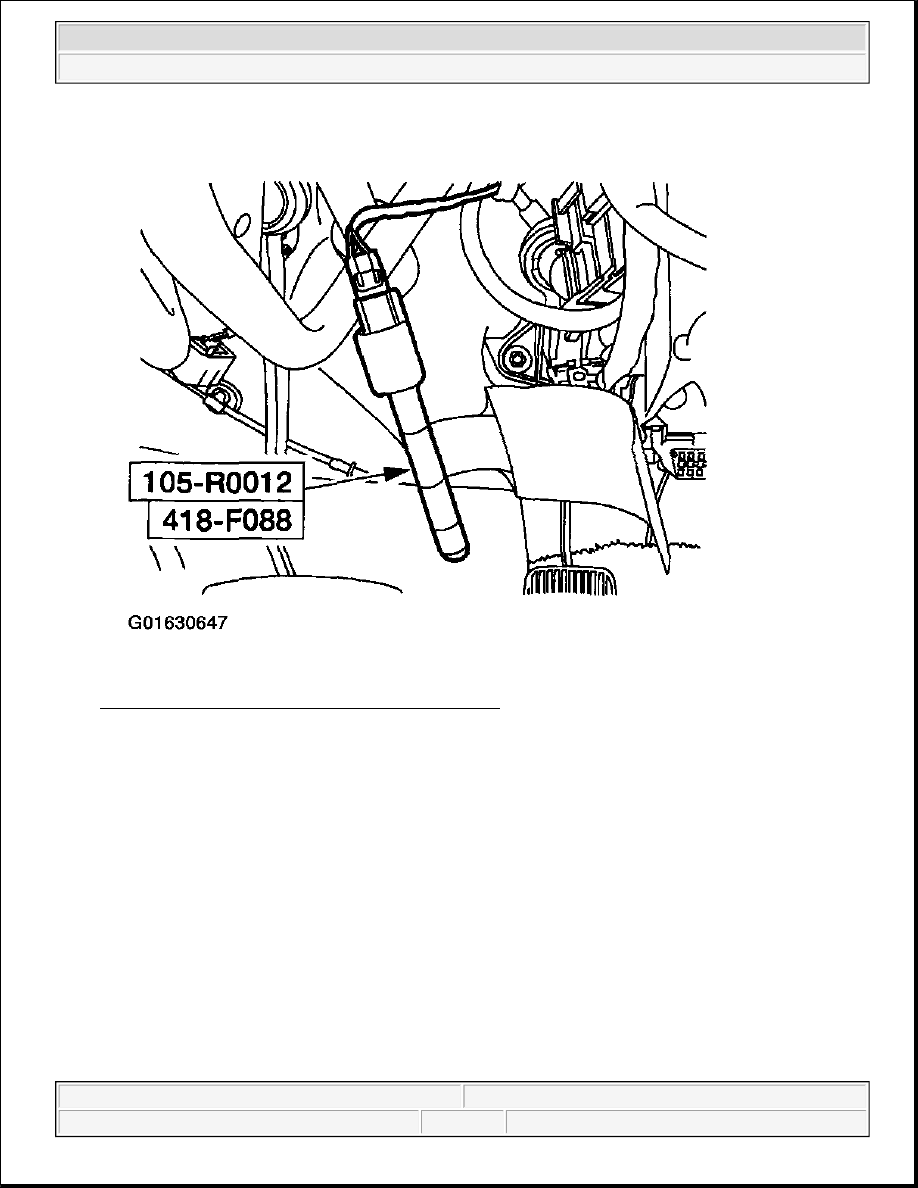

Fig. 43: Attaching Restraint System Diagnostic Tool
Courtesy of FORD MOTOR CO.

7. Remove the instrument panel relay cover.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

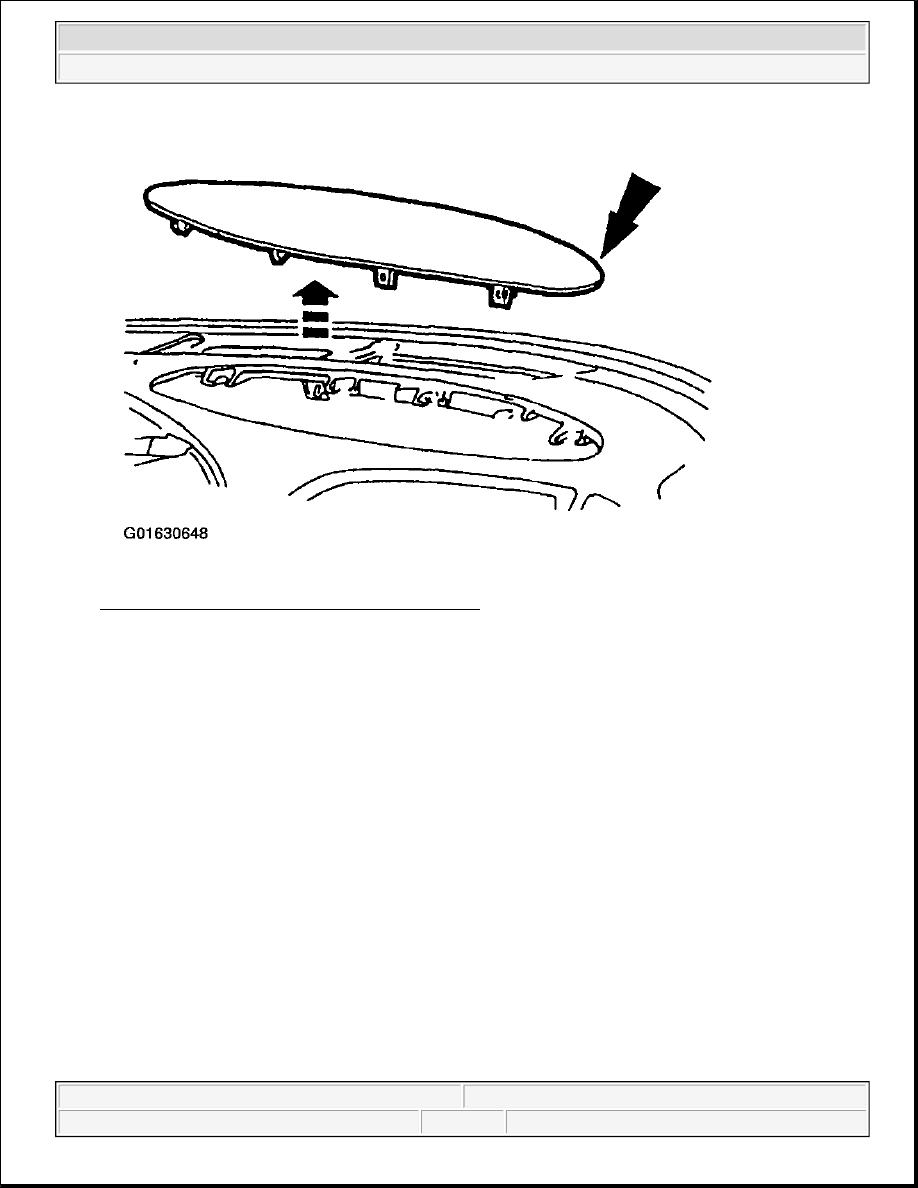

Fig. 44: Removing Instrument Panel Relay Cover
Courtesy of FORD MOTOR CO.

8. Disconnect the passenger air bag module electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
