Fig. 39: Warming Power Mirror Motor Jackscrew And Center Mirror Backing Plate Sockets Using
Special Tool
Courtesy of FORD MOTOR CO.

WARNING:

Place a shop towel between the mirror glass and the hand to avoid
personal injury in the instance of glass breakage.

NOTE:

If equipped, connect the electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

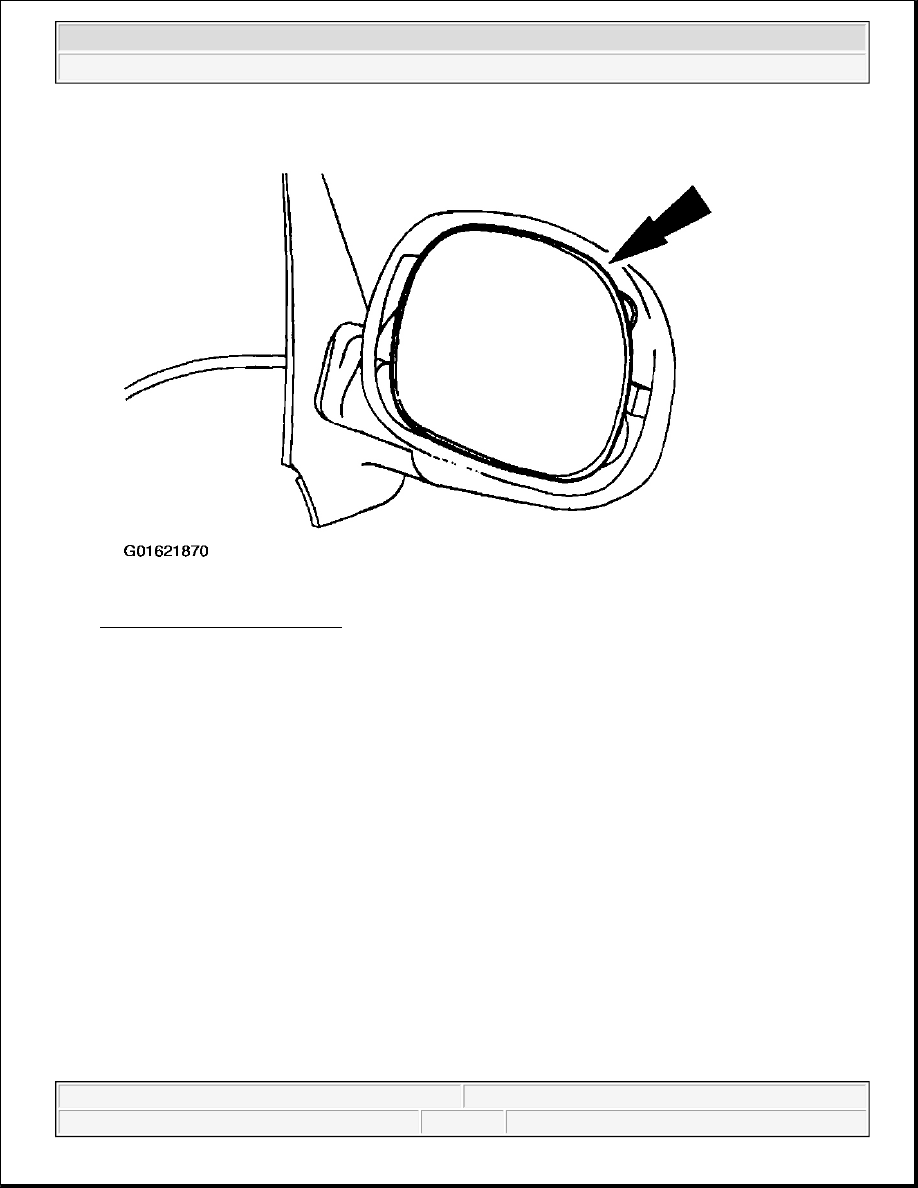

Fig. 40: Installing Mirror Glass
Courtesy of FORD MOTOR CO.

4. Install the mirror glass by applying sufficient force to the mirror glass until the mirror backing plate snaps

into the center pivot of the mirror housing.

5. Engage the power mirror jackscrews into the mirror backing plate.

z

Apply sufficient force to the mirror glass until the power mirror jackscrews snap into the mirror
backing plate.

WARNING:

Place a shop towel between the mirror glass and the hand to avoid
personal injury in the instance of glass breakage.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

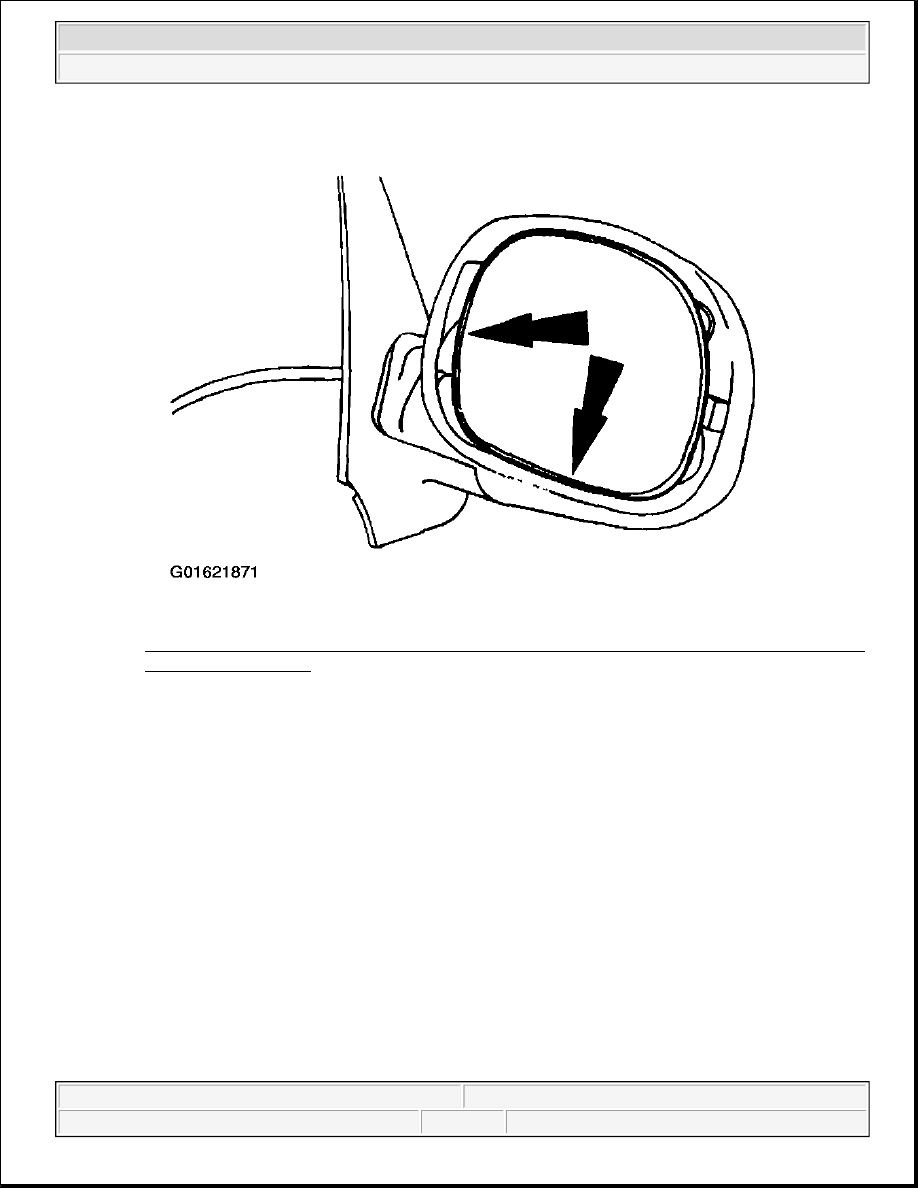

Fig. 41: Applying Sufficient Force To Mirror Glass Until Power Mirror Jackscrews Snap Into
Mirror Backing Plate
Courtesy of FORD MOTOR CO.

6. Test the mirror for normal operation.

INTERIOR REAR VIEW MIRROR

Special Tool(s)



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

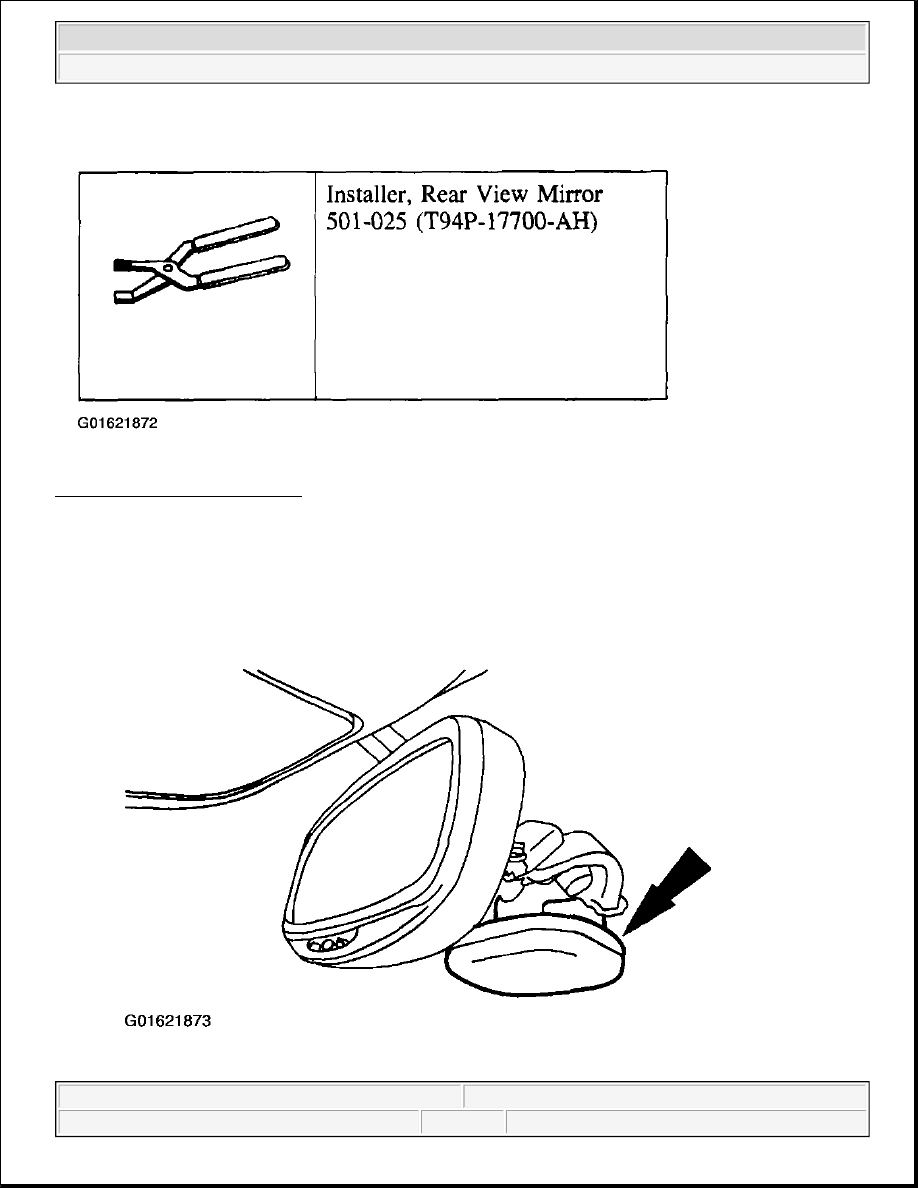

Fig. 42: Identifying Special Tool
Courtesy of FORD MOTOR CO.

Removal

1. If equipped, position the electronic compass sensor aside.



2003 Ford Pickup F150
